X-LAB SP3 Frostbite
Regular price
$1,399.90
includes GST
Couldn't load pickup availability
All Bikes come with a Free 2 Month Service. Call before ordering Bikes online re delivery Instructions.
Need help choosing the right size?
| Model | SP3 | ||||
| Frame | XDS Aluminum Frame | ||||
| Fork | XDS Carbon Fork, 100x12mm Thru-axle | ||||
| Stem | Branta Aluminum Stem, 90mm, 0 Degree Rise | ||||
| Handlebar | Branta X6 Aluminum Handlebar, 25mm Rise, 9 Degree Back Sweep | ||||
| Seatpost | XDS Aluminum 31.6mm Seatpost, 400mm Length, 12mm Setback | ||||
| Rear Derailleur | Shimano Cues RD-U6020, 10-Speed | ||||
| Front Derailleur | / | ||||
| Shifter | Shimano Cues SL-U6000-10R | ||||
| Brakes | Branta C515, 3 Finger Lever, 2 Pistons Caliper | ||||
| Cassette | CS-M6010C 10-speed, 11-40T | ||||
| Crankset | Branta Alloy Square Taper Crankset, 170mm, 40T, Narrow-wide Teeth | ||||
| Bottom Bracket | Square Taper | ||||
| Rotors | Branta AR14, F:160mm R:160mm | ||||
| Chain | TEC GT-Glide | ||||
| Wheelset | Branta A27 Regular, Aluminum Rim | ||||
| Tires | Branta R240, 700x40C, 30TPI | ||||
| Saddle | Branta SRX+ | ||||
| Phone holder | Quadlock Adaptor | ||||
| Weight | 10.71KG (Size L) | ||||
| Max. Tire Clearance | 700x45mm, w/full-wrapped fender | ||||

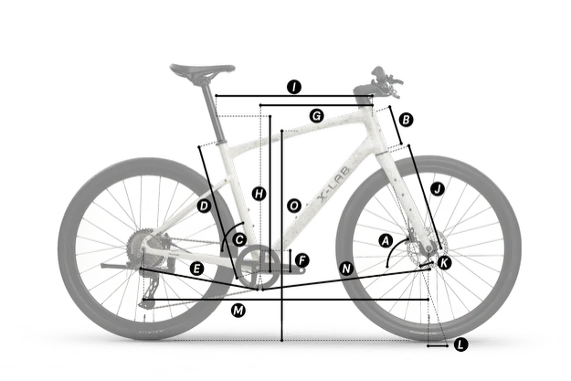

| Frame | Size | S | M | L | XL |
| A | Head Tube Angle (deg) | 70 | 71 | 72 | 73 |
| B | Head Tube Length (mm) | 140 | 165 | 190 | 215 |
| C | Seat Tube Angle (deg) | 75 | 74 | 74 | 73 |
| D | Seat Tube Length (mm) | 405 | 457 | 508 | 559 |
| E | Chainstay Length (mm) | 445 | 445 | 445 | 445 |
| F | BB Drop (mm) | 72 | 72 | 72 | 72 |
| G | Reach (mm) | 390 | 405 | 420 | 425 |
| H | Stack (mm) | 563 | 589 | 615 | 643 |
| I | Top Tube Length (mm) | 546 | 574 | 602 | 622 |
| J | Fork Length(mm) | 398 | 398 | 398 | 398 |
| K | Fork Rake/Offset (mm) | 46 | 46 | 46 | 46 |
| L | Trail (mm) | 79 | 75 | 71 | 64 |
| M | Wheelbase (mm) | 1054 | 1072 | 1089 | 1092 |
| N | Front Center (mm) | 619 | 637 | 654 | 657 |
| O | Stand-over Height (mm) | 727 | 768 | 809 | 850 |
| Components | Size | S | M | L | XL |
| Handlebar | 640 | 640 | 660 | 660 |
