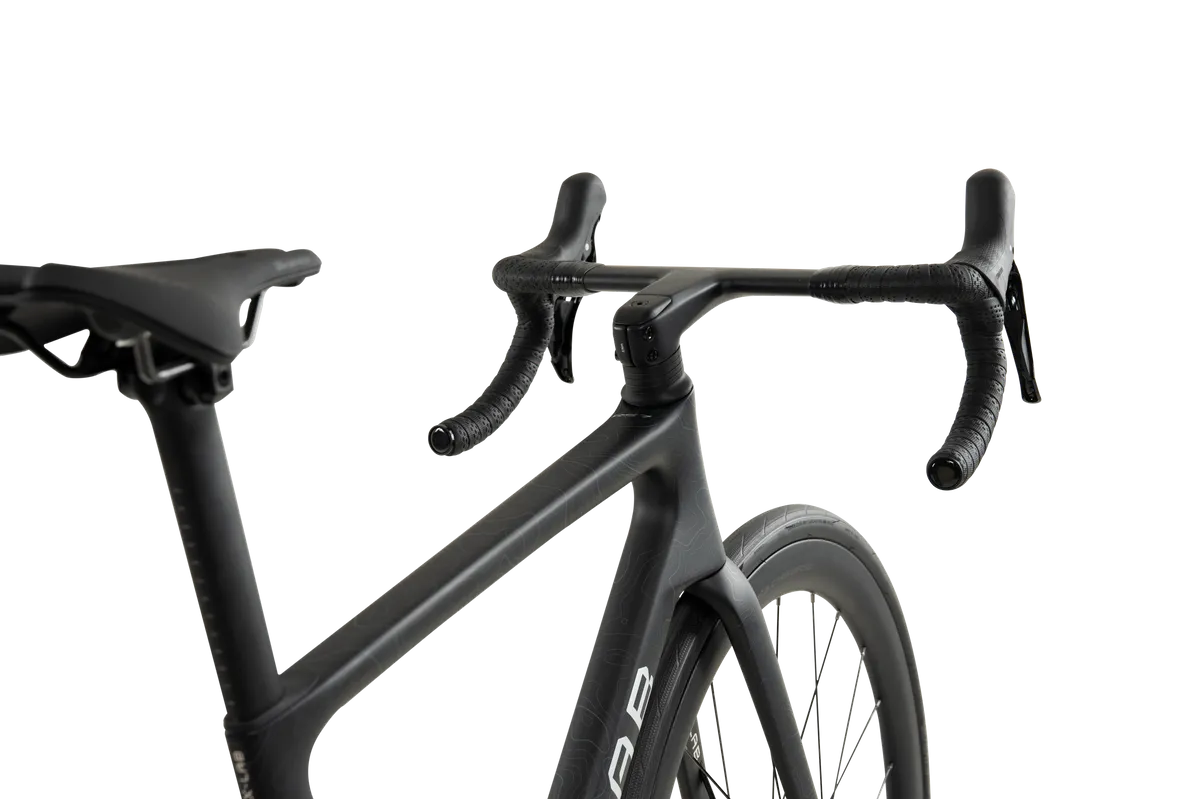

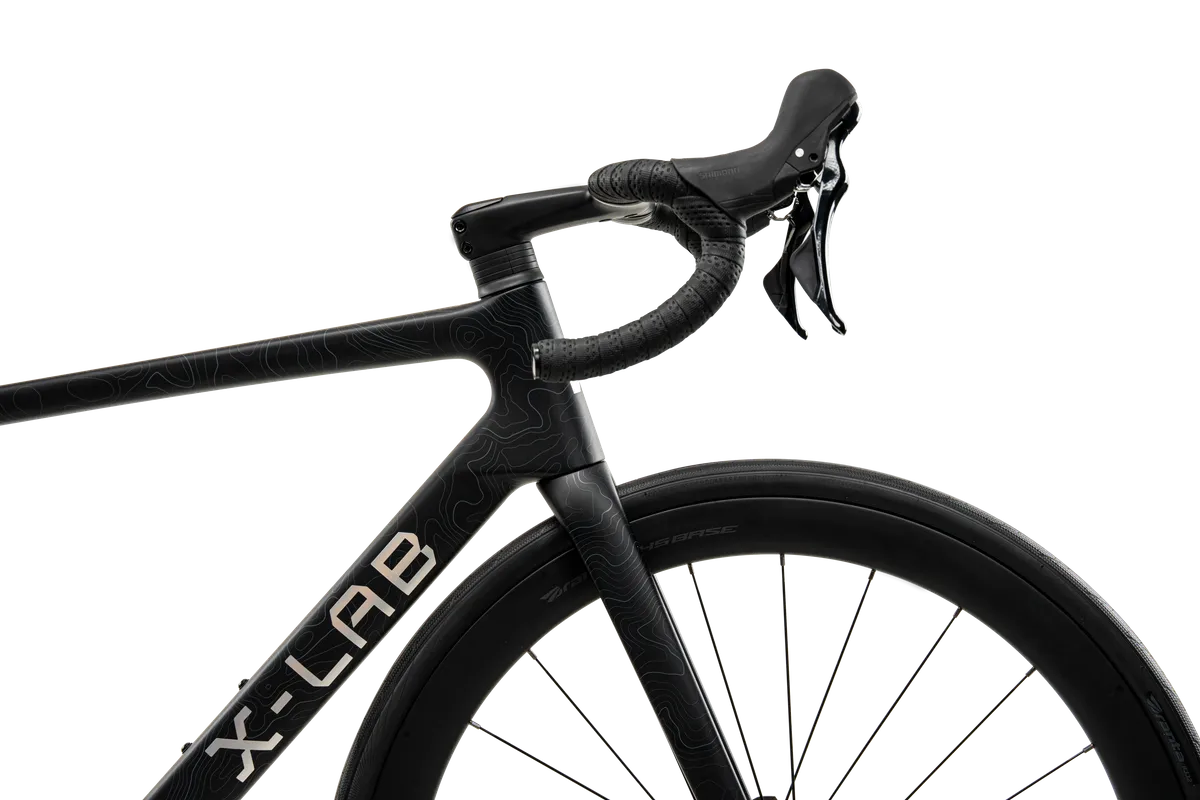

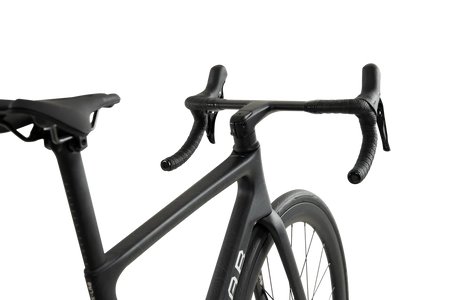

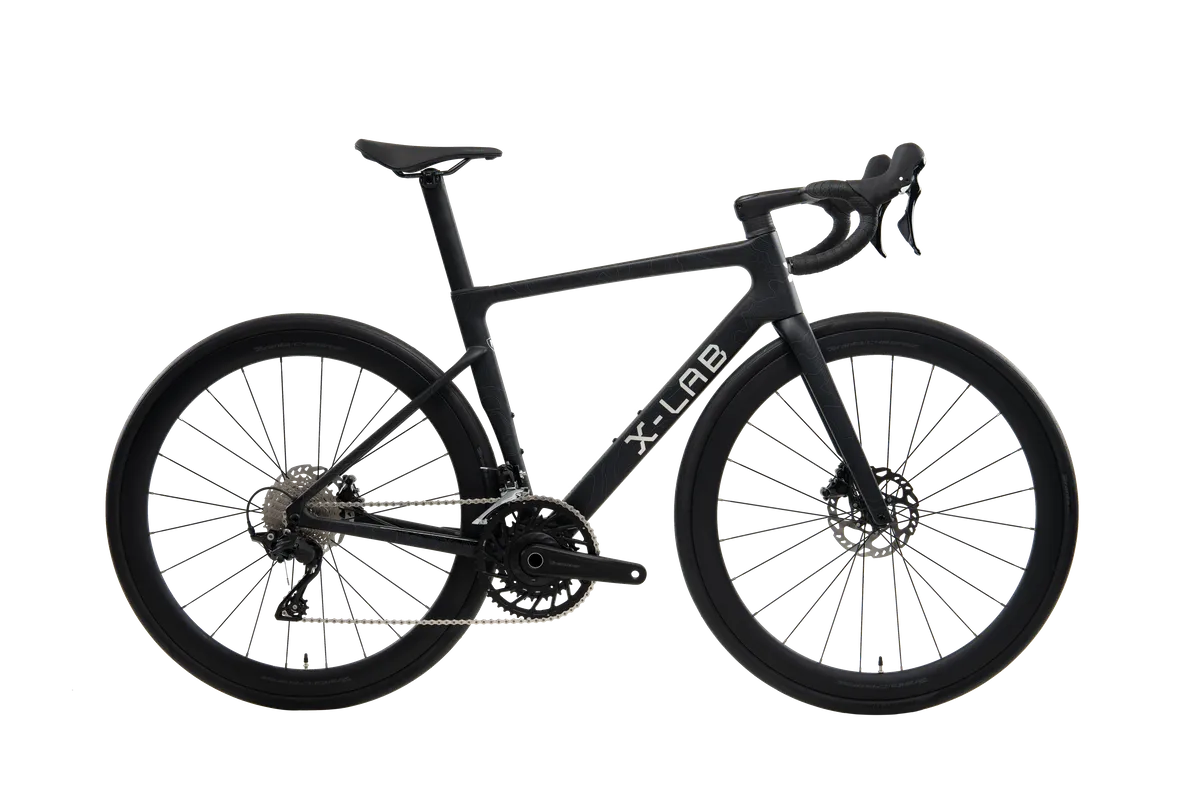

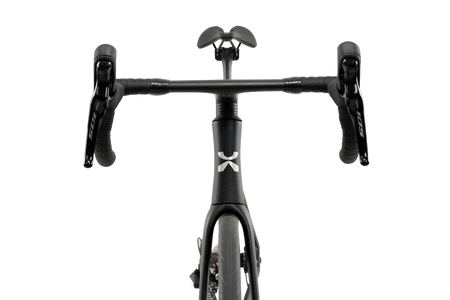

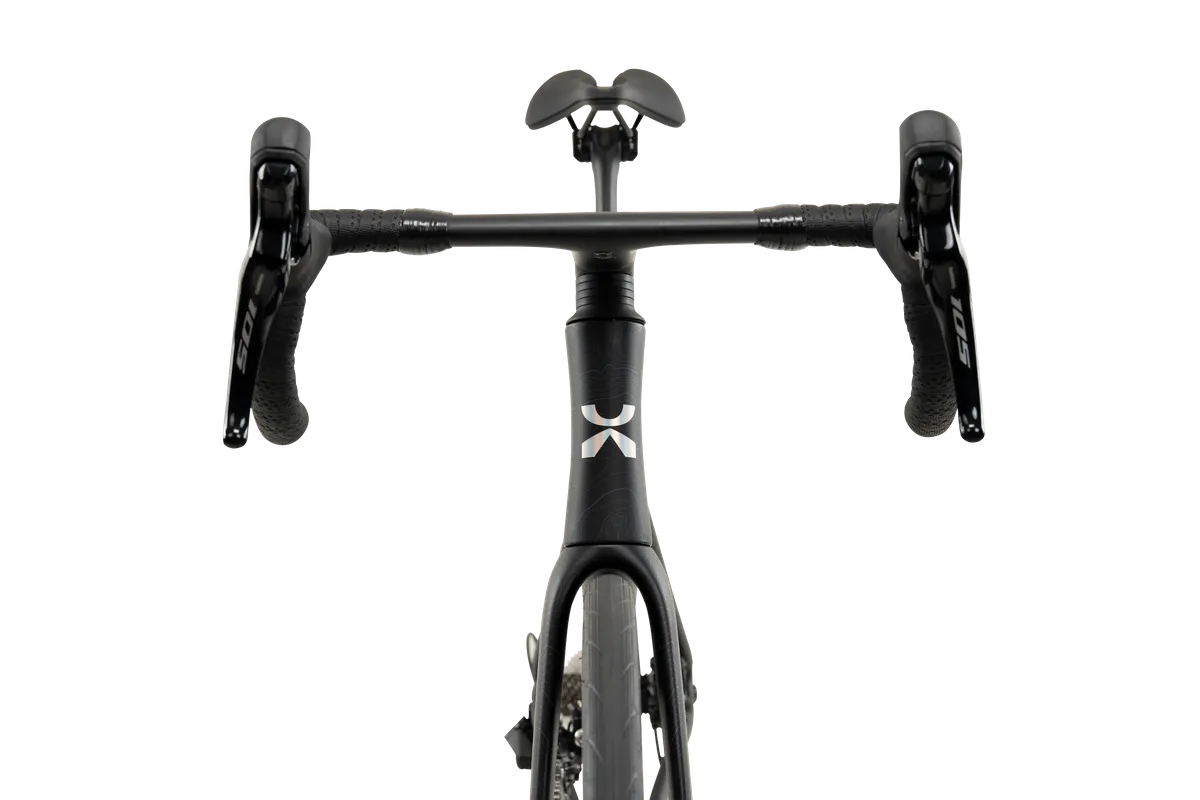

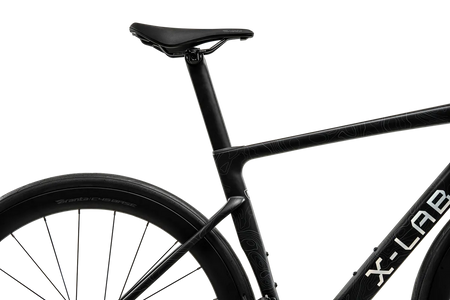

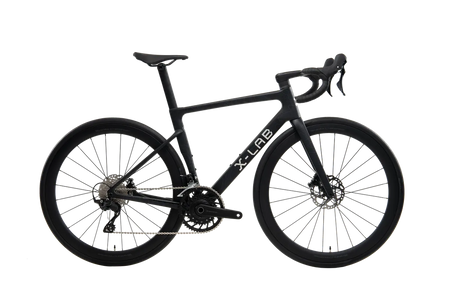

X-LAB RS7 105 Di2 Singularity Black
Couldn't load pickup availability
If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.
Need help choosing the right size?
| Model | RS7 105 Di2 |
| Frame | X-LAB Carbon Frame |
| Fork | X-LAB Carbon Fork, 100x12mm Thru-axle |

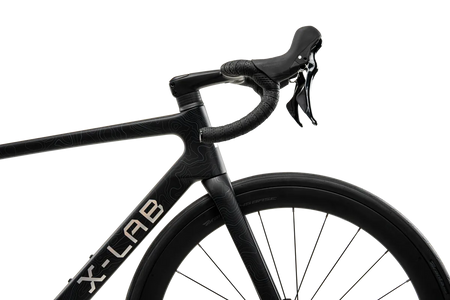

| Stem | Branta Carbon Integrated |
| Handlebar | |

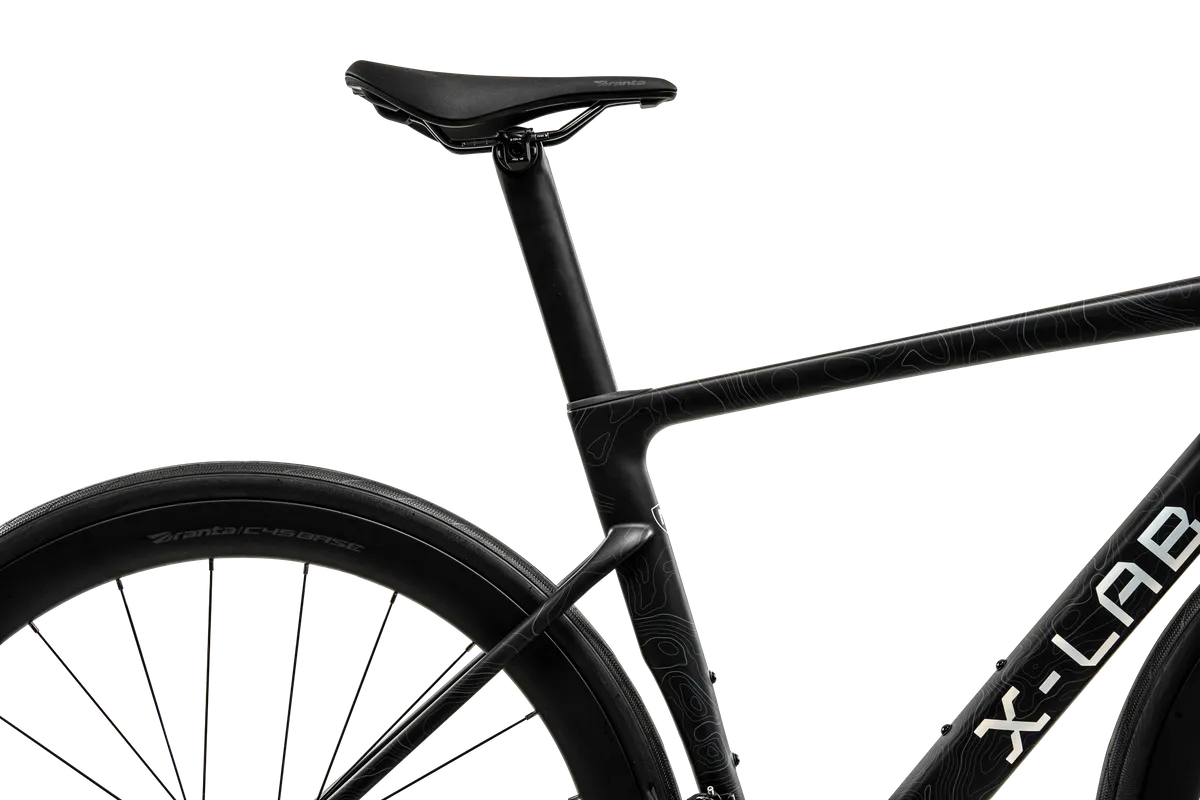

| Seatpost | XDS Carbon Seatpost, Aero Shape |

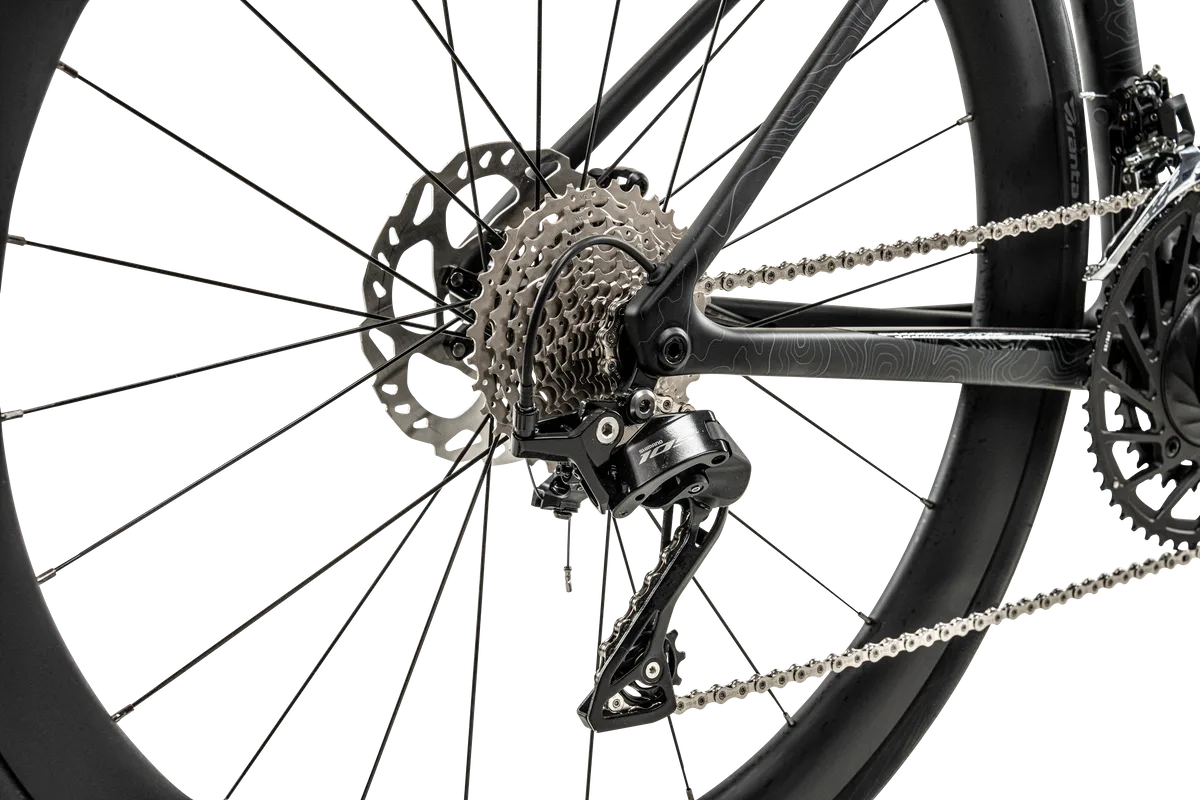

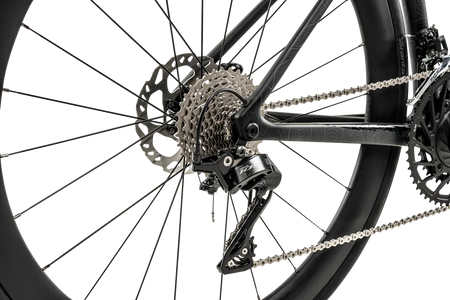

| Rear Derailleur | Shimano 105 Di2 RD-R7150 |
| Front Derailleur | Shimano 105 Di2 FD-R7150 |
| Shifters | Shimano 105 Di2 ST-R7170 |
| Brakes | Shimano 105 BR-R7170 |
| Cassette | Shimano 105 CS-R7101, 11-34T |
| Crankset | Branta Aluminum Power Meter Crankset, 52-36T, 24mm Steel Spindle, Apple Find My Anti-Theft Technology |
| Bottom Bracket | BSA 24mm |
| Rotors | Shimano SM-RT70, Front: 160mm / Rear: 140mm |
| Chain | Shimano CN-M7100 |
| Wheelset | Branta C45 Base, Stainless Steel Spokes |
| Tires | Branta R301, 700x30C, 60TPI |
| Saddle | Branta R302, Steel Rails |
| Frame | Size | XS | S | M | L | XL | XXL |
| A | Seat Tube Length (mm) | 420 | 440 | 470 | 490 | 510 | 530 |
| B | Top Tube Length (mm) | 500 | 515 | 531 | 550 | 570 | 590 |
| C | Head Tube Length (mm) | 130 | 135 | 145 | 160 | 175 | 200 |
| D | Seat Tube Angle (deg) | 75 | 75 | 75 | 74 | 74 | 74 |
| E | Head Tube Angle (deg) | 70 | 72 | 73 | 73 | 73 | 74 |
| F | Chainstay Length (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| G | Wheelbase (mm) | 973 | 976 | 982 | 993 | 1006 | 1016 |
| H | Fork Rake/Offset (mm) | 55 | 55 | 45 | 45 | 45 | 45 |
| I | BB Drop (mm) | 72 | 72 | 70 | 70 | 68 | 68 |
| J | Stack (mm) | 526 | 535 | 546 | 561 | 574 | 602 |
| K | Reach (mm) | 360 | 370 | 380 | 390 | 400 | 412 |
| L | Front Center (mm) | 574 | 577 | 581 | 593 | 606 | 616 |
| O | Stand-over Height (mm) | 737 | 752 | 772 | 789 | 807 | 830 |
| Trail (mm) | 65 | 58 | 62 | 60 | 58 | 52 |
| Components | XS | S | M | L | XL | XXL | |
| Stem | 90 | 100 | 110 | 110 | 120 | 120 | |
| Handlebar | 360 | 380 | 380 | 380 | 400 | 400 | |
| Crankset | 165 | 165 | 170 | 170 | 172.5 | 172.5 | |
| Seat Post | 300 | 300 | 300 | 350 | 400 | 400 |
| Sizing | Size | XS | S | M | L | XL | XXL |
| Recommended Rider Height | 148 cm – 158 cm 4'10" - 5'2" |
158 cm – 168 cm 5'2" - 5'6" |
168 cm – 176 cm 5'6" - 5'9" |
176 cm – 183 cm 5'9" - 6'0" |
183 cm – 191 cm 6'0" - 6'3" |
191 cm – 202 cm 6'3" - 6'7" |
We use a premium delivery service to deliver all of our bikes to ensure they arrive in the best possible condition. Bicycles from a different warehouse so may arrive separately to any other items ordered. A signature is required to confirm proof of delivery.
All products are sourced from official importers and covered by manufacturers warranty. If you do need to send items back to us please make sure that you retain proof of postage in the event that it is needed.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
