X-LAB RS7 105 12sp Singularity Black

Out of stock
SKU: BXL9250-00022
(0)
$3,999.00 includes GST
Variant
All Bikes come with a Free 2 Month Service. Call before ordering Bikes online re delivery Instructions.

Need help choosing the right size?

Read our guide or get in touch

Race-inspired speed, all-road performance, built for the everyday ride.

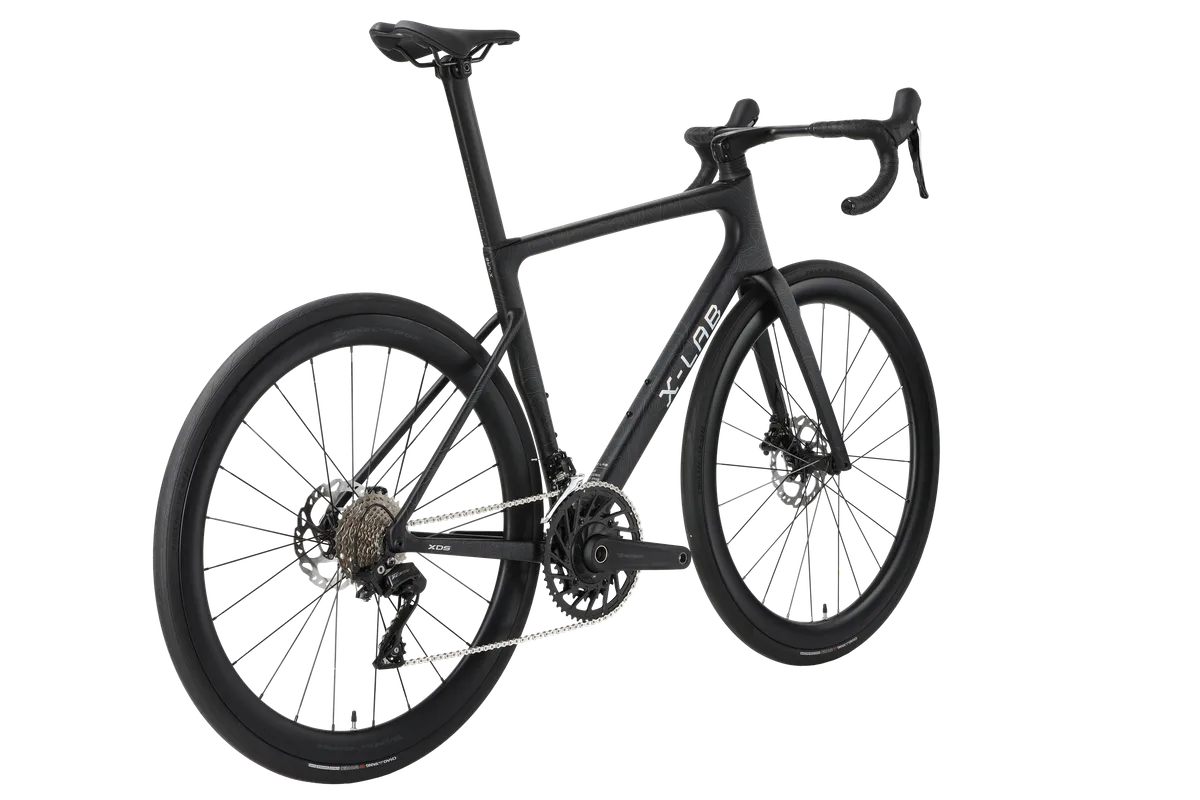

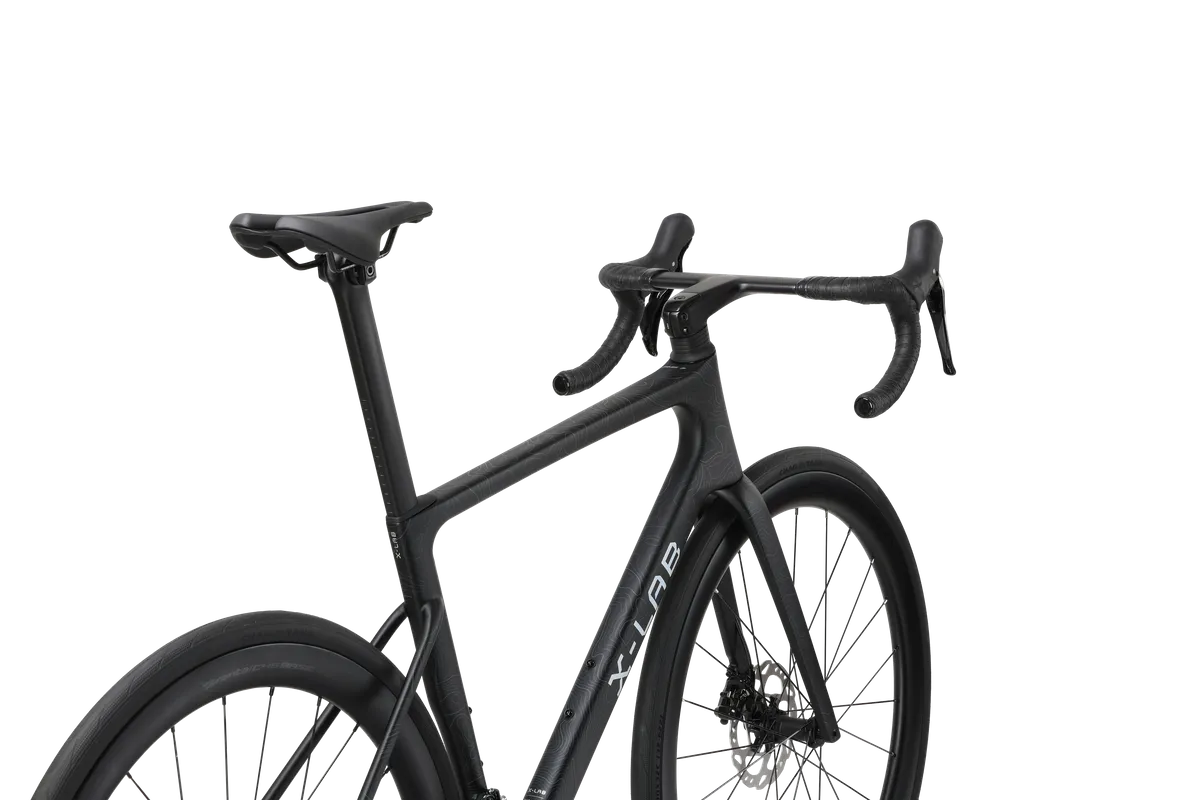

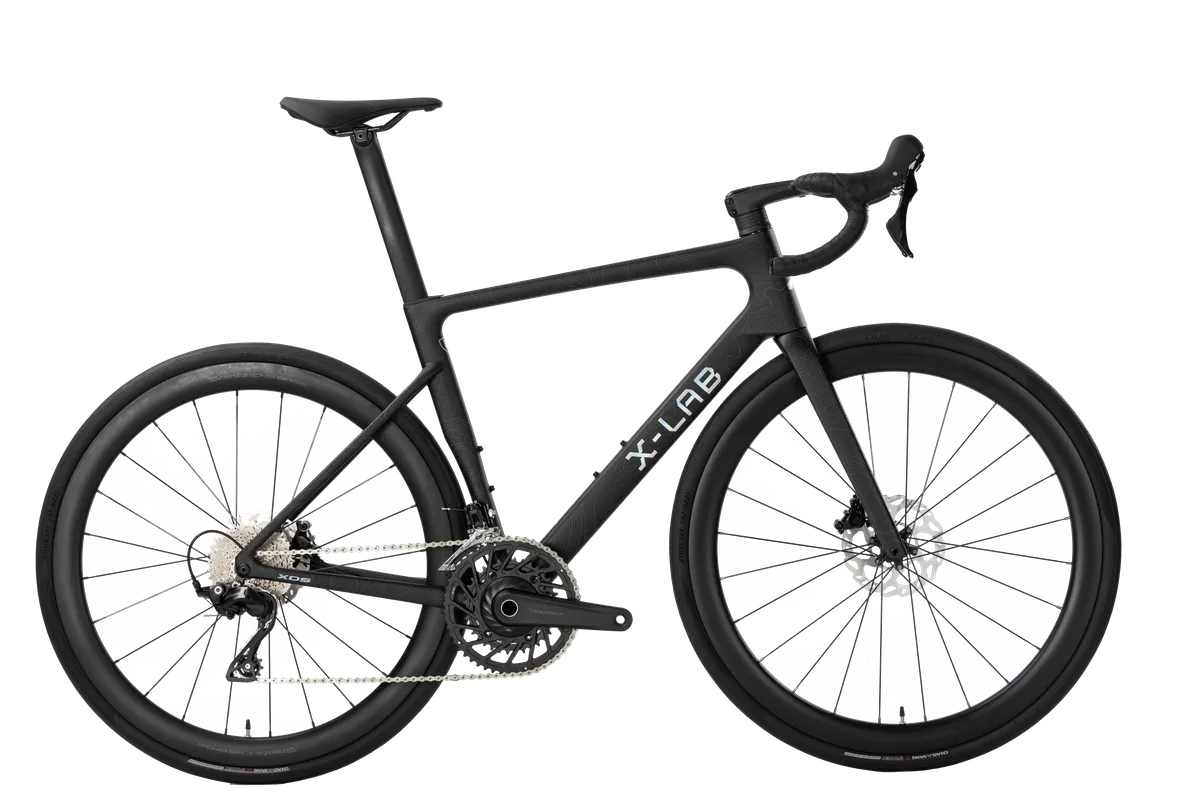

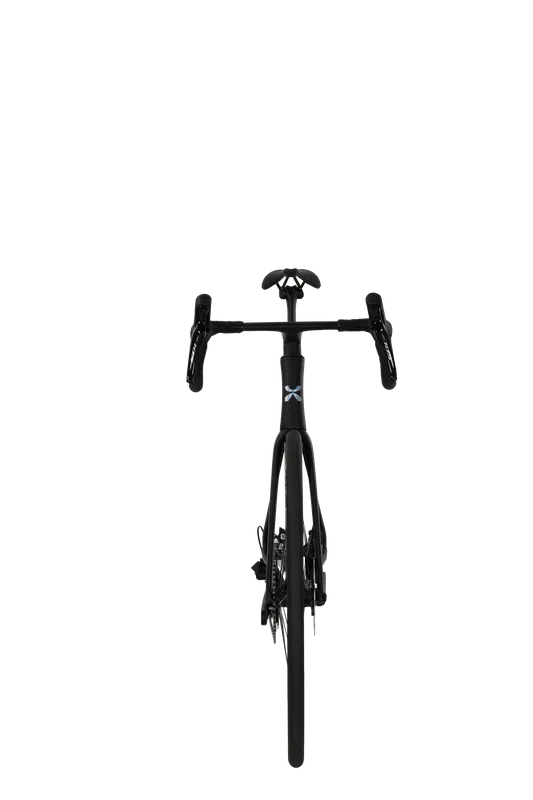

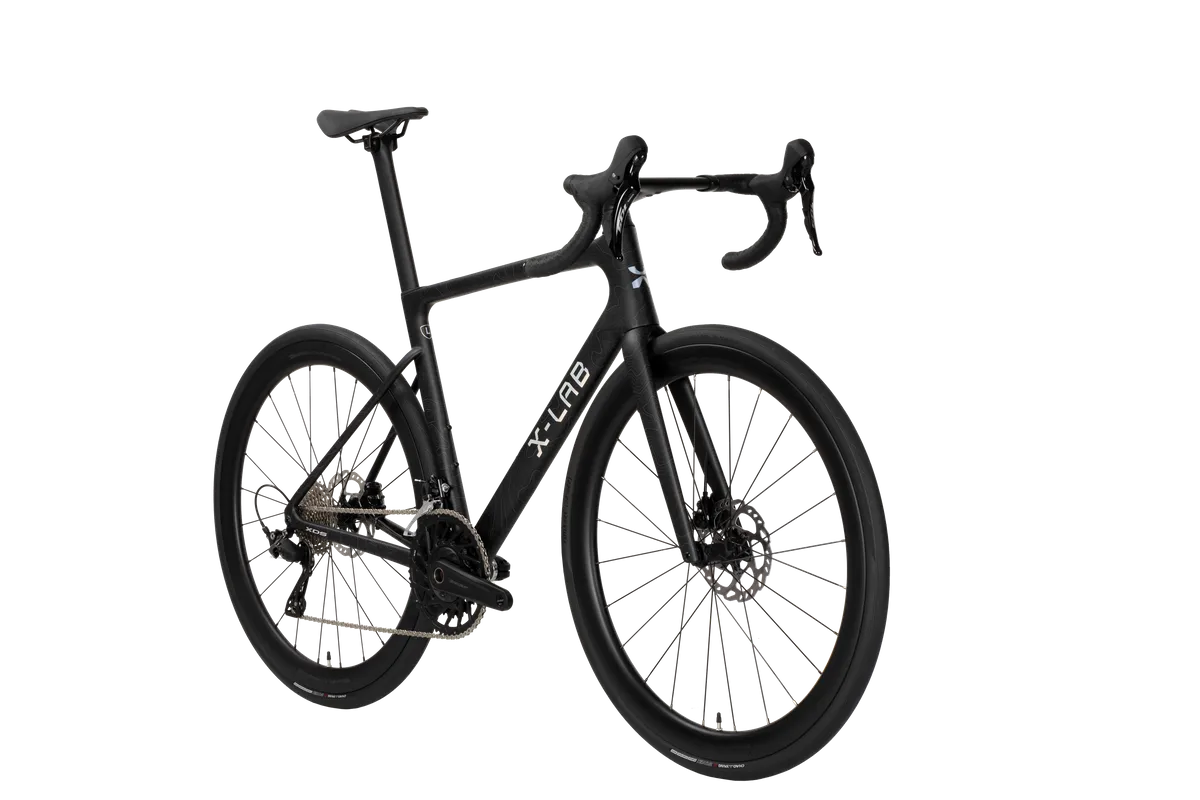

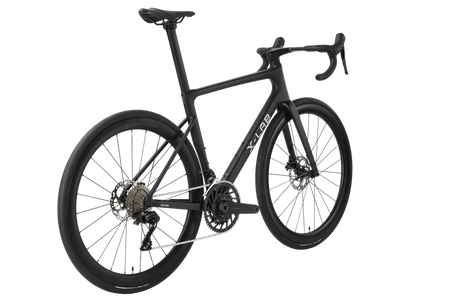

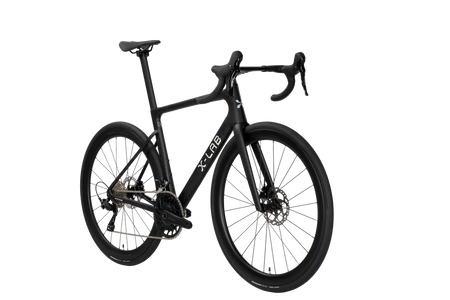

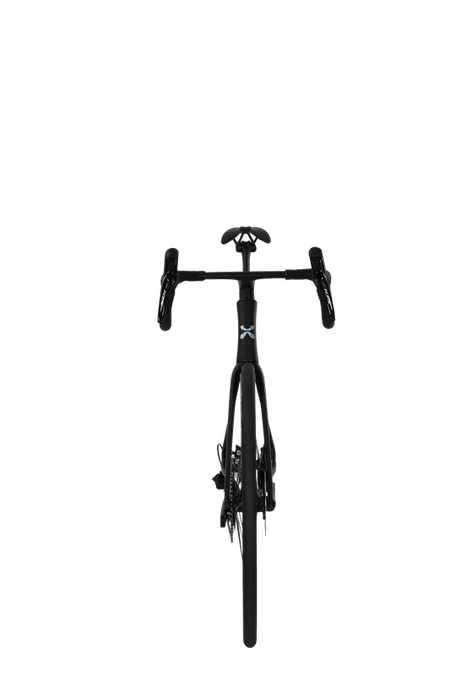

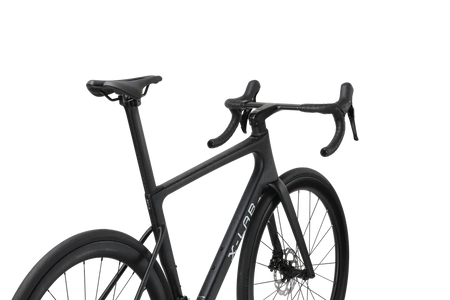

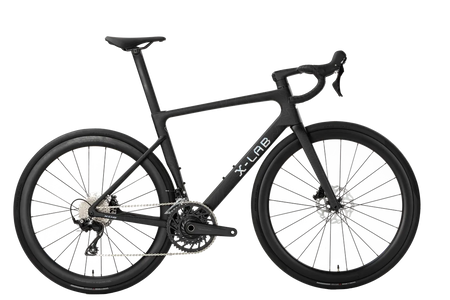

X-LAB RS7

The RS7 blends aerodynamic efficiency with everyday rideability.

Its performance-oriented geometry and refined carbon construction deliver speed when you push, while maintaining the comfort and stability needed for longer rides.

Equally at home on weekend training routes or daily commutes, the RS7 offers a balanced performance platform that riders return to again and again.


Carbon Confidence, Every Day

The RS7 is the road bike that makes true performance feel approachable for all riders, boasting full carbon responsiveness, drop-bar control, and a geometry that’s ready for everything from country roads to your fastest group ride.


Topography-Inspired Colorways

Inspired by the contours of iconic mountain terrains, RS7’s finishes aren’t just paint; they’re a nod to the roads that shape riders and the climbs that define seasons.


Making Upgrades Simply Standard

With a Branta alloy crankset featuring a built-in power meter and Find My connectivity, RS7 delivers the upgrades riders usually pay extra for, all baked in from day one.


Key Features

Branta C45 Base carbon wheelset

Shimano 105 groupset

Aero carbon seatpost

Full carbon frame and fork | Full bike 8.49 kg


Technical Specifications

FRAME

XDS Carbon Frame, Toray T-700


FORK

XDS Carbon Fork, Toray T-700, 100x12mm Thru-axle


HANDLEBAR / STEM

Branta Carbon Integrated


SEATPOST

XDS Carbon Seatpost, Aero Profile


REAR DERAILLEUR

Shimano 105 RD-R7100


FRONT DERAILLEUR

Shimano 105 FD-R7100


SHIFTERS

Shimano 105 ST-R7120


BRAKES

Shimano 105 BR-R7170


CASSETTE

CS-R9012, 12-Speed, 11-34T


CRANKSET

Branta Alloy Power Meter Crankset, 52-36T,

24mm Steel Spindle, Apply Find My Anti-Theft Technology


BOTTOM BRACKET

BSA 24mm


ROTORS

Shimano SM-RT70, F:160mm R:160mm


CHAIN

SUMC SX12


WHEELSET

Branta C45 Base Carbon Wheelset, Stainless Steel Spokes


TIRES

Branta R332, 700x32C, 60TPI


SADDLE

Branta R302, Steel Rails


WEIGHT

8.49 kg / 18.67 lbs (Size L)


SIZE OPTIONS

XS / S / M / L / XL / XXL

Frame Size XS S M L XL XXL
A Seat Tube Length (mm) 420 440 470 490 510 530
B Top Tube Length (mm) 500 515 531 550 570 590
C Head Tube Length (mm) 130 135 145 160 175 200
D Seat Tube Angle (deg) 75 75 75 74 74 74
E Head Tube Angle (deg) 70 72 73 73 73 74
F Chainstay Length (mm) 410 410 410 410 410 410
G Wheelbase (mm) 973 976 982 993 1006 1016
H Fork Rake/Offset (mm) 55 55 45 45 45 45
I BB Drop (mm) 72 72 70 70 68 68
J Stack (mm) 526 535 546 561 574 602
K Reach (mm) 360 370 380 390 400 412
L Front Center (mm) 574 577 581 593 606 616
O Stand-over Height (mm) 737 752 772 789 807 830
Trail (mm) 65 58 62 60 58 52
Components XS S M L XL XXL
Stem 90 100 110 110 120 120
Handlebar 360 360 380 380 400 400
Crankset 165 165 170 170 172.5 172.5
Seat Post 300 300 350 350 400 400
