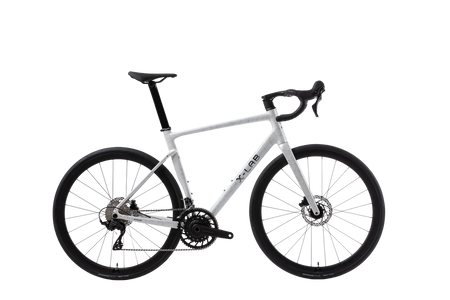

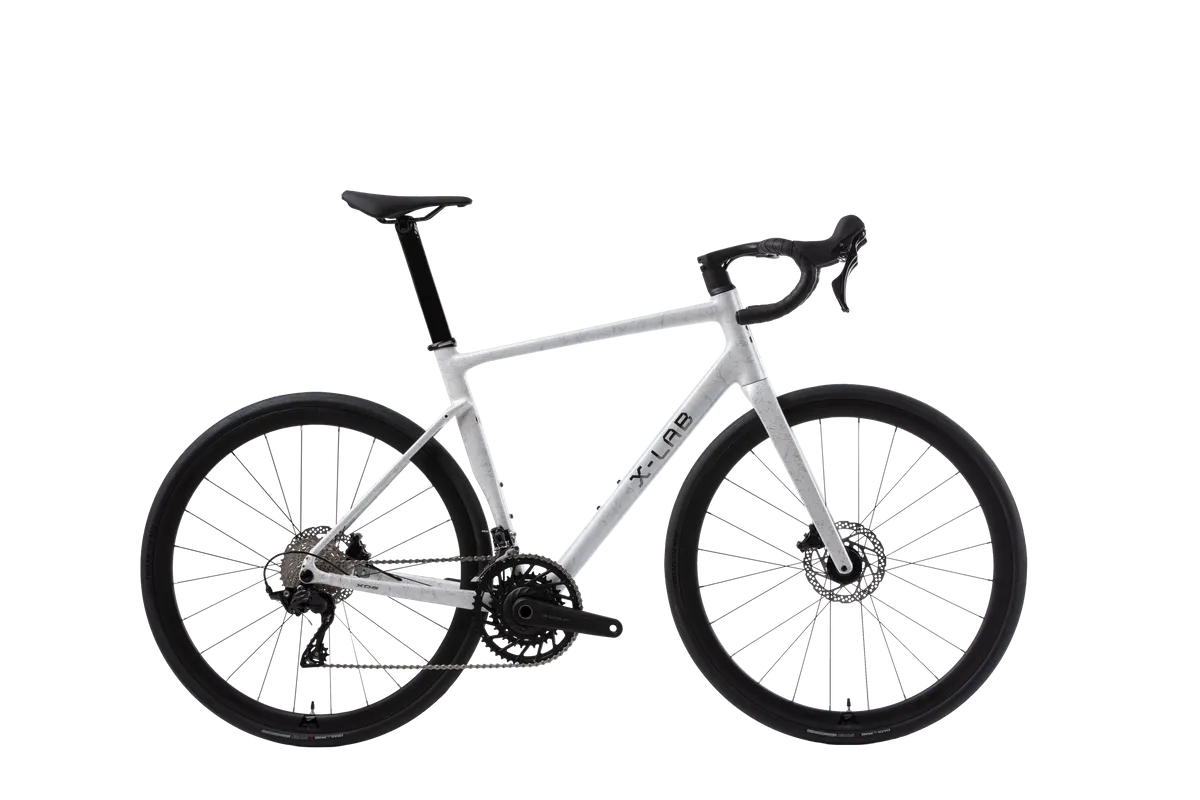

X-LAB RS5 105 12sp Wavebreaker White
Couldn't load pickup availability
If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.
Need help choosing the right size?
Balanced comfort and function, for wherever the road takes you.
X-LAB RS5
The RS5 delivers the X-LAB riding experience in a versatile and approachable form.
Built with durable X6 aluminum alloy and a semi-integrated cockpit, it offers reliable performance, confident handling, and lasting comfort.
Whether you're discovering the sport or simply enjoying the ride, the RS5 is designed to make every mile feel smooth, responsive, and rewarding.
Integrated Design, Real-World Road Bike
RS5 brings the X-LAB fluent design and engineering language to an alloy platform, with a clean cockpit integration paired with Shimano 105 performance so the bike looks and rides like it belongs far above its category.
Alloy Done the X-LAB Way
A precision-engineered alloy frame delivers the kind of durability and ride quality riders trust. The RS5 is built for long miles, daily commutes, and everything in between.
Power + Security, Standard
Branta’s in-house alloy crankset integrates a power meter and Find My tech, turning the RS5 into a smarter bike to train on, track, and own, without asking riders to bolt on costly extras.
Key Features
Shimano groups
38mm tire clearance
Semi-integrated alloy cockpit
Aero carbon seatpost
Technical Specifications
| Model | RS5 |
| Frame | X-LAB X6 Aluminum Frame, UDH Compatible |
| Fork | X-LAB Carbon Fork, 100x12mm Thru-axle |
| Stem | Branta Alloy Integrated |
| Handlebar | |
| Seatpost | XDS Carbon Seatpost, Aero Shape |
| Rear Derailleur | Shimano 105 RD-R7100, 12-Speed |
| Front Derailleur | Shimano 105 FD-R7100 |
| Shifters | Shimano 105 ST-R7120 |
| Brakes | Shimano 105 BR-R7170 |
| Cassette | CS-R9012, 12-Speed, 11-34T |
| Crankset | Branta Aluminum Power Meter Crankset, 52-36T, 24mm Steel Spindle, w/Apply Find My Anti-Theft Technology |
| Bottom Bracket | BSA 24mm |
| Rotors | Branta PN28, F:160 R:160mm |
| Chain | Shimano CN-M7100 |
| Wheelset | Branta A35 SL, Aluminum Rims |
| Tires | Branta R332, 700x32C, 60TPI |
| Saddle | Branta R302, Steel Rails |
| Weight | 9.54KG (Size L) |
| Max. Tire Clearance | 700x38mm |

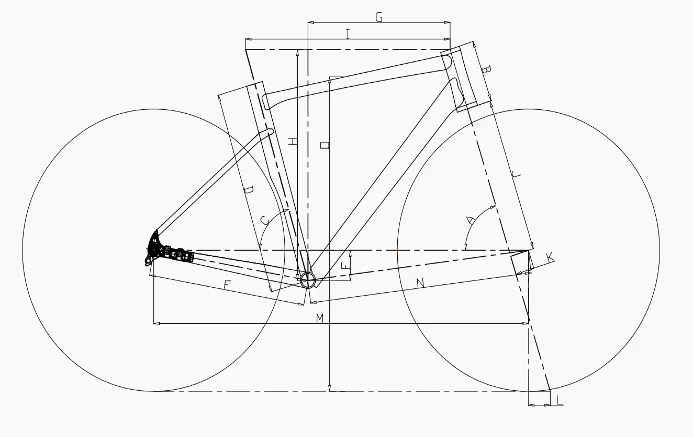

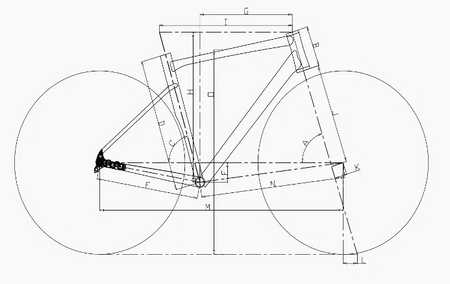

| Frame | Size | XS | S | M | L | XL |
| A | Head Tube Angle (deg) | 71 | 72 | 73 | 73 | 73 |
| B | Head Tube Length (mm) | 115 | 135 | 155 | 180 | 205 |
| C | Seat Tube Angle (deg) | 75 | 74 | 74 | 73 | 73 |
| D | Seat Tube Length (mm) | 440 | 480 | 510 | 540 | 560 |
| E | Chainstay Length (mm) | 420 | 420 | 420 | 420 | 420 |
| F | BB Drop (mm) | 75 | 75 | 75 | 75 | 75 |
| G | Reach (mm) | 371 | 375 | 381 | 387 | 394 |
| H | Stack (mm) | 530 | 553 | 575 | 599 | 623 |
| I | Top Tube Length (mm) | 515 | 530 | 548 | 568 | 585 |
| J | Fork Length(mm) | 386 | 386 | 386 | 386 | 386 |
| K | Fork Rake/Offset (mm) | 50 | 50 | 50 | 50 | 50 |
| L | Trail (mm) | 71 | 65 | 58 | 58 | 58 |
| M | Wheelbase (mm) | 999 | 1001 | 1004 | 1018 | 1033 |
| N | Front Center (mm) | 590 | 592 | 596 | 609 | 624 |
| O | Stand-over Height (mm) | 725 | 758 | 784 | 810 | 831 |
| Components | Size | XS | S | M | L | XL |
| Stem | 80 | 80 | 100 | 100 | 100 | |
| Handlebar | 380 | 380 | 400 | 400 | 420 | |
| Crankset | 165 | 165 | 170 | 170 | 172.5 | |
| Seat Post | 300 | 300 | 300 | 400 | 400 |
