Home » X-LAB AD9 Dura Ace Di2 2050 Gold/Black
X-Lab Bikes SKU: BXL9250-00039

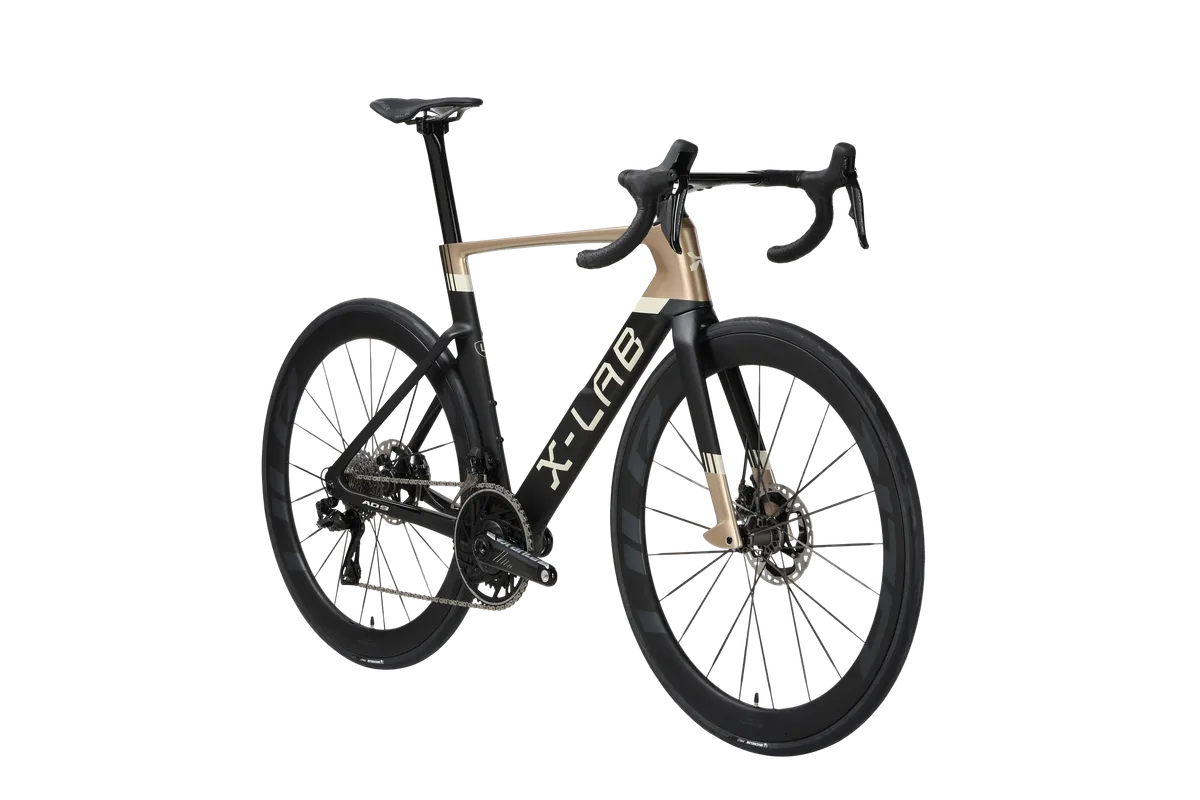

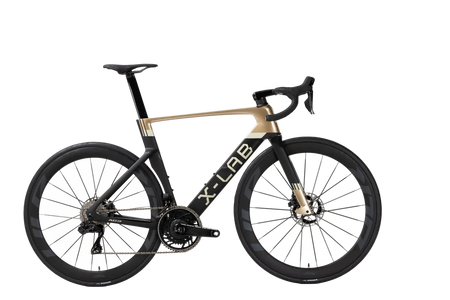

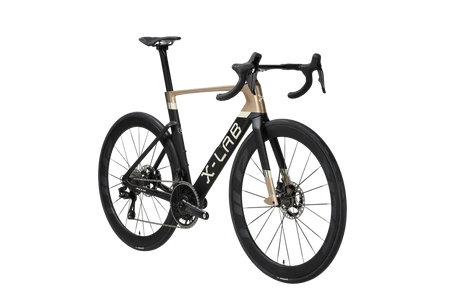

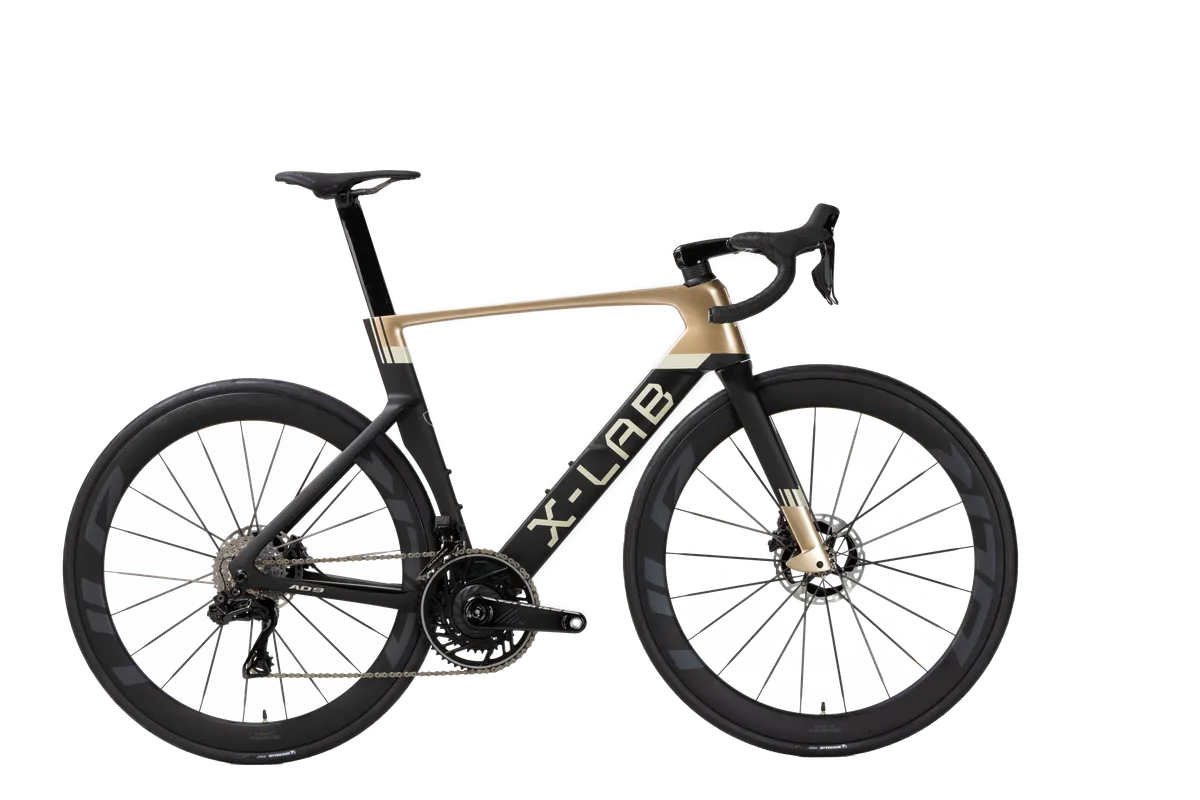

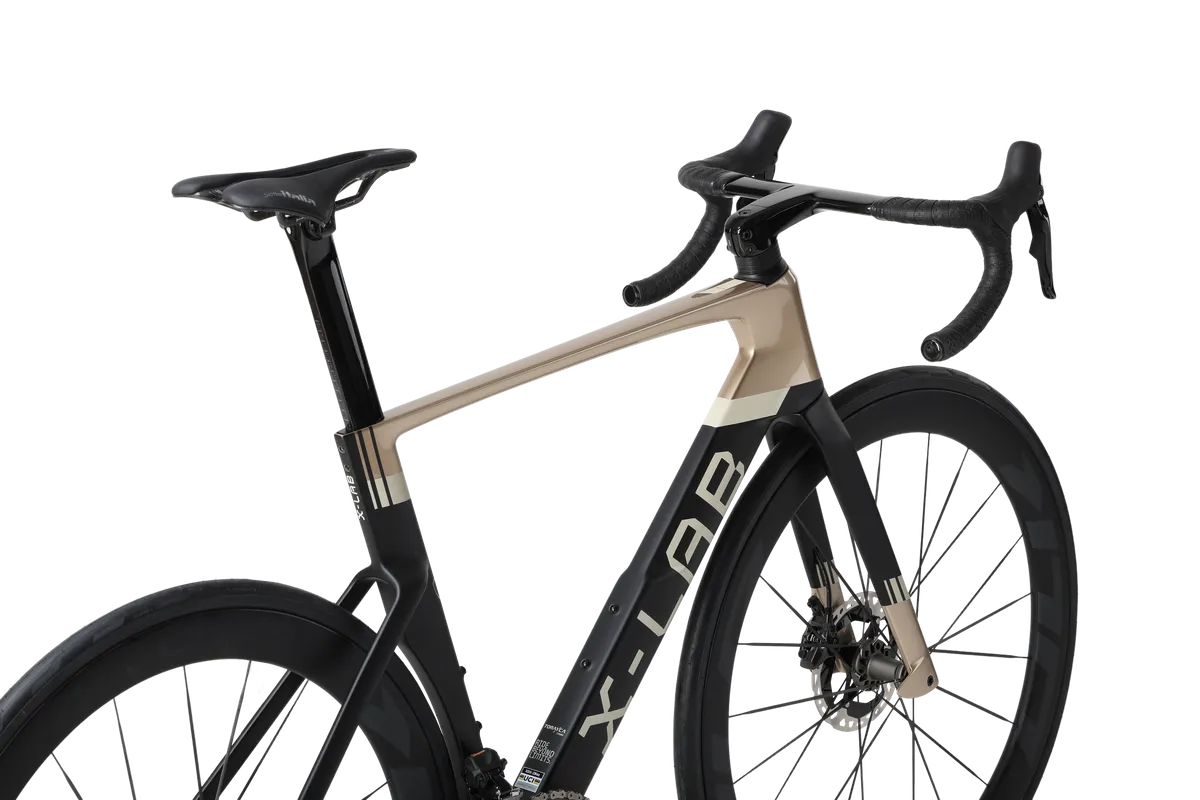

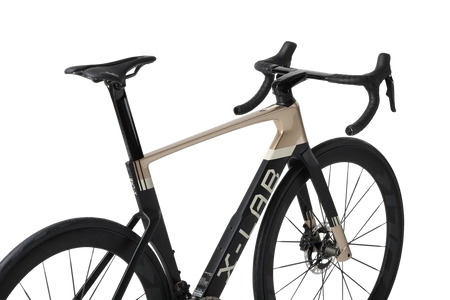

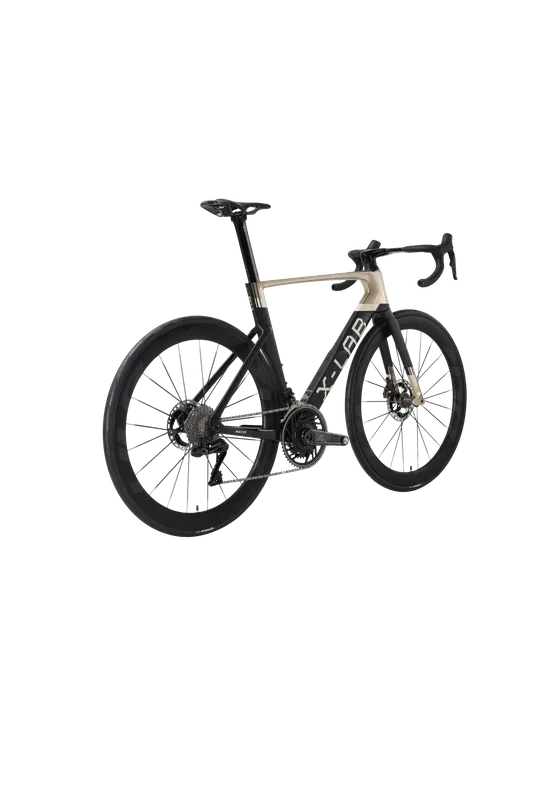

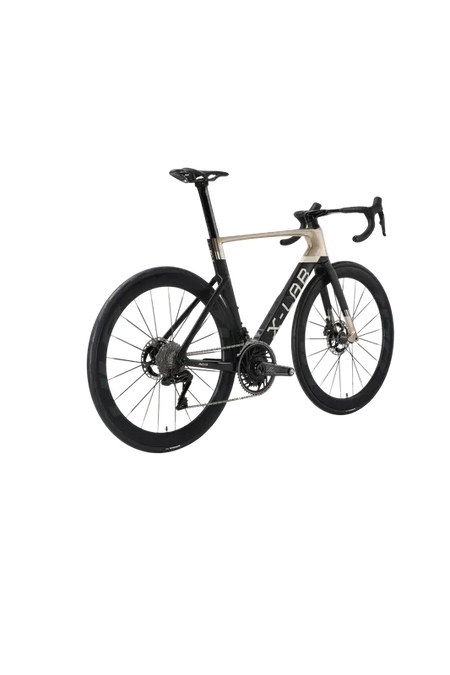

X-LAB AD9 Dura Ace Di2 2050 Gold/Black

(0)
Papanui Cycles is located in Christchurch, offering a wide selection of bikes, parts, and cycling gear in New Zealand. Our online store ships directly from our New Zealand suppliers to ensure fast and reliable delivery. Thanks Kevin Lee (Owner)
$11,999.90 includes GST
Variant
Please Note

If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.

Need help choosing the right size?

Read our guide or get in touch

The AD9 is X-LAB's most aerodynamic bike, sharing the same frame as the Astana Pro Team. Wind tunnel tested, it rivals top aero bikes on the market. Perfect for flat sprints and racing.


Model


AD9
Frame X-LAB Carbon Frame
Fork X-LAB Carbon Fork, 100x12mm Thru-axle
Stem Branta Carbon Integrated
Handlebar
Seatpost XDS Carbon Seatpost, Aero Shape
Rear Derailleur Shimano Dura-Ace RD-R9250
Front Derailleur Shimano Dura-Ace FD-R9250
Shifter Shimano Dura-Ace ST-R9270
Brakes Shimano Dura-Ace BR-R9270
Cassette Shimano Dura-Ace CS-R9200, 11-34T
Crankset Branta Carbon Powermeter Crankset, 52-36T, 29mm Aluminum Spindle
BB T47 29mm
Rotors Shimano SM-MT900, F:160mm R:160mm
Chain Shimano CN-M9100
Wheelset Branta C50 ULR, Carbon Spokes
Tires Michelin Pro 5 700x28C
Saddle Selle Italia SLR Boost, Carbon Rails(Regular)
Weight

6.82KG (Size L)


Frame

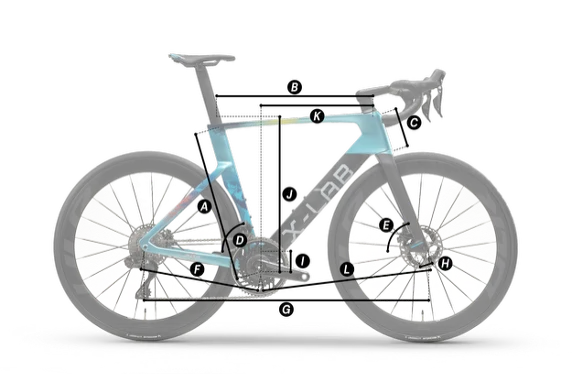

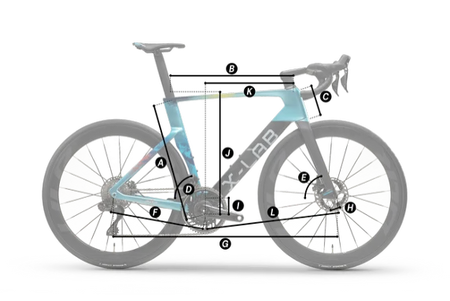

 Size XS S M L XL
A Seat Tube Length (mm) 470 495 515 540 565
B Top Tube Length (mm) 504 523 540 559 579
C Head Tube Length (mm) 105 118 130 148 171
D Seat Tube Angle (deg) 75 75 74 74 73
E Head Tube Angle (deg) 71 72 73 73 73
F Chainstay Length (mm) 410 410 410 410 410
G Wheelbase (mm) 970 978 982 992 1007
H Fork Rake/Offset (mm) 48 48 43 43 43
I BB Drop (mm) 72 72 70 70 70
J Stack (mm) 505 520 534 553 575
K Reach (mm) 371 379 387 395 405
L Front Center (mm) 575 582 583 592 607
Trail (mm) 67 63 64 61 59
Components Size XS S M L XL
Stem 90 90 100 100 120
Handlebar 360 360 380 380 400
Crankset 160 160 165 165 170
Seat Post 300 300 300 300 300

We use a premium delivery service to deliver all of our bikes to ensure they arrive in the best possible condition. Bicycles from a different warehouse so may arrive separately to any other items ordered. A signature is required to confirm proof of delivery.

All products are sourced from official importers and covered by manufacturers warranty. If you do need to send items back to us please make sure that you retain proof of postage in the event that it is needed.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
