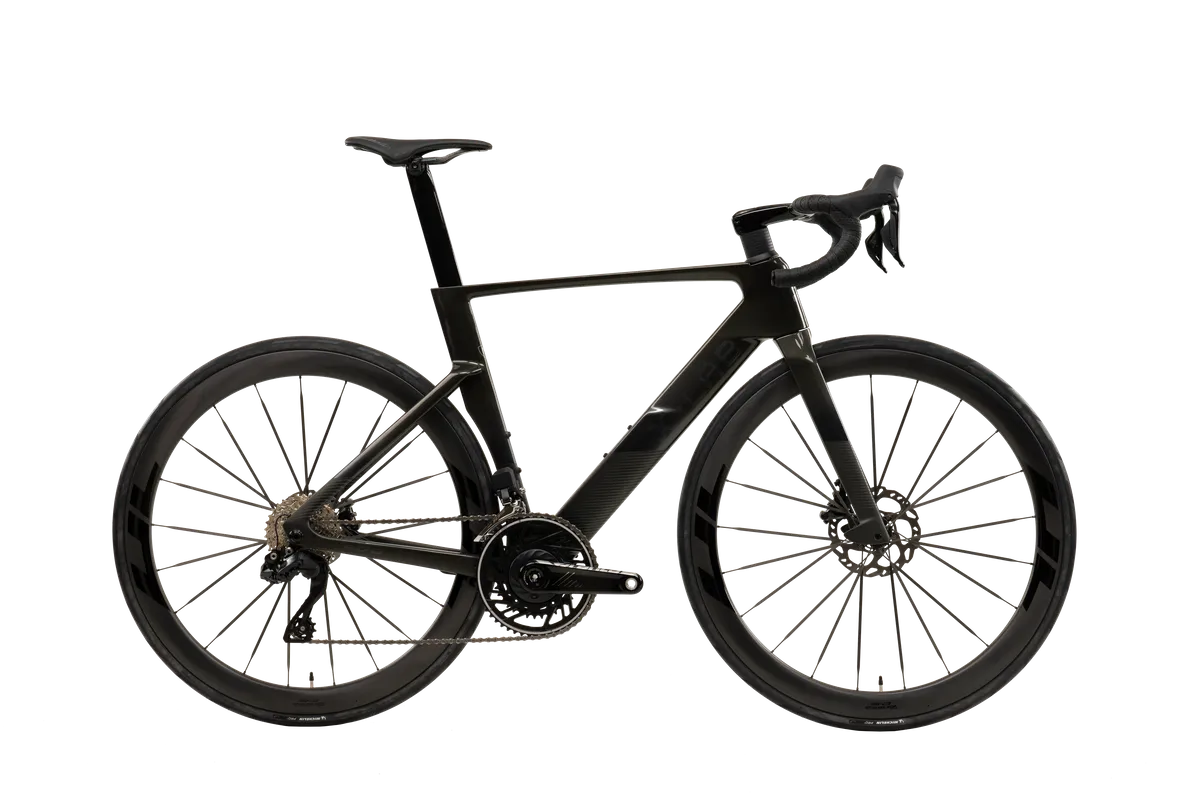

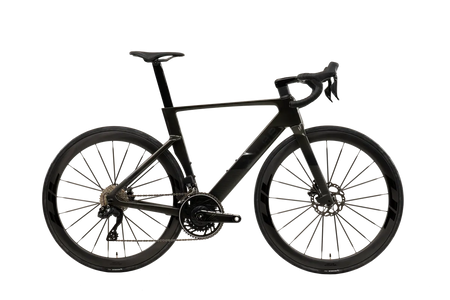

X-LAB AD8 105 Di2 Strata Grey/Black

In stock
SKU: BXL9250-00030
(0)
$7,399.90 includes GST
Variant
All Bikes come with a Free 2 Month Service. Call before ordering Bikes online re delivery Instructions.

Need help choosing the right size?

Read our guide or get in touch

Pure racing DNA, refined for the real world.


Real Speed, Real Roads

The AD8 is built for riders who measure their rides in efforts, not excuses. It unleashes race-bred aerodynamics that you can feel on everyday roads, from solo tempo days to fast group rides.


WorldTour DNA, Made Attainable

It’s the same exact frame design and geometry as the AD9, because speed doesn’t need reinvention. The AD8 brings the platform raced at the highest levels into a build meant for serious riders chasing their next upgrade.


T800 Carbon, Dialed for Performance

Engineered with Toray T800 carbon to hit the sweet spot: lightweight, stiff, and responsive, delivering that desirable aero advantage without the halo-bike price tag.


Key Features

Branta carbon crankset with integrated power meter + Apple Find My anti-theft technology


Shimano 105 Di2 groupset


Branta C45 UL carbon wheelset with carbon spokes | 1,330 g


XDS carbon frameset with Toray T800 | Full bike 7.41kg



Technical Specifications

Model AD8
Frame XDS Carbon Frame

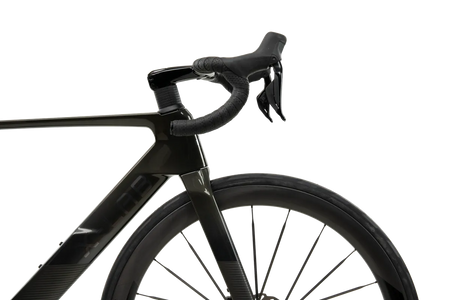

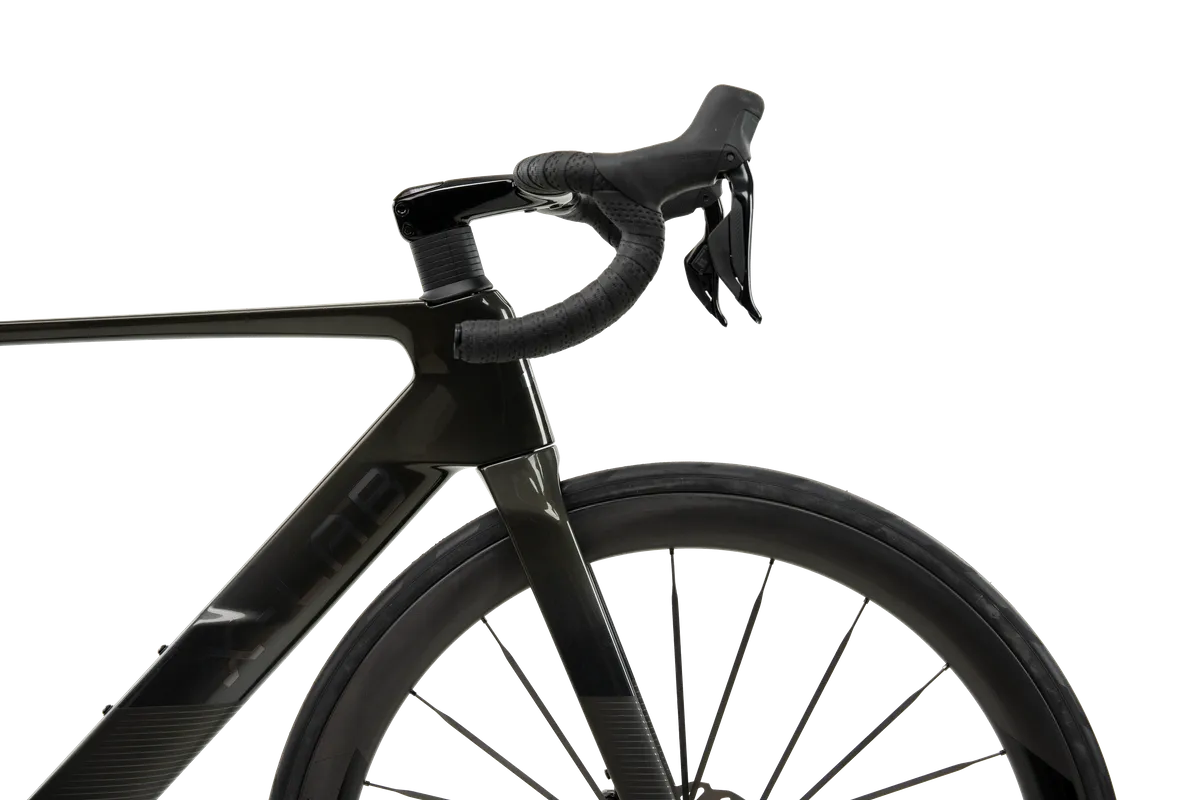

Fork XDS Carbon Fork, 100x12mm Thru-axle

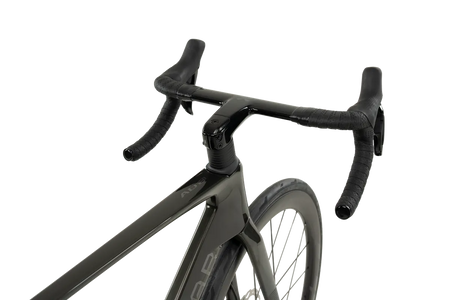

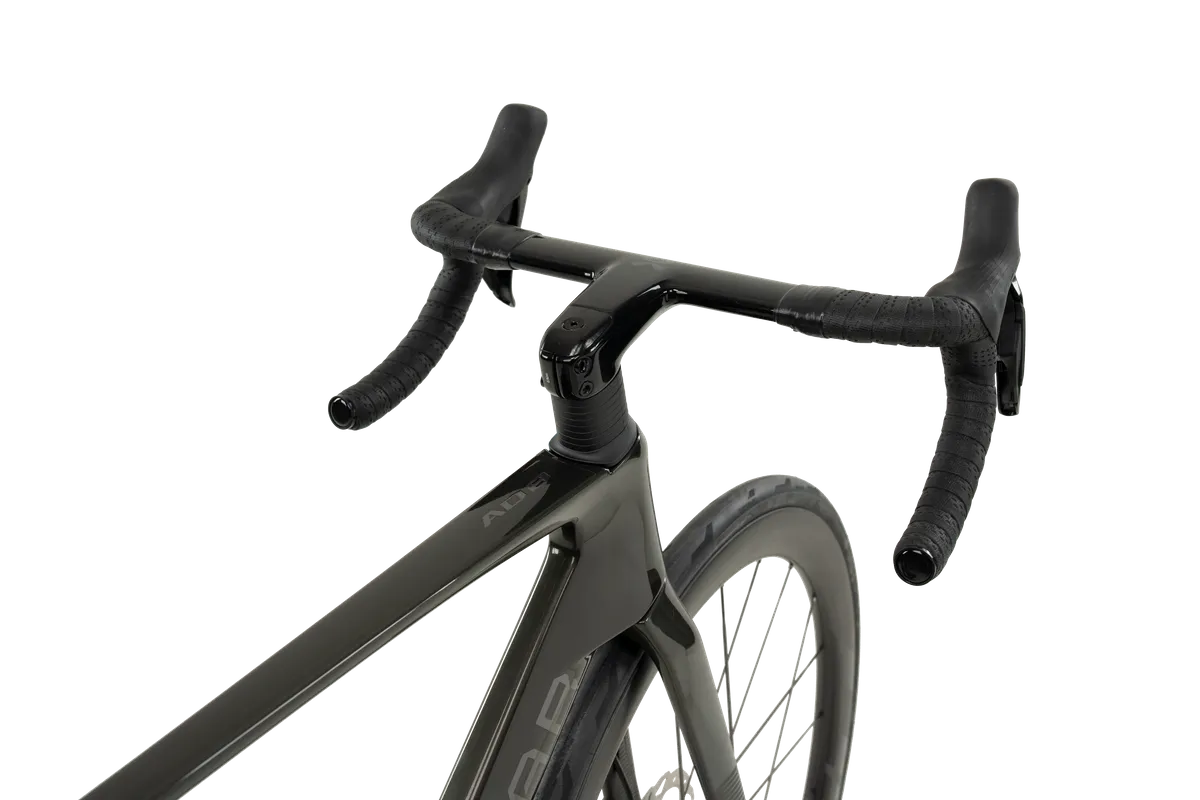

Stem Branta Carbon Integrated
Handlebar

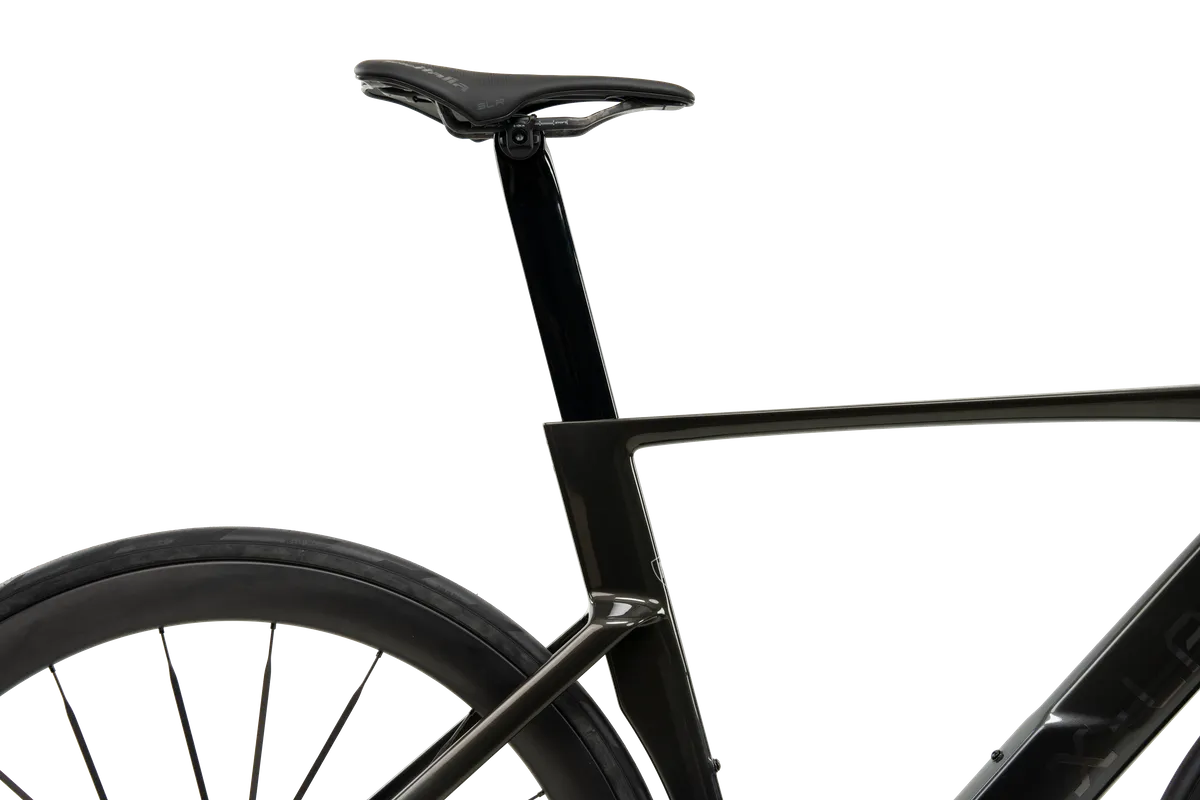

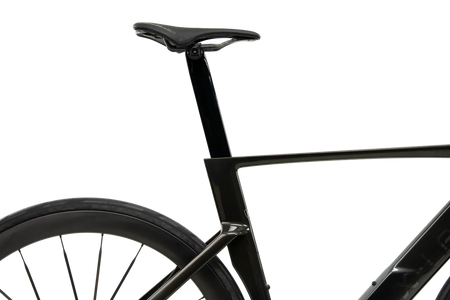

Seatpost XDS Carbon Seatpost, Aero Shape

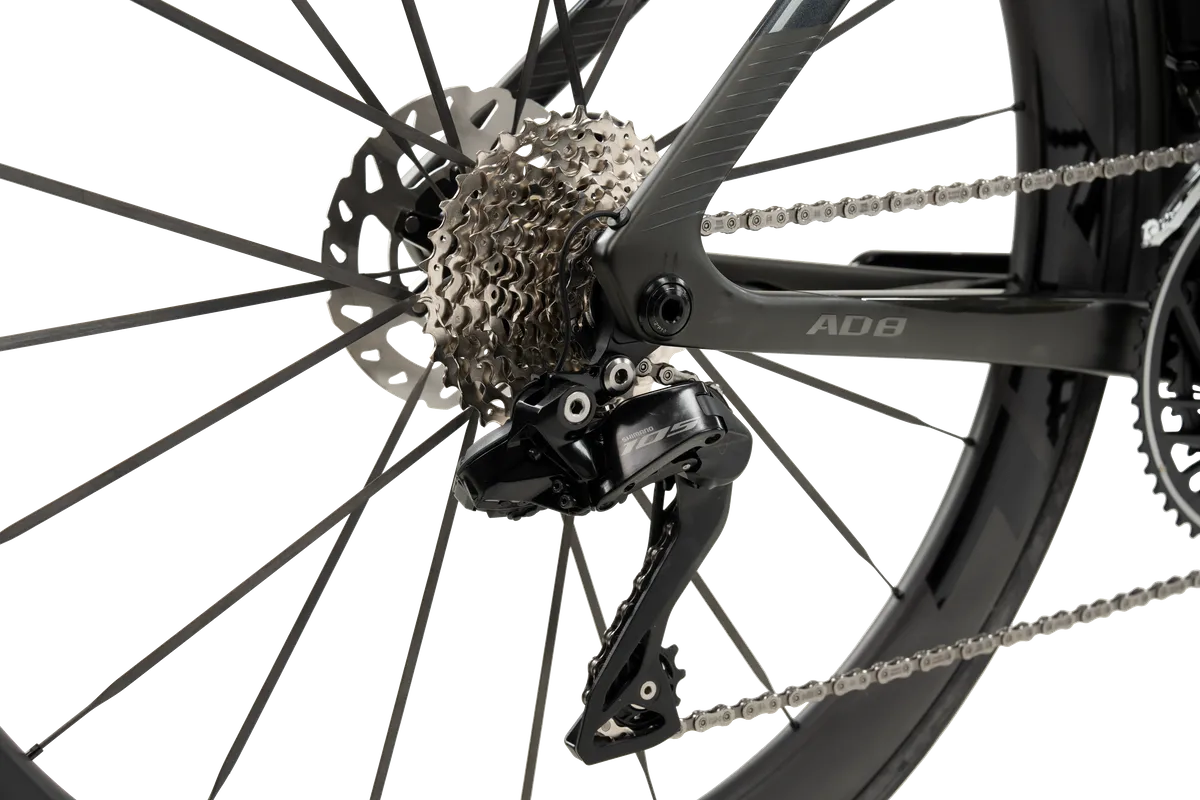

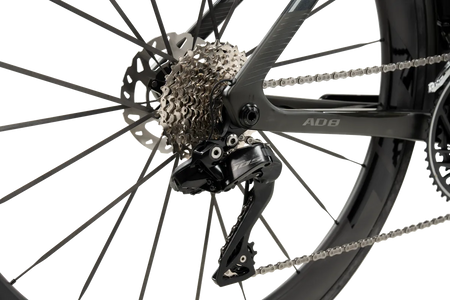

Rear Derailleur Shimano 105 DI2 RD-R7150
Front Derailleur Shimano 105 DI2 FD-R7150
Shifter Shimano 105 ST-R7120
Brakes Shimano 105 BR-R7170
Cassette Shimano 105 CS-R7101, 11-34T
Crankset Branta Carbon Powermeter Crankset, 52-36T, 29mm Aluminum Spindle
BB T47 29mm
Rotors Shimano SM-RT70, F:160mm R:160mm
Chain Shimano CN-M7100
Wheelset Branta C45 UL, Carbon Spokes
Tires Michelin Pro 5 700x28C
Saddle Selle Italia SLR Boost, Carbon Rails
Weight 7.41KG (Size L)

Frame Size XS S M L XL
A Seat Tube Length (mm) 470 495 515 540 565
B Top Tube Length (mm) 504 523 540 559 579
C Head Tube Length (mm) 105 118 130 148 171
D Seat Tube Angle (deg) 75 75 74 74 73
E Head Tube Angle (deg) 71 72 73 73 73
F Chainstay Length (mm) 410 410 410 410 410
G Wheelbase (mm) 970 978 982 992 1007
H Fork Rake/Offset (mm) 48 48 43 43 43
I BB Drop (mm) 72 72 70 70 70
J Stack (mm) 505 520 534 553 575
K Reach (mm) 371 379 387 395 405
L Front Center (mm) 575 582 583 592 607
Trail (mm) 67 63 64 61 59
Components Size XS S M L XL
Stem 90 90 100 100 120
Handlebar 360 360 380 380 400
Crankset 160 160 165 165 170
Seat Post 300 300 300 300 300
