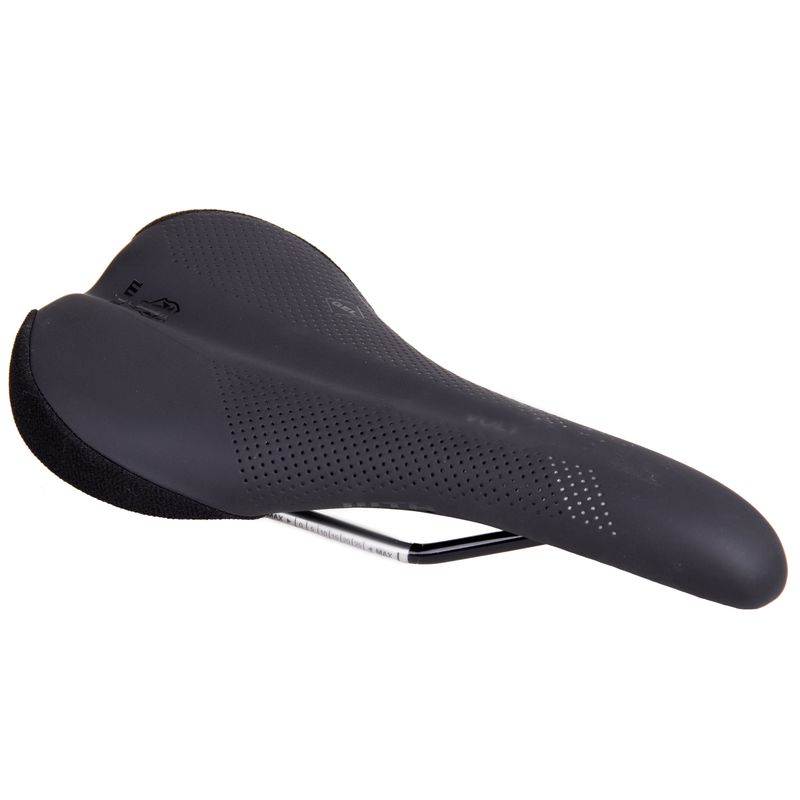

WTB Volt Titanium Black Saddle
WTB Volt Saddle
WTB Volt Saddle
WTB Volt Saddle

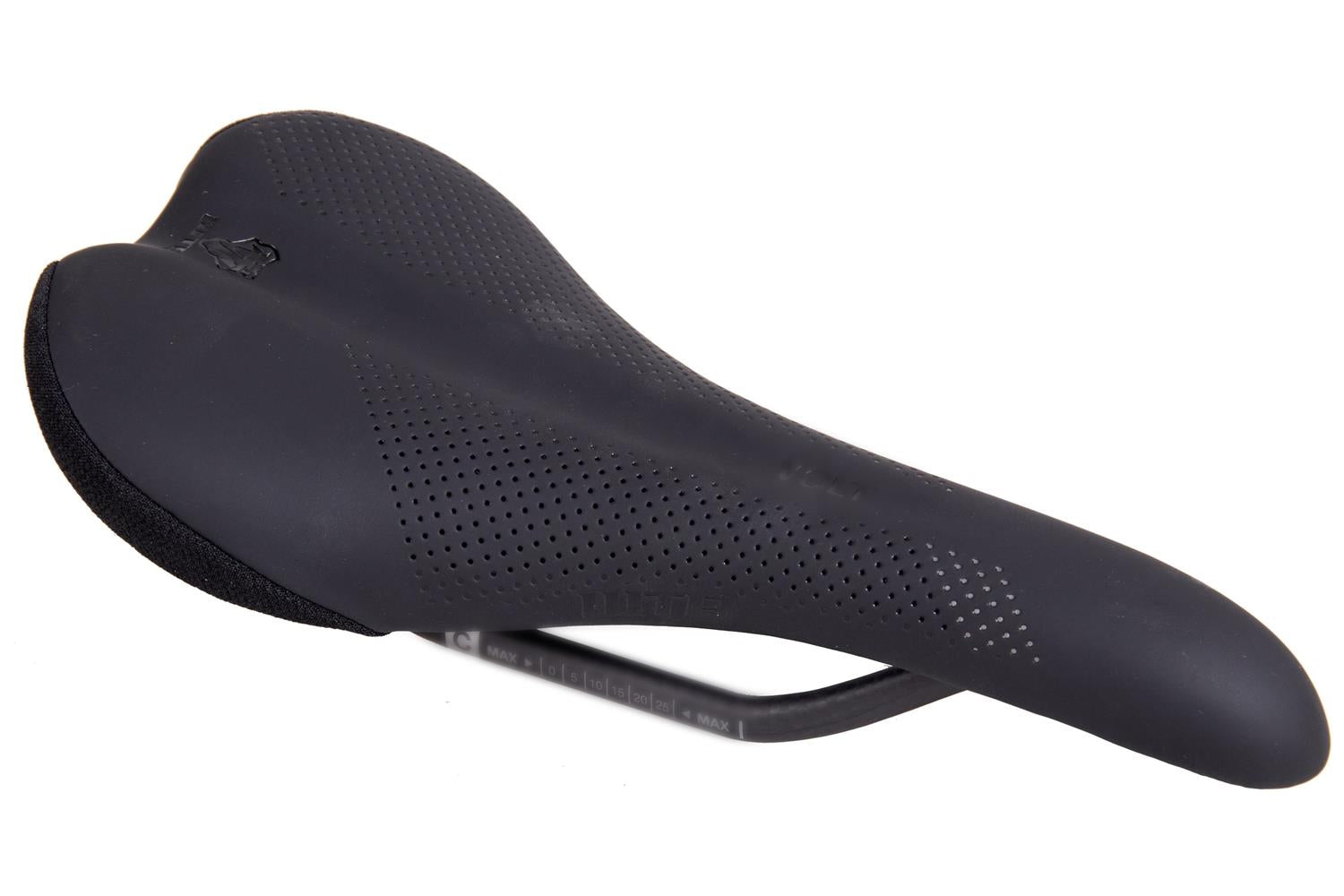

WTB Volt Chromoly Black Saddle
WTB Volt Titanium Black Saddle
WTB Volt Saddle
WTB Volt Saddle
WTB Volt Saddle
WTB Volt Chromoly Black Saddle
Wtb SKU: W065-0582

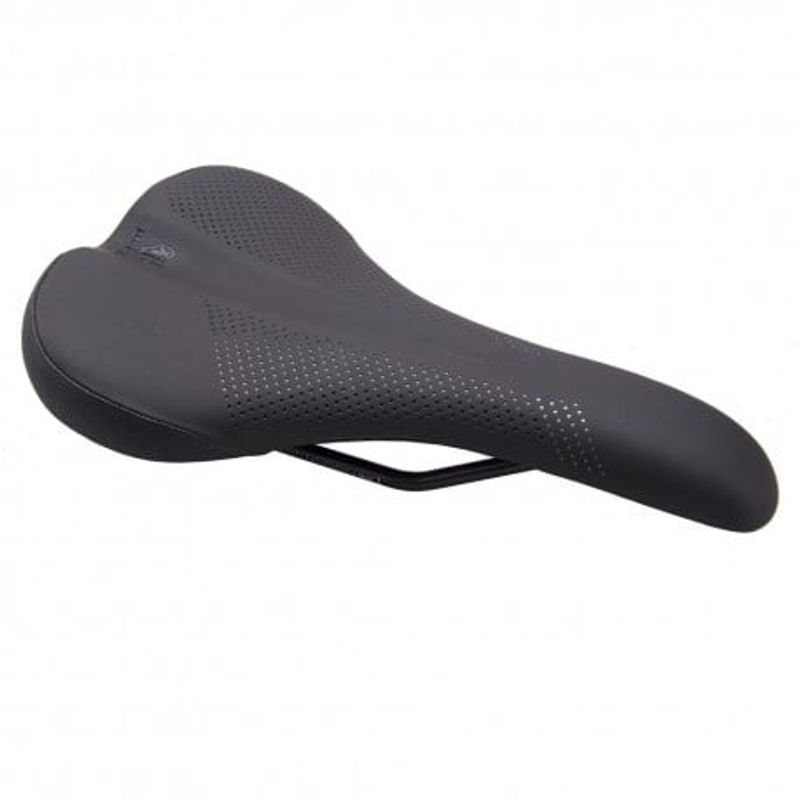

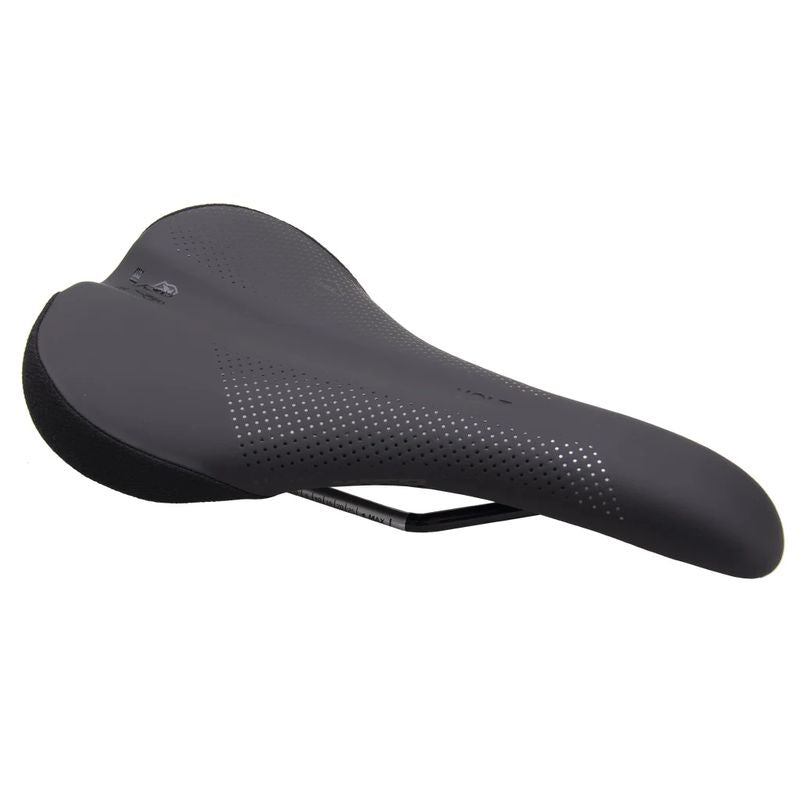

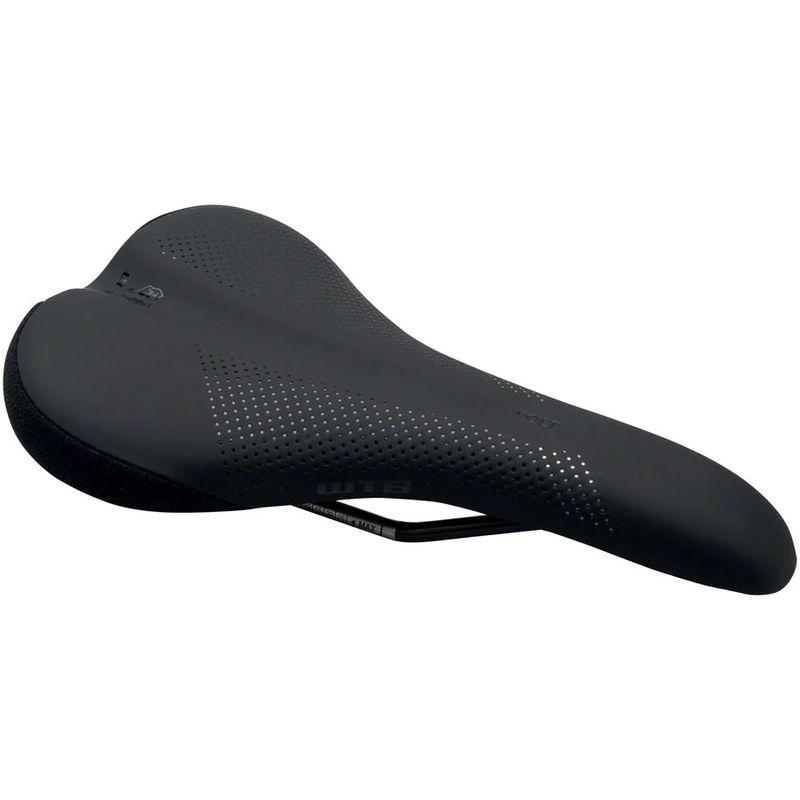

WTB Volt Saddle

(0)
Papanui Cycles is located in Christchurch, offering a wide selection of bikes, parts, and cycling gear in New Zealand. Our online store ships directly from our New Zealand suppliers to ensure fast and reliable delivery. Thanks Kevin Lee (Owner)
$209.90 includes GST
Stock Item
Please Note

If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.

Need help choosing the right size?

Read our guide or get in touch

OUR MOST POPULAR MOUNTAIN SADDLE

The Volt is our most popular mountain saddle. Shaped for speed and comfort, time tested and proven, the Volt makes for an incredibly versatile saddle that has gained endless acclaim among riders.

CONTOURED PROFILE - Contoured shape cradles the pelvis to provide optimal support in one sitting position. Contoured saddles are best for riders who prefer to lock into a specific sitting position while pedaling.

COMFORT ZONE - Small windows are cut away from the base of the saddle to provide additional relief from pressure on your sensitive areas. Comfort Zone is a subtle difference that provides impressive long-term comfort.

ABR CORNERS - These durable patches of material protect the corners and sides of the saddle from rips and tears.

MEDIUM PADDING - This middle level of padding provides an exceptional balance of comfort and support to provide optimal performance without being too squishy. Medium padding saddles are often the top choice for all-day riders.

FLEX-TUNED BASE - The Flex-Tuned base provides an exceptional mix of comfortable flex and firm efficiency. Not as supple as the Soft-Shell and not as stiff as a carbon-composite base, Flex-Tuned saddles offer mid-level flex to provide optimal support and comfort for the majority of riders.

MICROFIBER COVER - Found on all WTB saddles, our Microfiber Cover closely replicates the look and feel of a leather cover, but with the anti-microbial and cruelty-free benefits of a synthetic material. The supple nature of the Microfiber Cover allows the foam to fully support the sit bones without interfering with its resiliency.

Widths - Narrow 135mm / Medium 142mm / Wide 150mm




Product Rail Material Rail Color Weight Details Length Sit Bone Range Part Number
Volt Carbon Narrow Saddle Carbon* (7mm x 9mm) Carbon 165g Microfiber Cover / Flex-Tuned Shell / DNA Padding 265mm 69-101mm W065-0581
Volt Titanium Narrow Saddle Titanium Metal and matte black 208g Microfiber Cover / Flex-Tuned Shell / DNA Padding 265mm 69-101mm W065-0582
Volt Cromoly Narrow Saddle Cromoly Metal and gloss black 290g Microfiber Cover / Flex-Tuned Shell / HLX  Padding 265mm 69-101mm W065-0583
Volt Steel Narrow Saddle Steel Gloss black 292g Microfiber Cover / Flex-Tuned Shell / DNAx Padding 265mm 69-101mm W065-0584
Volt Titanium Medium Saddle Titanium Metal and matte black 225g Microfiber Cover / Flex-Tuned Shell / DNA Padding 265mm 100-115mm W065-0585
Volt Cromoly Medium Saddle Cromoly Metal and gloss black 310g Microfiber Cover / Flex-Tuned Shell / HLX  Padding 265mm 100-115mm W065-0586
Volt Steel Medium Saddle Steel Gloss black 315g Microfiber Cover / Flex-Tuned Shell / DNAx Padding 265mm 100-115mm W065-0587
Volt Titanium Wide Saddle Titanium Metal and matte black 230g Microfiber Cover / Flex-Tuned Shell / DNA Padding 265mm 115-130mm W065-0588
Volt Cromoly Wide Saddle Cromoly Metal and gloss black 315g Microfiber Cover / Flex-Tuned Shell / HLX  Padding 265mm 115-130mm W065-0589
Volt Steel Wide Saddle Steel Gloss black 320g Microfiber Cover / Flex-Tuned Shell / DNAx Padding 265mm 115-130mm W065-0590
Volt Medium Fusion Form Carbon Black Saddle  Carbon  Carbon  174g Microfiber Cover / Fusion Form Base / DNA Padding 265mm 100-115mm W065-0670
Volt Medium Fusion Form Stainless Black Saddle  Stainless Black  270g Microfiber Cover / Fusion Form Base / DNAx Padding 265mm 100-115mm W065-0672
Volt Medium Fusion Form Titanium Black Saddle  Titanium  Metal and matte black 225g Microfiber Cover / Fusion Form Base / DNA Padding 265mm 100-115mm W065-0671

*Recommended torque for all carbon rails: Vertical load clamp- 80 in-lbf (9.0N*m). Side-load clamp- 120 in-lbf (13.5 N*m)

Recommended torques are specific to WTB carbon saddles. You must also consult the saddle User's Manual for the seat post's recommended torque. If the seat post torque recommendation exceeds the saddle's recommendation's always use the lower torque recommendation.
