WTB HTZ i35 Rims

Upgrade to the HTZ i35 e-bike rim for superior durability and performance. Engineered to withstand tough rides and varied terrains. Explore the features today!

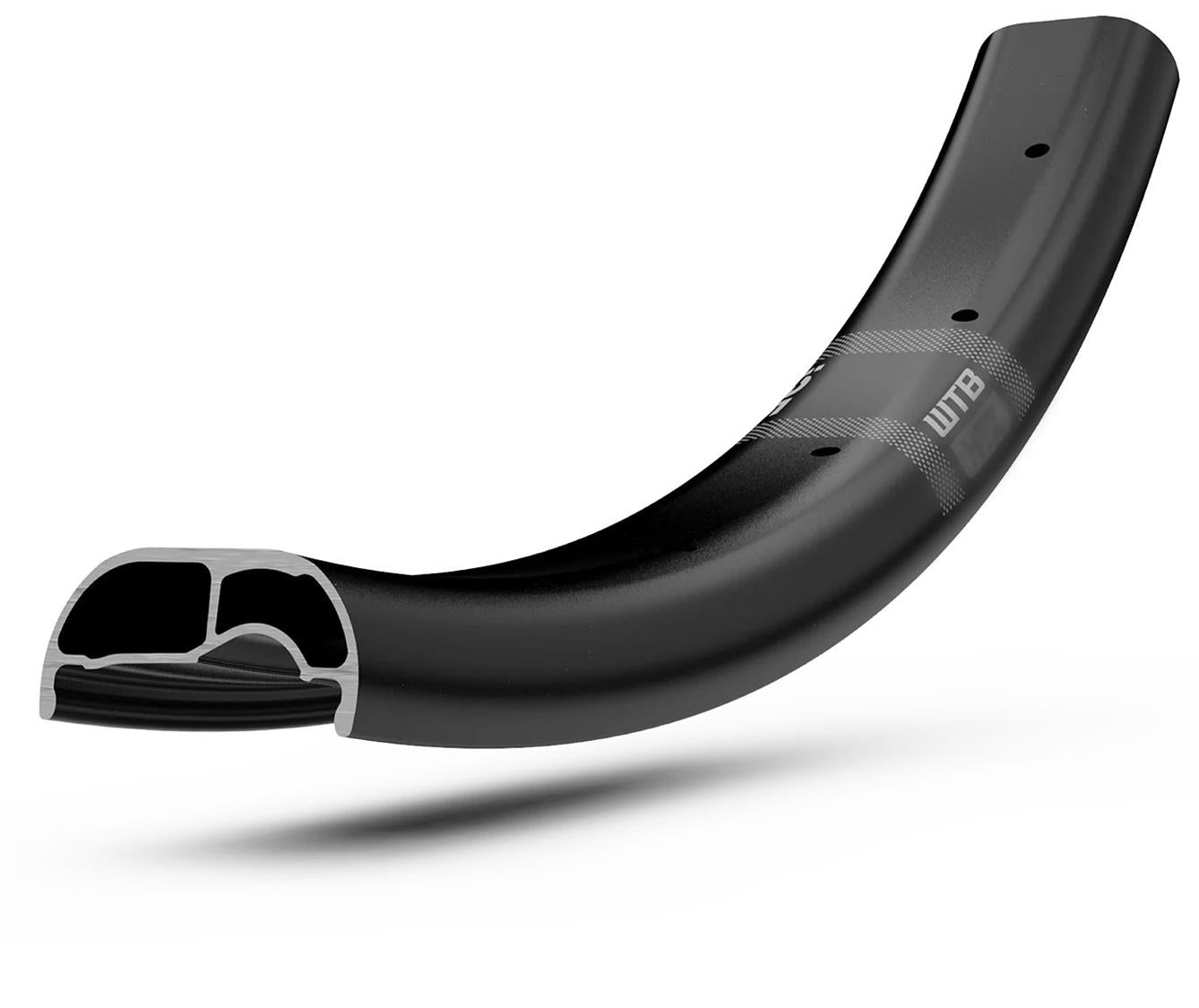

E-bikes add to the riding experience by providing more for less. More distance, more laps, more climbs and more descents. With all those “mores” also comes more weight continually bashing on the components of an e-bike. In order to combat the additional wear and tear of e-bikes, we designed our HTZ rims to be burlier in every imaginable way. The thickest rim walls we offer, a proven I-Beam center support, asymmetrical spoke hole drilling and dependable 6069 aluminum alloy deliver a bombproof rim that doesn't break the bank. HTZ i35 and i40 rims are optimized for your e-assist trail bike running 2.6-3.0" tires.

20% Thicker Everywhere - HTZ rims boast an increased wall thickness of 20% over our KOM Tough enduro rims in order to ensure they’re capable of withstanding the additional forces of a modern e-bike. Simply put, more material results in a more durable rim.

I-Beam Support - Vertical support within the inner rim cavity that drastically increases the strength and rigidity of our toughest rims. The additional reinforcement counteracts spoke loads and provides lateral rigidity, which is increasingly important for e-bike rims.The I-Beam on the HTZ is thicker than any other WTB rim.

Proudly Overbuilt - HTZ e-bike rims are proudly overbuilt to provide an incredibly durable alloy rim at an affordable price. They're available in five different inner widths range from 23mm to 40mm, making them perfect for a wide range of bikes ranging from e-assist gravel bikes to dual-crown downhill bikes that no longer need a truck to be shuttled.

TCS Solid Strip - Durable nylon strip that lies between the rim and tubeless tape to prevent tubeless tape from pushing into the spoke holes and ensures a smooth interface between the tire and rim. The smooth surface makes it easier to mount a tire by preventing air from escaping around the bead at each indent during inflation. Solid Strip also protects the airtight system from puncture in the case of a broken spoke.

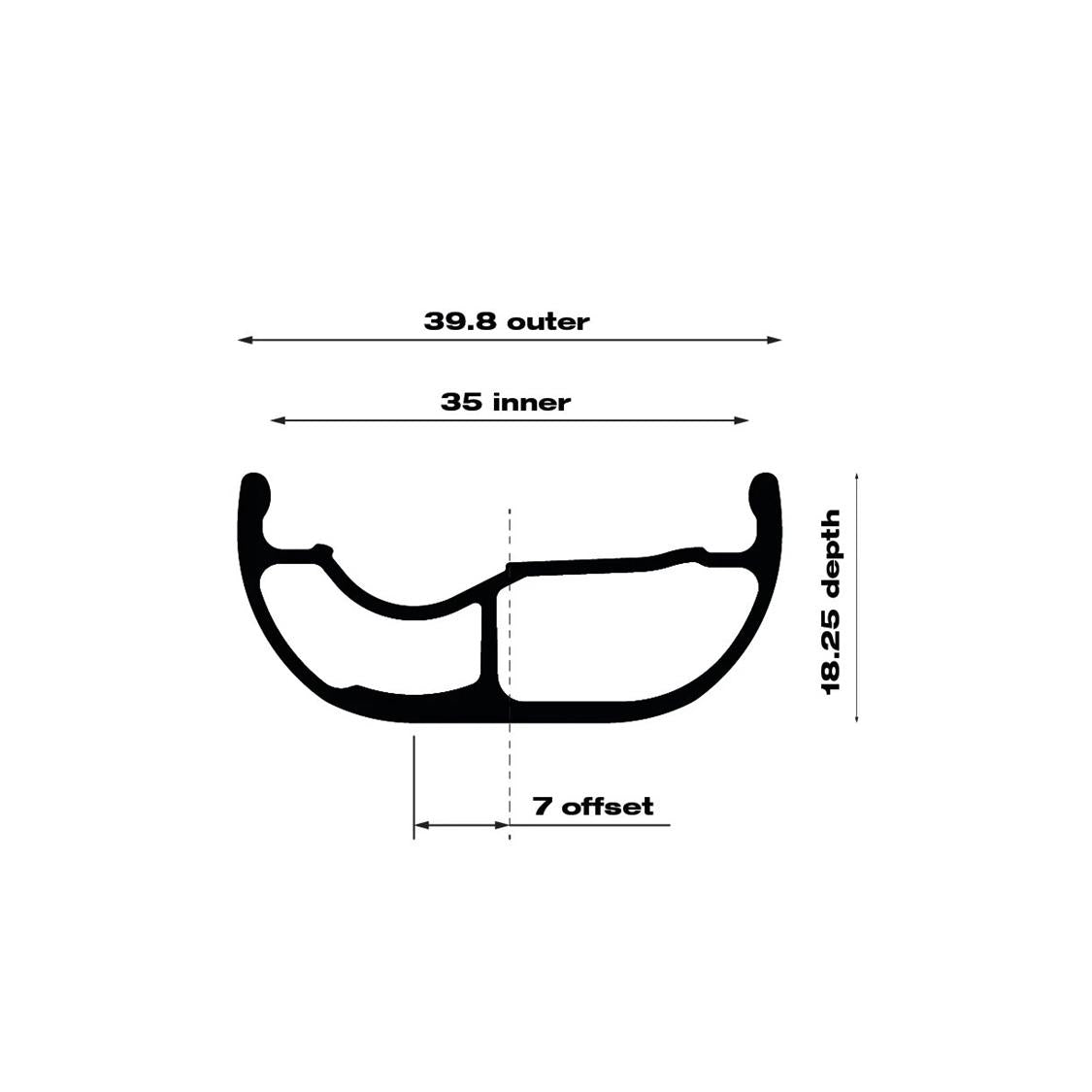

35mm inner rim width - Rims with an inner rim width of 35-40mm are designed for tires widths ranging from 2.6-3.0". Pairing a wider rim to wider tires ensures optimal sidewall support and tire volume, which allows riders to run lower air pressure and fully benefit from the advantages of 2.6-3.0" tires. Preference will determine which of the two widths is best for you, but take into account that the 35mm width will provide a rounded tire profile while the 40mm width will provide a flatter tire profile.

SPECIFICATIONS: (Max spoke  tension range: 110-120KgF)

*HTZ rims weighed with Solid Strip installed.
