Note: As the White Industries catalogue is diverse, we don't stock every variant or colour. However, we place regular airfreight orders. If an item is in stock at White Industries, we can usually have it here within a week. Even if it's not in stock, they can often assemble it for us, and we can have it within three weeks at most. Feel free to get in touch if you're after something specific!

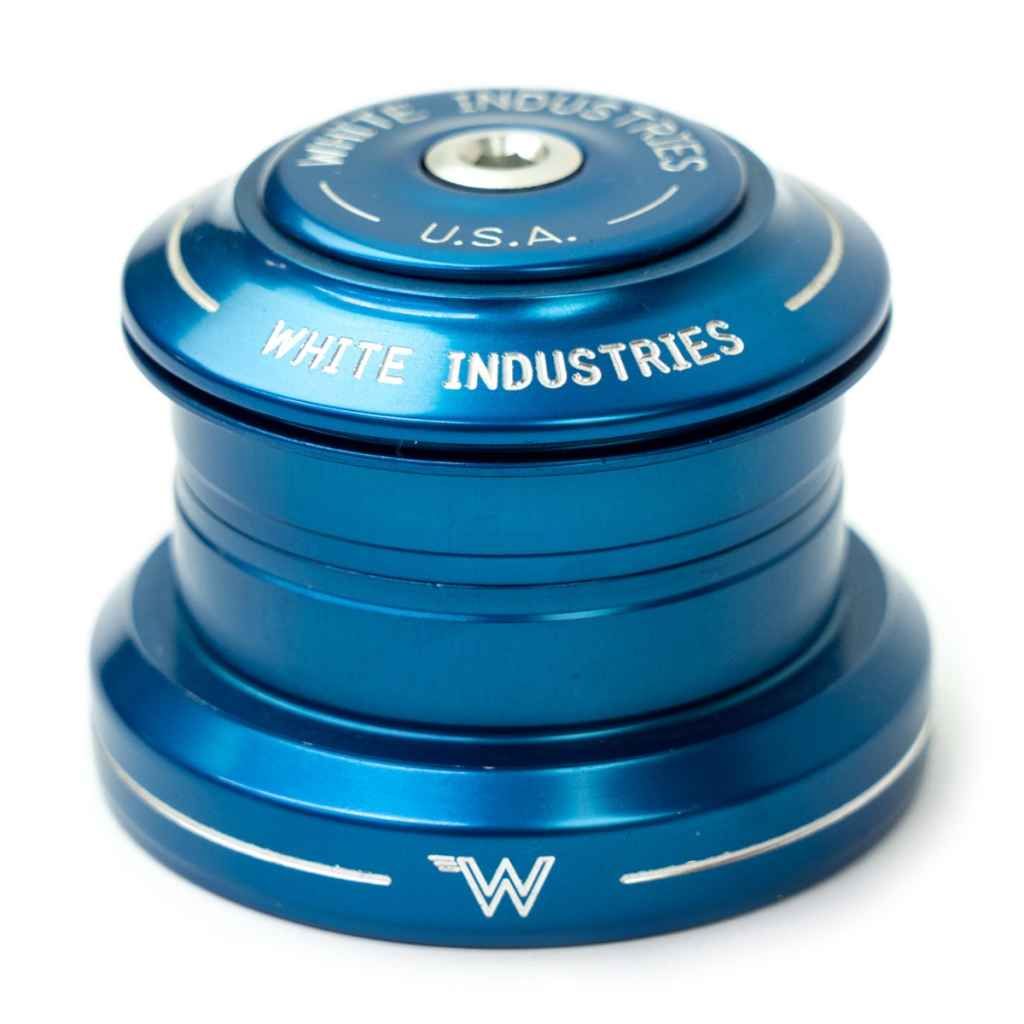

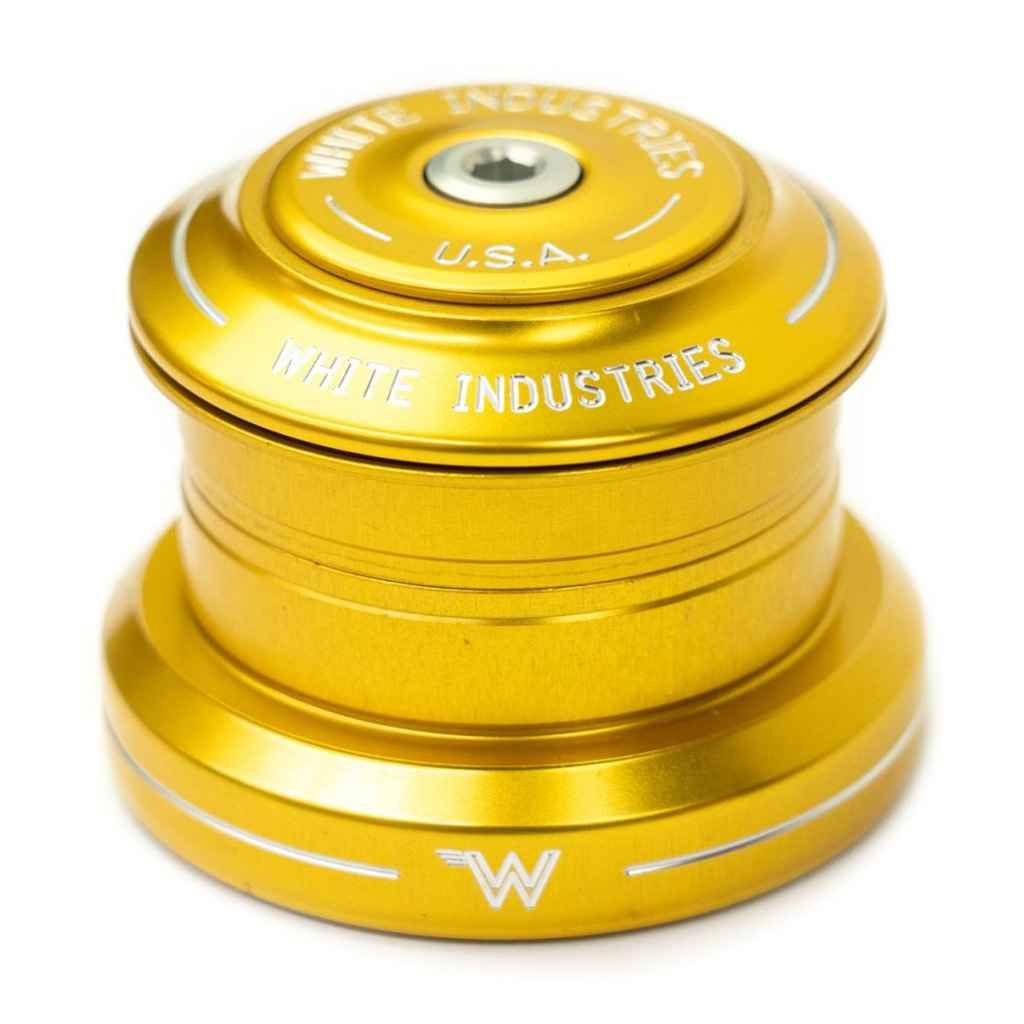

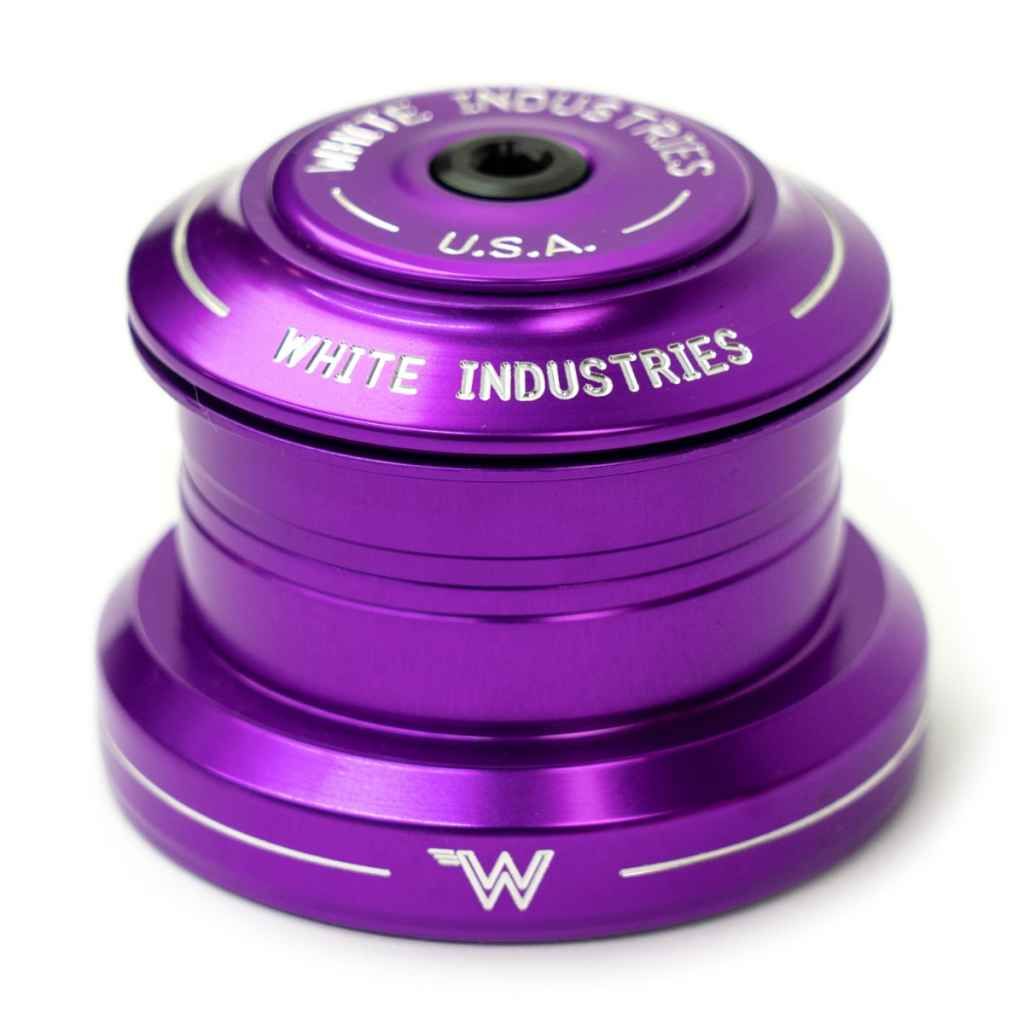

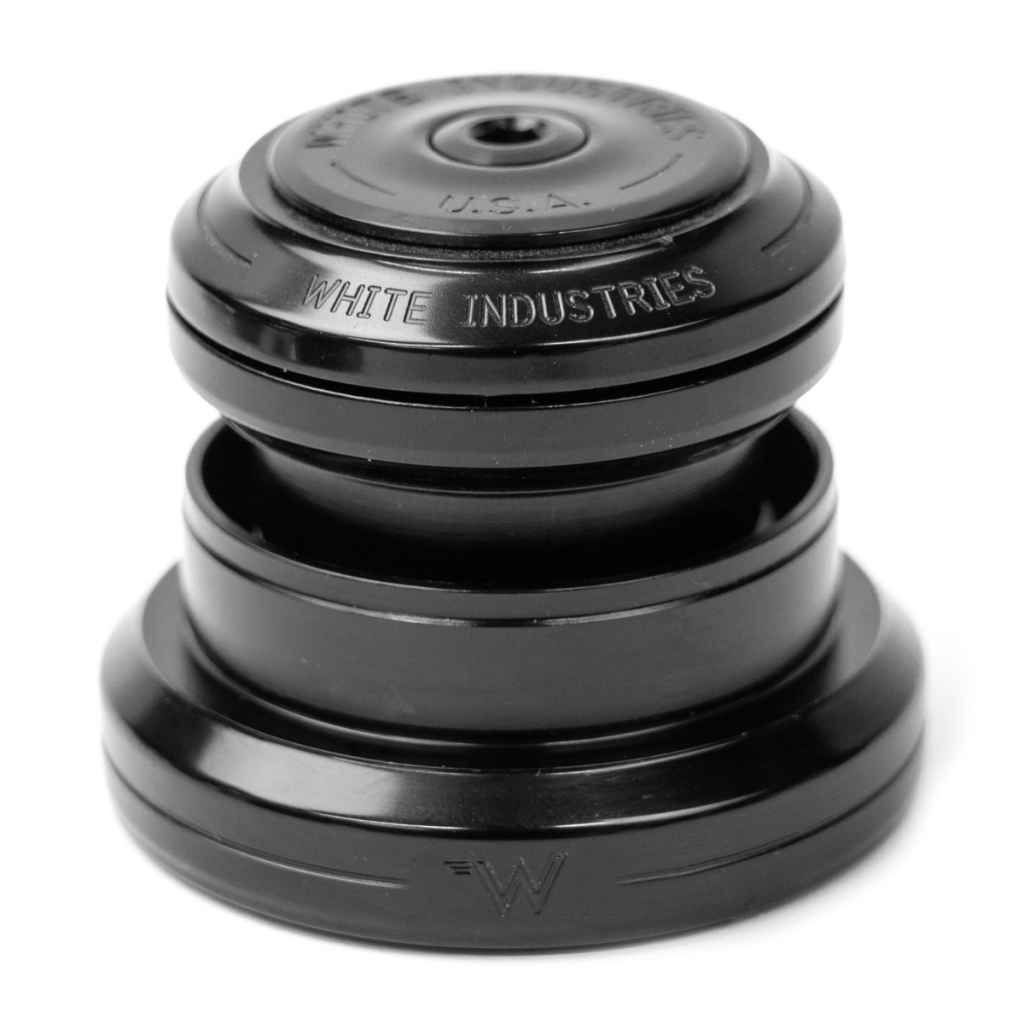

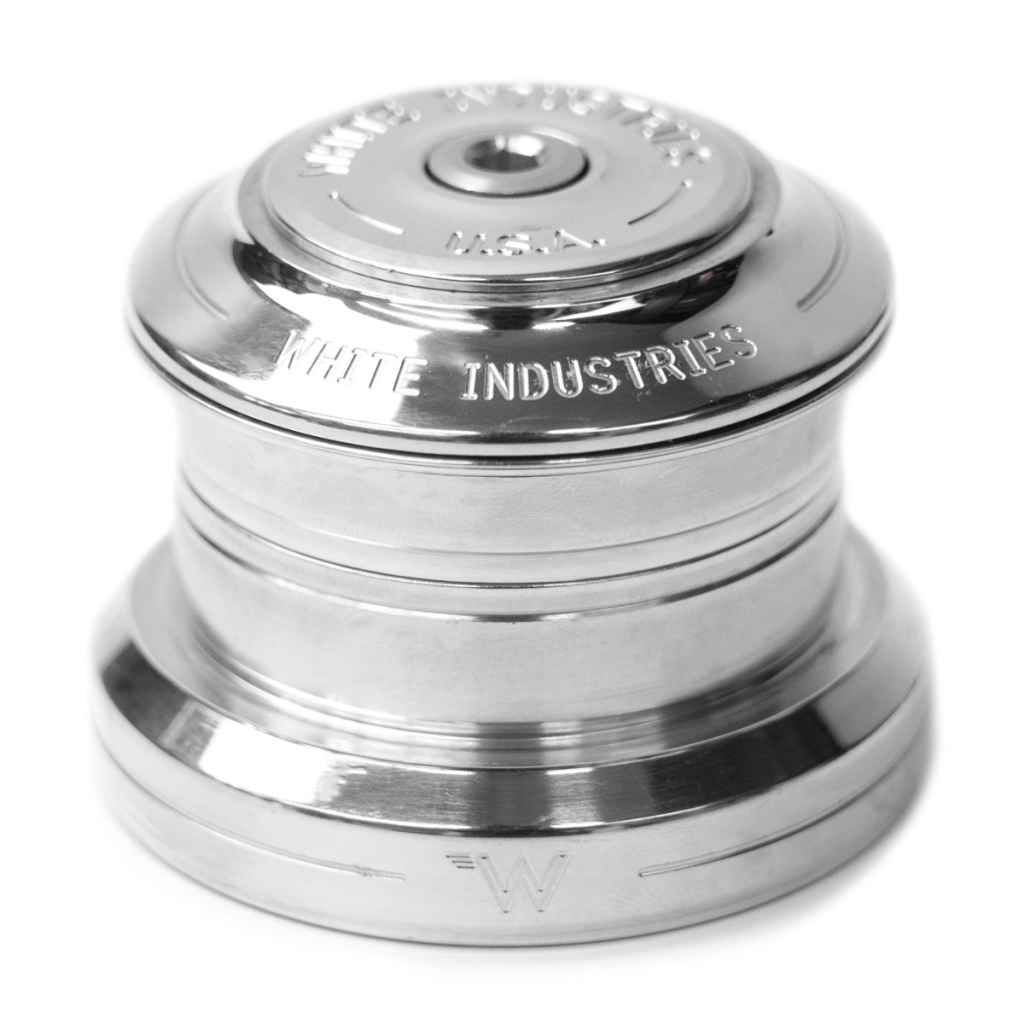

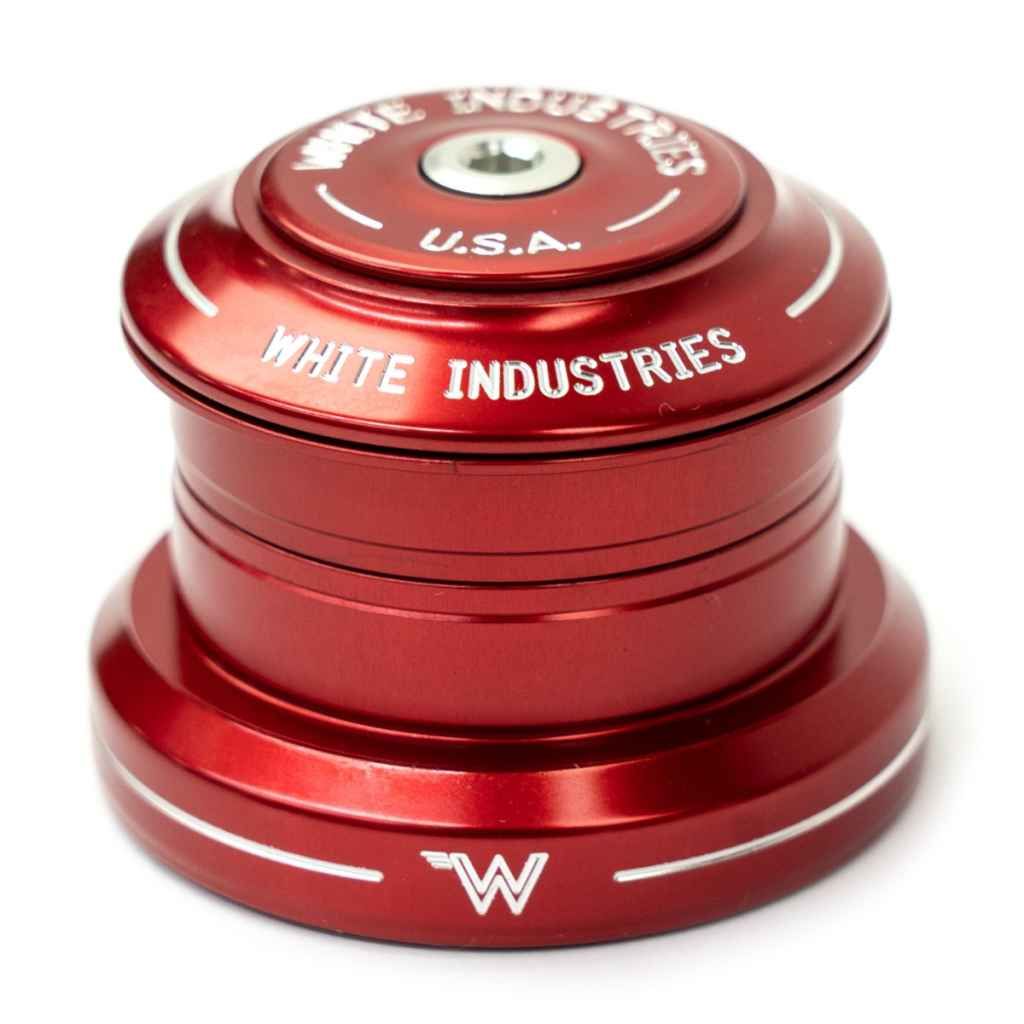

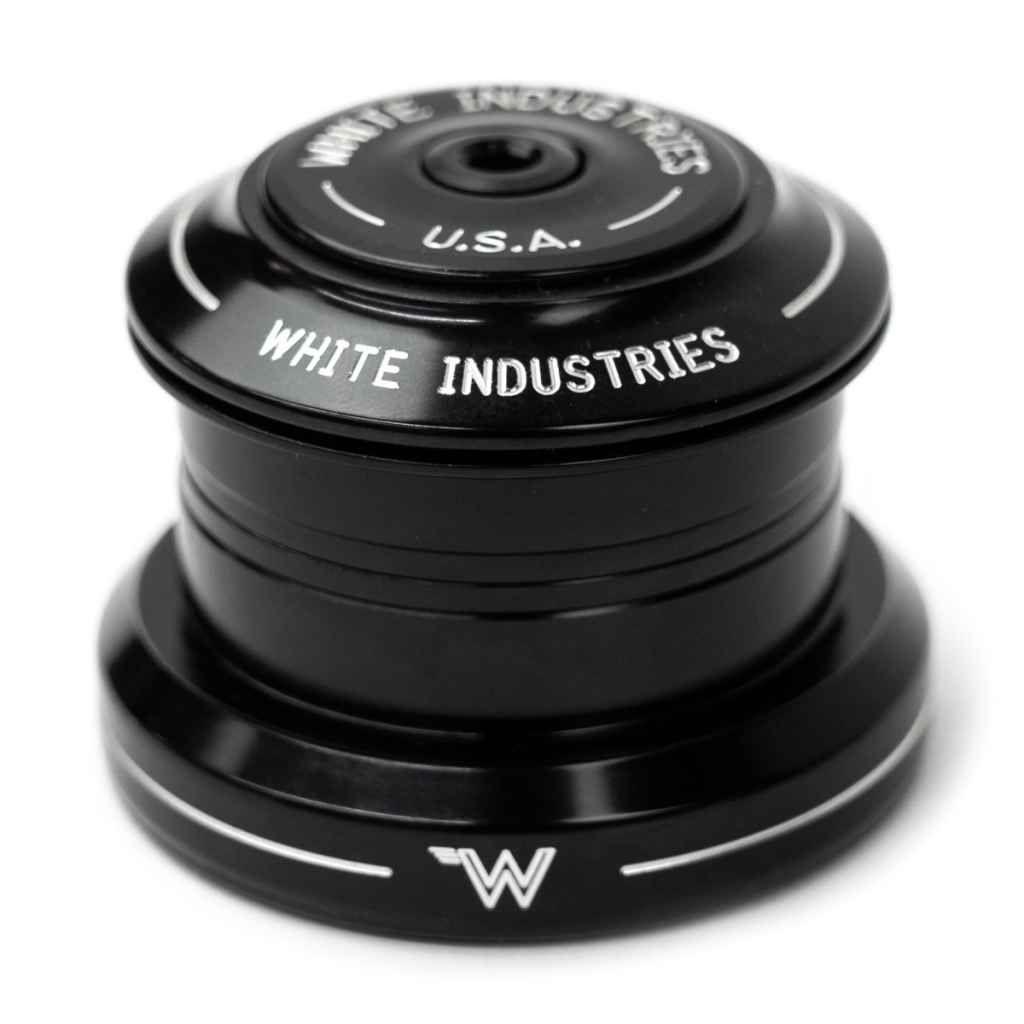

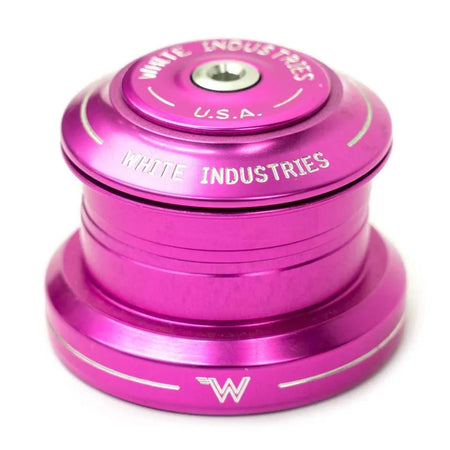

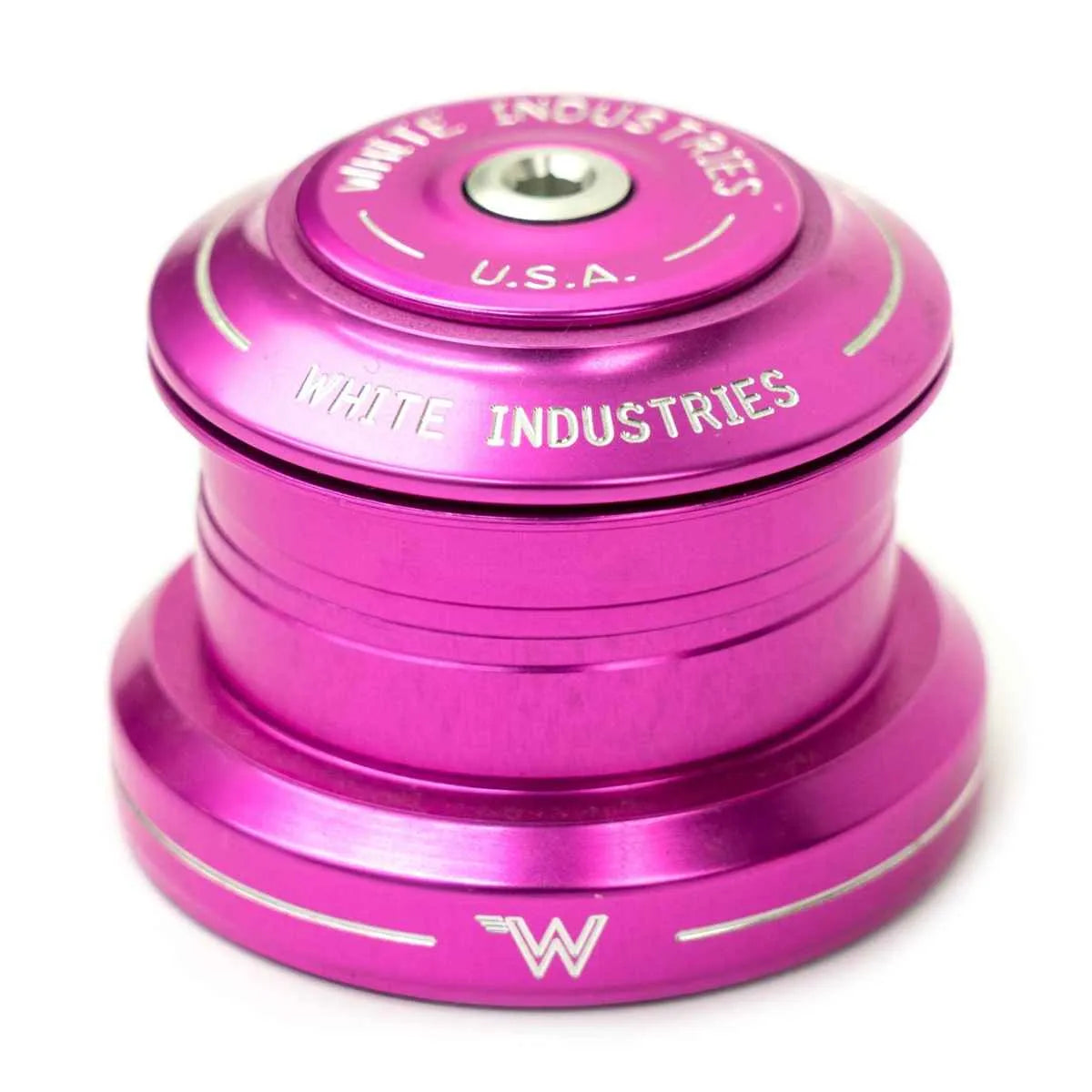

The ZS44│EC44 headset is designed to fit frames with straight 44mm head tubes and can accommodate straight and tapered fork steerers with the appropriate crown race. The “ZS” stands for “Zero Stack” as the section of the cup that houses the top bearing sits inside of the frame’s head tube while “EC” stands for “External Cup” meaning the section of the cup that houses the lower bearing sits outside of the frame’s head tube. The “44” stands for the diameter of the “skirt” that presses into the frame.
|
Frame upper head tube inside diameter |
43.95mm to 44mm |
|
Frame lower head tube inside diameter |
43.95mm to 44mm |
|
Fork steerer diameter top section |
28.45mm to 28.6mm |
|
Crown race seat diameter for “straight 1-⅛” |
30.015mm to 30.075mm |
|
Crown race seat diameter for “tapered 1-¼” |
33.03mm to 30.09mm |
|
Crown race seat diameter for “tapered 1-½” |
39.79mm to 39.85mm |
|
Headset Model |
Upper Bearing (inner/outer angle) | Lower Bearing
(inner/outer angle) |
Lower Fork Race Compatibility |
|
ZS44│EC44 |
ACB3645SS 36/45 | ACB6808CCSS 36/45 |
1-⅛” (30mm) 1-¼” (33mm) 1-½” (40mm) |
The IS42│IS52 headset is designed to fit frames with integrated 42mm/52mm head tubes and works with tapered and straight fork steerers. The “IS” stands for “Integrated” as the bearing sits directly inside the frame’s head tube without a cup. The “42/52” stands for the top/bottom inside diameter of the frame’s head tube.
|
Frame upper head tube inside diameter |
41.95mm to 42.05mm with a 45 degree contact angle |
|
Frame lower head tube inside diameter |
52.05mm to 52.15mm with a 45 degree contact angle |
|
Fork steerer diameter top section |
28.45mm to 28.6mm |
|
Crown race seat diameter for “straight 1-⅛” |
30.015mm to 30.075mm |
|
Crown race seat diameter for “tapered 1-¼” |
33.03mm to 30.09mm |
|
Crown race seat diameter for “tapered 1-½” |
39.79mm to 39.85mm |
|
Headset Model |
Upper Bearing (inner/outer angle) | Lower Bearing
(inner/outer angle) |
Lower Fork Race Compatibility |
|
IS42│IS52 |
ACB36451125SS 36/45 | ACB6808CCSS 36/45 |
1-⅛” (30mm) 1-¼” (33mm) 1-½” (40mm) |
