White Industries EC34/EC34
Couldn't load pickup availability
If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.
Need help choosing the right size?
Note: As the White Industries catalogue is diverse, we don't stock every variant or colour. However, we place regular airfreight orders. If an item is in stock at White Industries, we can usually have it here within a week. Even if it's not in stock, they can often assemble it for us, and we can have it within three weeks at most. Feel free to get in touch if you're after something specific!
This style is often referred to simply as an “1-⅛” headset which, most of the time, is enough of a description to get you the correct headset. But nowadays with all the different headset standards available we needed to get specific.

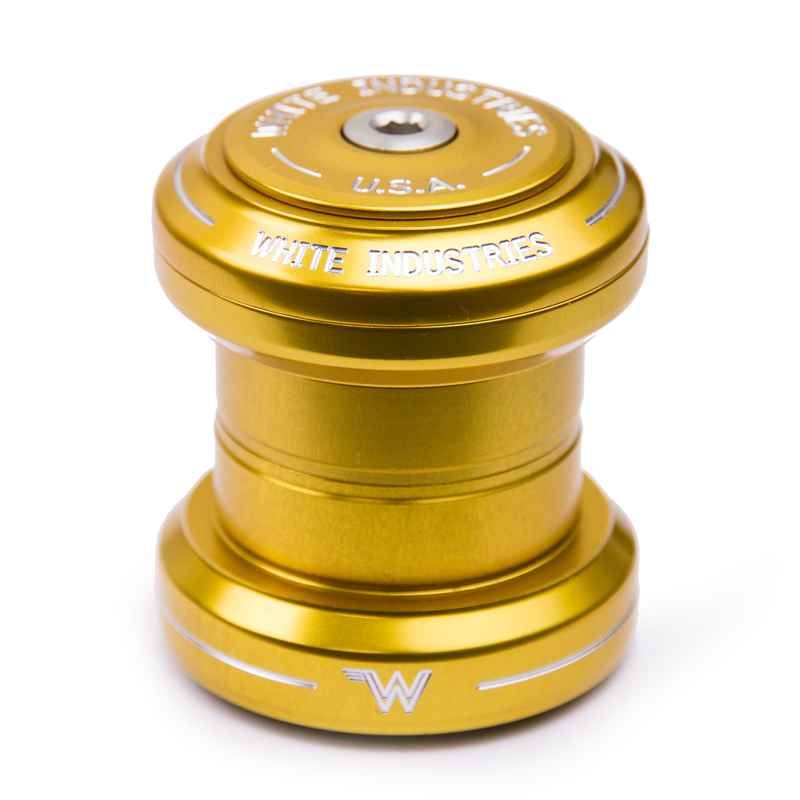

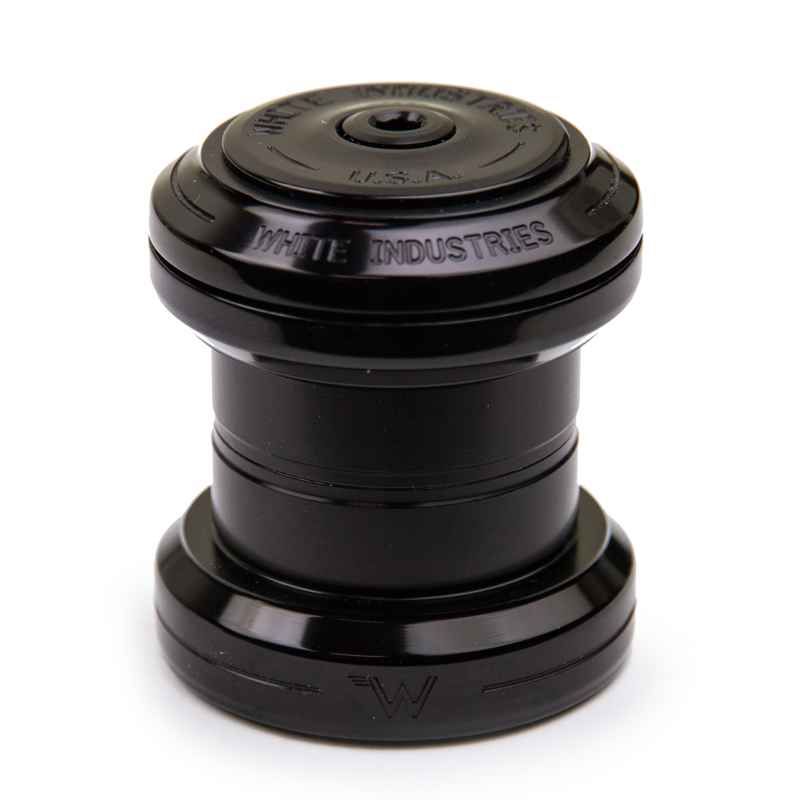

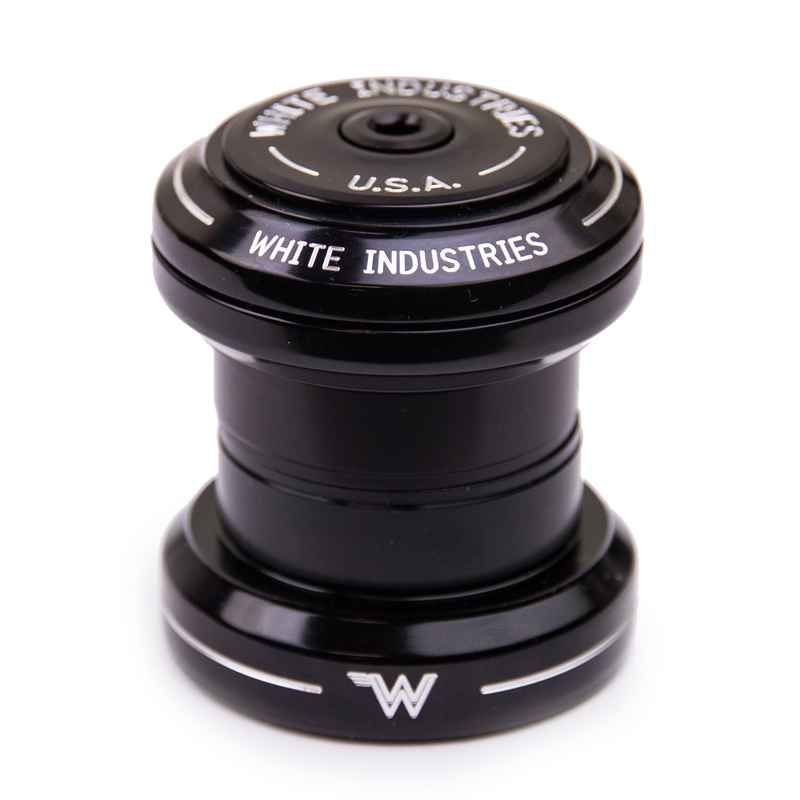

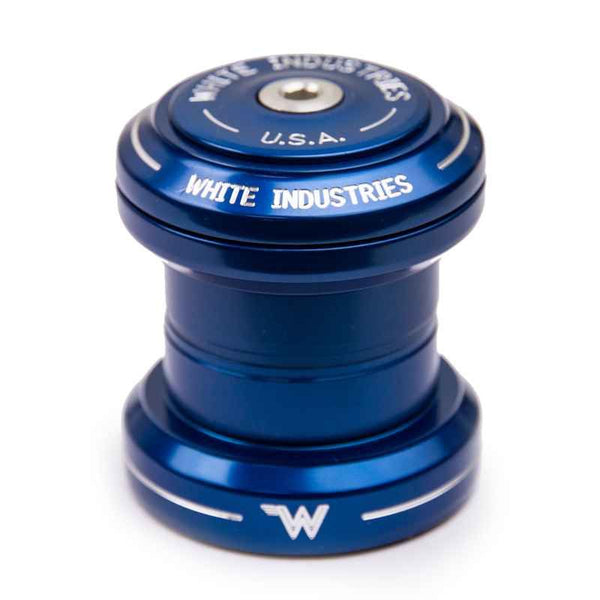

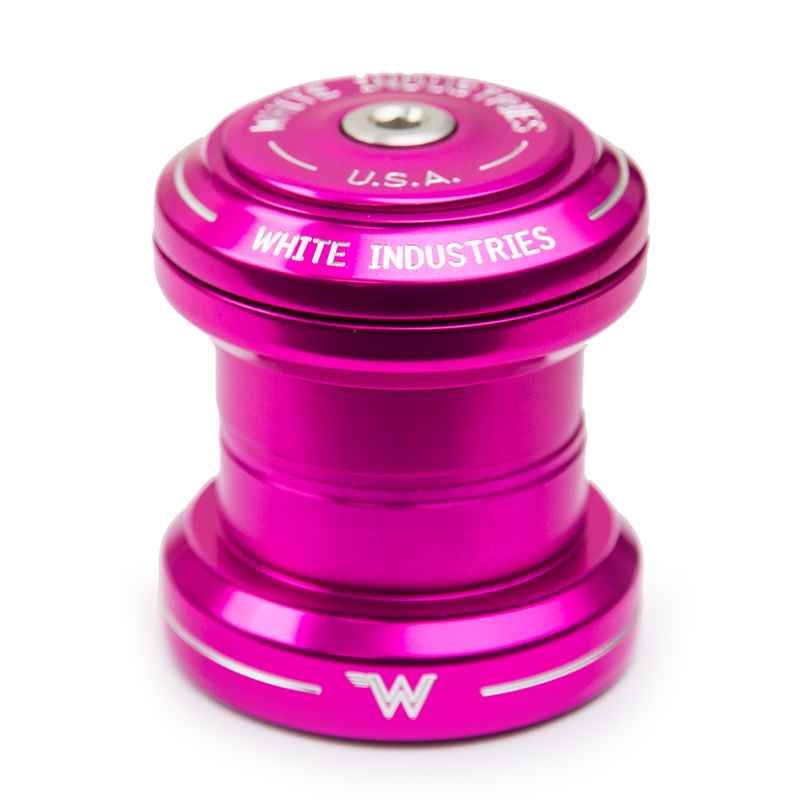

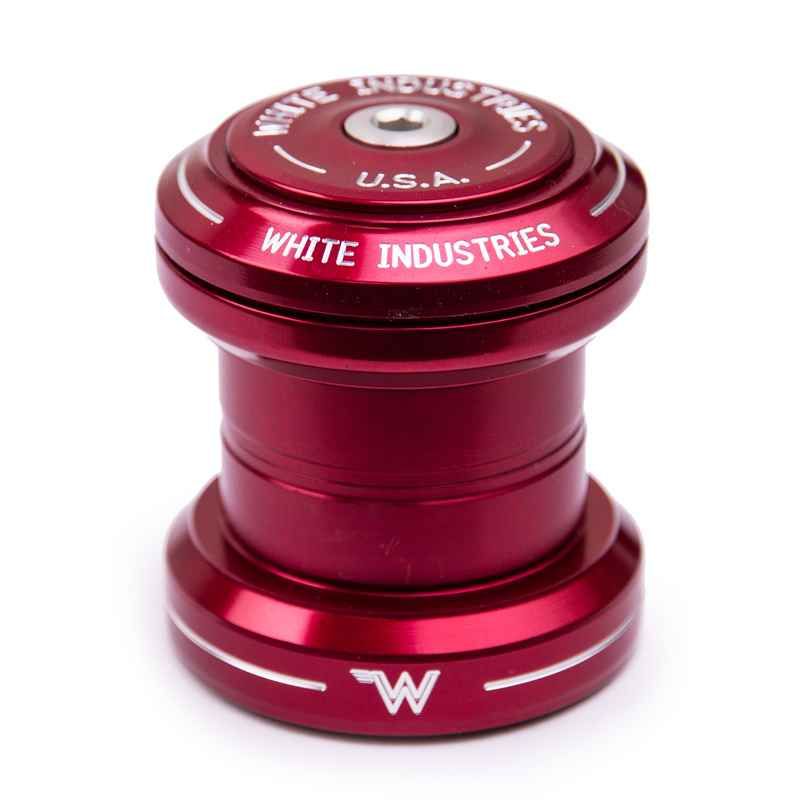

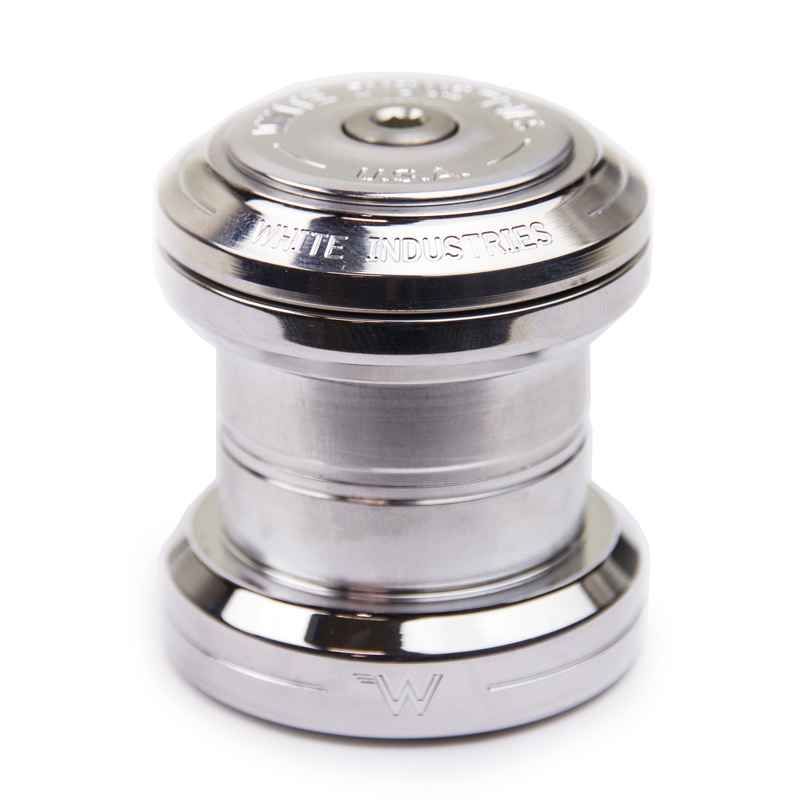

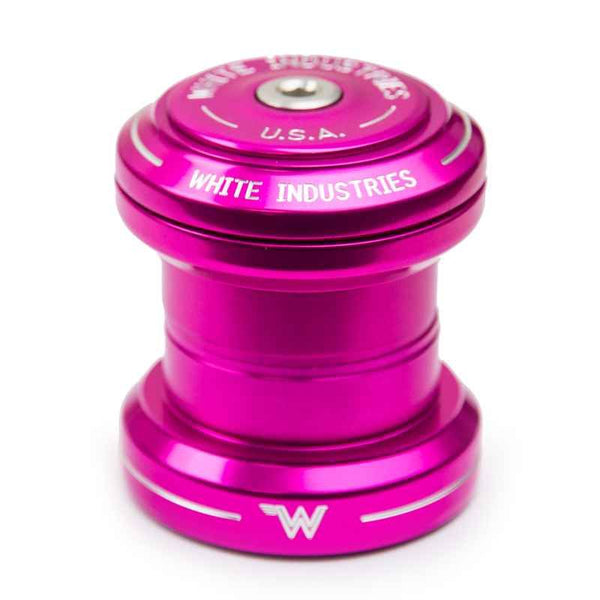

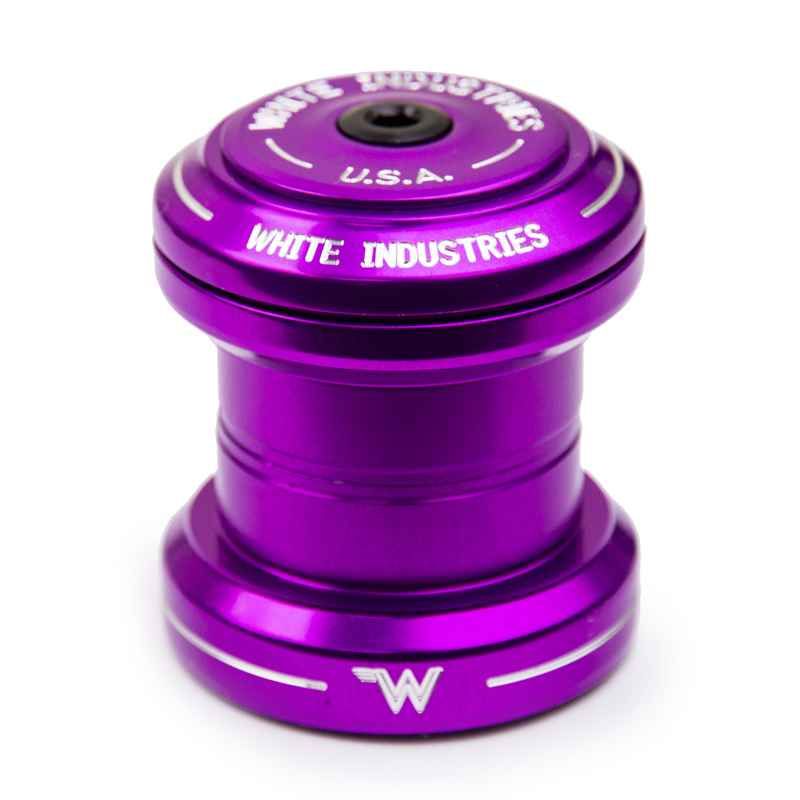

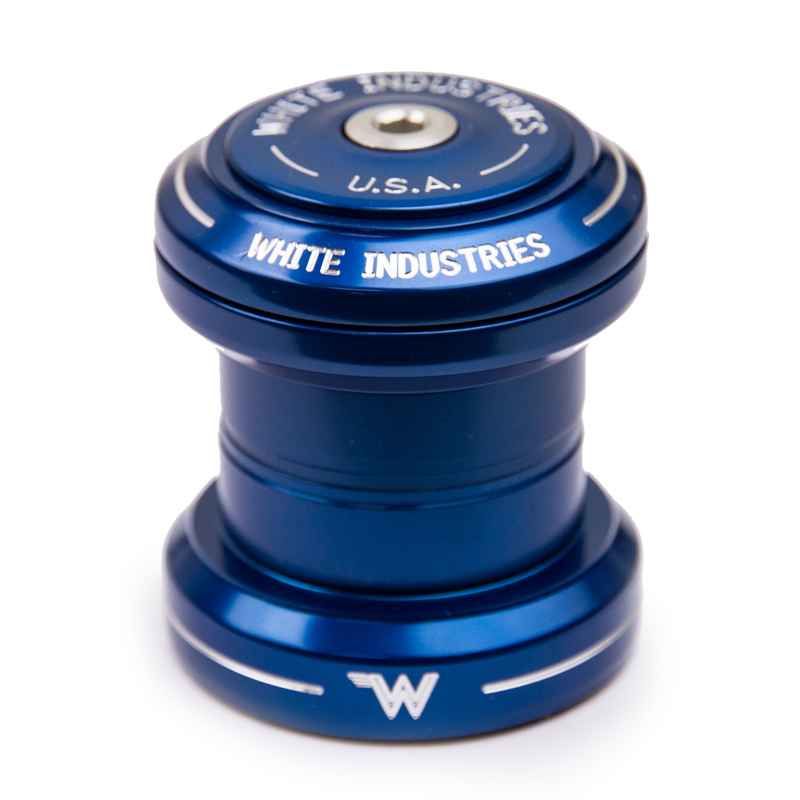

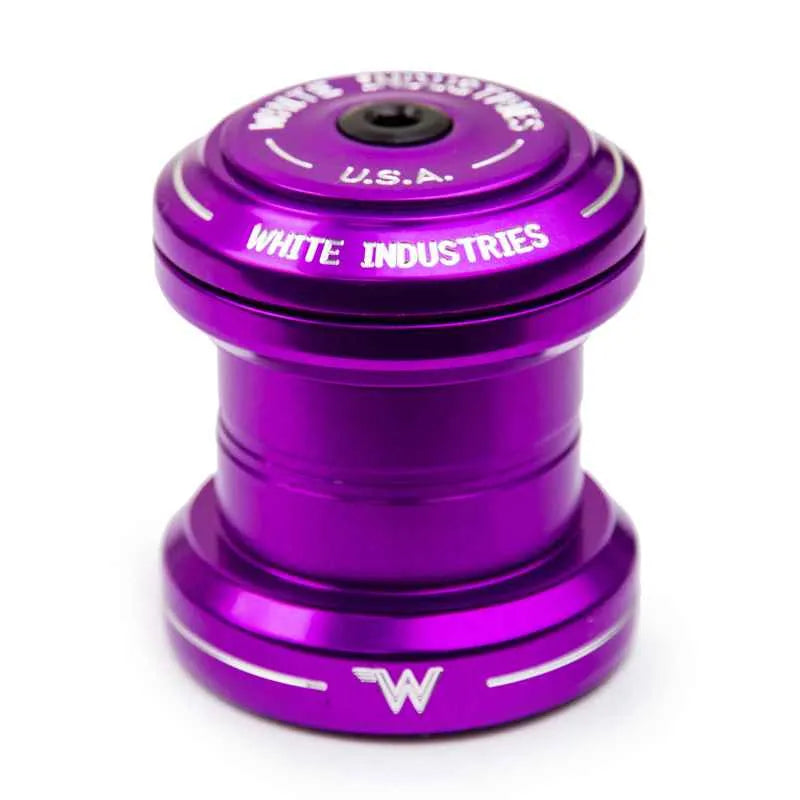

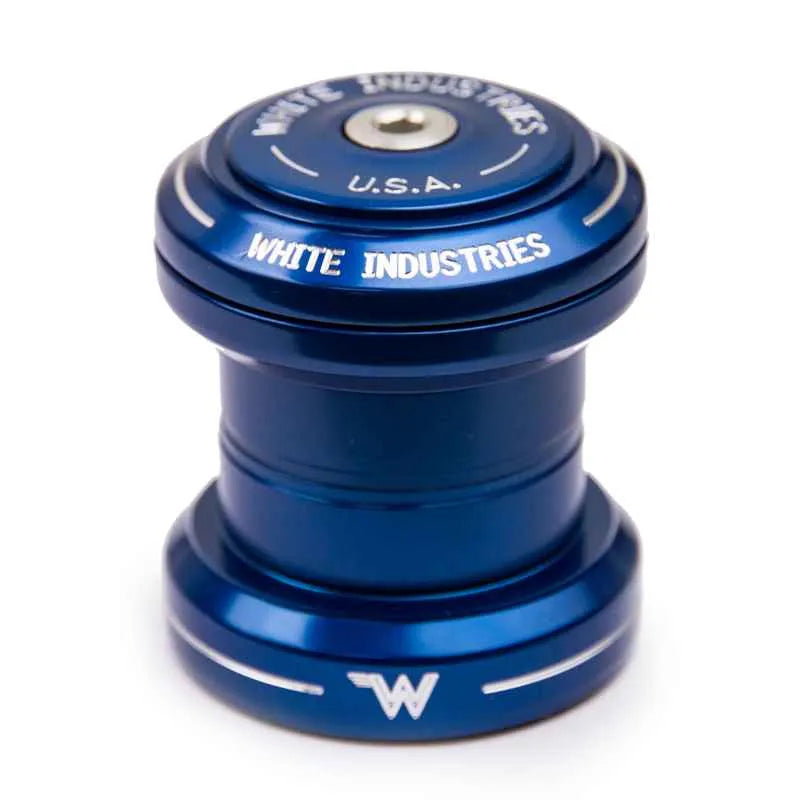

The EC34│EC34 headset is designed to fit frames with straight 34mm/34mm head tubes and straight 1-⅛” (28.6mm) fork steerers. The “EC” stands for “External Cup” meaning the section of the cup that houses the bearing sits outside of the frame’s head tube and the “34” stands for the 34mm “skirt” that presses into the frame.
Note: As of 9/14/23, headsets will no longer include Star Nuts due to the Earth’s star nut overpopulation crisis. If you need one, they are available separately.
Features
- U.S. sourced 6061-T6 aluminum
- Machine engraved White Industries logos
- Easily replaceable 440C Stainless Steel Enduro bearings which feature a limited lifetime warranty
- “Split” crown race for tool-free installation and removal
- Really sweet matching headset spacers available separately
- Compatible with Ritchey carbon 1-1/8″ steerer forks with integrated crown races (not tapered steerer forks)
- Must call to purchase purchase additional bearing part #ACB45451125TSS which replaces the stock bearing and crown race
- WCS road SKU 34356117005
- WCS road SKU 34356117006
- WCS Adventure Gravel SKU 34556117012
- WCS Gravel Cross SKU 34556117010
- Must call to purchase purchase additional bearing part #ACB45451125TSS which replaces the stock bearing and crown race
Specs
- SHIS specification
- Upper: EC34/28.6
- Lower: EC34/30
- Stack height
- Upper: 15mm
- Lower: 12mm
- SHIS definitions on the Park Tools website: here
- Frame/Fork specs:
|
Frame upper head tube inside diameter |
33.9mm to 33.95mm |
|
Frame lower head tube inside diameter |
33.9mm to 33.95mm |
|
Fork steerer diameter top section |
28.45mm to 28.6mm |
|
Crown race seat diameter for “straight 1-⅛” |
30.015mm to 30.075mm |
Bearings
|
Headset Model |
Upper Bearing (inner/outer angle) | Lower Bearing
(inner/outer angle) |
Lower Fork Race Compatibility |
|
EC34│EC34 |
ACB3645SS 36/45 | ACB3645SS 36/45 |
1-⅛” (30mm) |
