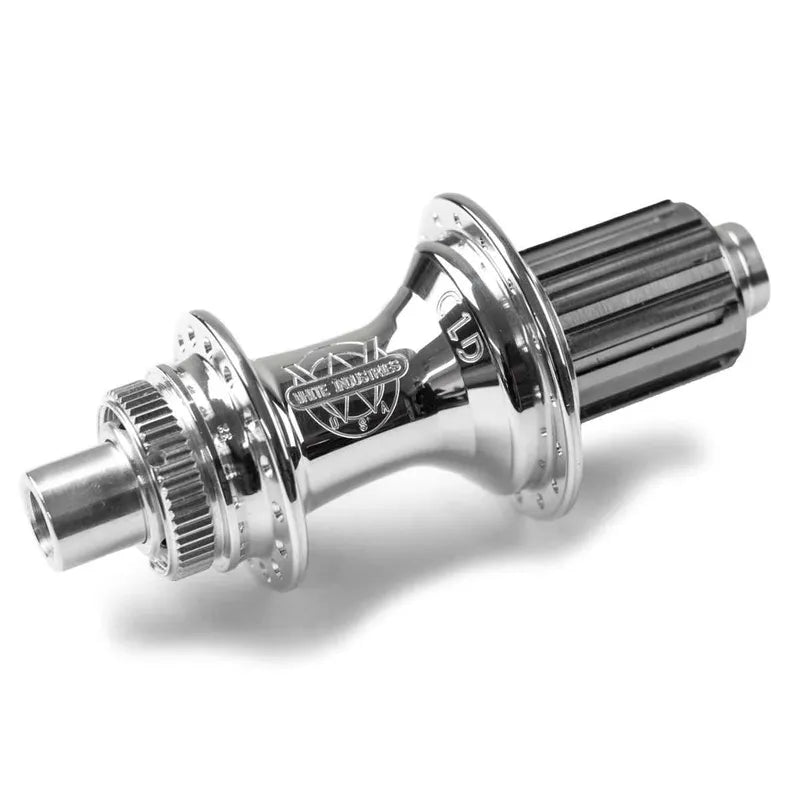

White Industries CLD Rear 12x142 Micro Spline

SKU: HUWH-HUBCLD24RMBK12
We apologize, but the item or size you're interested in is currently out of stock. Please send us an email, and our Online Team will get back to you with an estimated time of arrival as soon as possible. Thank you for your understanding.
Price
$809.90
Variant:White Industries Hub CLD Rear Black 24h 12x142 Micro Spline
Contact us

SHOP HOURS

Monday - Thursday 8.30am - 5.30pm

Friday 8.30am - 6.00pm

Saturday 9.00am - 4.00pm

Sunday 10.00am - 4.00pm

Public Hoildays

Open 10.00am -  4.00pm

customersupport@papanuicycles.co.nz   |   FB   |   Instagram   |  03 352 7495

468 Papanui Road, Papanui, Christchurch 8053

Note: As the White Industries catalogue is diverse, we don't stock every variant or colour. However, we place regular airfreight orders. If an item is in stock at White Industries, we can usually have it here within a week. Even if it's not in stock, they can often assemble it for us, and we can have it within three weeks at most. Feel free to get in touch if you're after something specific!

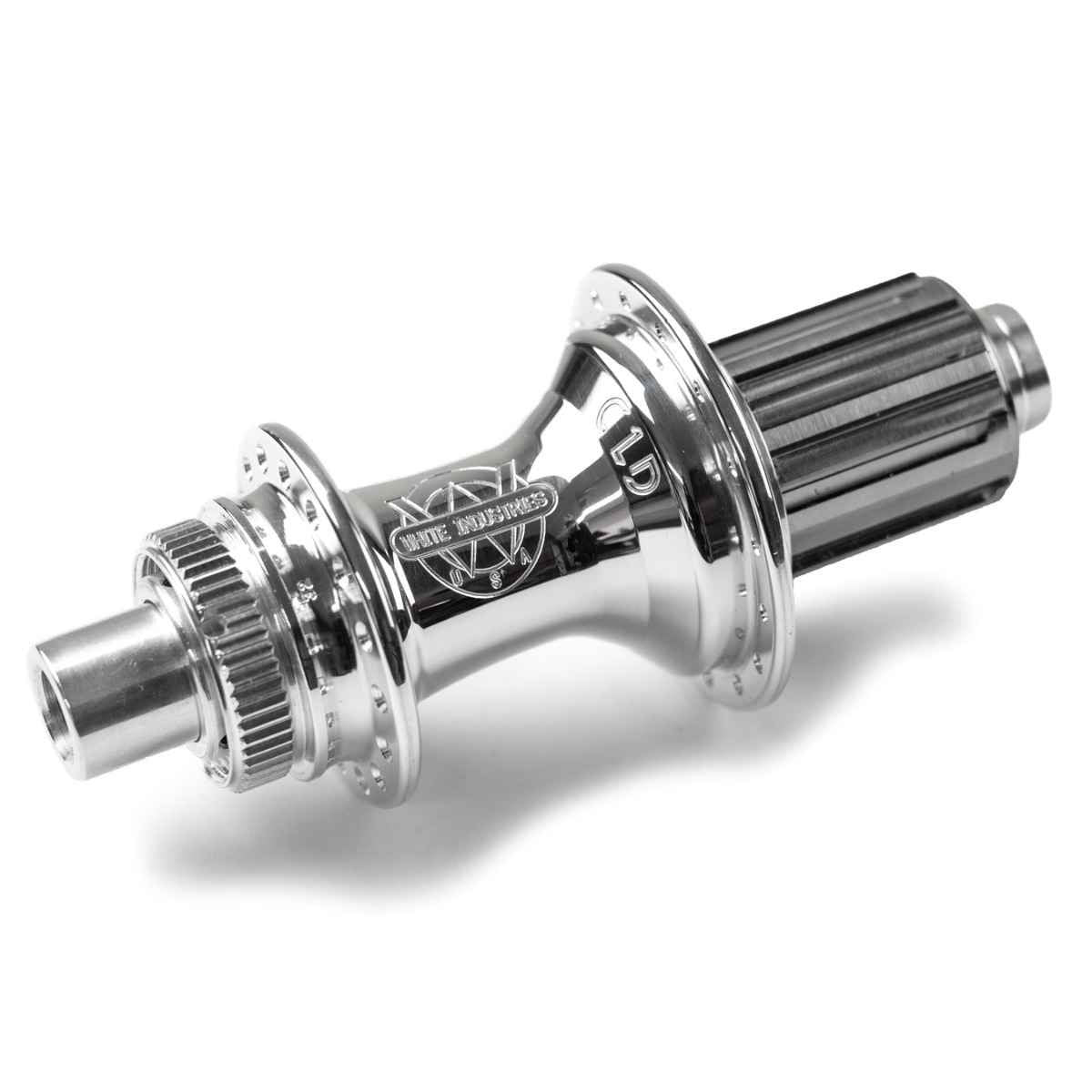

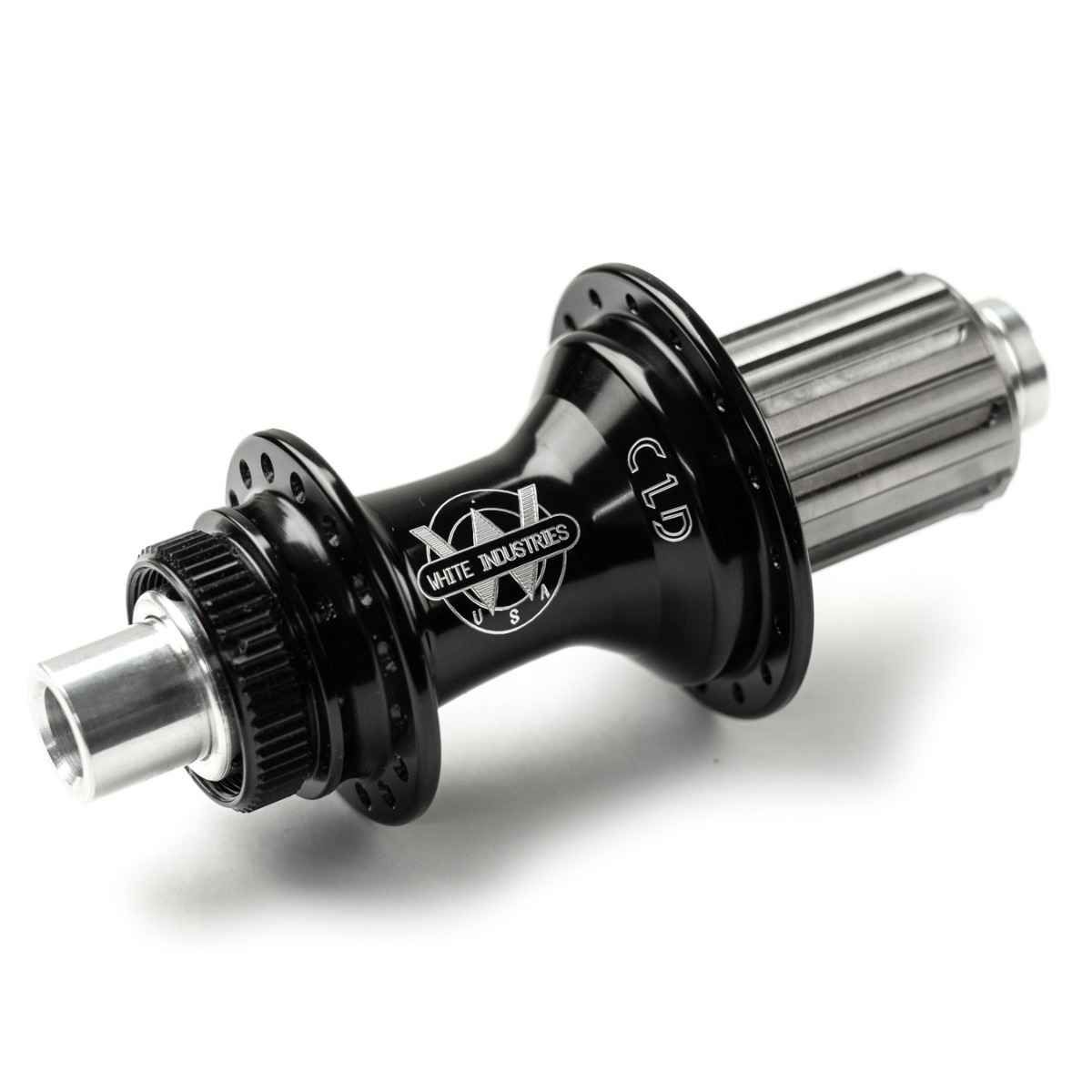

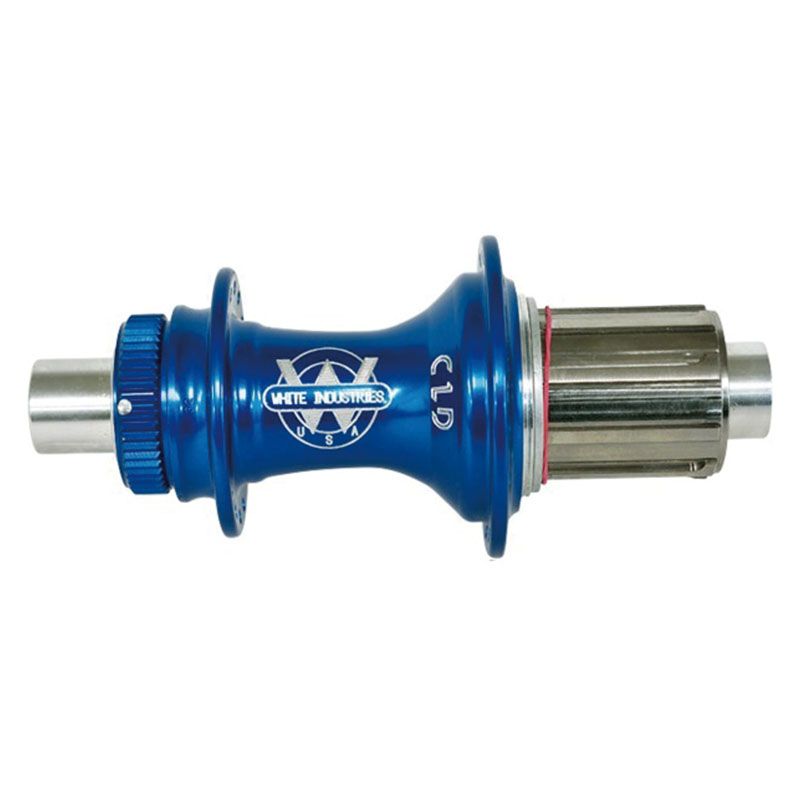

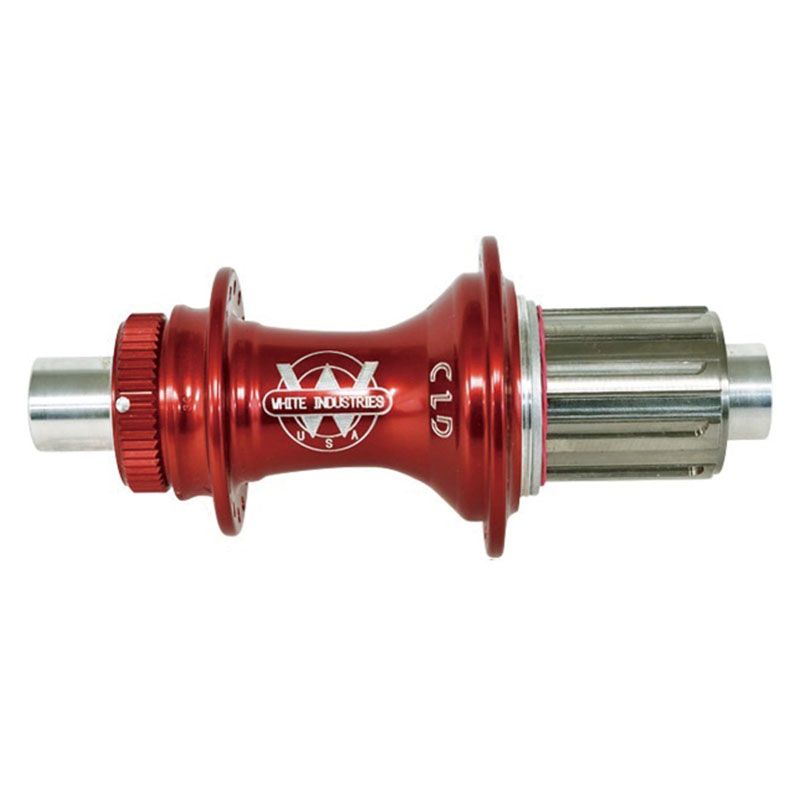

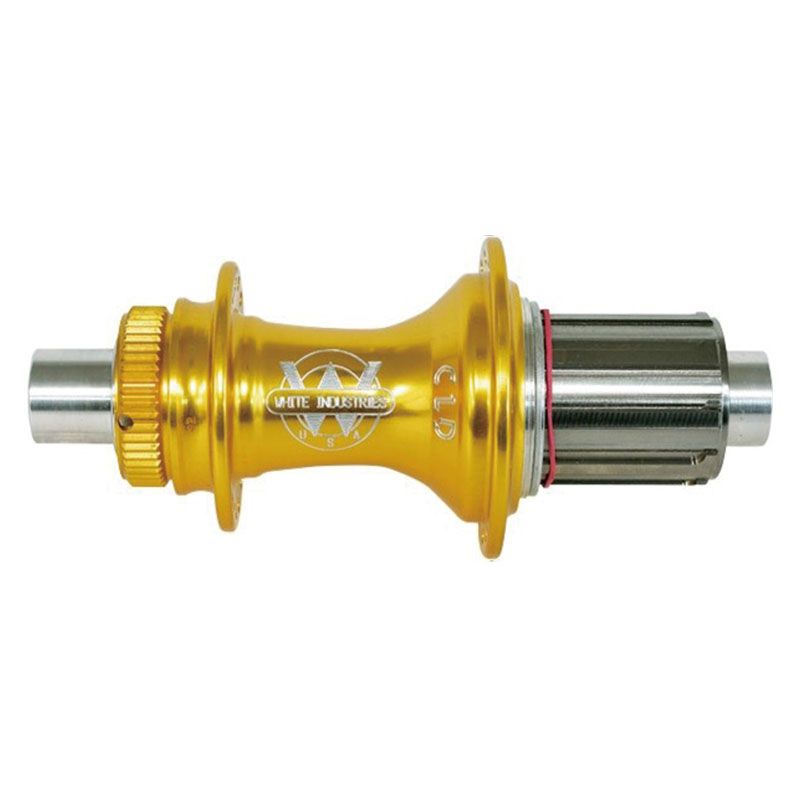

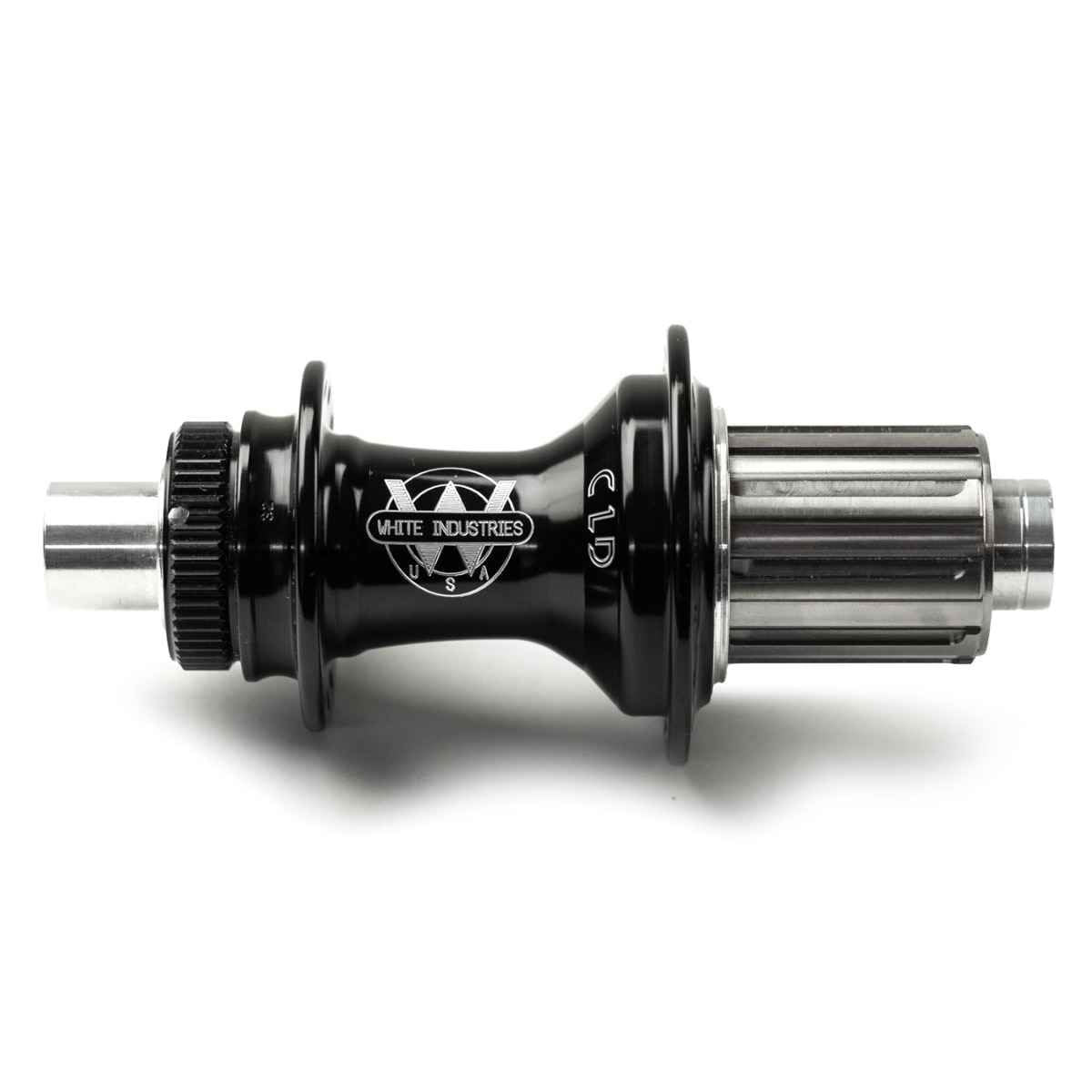

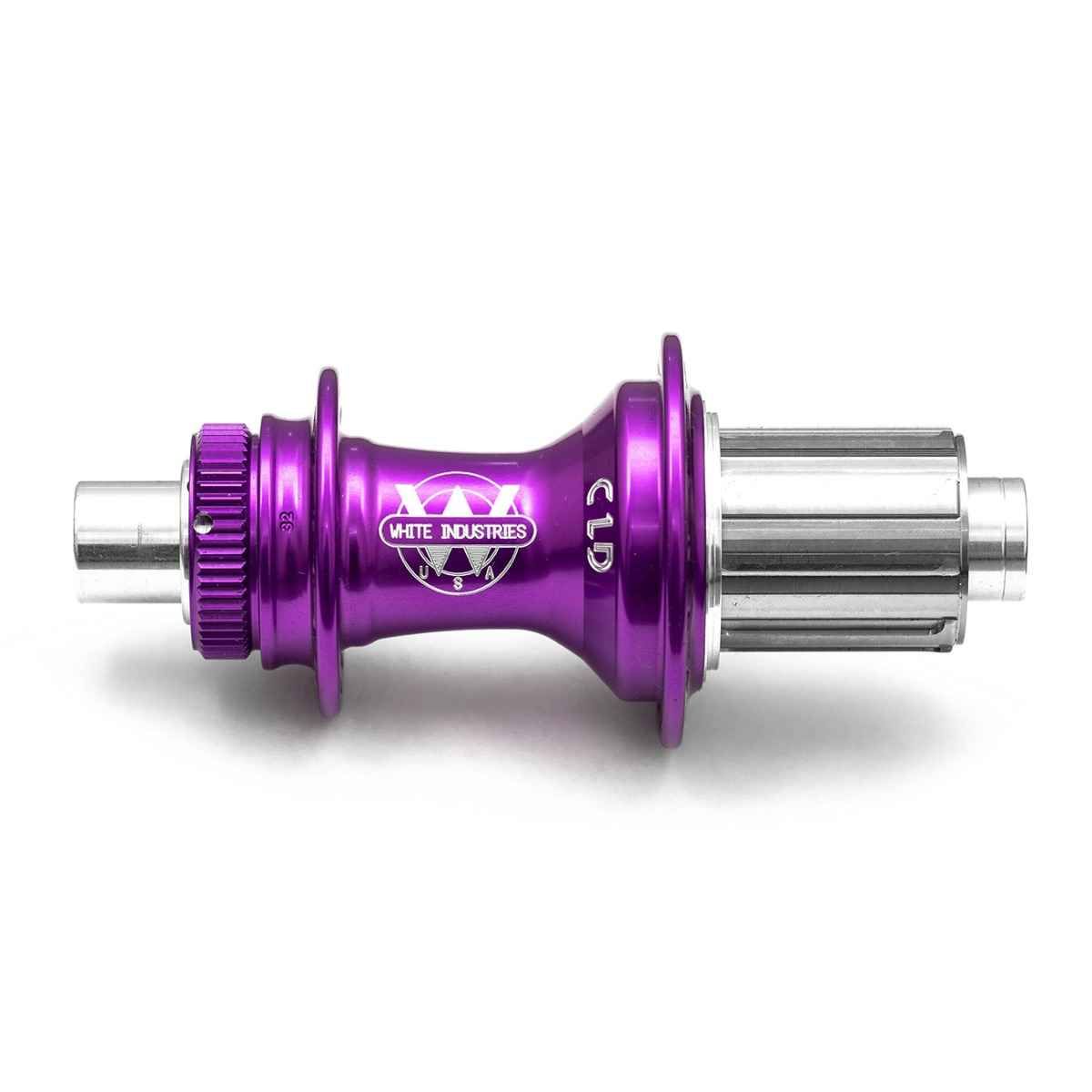

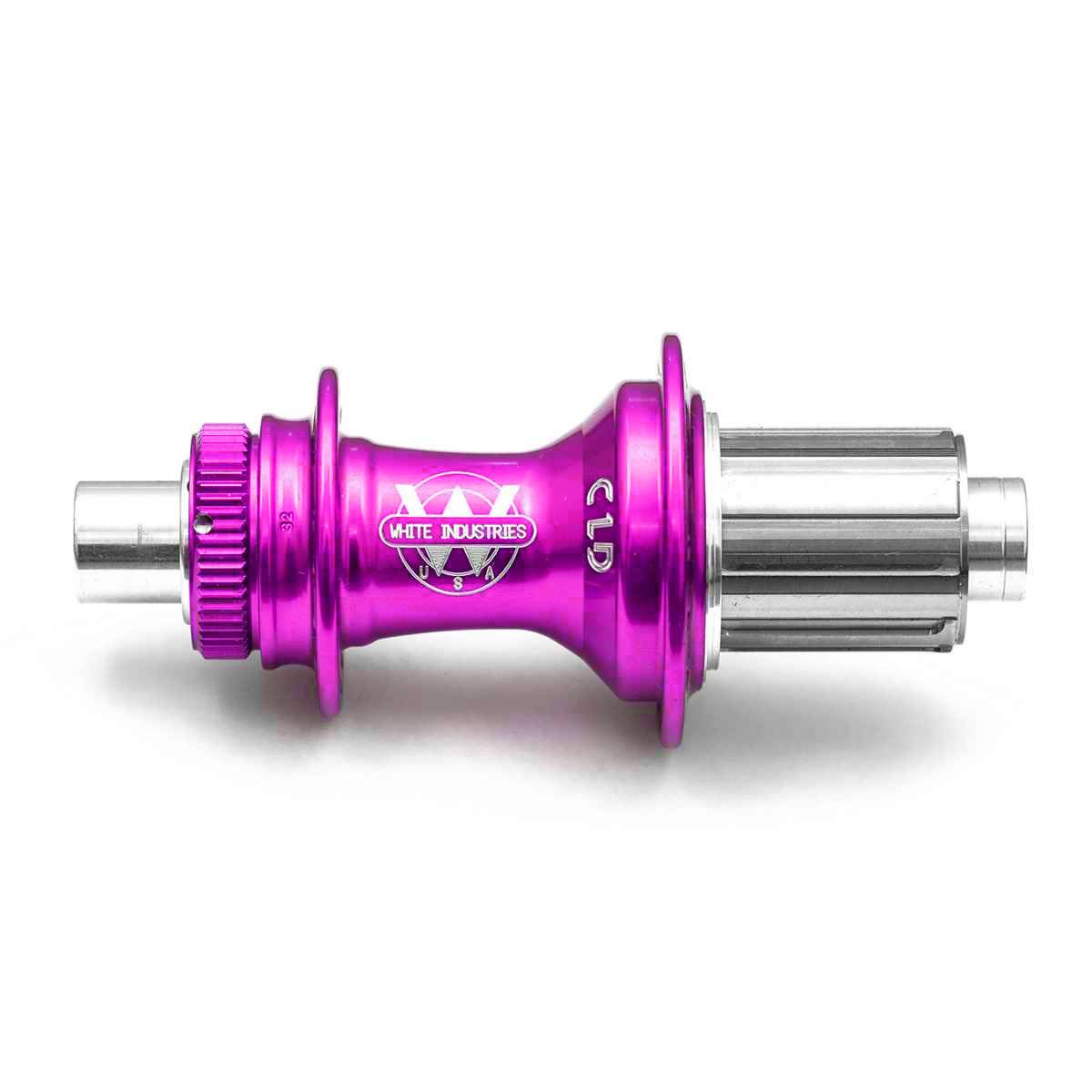

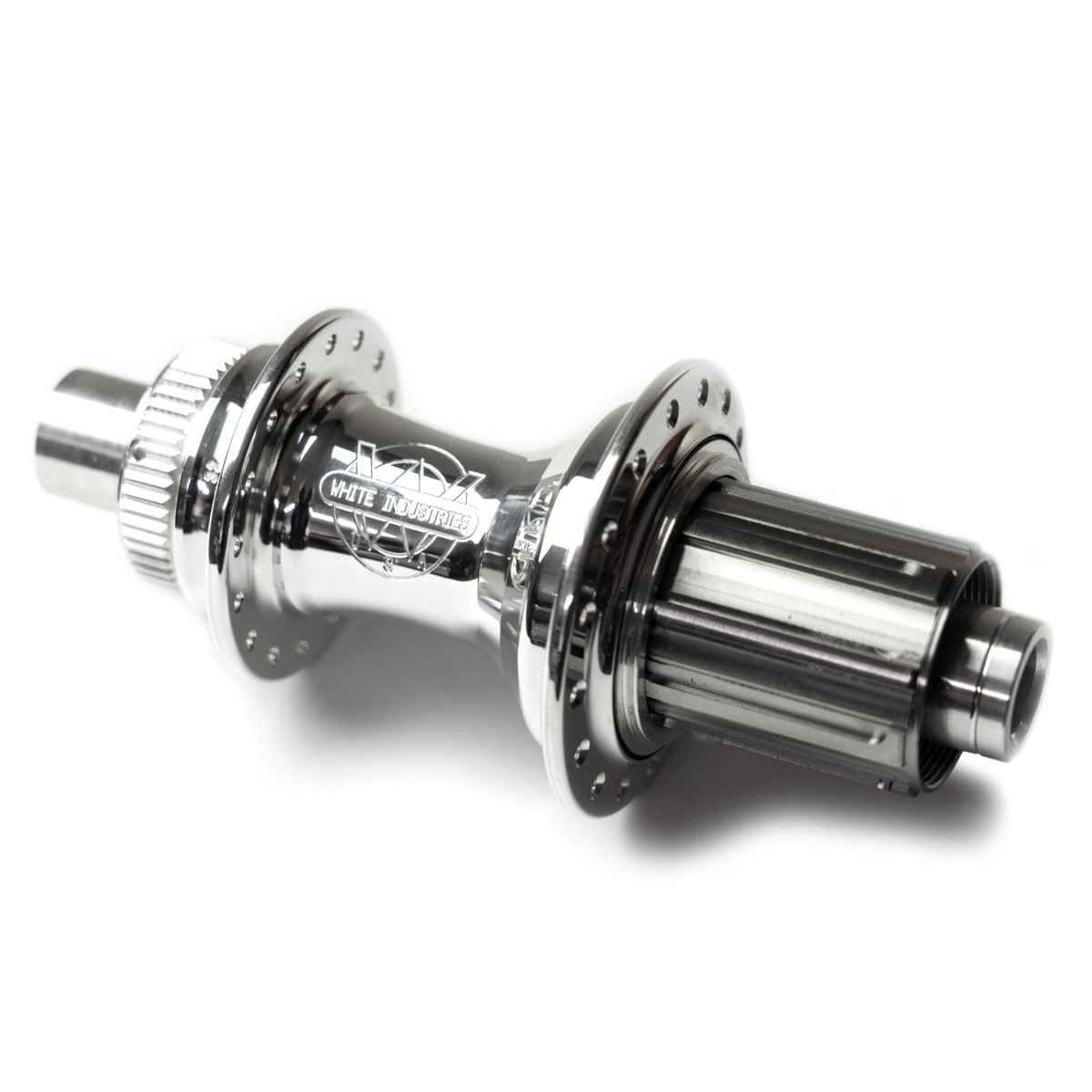

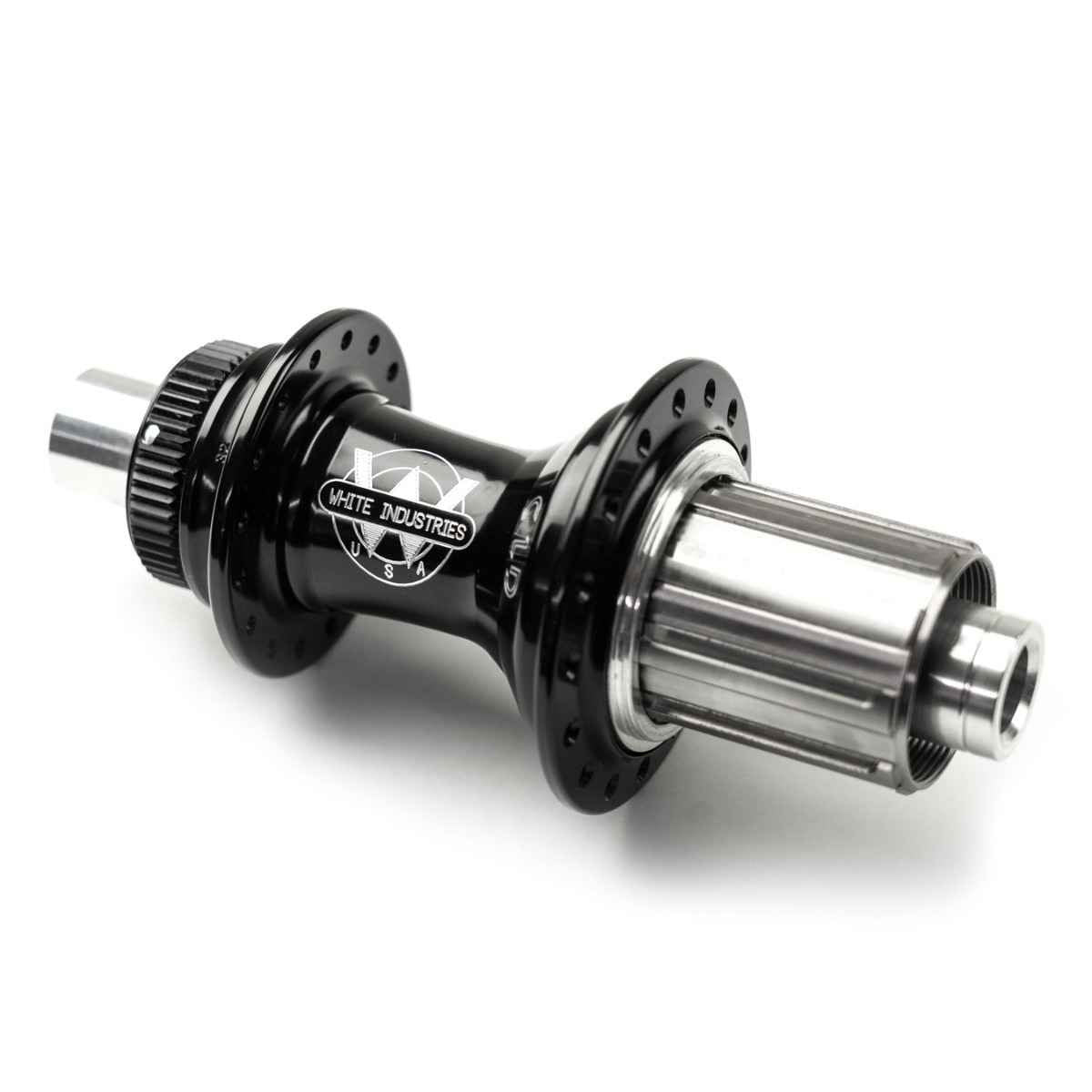

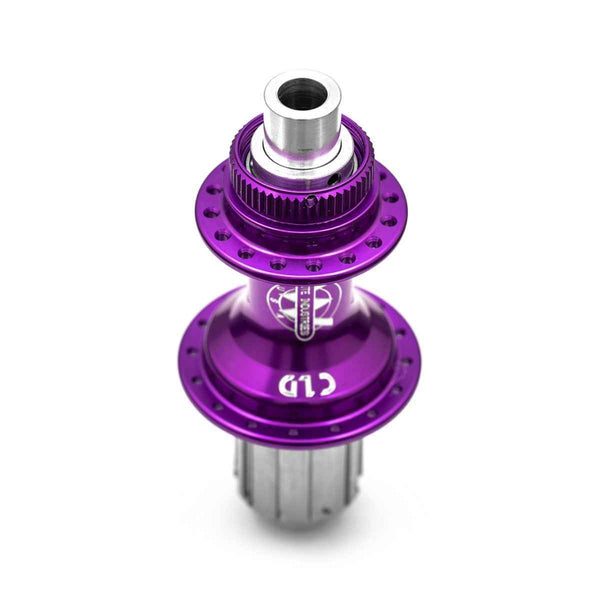

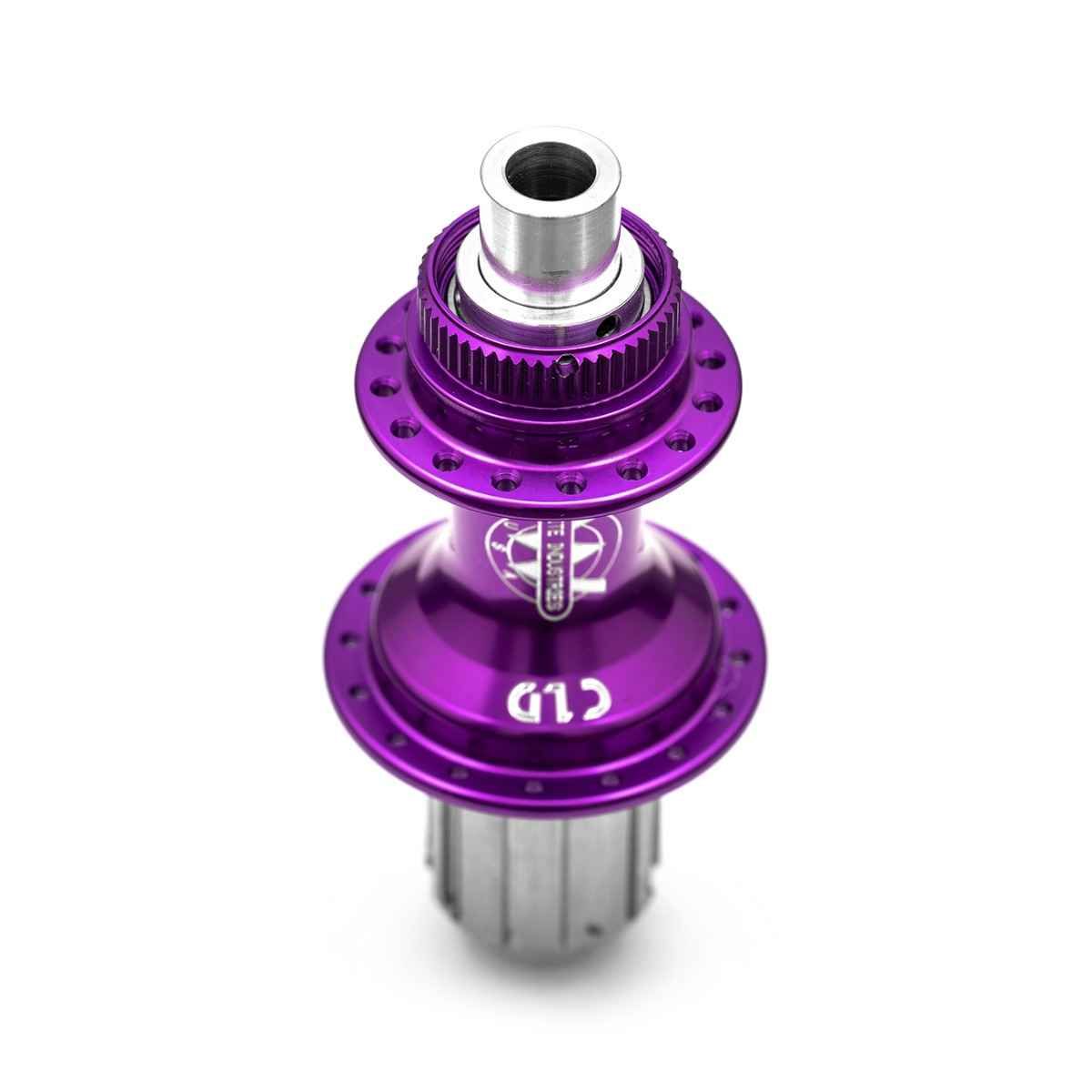

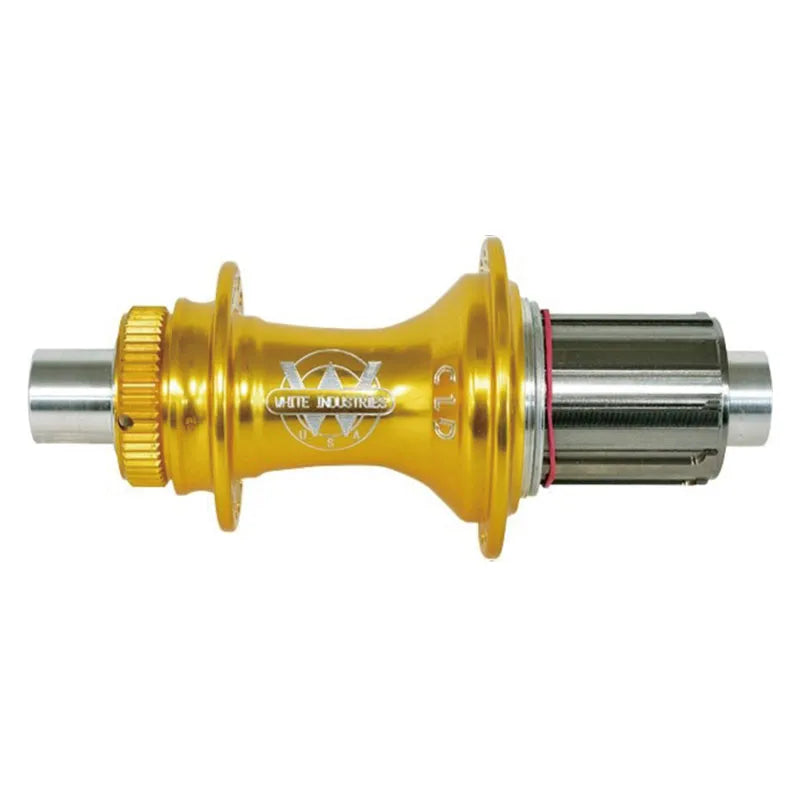

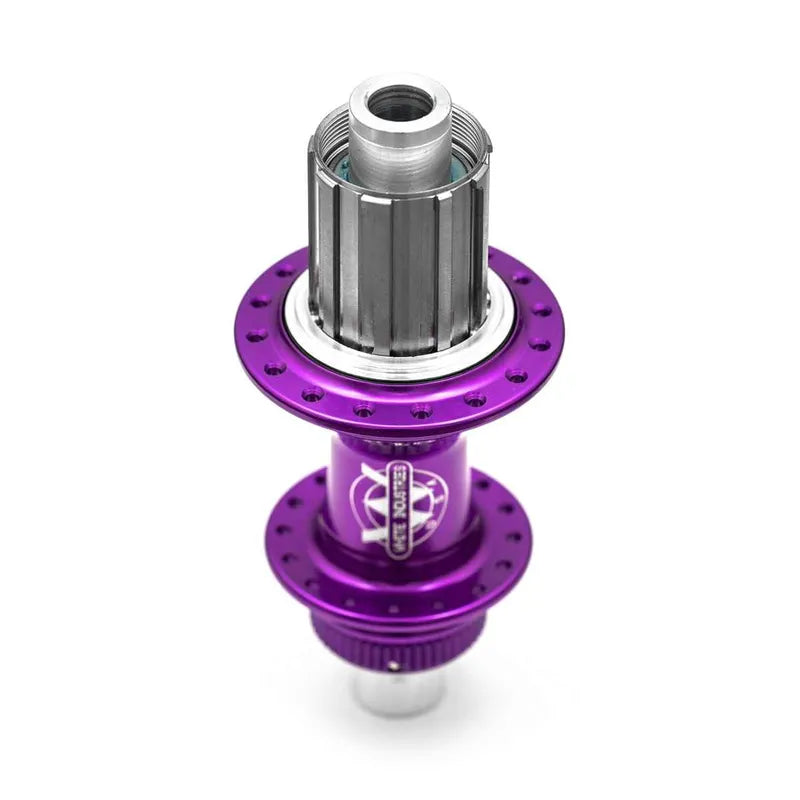

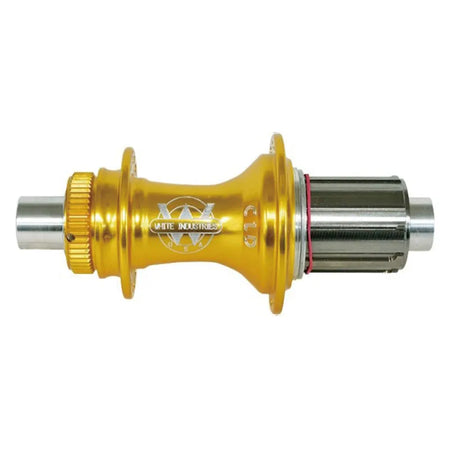

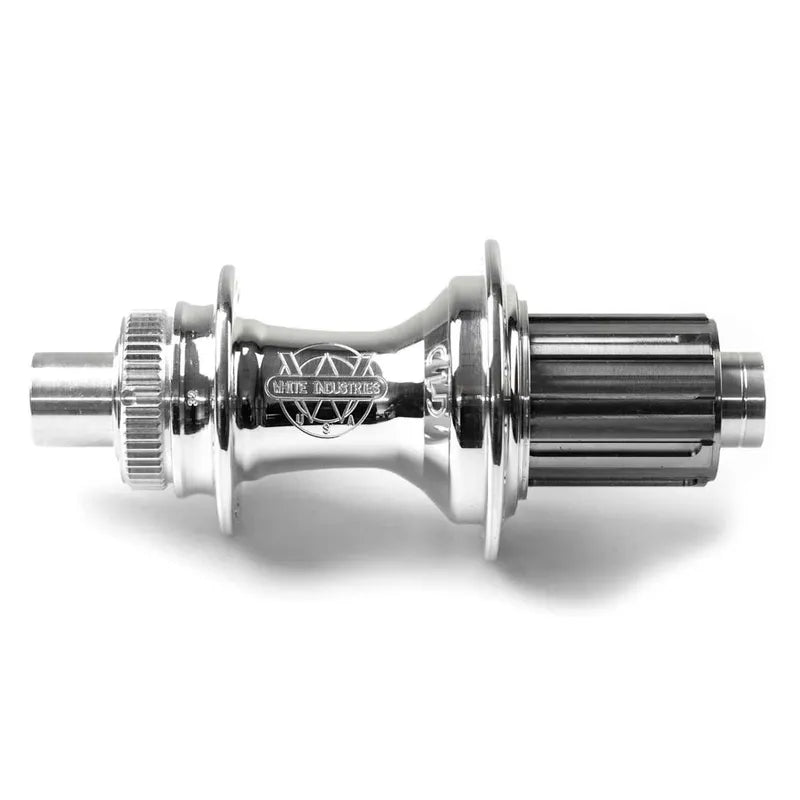

Our CLD (Center Lock Disc) hubs are designed around the Center Lock splined rotor mounting interface as opposed to the 6-bolt mounting standard used on our XMR hub. Made in our shop from U.S. sourced 6061-T6 aluminum, they’re available in a range of drillings, colors, and axle configurations.

A question we always get about our disc hubs is, “CLD or XMR? Which is better?”. Neither is “better” than the other. Both share the same internals and the differences really come down to the respective designs having to accommodate the two different rotor mounting interfaces. Bottom line is you really can’t go wrong with either hub!

Features

  • 6061-T6 aluminum
  • Enduro bearings
  • 6/4 titanium driver
  • 3-pawl, 48 point (7.5 degree) engagement
  • Compatible with Center Lock style rotors
  • Rotor lockrings not included
  • Rotor lockring compatibility
    • Internally splined lockring such as Shimano SM-RT81
  • Cassette spacer included only on XDR freehub bodies
    • Available separately for Shimano HG11 (part# SPACER11)
  • Radial spoke lacing not recommended

Specs

  • 256g
  • Drillings: 24, 28, 32, 36
  • Axles:
    • 12mm x 142mm Thru
    • 10mm x 135mm QR

Bearings

  • All Enduro ABEC 5 except 3802W (ABEC 3)
Driver Style Left hub shell bearing Right hub shell bearing Inner driver bearing Outer driver bearing
Shimano Hyperglide 11 speed 61902-LLU/LLB 61902-LLU/LLB 3802W LLB 61902-LLU/LLB
Shimano Micro Spline 61902-LLU/LLB 61902-LLU/LLB 3802W LLB 3802W LLB
SRAM XD/XDR 61902-LLU/LLB 61902-LLU/LLB 3802W LLB 3802W LLB
Campy 11 speed 61902-LLU/LLB 61902-LLU/LLB 3802W LLB 3802W LLB
Campy N3W/EKAR 13 speed 61902-LLU/LLB 61902-LLU/LLB 3802W LLB 3802W LLB

Wheelbuilding specs

  • Spoke hole diameter
    • 2.6mm
Left flange diameter Right flange diameter Center to left flange Center to right flange
45mm 55mm 33mm 19mm
