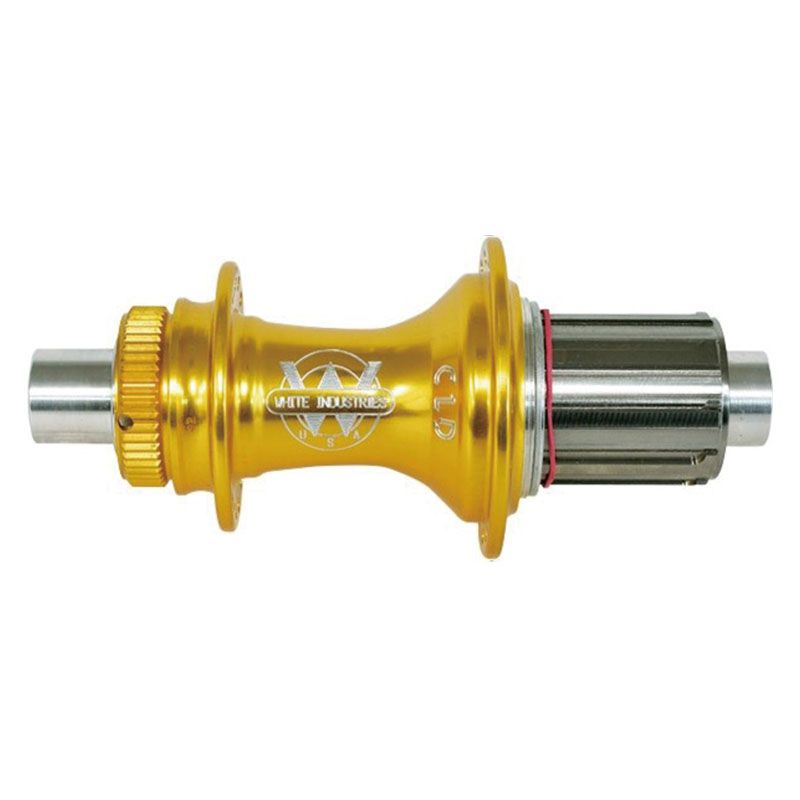

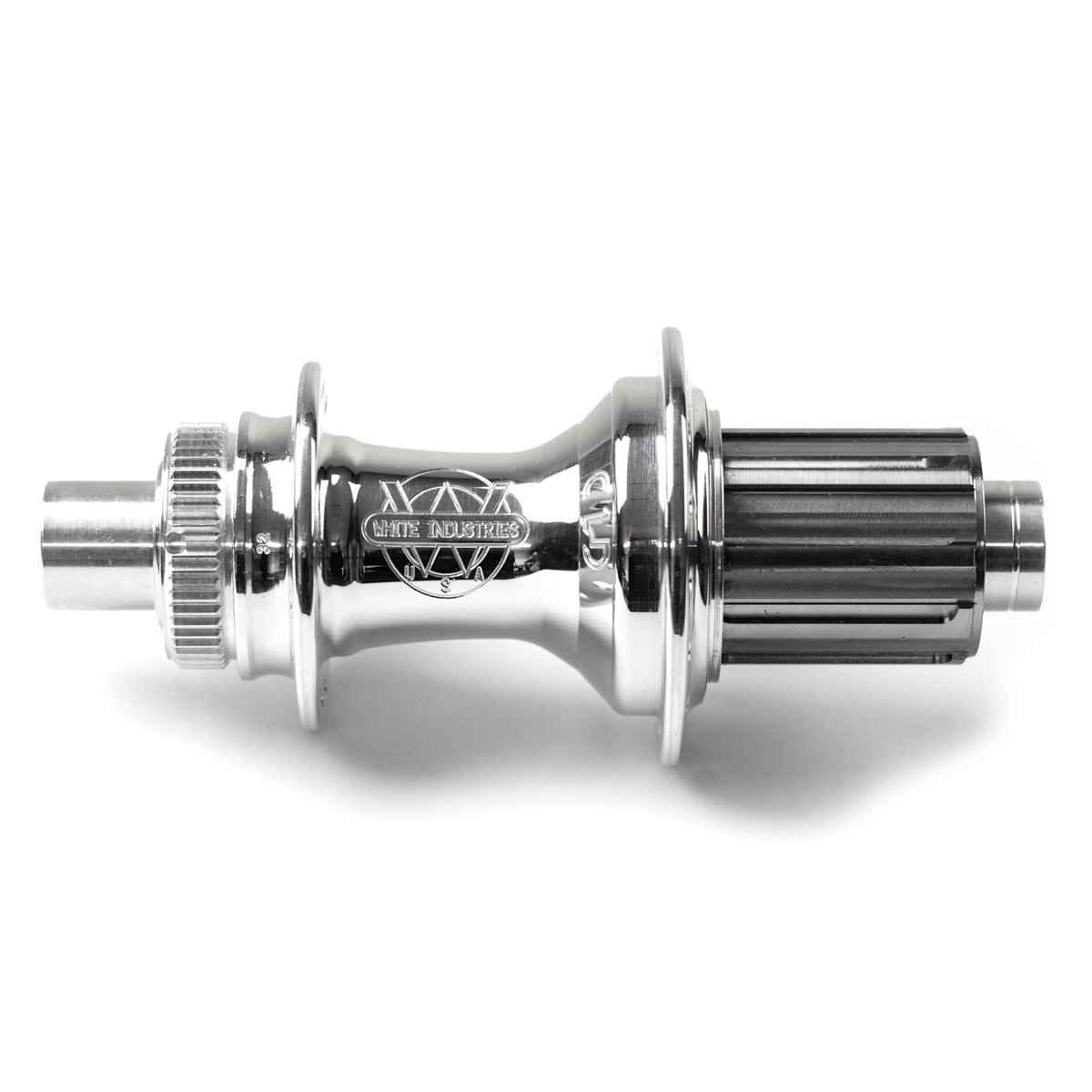

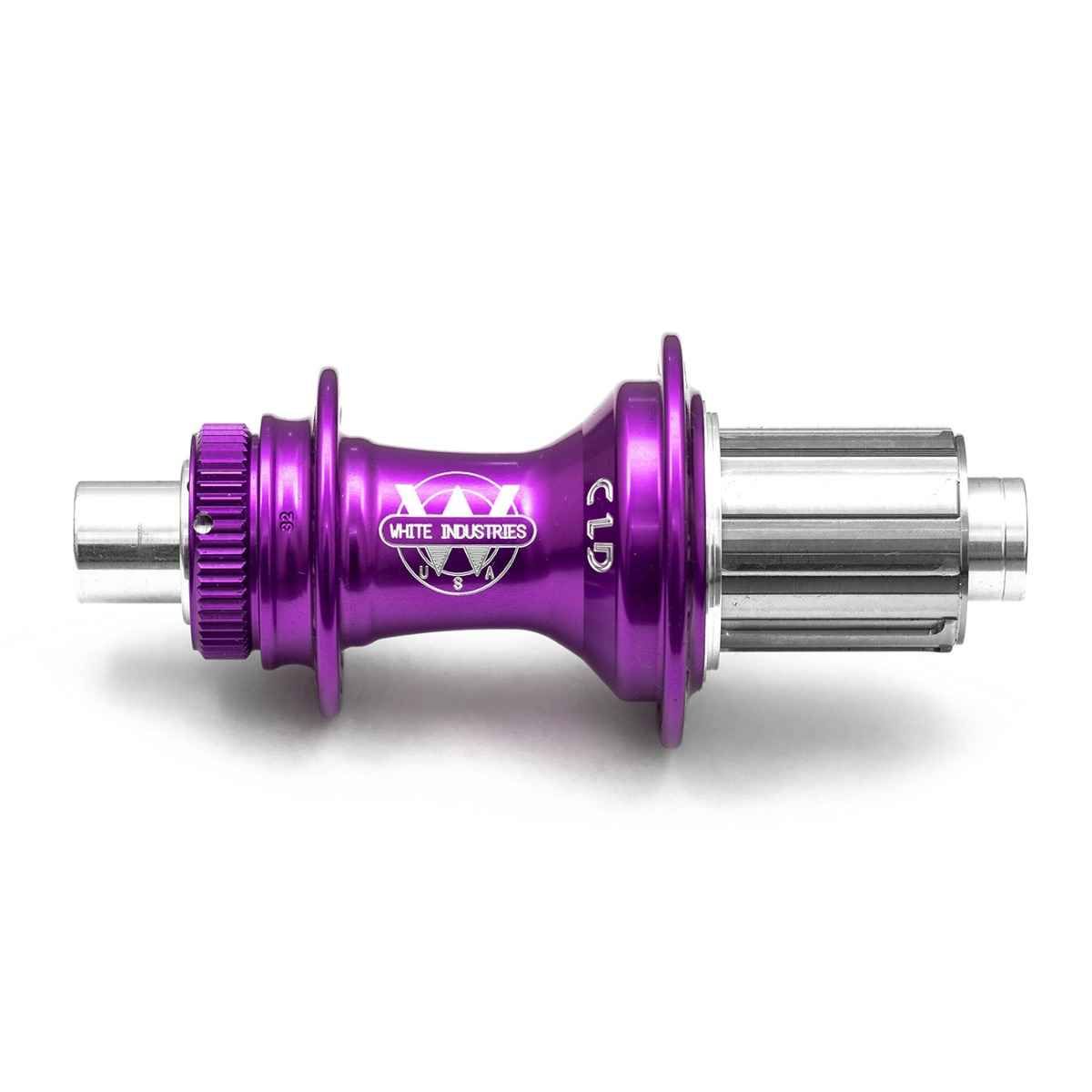

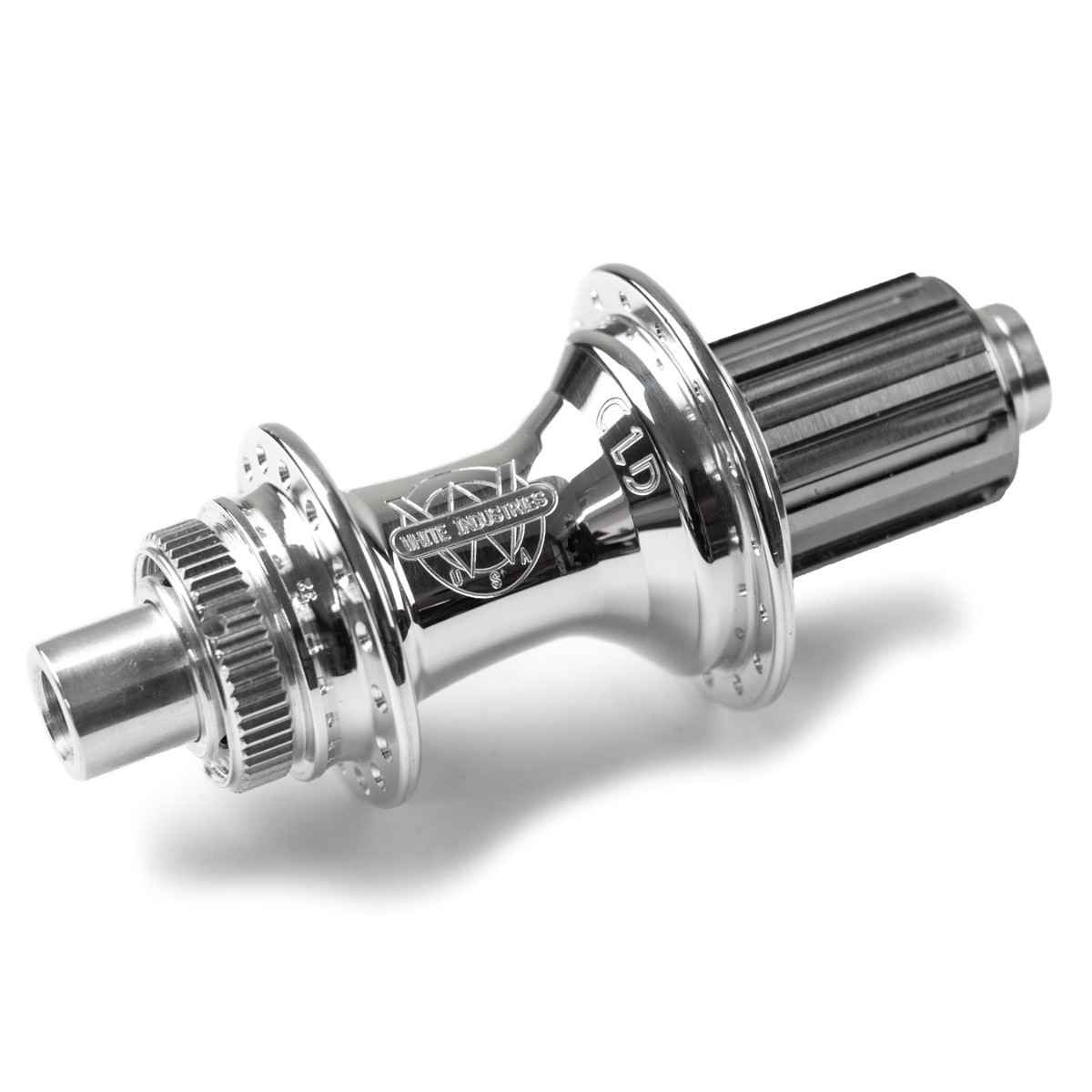

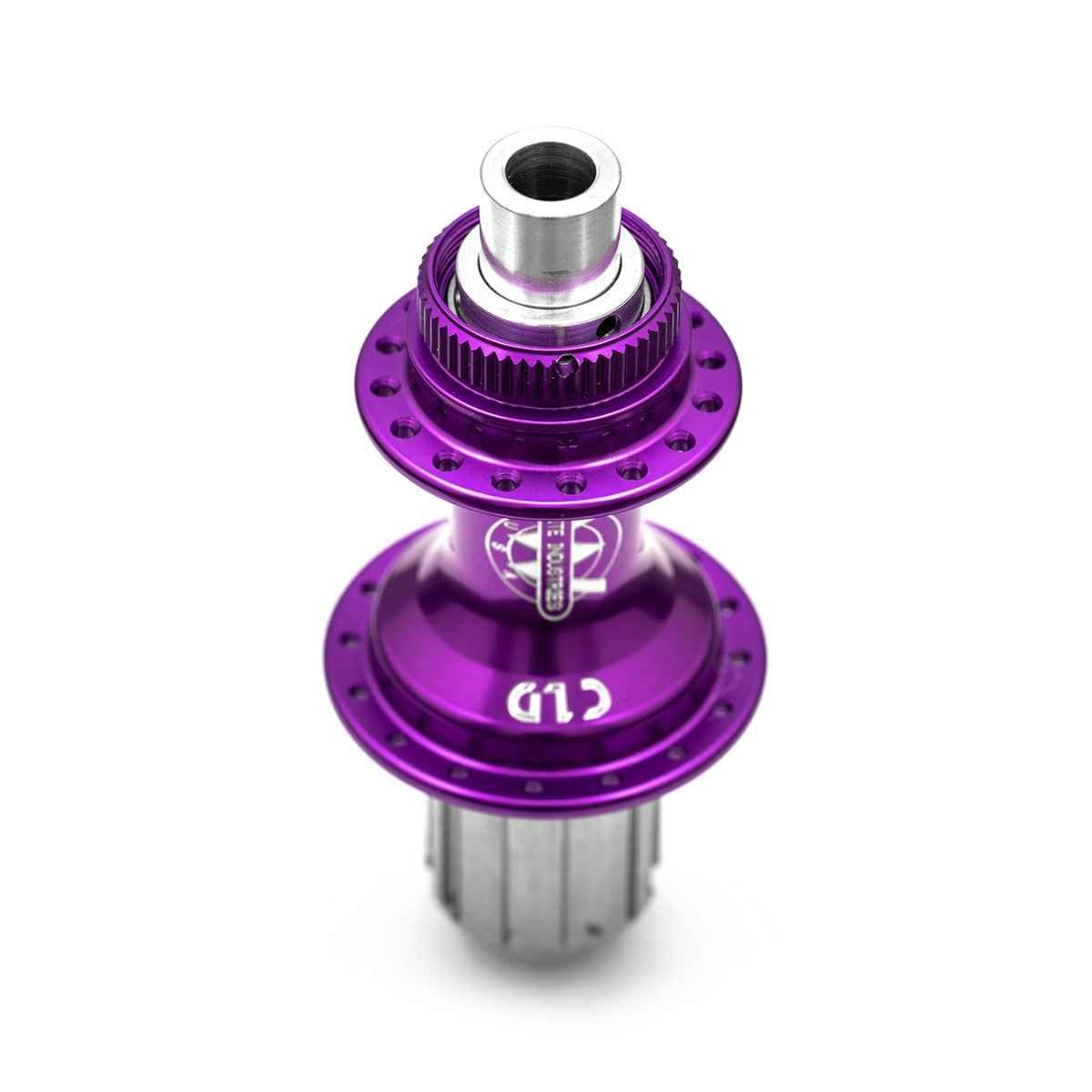

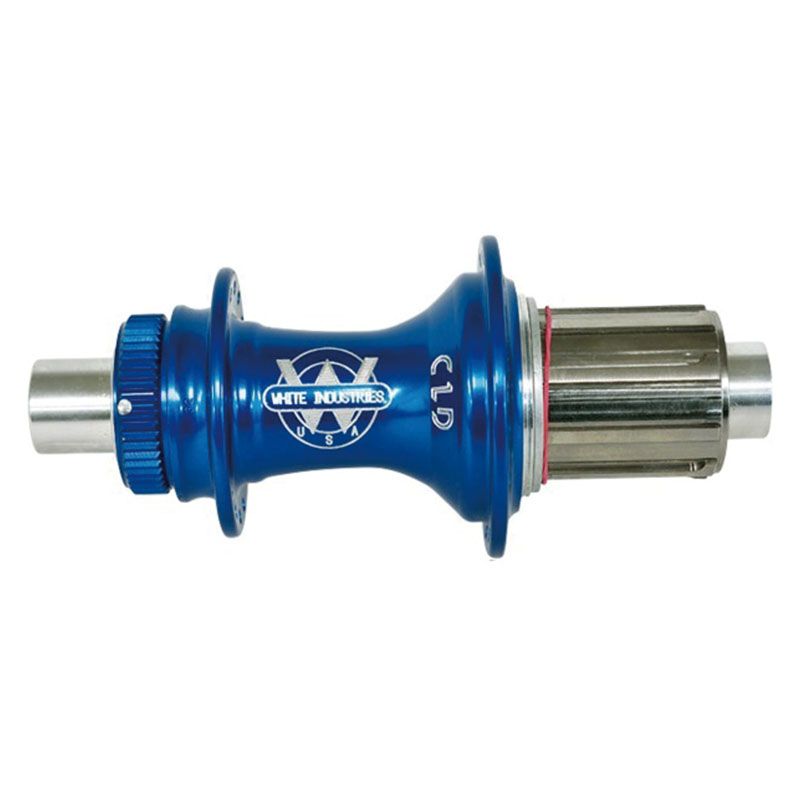

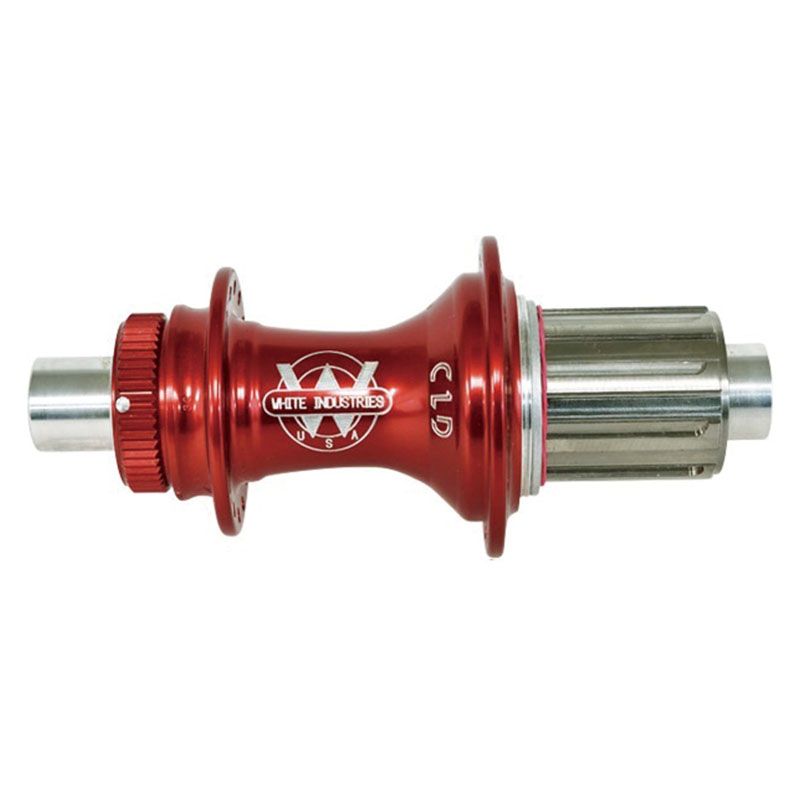

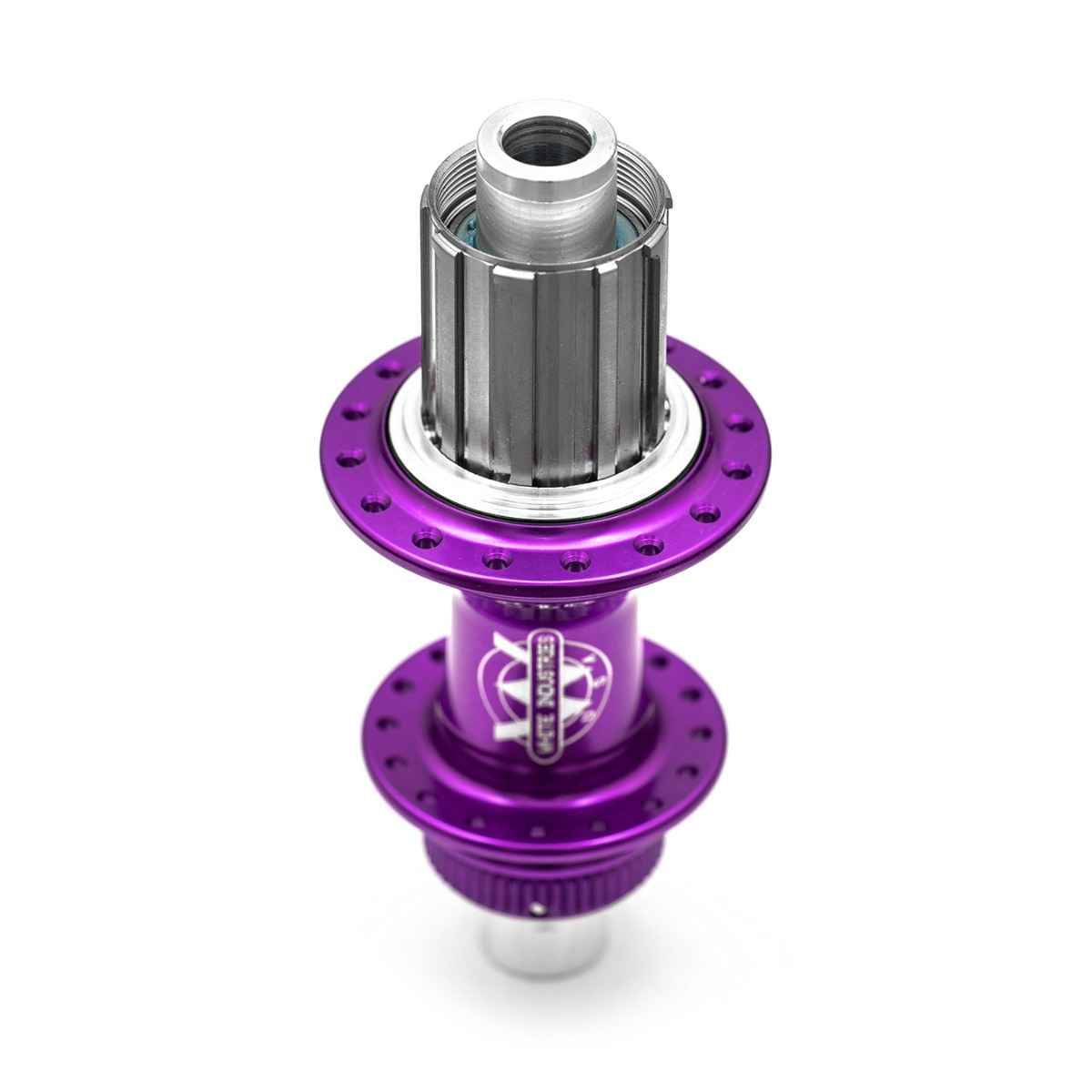

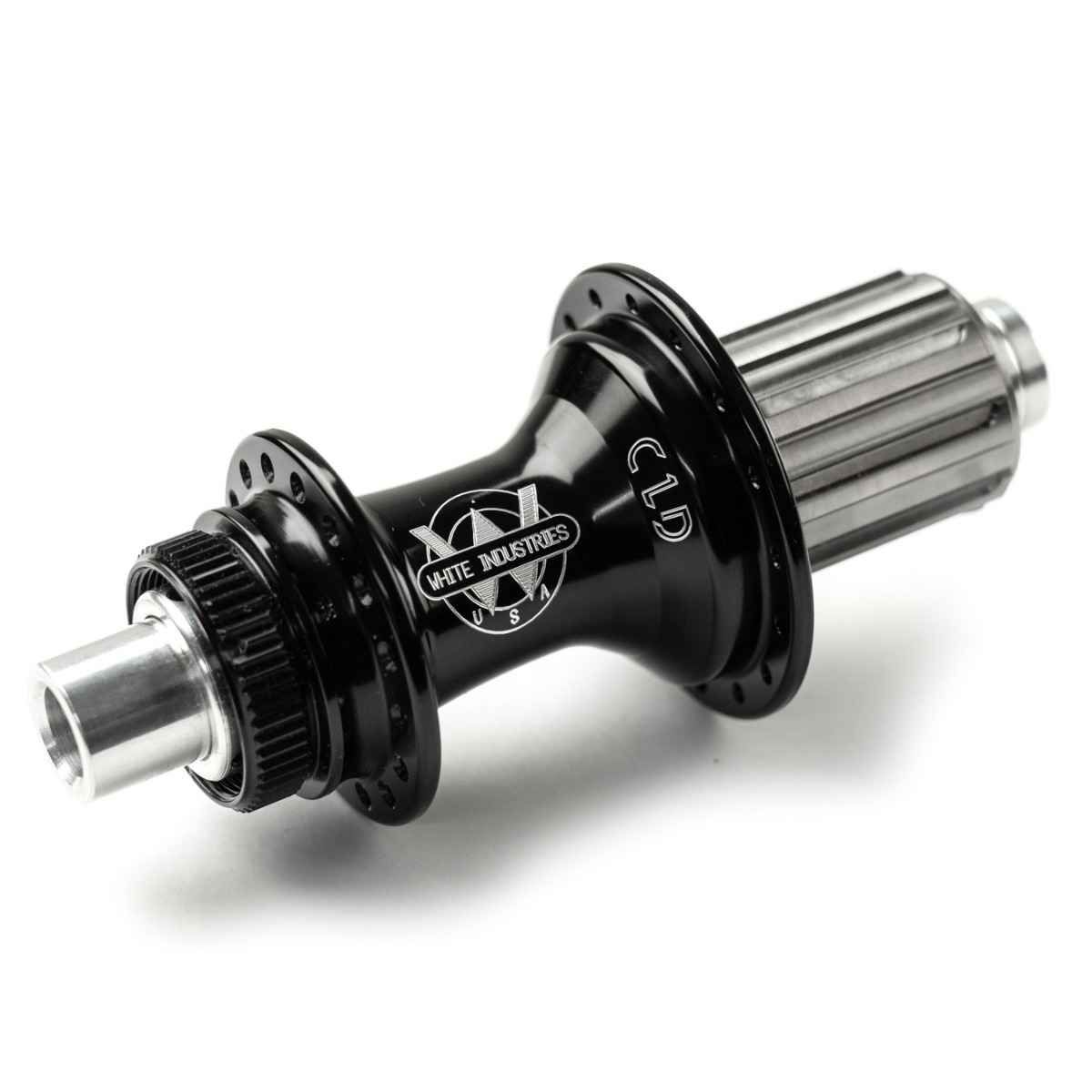

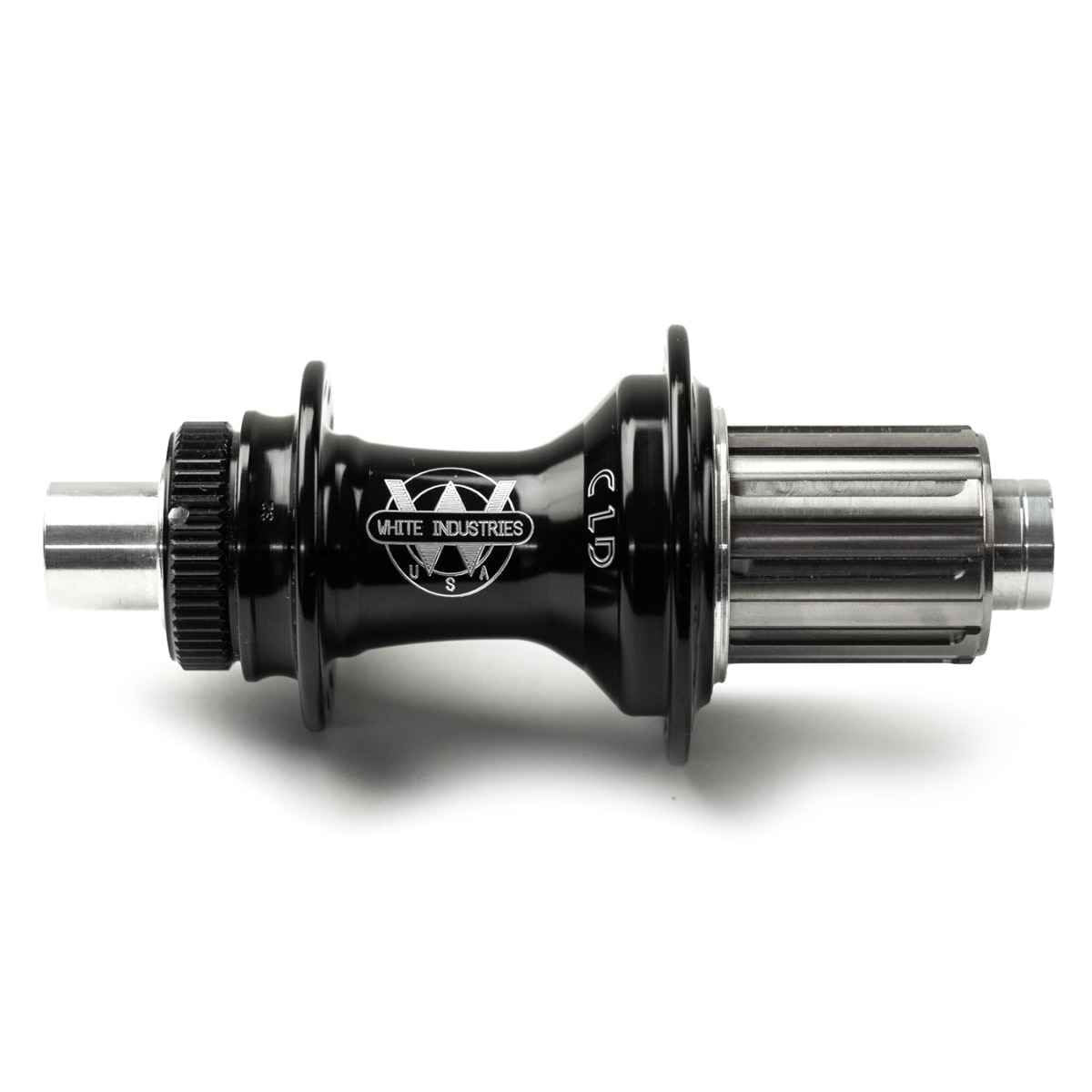

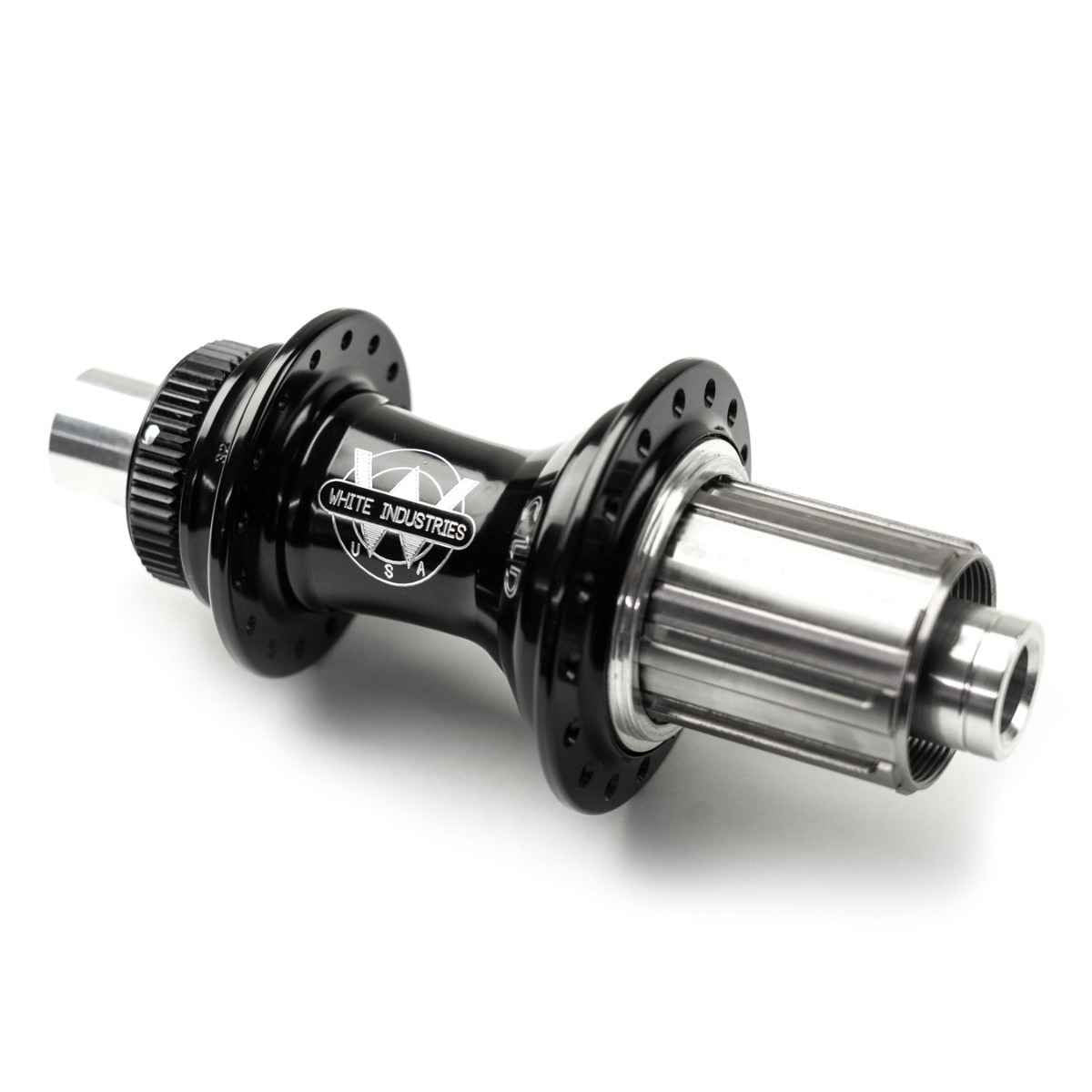

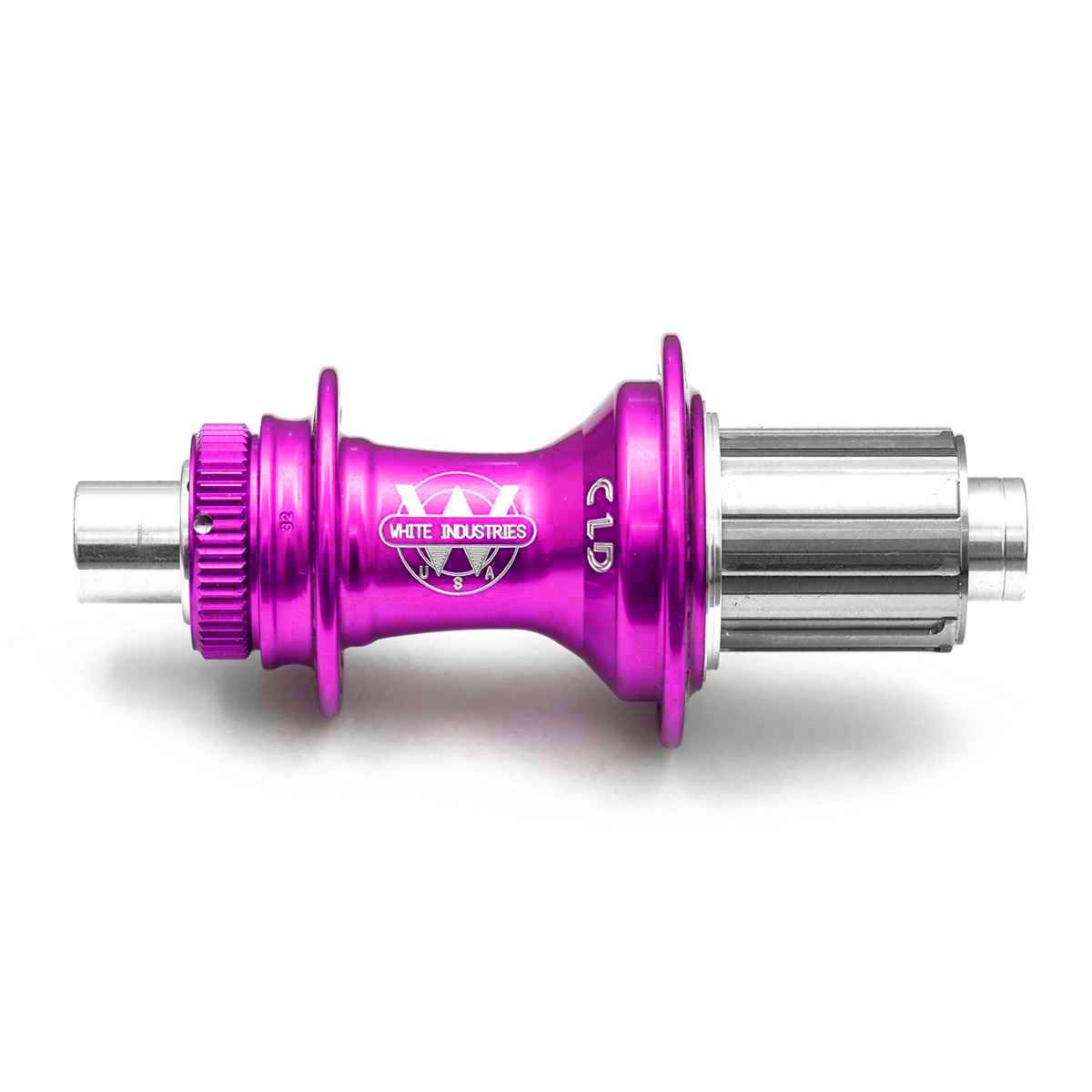

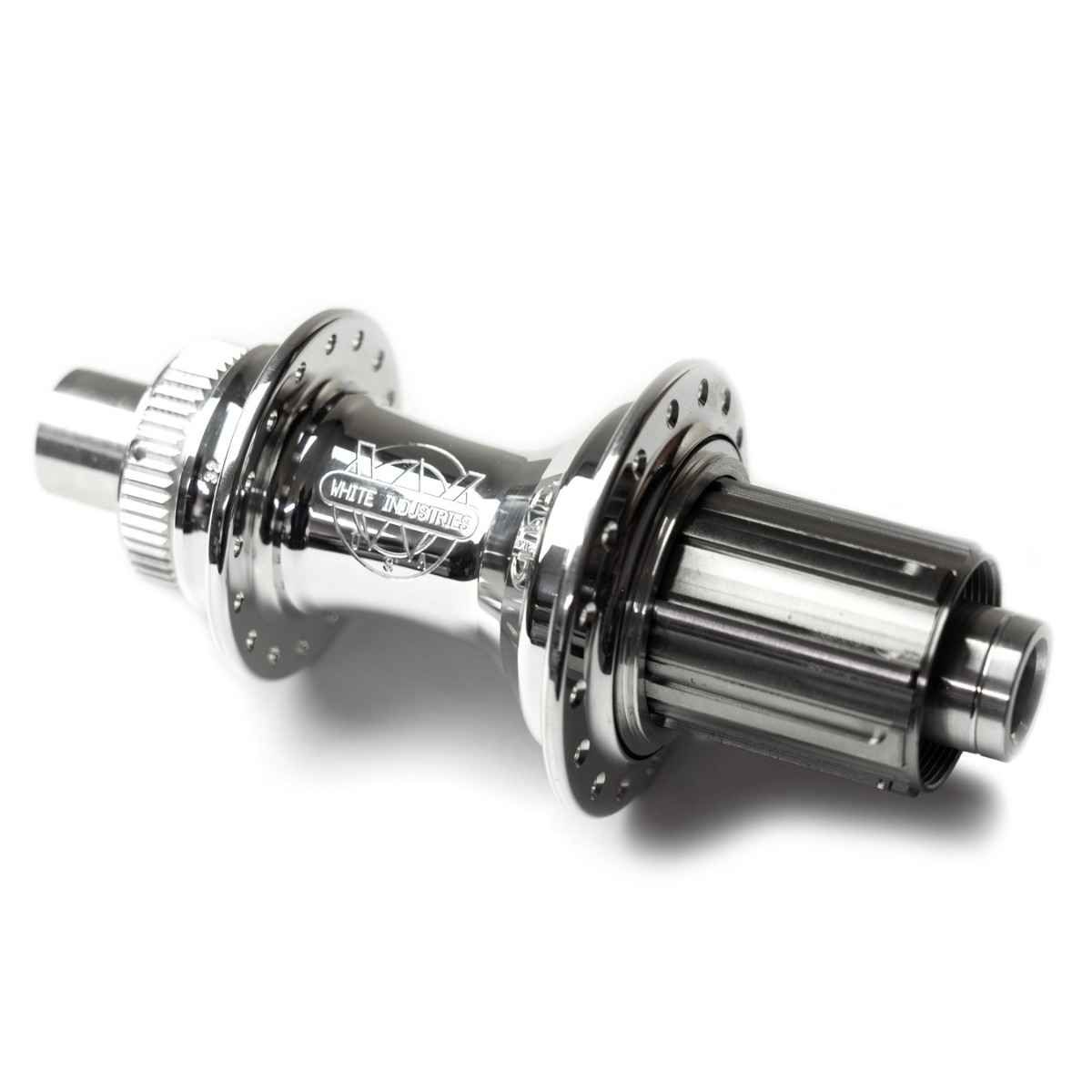

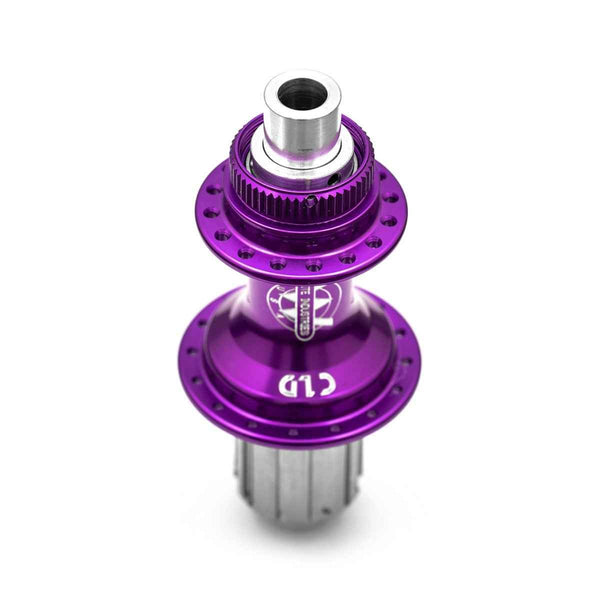

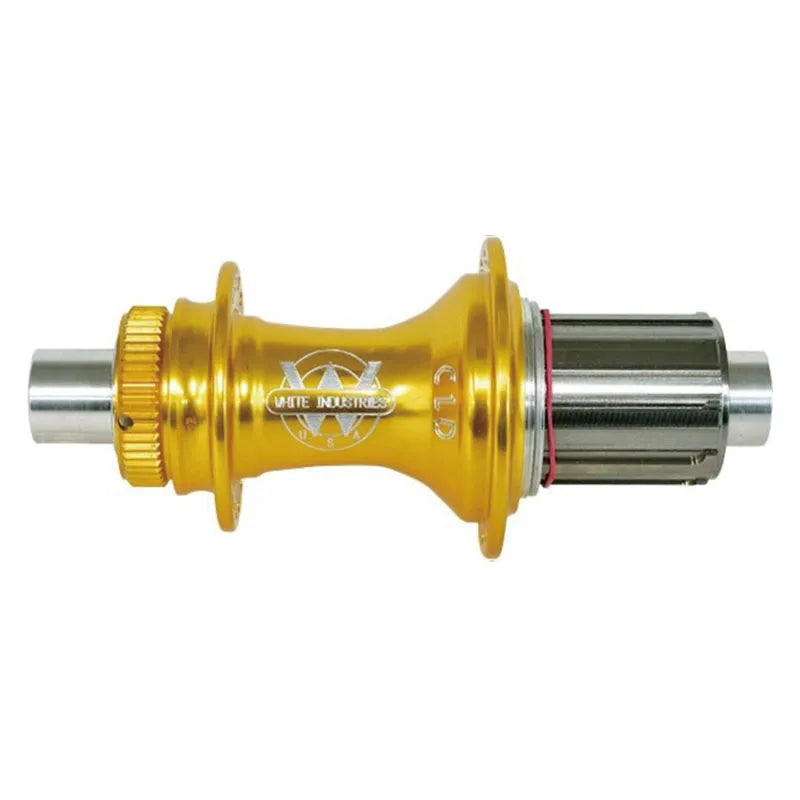

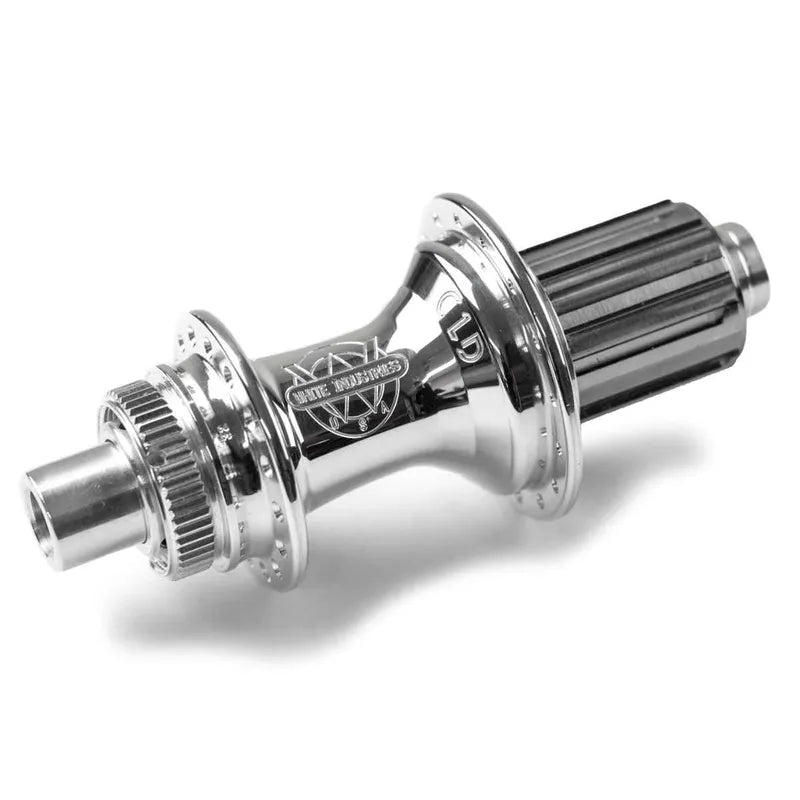

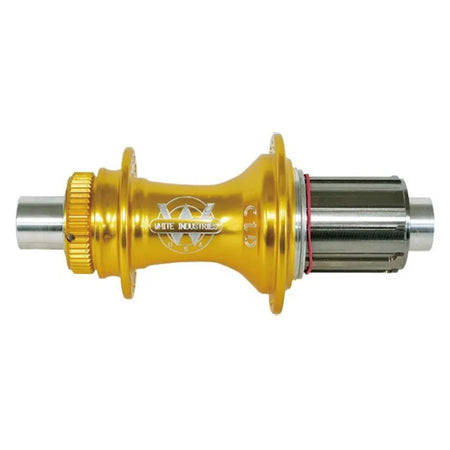

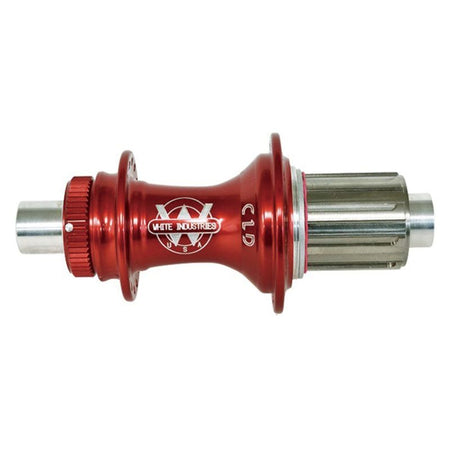

White Industries CLD Rear 12x142 HG
Couldn't load pickup availability
If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.
Need help choosing the right size?
Note: As the White Industries catalogue is diverse, we don't stock every variant or colour. However, we place regular airfreight orders. If an item is in stock at White Industries, we can usually have it here within a week. Even if it's not in stock, they can often assemble it for us, and we can have it within three weeks at most. Feel free to get in touch if you're after something specific!
Our CLD (Center Lock Disc) hubs are designed around the Center Lock splined rotor mounting interface as opposed to the 6-bolt mounting standard used on our XMR hub. Made in our shop from U.S. sourced 6061-T6 aluminum, they’re available in a range of drillings, colors, and axle configurations.
A question we always get about our disc hubs is, “CLD or XMR? Which is better?”. Neither is “better” than the other. Both share the same internals and the differences really come down to the respective designs having to accommodate the two different rotor mounting interfaces. Bottom line is you really can’t go wrong with either hub!
Features
- 6061-T6 aluminum
- Enduro bearings
- 6/4 titanium driver
- 3-pawl, 48 point (7.5 degree) engagement
- Compatible with Center Lock style rotors
- Rotor lockrings not included
- Rotor lockring compatibility
- Internally splined lockring such as Shimano SM-RT81
- Cassette spacer included only on XDR freehub bodies
- Available separately for Shimano HG11 (part# SPACER11)
- Radial spoke lacing not recommended
Specs
- 256g
- Drillings: 24, 28, 32, 36
- Axles:
- 12mm x 142mm Thru
- 10mm x 135mm QR
Bearings
- All Enduro ABEC 5 except 3802W (ABEC 3)
| Driver Style | Left hub shell bearing | Right hub shell bearing | Inner driver bearing | Outer driver bearing |
| Shimano Hyperglide 11 speed | 61902-LLU/LLB | 61902-LLU/LLB | 3802W LLB | 61902-LLU/LLB |
| Shimano Micro Spline | 61902-LLU/LLB | 61902-LLU/LLB | 3802W LLB | 3802W LLB |
| SRAM XD/XDR | 61902-LLU/LLB | 61902-LLU/LLB | 3802W LLB | 3802W LLB |
| Campy 11 speed | 61902-LLU/LLB | 61902-LLU/LLB | 3802W LLB | 3802W LLB |
| Campy N3W/EKAR 13 speed | 61902-LLU/LLB | 61902-LLU/LLB | 3802W LLB | 3802W LLB |
Wheelbuilding specs
- Spoke hole diameter
- 2.6mm
| Left flange diameter | Right flange diameter | Center to left flange | Center to right flange |
| 45mm | 55mm | 33mm | 19mm |
