Wheeltop EDS Gravel GeX Carbon
Couldn't load pickup availability
If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.
Need help choosing the right size?
Wireless EDS with Customisable 3 - 14 Speeds

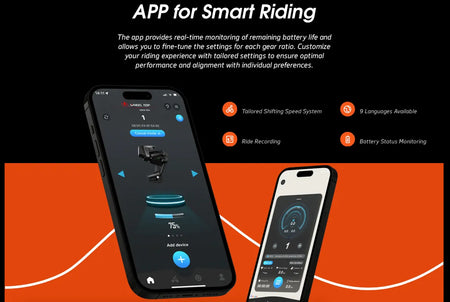

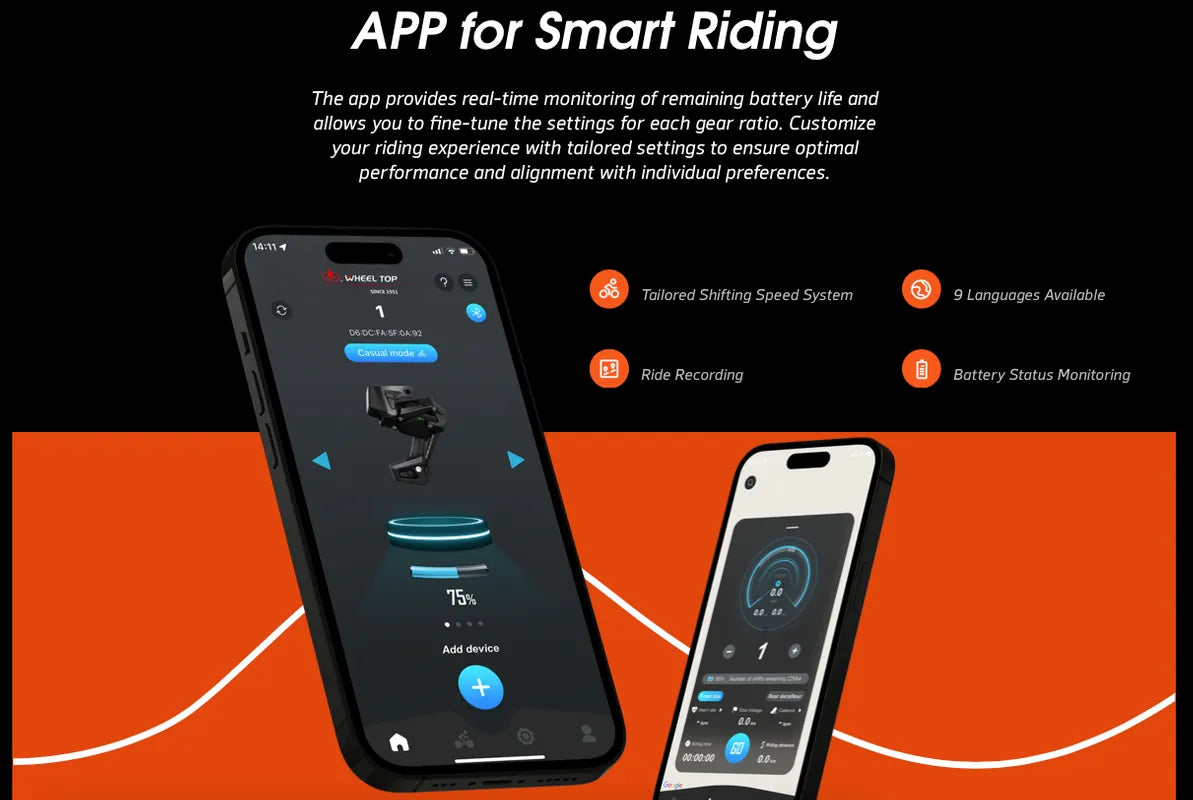

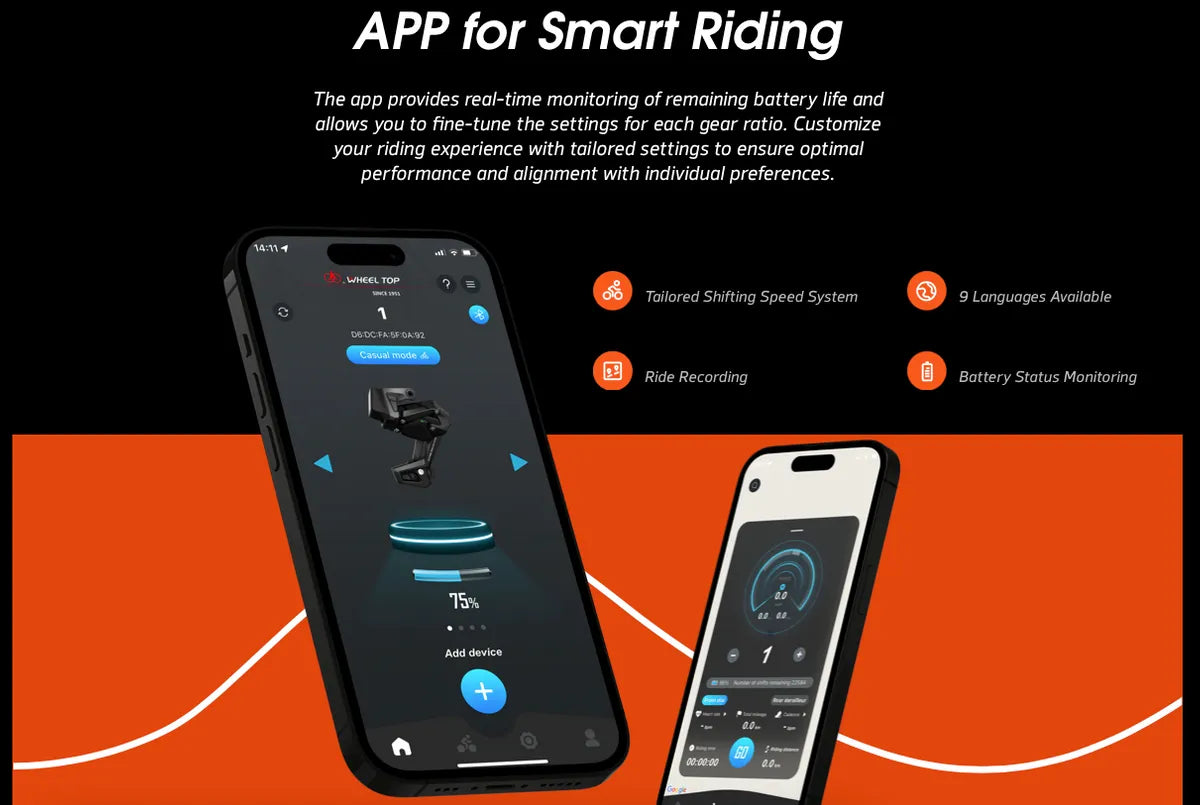

- 3-14 Speed compatible - Flexibility to easily change the number of speeds via the app
- Electronic Shifting – Precise, consistent gear changes for every ride.
Wireless Bluetooth & ANT+ Connectivity – Clean installation, integrates with cycling computers.

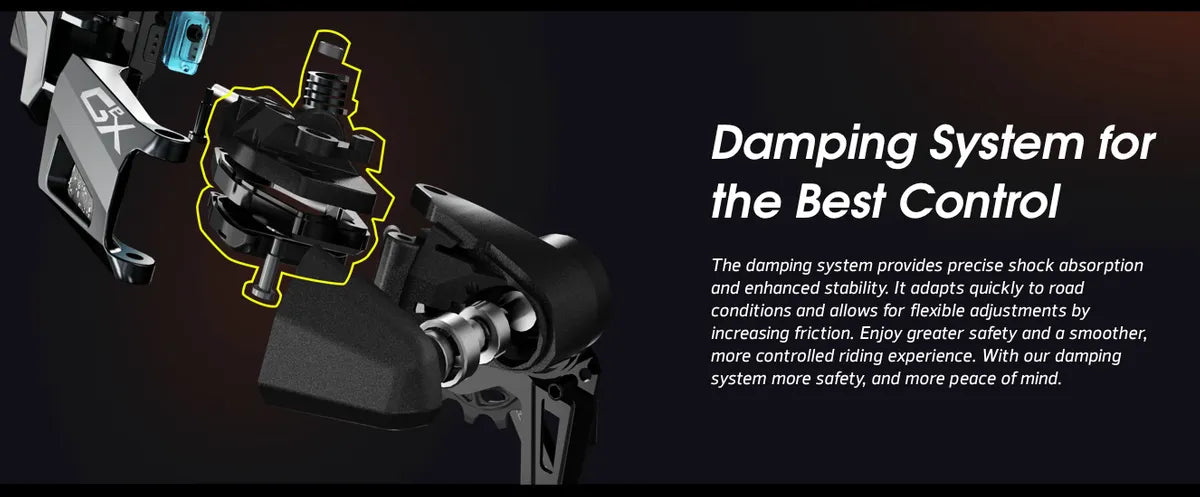

Built-in Adjustable Clutch Damper – Smooths shifts, reduces chain impact, and extends system life.
IP67 Waterproof – Reliable in rain, mud, or during cleaning.
Battery Capacity for 20,000 shifts per charge & 800 charge cycles

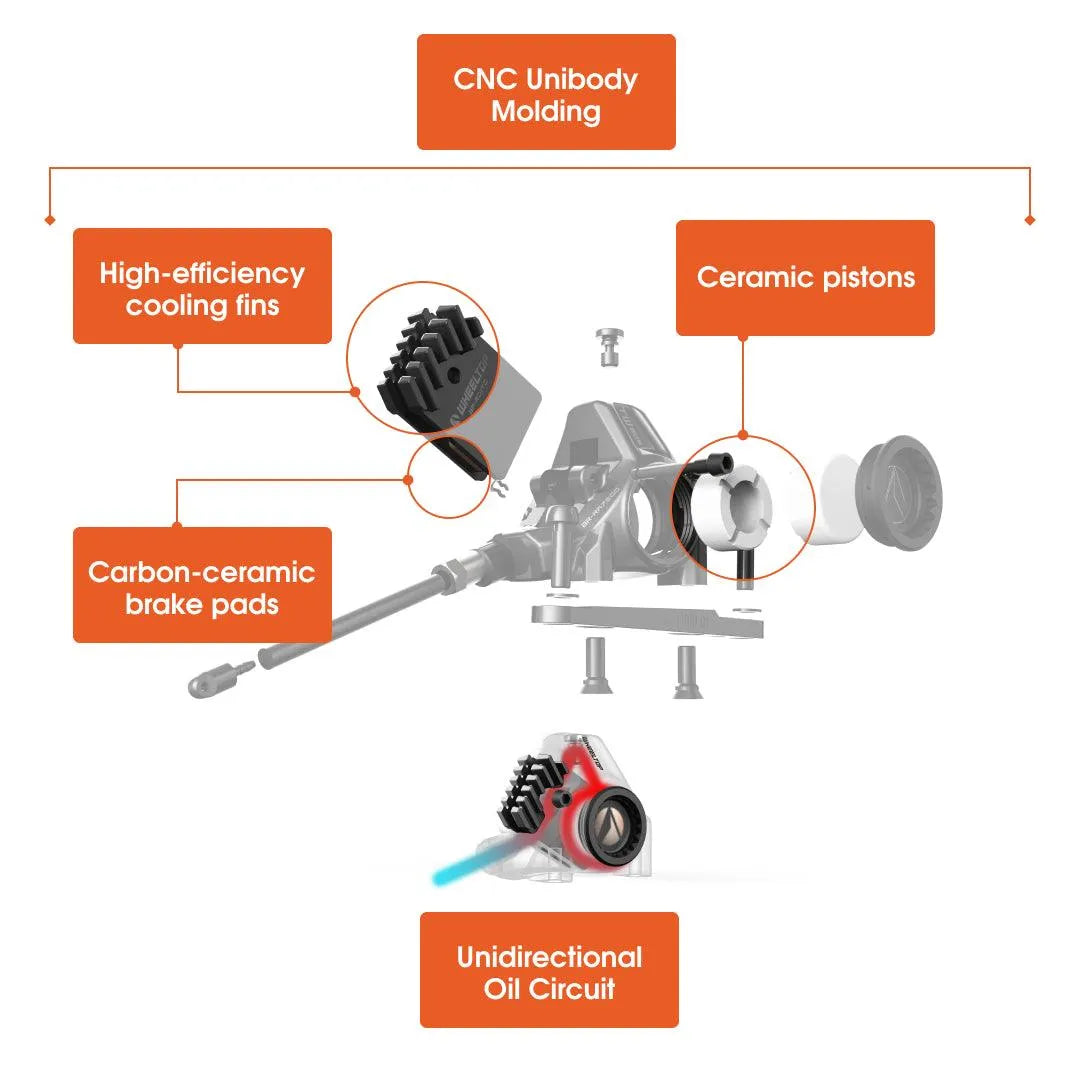

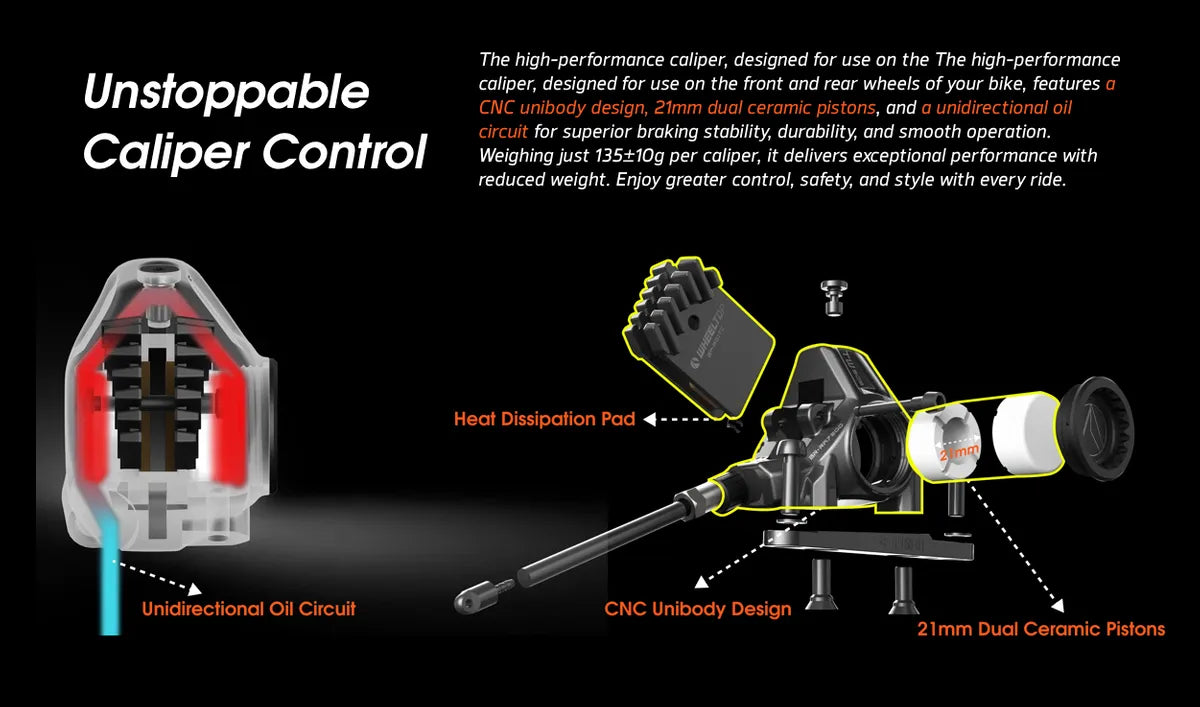

RA7800 Brake Callipers - CNC unibody design, 21mm dual ceramic pistons, and a unidirectional oil circuit.
Specifications:
Rear Derailleur
| Speeds Compatibility | 3 – 14s |
| Minimum Cassette | 10 – 11T |

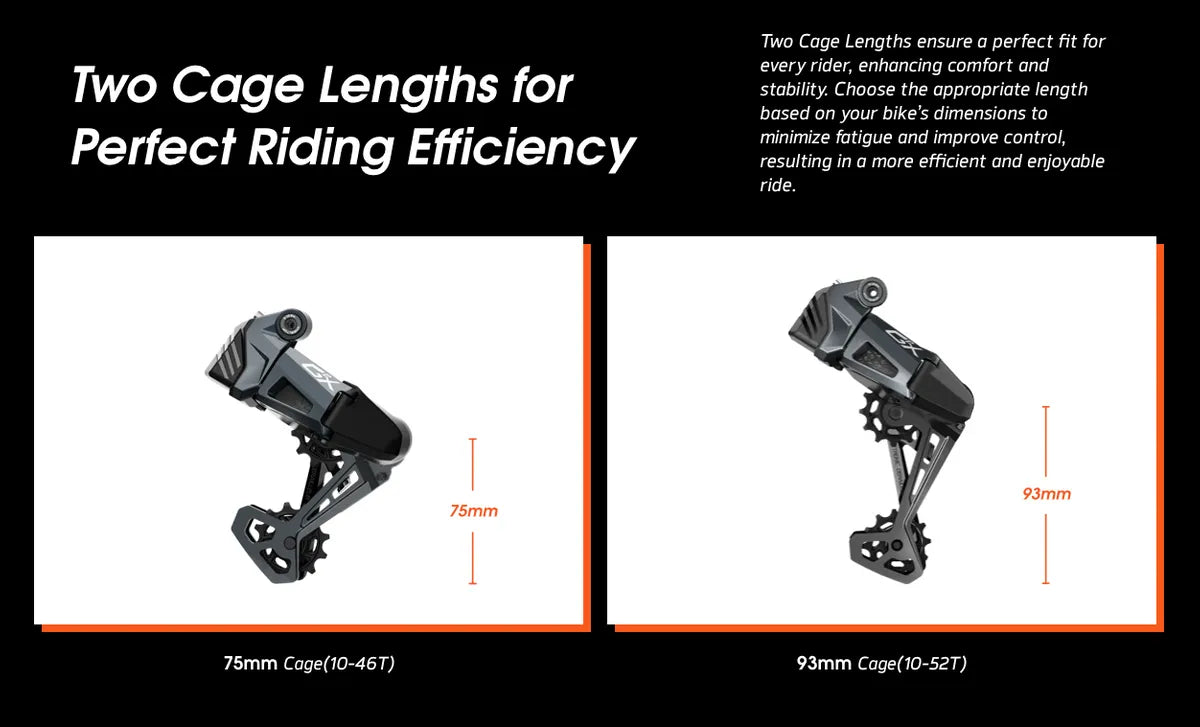

| Maximum Cassette |
75mm RD: 46T 93mm RD: 52T |
| Total Range of Gear Change |
75mm RD: 36T 93mm RD: 42T |
| Weight |
75mm RD: 368 ± 2g 93mm RD: 400 ± 5g |
| Battery Capacity | 800mAh |
| Mount Type | Normal RD Hanger, Available with UDH |
| Waterproof and Dustproof Rating | IP67 |
Brake Callipers
| Brake Fluid | Mineral Oil |
| Caliper Mounting Type | For Flat-Mount, Not Compatible with Post-Mount |
| Brake Disc Compatibility | 140mm / 160mm |
| Weight | F: 135 ± 10g R: 170 ± 10g |
| Brake Pads Type | Compatible with Shimano L04C, L05A, L04A, BR-RX810, IIPRO-GLYS |
| Oil Hoses Length | F: 900mm R: 1550mm |
| Oil Hoses Type | Available with Shimano BH-90 |

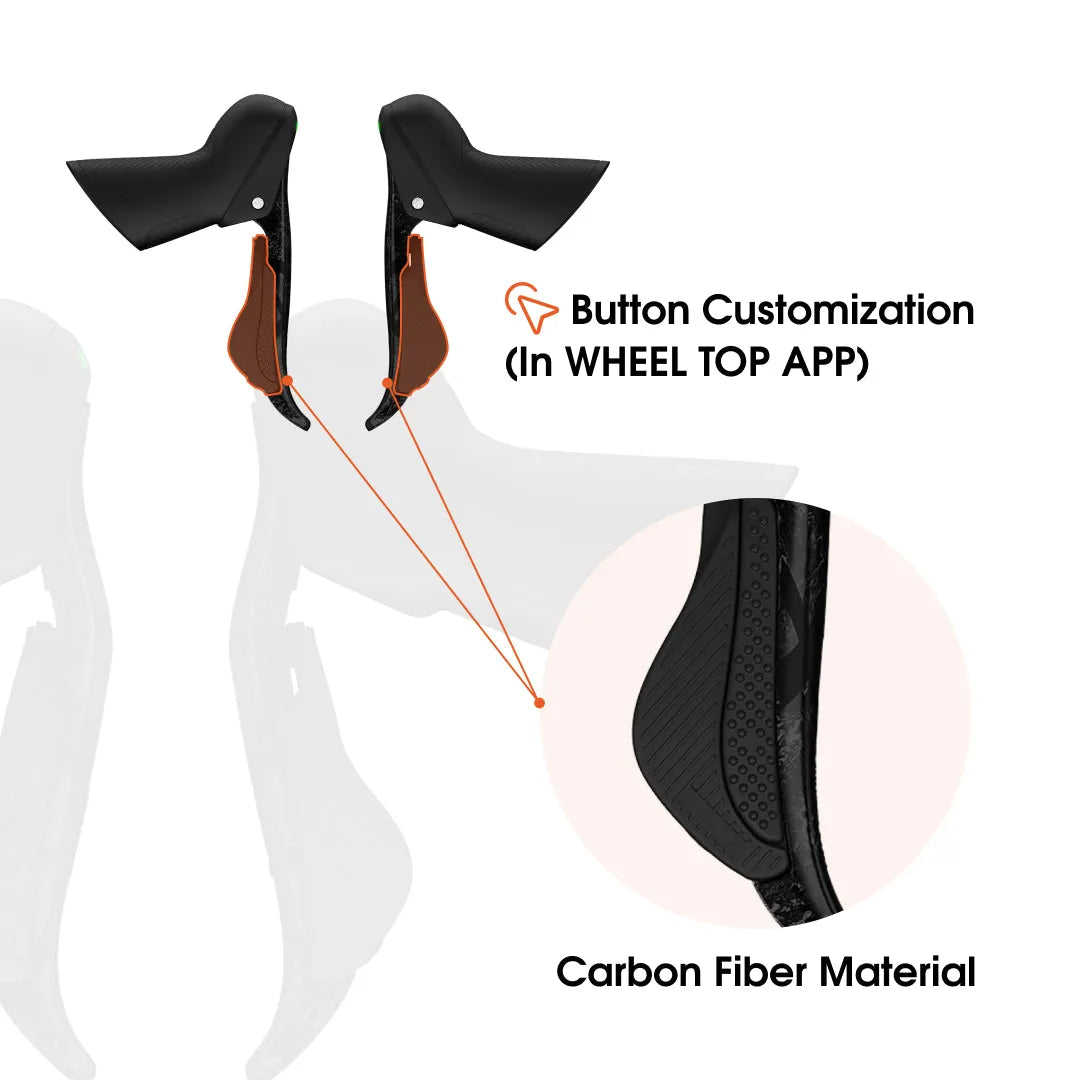

Shifters
| Adjustable Range | 8mm |
| Battery Type | CR 2032 |
| Speed Compatibility | L: 1 / 2 s R: 3 - 14 s |
| Weight | L: 238.4g R: 240.5g |
| Waterproof and Dustproof Rating | IP65 |

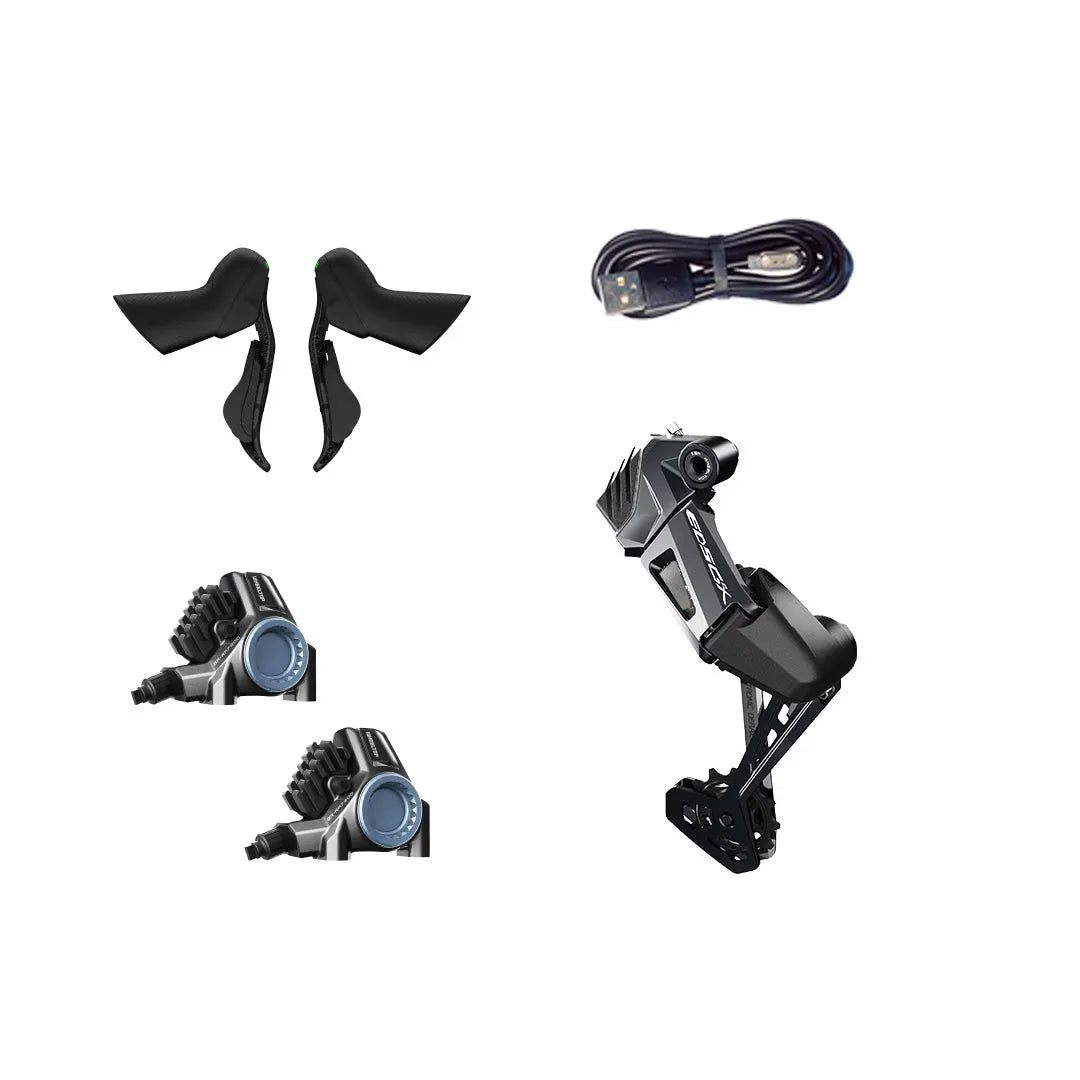

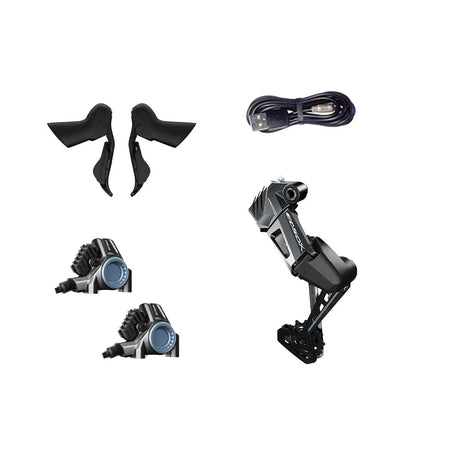

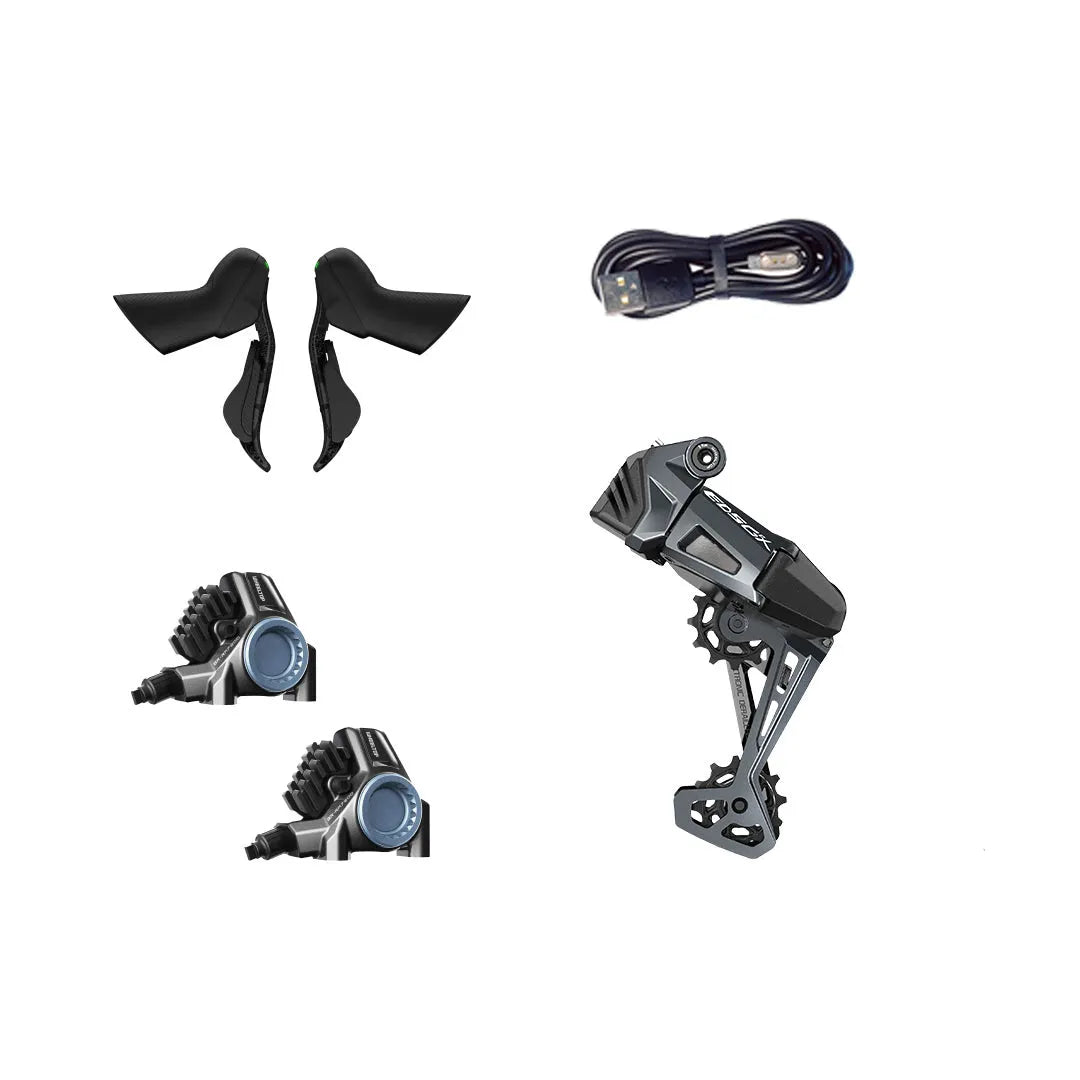

What's in the box:
- GeX Rear Derailleur
- Hydraulic wireless shifters
- Hydraulic Disc Brake Callipers
- Hydraulic lines
- USB Charge Cable
- Small Parts Kit
