SuperSix EVO Spares - Gen4 2023 - 2025
- Head Tube - UPR: 1-1/8in, LWR: 1-1/4in
- Headset - Integrated 1-1/8in-1-1/4in, IS42 Top IS47 Bottom
- Bottom Bracket - Type/Width BSA/68mm - Sleeve required
- Front Derailleur - Braze-on
- Seat Post - 0mm Offset: K26062, 20mm Offset: K26072, Seatbinder: K26002
- Min. Seat Post Insert - 65mm
- Max. Seat Post Insert - 44cm: 100mm, 48cm: 140mm, 51cm: 166mm, 54cm:190mm, 56cm: 193mm, 58cm: 205mm, 61cm: 215mm
- Tire Size x Max. Tire Width - 700c x 30mm (measured)
- Brakes: Mount Type / Min./Max. Rotor Dia. - FT: Flat Mount/140mm/160mm RR: Flat Mount/140mm/160mm

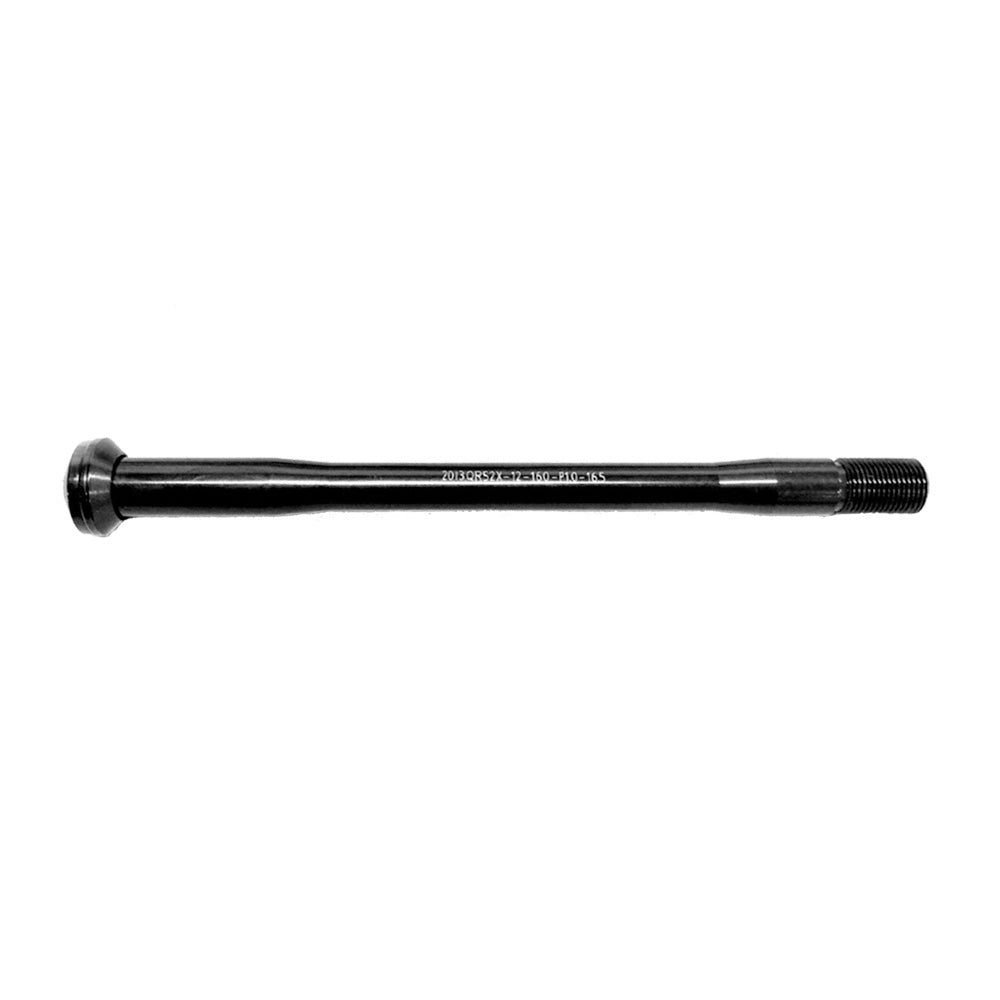

- Axles: Type/Length - FT: Syntace 100mmxM12x1.0P, 122mm Overall Length RR: Syntace 142mmxM12x1.0P, 160mm Overall Length
- Fork Offset - Size 44cm-54cm: 55mm, Size 56cm-61cm: 45mm
- Max. Weight Limit: Total​ (Rider+All Equipment) - 129kg
