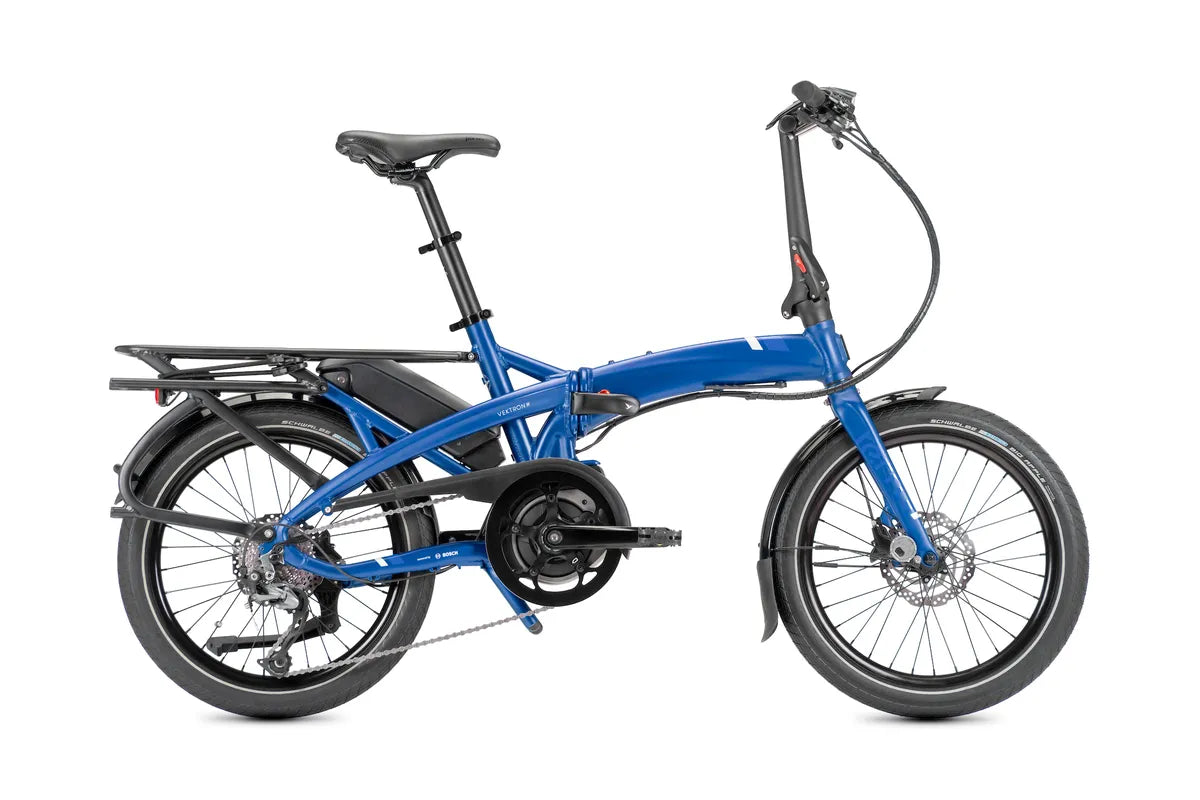

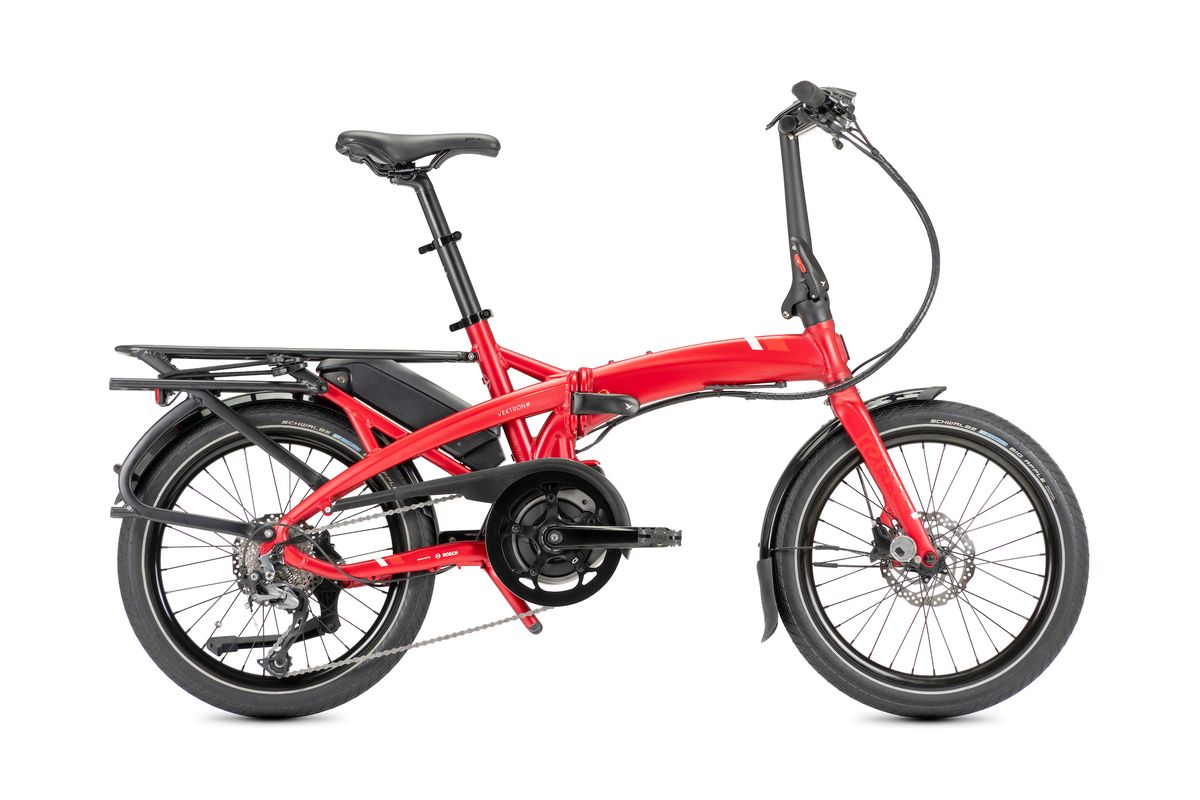

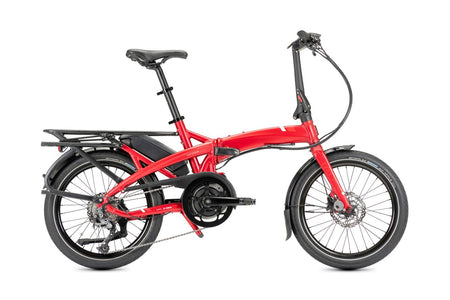

Tern Vektron Q9 Bosch Active Plus 400w/h
Couldn't load pickup availability
Need help choosing the right size?
THE ACCELERATOR
- New colors and updated styling
- Upgraded to the Bosch Active Line Plus electric drivetrain for up to 270% assistance and 50 Nm of torque

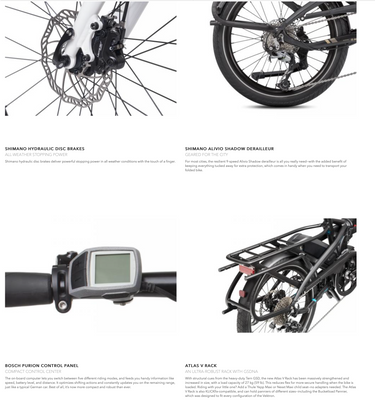

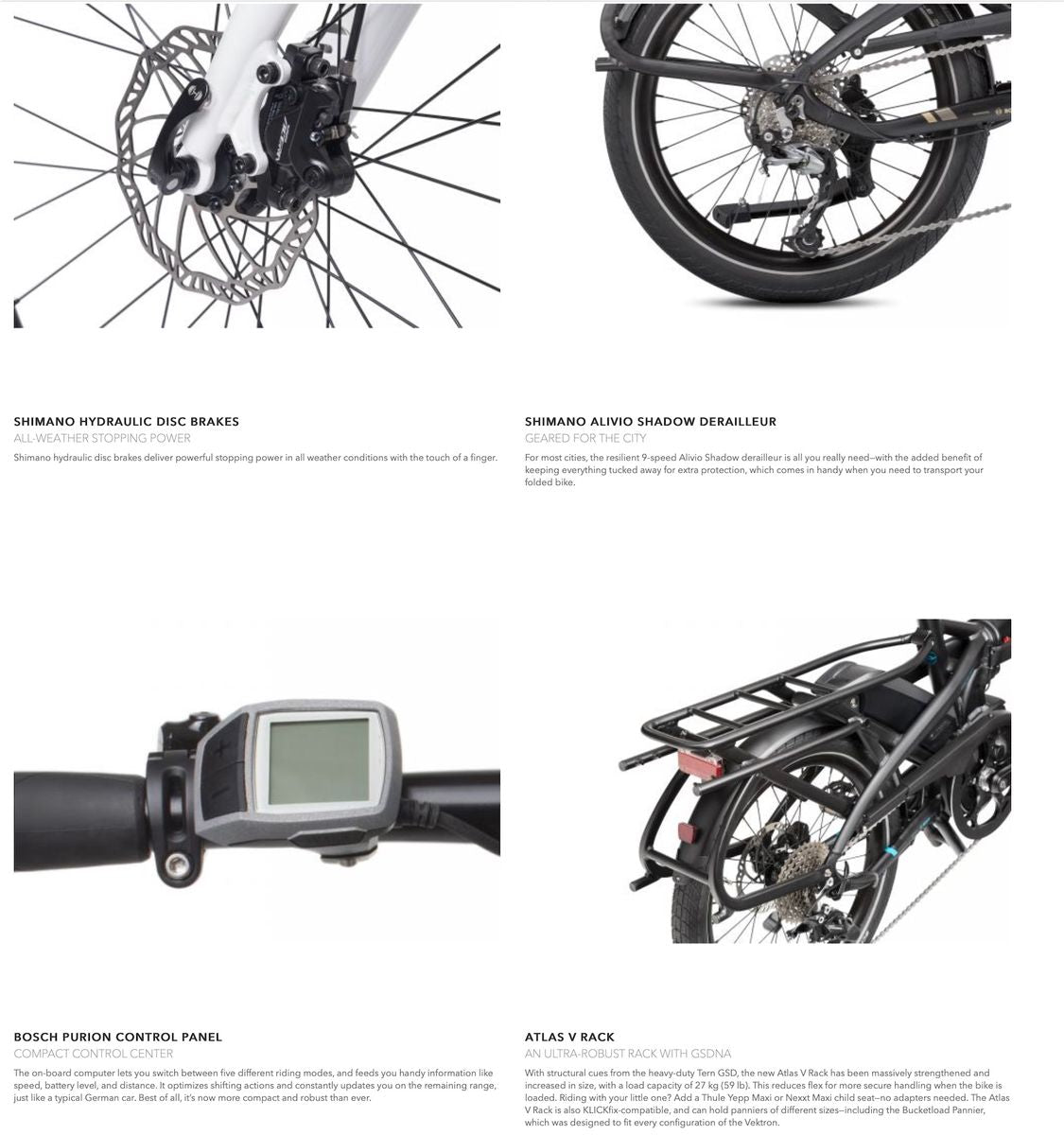

- Hydraulic disc brakes for all-weather stopping power

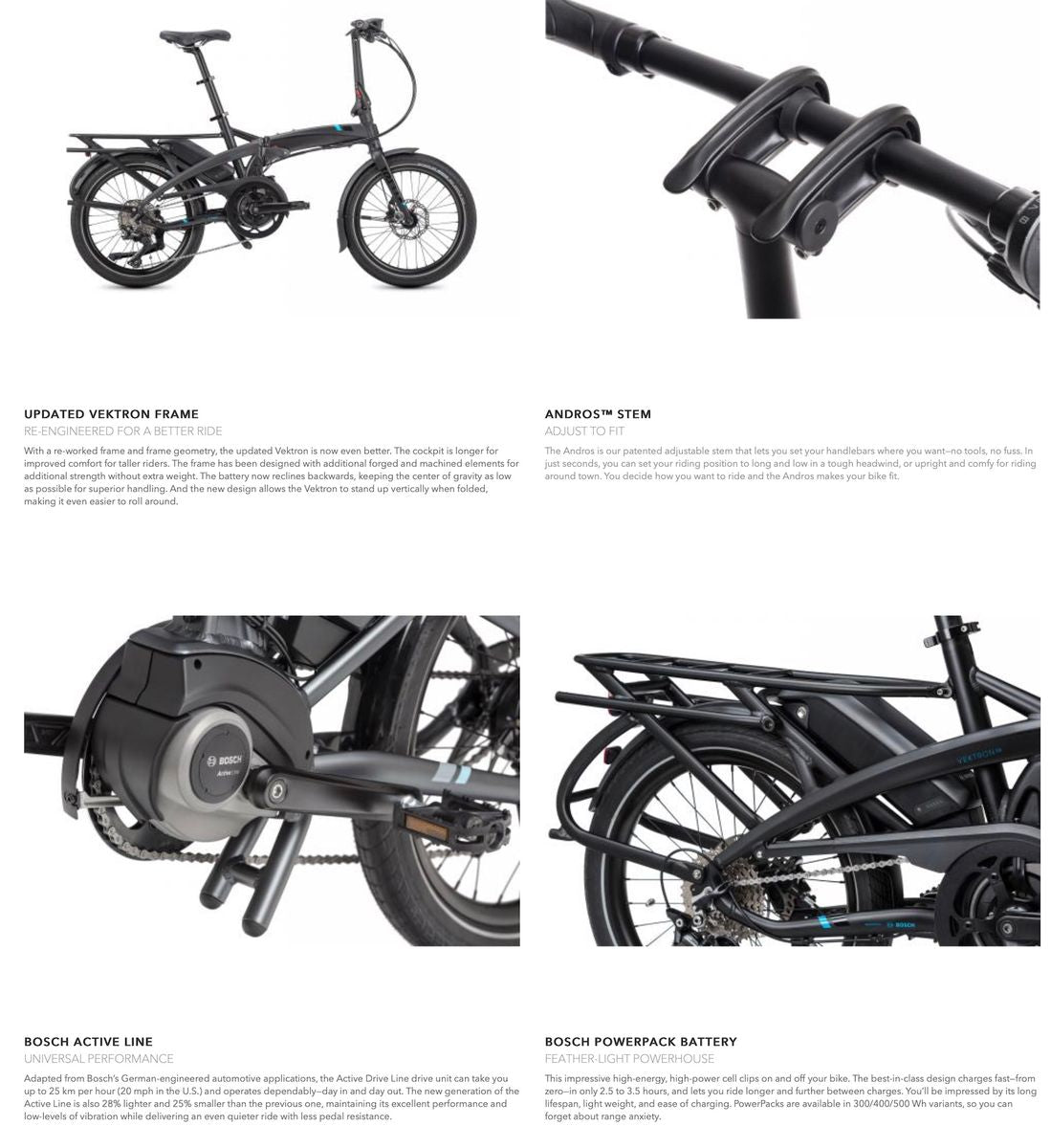

- Updated frame with a reclining battery for a lower center of gravity and better ride
- Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik

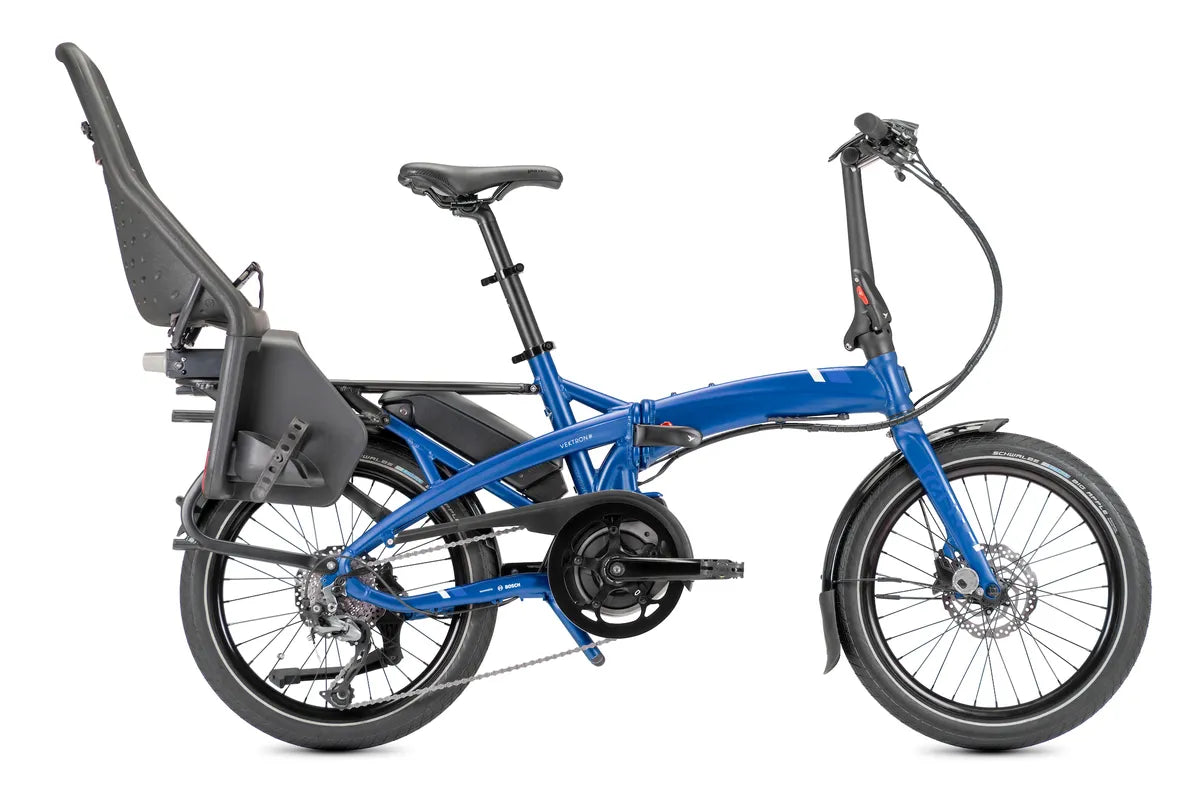

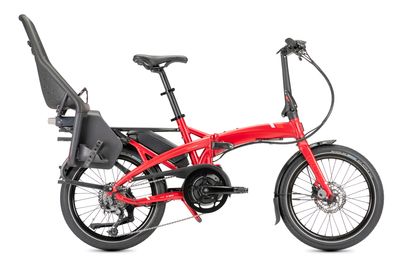

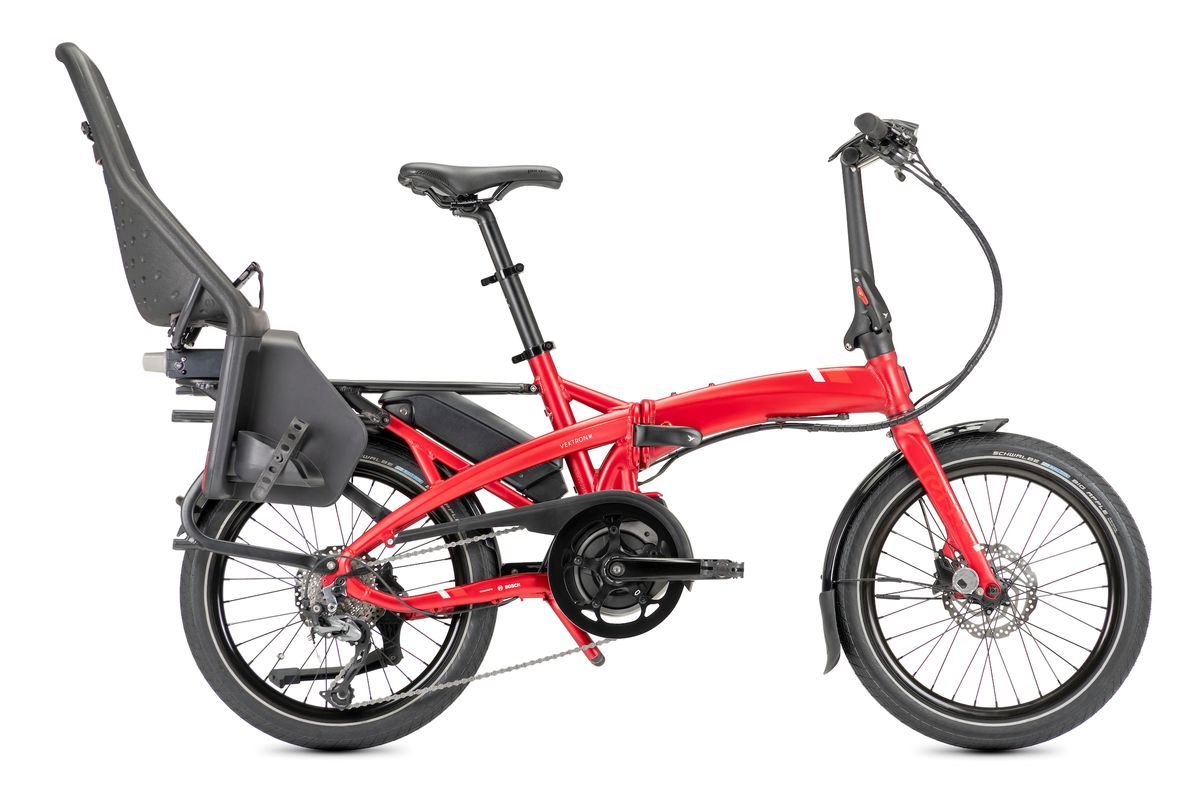

- Integrated Atlas V Rack™ works seamlessly with Thule Yepp Maxi and Dash® RM child seats—no adapters needed
- Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
SPECIFICATIONS
GENERAL INFO
| SPEEDS | 1 x 9 |
| WEIGHT | 21.9 kg |
| GEAR INCHES | 2.65 - 7.72 m |

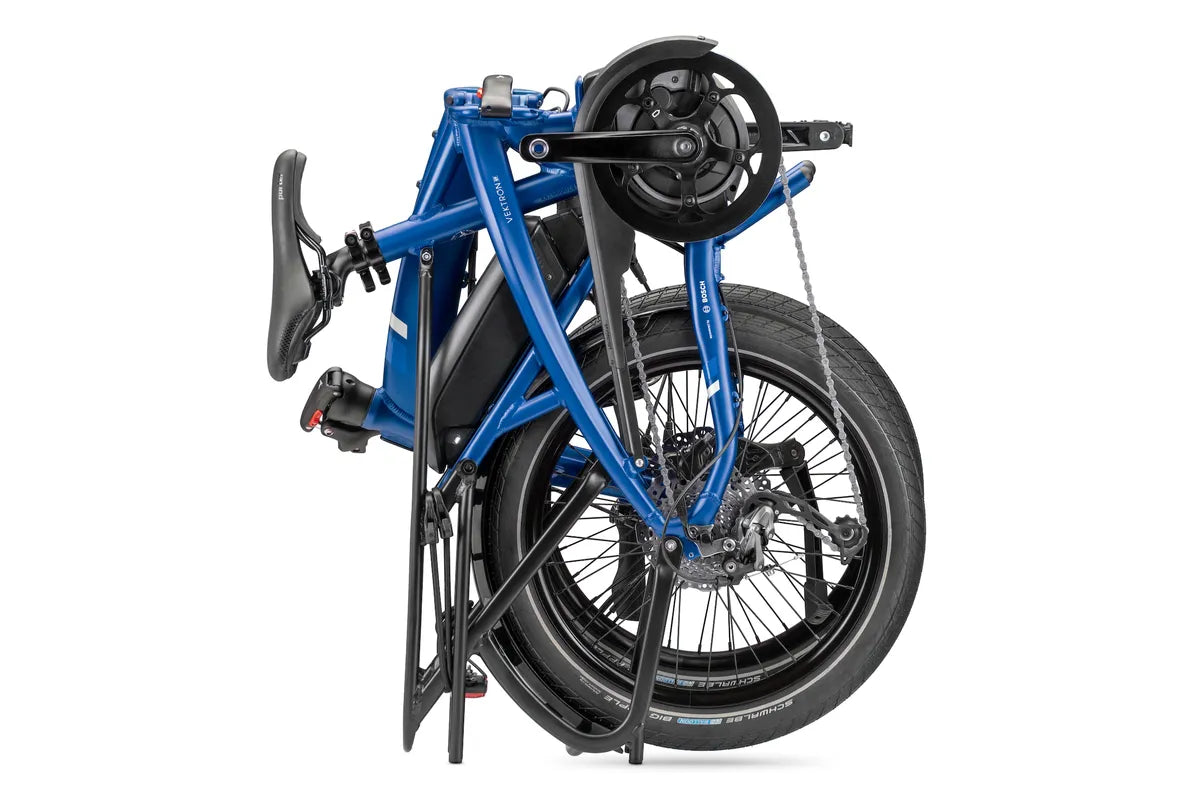

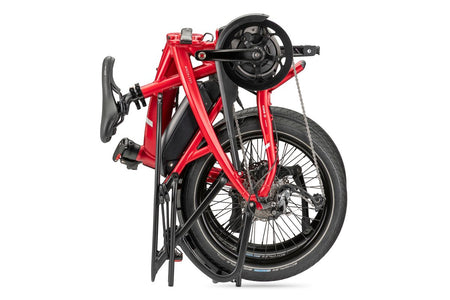

| FOLDING SIZE | 42 × 86 × 68.5 cm |
| FOLDING TIME | 10 sec |
| FRAME SIZES | One size |
| DISTANCE (SEATPOST TO HANDLEBAR) | 62 - 69 cm |
| DISTANCE (SADDLE TO PEDAL) | 67 - 110 cm |
| SUGGESTED RIDER HEIGHT | 147 - 195 cm |
| MAX GROSS VEHICLE WEIGHT | 125 kg |
| MAX RIDER WEIGHT | 105 kg |
FRAME
| FRAME | Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies |
| FORK | Tern Tarsus, 6061-Al, hydroformed |
COCKPIT
| HANDLEPOST | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm |
| STEM | Tern Andros, adjustable, forged construction, patented technology |
| HEADSET | Tern Flux, cartridge bearings, Physis integrated |
| HANDLEBAR | Flat bar, 6061-AL, Tern Andros adapted |
| GRIPS/BAR TAPE | Velo ergonomic, lock-on |
| SADDLE | Tern Porter, patented GripPad design |
| SEATPOST | Tern Telescope, 34.9/30.9 mm, 2014-AL |
| SEATPOST CLAMP | Tern Collar, 6061-AL, 2pc |
BRAKES
| FRONT BRAKE | Shimano, hydraulic disc |
| REAR BRAKE | Shimano, hydraulic disc |
| BRAKE LEVERS | Shimano, hydraulic disc |
| BRAKE CABLE & HOUSING | Shimano, hydraulic disc |
WHEELS
| FRONT HUB | Shimano disc |
| REAR HUB | Shimano disc |
| SPOKES AND NIPPLES | Stainless steel |
| RIMS | Kinetix Comp, for disc |
| TIRES | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
TRANSMISSION
| SHIFTER(S) | Shimano Alivio, 1 x 9 spd, trigger |
| REAR DERAILLEUR | Shimano Alivio Shadow |
| CRANKSET | Tern custom, forged 6061-AL crankarm |
| CASSETTE/FREEWHEEL | Shimano 11-32T, 9 spd |
| BOTTOM BRACKET | Motor integrated |
| CHAIN | 9 spd, DHT for eBike, GST corrosion resistant coating |
| PEDALS | MKS EZY |
| SHIFTER CABLE & HOUSING | Jagwire LEX-SL, slick treatment, alloy ferrules |
E-SYSTEM
| MOTOR | Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 32 kph |
| BATTERY | Bosch PowerPack 400Wh |
| DISPLAY | Bosch Purion, 4 mode selectable, walk assist |
| RANGE | 400 Wh: 55 -110 km |
| CHARGER | 100-240V, 4A |
BELLS & WHISTLES
| BELL | Aluminum |
| CHAINGUARD | SKS Chainblade |
| KICKSTAND | URSUS, rear mount |
| CLIP SYSTEM | Magnetix 3.0 |
| LUGGAGE SOCKET | Yes |
| FRONT LIGHT | Tern Valo Direct, 190 lumens |
| REAR LIGHT | Herrmans H-Trace, for eBike |
| FENDERS | SplashGuard, stainless hardware |
| RACK(S) | Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg |
*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
