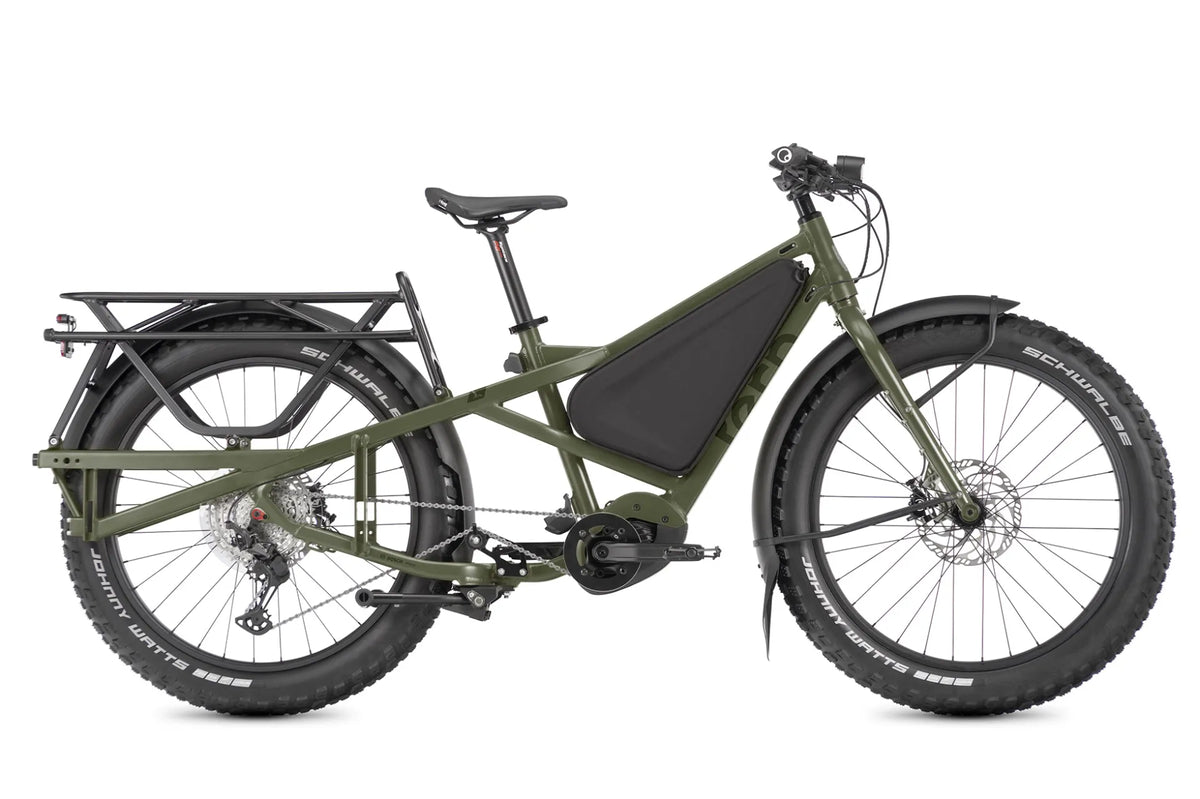

EXPLORE NEW GROUND
SPEEDS | 1 x 12 |
WEIGHT | M: 37.1 kg (81.8 lb) |
GEAR INCHES | 1.48 - 7.54 m (18" - 95") |
FRAME SIZES | M, L |
DISTANCE: SEATPOST TO HANDLEBAR |
M: 61 - 66 cm (24 - 26 in)
L: 67 - 73 cm (26.4 - 28.7 in)
|
DISTANCE: SADDLE TO PEDAL |
M: 71 - 99 cm (28 - 39 in)
L: 76.5 - 104.5 cm (30.1 - 41.1 in)
|
SUGGESTED RIDER HEIGHT |
M: 155 - 185 cm (61 - 72.8 in)
L: 165 - 195 cm (65 - 76.8 in)
|
MAX GROSS VEHICLE WEIGHT |
On-road: 210 kg (463 lb)
Off-road: 180 kg (396.8 lb)
|
MAX RIDER WEIGHT | 130 kg (286.6 lb) |
FRAME | Tern Orox, 6061-AL, patented design, EFBE tested and approved |
FORK | Atlas X, butted chromoly steel, EFBE tested and approved |
STEM | Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified |
HEADSET | FSA, 1.5", angular contact bearings |

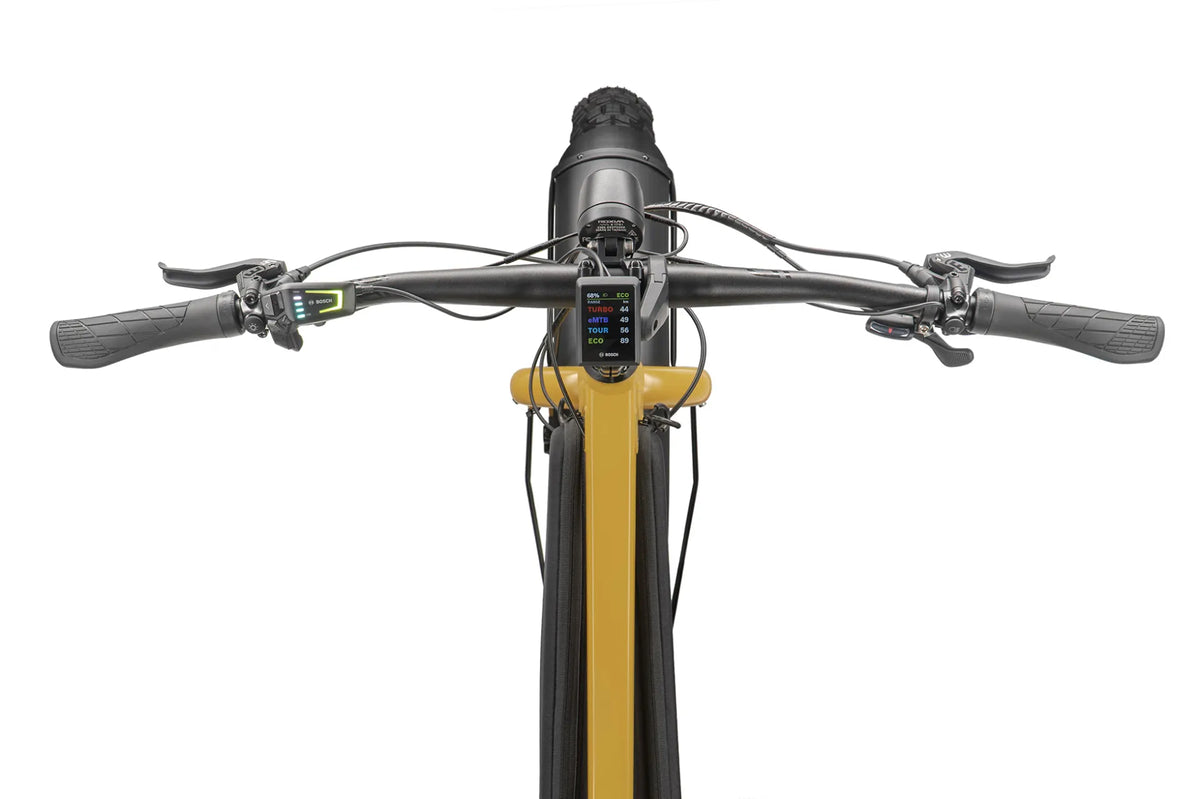

HANDLEBAR | Level Nine, AL-7050, 800 mm, riser, eMTB approved |
GRIPS/BAR TAPE | Ergon |
SADDLE | Ergon SM, E-Mountain Sport, CrMo Rail |
SEATPOST | Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved |
SEATPOST CLAMP | Tern Collar |
FRONT BRAKE | Magura MT5, 4-piston hydraulic disc, 203 mm rotor |
REAR BRAKE | Magura MT5, 4-piston hydraulic disc, 203 mm rotor |
BRAKE LEVERS | Magura MT5, hydraulic |
BRAKE CABLE & HOUSING | Magura, hydraulic |

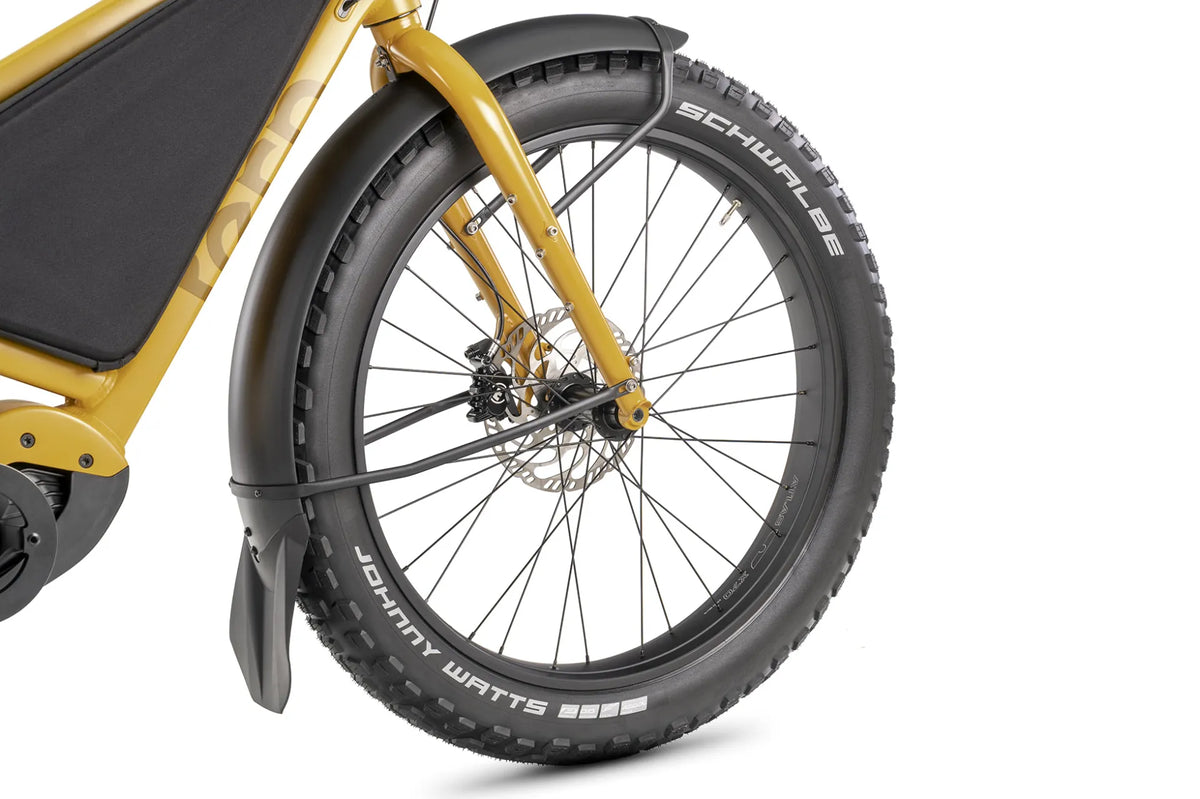

FRONT WHEEL | Tern Atlas X, ultra-heavy duty cargo construction, 27.5" |
REAR WHEEL | Tern Atlas X, ultra-heavy duty cargo construction, 27.5" |
FRONT HUB | Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx |
REAR HUB | Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, Syntace X-12 standard |
SPOKES & NIPPLES | Stainless steel |
RIMS | Tern Atlas X, custom doublewall construction |
TIRES | Vee Snow Ball, 27.5 x 4 or Schwalbe Johnny Watts 27.5" x 4" |
SHIFTER(S) | Shimano Deore, 1 x 12 spd |
REAR DERAILLEUR | Shimano Deore XT Shadow+ |
CRANKSET | Tern Orox custom |
CASSETTE/FREEWHEEL | Shimano 10-51T, 12 spd |
BOTTOM BRACKET | Motor integrated |
CHAIN | KMC 12 spd, for eBike, EPT corrosion resistant coating |
PEDALS | MTB, non-slip |
SHIFTER CABLE & HOUSING | Jagwire LEX-SL, slick treatment, alloy ferrules |

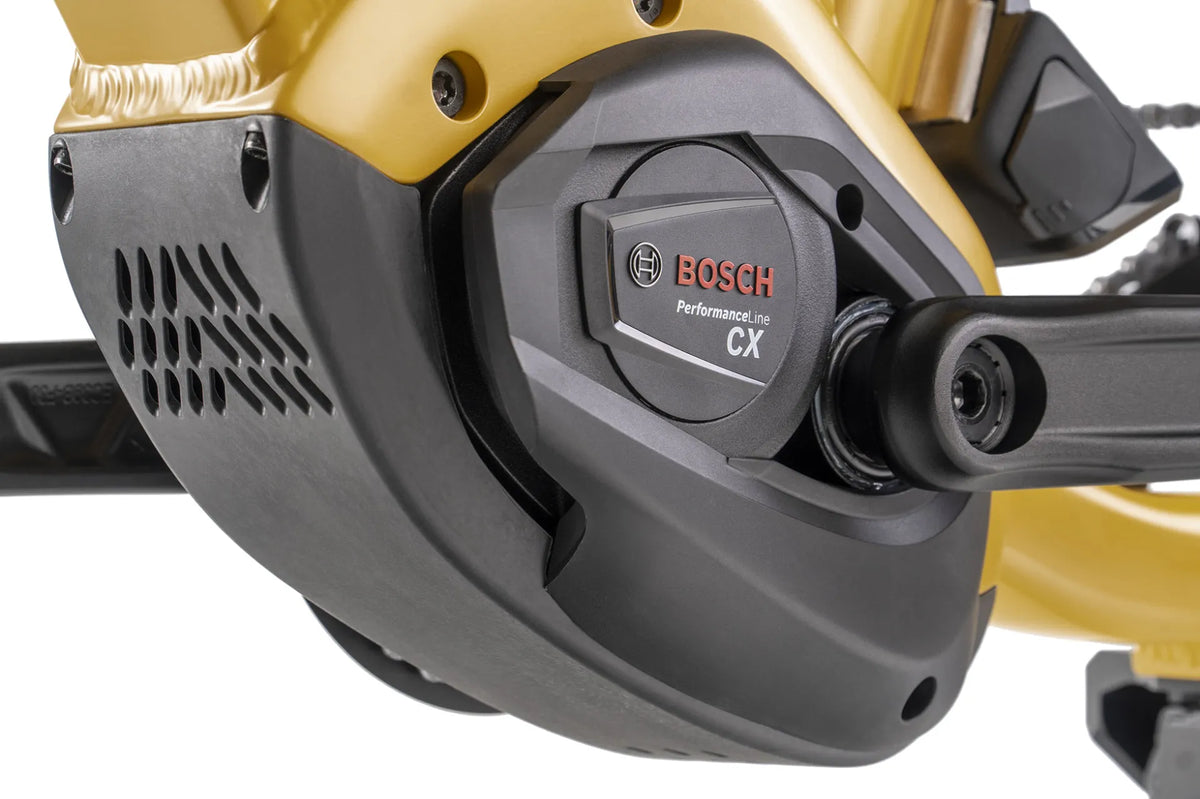

MOTOR | Bosch Performance CX, max speed 32 km/h / 20 mi/h (NZ) |

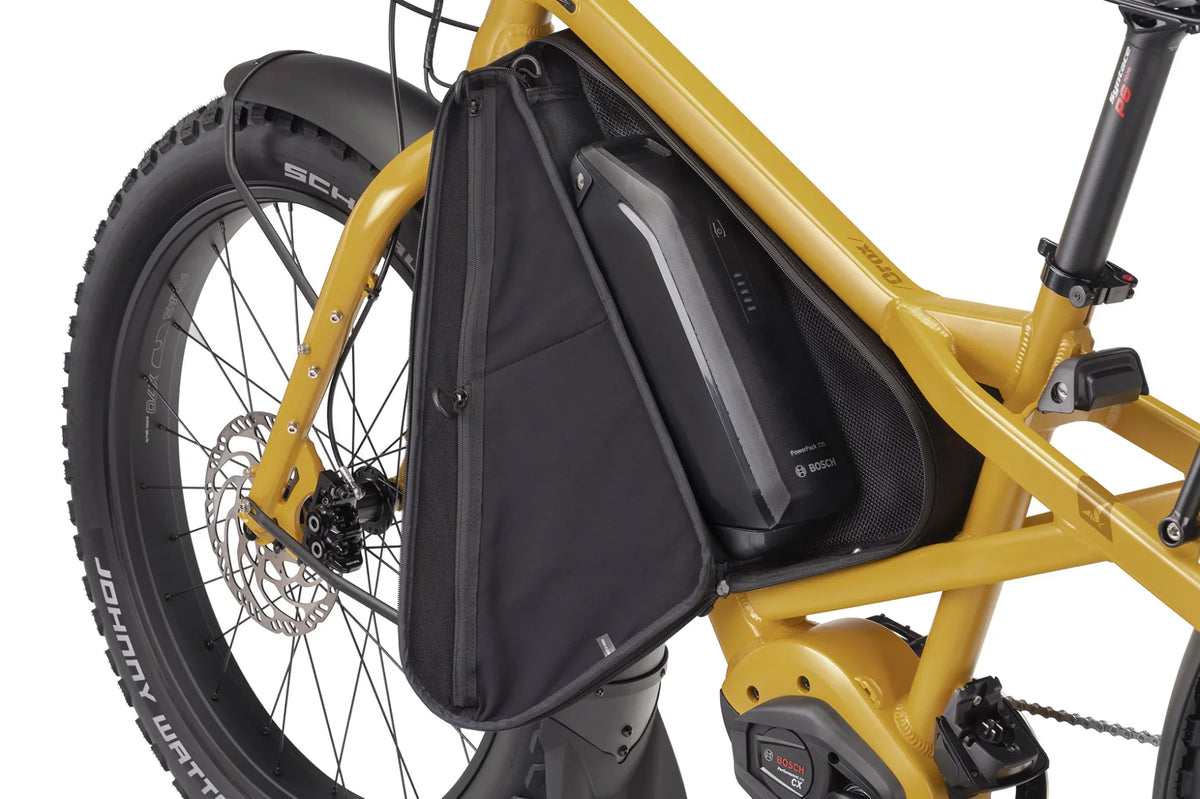

BATTERY | 725 Wh, Bosch Dual Battery pack ready |
DISPLAY | Bosch Kiox 300 w/ LED remote, electronic bike lock |
RANGE |
725 Wh: 84 - 146 km (52 - 91 mi) 1450 Wh: 168 - 292 km (104 - 181 mi) |
CHARGER | 220V, 4A (EU) 100-240V, 4A (US) |
CONNECT MODULE | Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation |
BELL | Pitch Plus, brass |
TOOL | Thru-axle lever, 4/5 mm, Torx 2.5 mm |
CHAINGUARD | Custom Bash Guard |
PAINT PROTECTION | ToughShield film on top and downtube, self-healing |

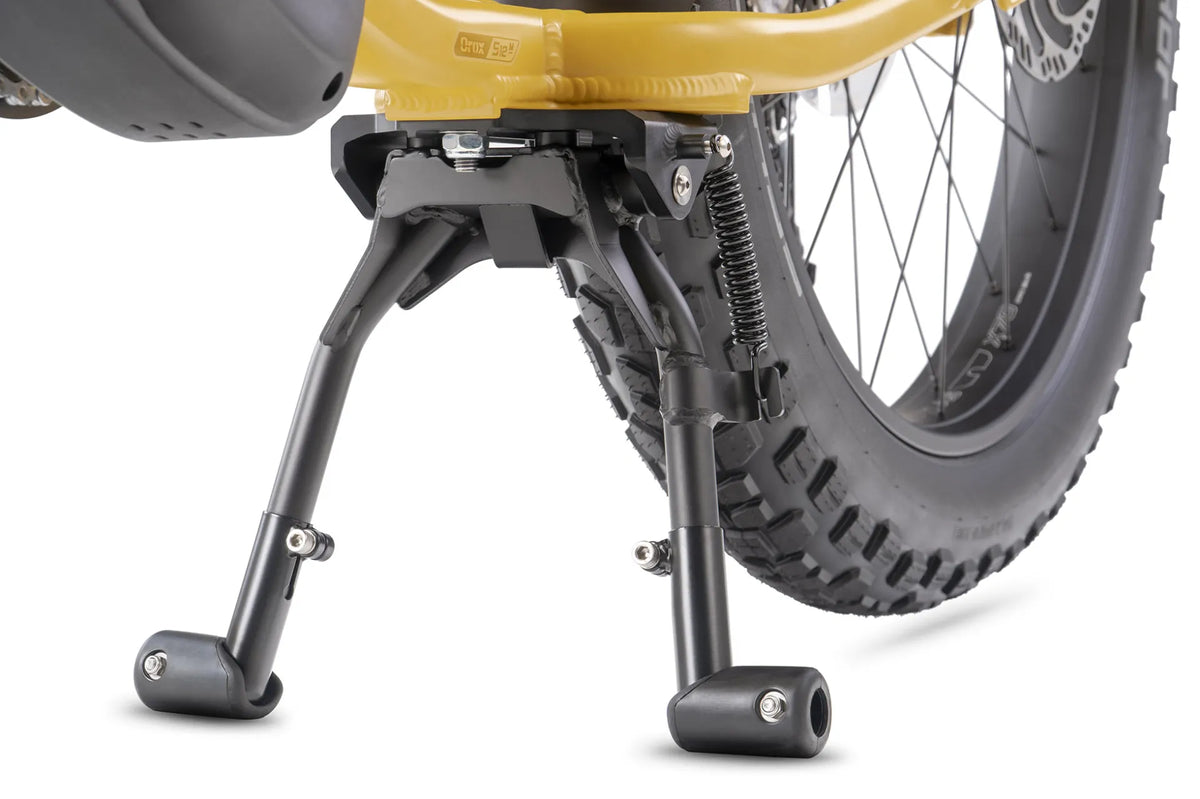

KICKSTAND | Atlas Kickstand XL Cargo ready |

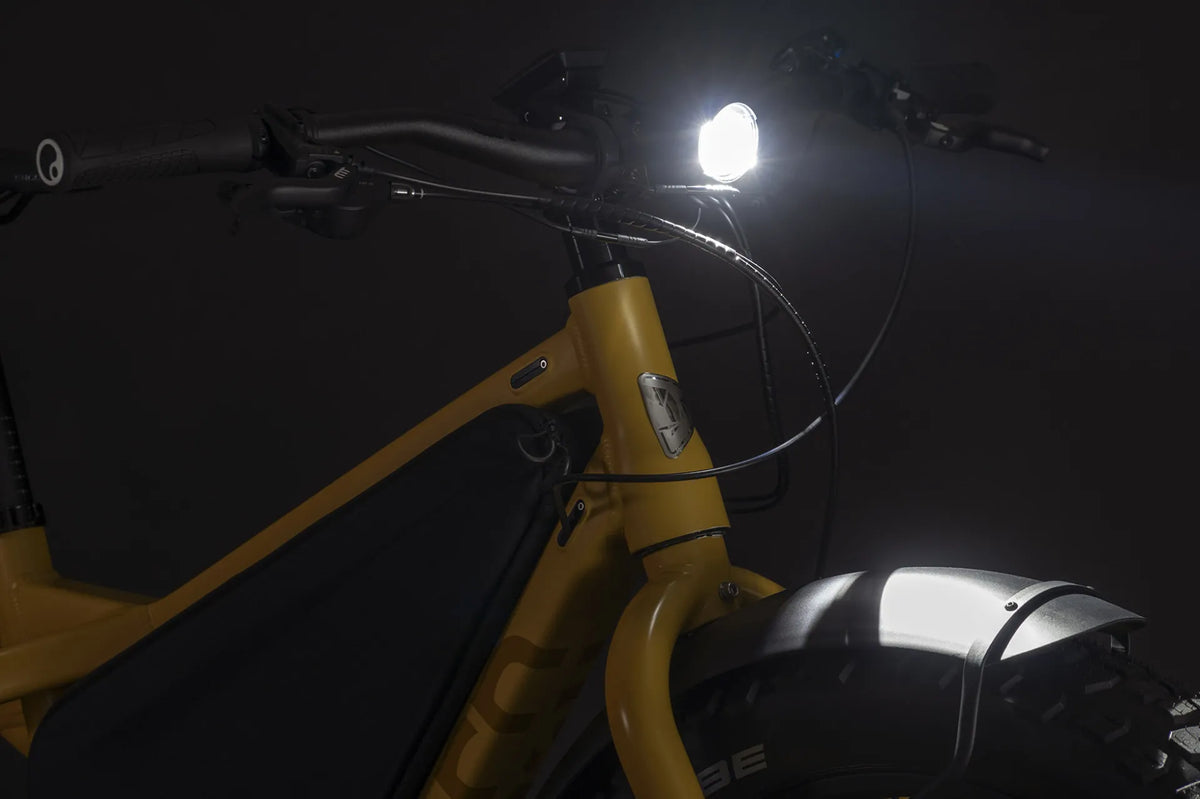

FRONT LIGHT | Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam |
REAR LIGHT | LED w/ G-Sensed Brake Light |
FENDERS | Aluminum, heavy duty construction, oversize stays, 27.5" |

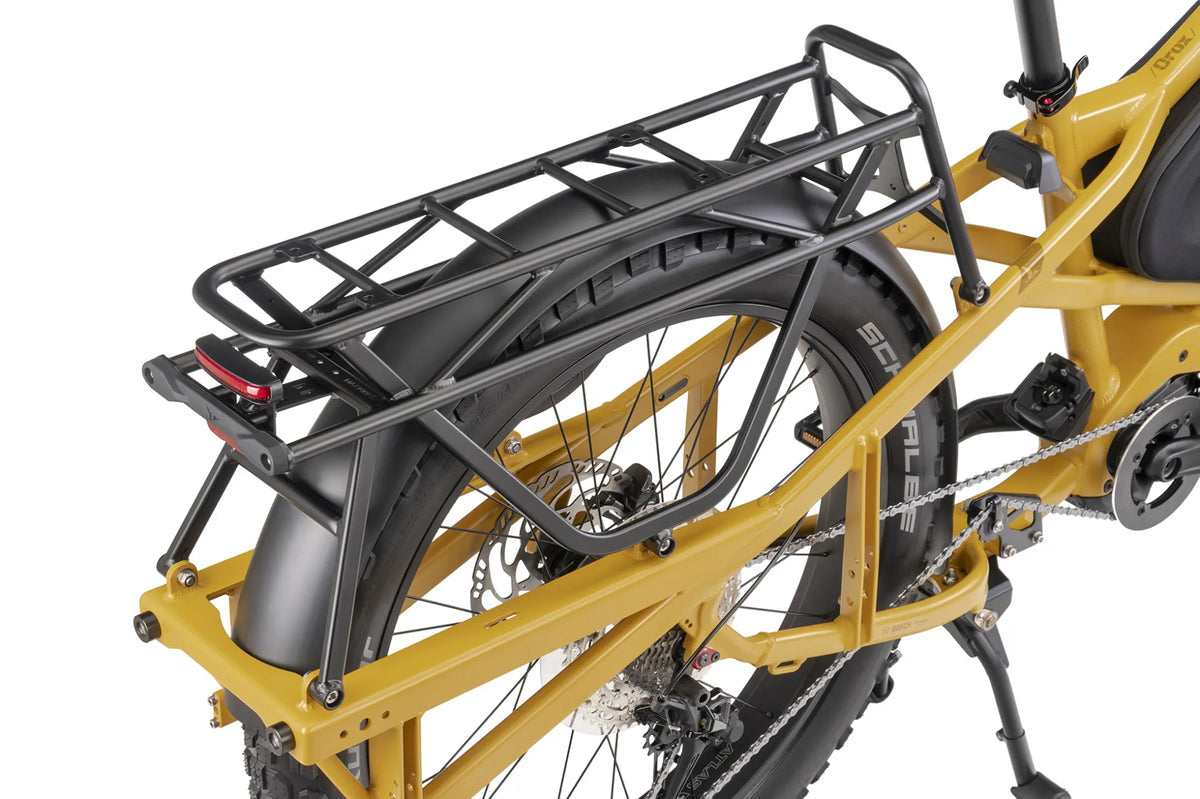

RACK(S) | Atlas X, 100 kg (220 lb) capacity |
Â
*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
