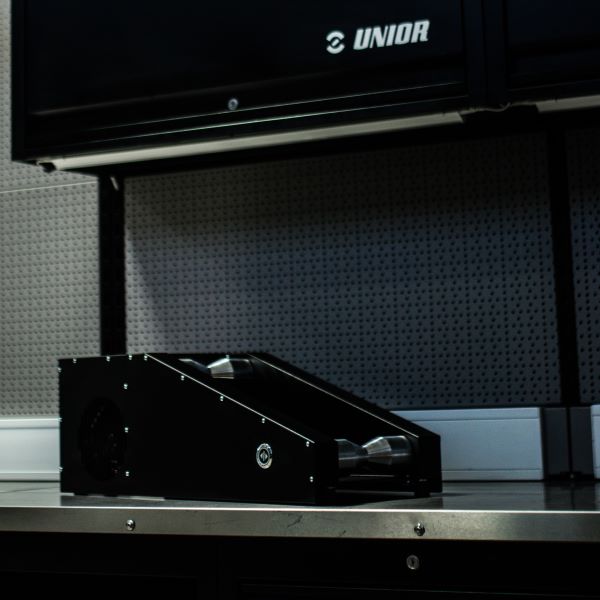

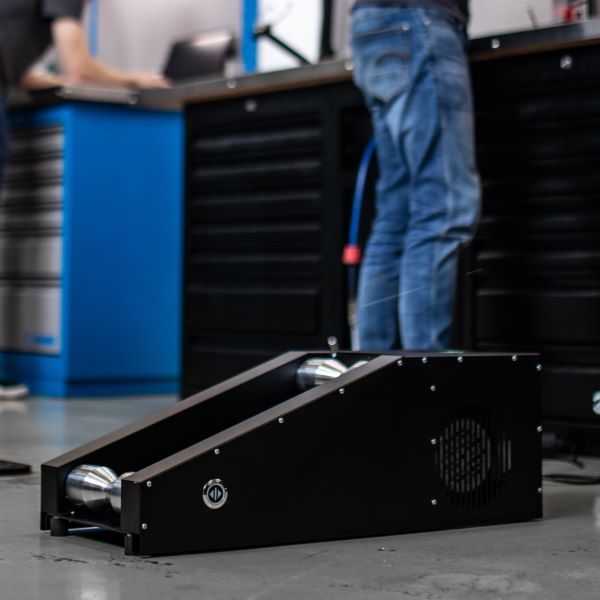

SINTER HAVE DEVELOPED THE FIRST SMART BEDDING MACHINE. CHOOSE THE PROPER MODE TO ENSURE YOUR CUSTOMERS HAVE THE BEST PERFORMING AND SAFEST BRAKES FROM THE MOMENT THEY ROLL OUT THE DOOR!

The Sinter Smart Bedding Machine will save your technicians time and money all while preparing new pads for the ultimate in braking performance from the first pull of the levers.

With a wide variety of different brake pads, brake systems and rotors on the market our machine makes it simple for mechanics to choose the proper mode to bed in pads correctly

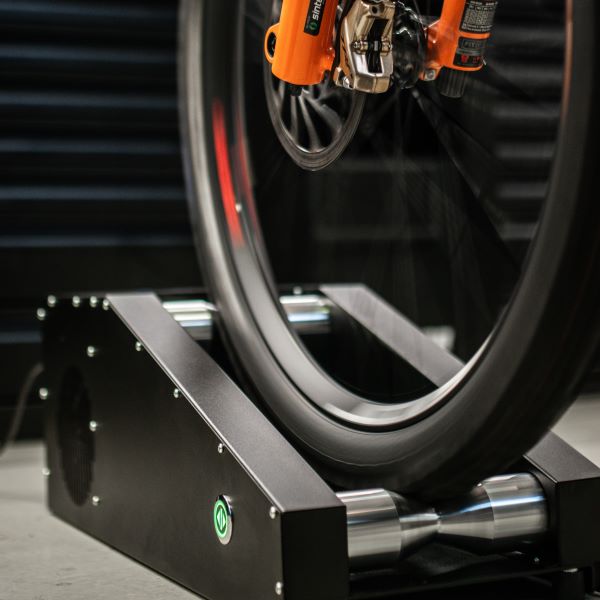

DUAL DRIVE V FORM ALUMINIUM ROLLERS ACCOMMODATE EVERY WHEEL AND TIRE COMBINATION FROM 20” TO 29”

• The Dual V form rollers keep positive traction on your wheels while holding the bike steadily in place as you apply the brakes

THE BEDDING MACHINE UTILISES THREE MODES TO ACCOMMODATE VARIOUS BRAKE AND ROTOR CONFIGURATIONS

SPEEDING UP THE NEW PAD SERVICE AND BIKE ASSEMBLY PROCESS.

• Not only does the Bedding Machine produce pads that out perform parking lot bedded pads by more than 20% but the quick processing time saves you valuable time and money!
• In rain, snow or sweltering heat your technicians can bed in pads in just a few minutes.
• With the processing time of bedding-in pads being substantially reduced this means that less hours are used allowing you to focus workshop efforts elsewhere and speeding up the overall bike build process.

CHANGE THE DIRECTION OF THE WHEEL WITH A WAVE OF YOUR FOOT

• The roller drive direction can be changed with a simple wave of your foot past the touchless sensor, or by using the control panel on top.
• There are separate functions for the front and rear wheel.

FURTHER SMART BEDDING BENEFITS

• For bicycle assemblers the machine creates a high quality, consistent level of finished product for consumers
• Consistent bedding-in eliminates hotspots on the pad surface leading to quieter braking performance
• Provides a more even pad surface than bedding on the trail or in a parking lot resulting in improved wear
• With the adoption of e-bikes universal across all forms of riding properly bedded-in pads are now more important than ever to deal with the increased braking demands from a new generation
• of bikes and riders.

Our built-in stop/start functionality makes for a more efficient bedding-in process.
A USB port is also featured to keep the machine up to date with Sinters latest firmware updates

Specifications:

• Generated speed: 24km/h (Tire dependent)
• V Shape Dual Drive Aluminium rollers accept all Tire types and sizes
• Wheel sizes from 20” to 29”
• Tire widths from 1.0” to 3.0”
• 220v or 110v models available
• Change direction for Front to Rear wheel via touchless foot sensor or on control panel button

DEVICE STATUS: Indicates the status of the machine
MODE (A, B, C): Select different bedding-in programs based on Rotor Size and Braking System
WHEEL: Indicating Front or Rear wheel
BRAKE: Indicating when to pull or release lever
LOAD: Load indicator to allow user to modulate braking force for consistent bedding-in
TIME: Remaining brake and cool down times between cycles
