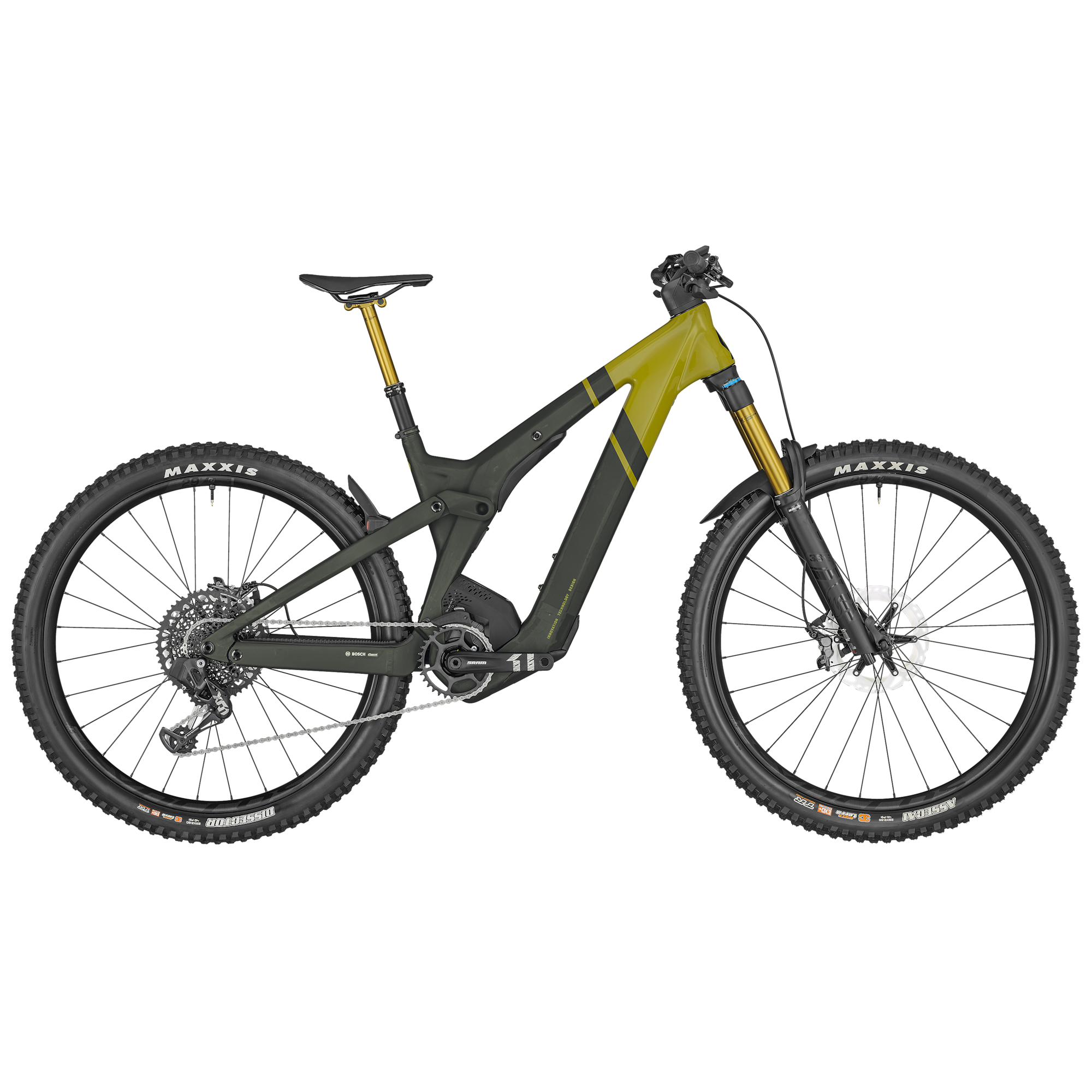

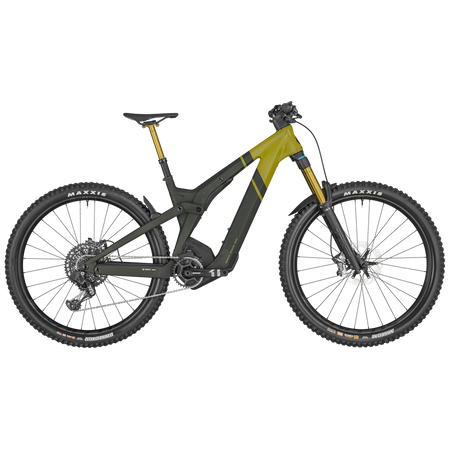

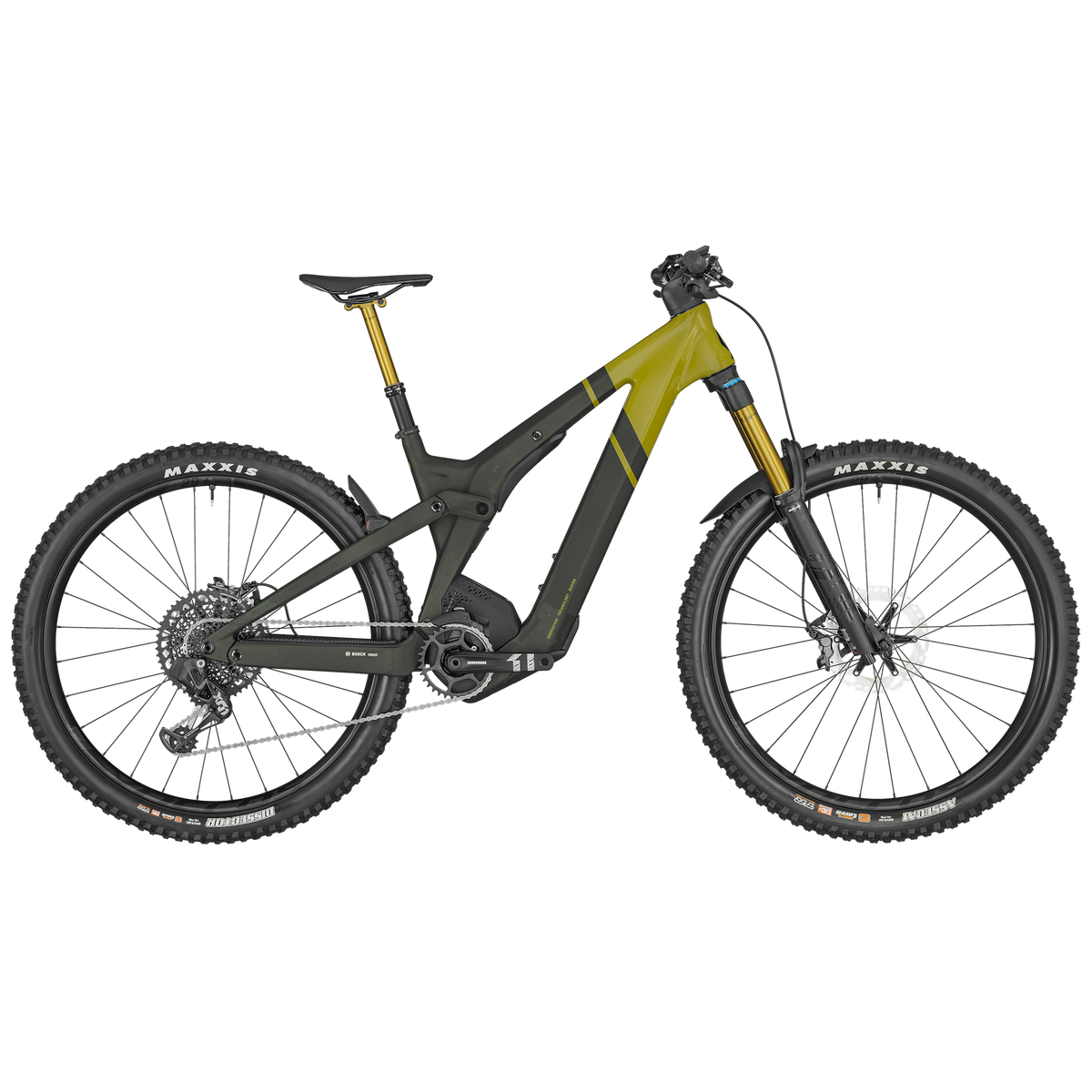

T for Super Trail, the Patron ST eRIDE 900 Tuned is based on the classic Patron platform but optimized for the ones who like spending more time in the air and in steeper terrain. No Twinloc on the fork, more travel with 170 front and beefier tires. Boss the trails!
Please note that bike specifications are subject to change without prior notice

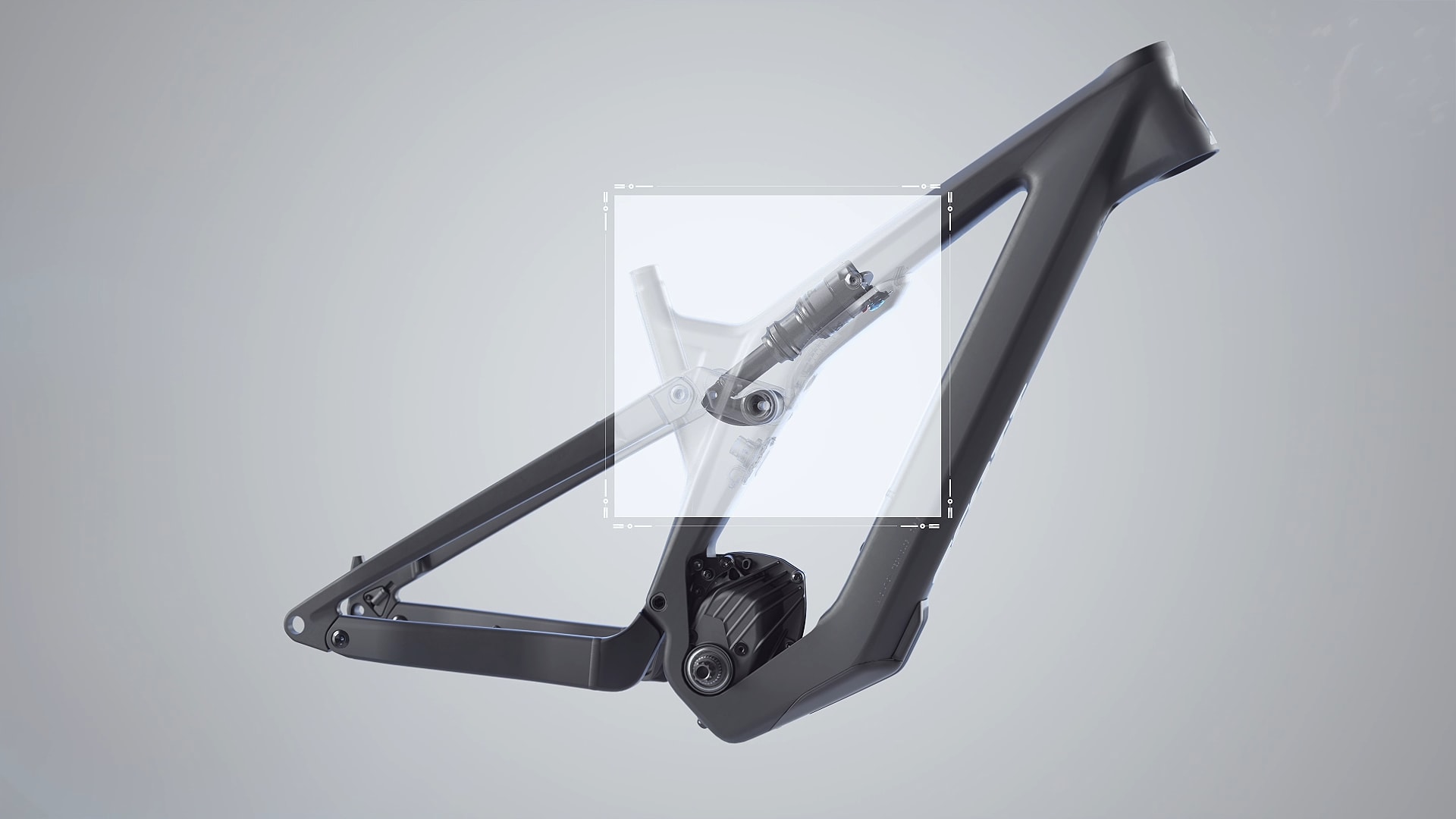

FrameCarbon Main Frame & SST / Alloy CST-LinkVirtual 4 link kinematic VLK29x2.6 / Boost 148x12mm UDH160mm travel / Bosch SmartSystem / Integr. removable Battery1.8" HeadtubeCentral Kickstand MountIntegr. Cable
TravelFront: 170mm / Rear: 160mm
ForkFOX 38 FIT Factory Grip 2 Air / KashimaHSC - LSC - HSR- LSR adjustable / QR Axle 15x110mm44mm offset / tapered steerer170mm travel

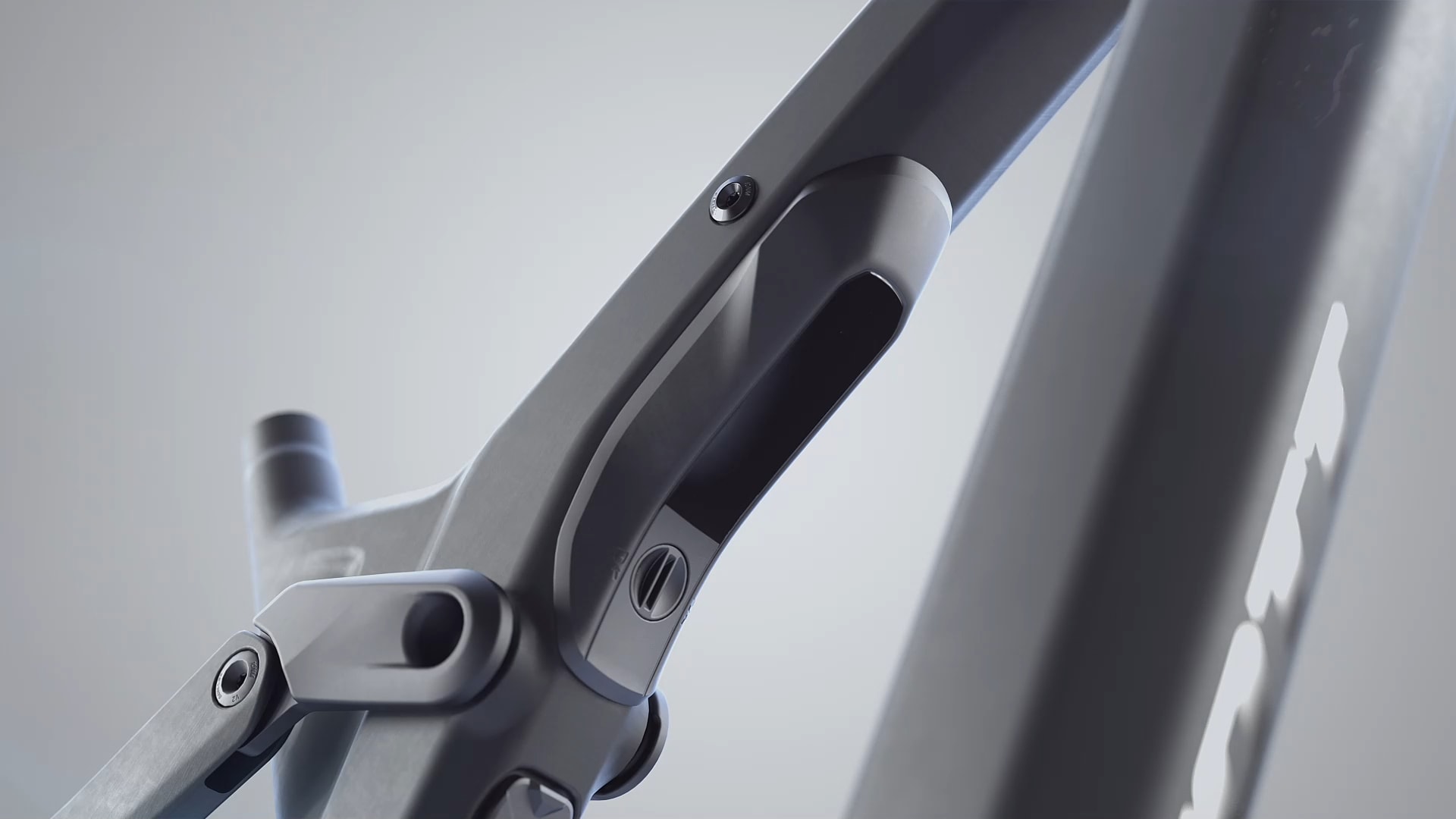

Rear ShockFOX NUDE T eRIDE EVOL Kashima / TrunnionSCOTT custom w. travel / geo adj.3 modes: Lockout-Traction Control-Descendcustom large air volume / DPS / Reb. Adj.Travel 160-115-Lockout / 205X60mm
Remote SystemTracLoc TechnologyRear Suspension & Dropper Remote3 Rear Suspension modes

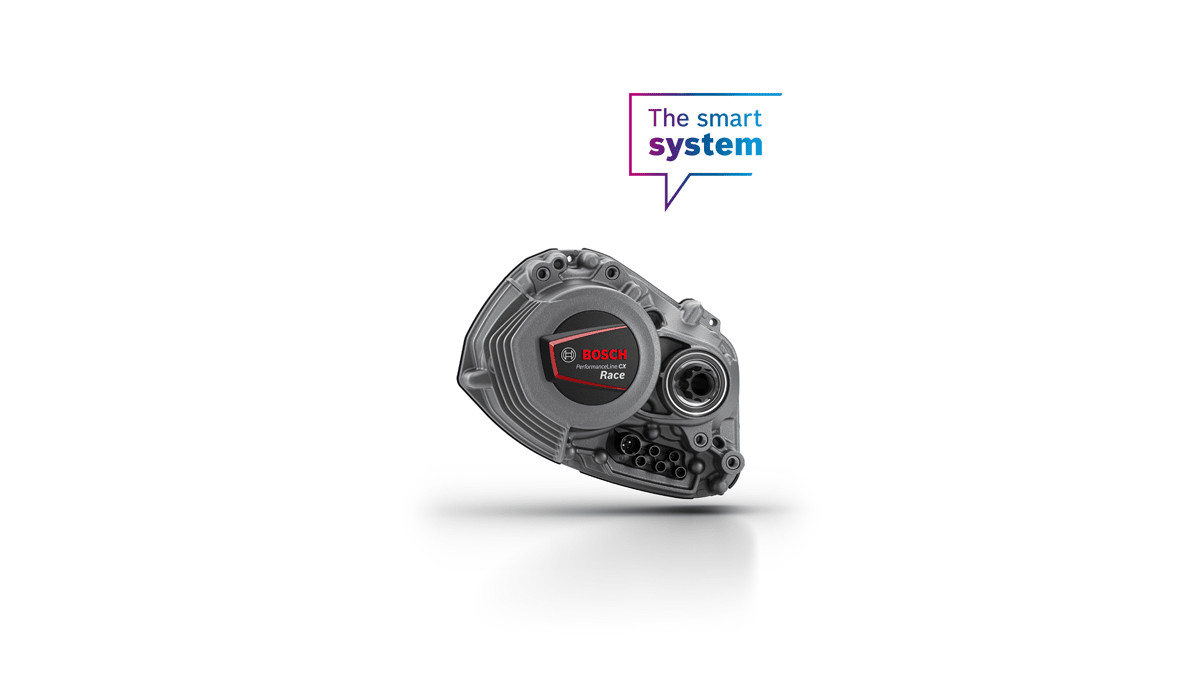

Drive UnitBosch Performance CX-REU: 25kmh / INT: 20mph

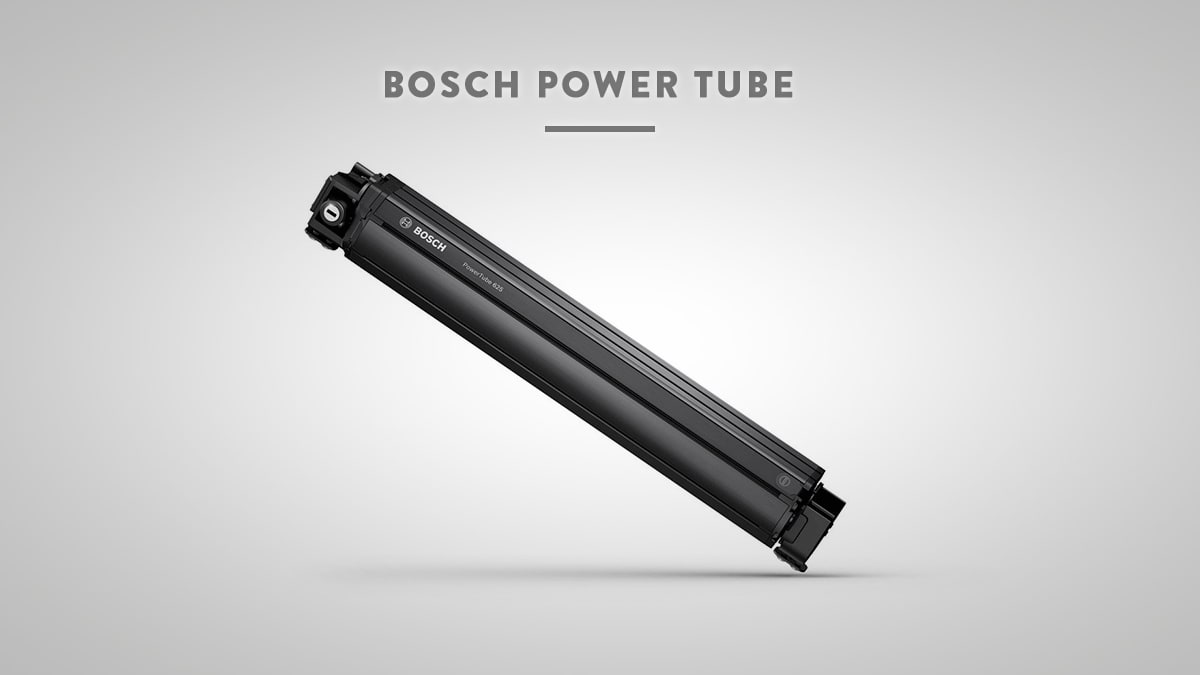

BatteryPowerTube 750Wh

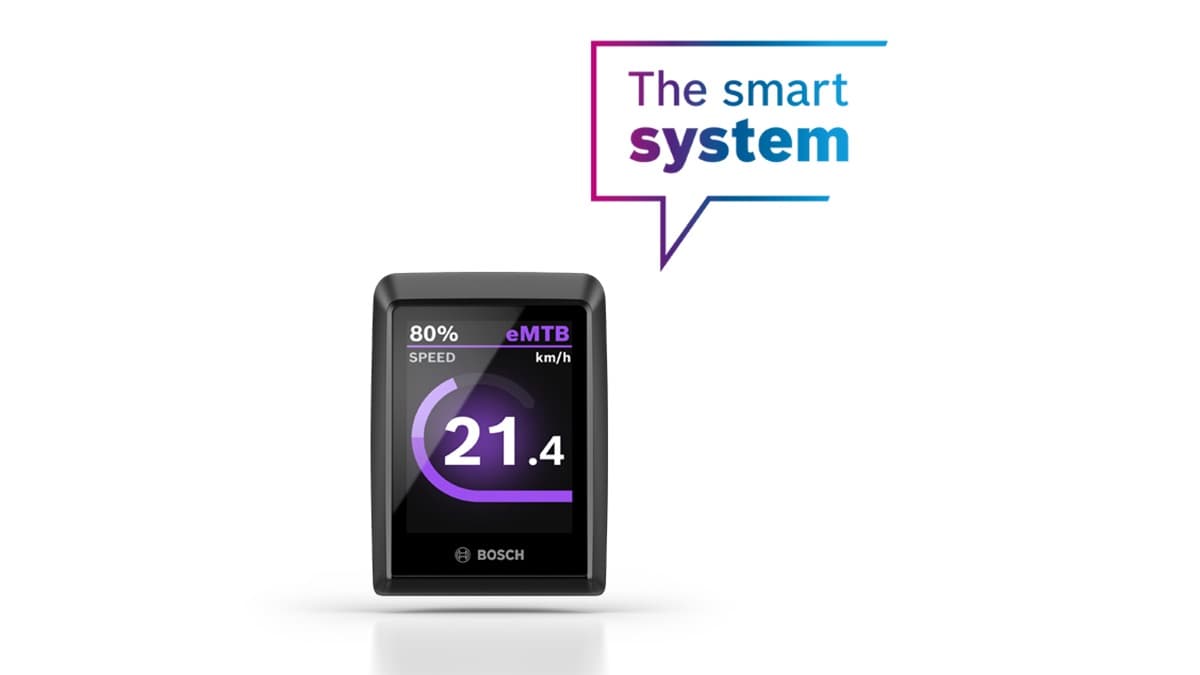

DisplayBosch System Controller / Mini Remote & Kiox 300
Charger4A Charger
Rear DerailleurSRAM GX Eagle AXS Transmission 12 SpeedWireless Electronic Shift System
ShiftersSRAM GX Eagle AXS Rocker Controller
CranksetSRAM X01 Eagle / 165mm
Chainguidee*thirteen / e*spec Slider
ChainringSRAM Eagle Transmission 34T chainring DM / Steel
ChainSRAM CN GX Eagle Transmission
CassetteSRAM GX Eagle XS 1275 Transmission 10-52T
BrakesSRAM Code Silver Stealth 4-Piston Disc
RotorSRAM HS2 Rotors F&R 200mm
HandlebarSyncros Hixon iC SL / 15mm Rise / integrated cockpitS&M: 5° 50mm / L&XL: 4° 60mm virtual stem angle & extension7° backsweep / 6° upsweep / Syncros Endurance lock-on grips
SeatpostFOX Transfer Factory Dropper Post Kashima31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm
SeatSyncros Tofino 1.5 RegularTitanium rails

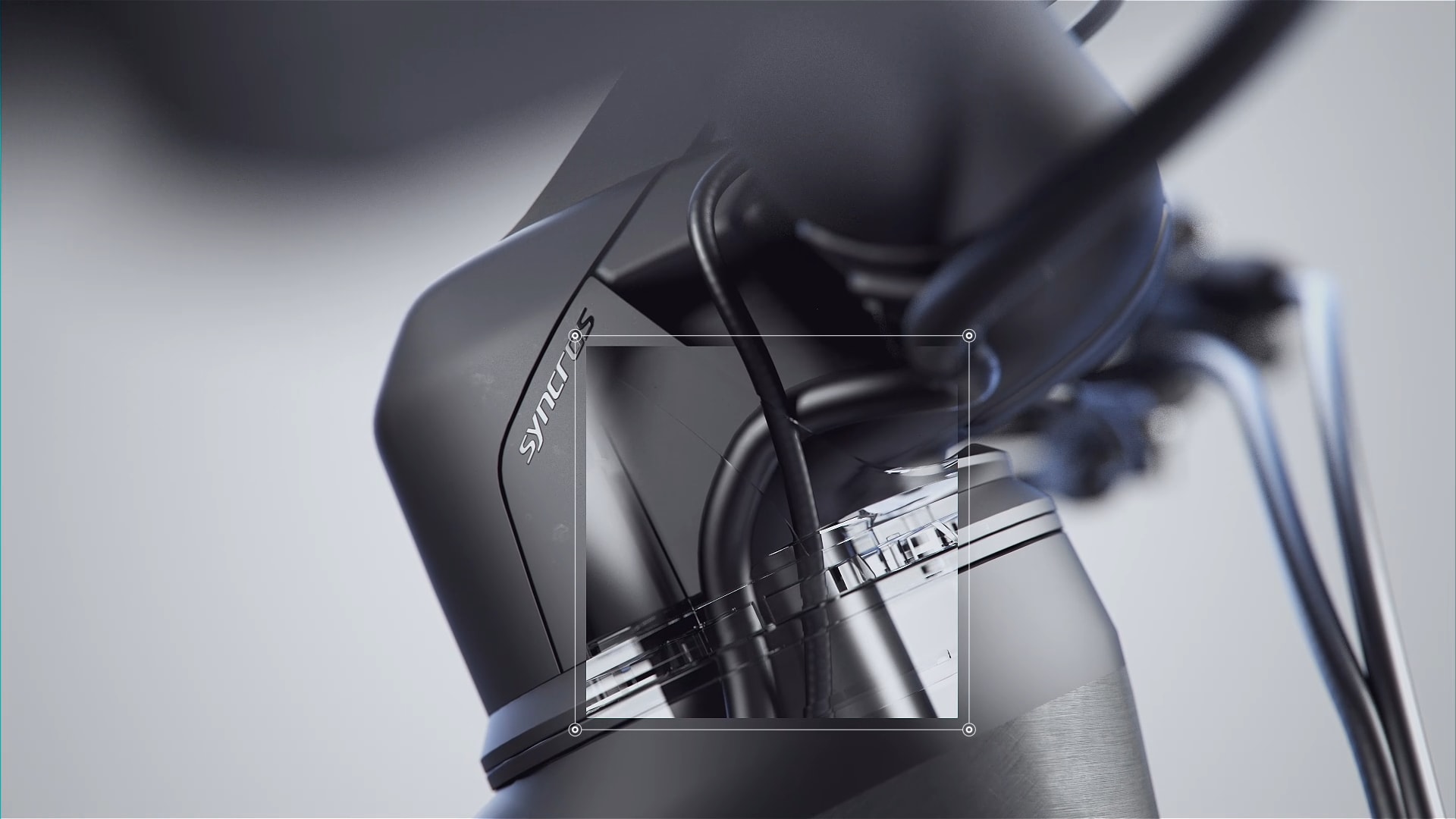

HeadsetAcros / 1.8"ZS66 OD74 / integr. Cable
WheelsetSyncros Revelstoke-E 1.5 CLF: 15x110mmR: 12x148mm Boost30mm Tubeless ready rim 28HSyncros Axle w/Removable Lever with Tool
Front TireMaxxis Assegai 29x2.6"120TPI Foldable BeadEXO+ / TR Tubeless ready3C Maxx Terra
Rear TireMaxxis Dissector 29x2.6"120TPI Foldable BeadEXO+ / TR Tubeless ready3C Maxx Terra

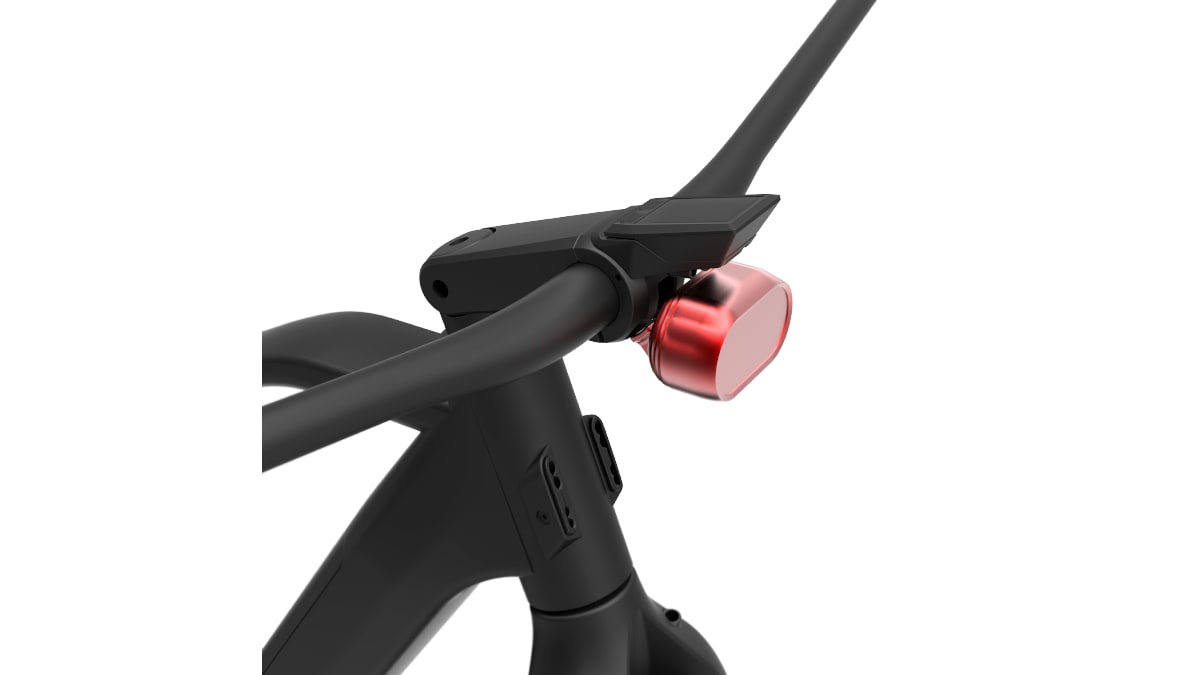

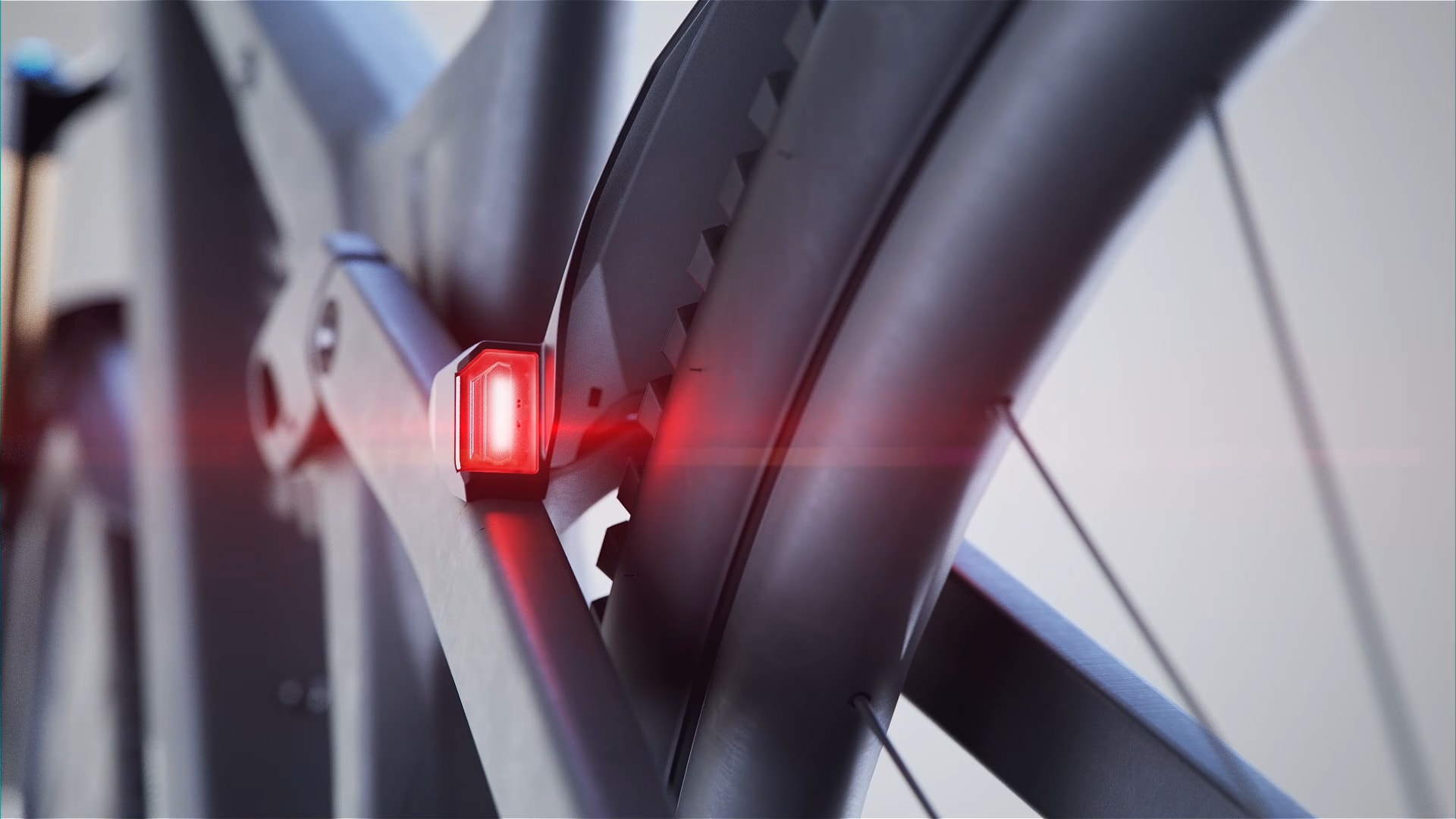

LightsSyncros integrated rear fender lightFront Light Cable pre-installed
ExtrasSyncros Fork Fender
Approx weight in KG23.6 (with tubes)
Approx weight in LBS52.03 (with tubes)
Max. System Weight128 kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
