Scalpel Spares 2024+

SKU: FRCAK32014
Regular price $99.90 includes GST
Stock Item
Please Note

If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.

Need help choosing the right size?

Read our guide or get in touch

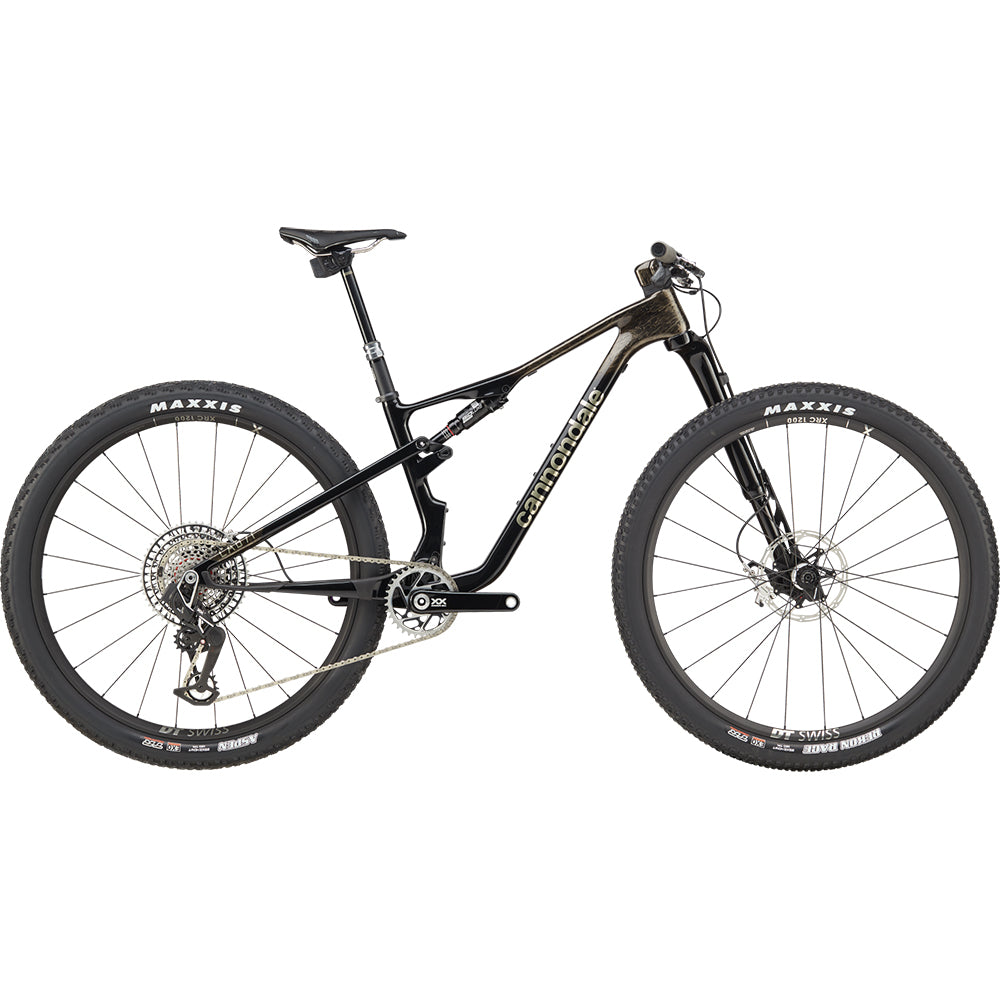

CANNONDALE SCALPEL SPARES 2024+

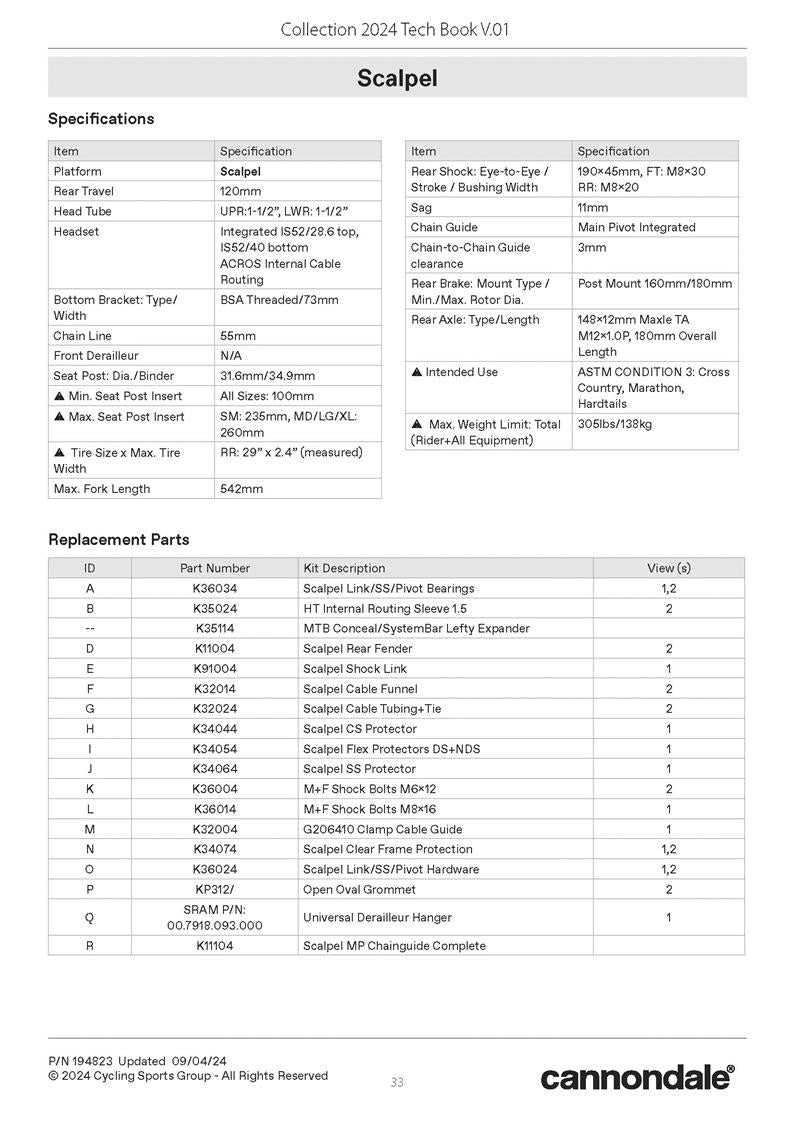

SPECIFICATIONS

Rear Travel - 120mm

Head Tube - UPR: 1-1/8”, LWR: 1-1/2”

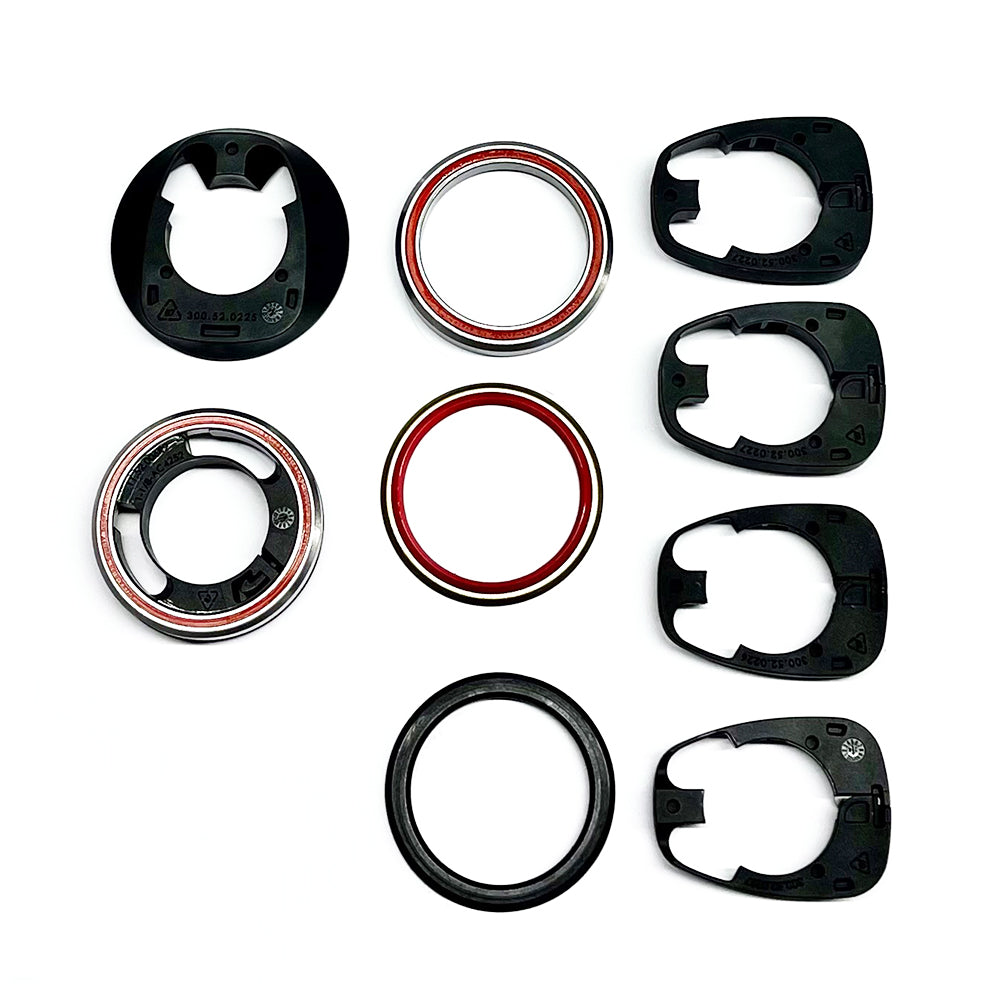

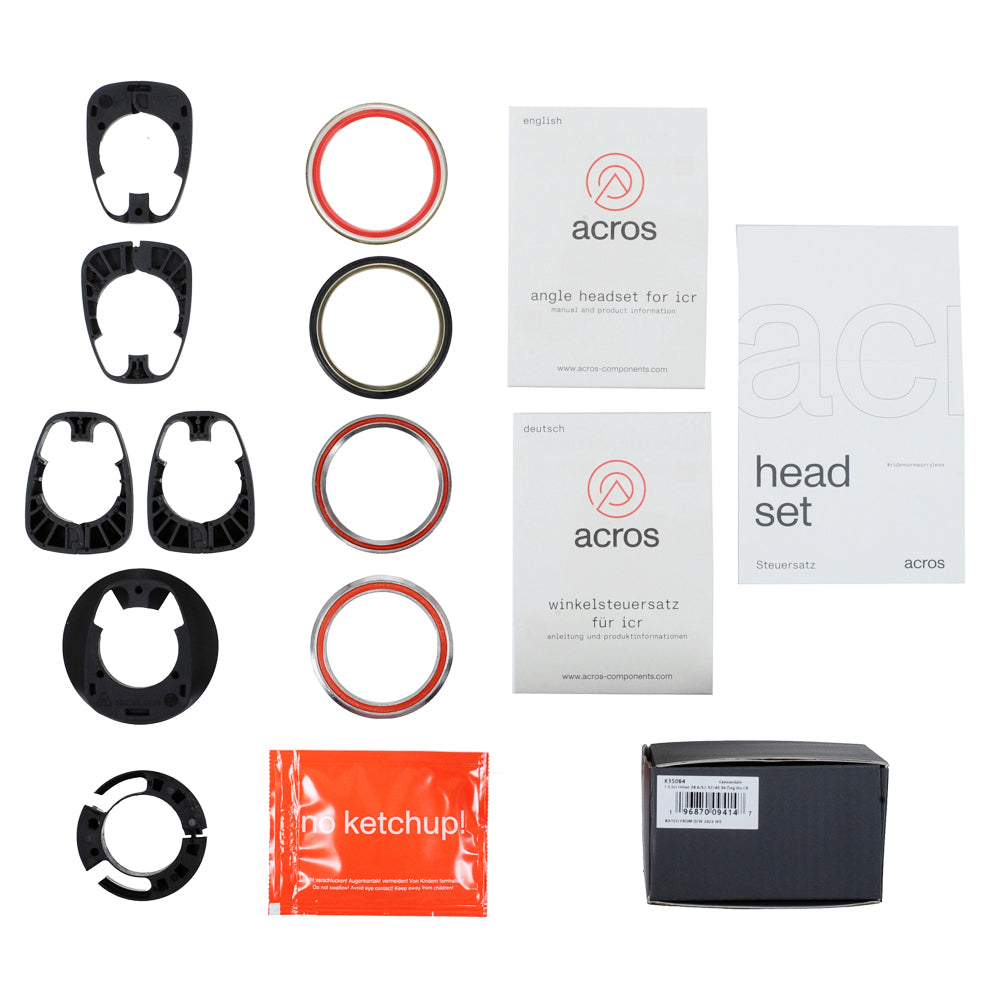

Headset - Integrated IS52/28.6 top, IS52/40 bottom ACROS Internal Cable Routing

Bottom Bracket: Type / Width - BSA Threaded/73mm

Chain Line - 55mm

Seat Post: Dia./Binder - 31.6mm / 34.9mm

Minimum Seat Post Insert - 100 mm

Maximum Seat Post Insert - SM: 235mm, MD/LG/XL: 260mm

Tire Size x Maximum Width - 29in x 2.4in

Maximum Fork Length - 542mm

Rear Shock: Eye-to-Eye / Stroke / Bushing Width - SM: 235mm, MD/LG/XL: 260mm

Sag - 11 mm

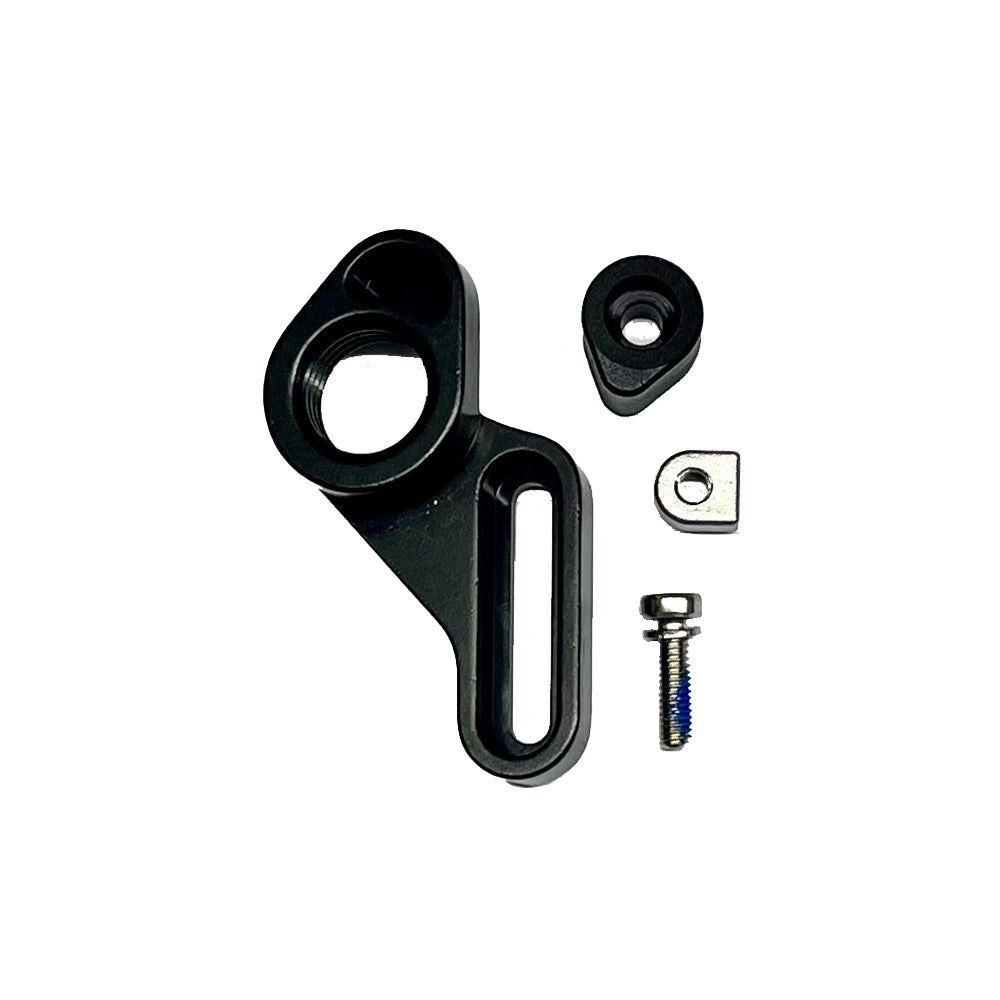

Chain Guide - Integrated w/ Main Pivot

Rear Brake: Mount Type / Min / Max Rotor Diameter - Post Mount / 160 mm / 180 mm

Axles: Type / Length - 148x12mm Maxle TA M12x1.0P, 180mm Overall Length

Maximum Weight Limit: Total - 138kg
