RockShox SKU: SHOCKZ548000

RockShox Vivid Air Ultimate DH

SKU: SHOCKZ548000

(0)

$1,595.00 includes GST

Stock Item

RockShox Rear Shock Vivid Ultimate DH RC2 - (250X75) LinearXL Air, 2 Tokens, Reb55/Comp34, Adj Hydraulic Bottom Out,Standard Standard - D1 RockShox Rear Shock Vivid Ultimate DH RC2 - (250X72.5) LinearXL Air, 2 Tokens, Reb55/Comp34, Adj Hydraulic Bottom Out,Standard Standard - D1 RockShox Rear Shock Vivid Ultimate DH RC2 - (250X70) LinearXL Air, 2 Tokens, Reb55/Comp34, Adj Hydraulic Bottom Out,Standard Standard - D1 RockShox Rear Shock Vivid Ultimate DH RC2 - (225X75) LinearXL Air, 2 Tokens, Reb55/Comp34, Adj Hydraulic Bottom Out,Standard Trunnion - D1 RockShox Rear Shock Vivid Ultimate DH RC2 - (225X72.5) LinearXL Air, 2 Tokens, Reb55/Comp34, Adj Hydraulic Bottom Out,Standard Trunnion - D1 RockShox Rear Shock Vivid Ultimate DH RC2 - (225X70) LinearXL Air, 2 Tokens, Reb55/Comp34, Adj Hydraulic Bottom Out,Standard Trunnion - D1 RockShox Rear Shock Vivid Ultimate DH RC2 - (250x72.5) LinearXL Air,1 Token,Reb25/Comp37,Adj Hydraulic Bottom Out,Nb Std(8x25)(includes bearing kit) - D1-TrekSession(2022+)(29") RockShox Rear Shock Vivid Ultimate DH RC2 - (230X65) LinearXL Air, 2 Token, Reb55/Comp30, Adj Hydraulic Bottom Out,Standard Standard(8x25,8x31.75) -D1 CanyonStrive2022+

Please Note

If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.

Need help choosing the right size?

Read our guide or get in touch

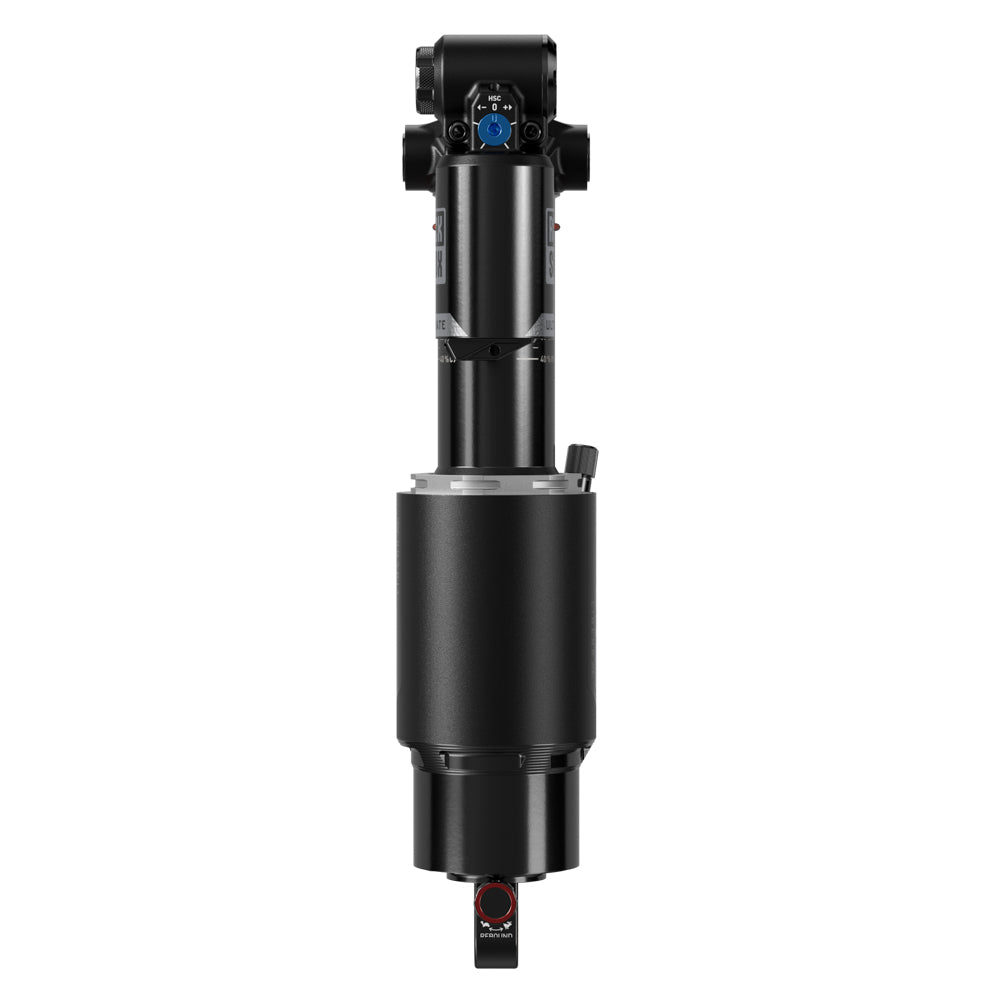

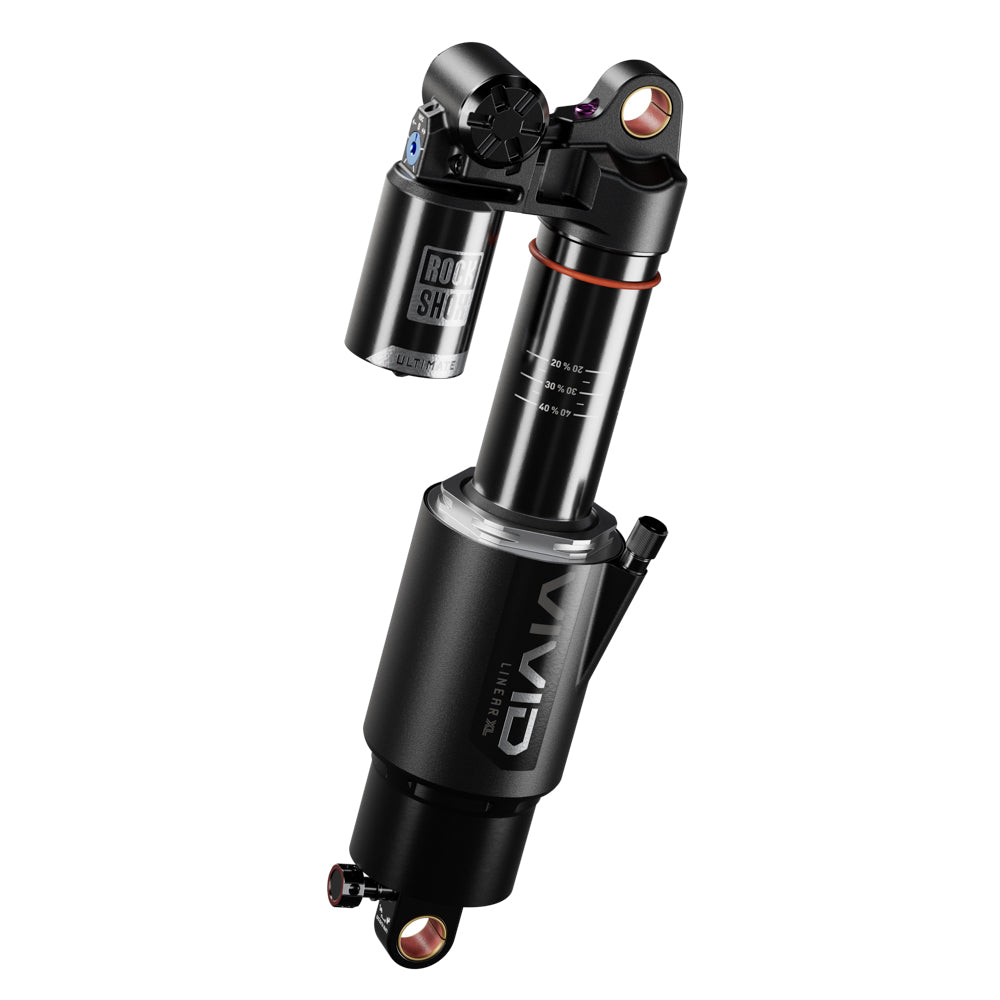

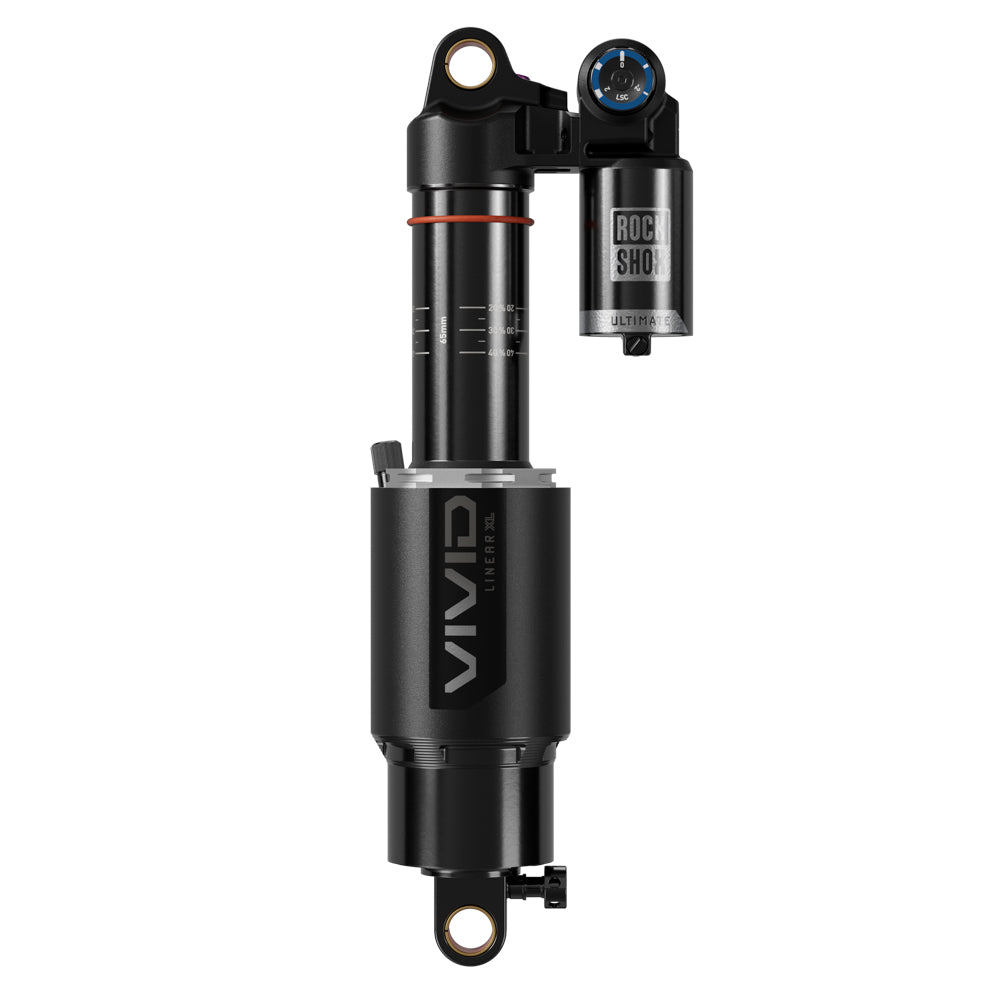

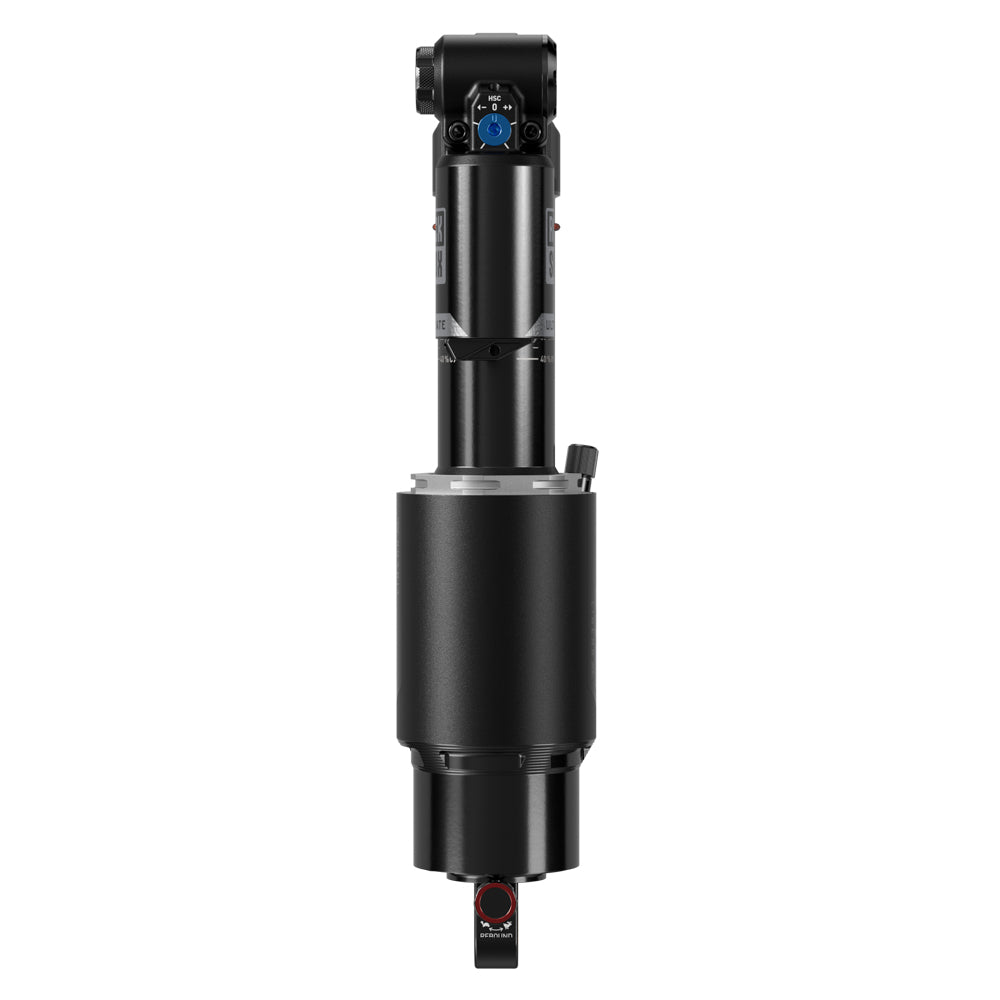

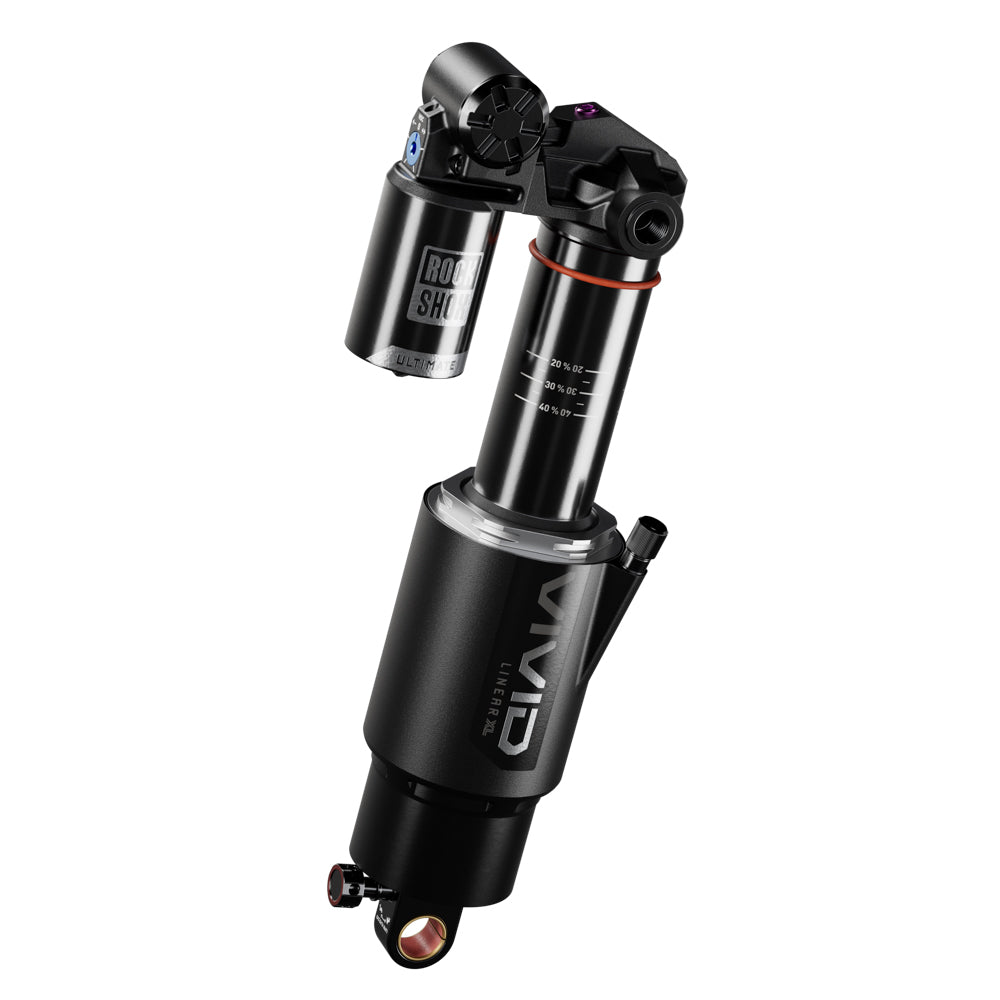

ROCKSHOX VIVID AIR ULTIMATE DH

World Cup-proven and built to charge, Vivid Ultimate DH sets a new standard in downhill performance. The LinearXL air spring delivers a coil-like feel—supple off the top, supportive through the mid-stroke, and backed by Adjustable Bottom Out for confident endstroke control—giving you unwavering consistency and predictability. Engineered to work as a system with your BoXXer, the RC2 damper’s new main piston compression tunes provide mid-stroke support, while intuitive HSC/LSC adjusters make setup fast, clear, and easy to communicate. Bigger, more aggressive, and ready to push limits on downhill bikes—Vivid Ultimate DH redefines what a rear shock is capable of.

SPECIFICATIONS

Eye to eye / Stroke	225x70(TR), 225x72.5(TR), 225x75(TR), 230x65, 250x70, 250x72.5, 250x75
Damper Type	RC2 Adj. Hydraulic Bottom Out
Rebound tune	R25, R55
Compression tune	C30, C34, C37
Lockout force	N/A-V5
Shaft Eyelet	Standard
Body Eyelet	No Bushing, Standard, Trunnion
E-Bike Approved	E-bike Approved
Bottom Out	Externally Adjustable Bottom Out
High Speed Tune	n/a

FEATURES

NEW LinearXL air spring delivers a consistent and predictable ride feel tunable with easy-to-change bottomless tokens
NEW RC2T damper providing a wide, usable range of Low Speed Compression (LSC) and High Speed Compression (HSC) adjustments without any cross-talk
NEW Numbered Compression adjuster for intuitive adjustments—start at "0" and easily add or decrease damping
NEW Base valve with 40% reduction in IFP forces, making it the most supple shock on the market while maintaining perfect traction
NEW Main piston compression tunes matched in performance to the Charger 3.2 damper, focused on providing mid-stroke support
Adjustable Bottom Out (ABO) offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel
Removable Rebound knob doubles as HSC and ABO adjuster
20 clicks of Rebound adjustment providing uniform rebound curves paired with a broad adjustment range provide a consistent ride feel for a wide spectrum of rider weights
8x30 Bearing Adapter available for all standard eyelets, sold as an upgrade kit.

RockShox Vivid Air Ultimate DH
