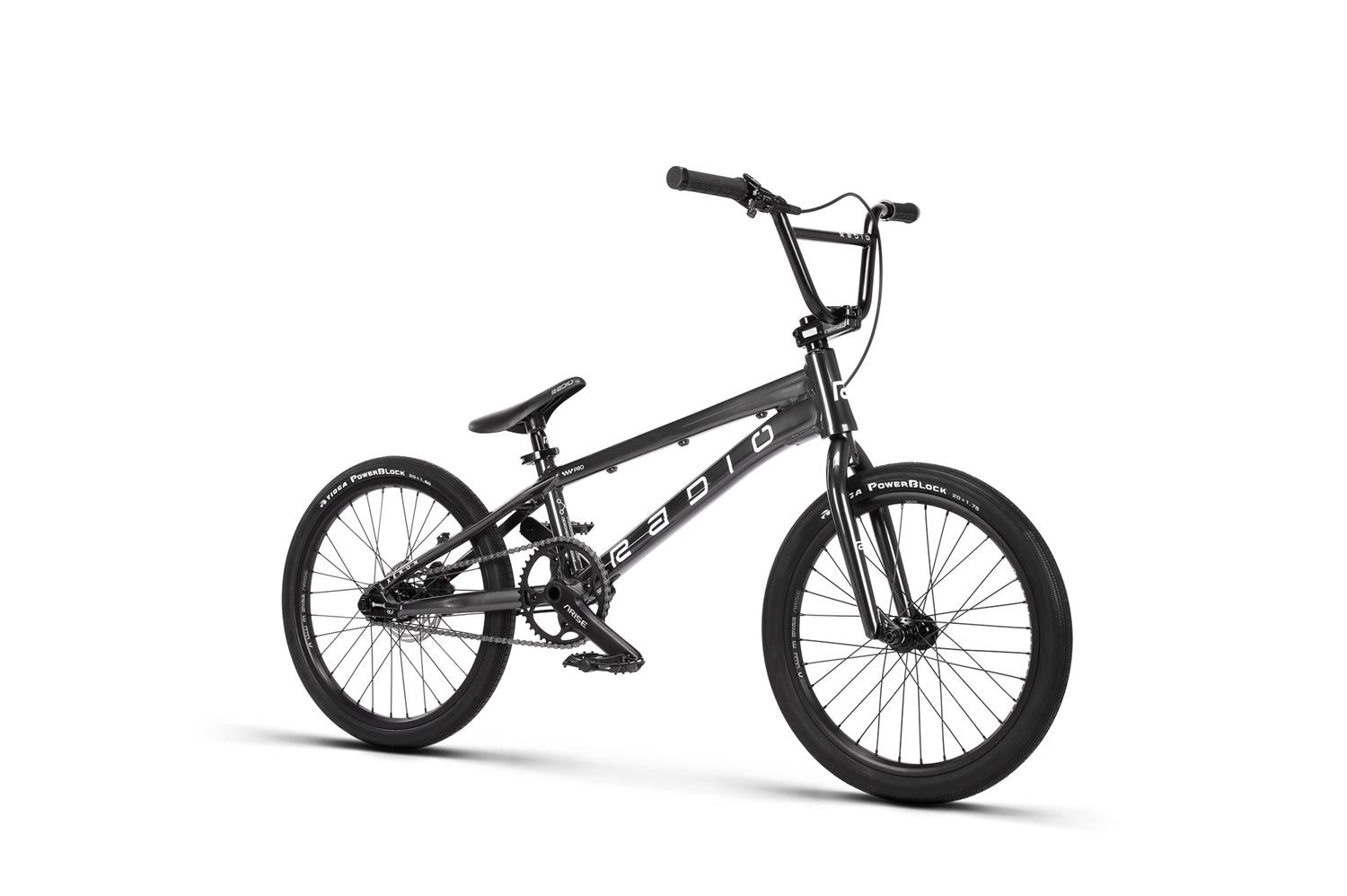

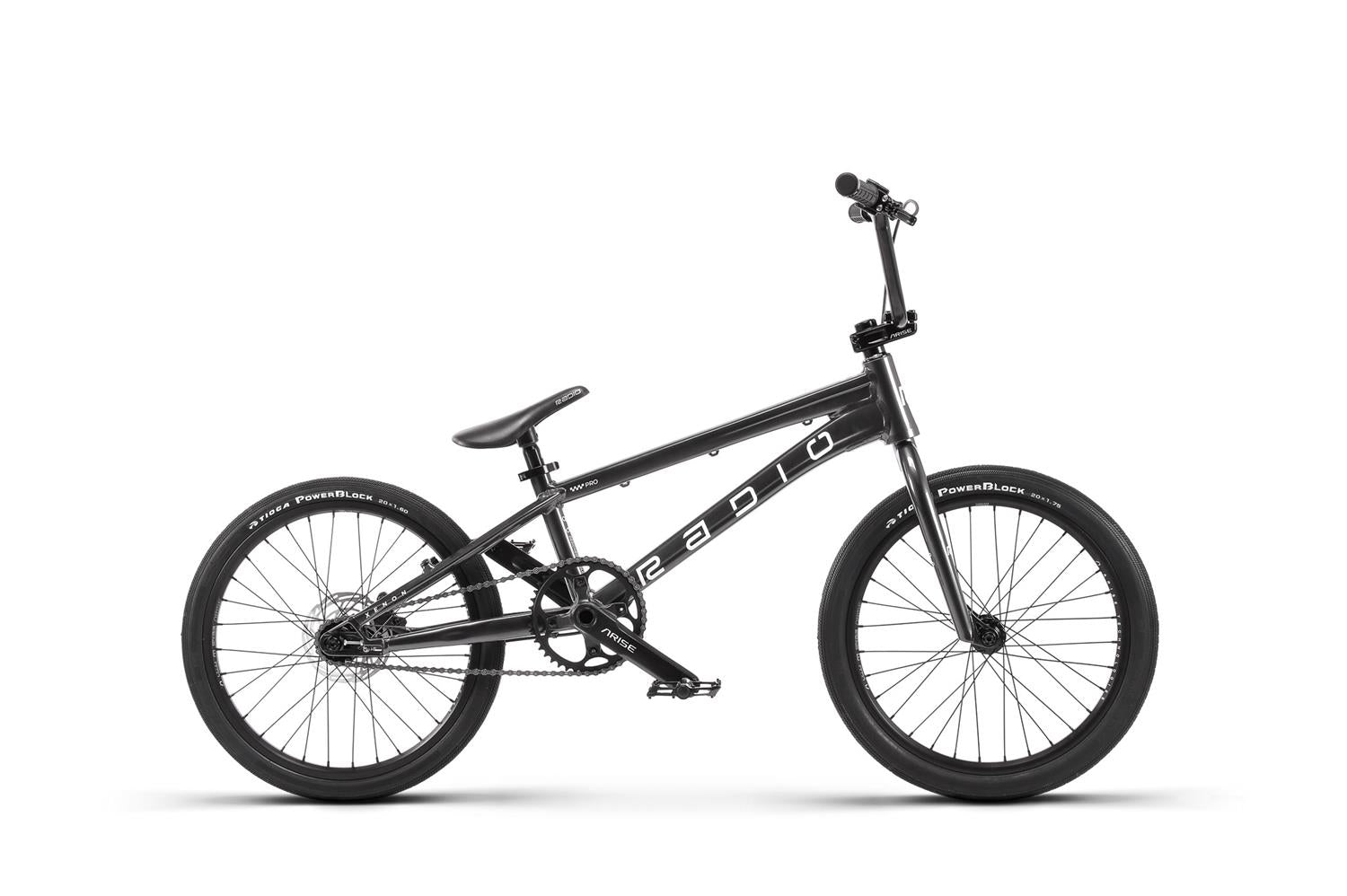

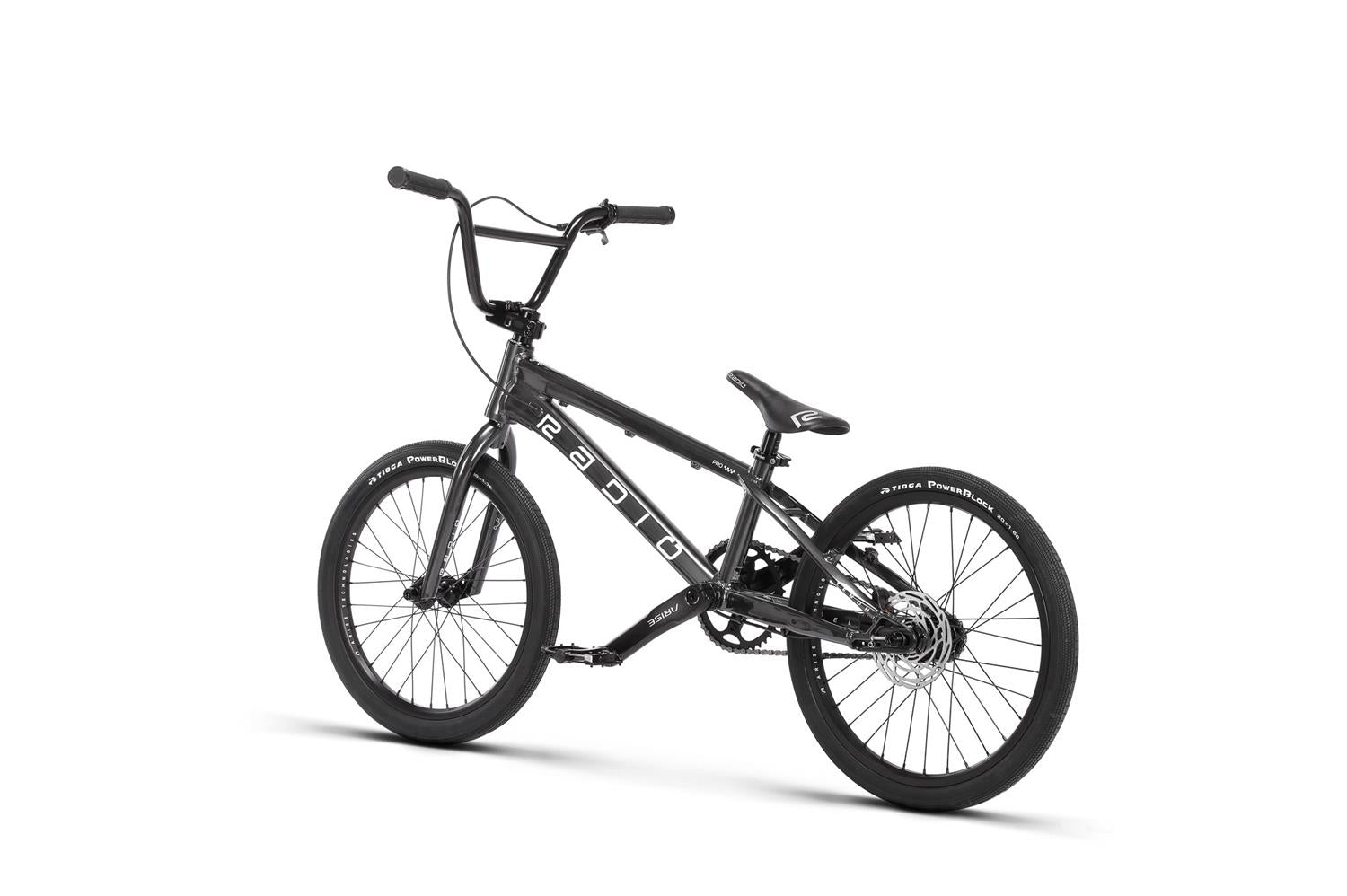

Radio Raceline Xenon Pro L
Couldn't load pickup availability
Need help choosing the right size?
The Xenon PRO L features a full spec upgrade and PRO sized geometry. The mid-tier Xenon line is a game changer with all bikes being Disc-ready allowing you to convert them to a full disc-brake setup with our aftermarket disc brake kit.
We spared no details here, from forged disc-ready dropouts with tensioners, our very own aftermarket Xenon Stem, Oxygen Tires and Argon PRO Rims, the Xenon is a natural born winner.

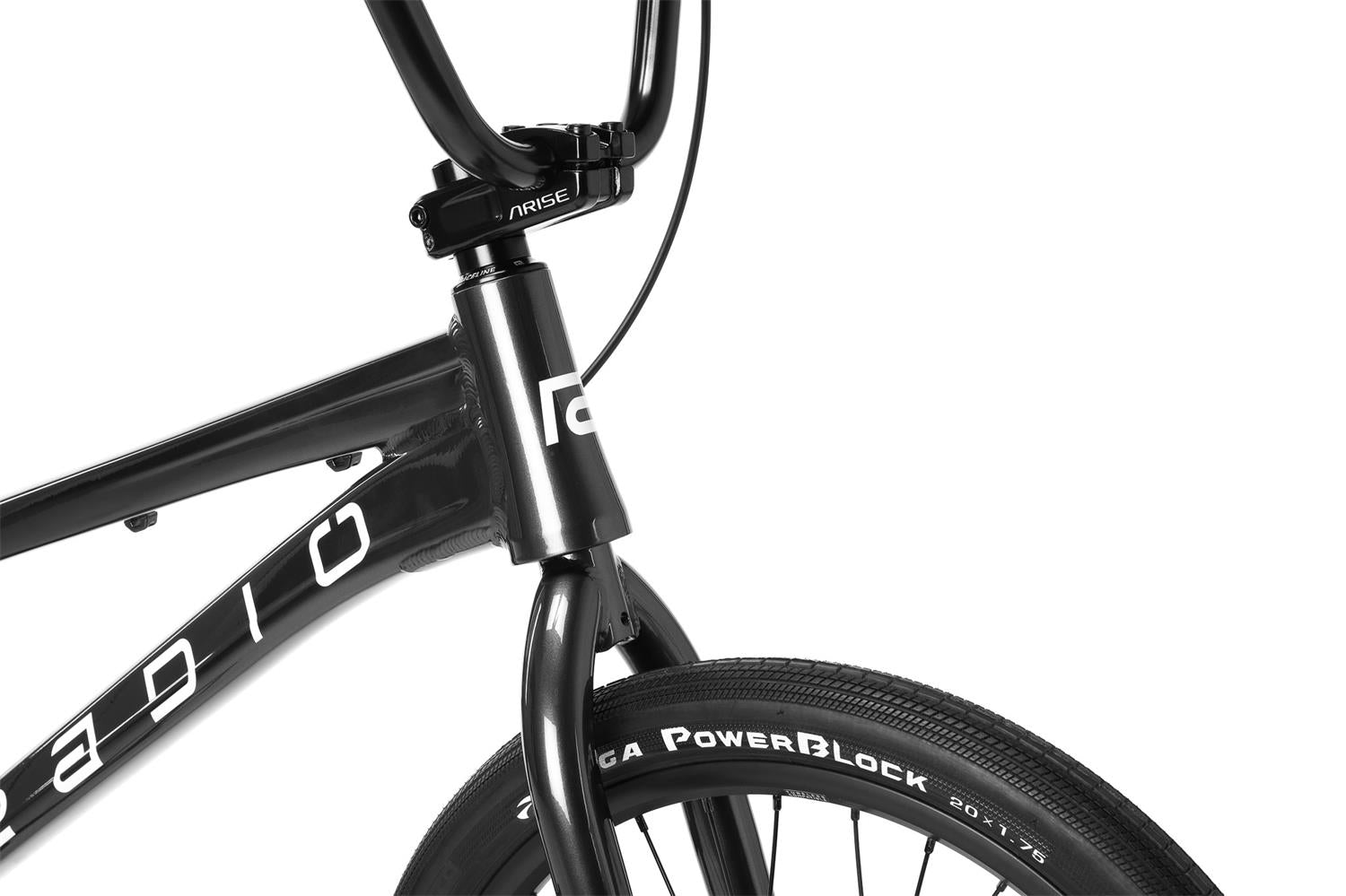

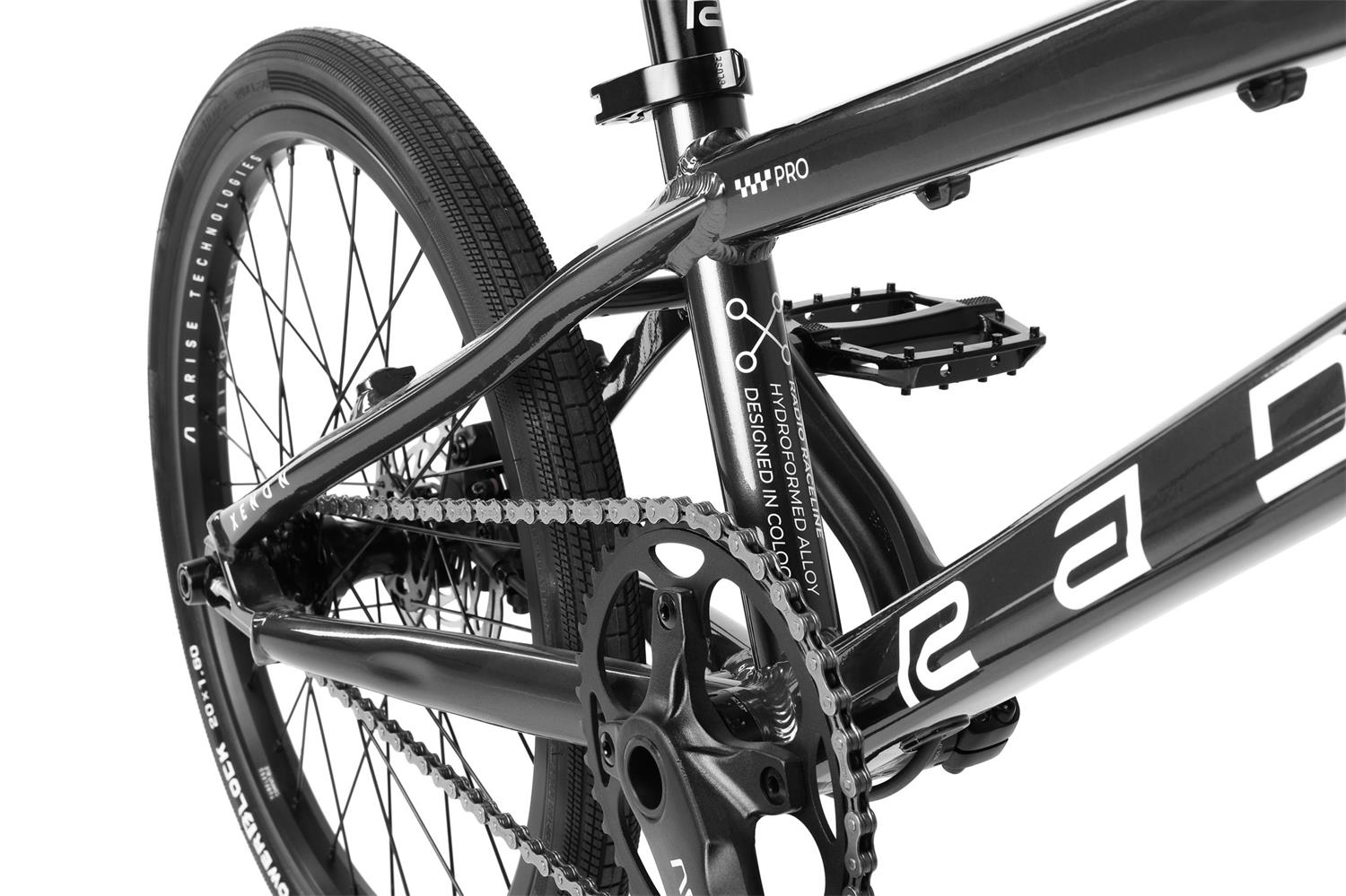

- FRAME: hydroformed 6061-T6 alloy frame, tapered headtube, forged & disc brake mount ready dropouts, with int. chaintensioners

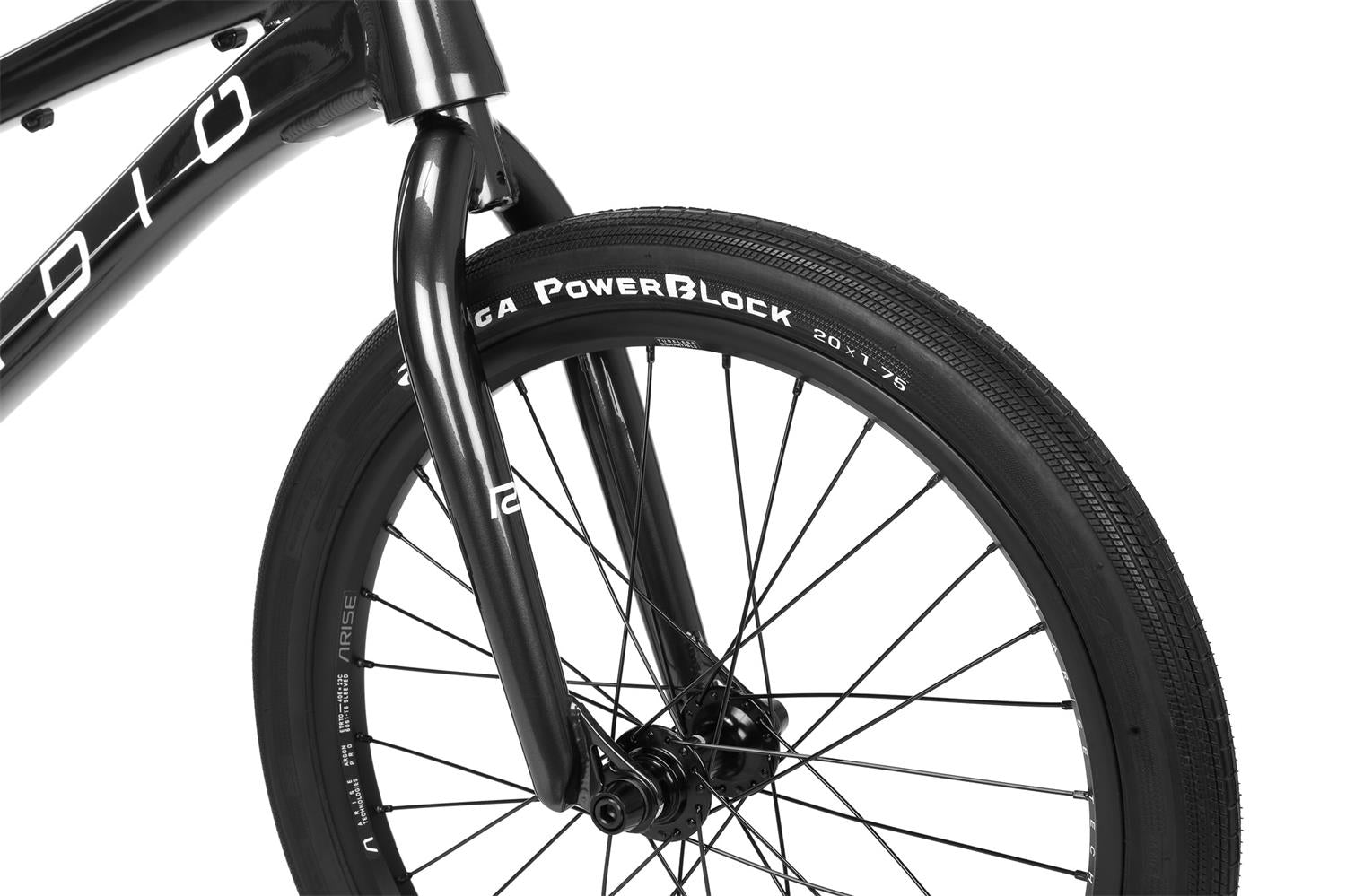

- FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 30mm offset

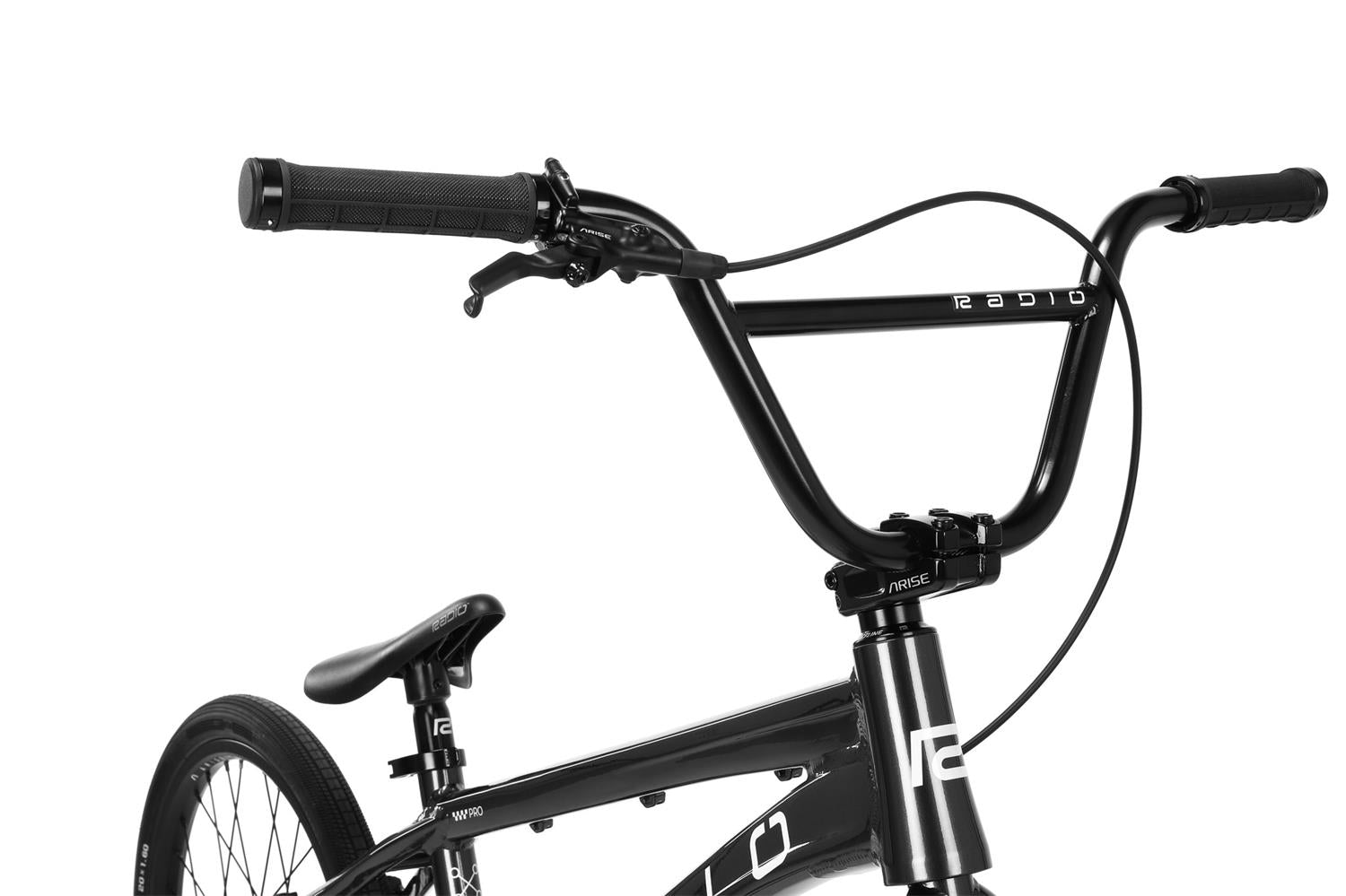

- HANDLEBAR: 4130 crmo bar, seamless
- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length

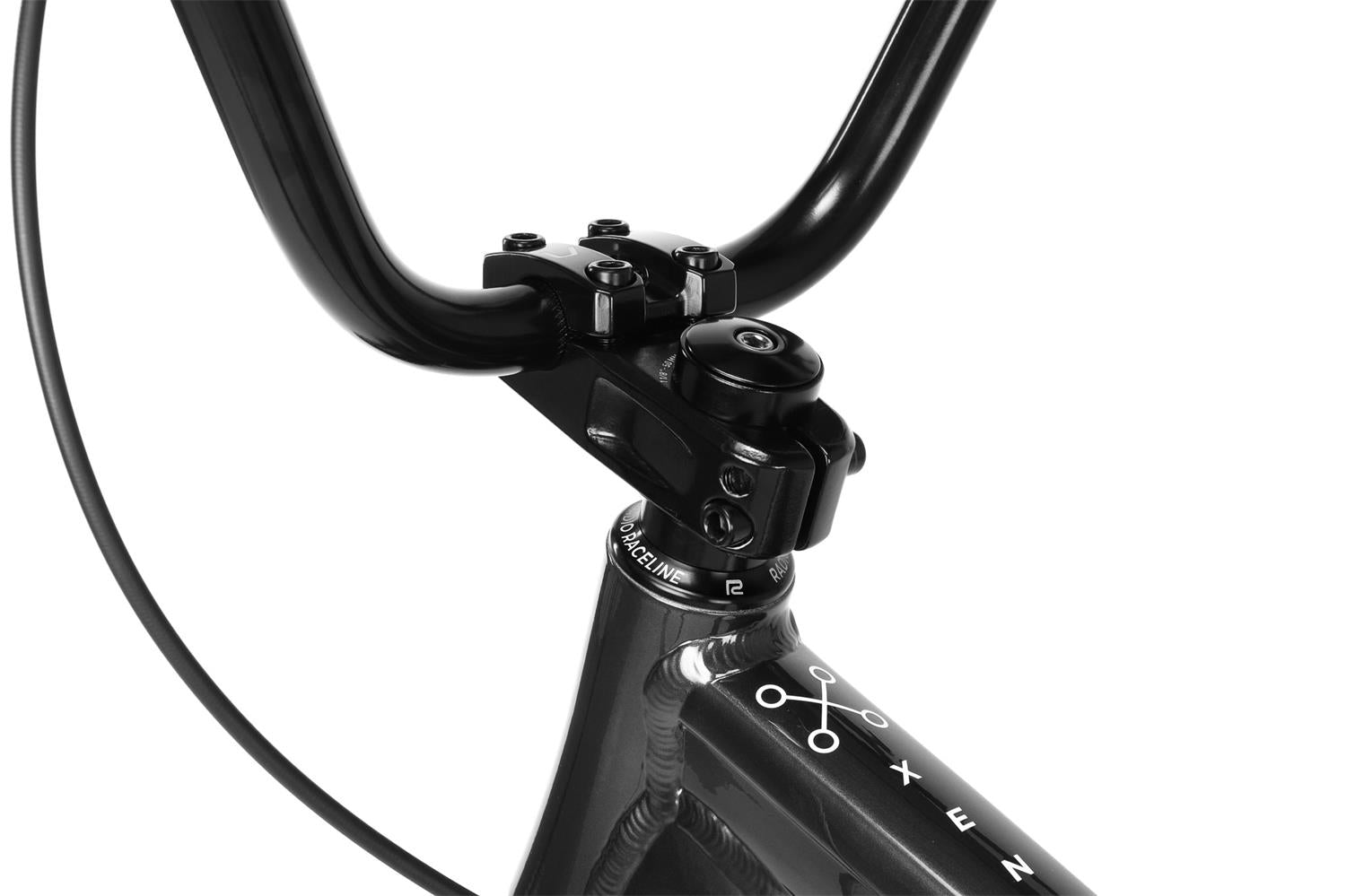

- STEM: ARISE "XENON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy
- HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5", including fork crown race 1.5"-1 1/8" converter

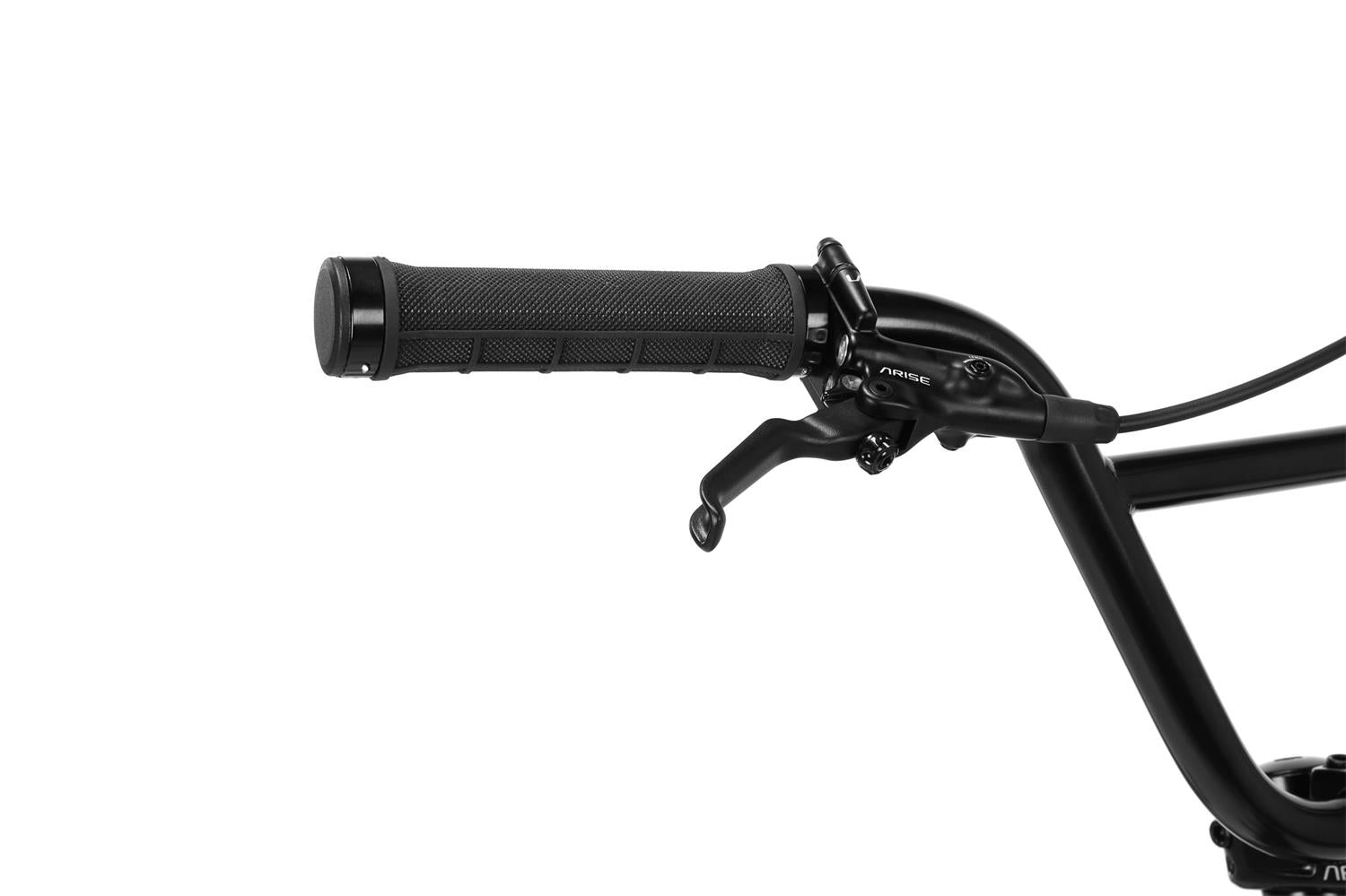

- BRAKE LEVER: ARISE "XENON" Disc brake lever, rear

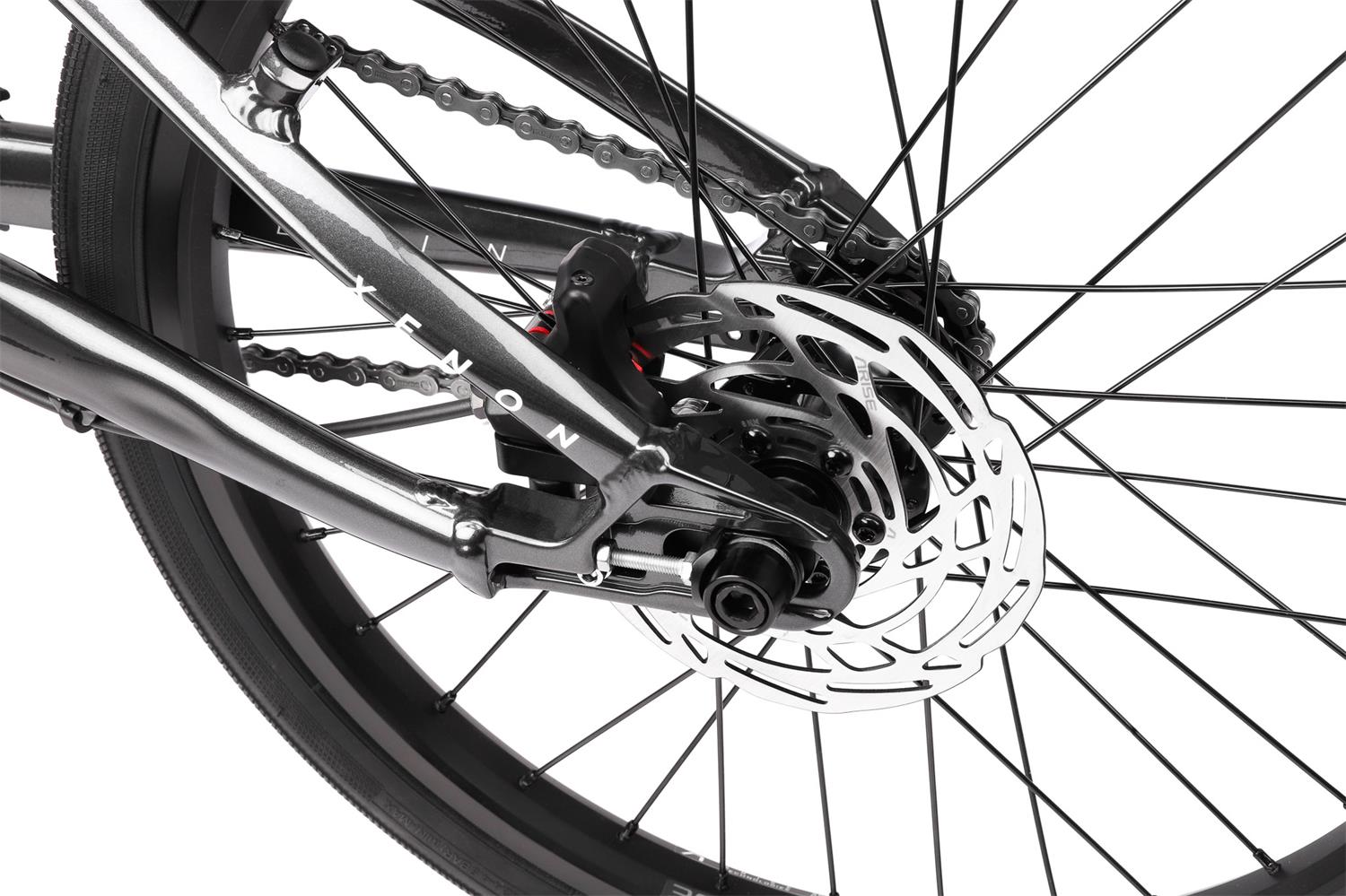

- BRAKE: ARISE "XENON" Disc brake, rear

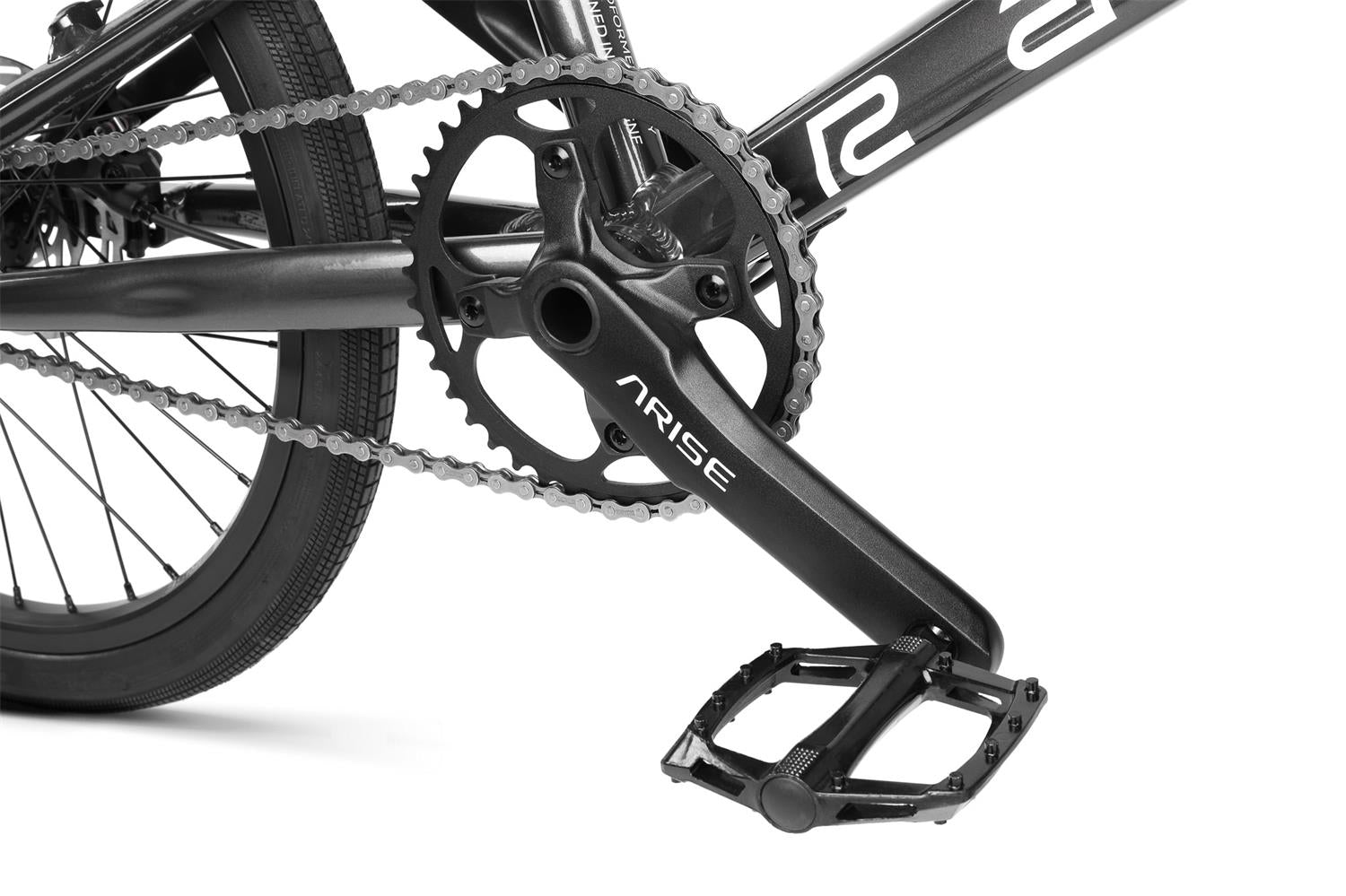

- CRANK: ARISE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 180mm length, 24mm spindle
- BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
- PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: ARISE "XENON PRO" sprocket, 42T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

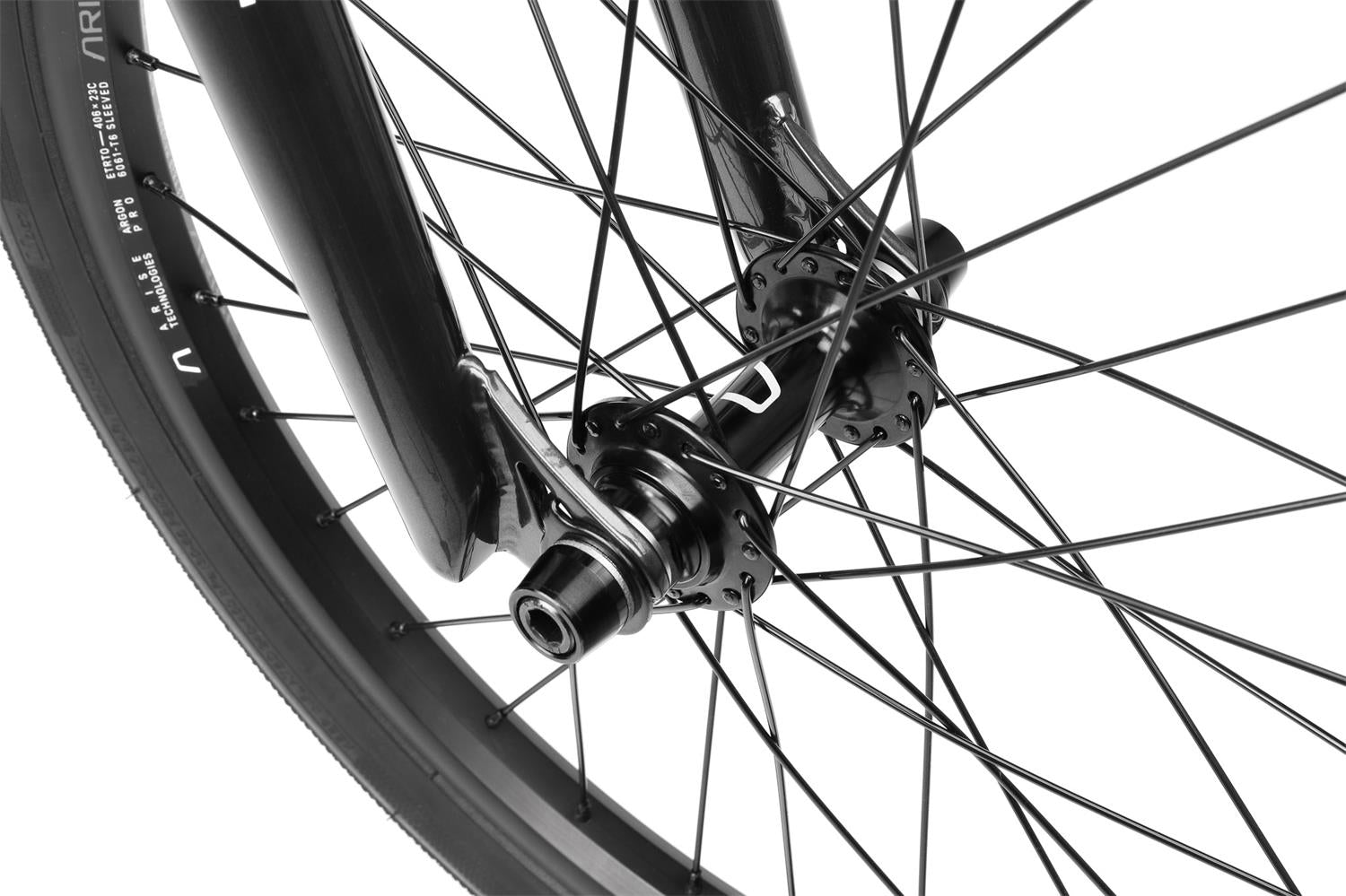

- FRONT HUB: ARISE "BRAVO" front hub, alloy cnc, fully sealed, 32h, 3/8" crmo axle

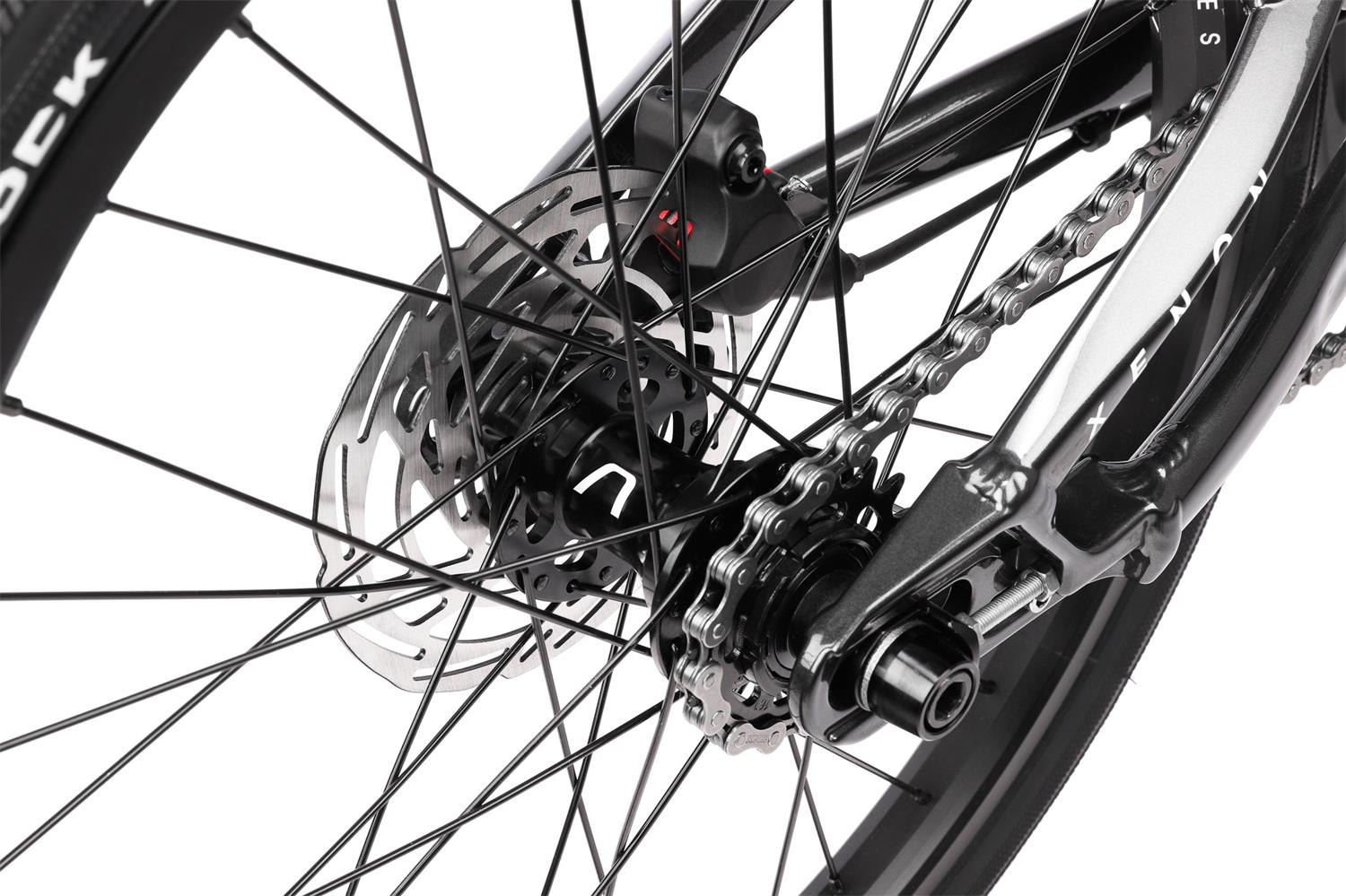

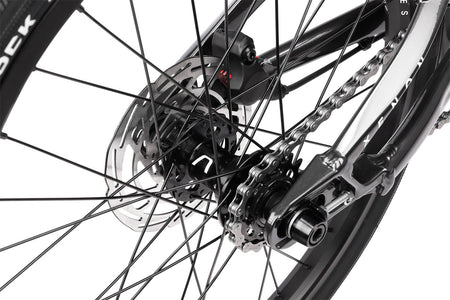

- REAR HUB: ARISE "ALFA" rear hub, alloy cnc, fully sealed, 32h, disc brake cassette, 3/8" crmo axle
- FRONT RIM: ARISE "ARGON PRO" rim, sleeved joint, 32h, alloy
- REAR RIM: ARISE "ARGON PRO" rim, sleeved joint, 32h, alloy

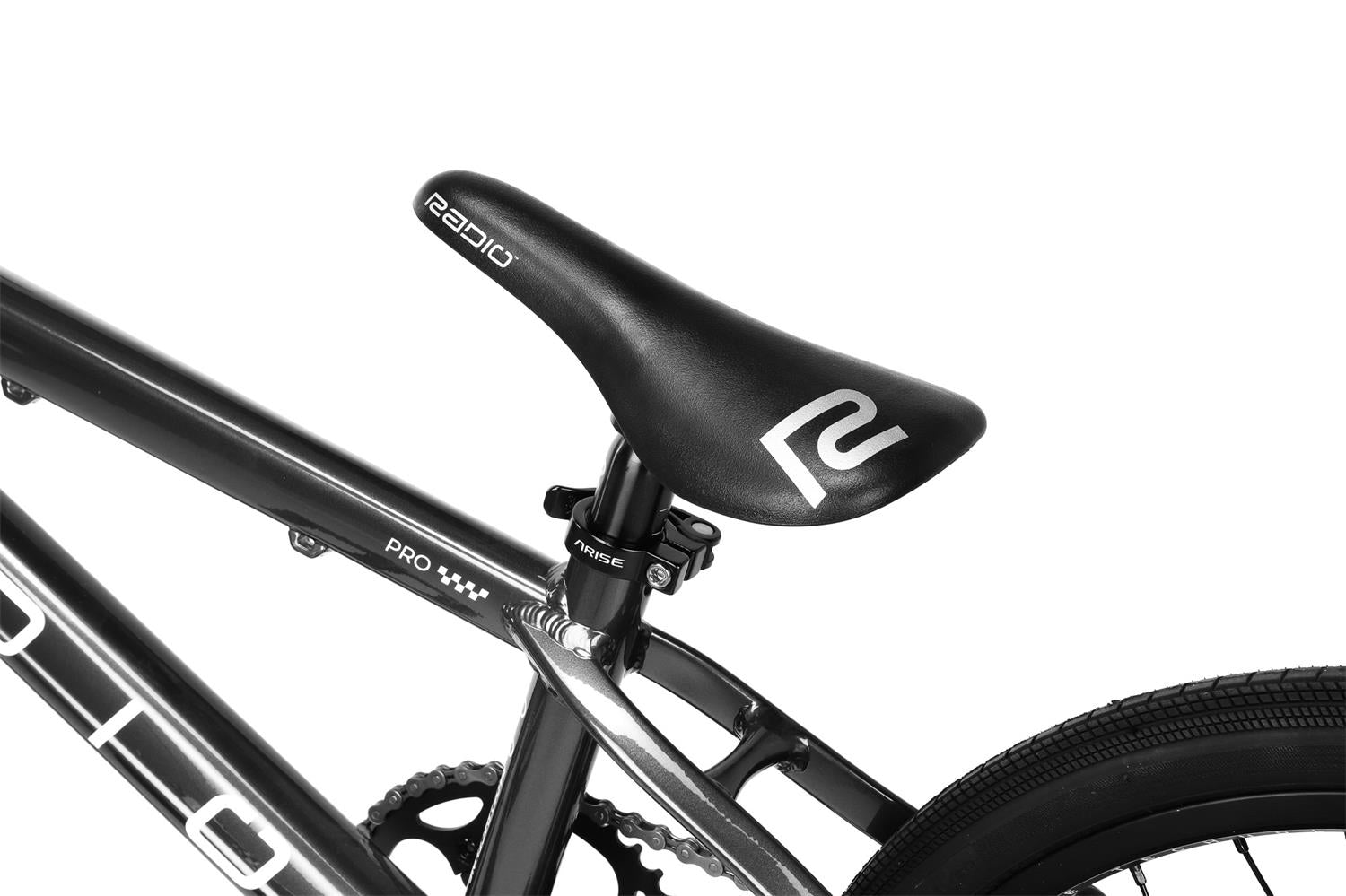

- SEAT: RADIO RACELINE Seat - Seatpost Combo
- SEAT CLAMP: ARISE "XENON" seat post, quick-release, alloy
- TIRES: TIOGA POWER BLOCKtires, front: 20" x 1.75" and rear: 20" x 1.6"
Weight: TBA
Frame Geometry:
| Top Tube Length | 20.9" |
| Chain Stay Length | 14.25" |
| Head Tube Angle | 74° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 11.6" |
Handlebar Geometry:
| Rise | 7.5" |
| Width | 28" |
| Backsweep | 11° |
| Upsweep | 3.5° |
