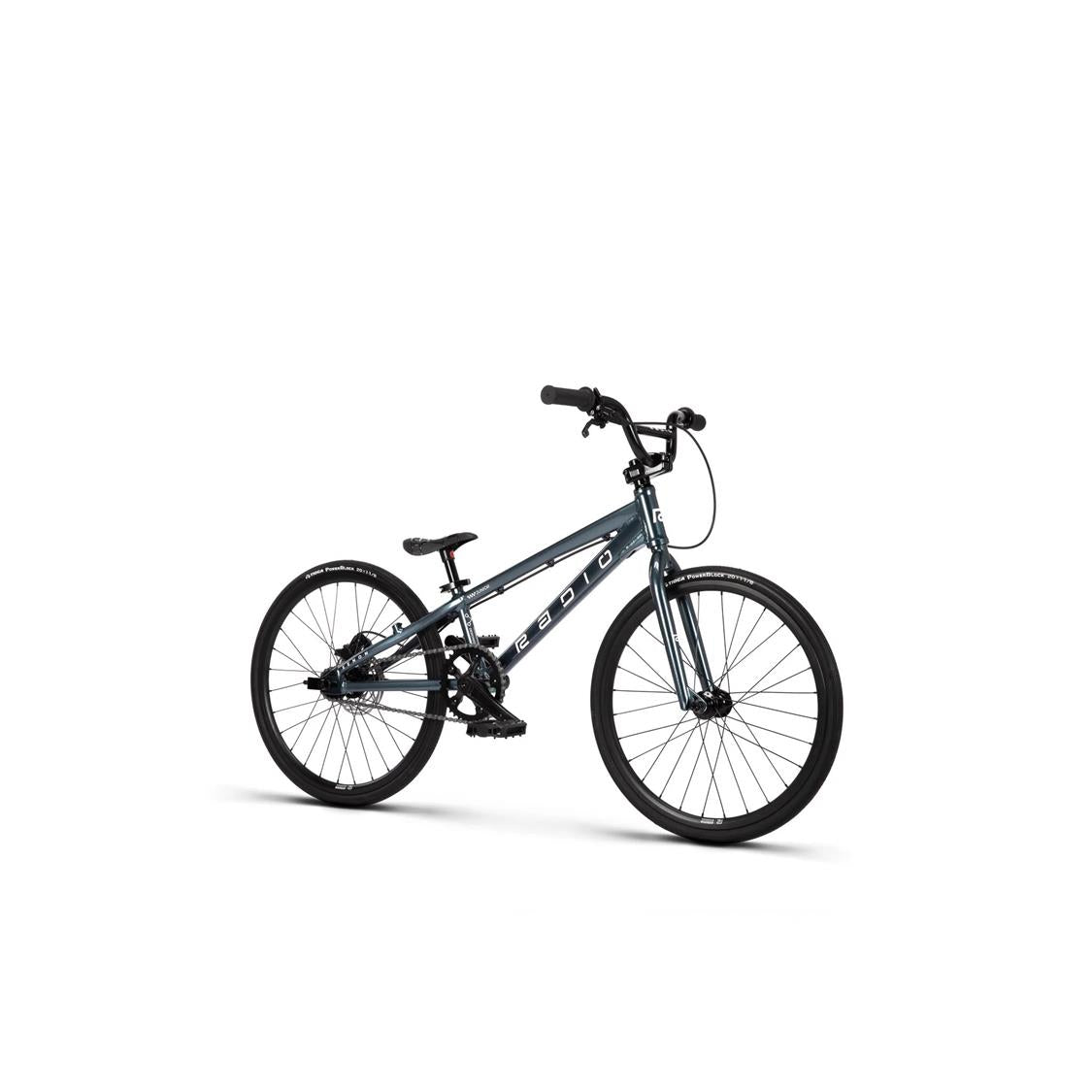

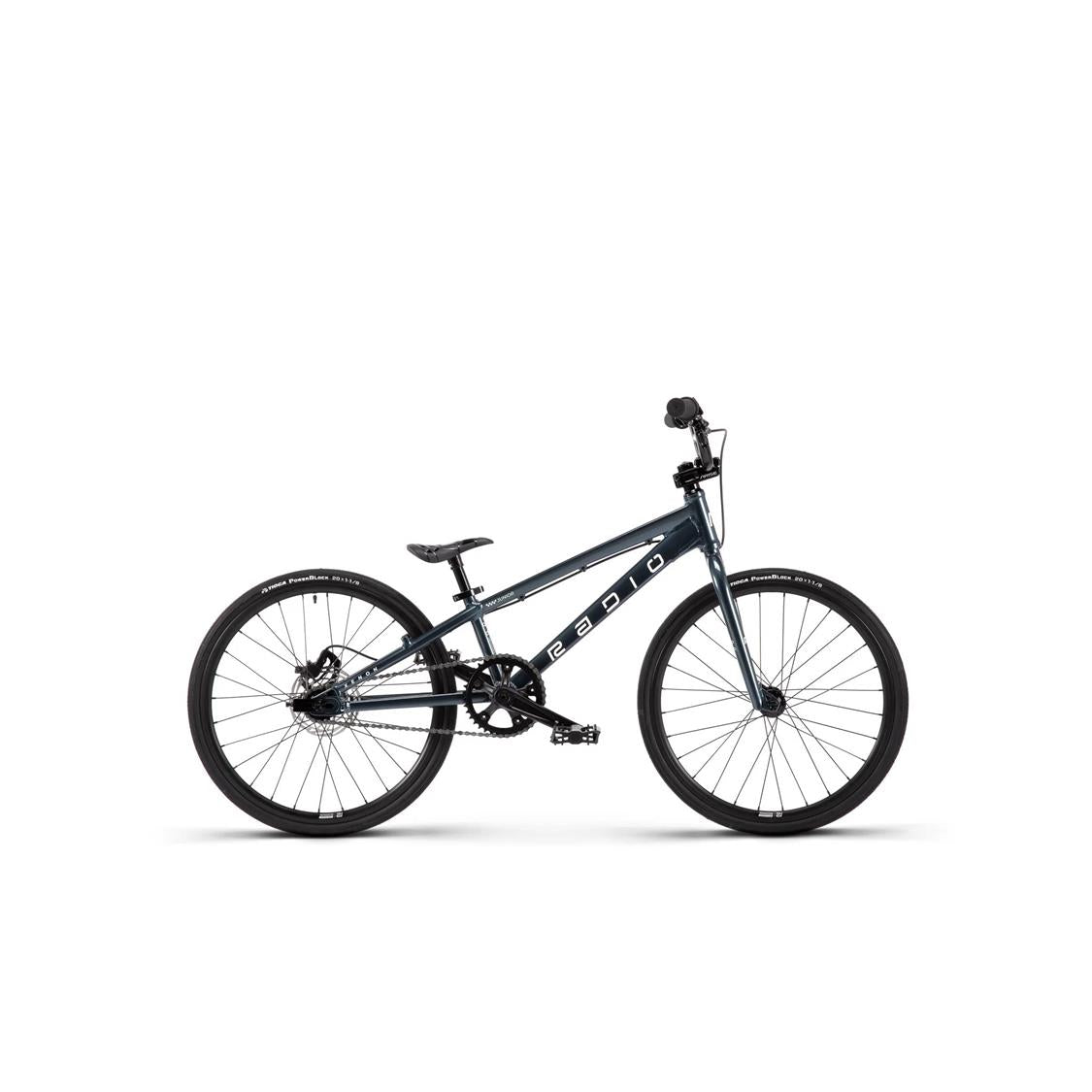

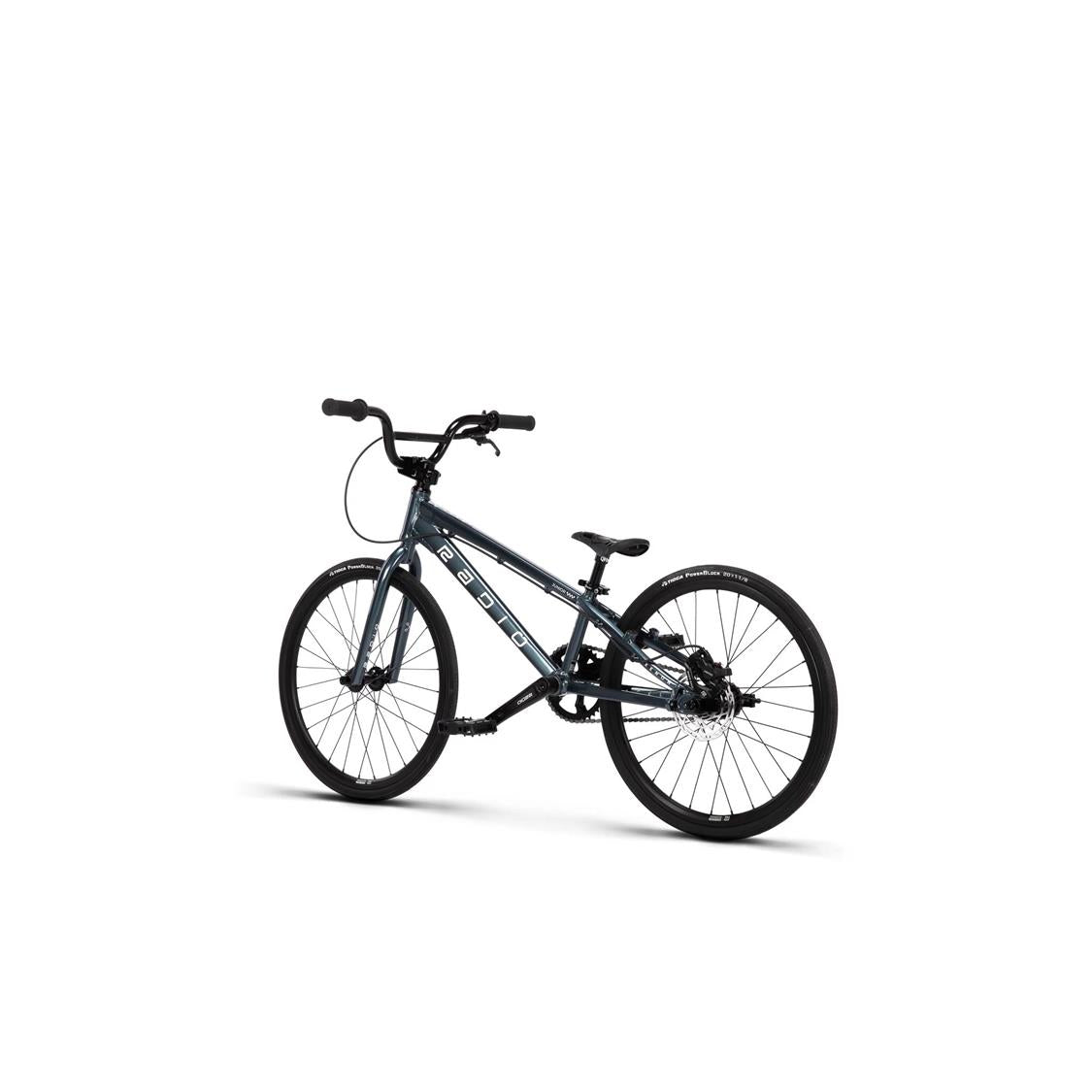

Radio Raceline Xenon Junior

SKU: 100003277
(0)
$1,699.99 includes GST
Stock Item
All Bikes come with a Free 2 Month Service. Call before ordering Bikes online re delivery Instructions.

Need help choosing the right size?

Read our guide or get in touch

The Xenon Junior is light, tough and built to dominate. The mid-tier Xenon line is a game changer with all bikes being Disc-ready allowing you to convert them to a full disc-brake setup with our aftermarket disc brake kit.

We spared no details here, from forged disc-ready dropouts, our very own aftermarket Clipper Junior Rims to parts from Promax and Tioga, the Xenon is a natural born winner.

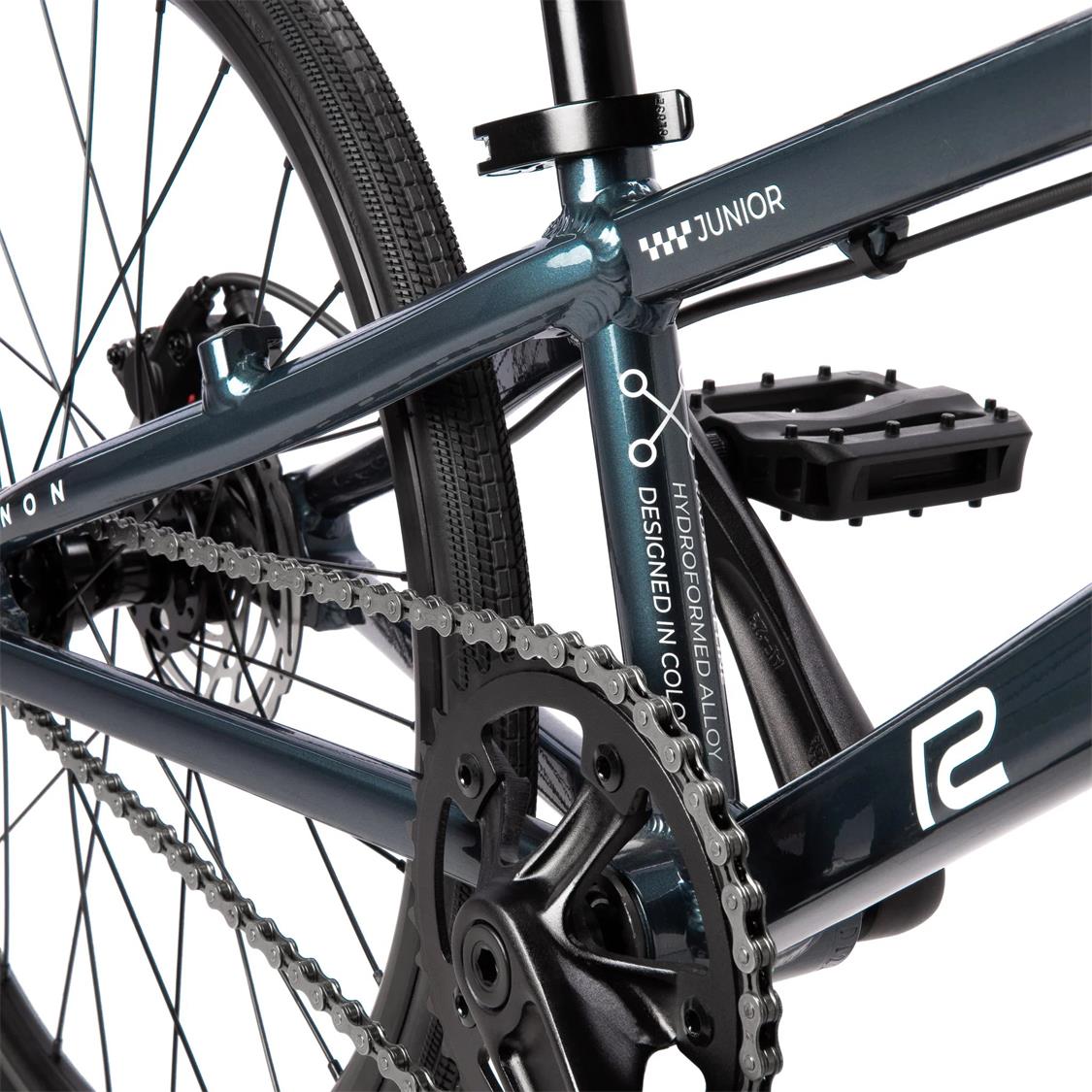

  • FRAME: hydroformed 6061-T6 alloy frame, forged & disc brake mount ready dropouts

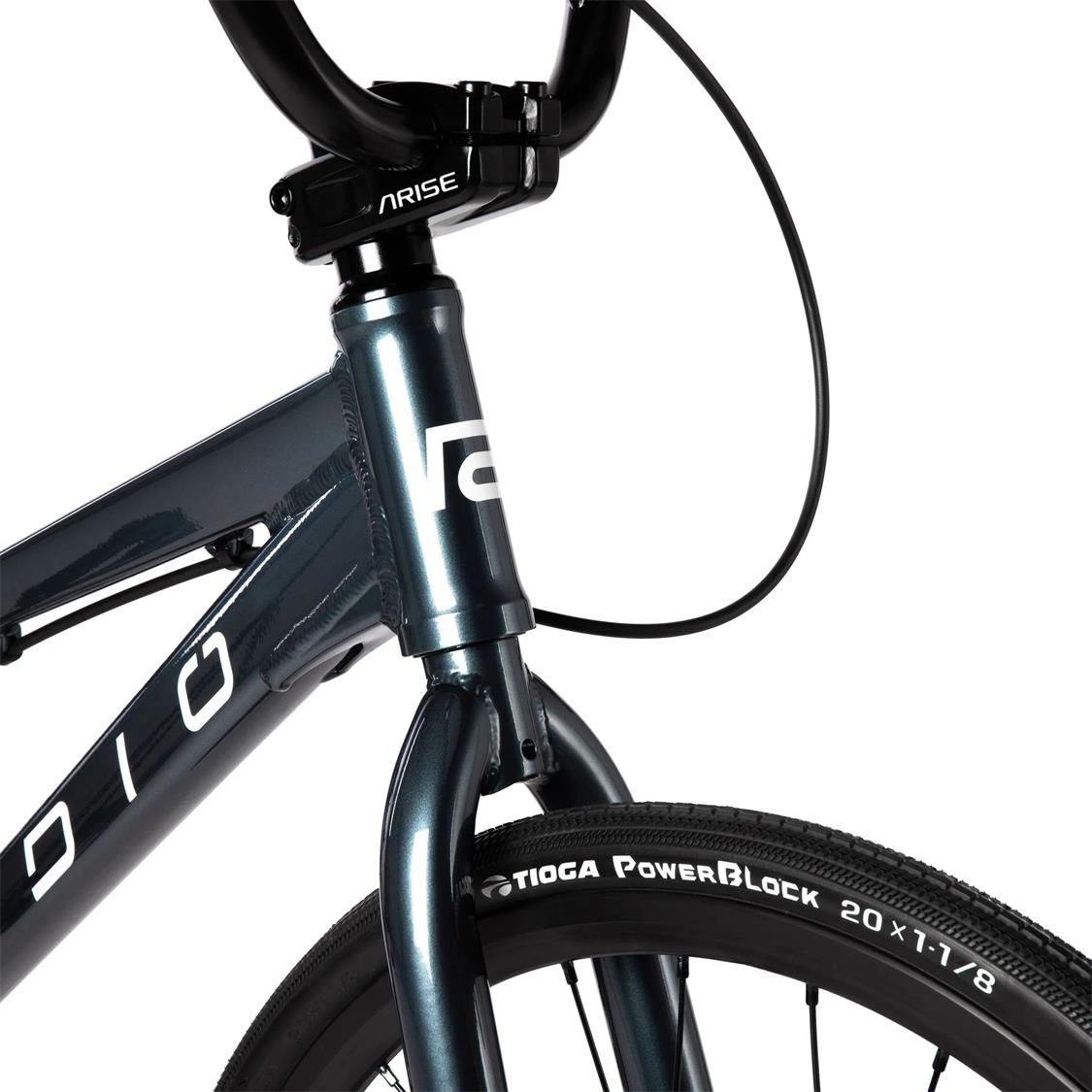

  • FORK: crmo fork, 1" butted steerer, crmo fork legs, 23mm offset

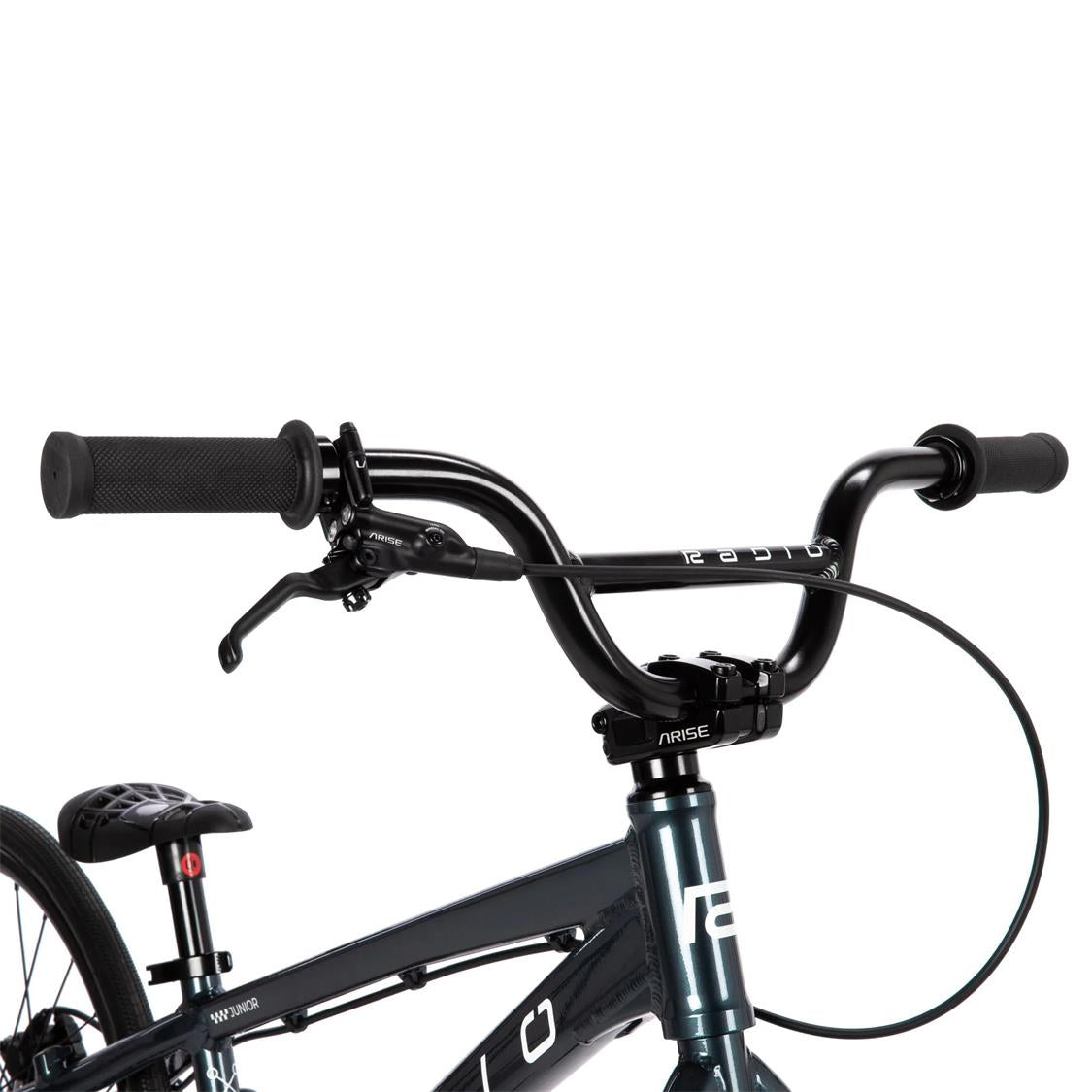

  • HANDLEBAR: 6061-T6 alloy bar
  • GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 115mm length

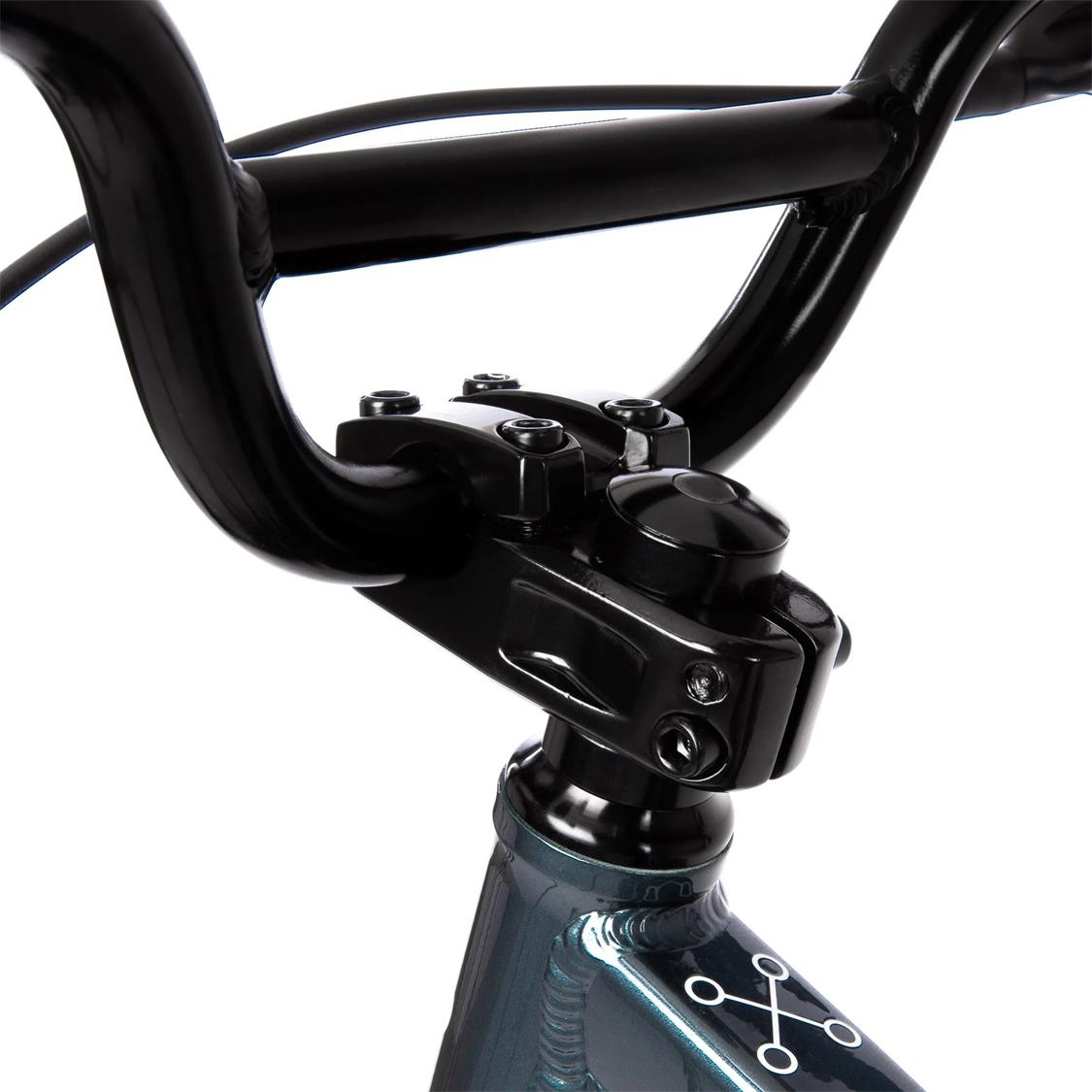

  • STEM: ARISE "COBALT" toploader stem, ext. 40mm, alloy
  • HEADSET: RADIO RACELINE integrated headset, sealed, 1"

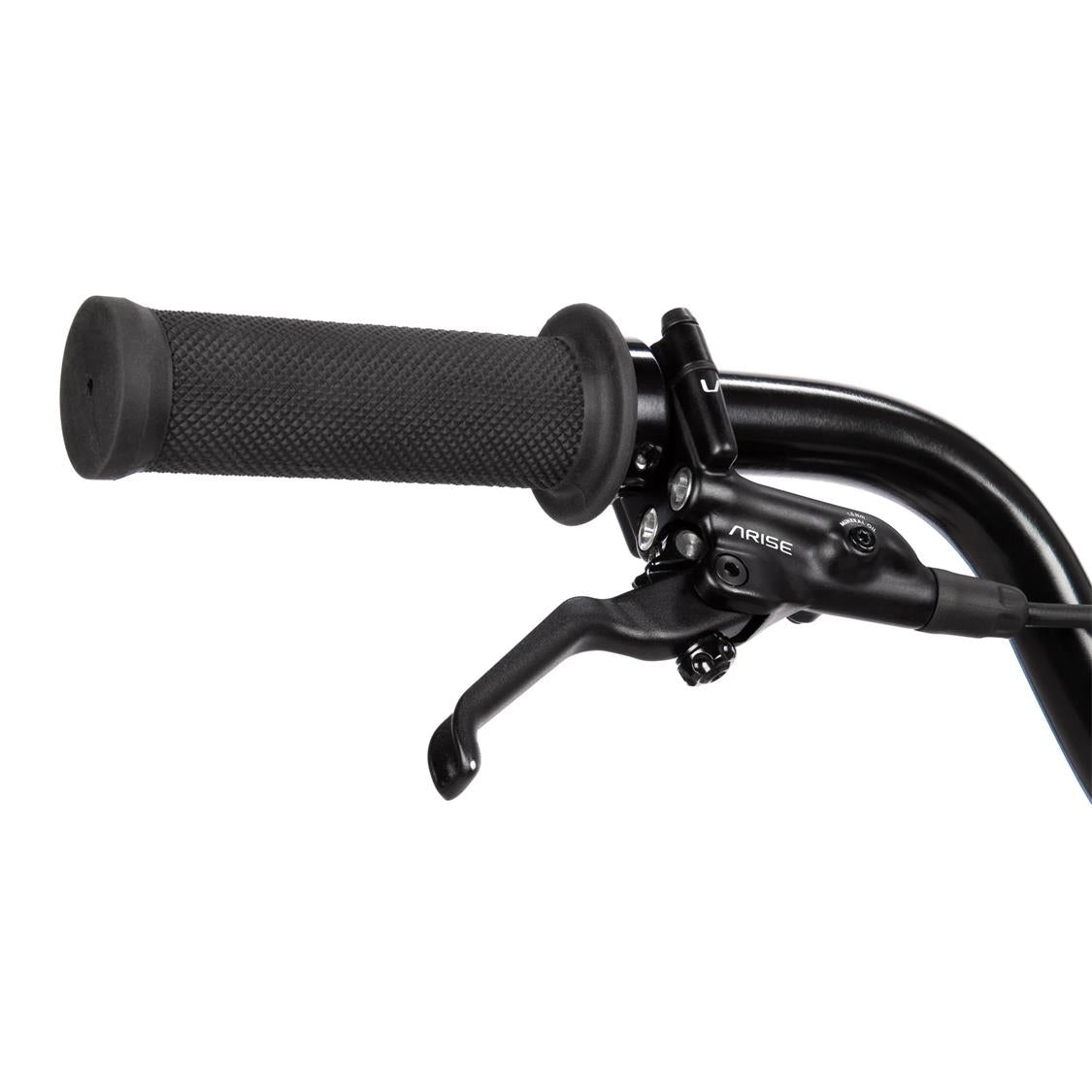

  • BRAKE LEVER: ARISE "XENON" Disc brake lever, rear

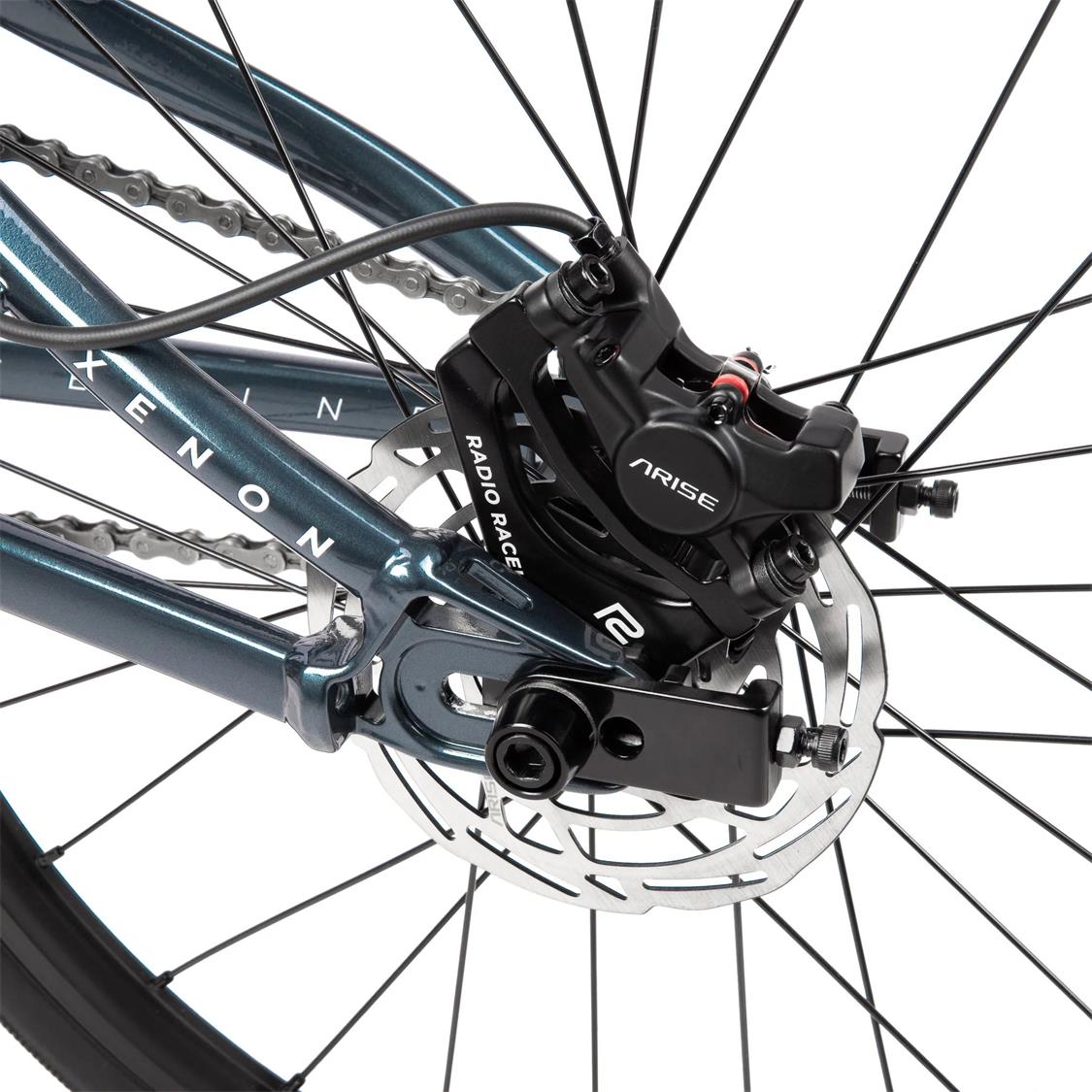

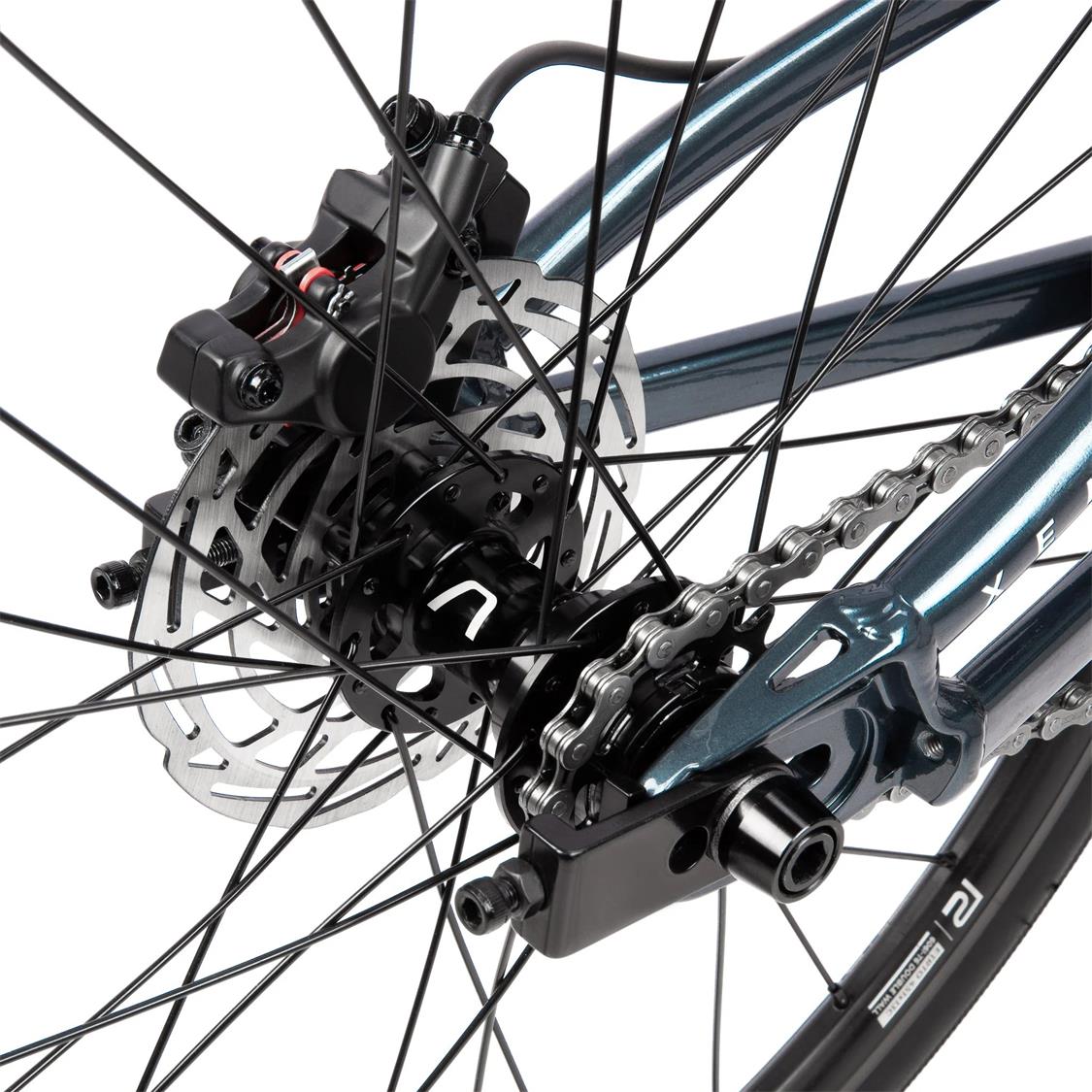

  • BRAKE: ARISE "XENON" Disc brake, rear

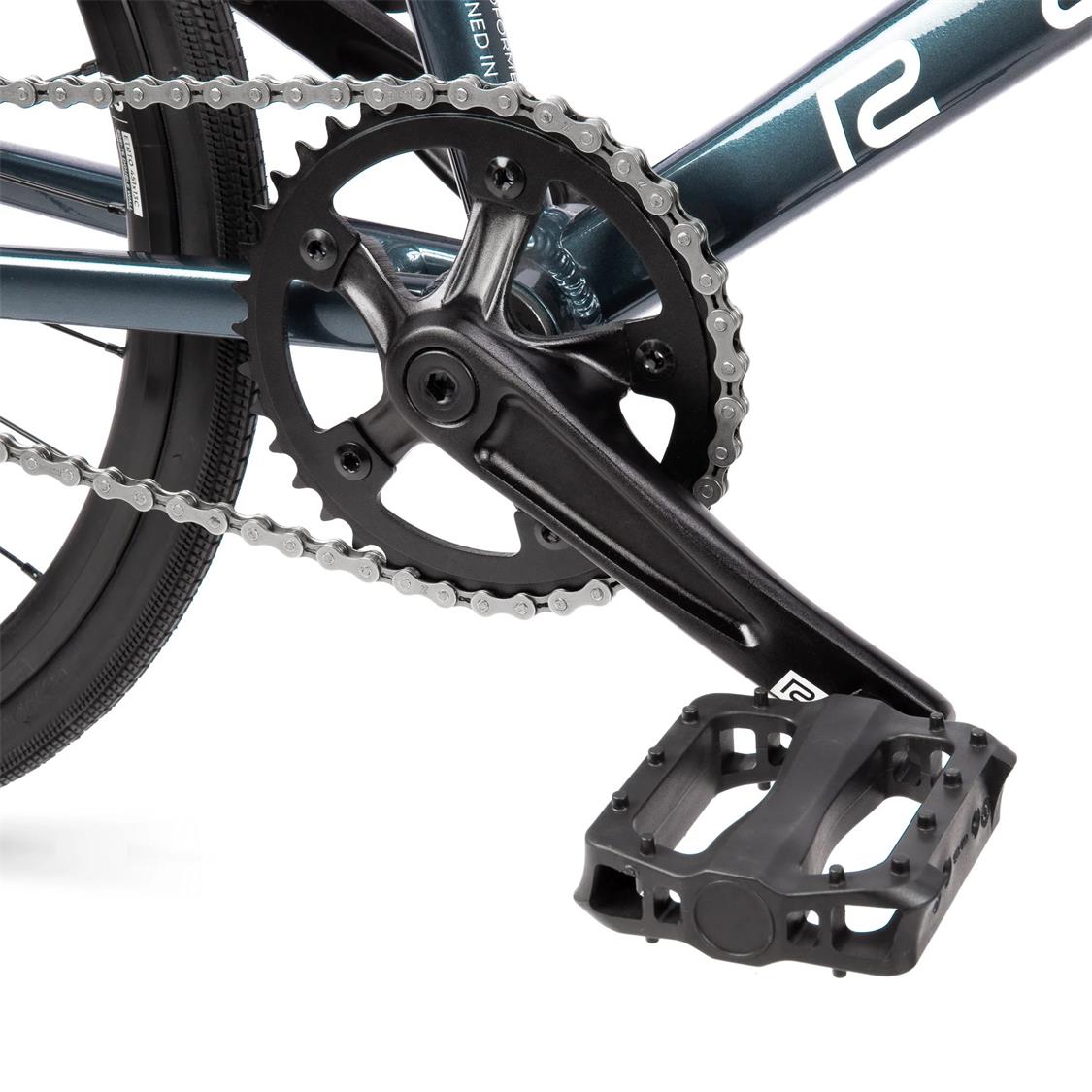

  • CRANK: RADIO RACELINE "XENON" 3pc crank, forged alloy, cnc machined, 155mm length
  • BB: RADIO RACELINE BB set, BSA square taper, sealed
  • PEDALS: RADIO RACELINE "XENON JUNIOR" pedal, alloy
  • CHAIN: KMC "Z6" chain, 1/2" x 3/32"
  • SPROCKET: RADIO RACELINE sprocket, 40T, alloy
  • DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

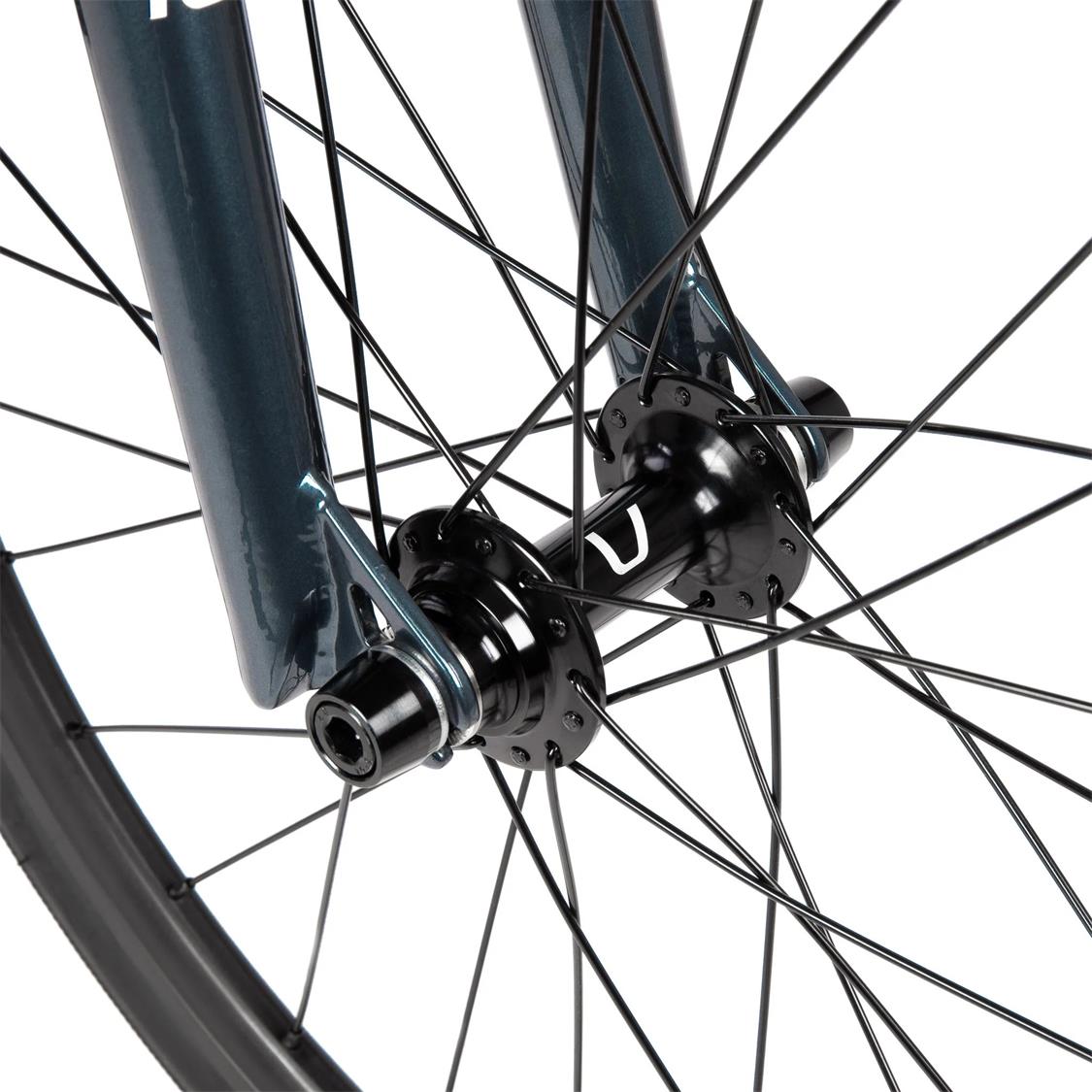

  • FRONT HUB: ARISE "BRAVO" front hub, alloy cnc, fully sealed, 28h, 3/8" crmo axle
  • REAR HUB: ARISE "ALFA" rear hub, alloy cnc, fully sealed, 28h, disc brake cassette, 3/8" crmo axle
  • FRONT RIM: ARISE "CLIPPER JUNIOR" rim, sleeved joint, 28h, alloy
  • REAR RIM: ARISE "CLIPPER JUNIOR" rim, sleeved joint, 28h, alloy

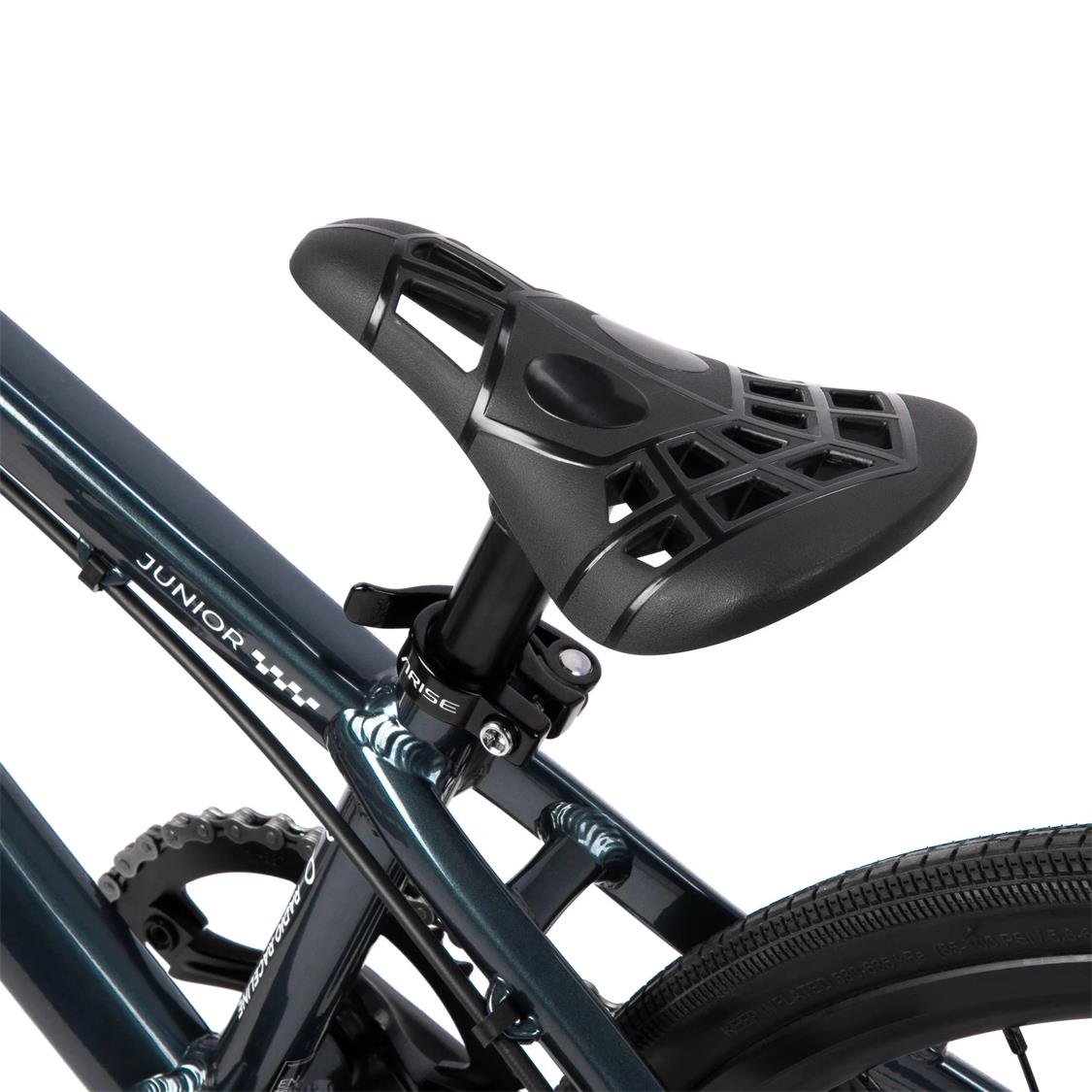

  • SEAT: BOX TWO combo seat
  • SEAT CLAMP: ARISE "XENON" seat post, quick-release, alloy

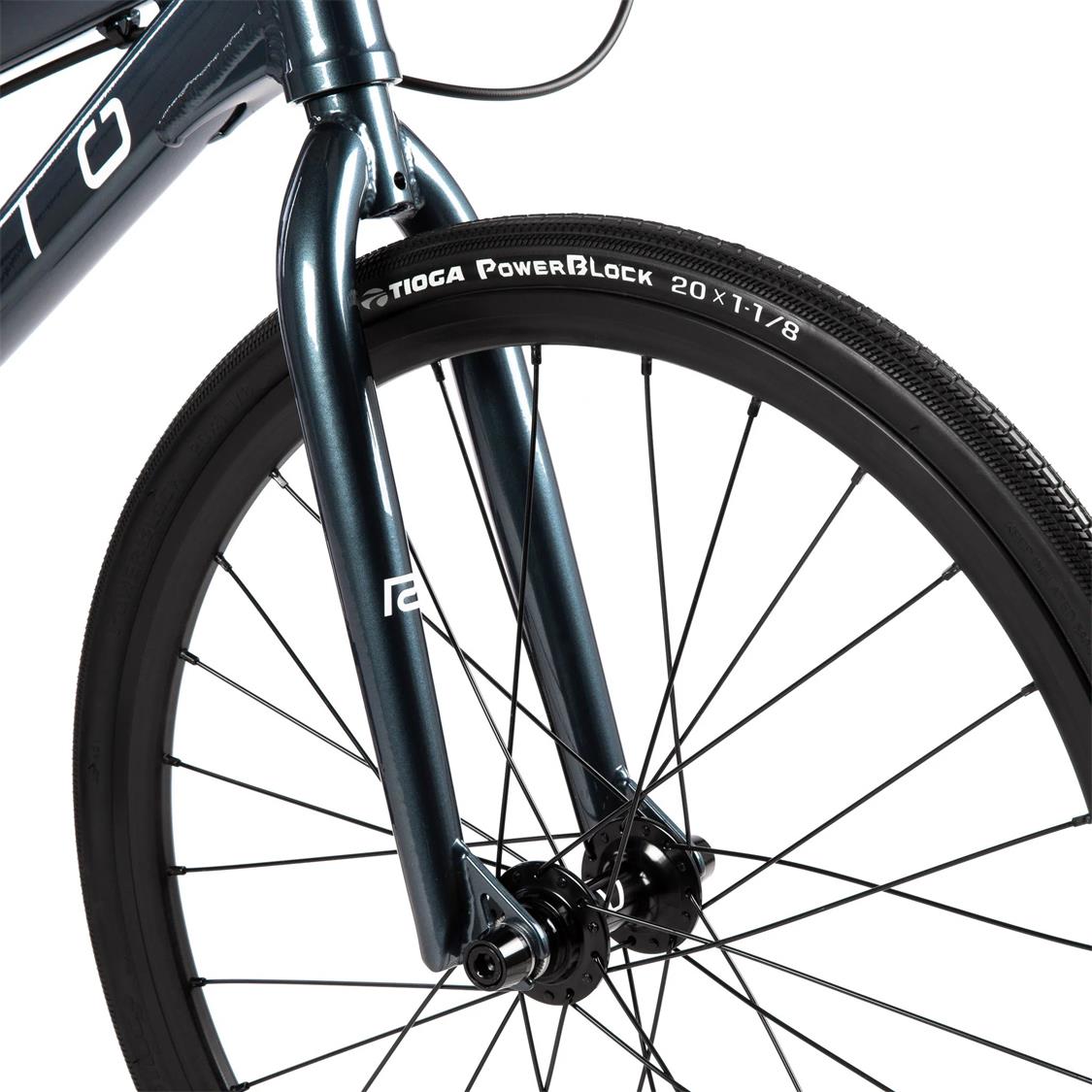

  • TIRES: TIOGA "POWER-BLOCK" tires, 20" x 1-1/8"

Weight: 7.78kg / 17.16lbs

Frame Geometry:

Top Tube Length 18.6"
Chain Stay Length 13.4"
Head Tube Angle 73.5°
Seat Tube Angle 71°
Bottom Bracket Height  10.6"

Handlebar Geometry:

Rise 4.25"
Width 24"
Backsweep 8°
Upsweep 2°
