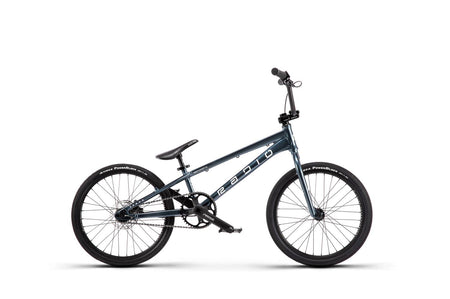

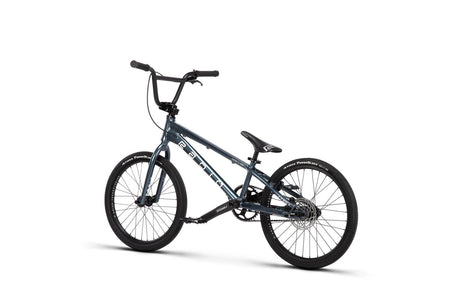

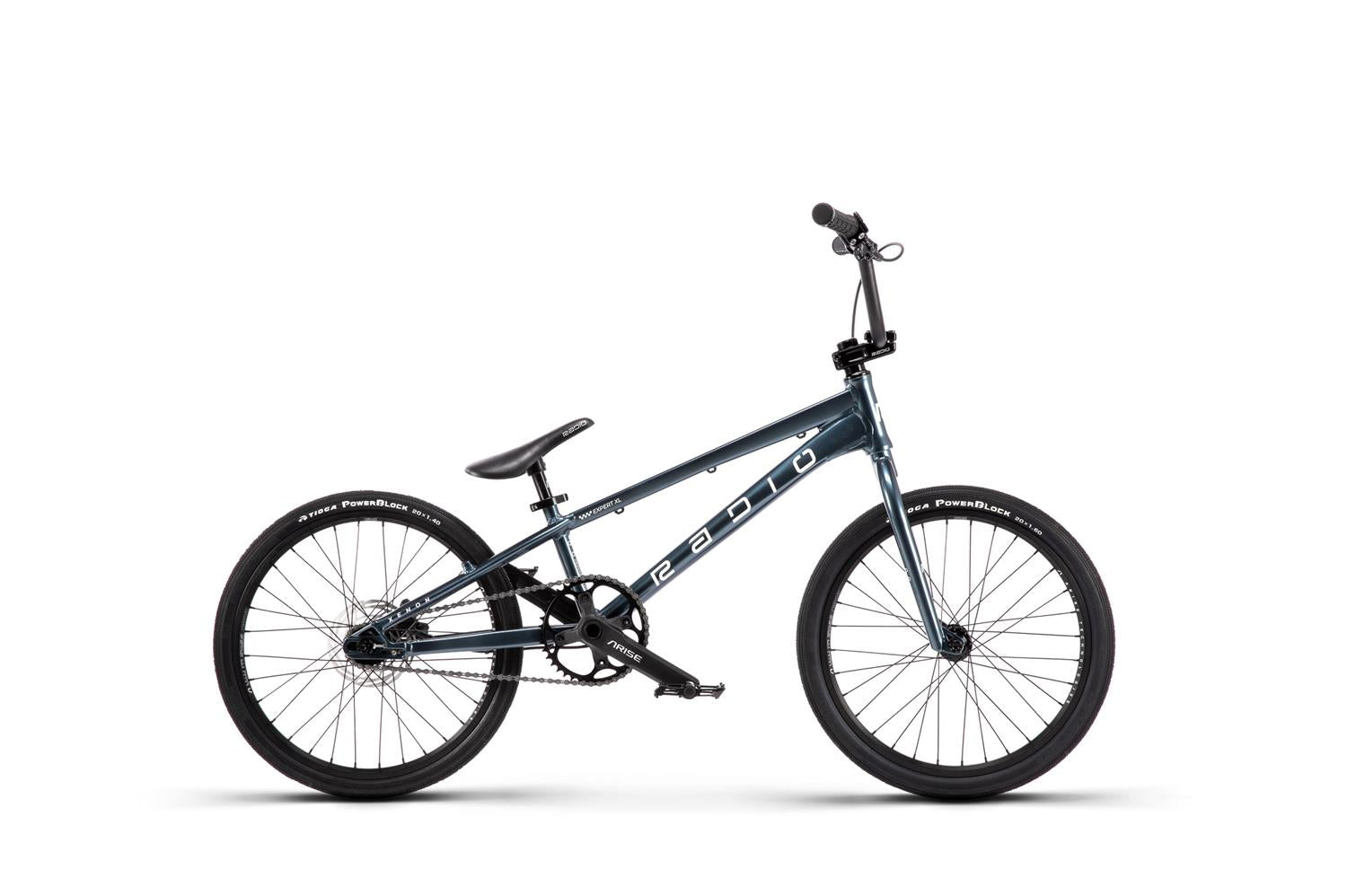

Radio Raceline Xenon Expert XL
Couldn't load pickup availability
Need help choosing the right size?

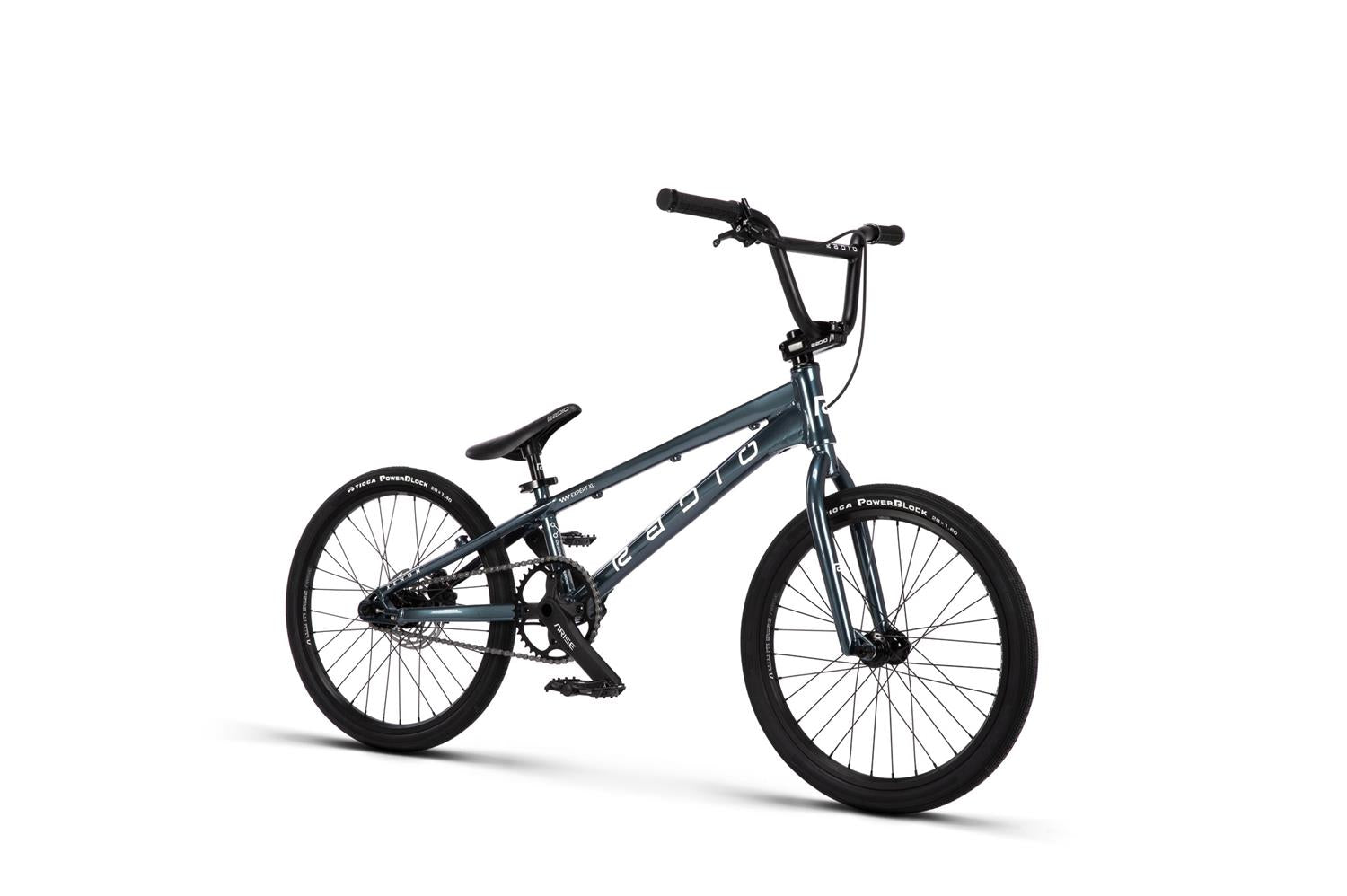

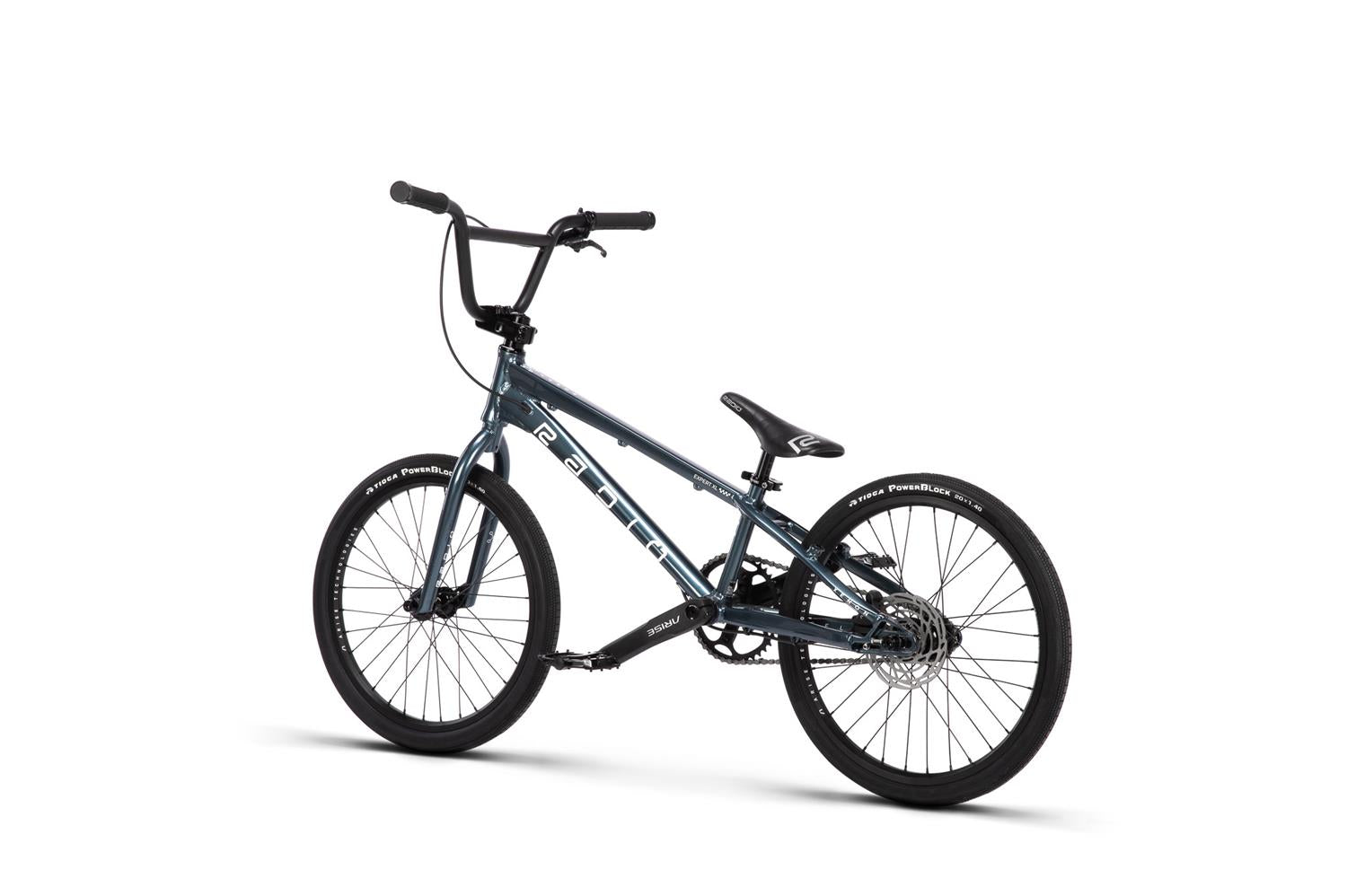

The Xenon Expert XL features a full parts overhaul. The mid-tier Xenon line is a game changer with all bikes being Disc-ready allowing you to convert them to a full disc-brake setup with our aftermarket disc brake kit.
We spared no details here, from forged disc-ready dropouts with tensioners, our very own aftermarket Oxygen Tires and Clipper Expert Rims, the Xenon is a natural born winner. Now available in both a 19.5" and a 20.5" toptube length.

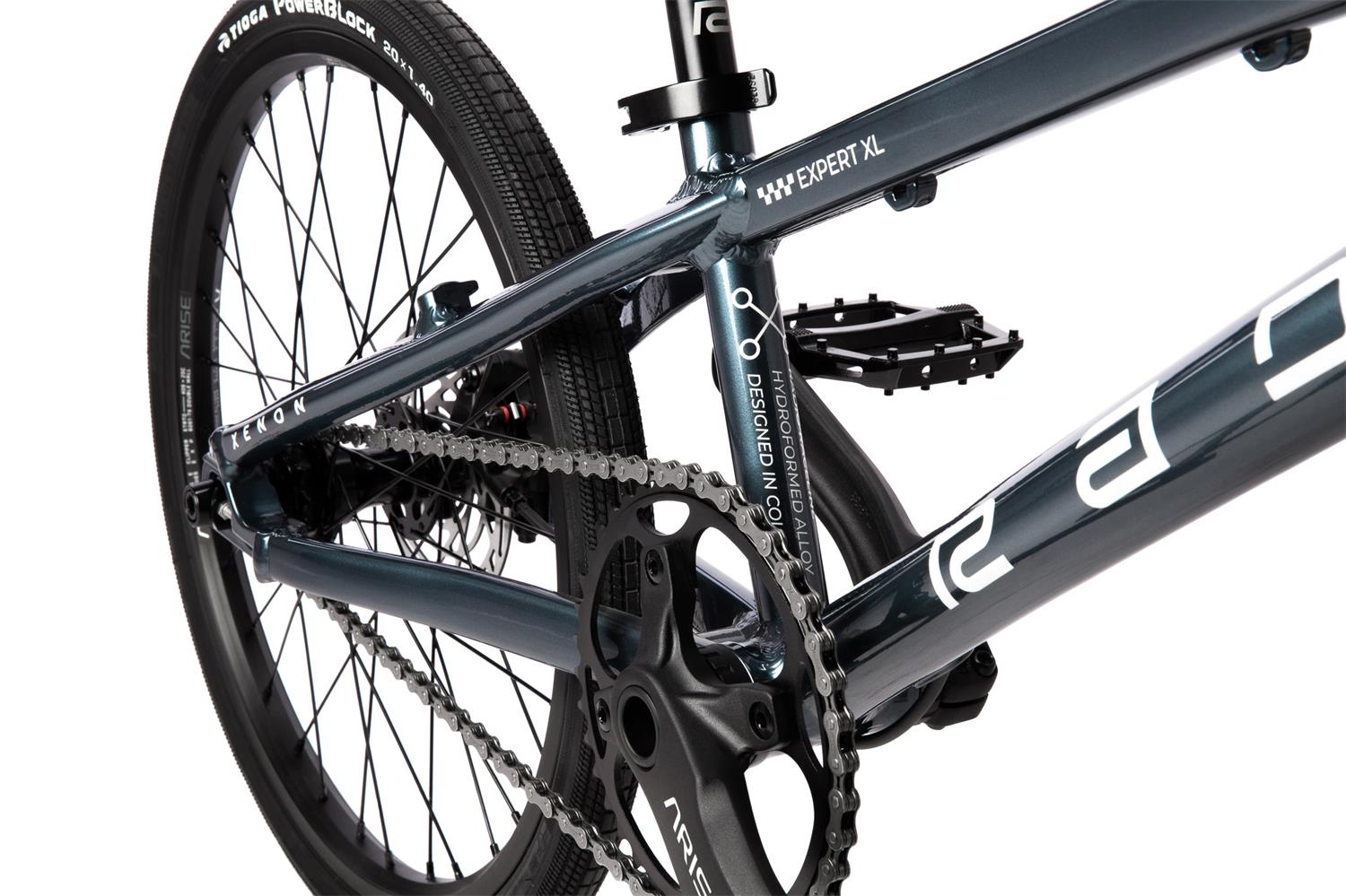

- FRAME: hydroformed 6061-T6 alloy frame, forged & disc brake mount ready dropouts, with int. chaintensioners

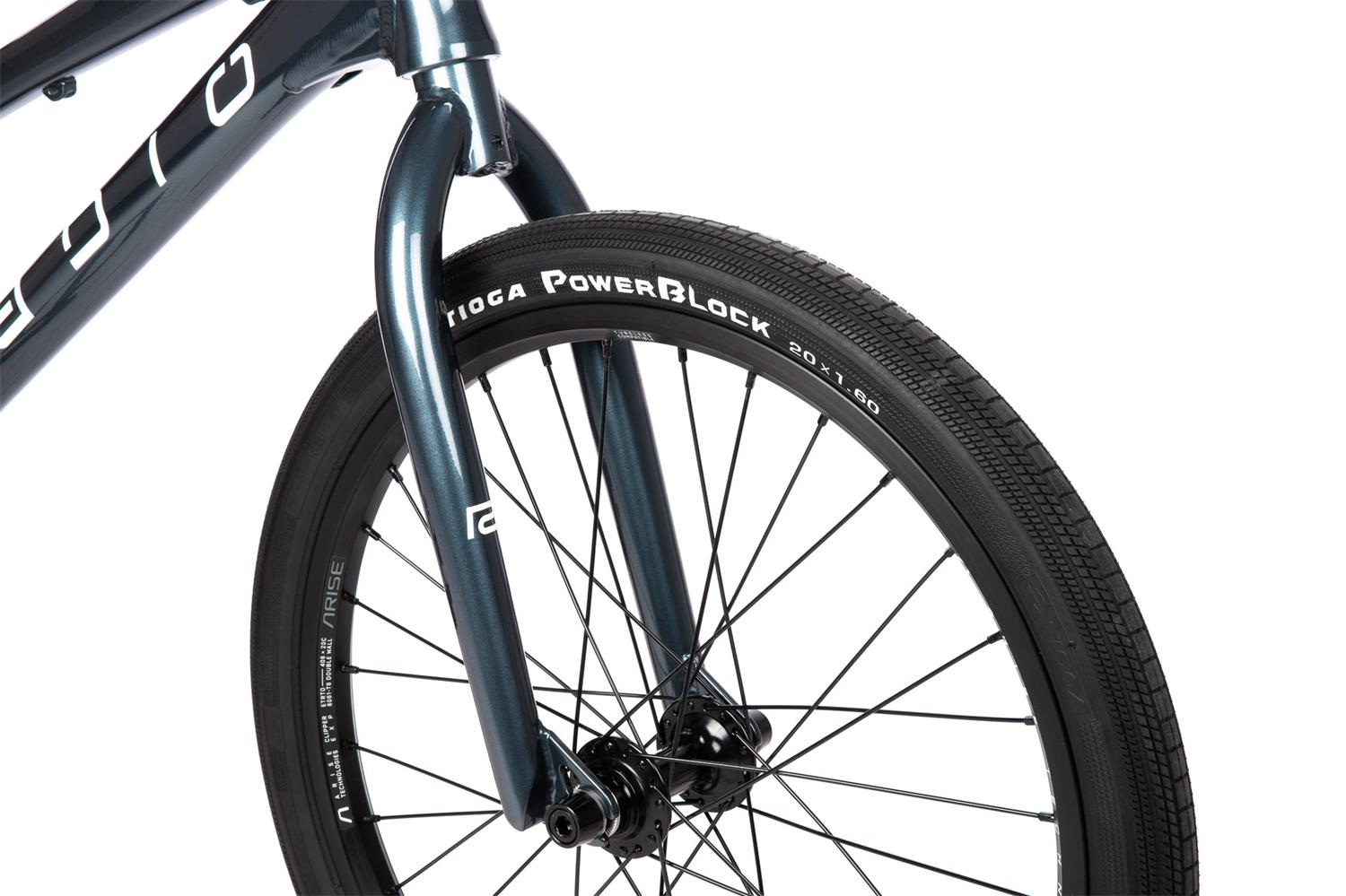

- FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 23mm offset

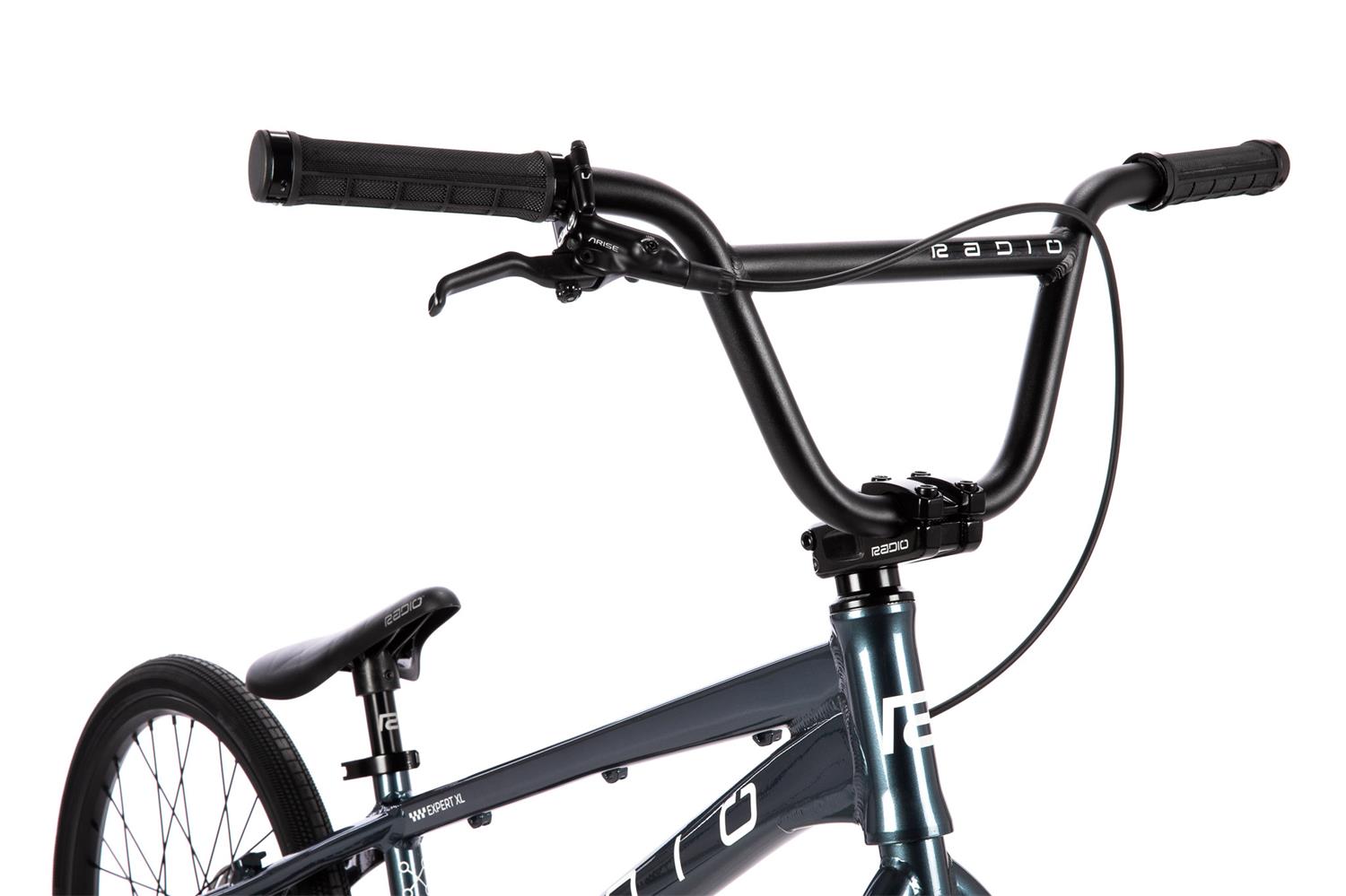

- HANDLEBAR: 6061-T6 alloy bar

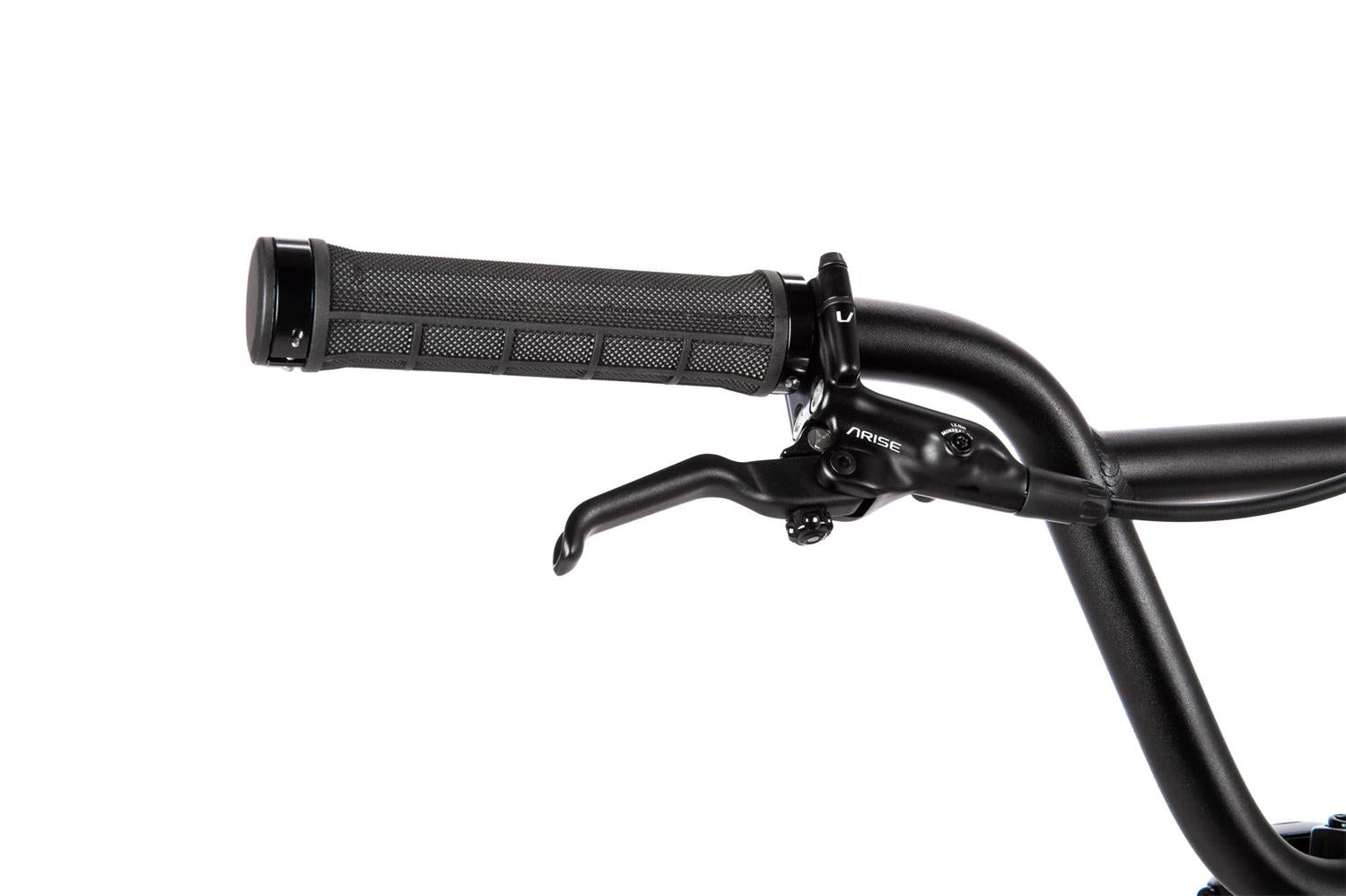

- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length

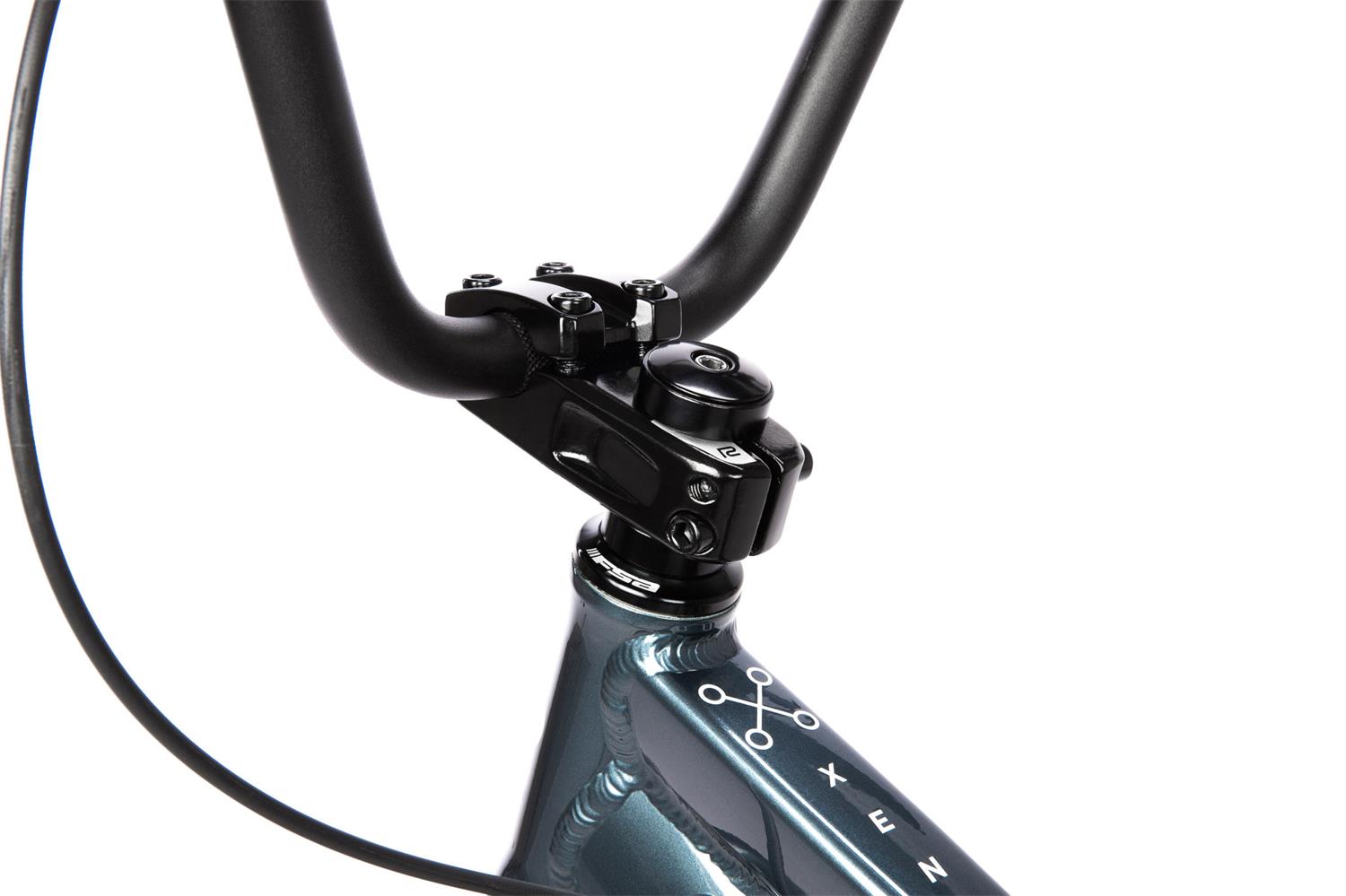

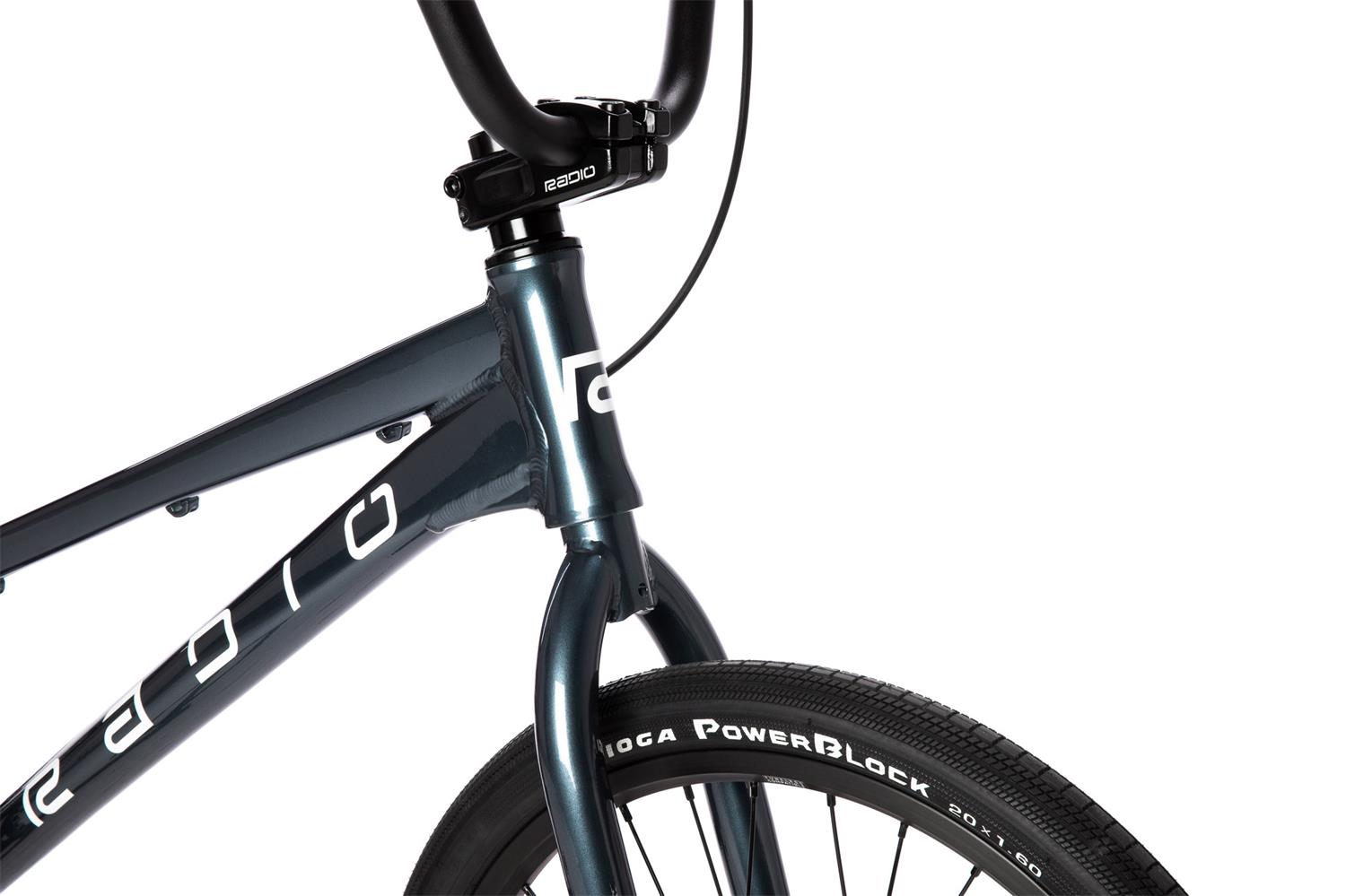

- STEM: ARISE "COBALT" toploader stem, ext. 50mm, alloy
- HEADSET: FSA "No.28" integrated headset, sealed, 1-1/8"
- BRAKE LEVER: ARISE "XENON" Disc brake lever, rear

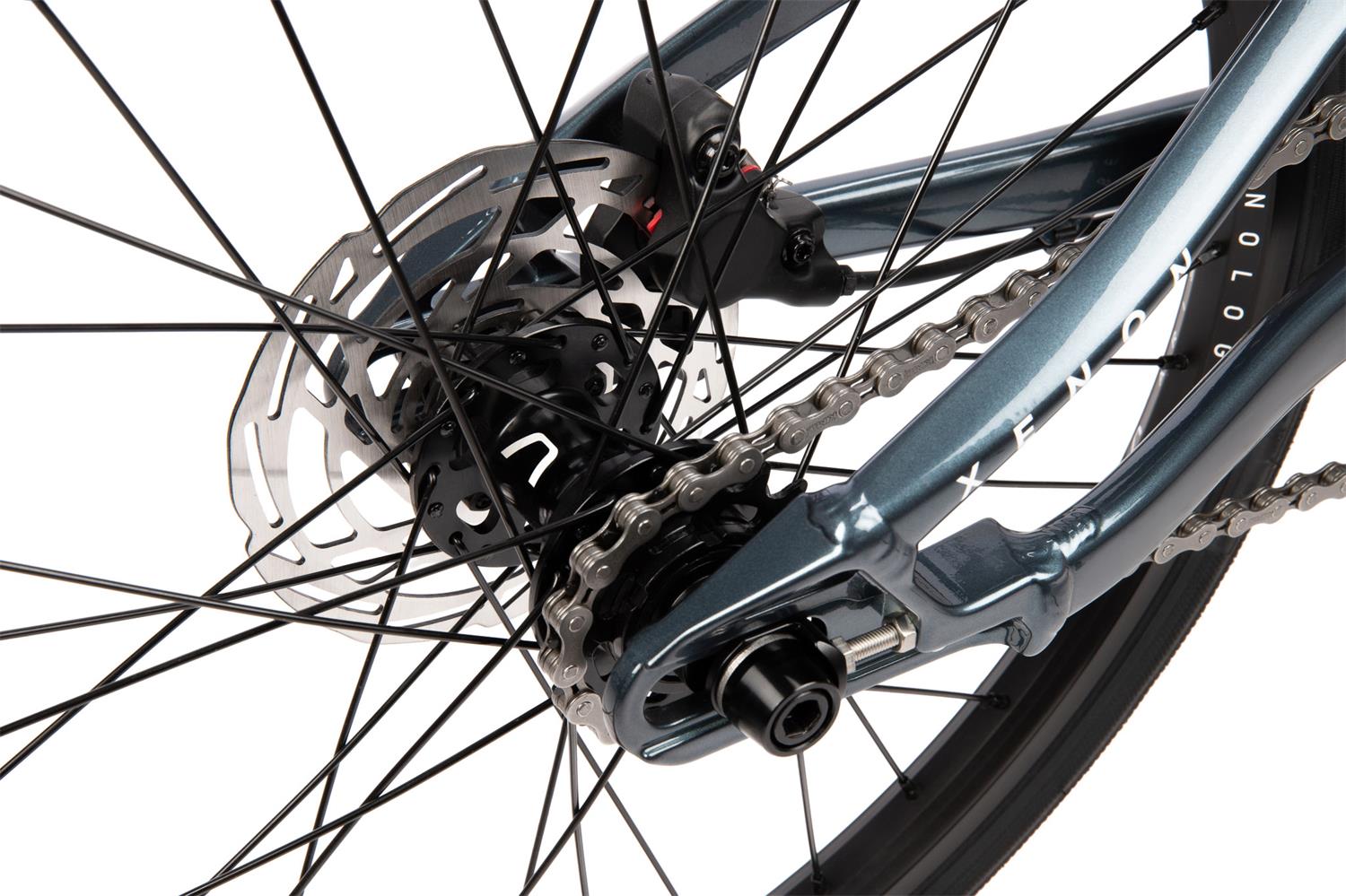

- BRAKE: ARISE "XENON" Disc brake, rear

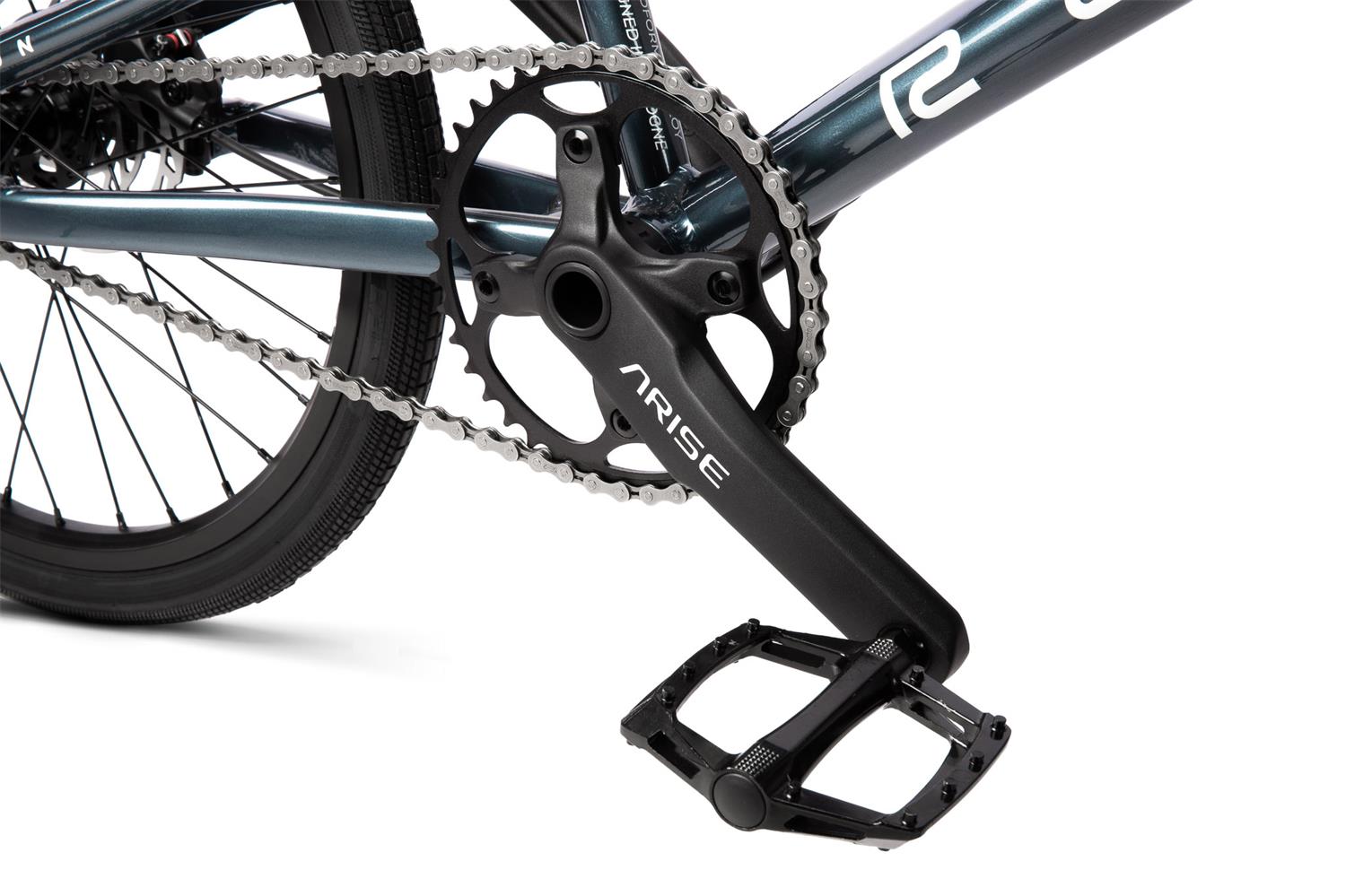

- CRANK: RADIO RACELINE "XENON" 3pc crank, forged alloy, cnc machined, 165mm length
- BB: RADIO RACELINE BB set, BSA square taper, sealed
- PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: ARISE sprocket, 41T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

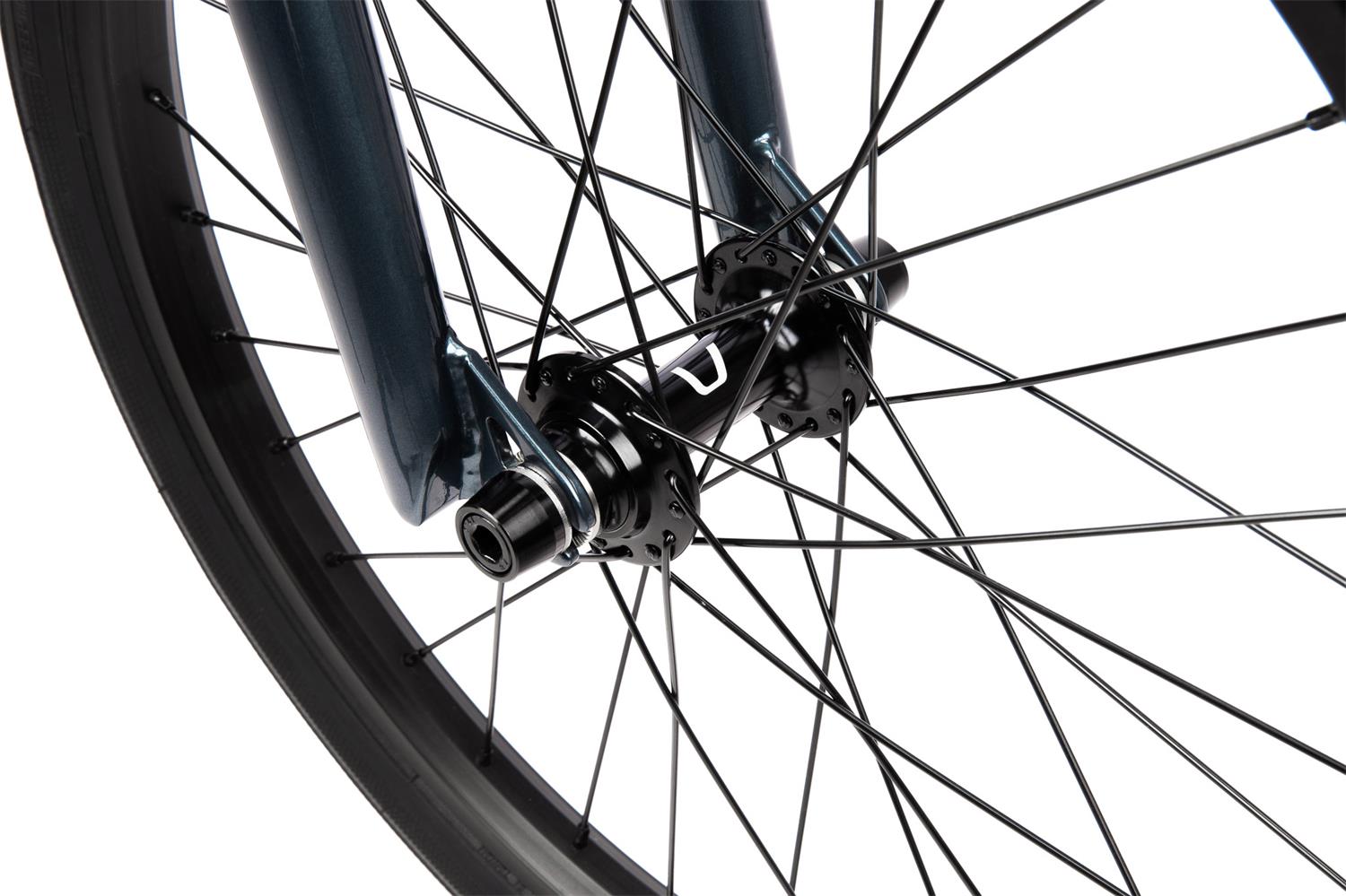

- FRONT HUB: ARISE "BRAVO" front hub, alloy cnc, fully sealed, 321h, 3/8" crmo axle
- REAR HUB: ARISE "ALFA" rear hub, alloy cnc, fully sealed, 32h, disc brake cassette, 3/8" crmo axle
- FRONT RIM: RACELINE "CLIPPER EXPERT" rim, sleeved joint, 32h, alloy
- REAR RIM: RACELINE "CLIPPER EXPERT" rim, sleeved joint, 321h, alloy

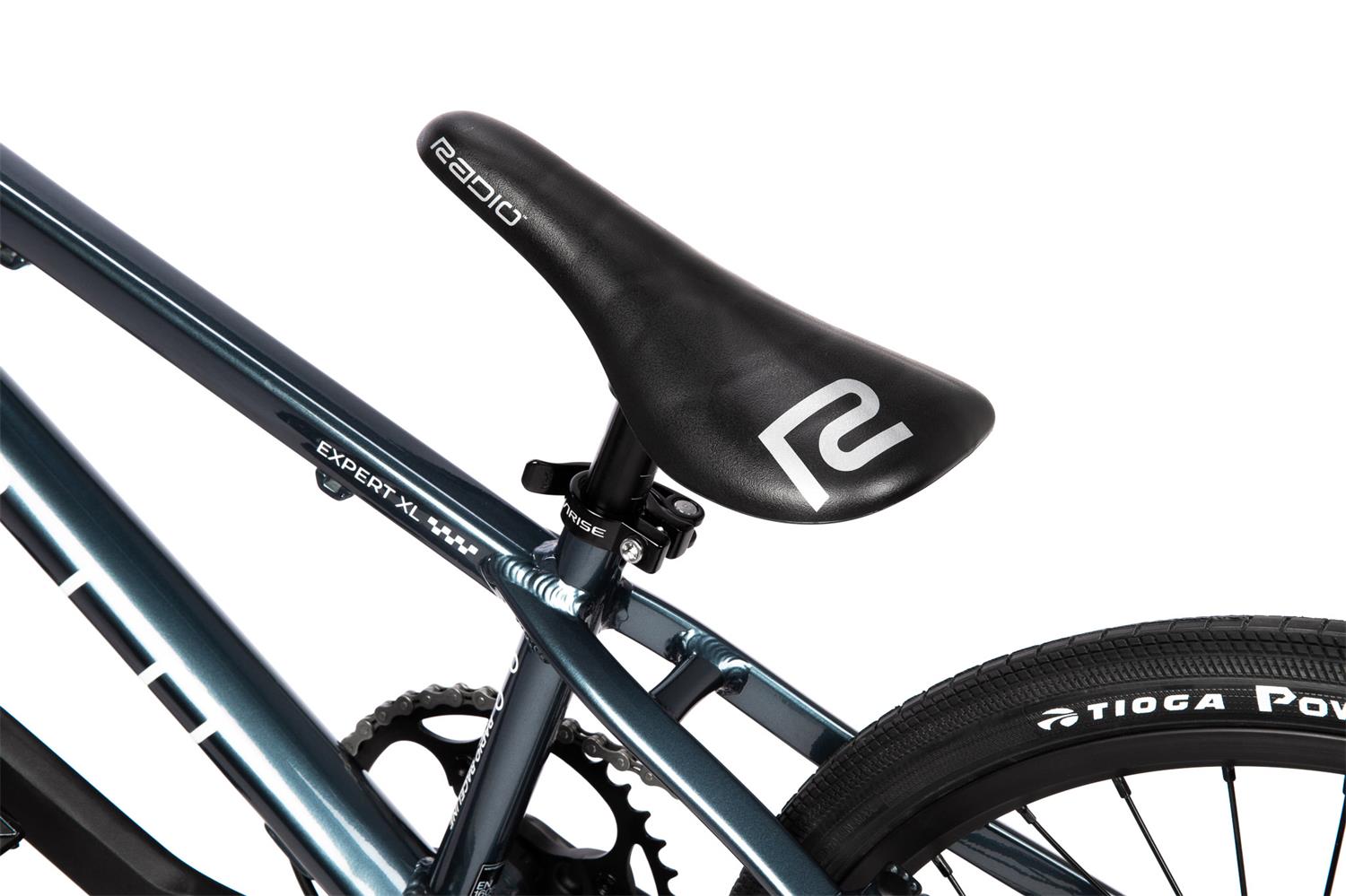

- SEAT: RACELINE Seat and Seatpost combo
- SEAT CLAMP: ARISE "XENON" seat post, quick-release, alloy
- TIRES: TIOGA "POWER-BLOCK" tires, Front 20" x 1.6", Rear 20x 1.4"
Weight: 9.09kg / 19.86lbs
Frame Geometry:
| Top Tube Length | 19.5" |
| Chain Stay Length | 13.6" |
| Head Tube Angle | 73.5° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 10.8" |
Handlebar Geometry:
| Rise | 7" |
| Width | 26.25" |
| Backsweep | 6° |
| Upsweep | 3° |
