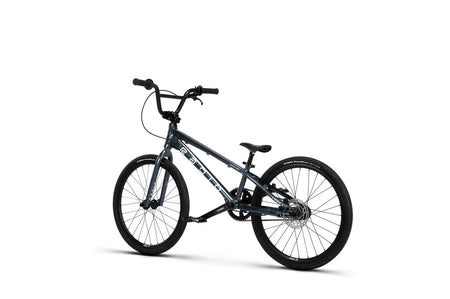

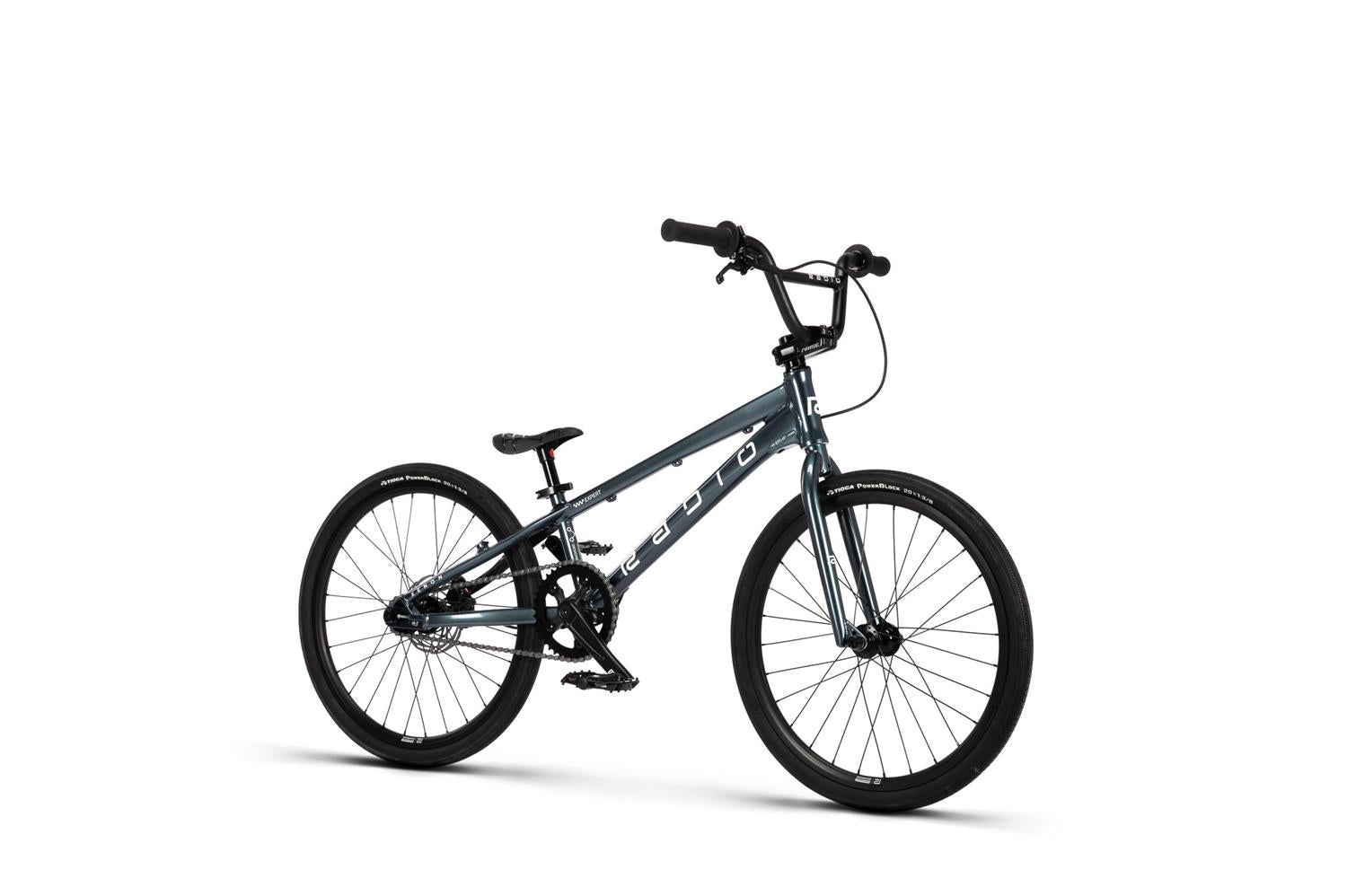

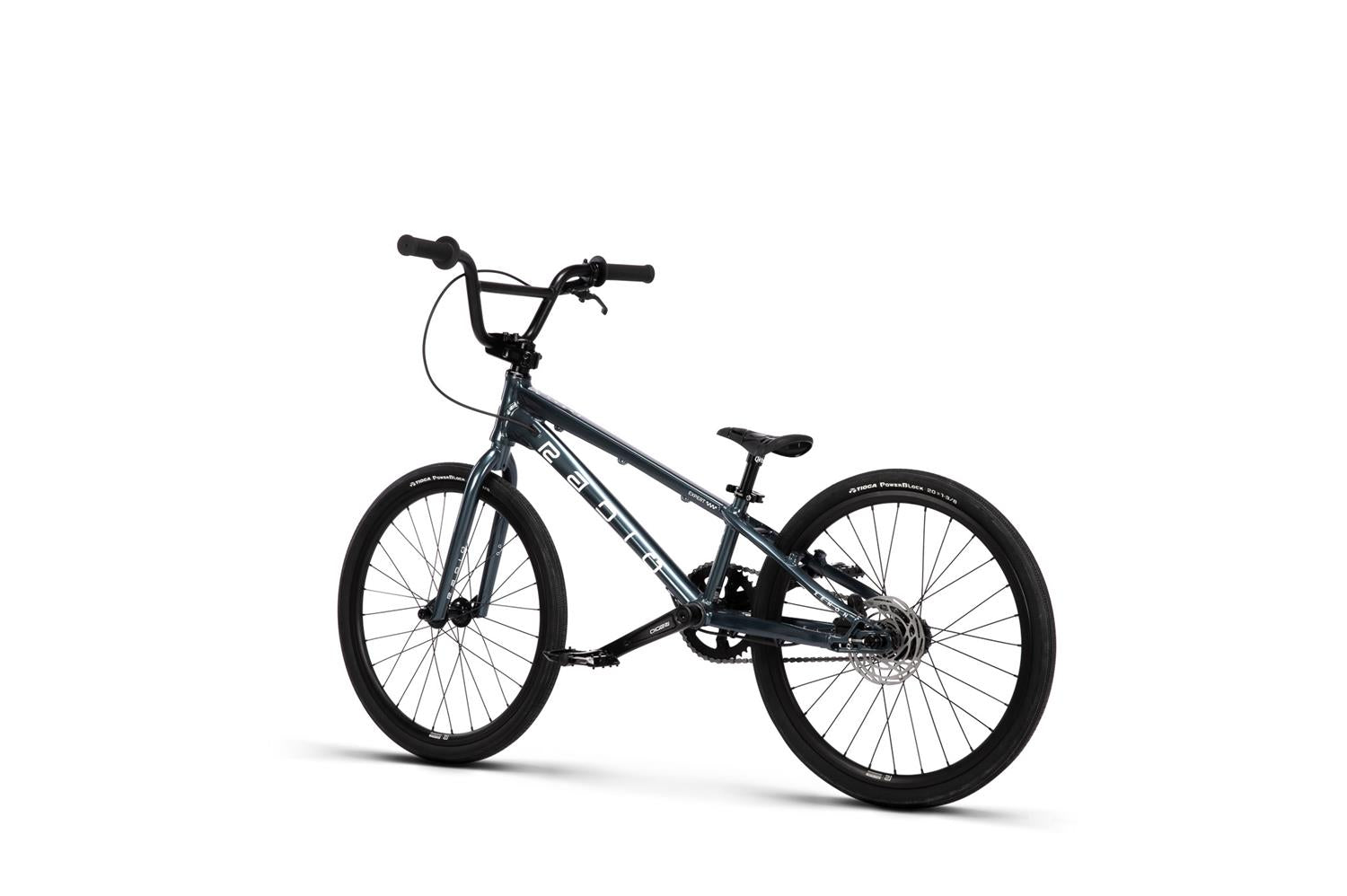

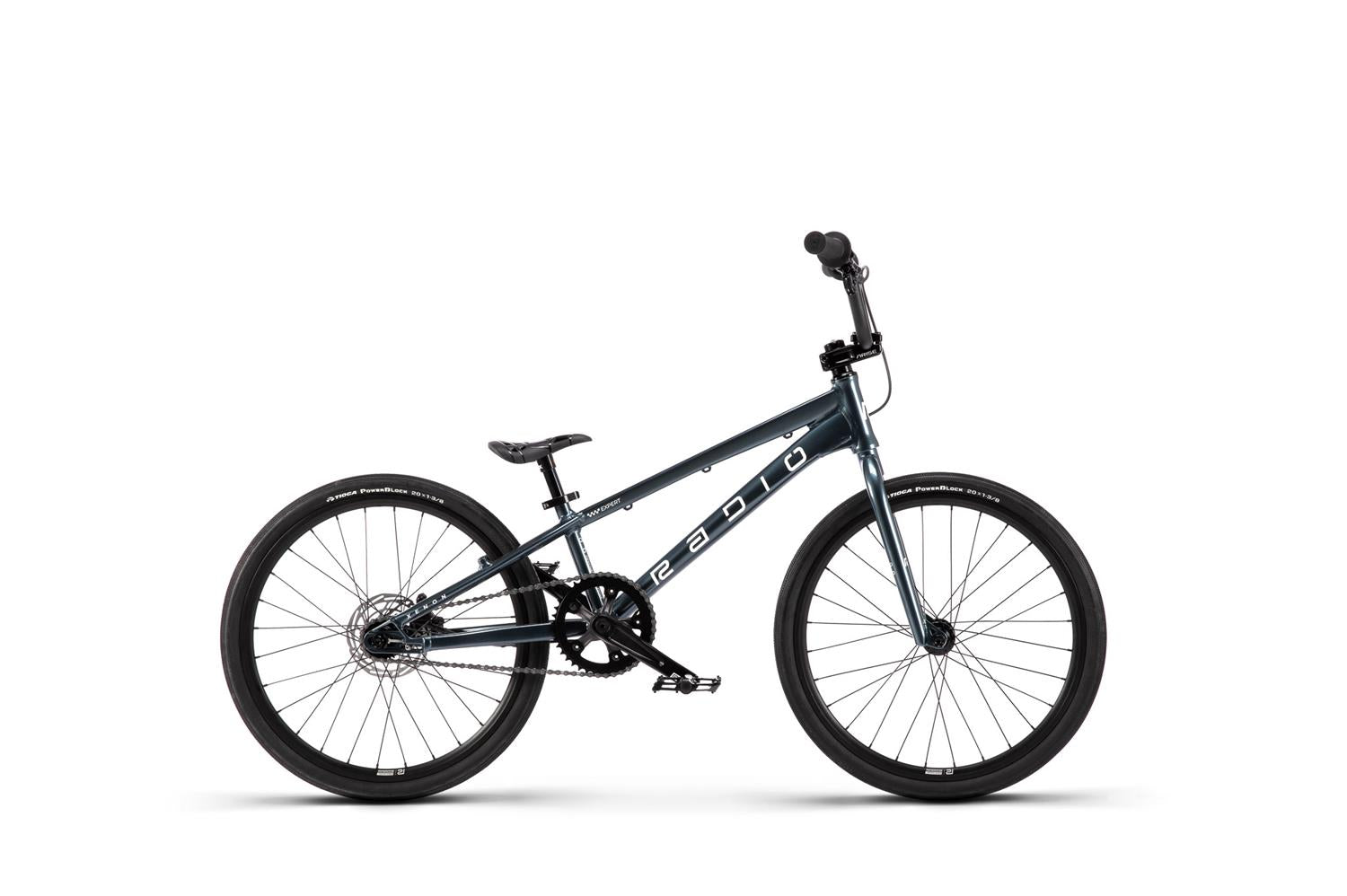

Radio Raceline Xenon Expert
Couldn't load pickup availability
Need help choosing the right size?
The Xenon Expert is the next step on the ladder to the top. The mid-tier Xenon line is a game changer with all bikes being Disc-ready allowing you to convert them to a full disc-brake setup with our aftermarket disc brake kit. We spared no details here, from forged disc-ready dropouts with tensioners, our very own aftermarket Clipper Junior Rims, the Xenon is a natural born winner.

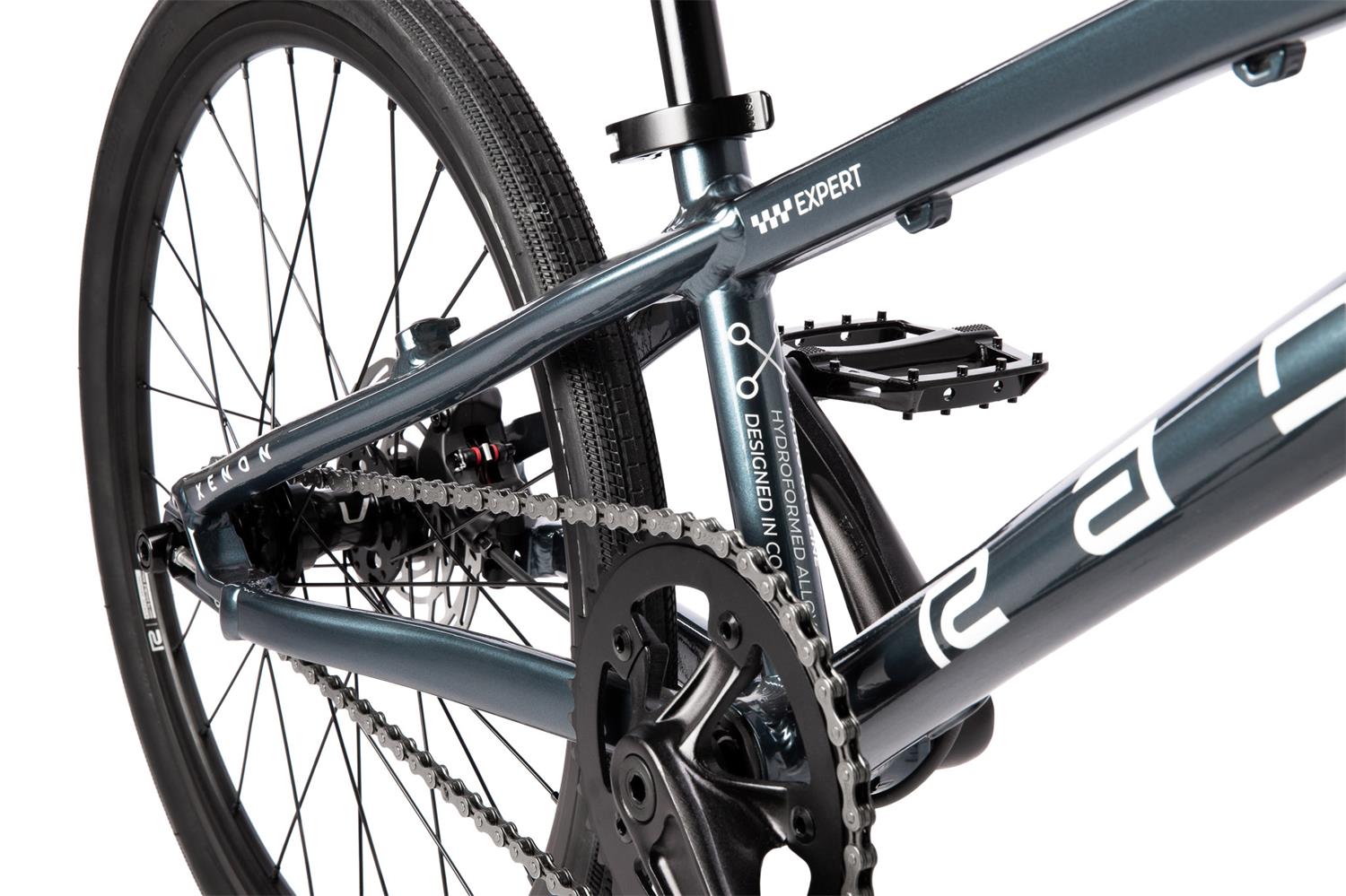

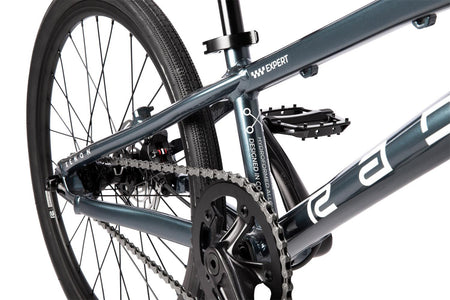

- FRAME: hydroformed 6061-T6 alloy frame, forged & disc brake mount ready dropouts, with int. chaintensioners

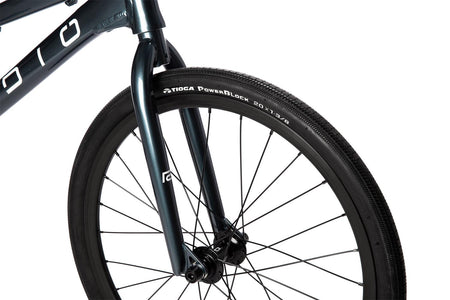

- FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 23mm offset
- HANDLEBAR: 6061-T6 alloy bar

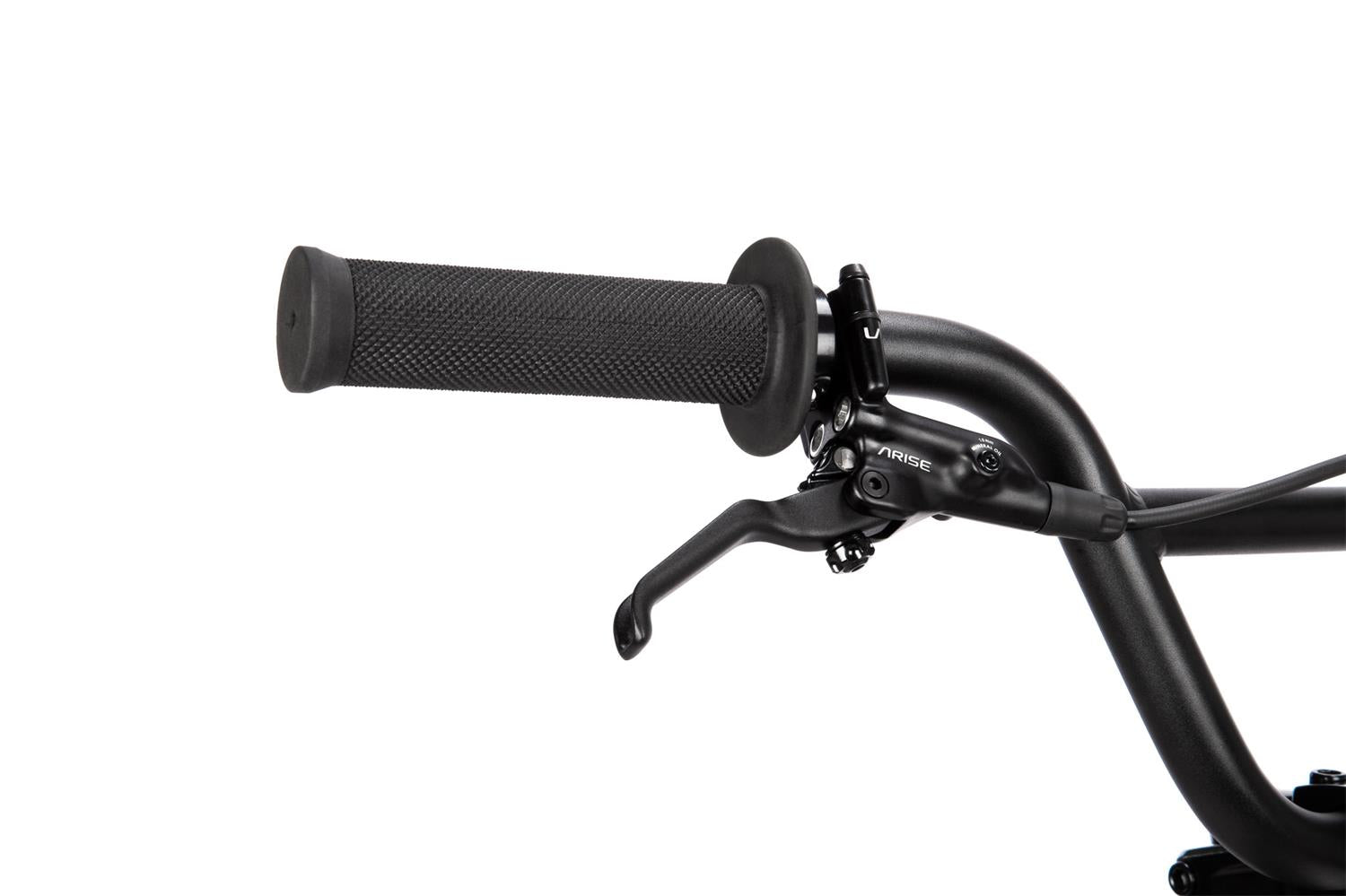

- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 132mm length

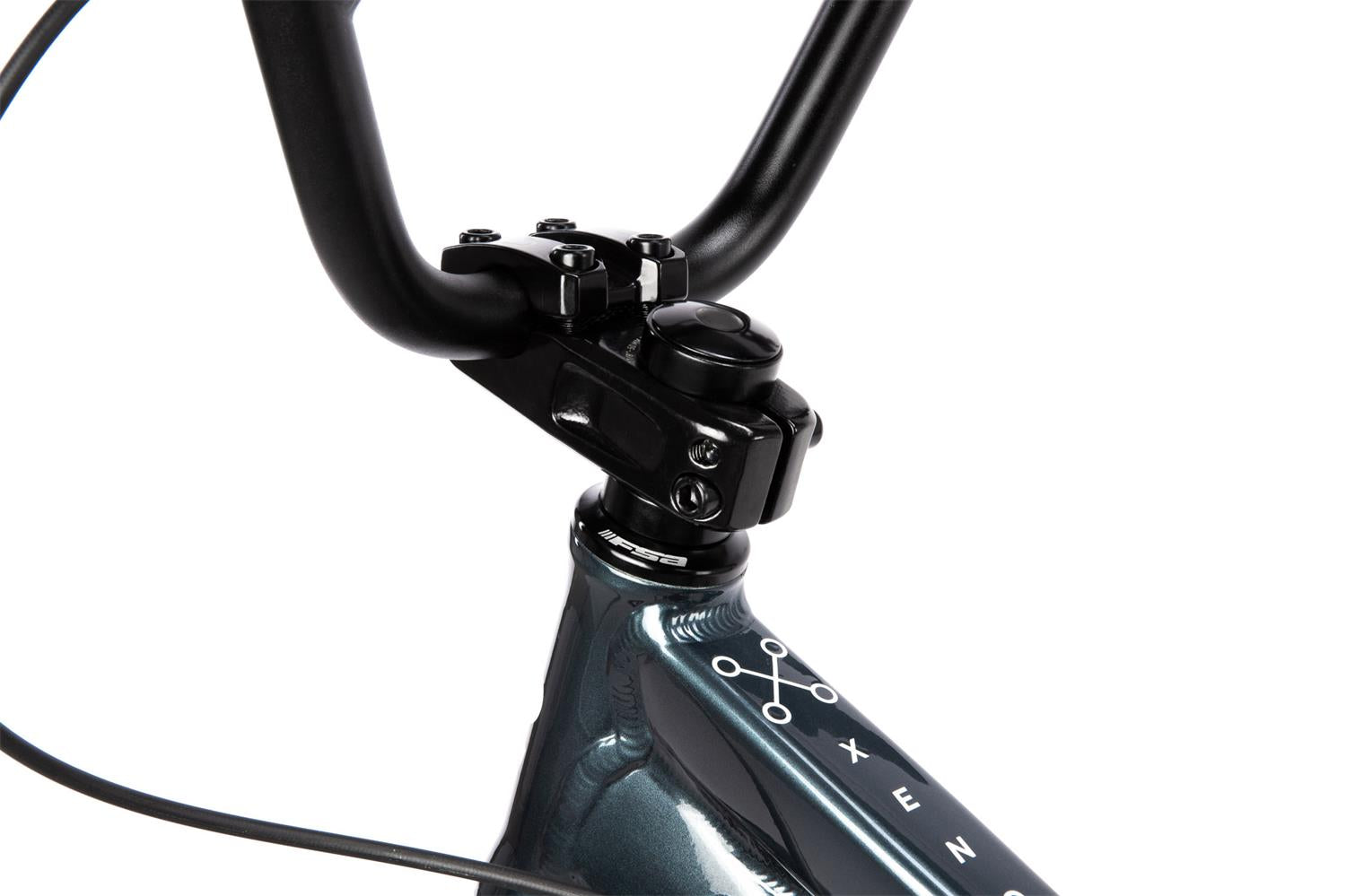

- STEM: ARISE "COBALT" toploader stem, ext. 50mm, alloy
- HEADSET: FSA "No.28" integrated headset, sealed, 1-1/8"
- BRAKE LEVER: ARISE "XENON" Disc brake lever, rear

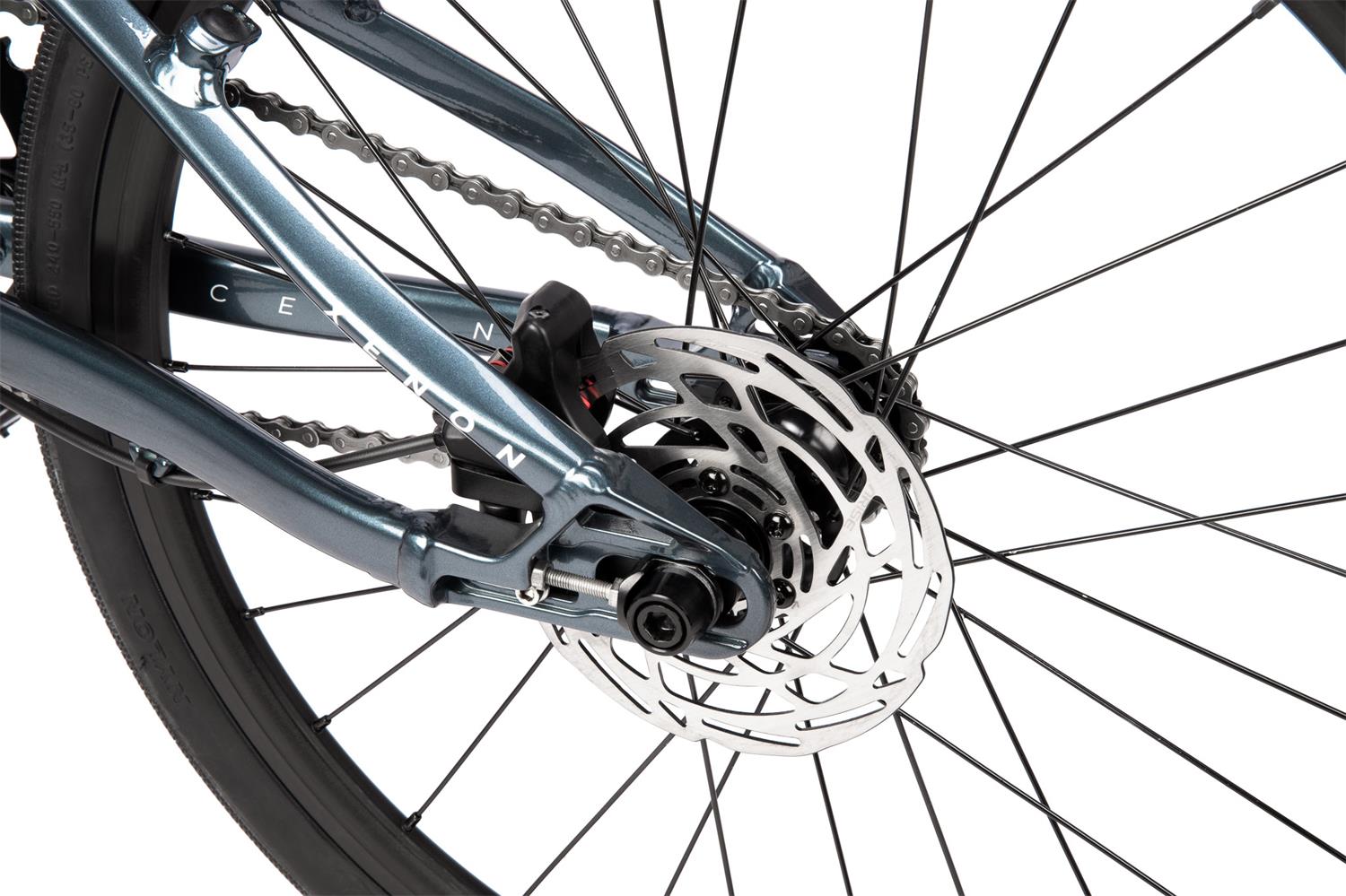

- BRAKE: ARISE "XENON" Disc brake, rear

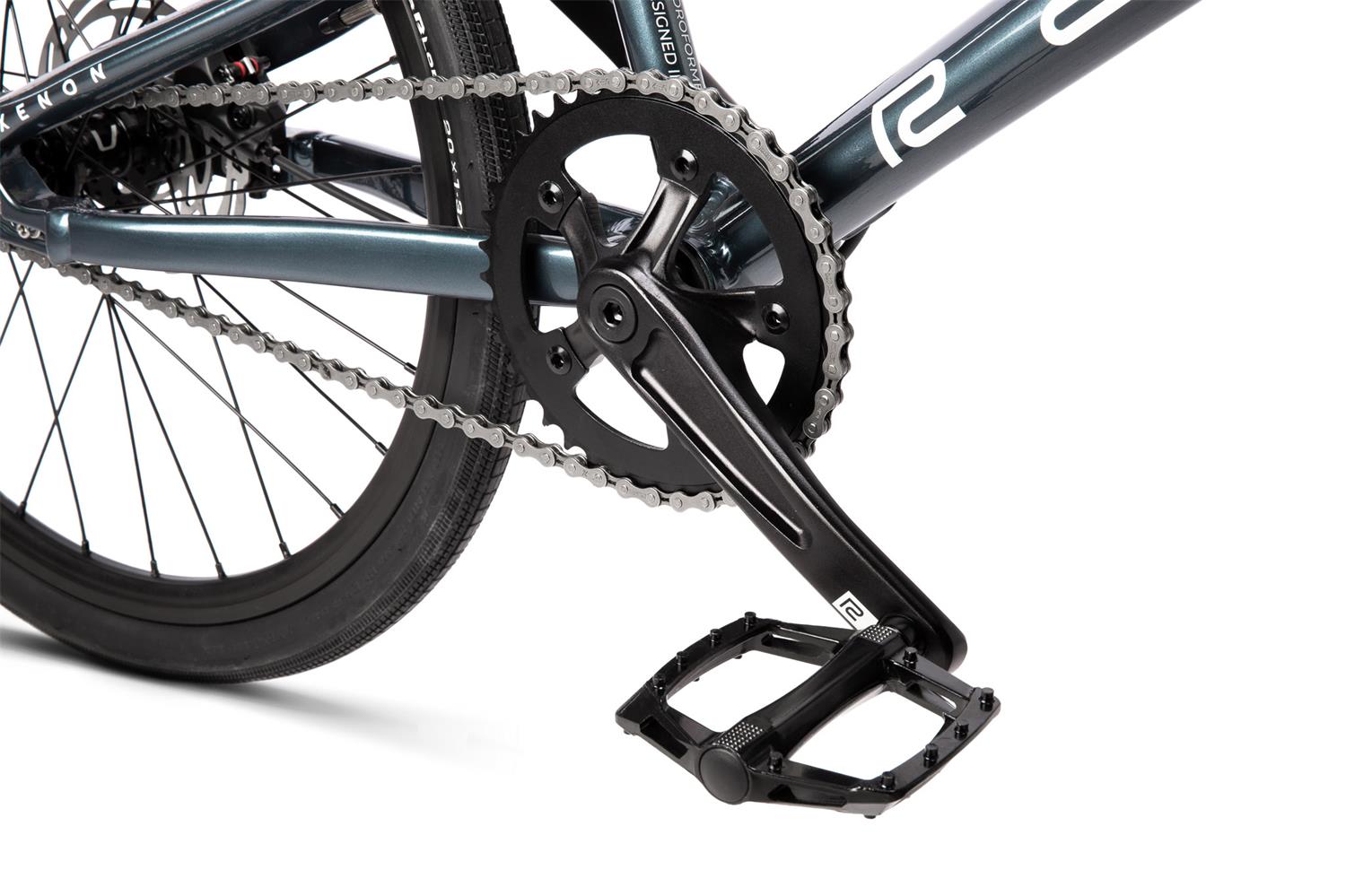

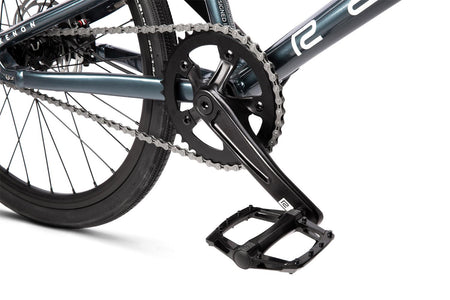

- CRANK: RADIO RACELINE "XENON" 3pc crank, forged alloy, cnc machined, 165mm length
- BB: RADIO RACELINE BB set, BSA square taper, sealed
- PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: RADIO RACELINE sprocket, 40T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

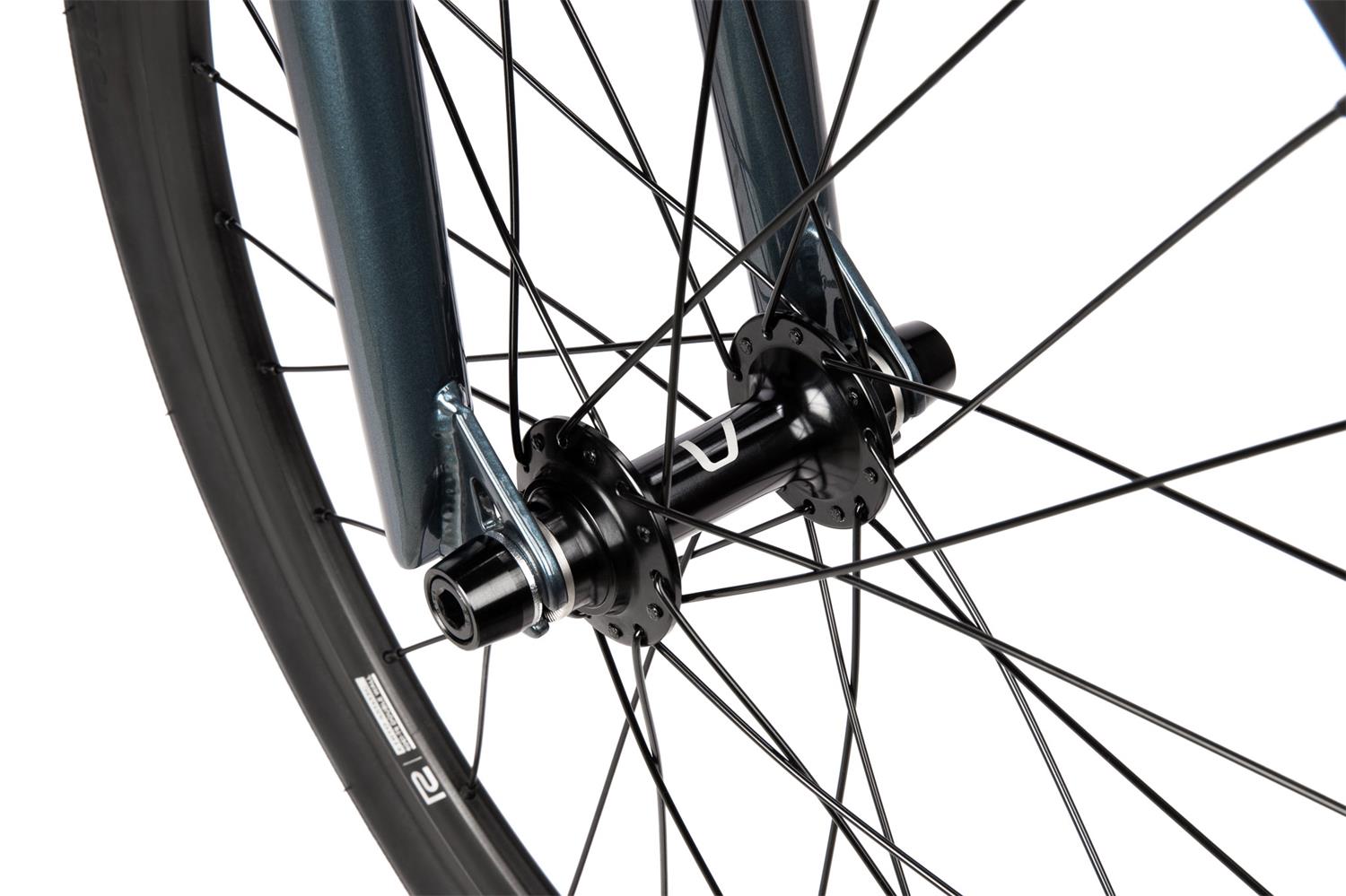

- FRONT HUB: ARISE "BRAVO" front hub, alloy cnc, fully sealed, 28h, 3/8" crmo axle

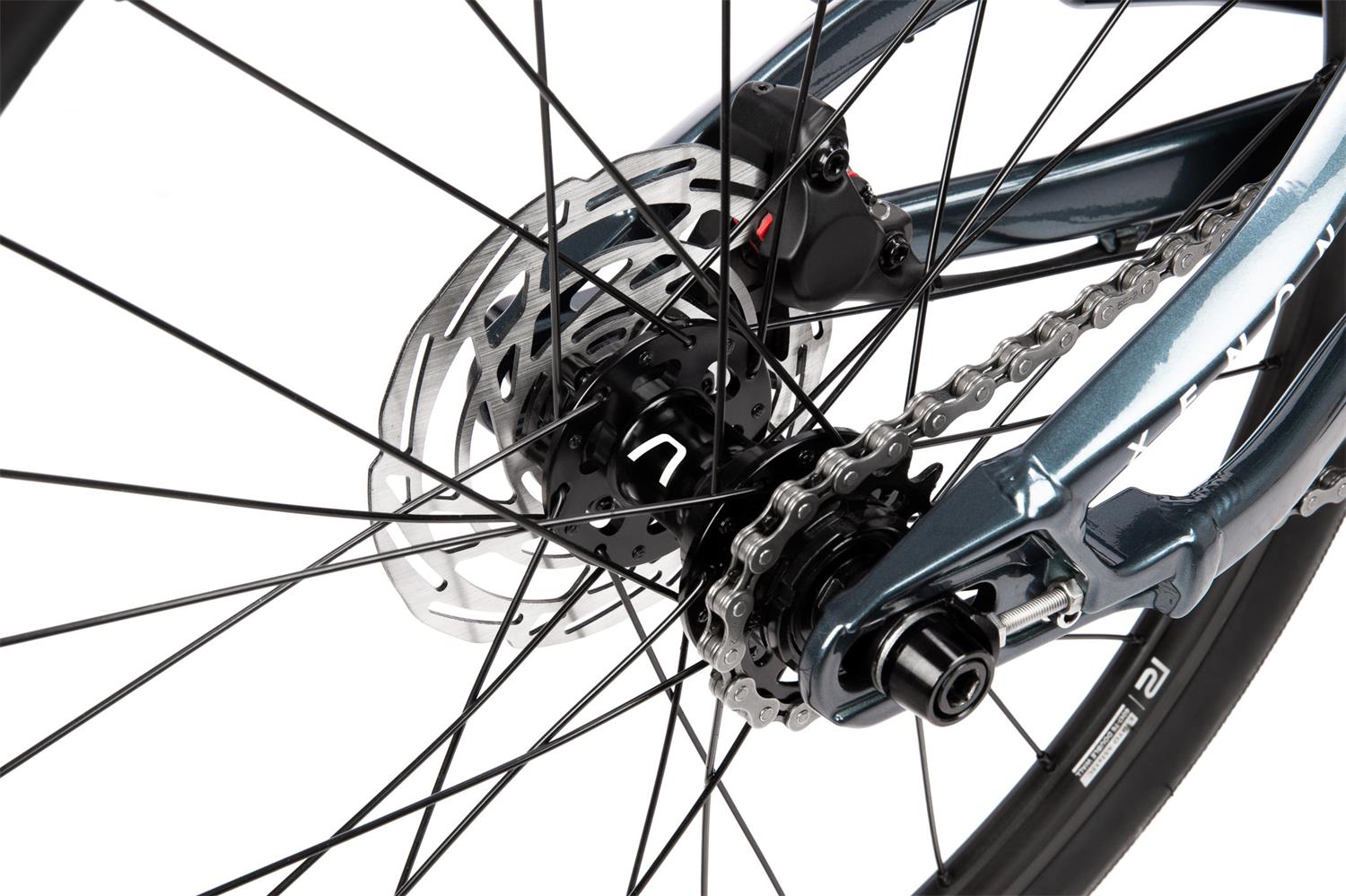

- REAR HUB: ARISE "ALFA" rear hub, alloy cnc, fully sealed, 28h, disc brake cassette, 3/8" crmo axle
- FRONT RIM: ARISE "CLIPPER JUNIOR" rim, sleeved joint, 28h, alloy
- REAR RIM: ARISE "CLIPPER JUNIOR" rim, sleeved joint, 28h, alloy

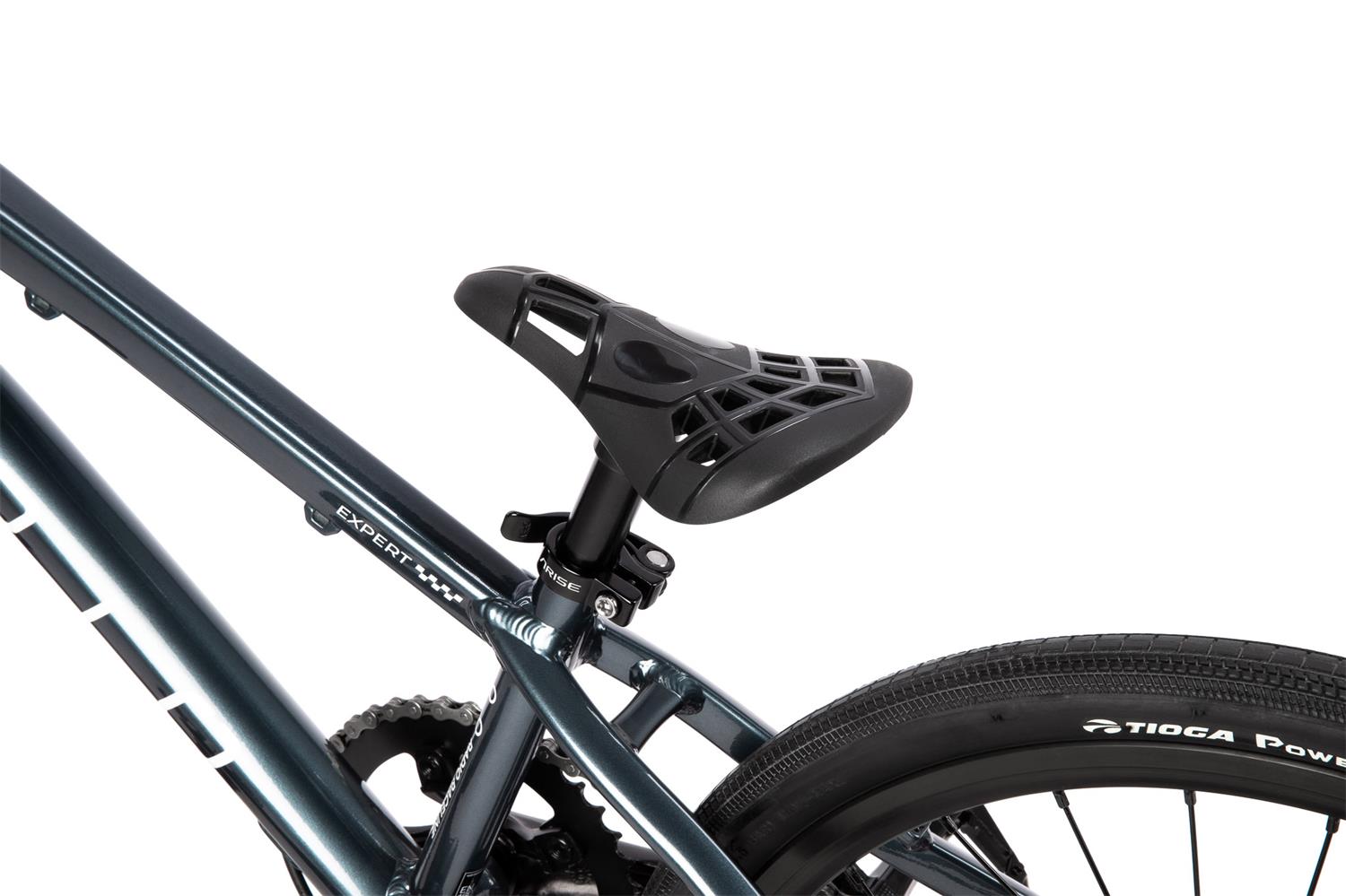

- SEAT: BOX Two Seat combo
- SEAT CLAMP: ARISE "XENON" seat post, quick-release, alloy

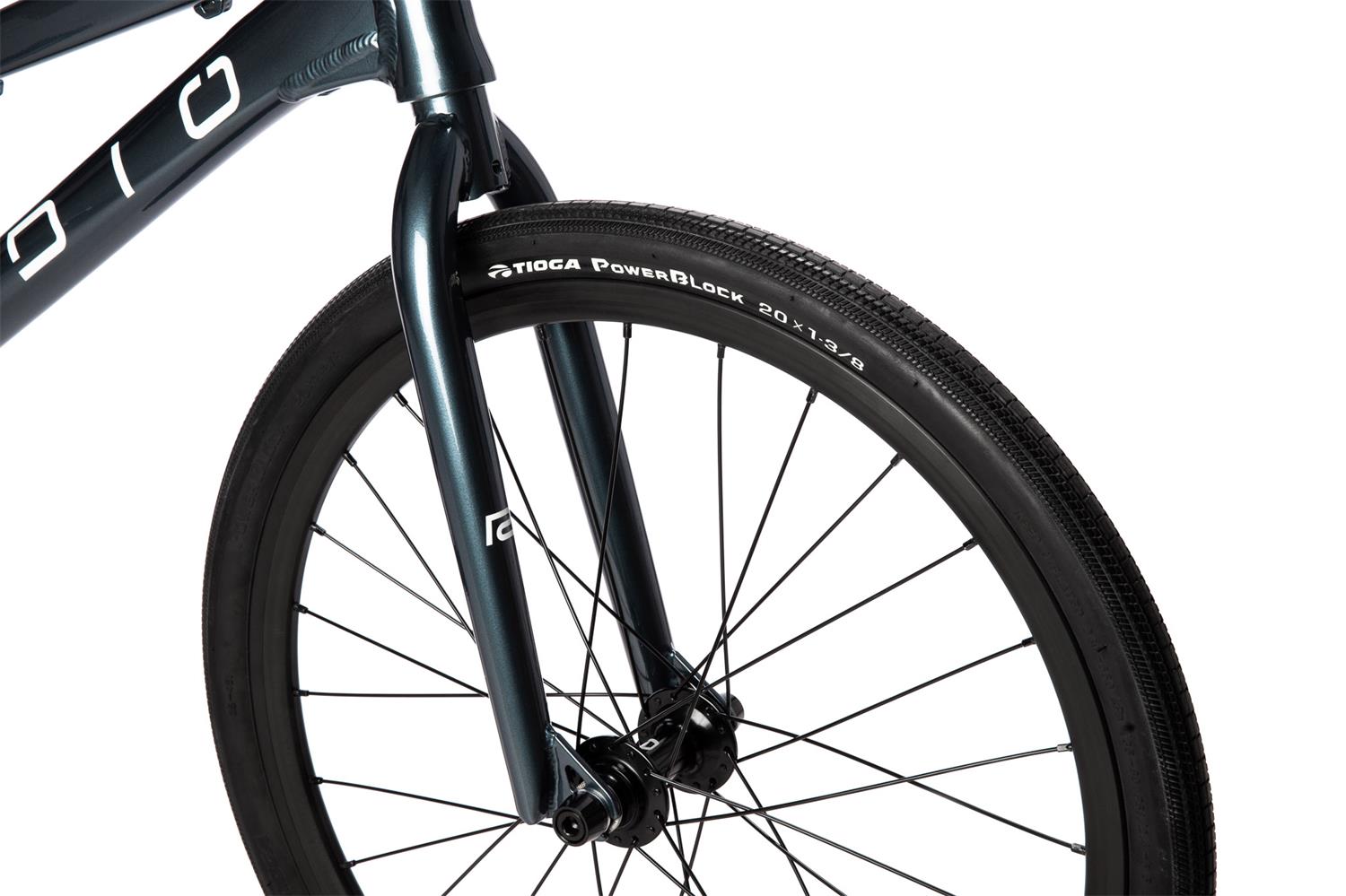

- TIRES: TIOGA "POWER-BLOCK" tires, 20" x 1-3/8"
Weight: 8.19kg / 18.06lbs
Frame Geometry:
| Top Tube Length | 19.5" |
| Chain Stay Length | 13.6" |
| Head Tube Angle | 73.5° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 10.8" |

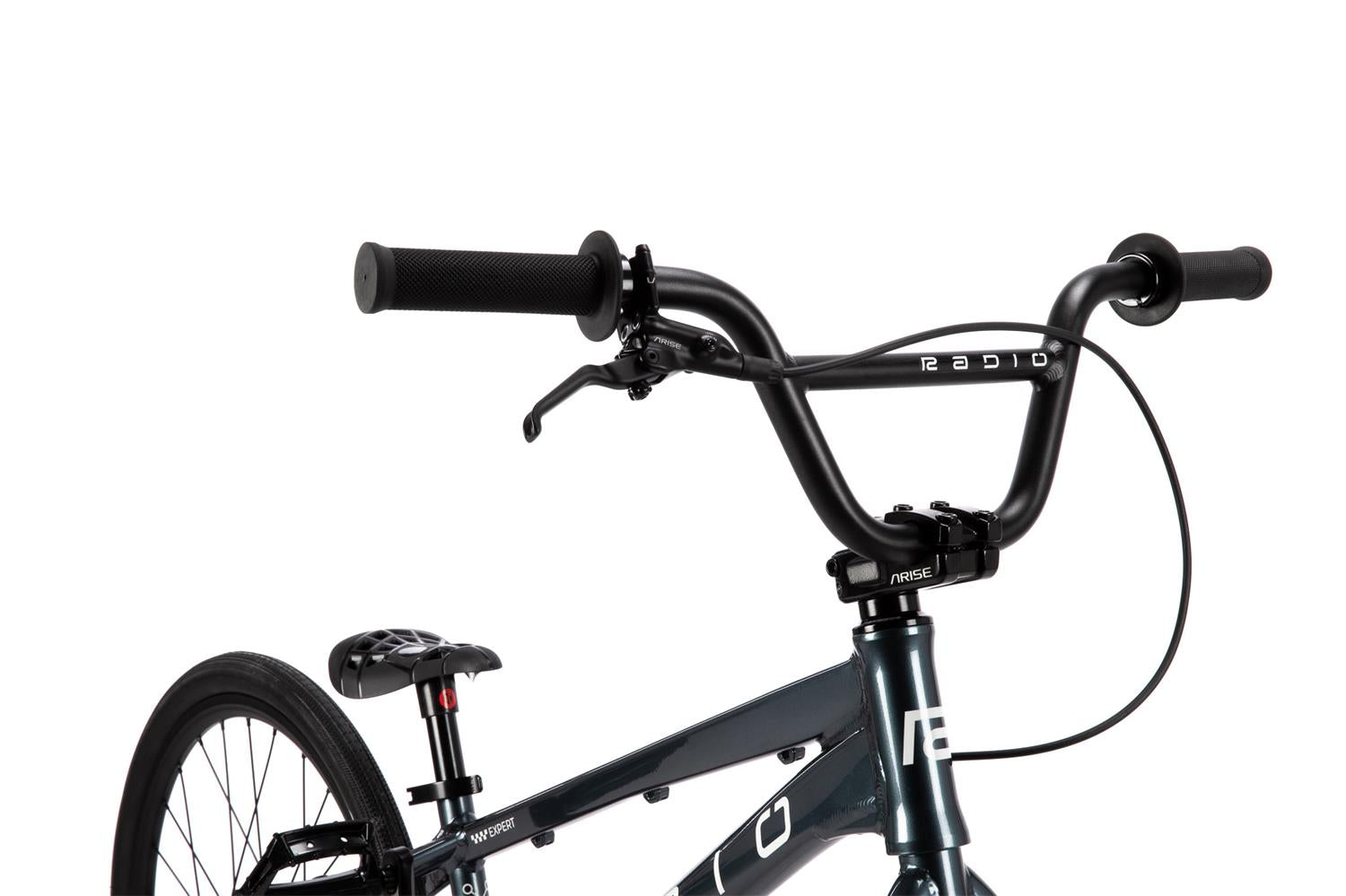

Handlebar Geometry:
| Rise | 5.75" |
| Width | 24.4" |
| Backsweep | 8° |
| Upsweep | 2° |
