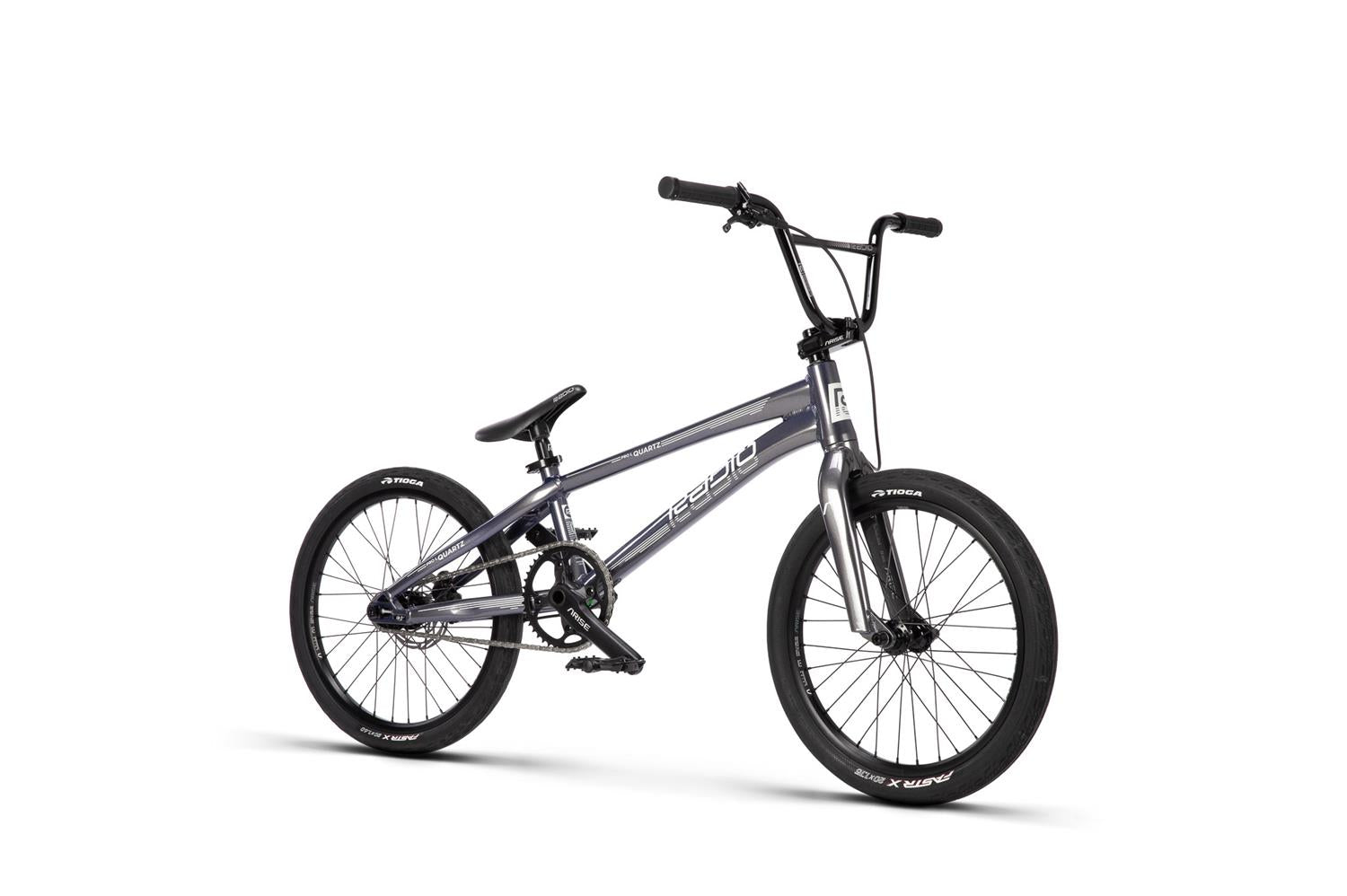

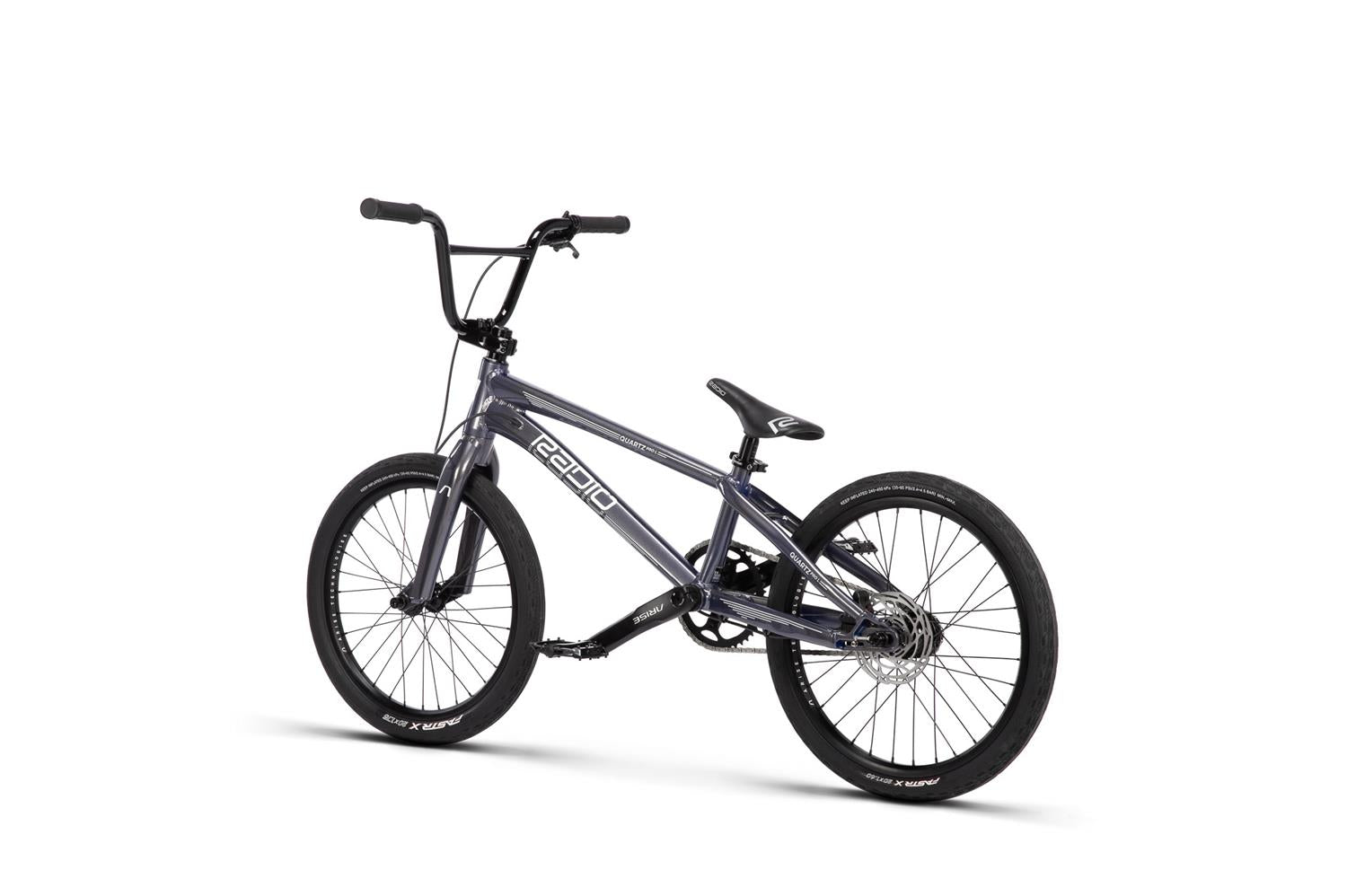

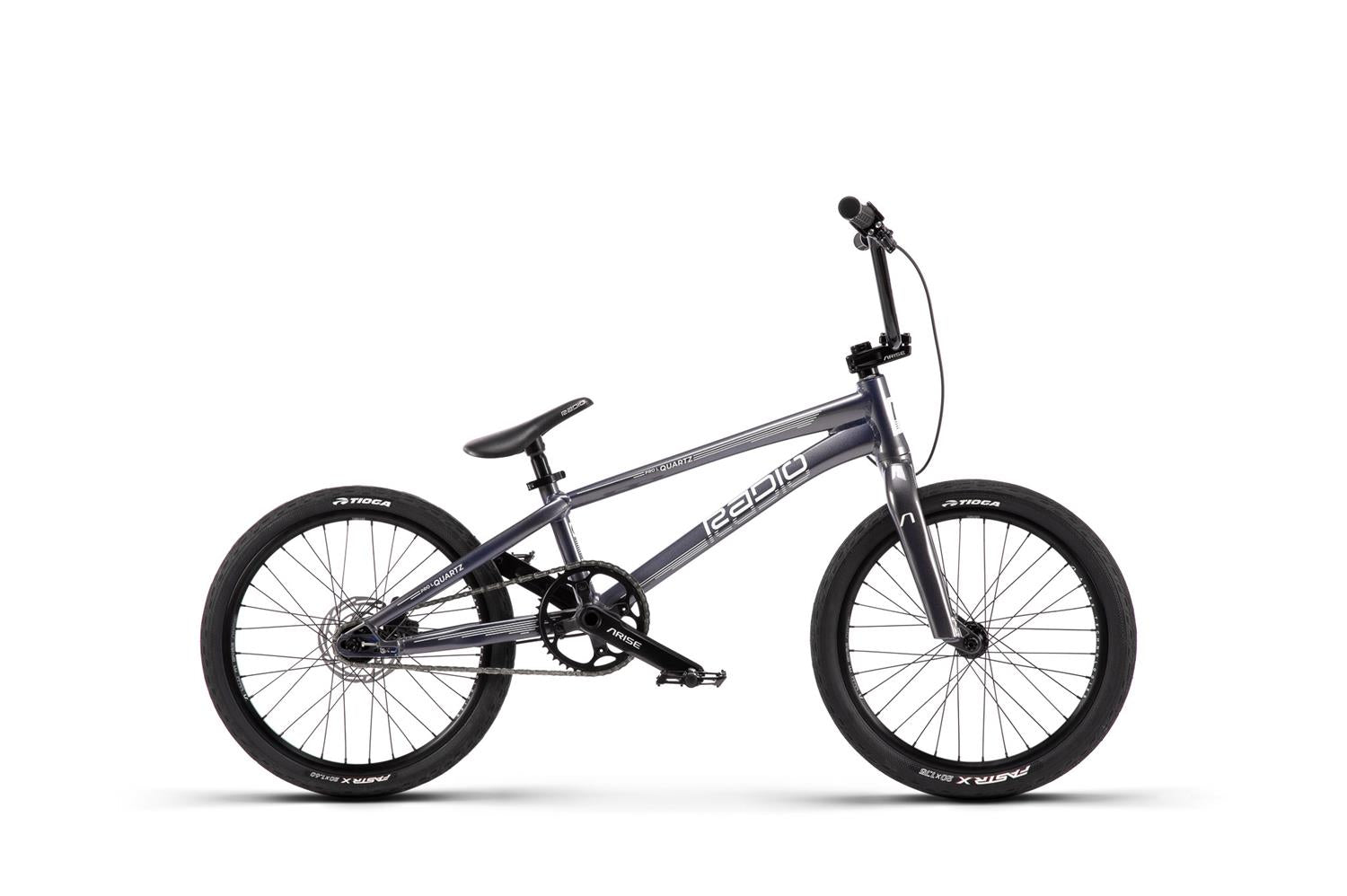

Radio Raceline Quartz Pro /ProL /ProXL /ProXXL
Couldn't load pickup availability
Need help choosing the right size?
The best of the best! The Quartz PRO is our 6-time world championship winning super-lightweight alloy frame with no details spared. We took this frame and draped it in only the very best components creating a full PRO build that anyone would be jealous to own. You’ll find our Solar Carbon fork, Oxygen Tires, Argon Rims, Turbine Hubs and even our new Hydraulic disc brake kit on this masterpiece of a bike. Ready for the track and the podium, we hope you can keep up with the speed that this machine can put out! Now with the all new Quartz Disc frame featuring our new sliding disc dropouts with flat mount brakes and super stealthy cable routing.

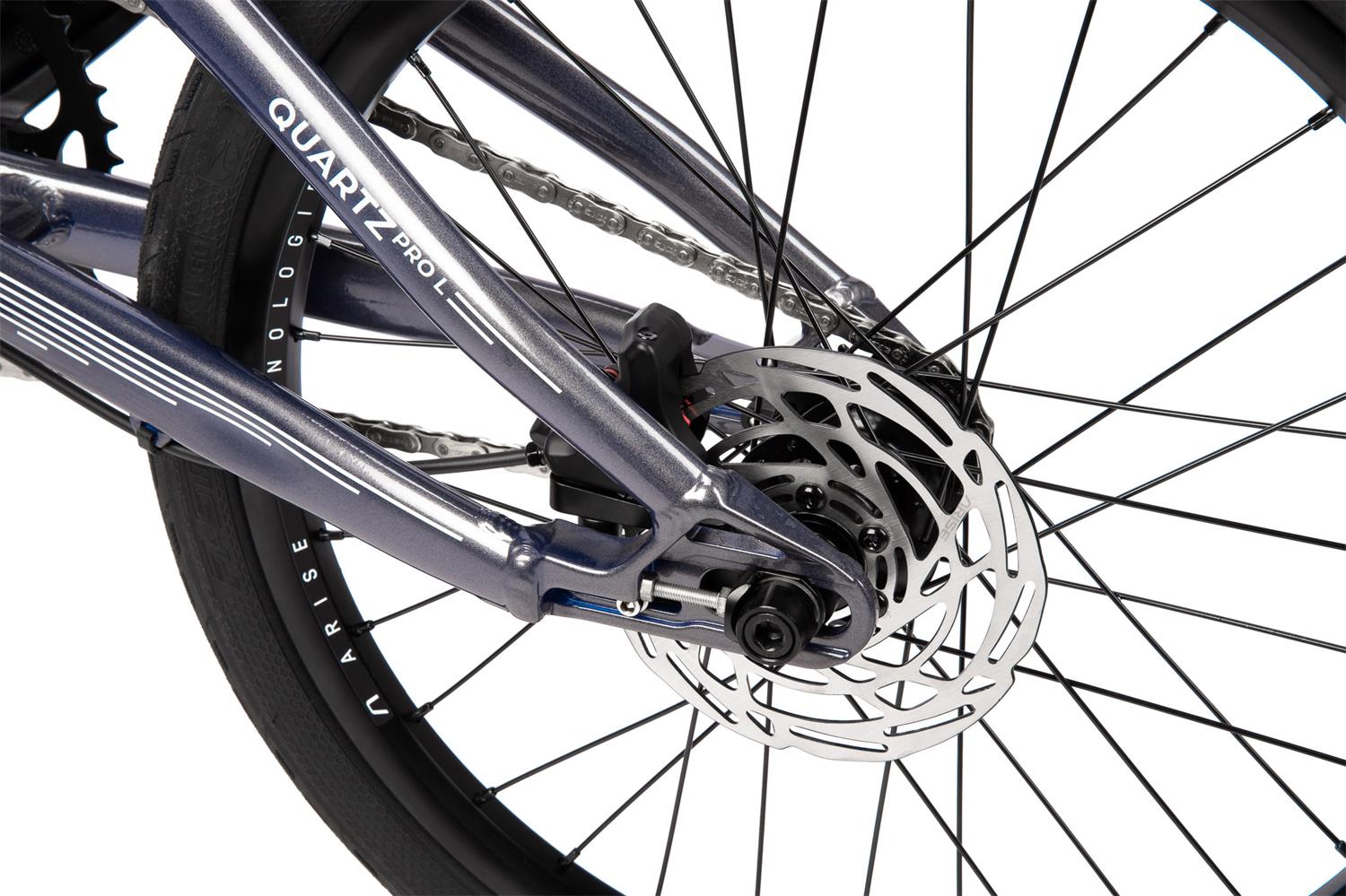

- FRAME: RADIO RACELINE "QUARTZ DISC" frame, lightweight hydroformed 6061-T6 alloy, tapered headtube, sliding forged dropouts, with int. chaintensioners, flatmount disc brake

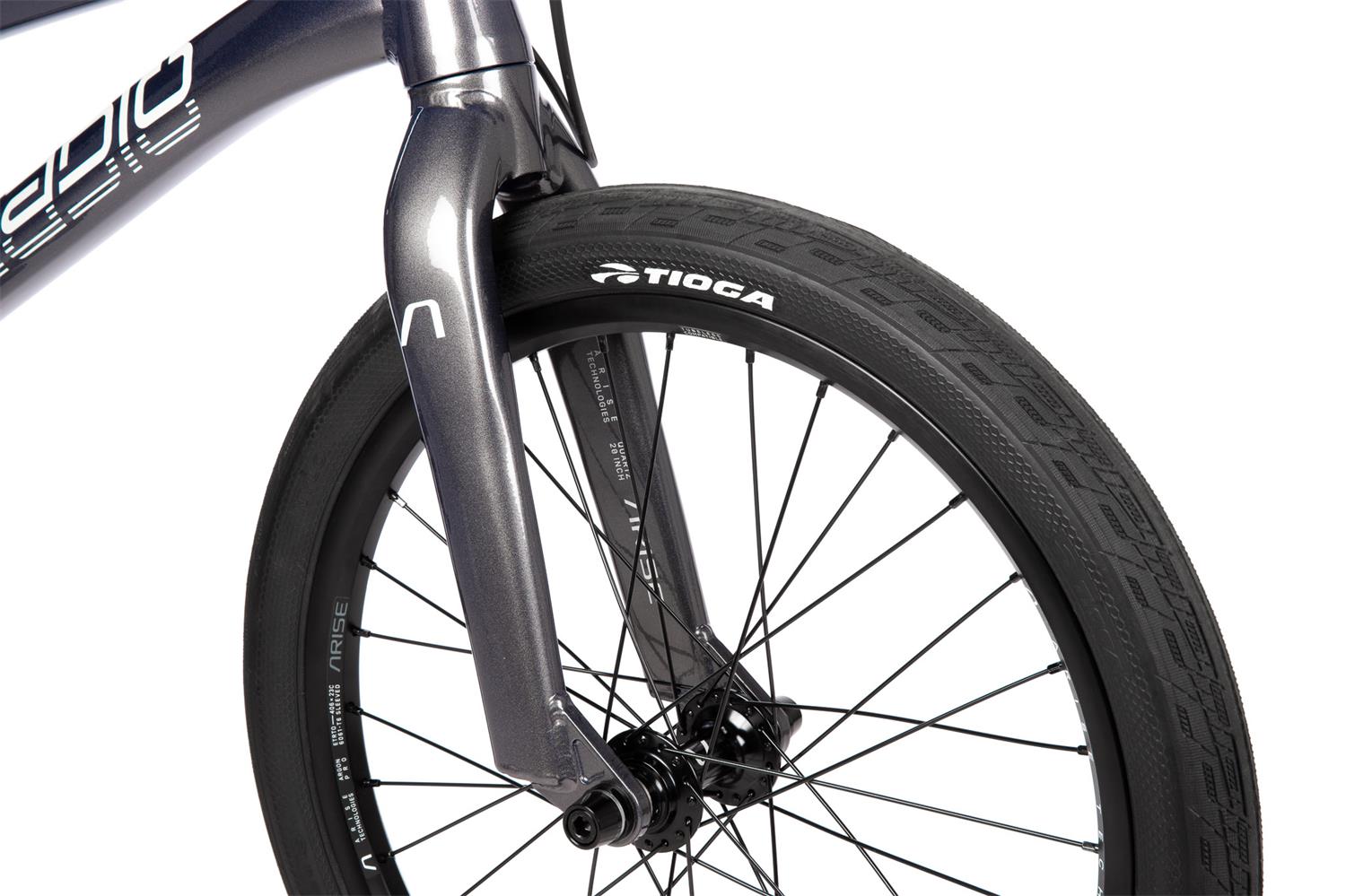

- FORK: ARISE QUARTZ PRO fork, aluminium, 31mm offset

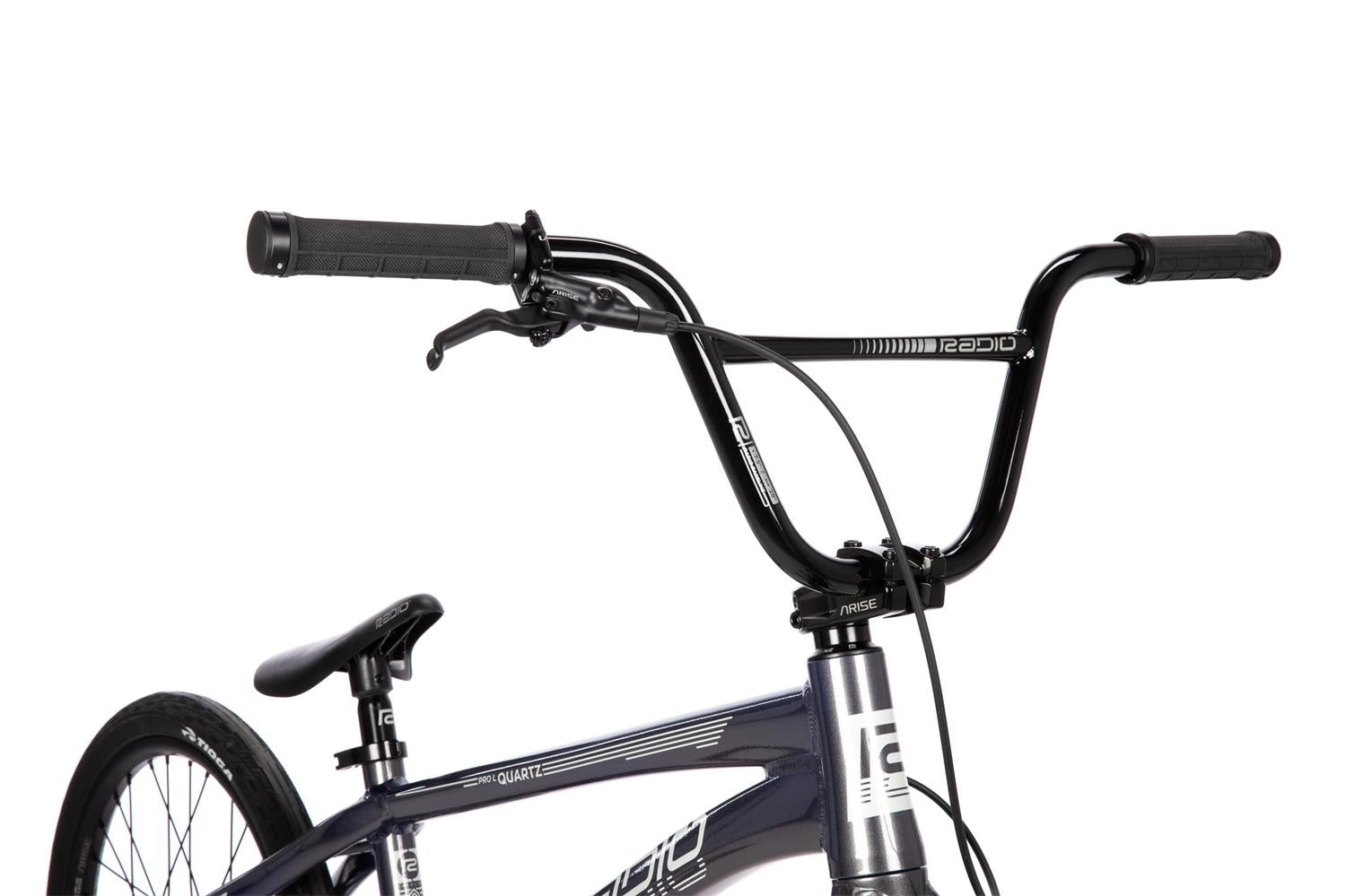

- HANDLEBAR: RADIO RACELINE "NEON PRO 7.5 / 8 / 8.5" hydroformed bar, multiple butted & heattreated crmo
- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length

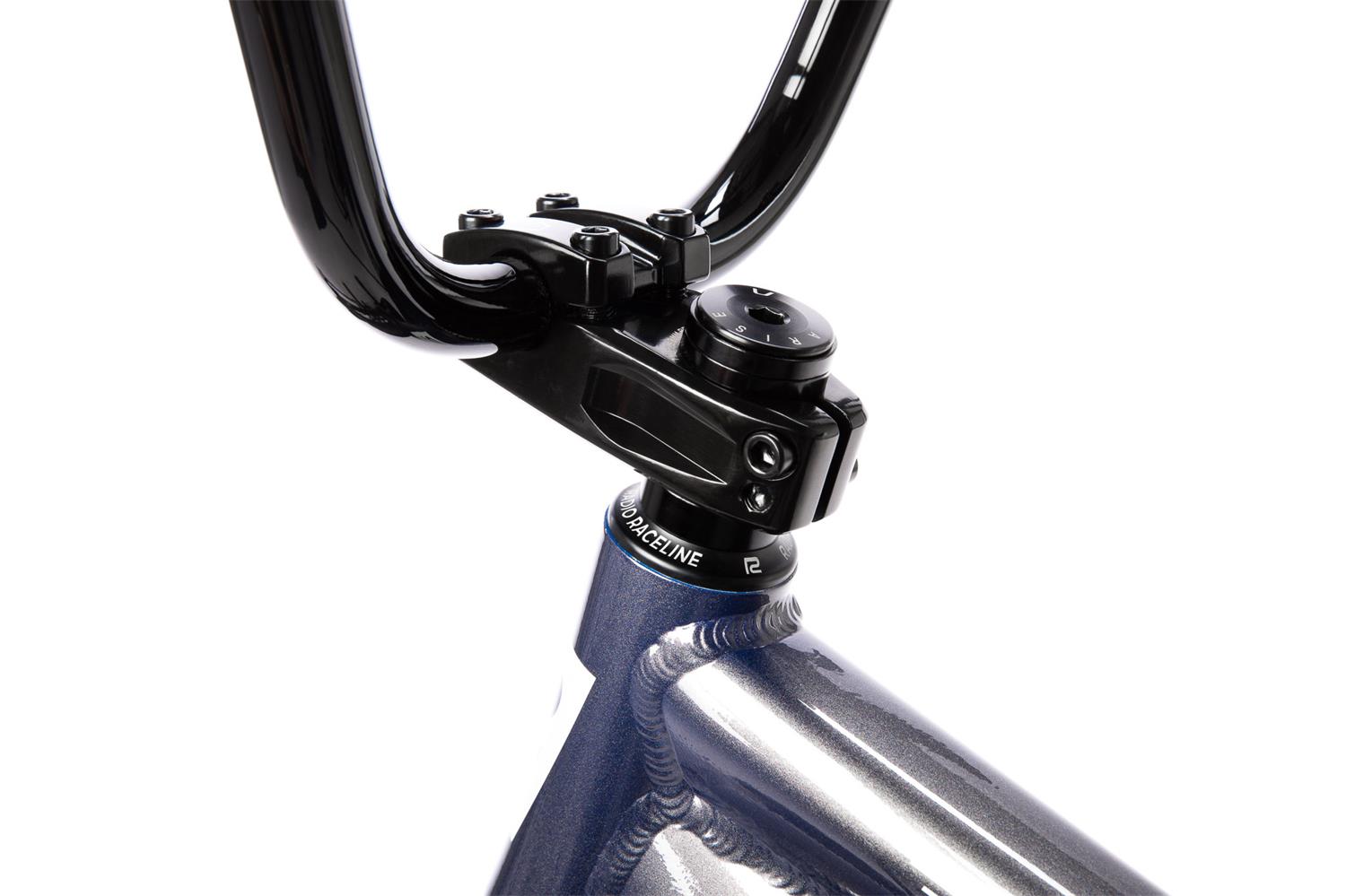

- STEM: ARISE "NEON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy

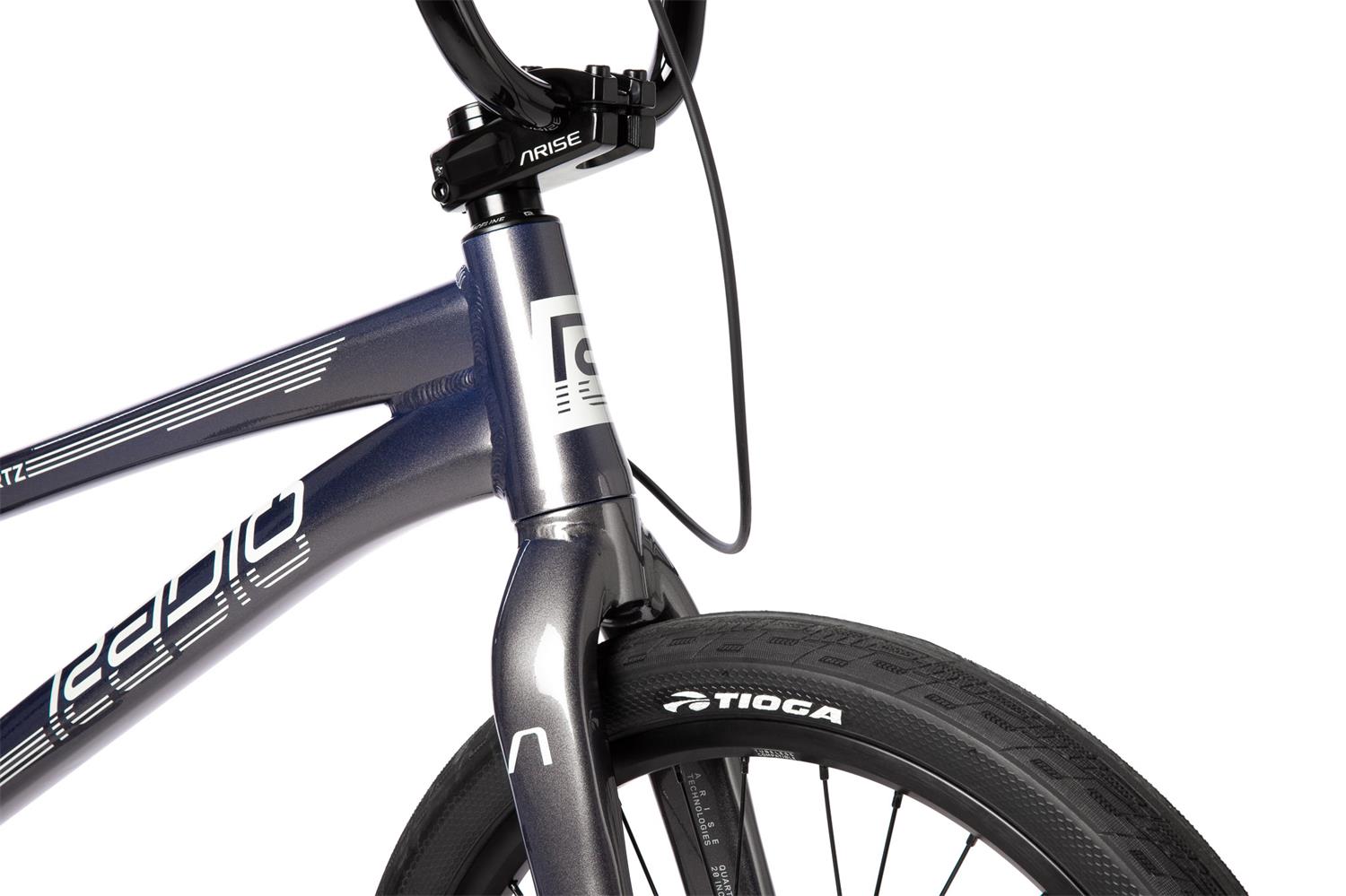

- HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5"

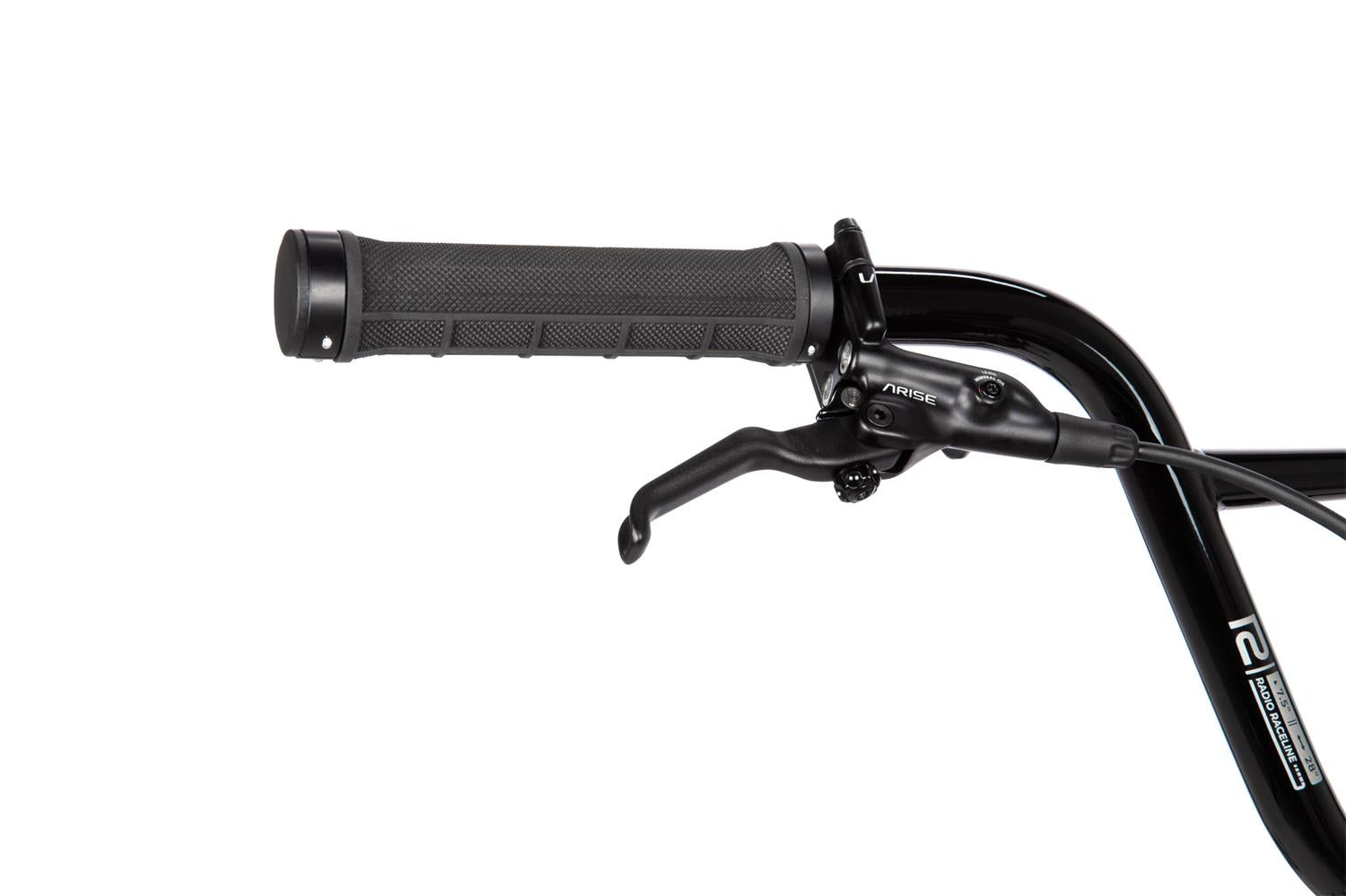

- BRAKE LEVER: ARISE XENON Disc Brake Lever
- BRAKE: ARISE XENON Disc Brake Rear

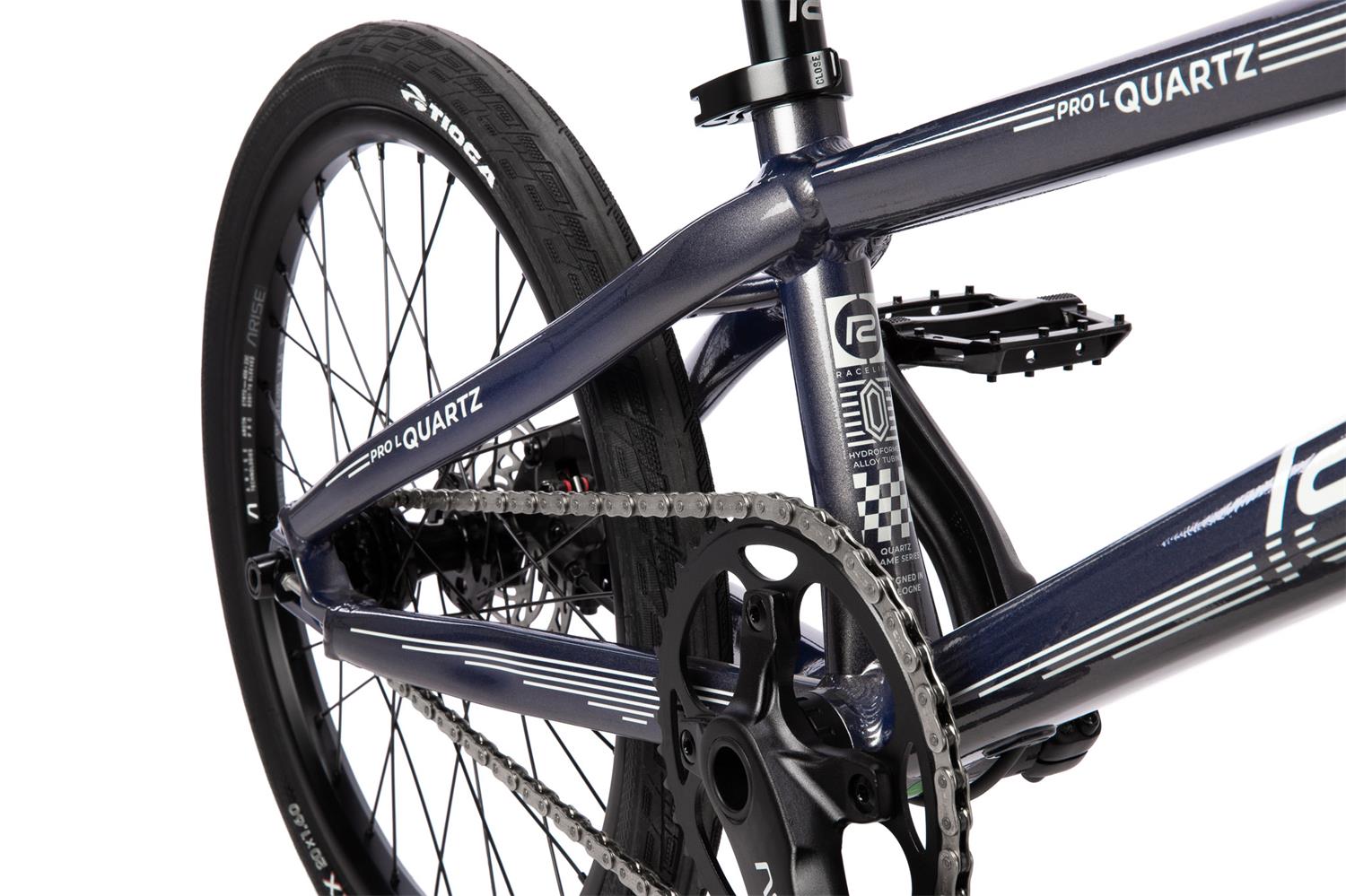

- CRANK: RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 175mm / 180mm length, 24mm spindle
- BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
- PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
- CHAIN: KMC "Z1eHX" chain, 1/2" x 3/32"
- SPROCKET: ARISE "XENON PRO" sprocket, 43T / 44T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

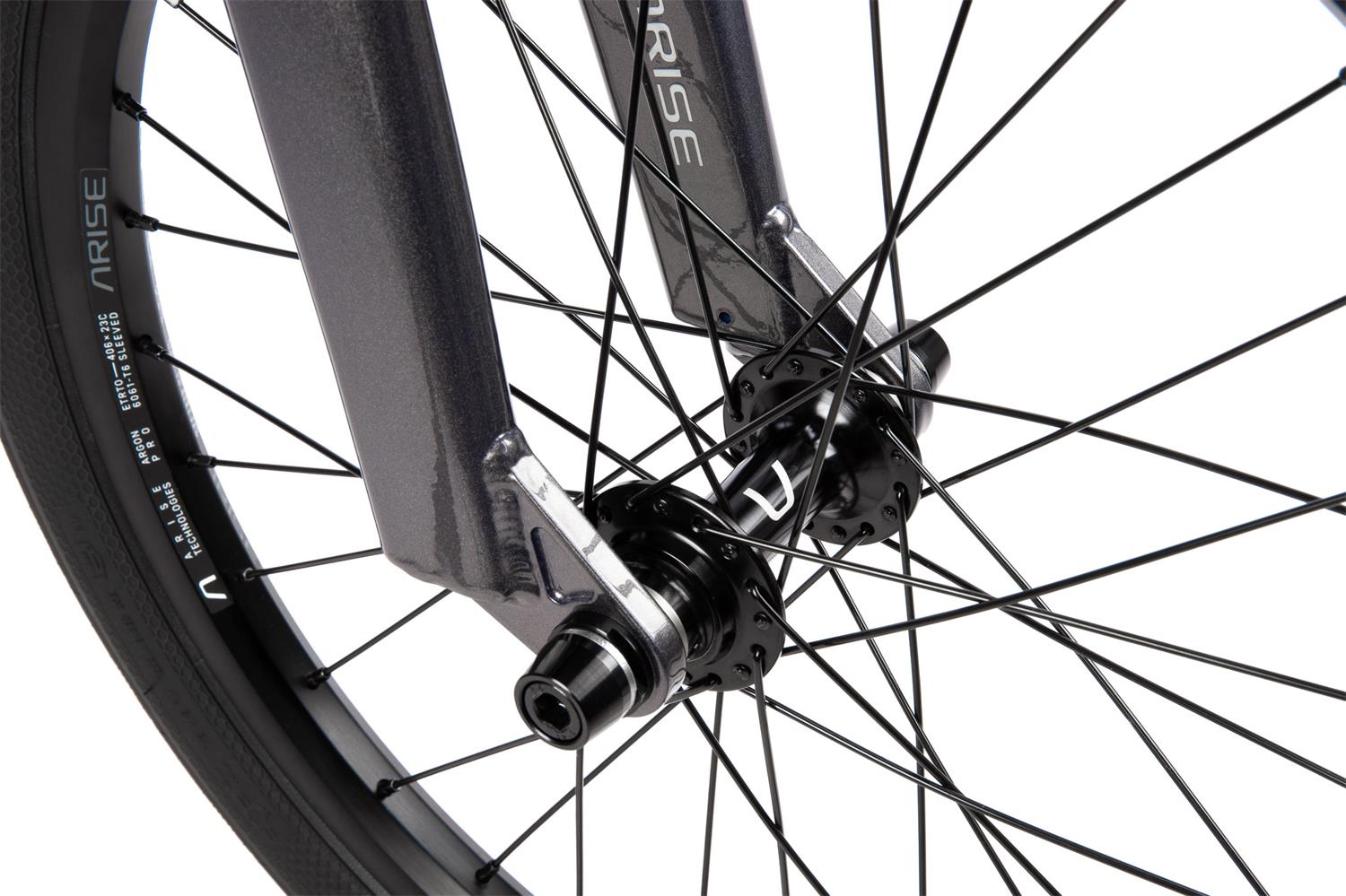

- FRONT HUB: ARISE "BRAVO" front hub, alloy cnc, fully sealed, 32h / 36h, 3/8" female crmo axle

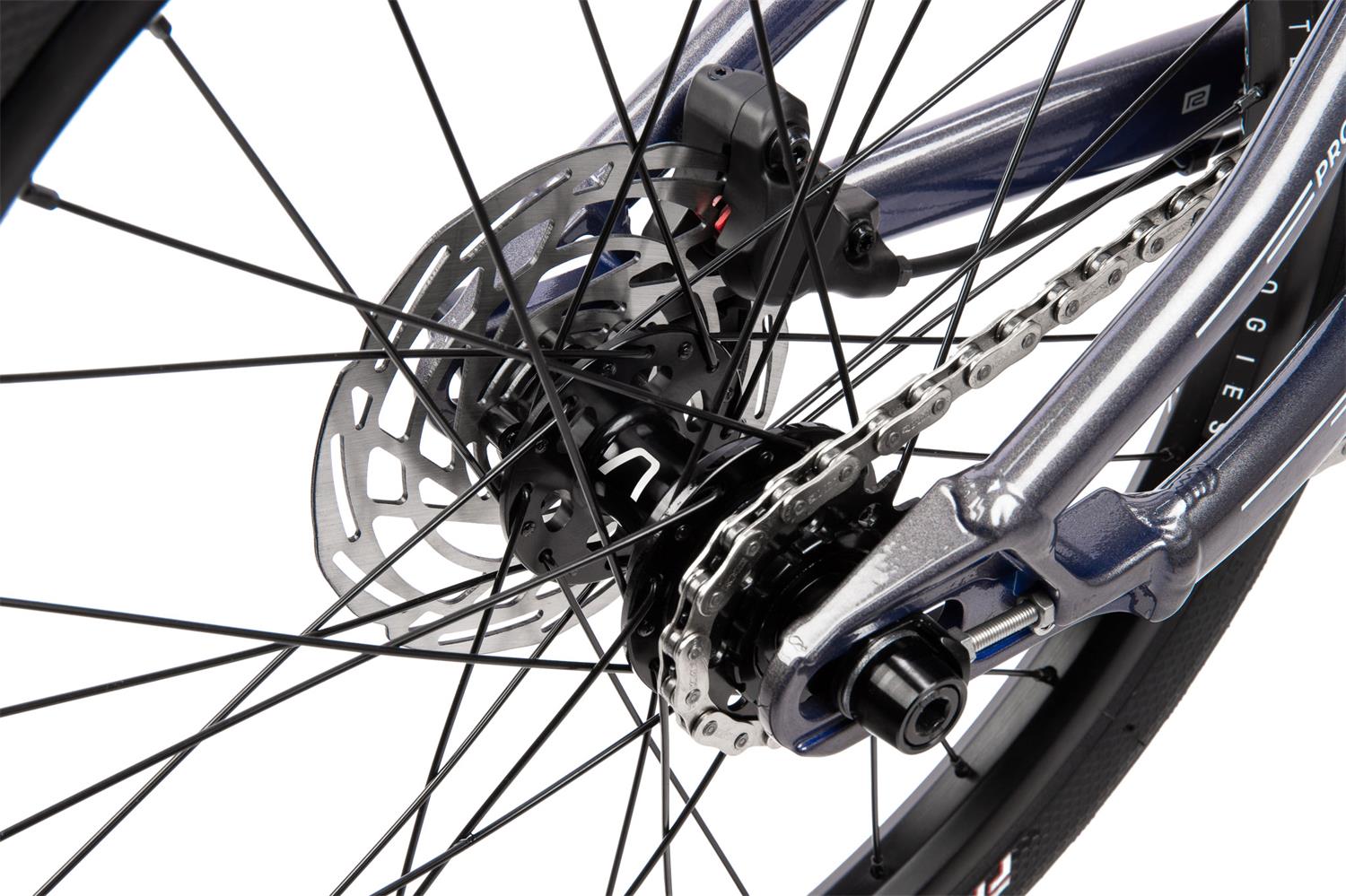

- REAR HUB: ARISE "BRAVO"" rear hub, alloy cnc, fully sealed, 32h / 36h, disc brake cassette, 3/8" female crmo axle
- FRONT RIM: ARISE "ARGON PRO" rim, flash welded, 32 / 36h, tubeless ready, alloy
- REAR RIM: ARISE "ARGON PRO" rim, flash welded, 32 / 36h, tubeless ready, alloy

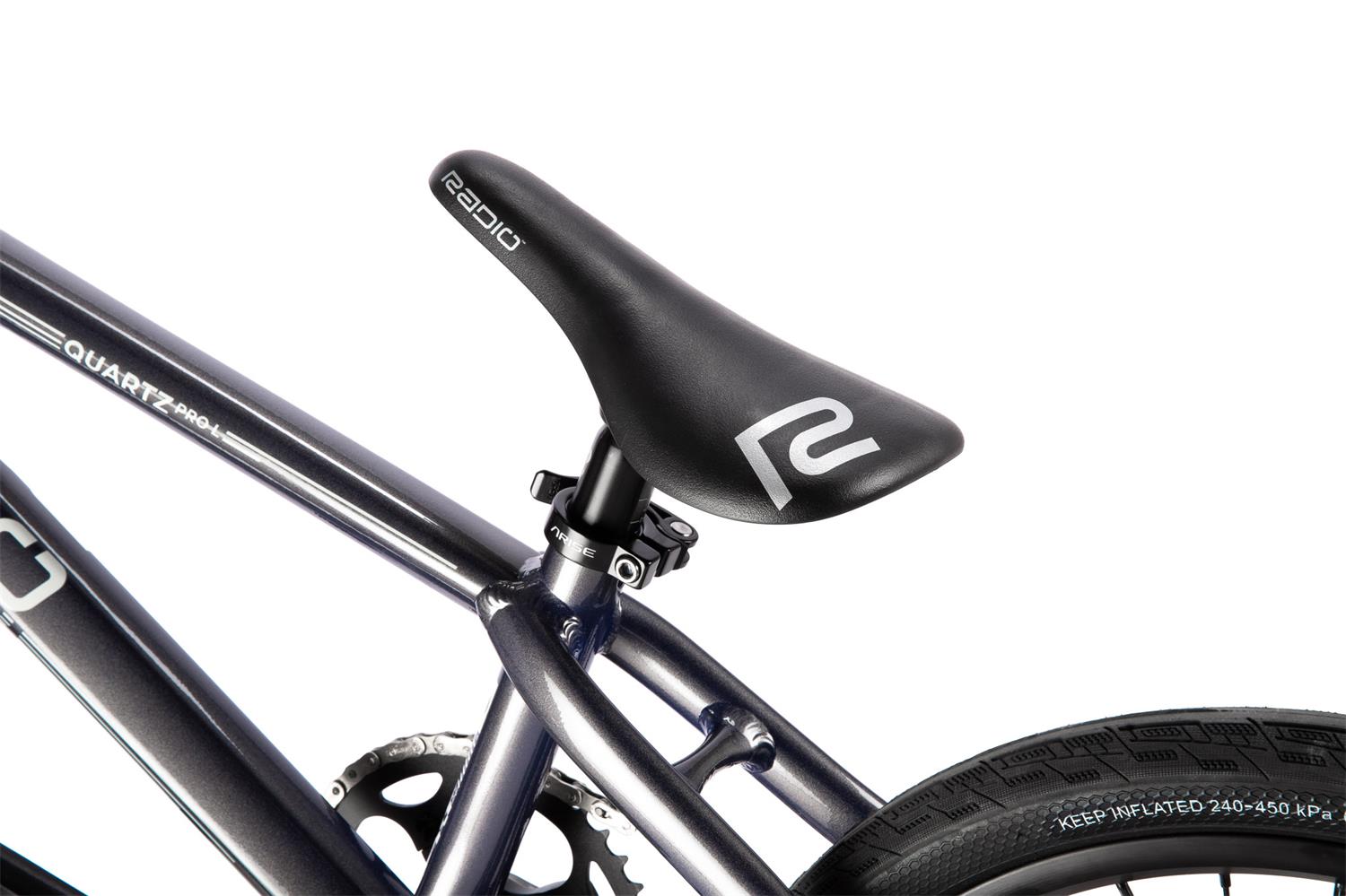

- SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
- SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
- SEAT CLAMP: ARISE HELIUM PRO seat clamp, quick-release, alloy
- TIRES: TIOGA FASTR TIRES front: 20" x 1.95" and rear: 20" x 1.75"
Weight
Pro: 9.2kg / 20.28lbs
Pro L: 9.2kg / 20.28lbs
Pro XL: 9.4kg / 20.74lbs
Pro XXL: 9.5kg / 20.9lbs
Frame Geometry:
| Top Tube Length | 20.5" / 20.9" / 21.25" / 21.75" |
| Chain Stay Length | 13.9" / 14.25" / 14.85" / 15.25" |
| Head Tube Angle | 74° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 11.6" |
Handlebar Geometry:
| Rise | 7.5" / 7.5" / 8" / 8.5" |
| Width | 28" / 28" / 28.5" / 29" |
| Backsweep | 6.5° |
| Upsweep | 2.5° |
