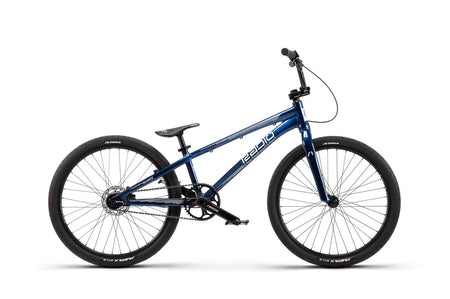

Radio Raceline Quartz Pro Cruiser XL
Couldn't load pickup availability
Need help choosing the right size?
If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.

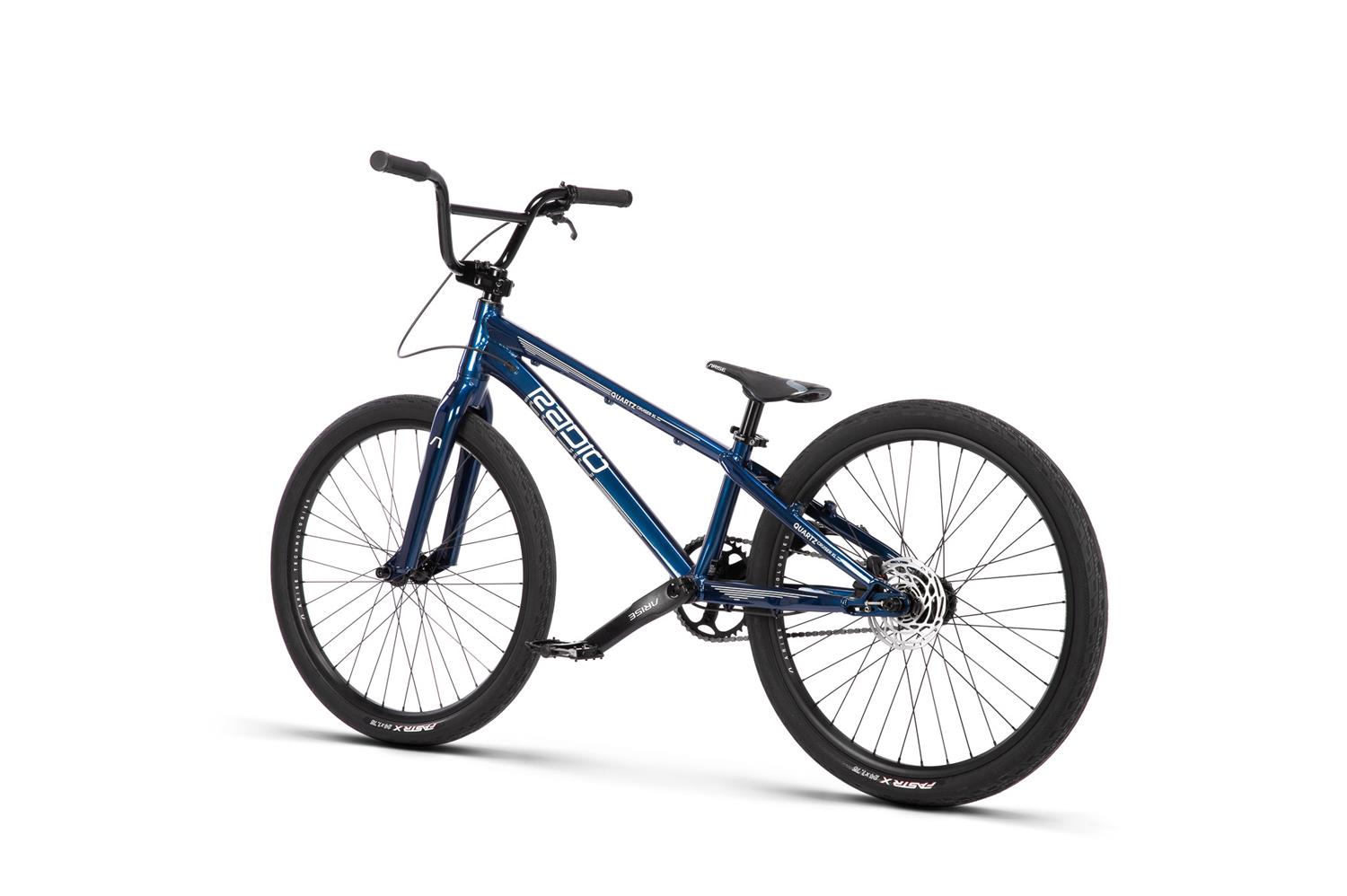

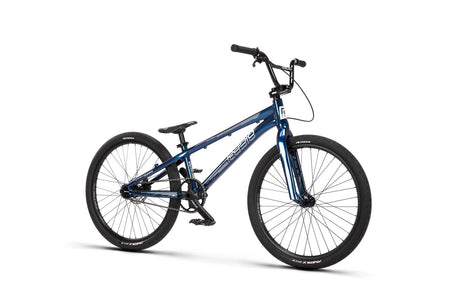

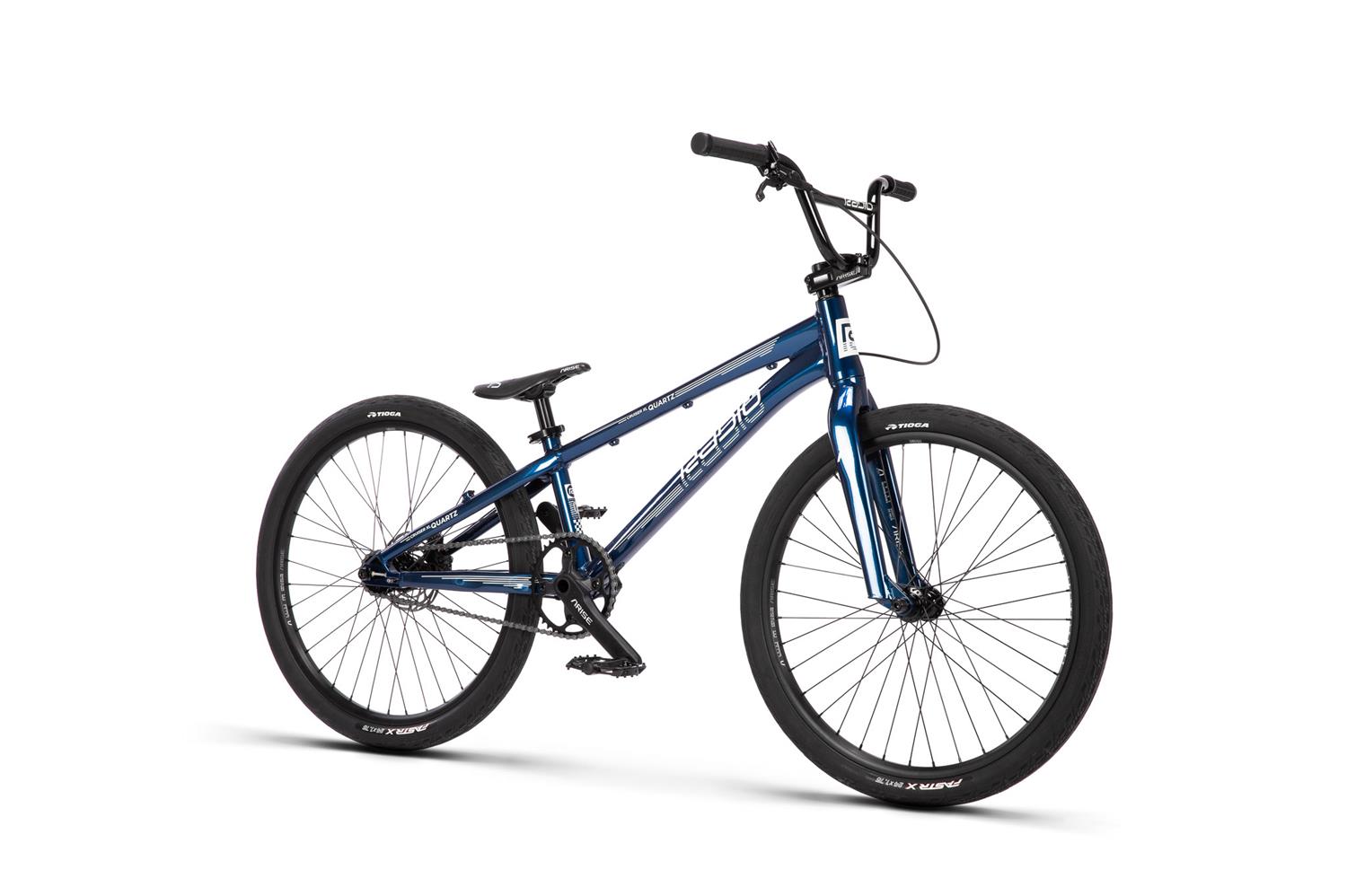

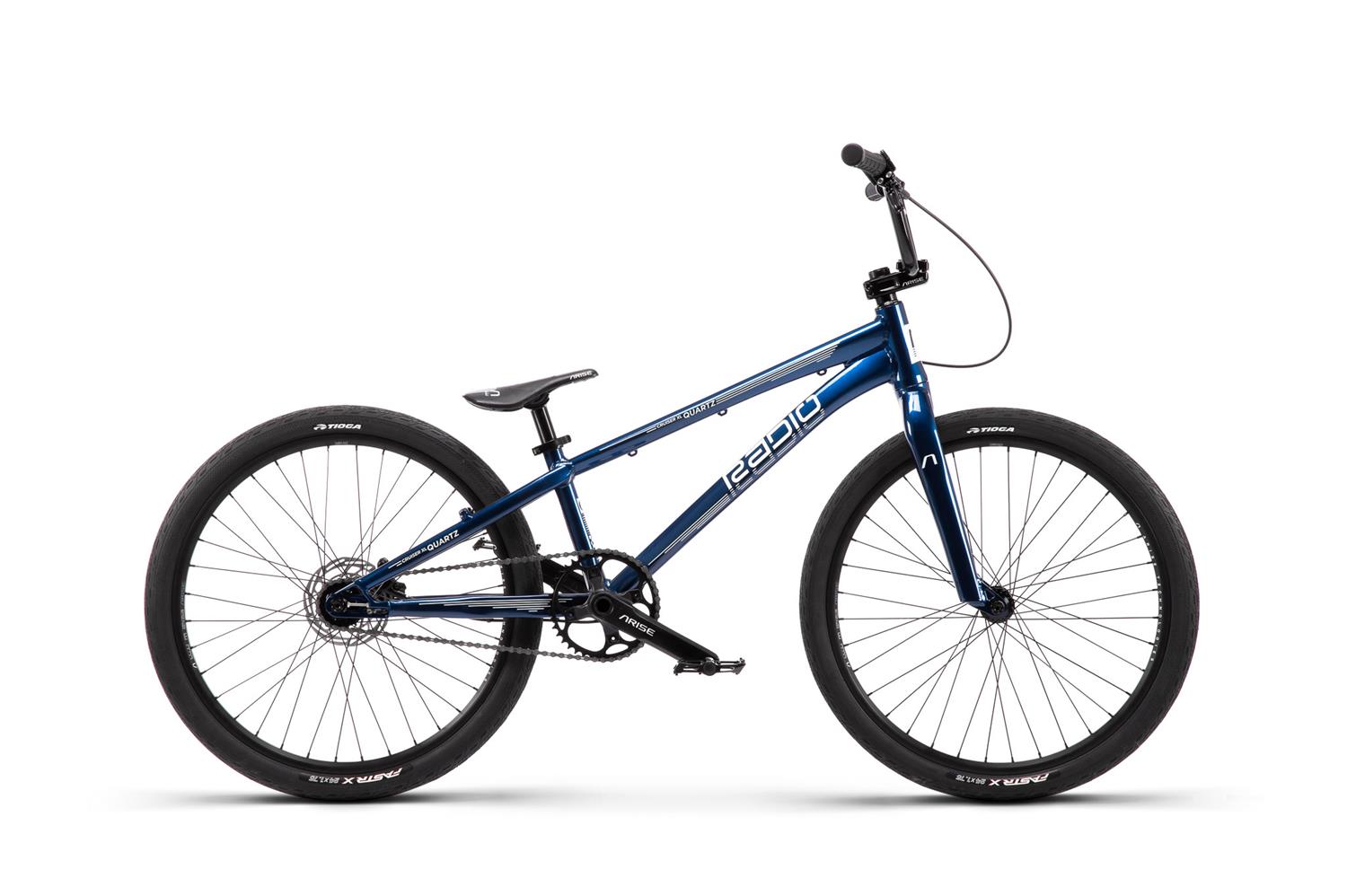

A bike that has developed quite the following, the Quartz Cruiser XL is our 24” workhorse. Taking our aftermarket Quartz cruiser frame and injecting it with a full pro parts package, we spared no details here. From sliding dropouts (SDDS System) to our very own aftermarket Argon PRO Rims to parts from Tioga, this 24″ machine is a bike with no limits.

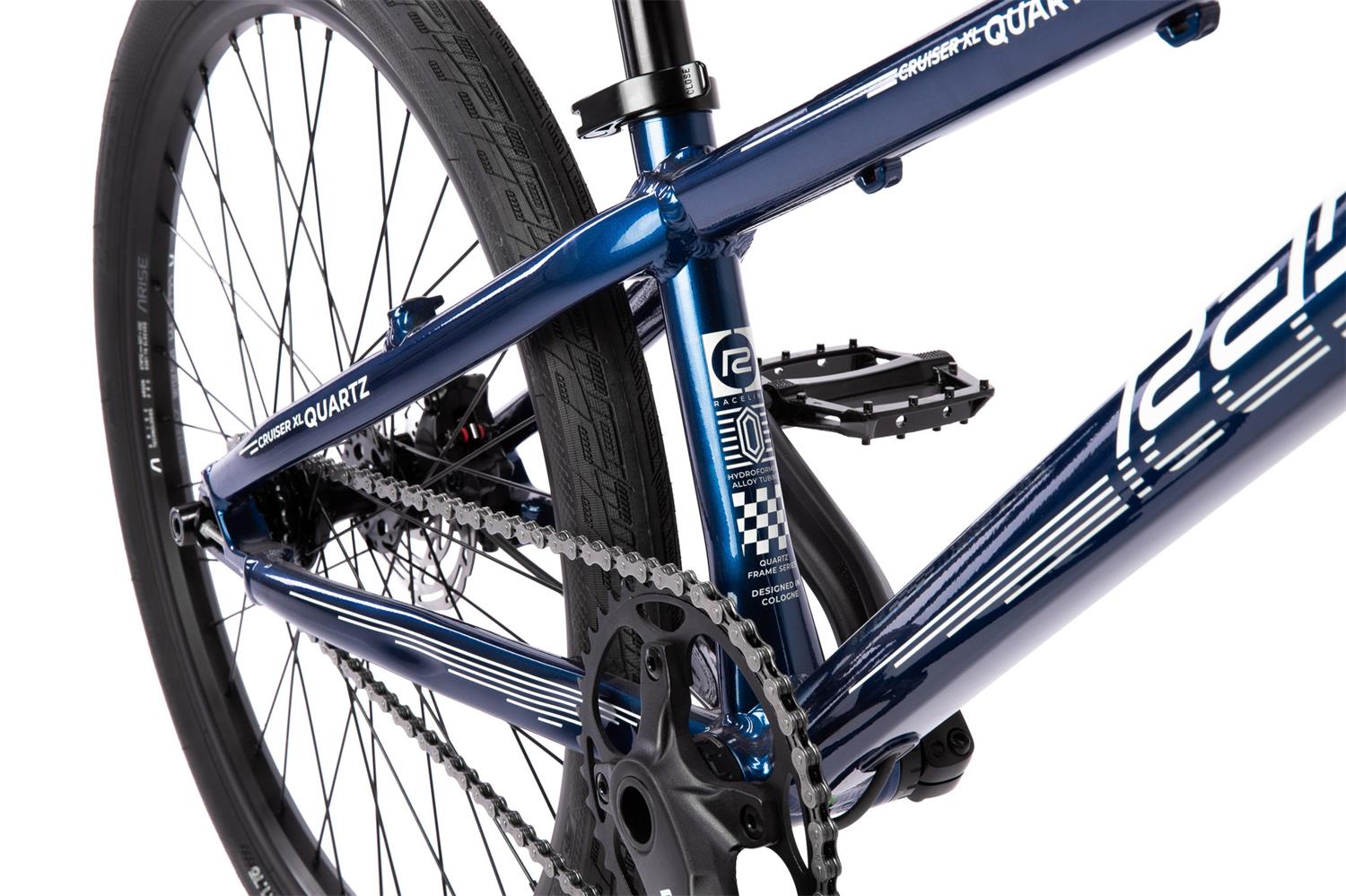

- FRAME: RADIO RACELINE "QUARTZ DISC" frame, lightweight hydroformed 6061-T6 alloy, tapered headtube, sliding forged dropouts, with int. chaintensioners, flatmount disc brake

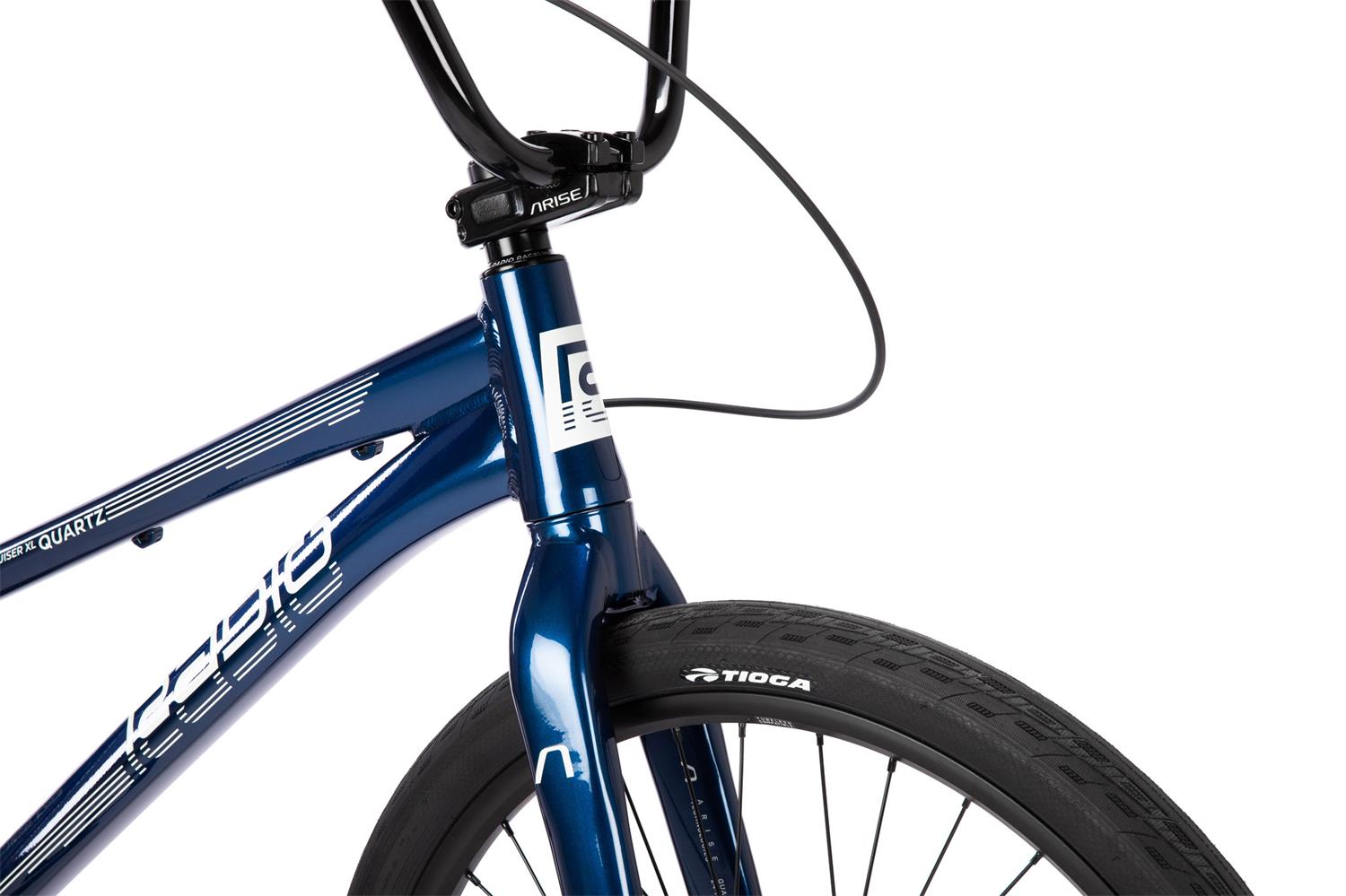

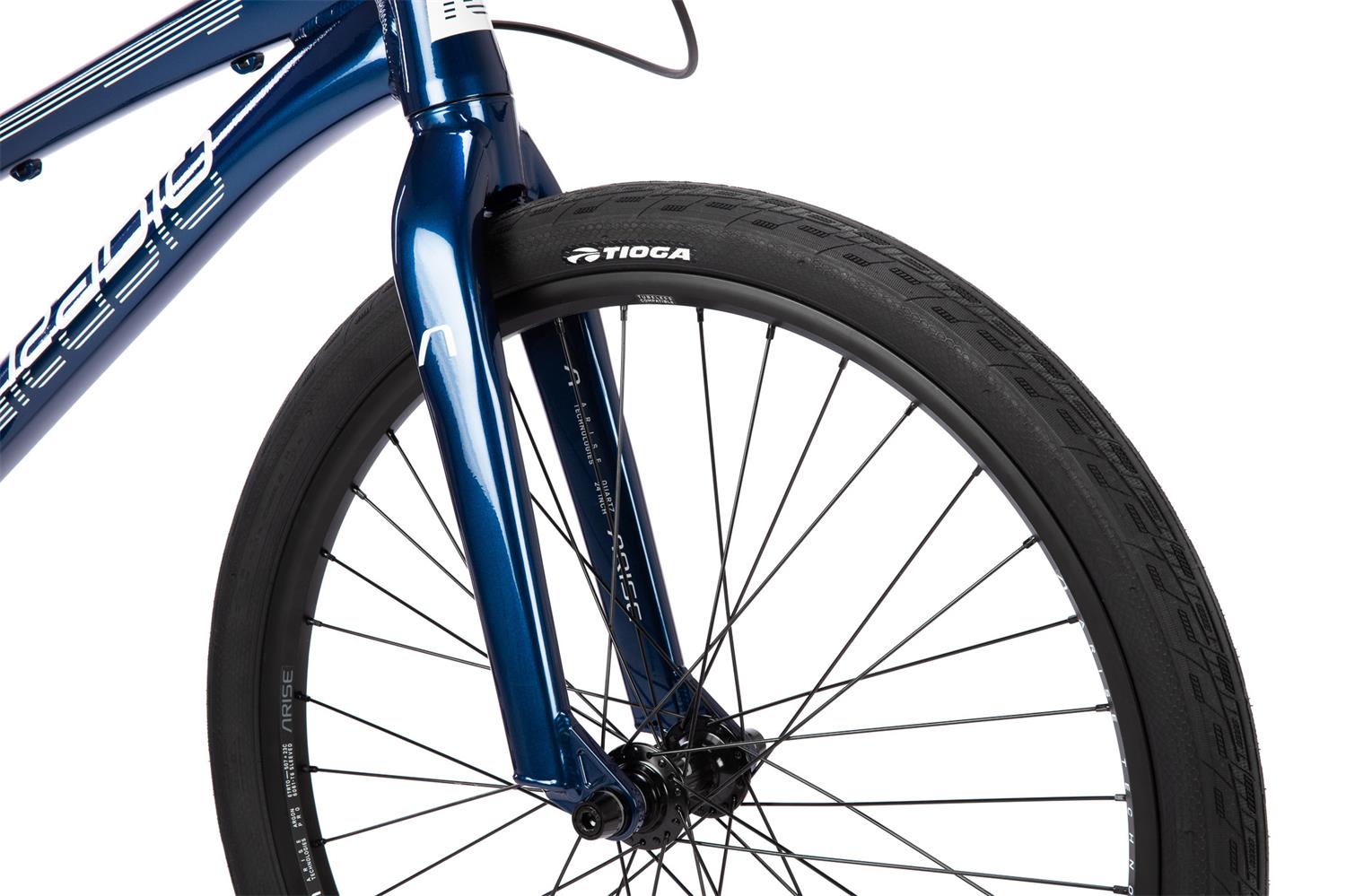

- FORK: ARISE QUARTZ PRO fork, aluminium, 31mm offset

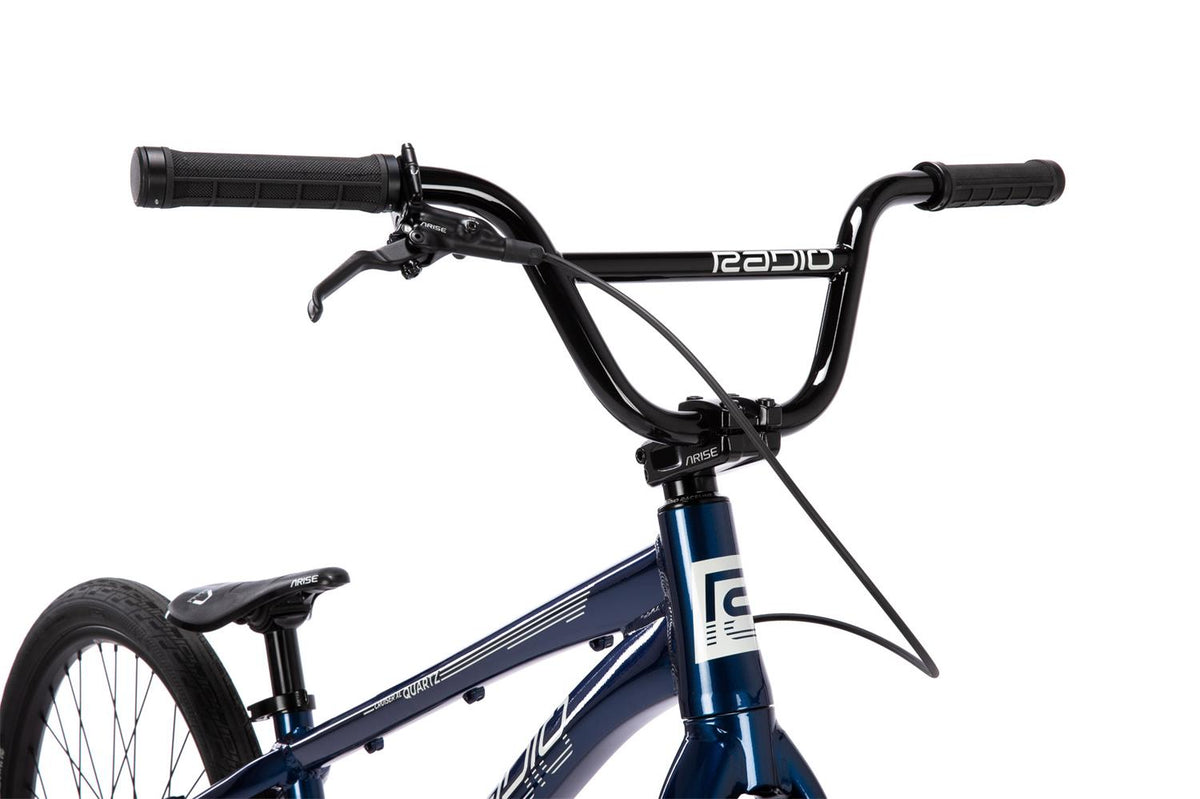

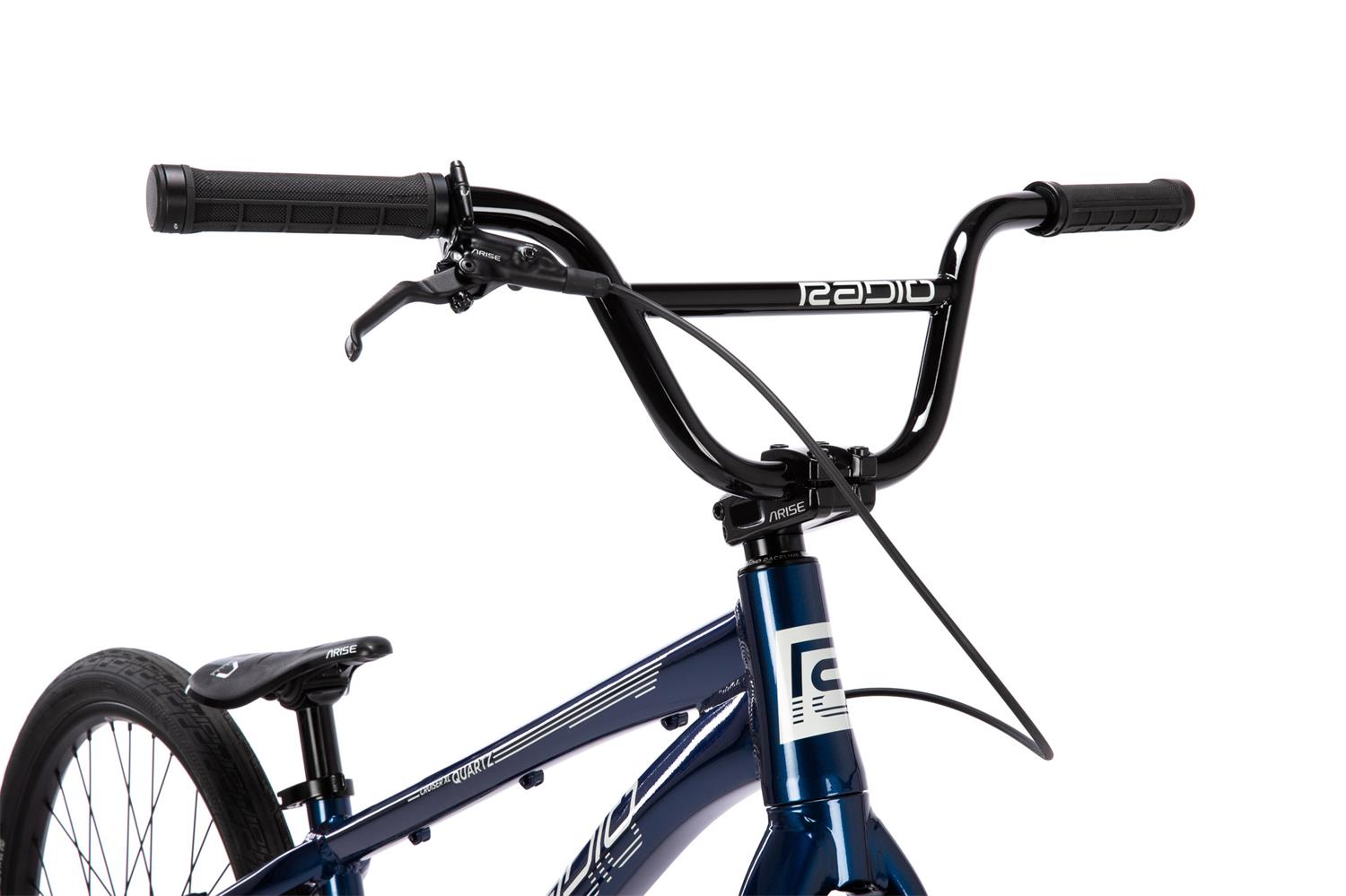

- HANDLEBAR: 6" 4130 crmo bar, seamless
- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length

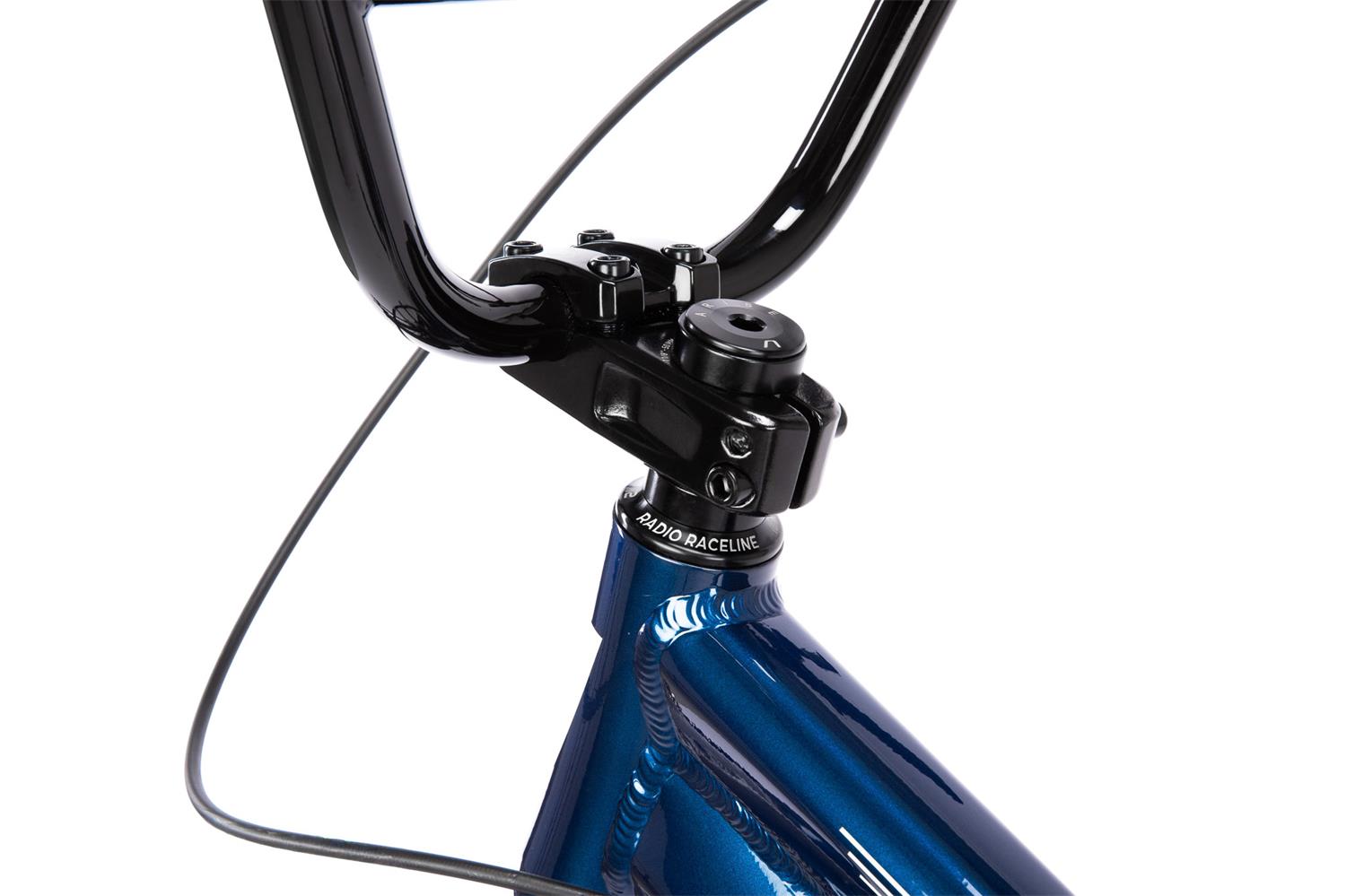

- STEM: ARISE "NEON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy
- HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5"

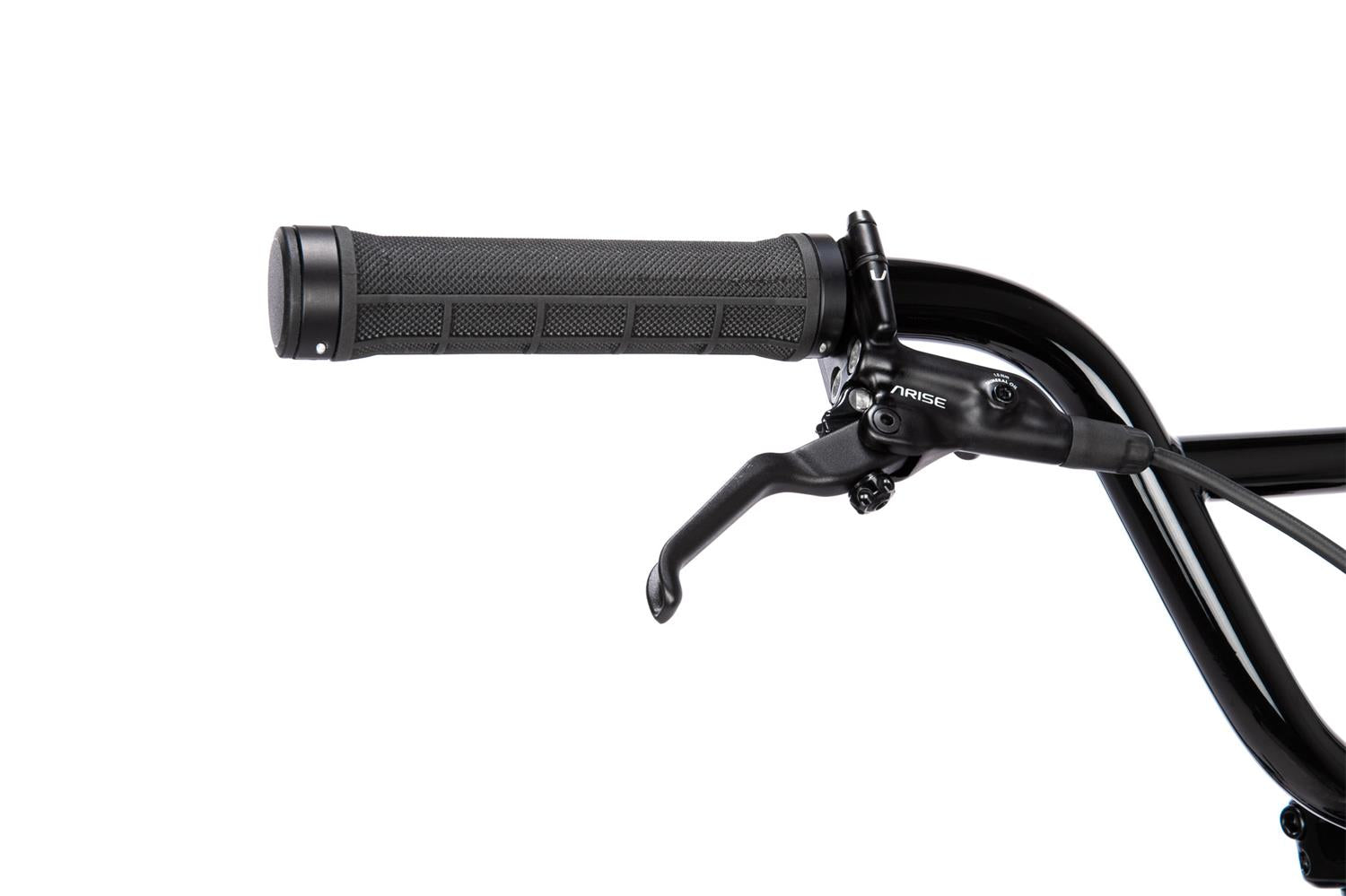

- BRAKE LEVER: ARISE XENON Disc Brake Lever
- BRAKE: ARISE XENON Disc Brake Rear

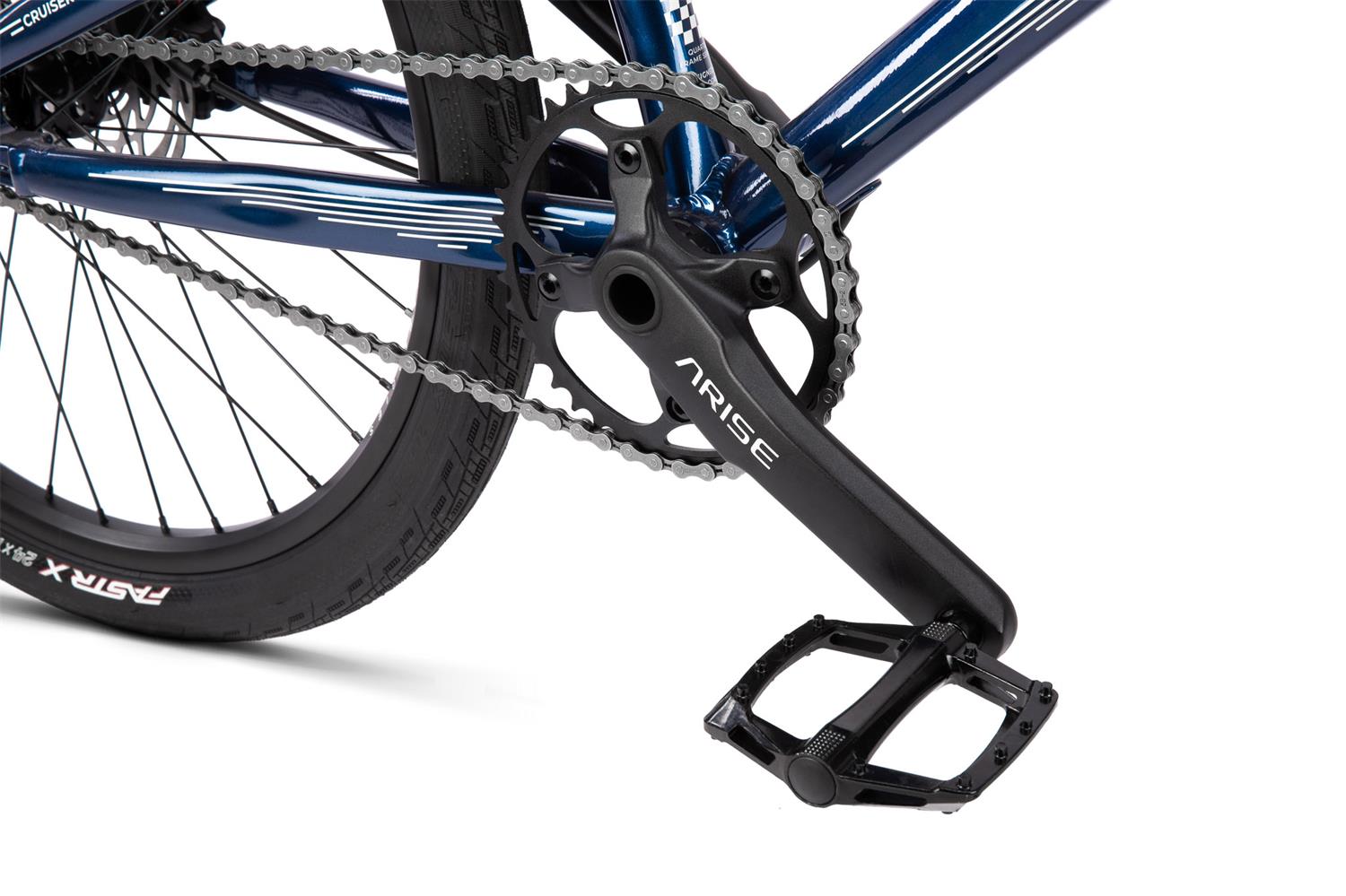

- CRANK: RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 175mm / 180mm length, 24mm spindle
- BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
- PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
- CHAIN: KMC "Z1eHX" chain, 1/2" x 3/32"
- SPROCKET: ARISE "XENON PRO" sprocket, 43T / 44T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

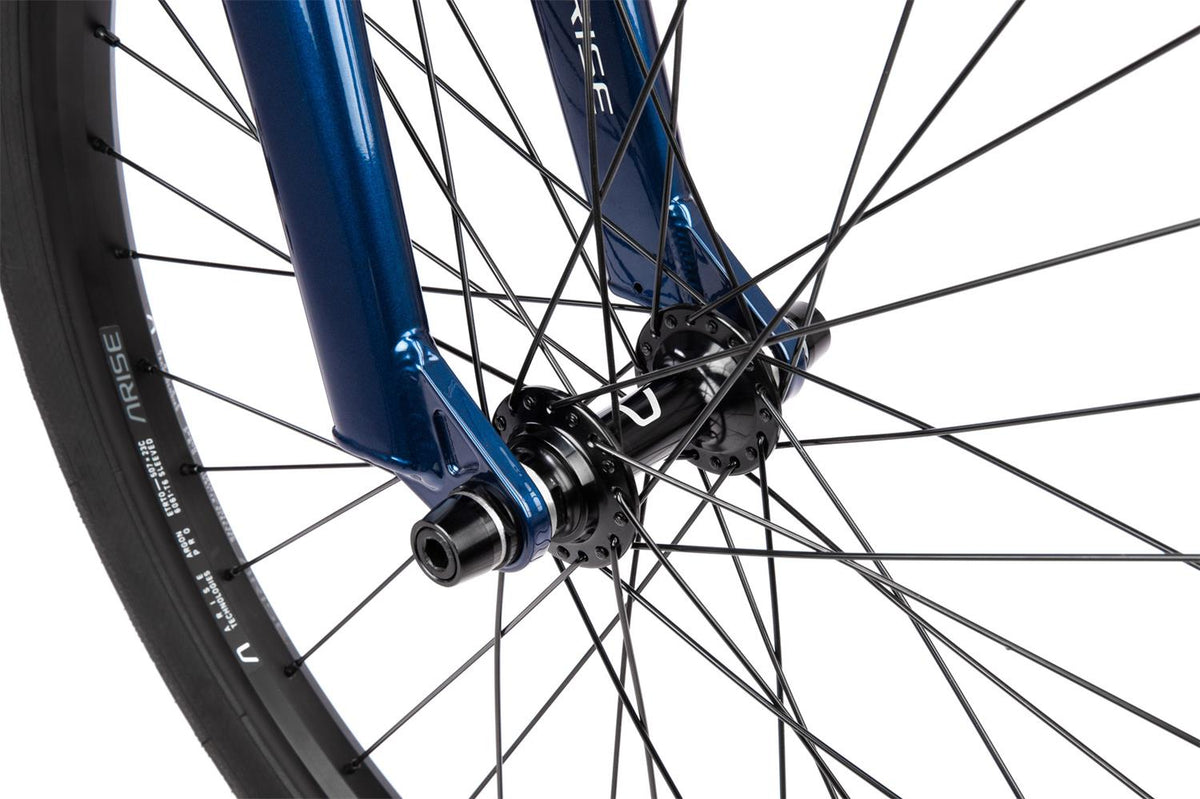

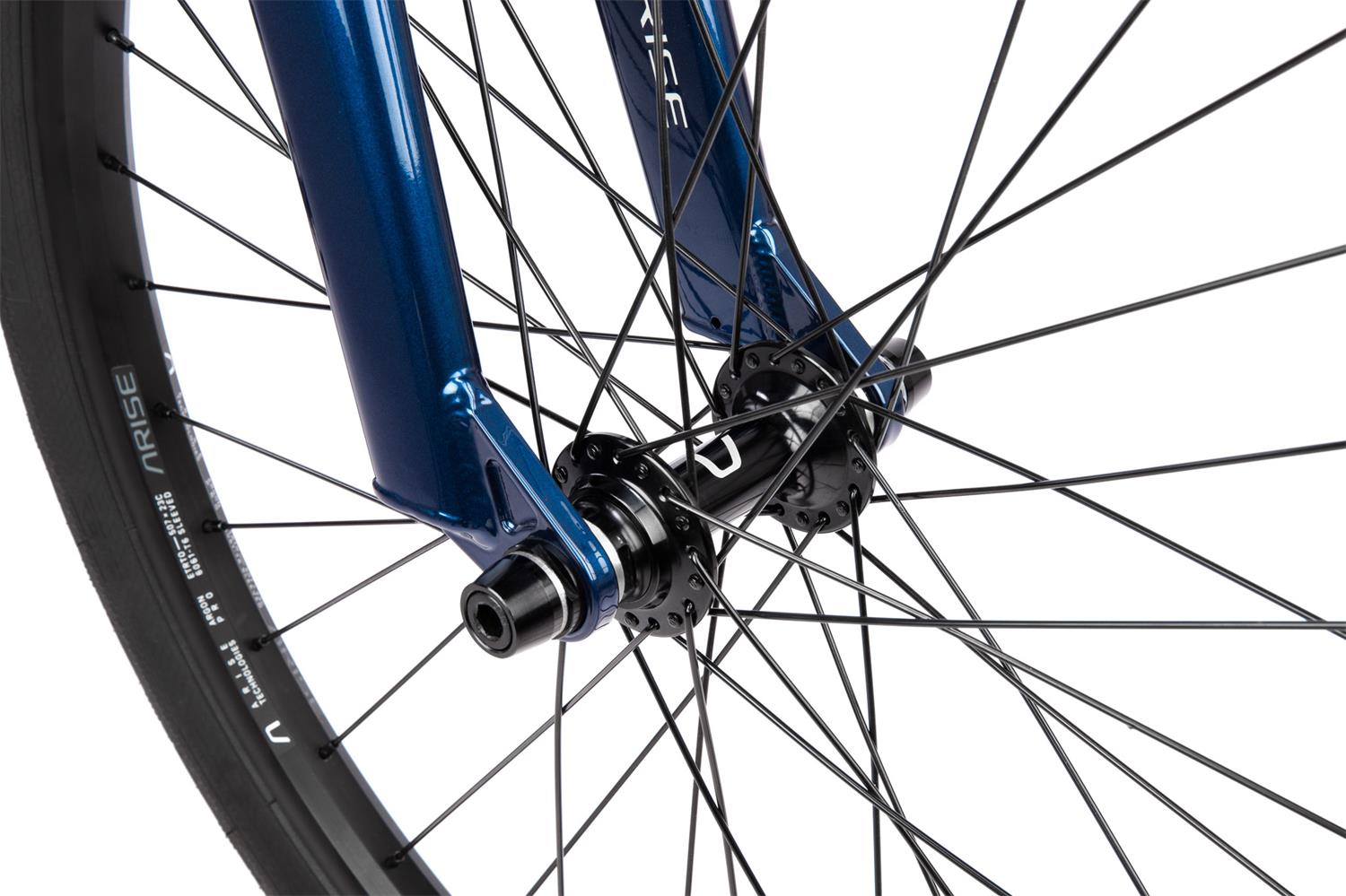

- FRONT HUB: ARISE "BRAVO" front hub, alloy cnc, fully sealed, 32h / 36h, 3/8" female crmo axle

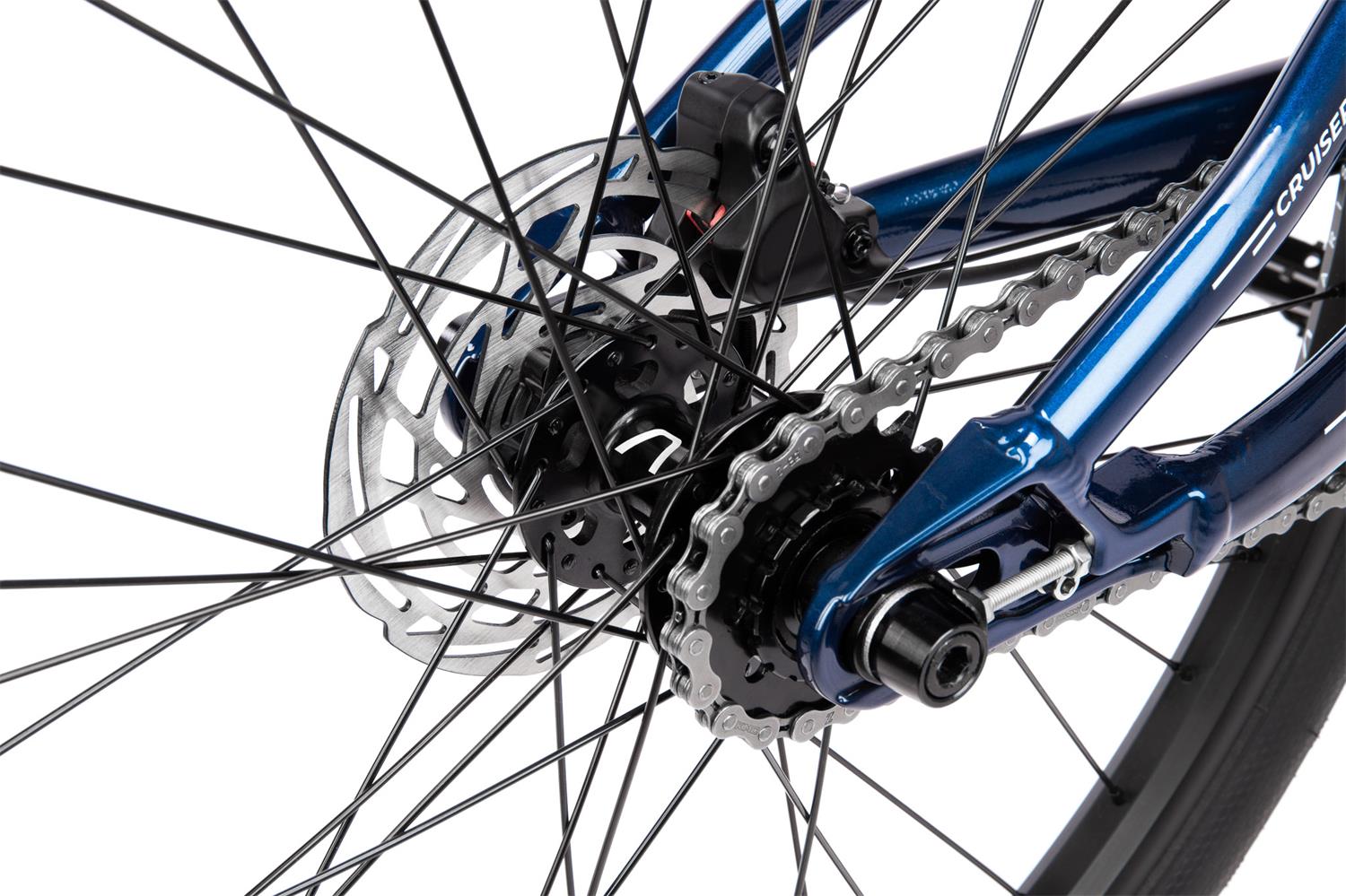

- REAR HUB: ARISE "BRAVO"" rear hub, alloy cnc, fully sealed, 32h / 36h, disc brake cassette, 3/8" female crmo axle
- FRONT RIM: ARISE "ARGON PRO" rim, flash welded, 32 / 36h, tubeless ready, alloy
- REAR RIM: ARISE "ARGON PRO" rim, flash welded, 32 / 36h, tubeless ready, alloy
- SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
- SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
- SEAT CLAMP: ARISE HELIUM PRO seat clamp, quick-release, alloy
- TIRES: TIOGA FASTR TIRES front: 24" x 1.75" and rear: 24" x 1.75"
Weight
TBA
Frame Geometry:
| Top Tube Length | 22" |
| Chain Stay Length | 15.15" |
| Head Tube Angle | 74° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 10.23" |
Handlebar Geometry:
| Rise | 6" |
| Width | 26.8" |
| Backsweep | 8° |
| Upsweep | 2° |
