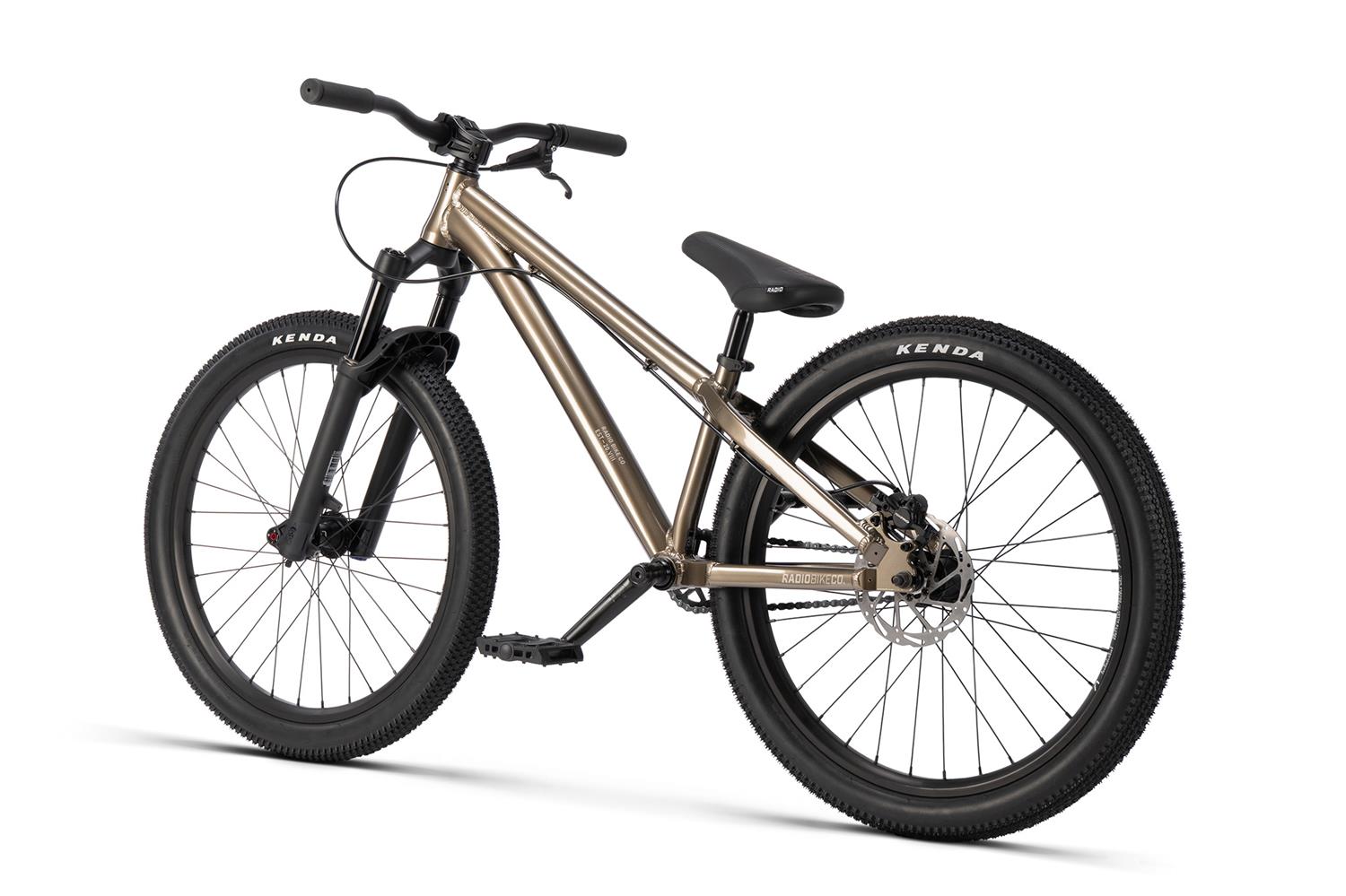

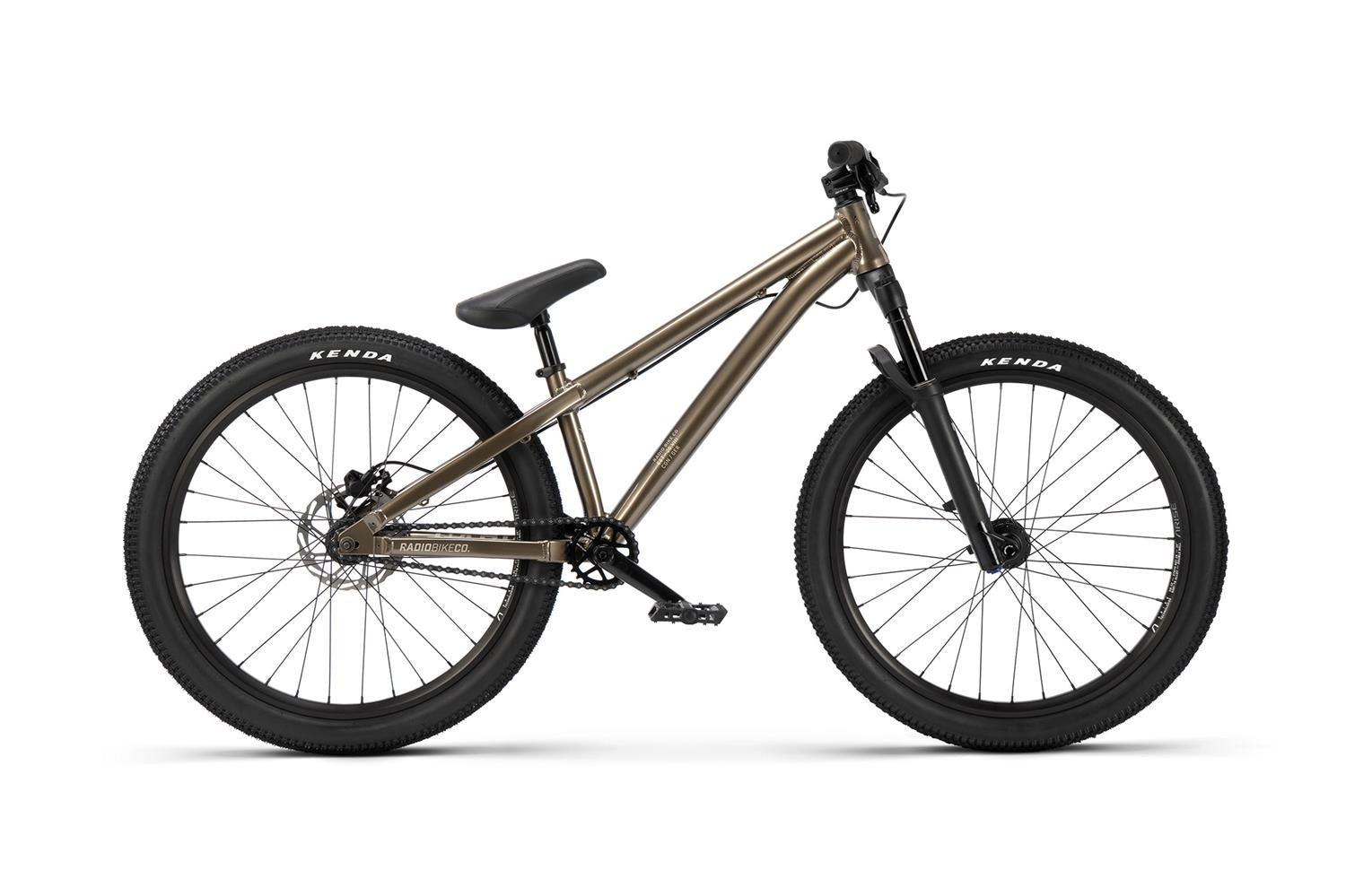

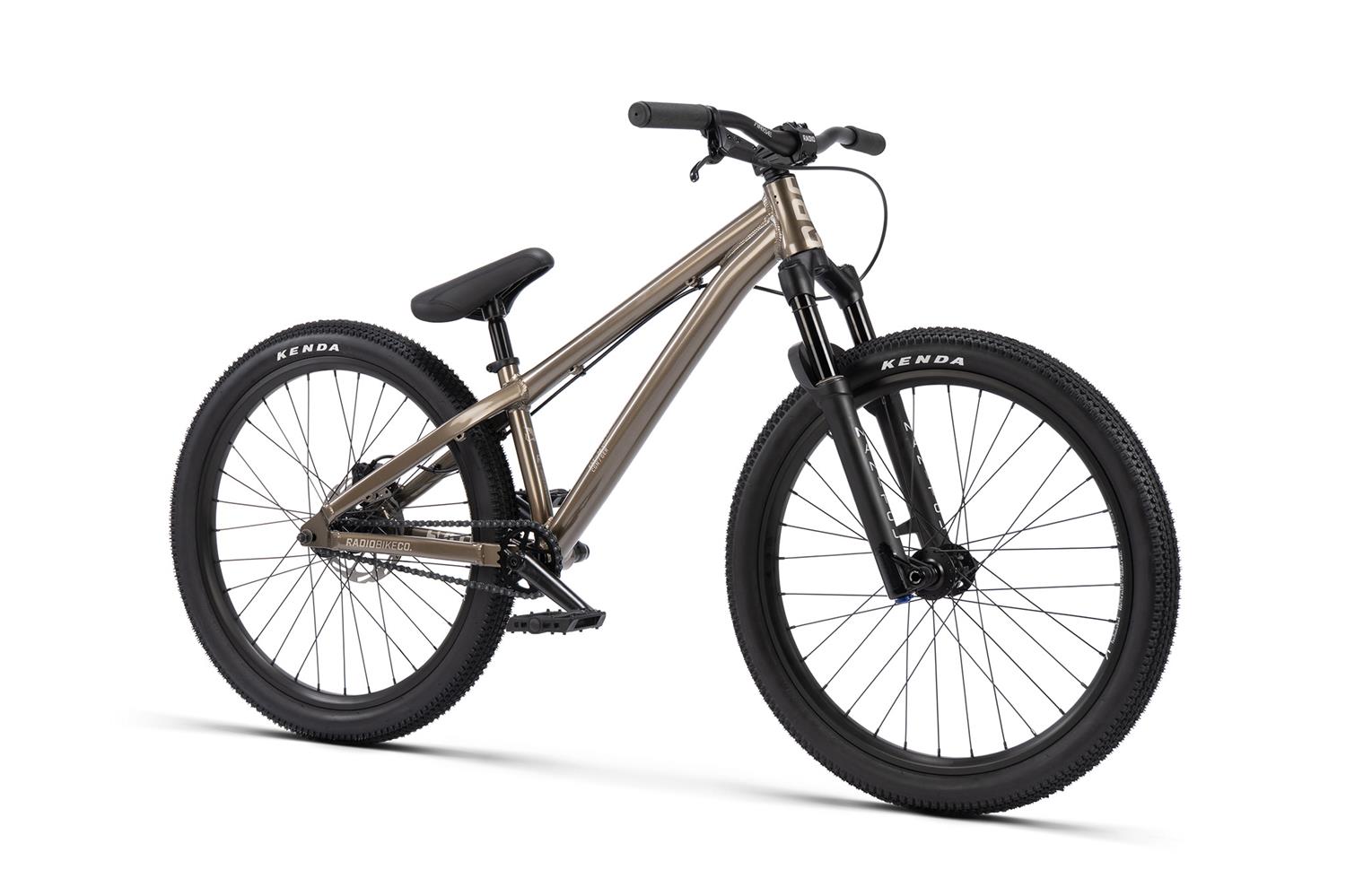

Radio Griffin 24"

Head on down to the local spot with the crew and love every minute of it! This bike is designed as a pumptrack/dirt jumper hybrid and is in a league of it's own. Sick brand, sick parts, sick design- Griffin(out the)Door.

Features
• 24” dirt jump / pumptrack bike
• 6061-T6 aluminium frame
• Manitou 90mm suspension fork
• Radio Century combo seat
• Salt+ Ultra 3pc BMX cranks
• Front & rear disc brakes
• Kenda small block 8 2.1"" tyres

Specifications

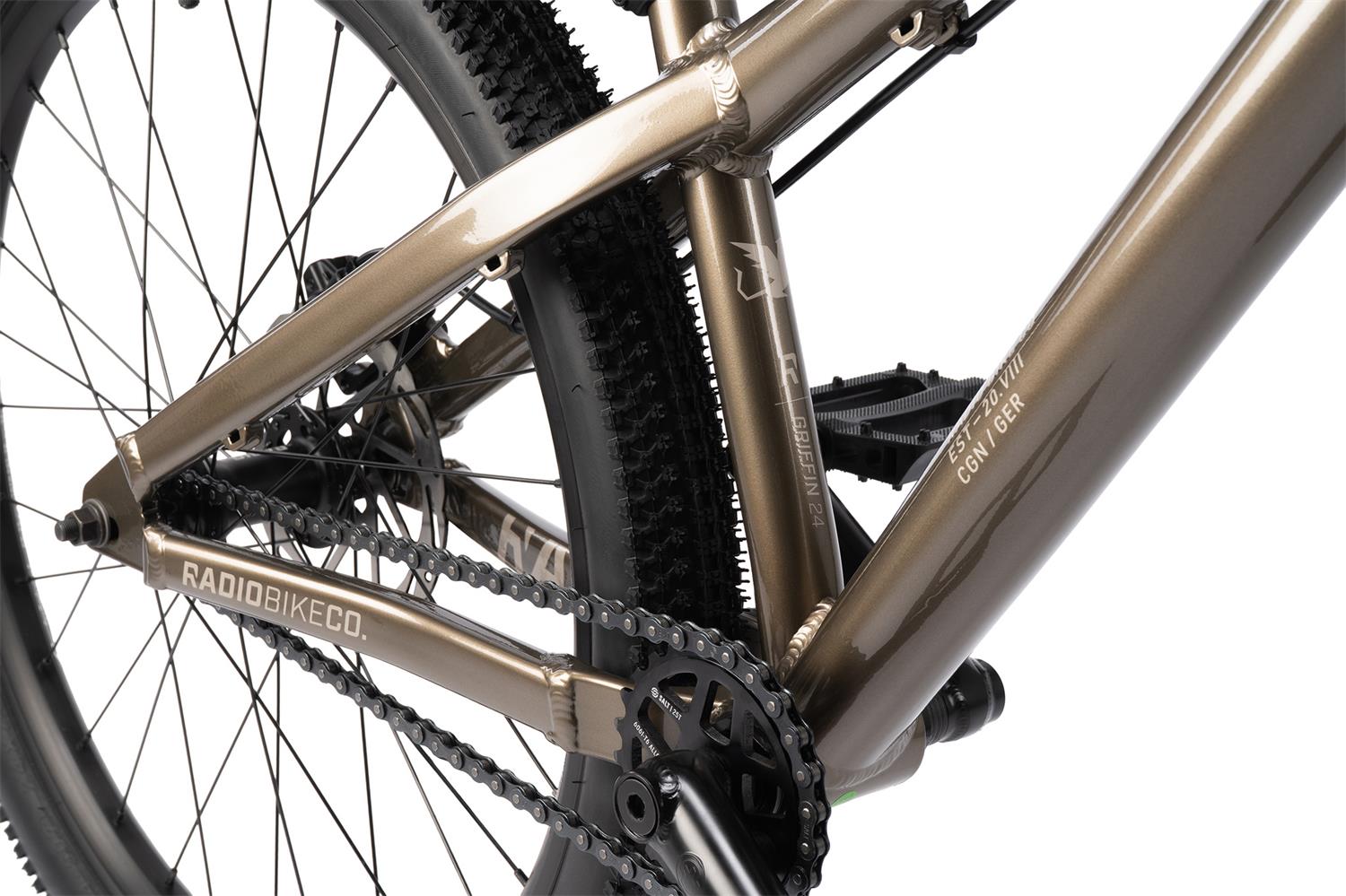

Frame - Radio Griffin 24 frame, 6061-T6 aluminium, tapered head tube, forged yoke

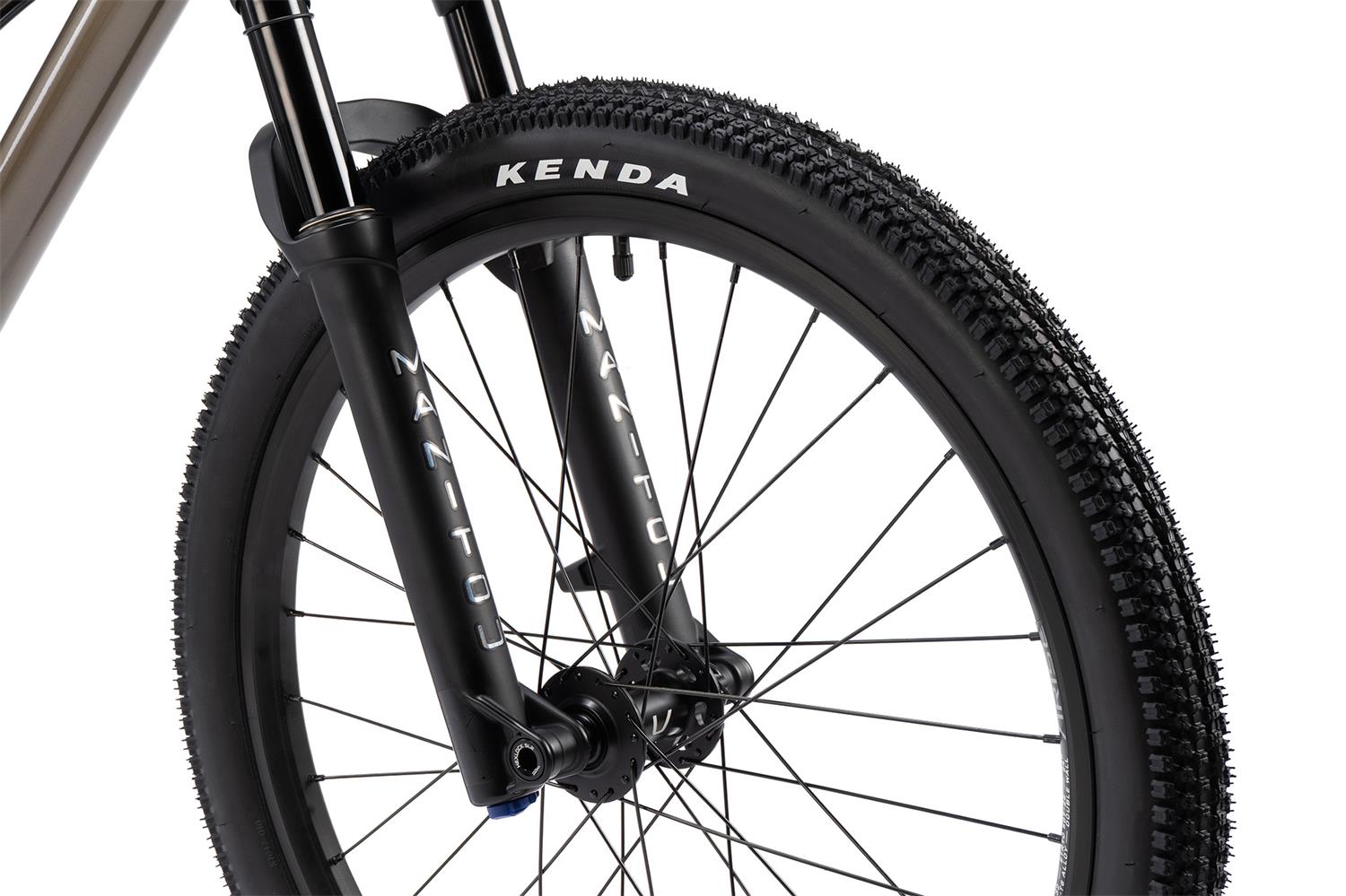

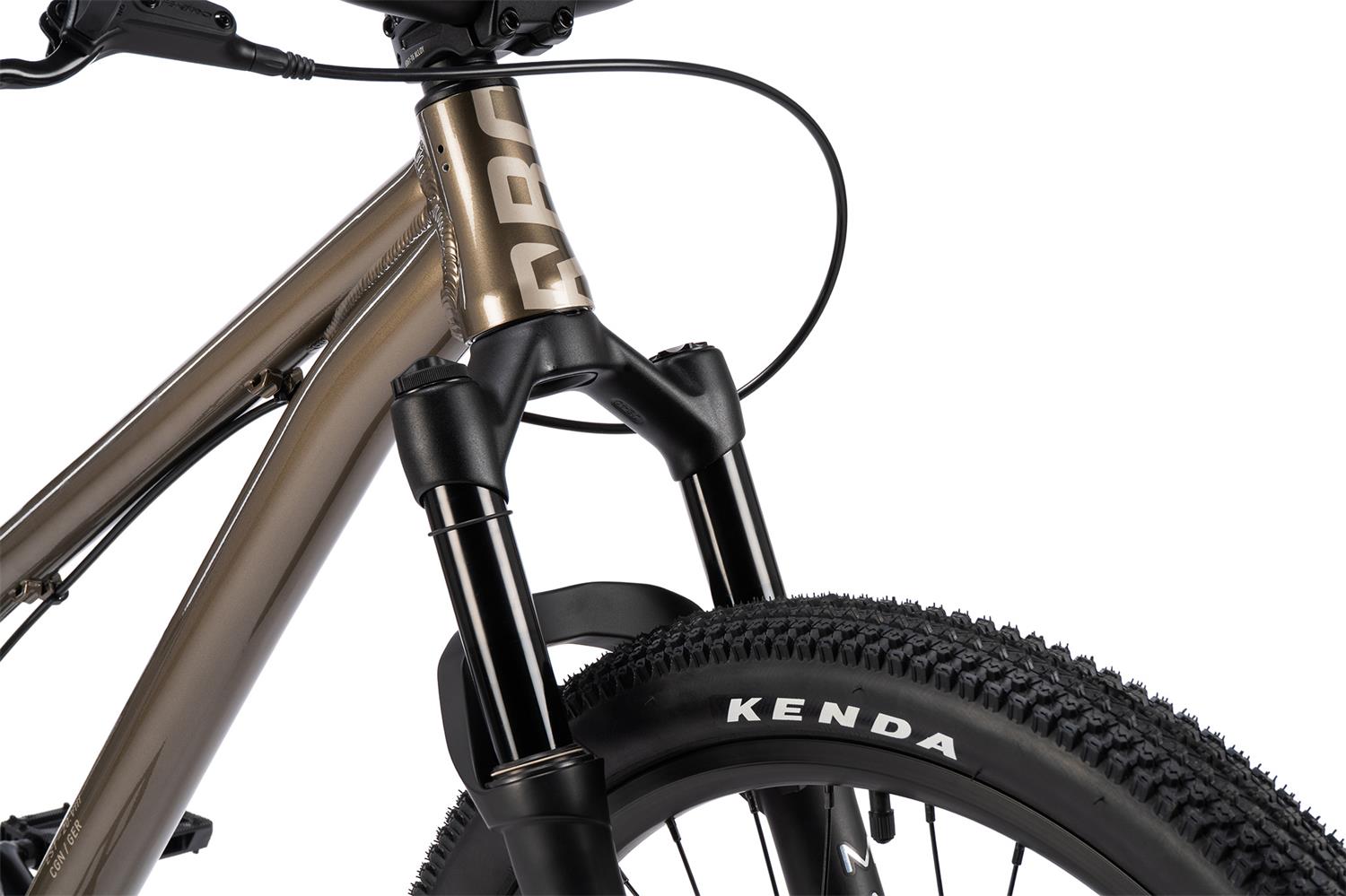

Fork - Manitou Junit Circus Comp, 90mm travel

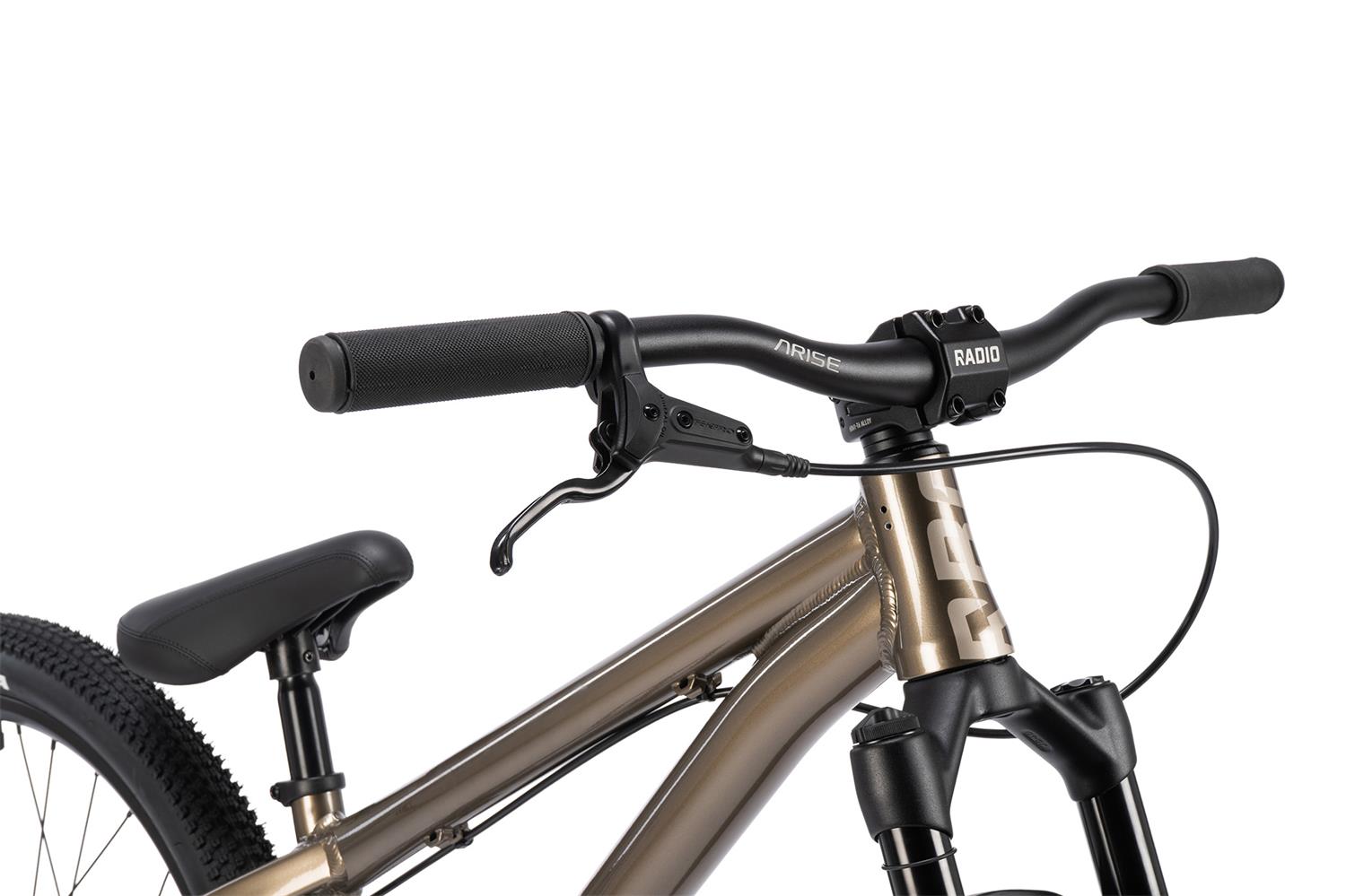

Handlebar - Arise Griffin 24 bar, 6061-T6 aluminium, 31.8mm
Grips - Radio Frequency grips, flangeless, 130mm

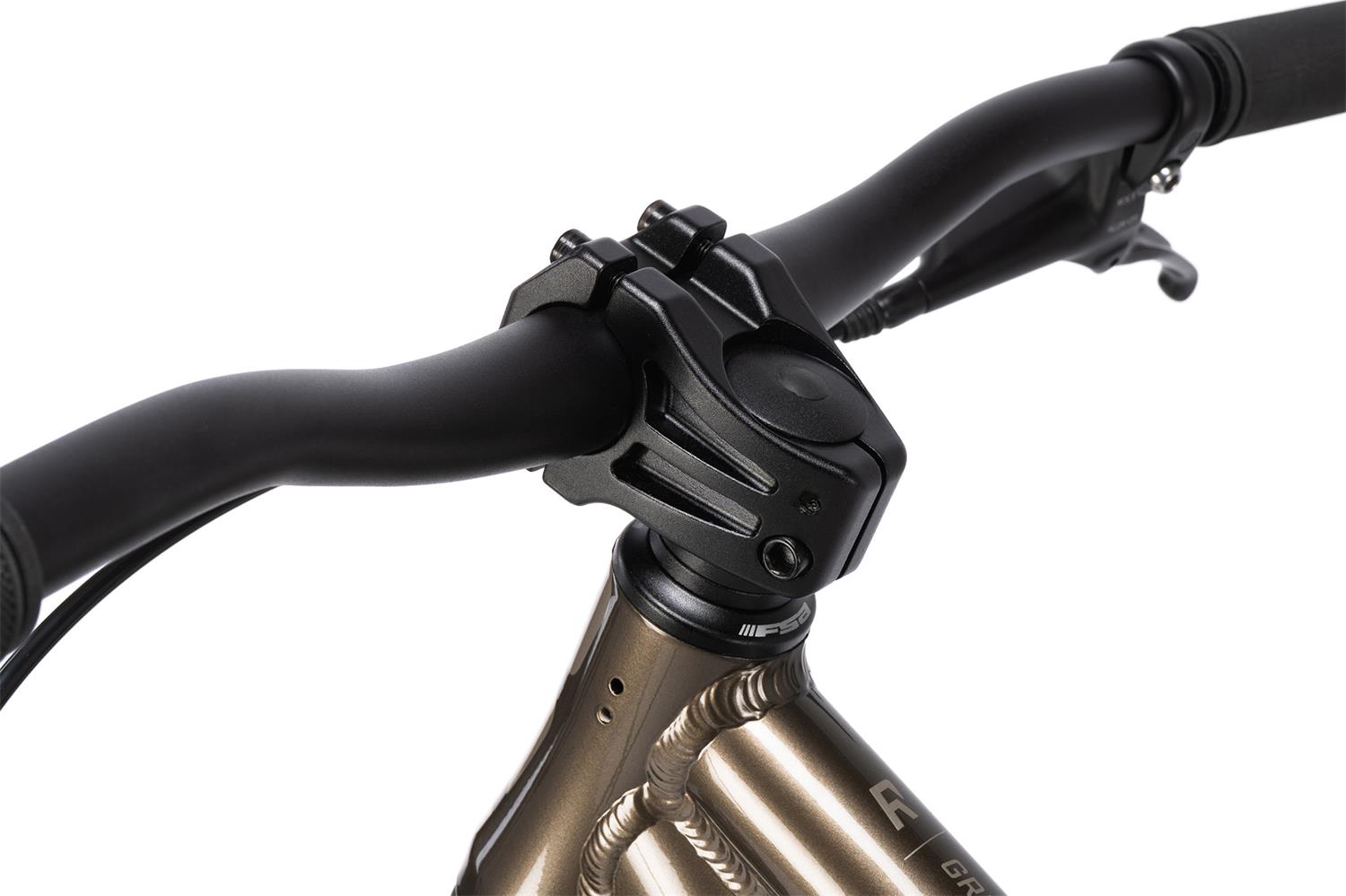

Stem - Arise Zoom frontload stem, aluminium, 40mm reach
Headset - FSA NO.42/ACB-A integrated A-headset, 1-1/8"-1.5"
Brake lever - Tektro RS-360A front lever / Tektro HD-M275 rear lever

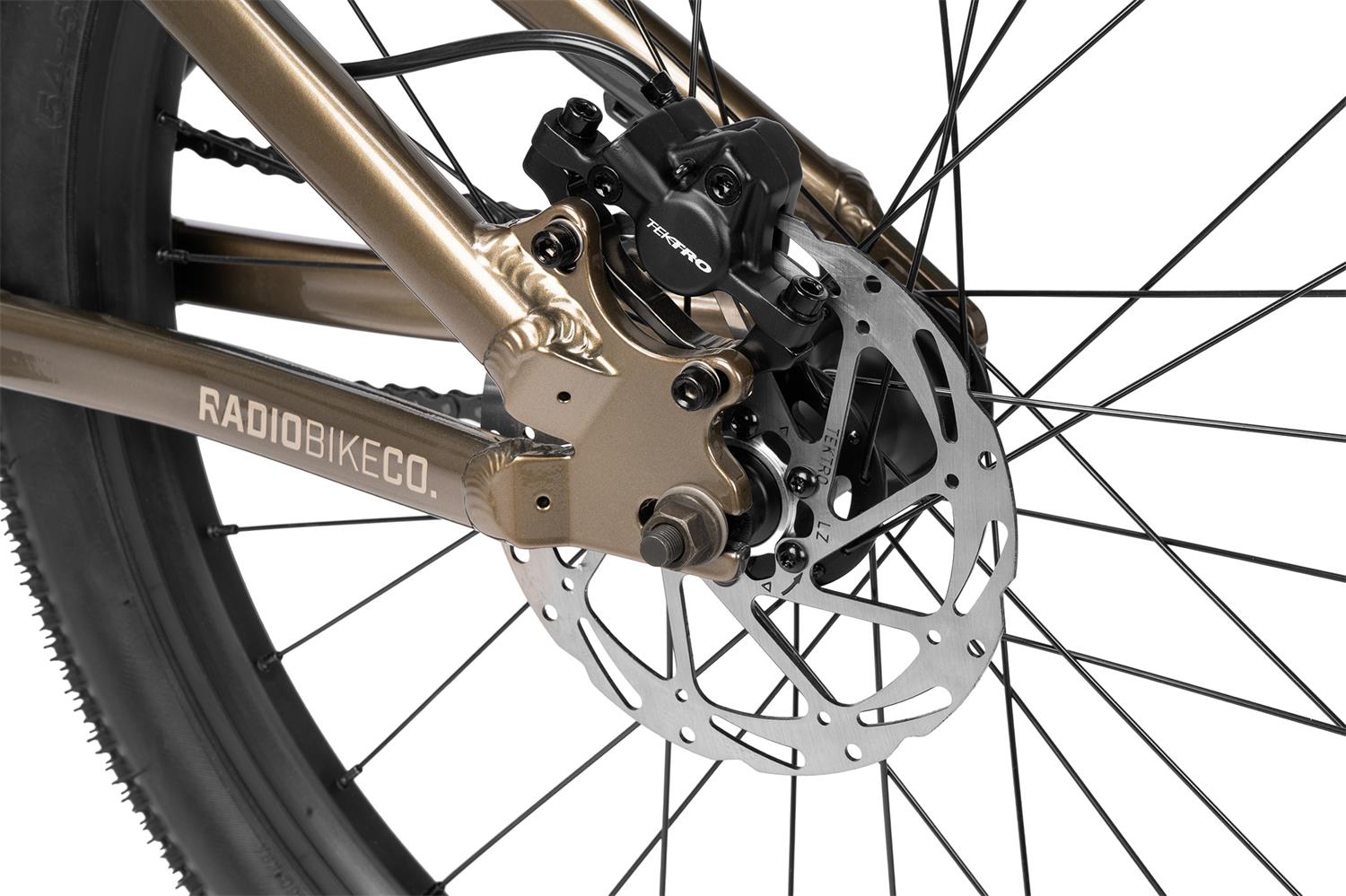

Brake - Tektro Aries mechanical disc brake, 160mm rotor, front / Tektro HD-M275 hydraulic disc brake, 160mm rotor, rear

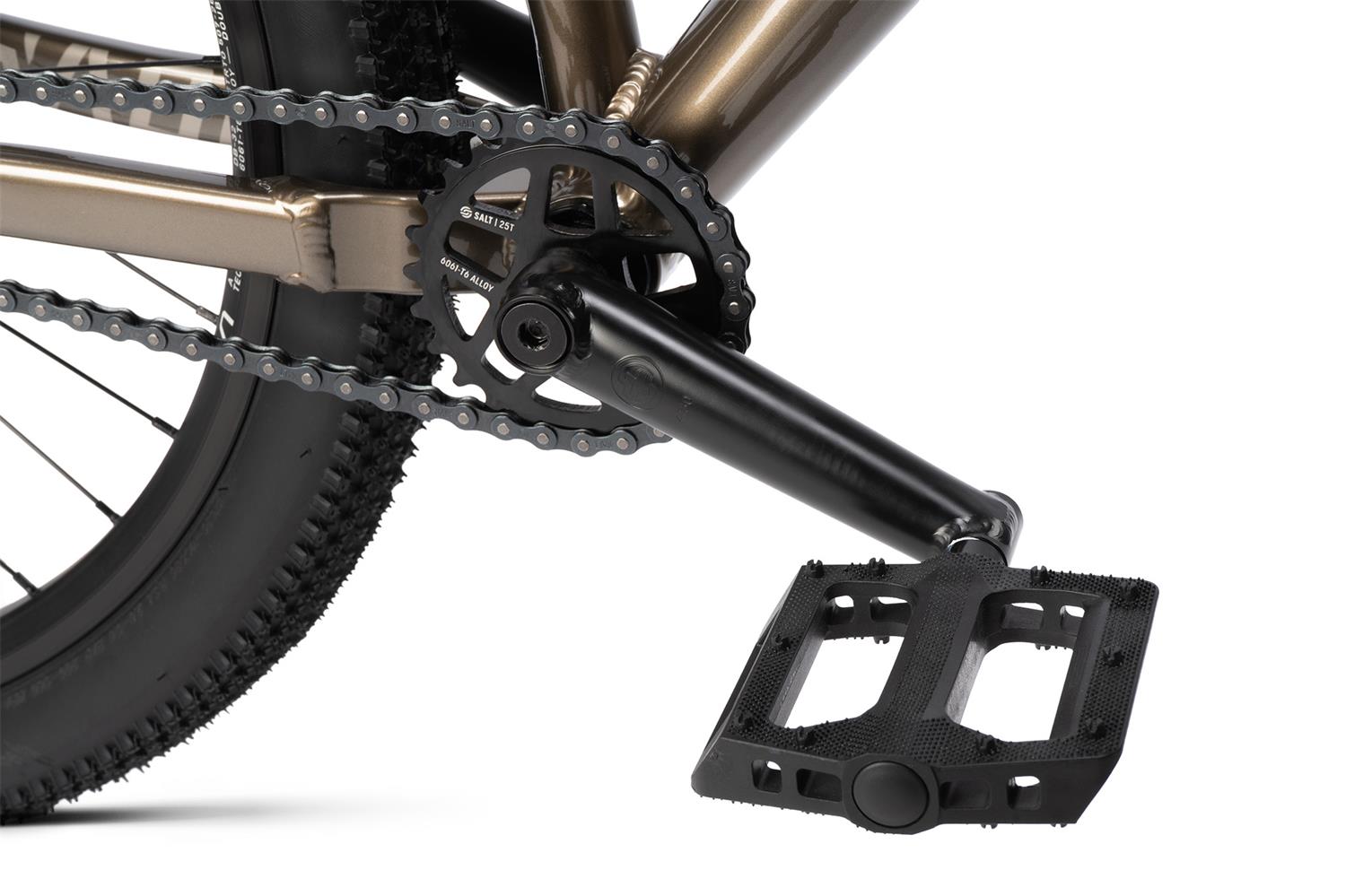

Crank - Salt+ Ultra 3pc crank, TSS, crmo, 140mm, 8 spline
BB - Radio BSA19 bb set, sealed bearing
Pedals - Radio Slim pedals, nylon/fiberglass
Chain - Salt AM chain, WZ1 type

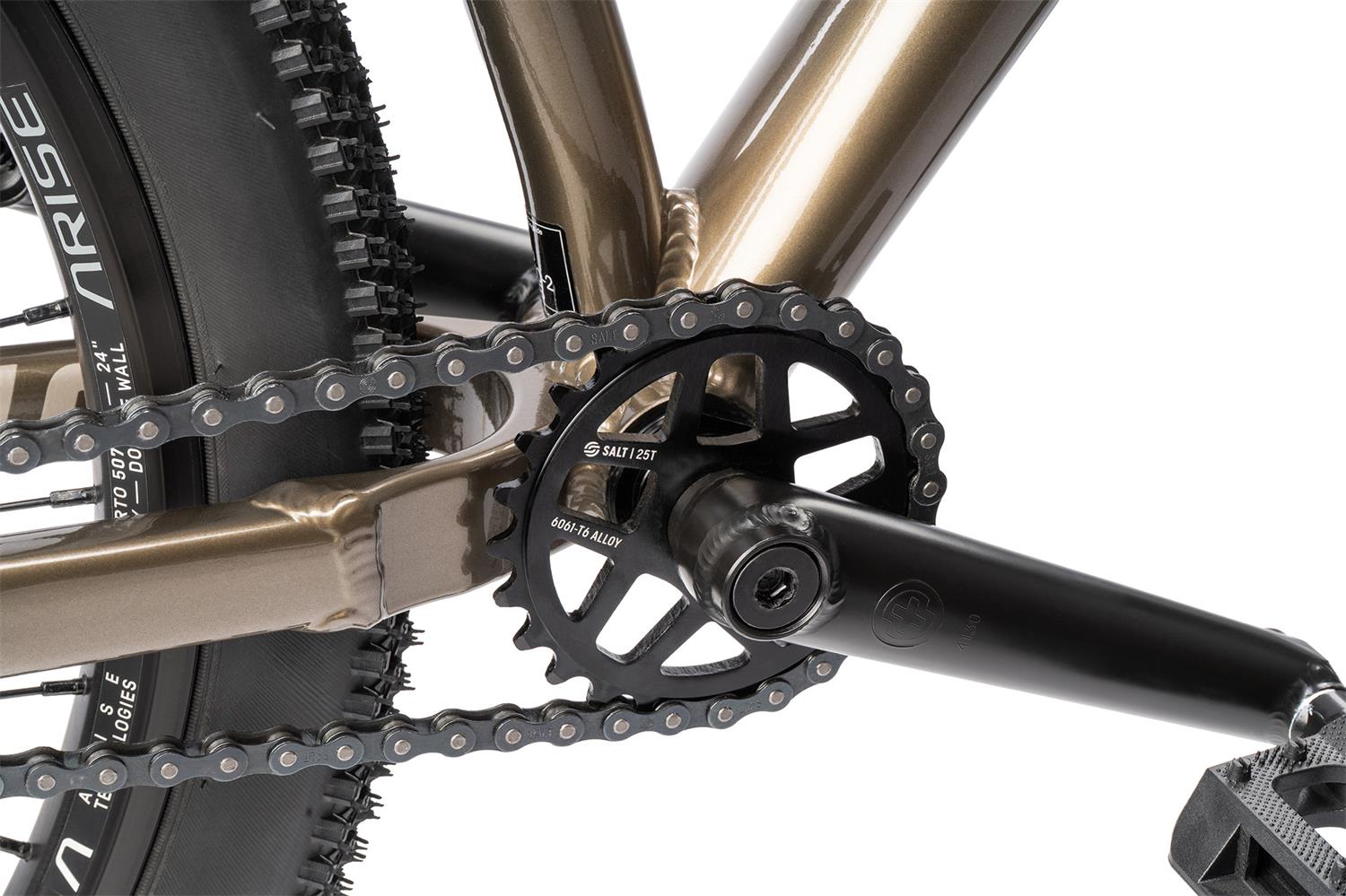

Sprocket - Salt Gateway sprocket, aluminium, 25t
Driver - cassette driver, 10t, sealed bearing

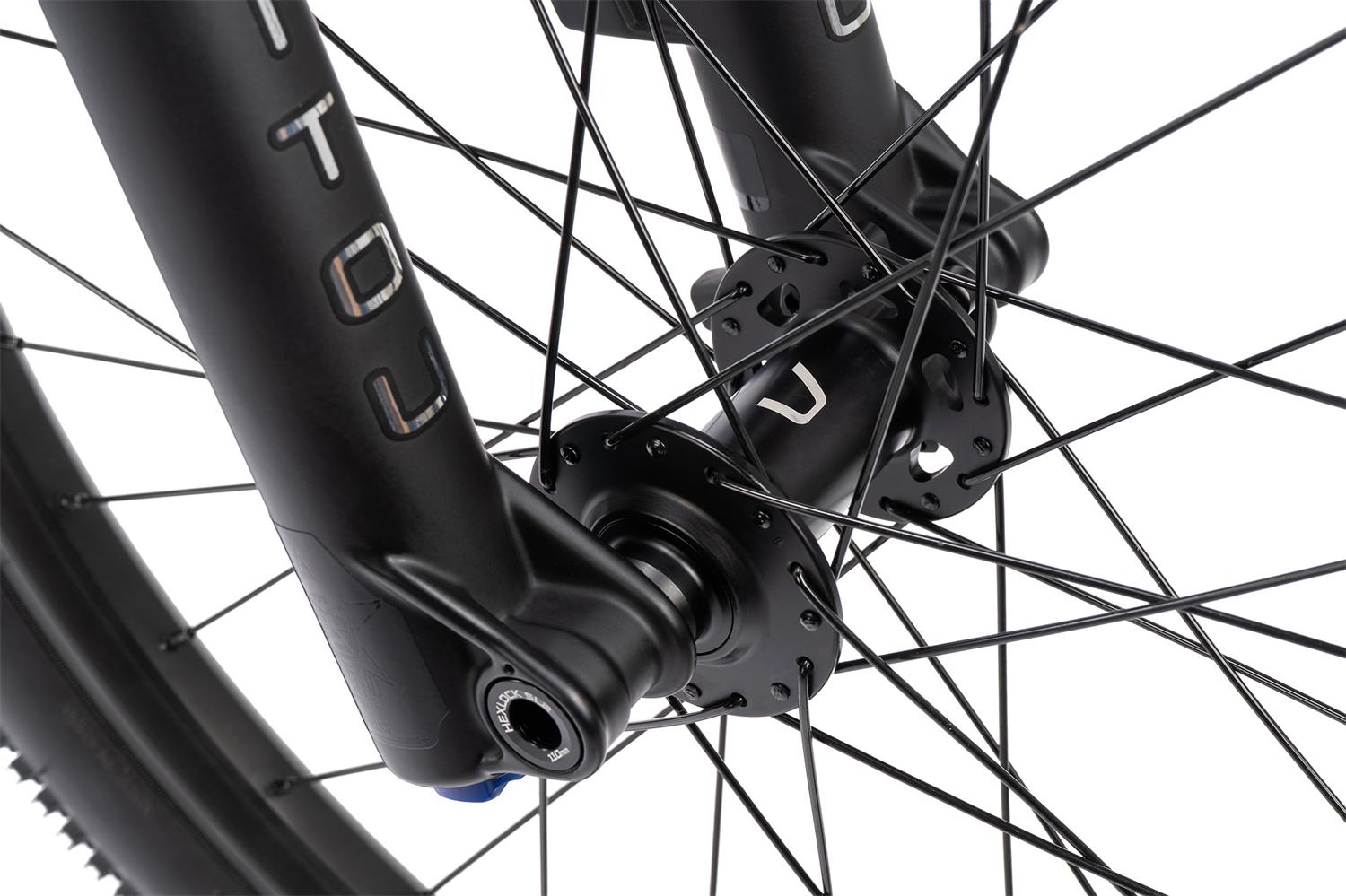

Front hub - Radio PRO-DJ disc hub, aluminium, sealed, 3/8"s male axle, 32h

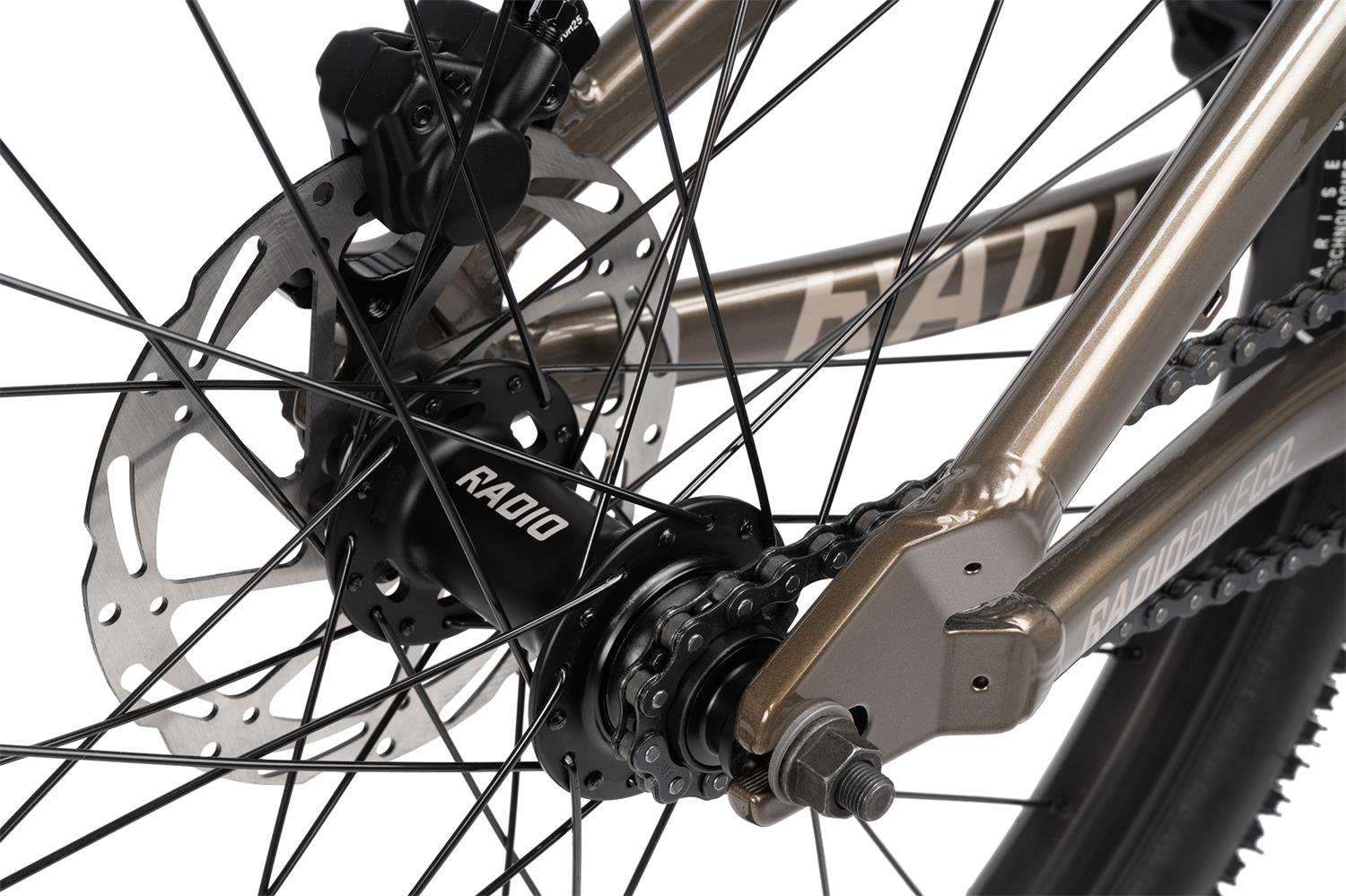

Rear hub - Radio PRO-DJ disc hub, aluminium, sealed, 3/8"s crmo axle, 32h
Front Rim - Arise DB32 rim, double wall
Rear Rim - Arise DB32 rim, double wall

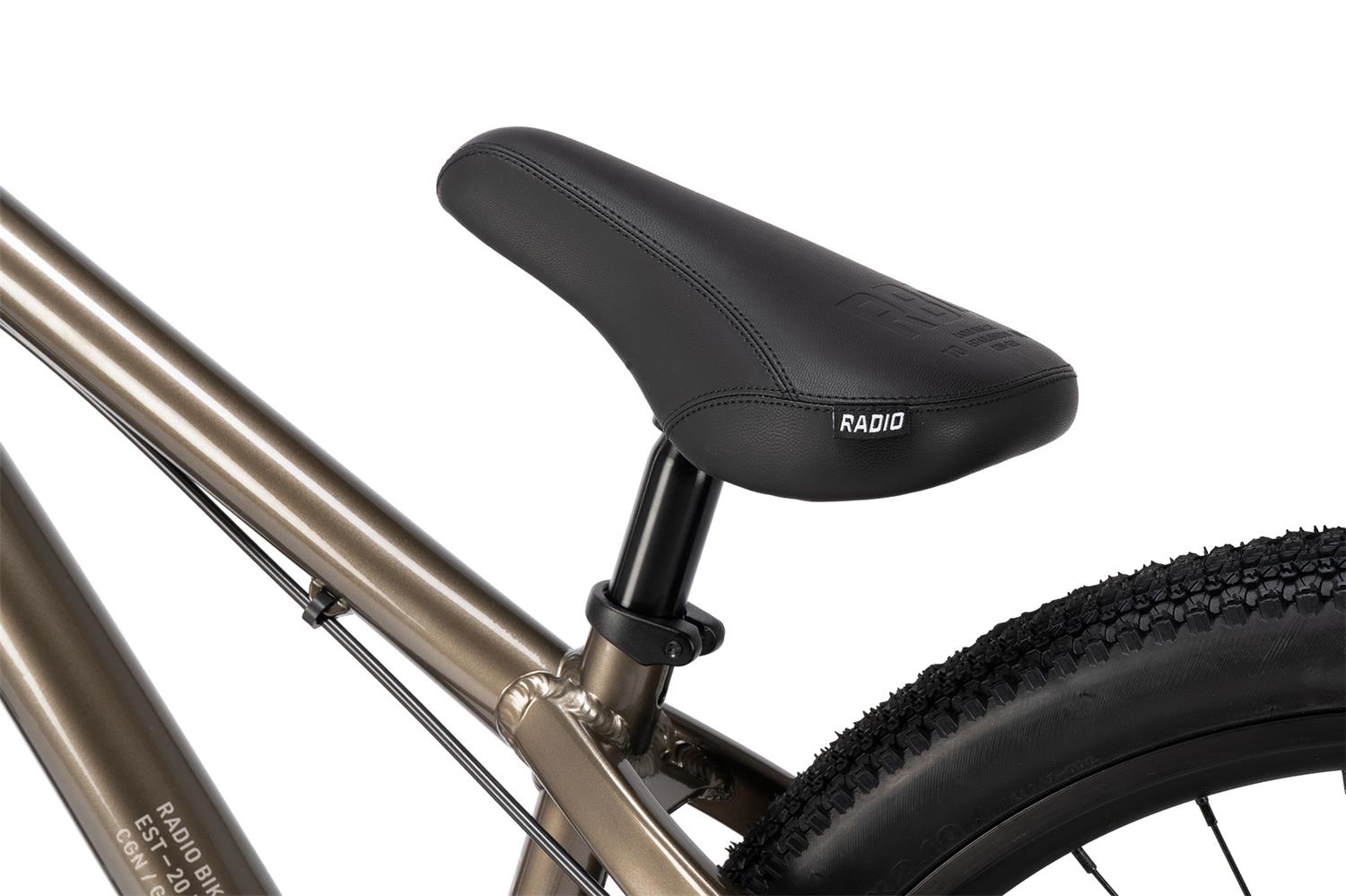

Seat - Radio DJ combo seat, medium padded
Seat clamp - Radio Quick Release seat clamp, aluminium
Tyres - Kenda small block 8 tyres, 2.1", front & rear
Weight - tba

Frame geometry
Top tube length - 20.05"
Chain stay length - 13.9"
Head tube angle - 69°
Seat tube angle - 72°
Bottom bracket height - 10mm drop
Standover height - 11"

Handlebar geometry
Rise - 25mm
Width - 660mm
Backsweep - 8°
Upsweep - 3°
