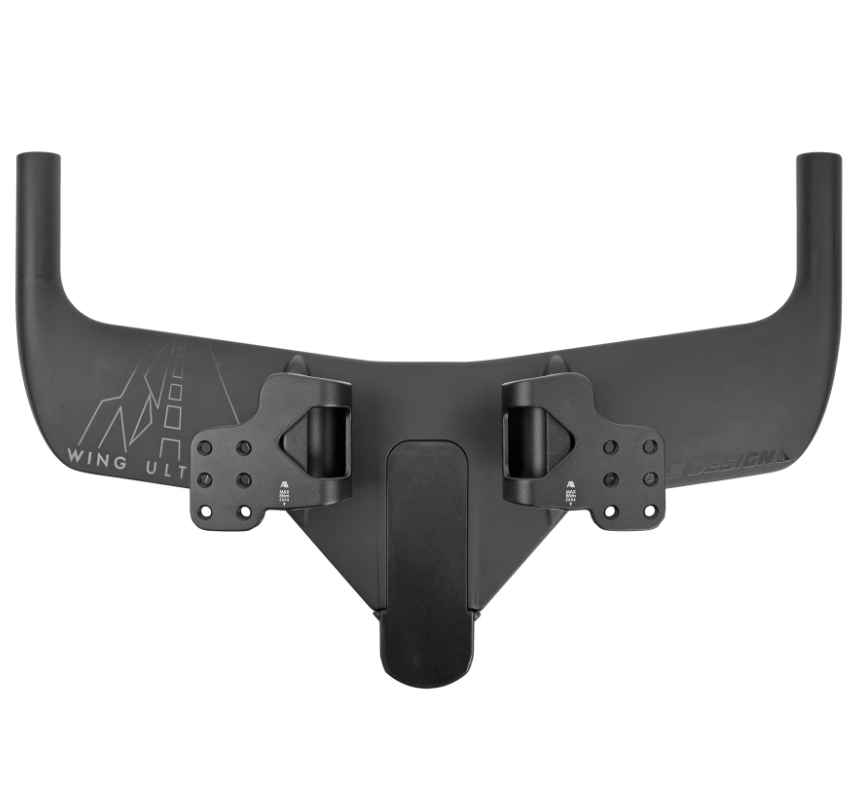

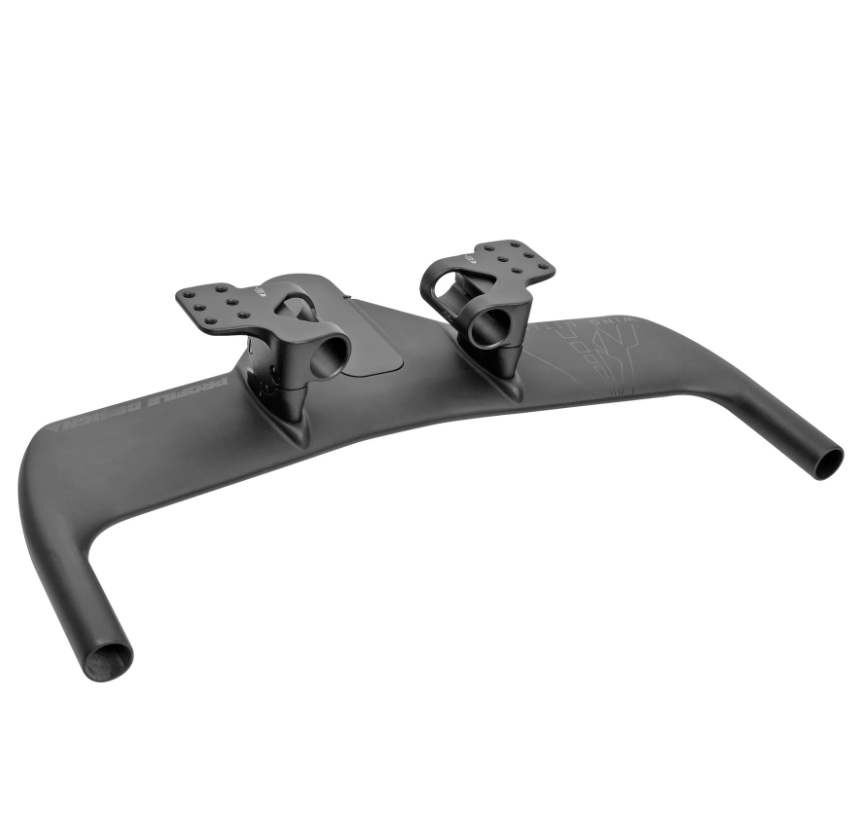

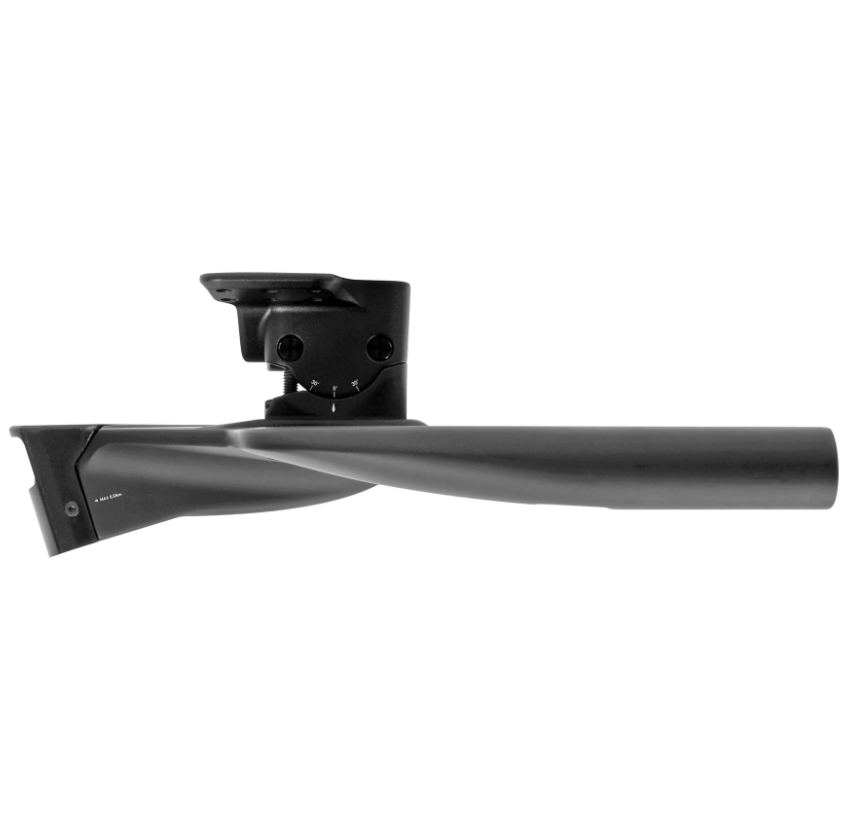

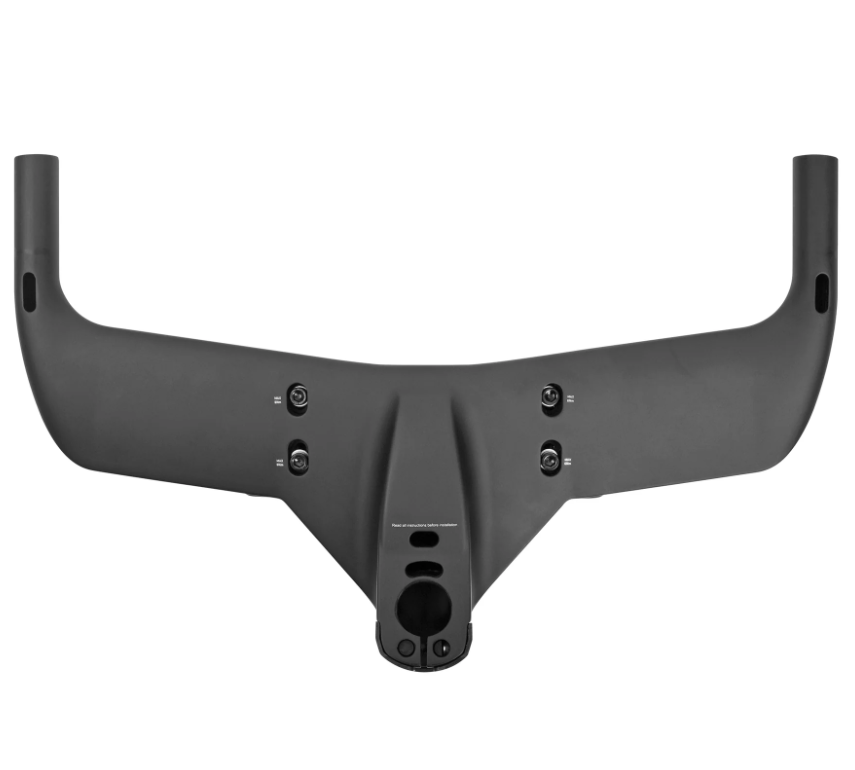

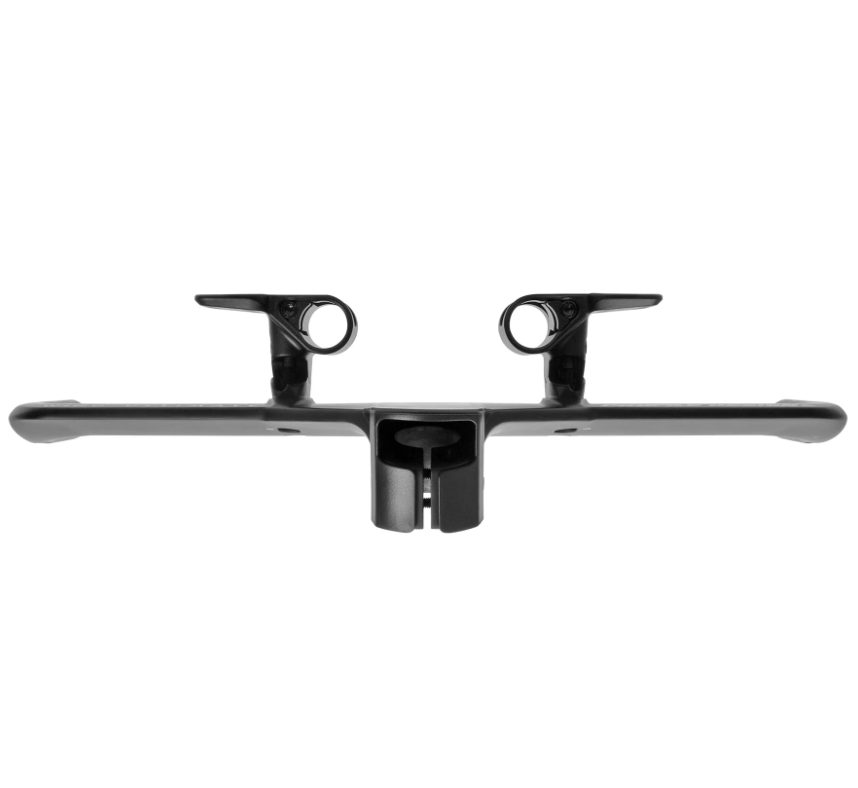

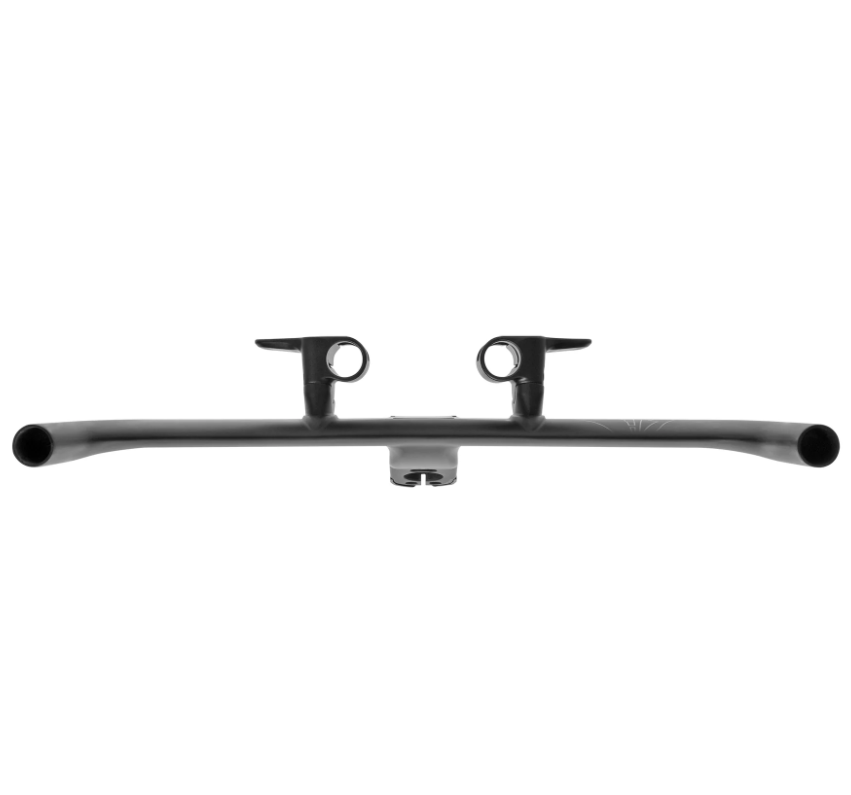

Profile Design - Wing Ultimate S with A3 Bracket Kit
Couldn't load pickup availability
Need help choosing the right size?
PROFILE DESIGN - WING ULTIMATE S WITH A3 BRACKET KIT
The Wing Ultimate S is our new halo level aerobar – a return to the integrated stem concept that we pioneered with the Carbon-X over 20 years ago. The Wing Ultimate S offers full carbon construction and a variety of cable routing options. The Wing Ultimate S has been designed to maximize aerodynamics within the updated UCI rules, offering a measurable improvement compared to a 3:1 design. It also drops a significant amount of weight compared to the Aeria Ultimate.
This Wing Ultimate S comes equipped with our new A3 bracket kit.
The A3 bracket delivers a new standard of adjustment and versatility for our integrated platform. Its reversible design and expanded tilt range now match the capabilities that previously required adaptors with the A2 bracket.
Key Benefits Include
- Independent adjustment of all components for precise tuning
- Effortless usability and proven reliability remain core strengths
- Native compatibility with A3 risers, and with A2 risers via an adaptor
- Extended reach of 30mm and an additional 15° of tilt for greater flexibility
Performance
The Wing Ultimate S offers a combination of aerodynamic integration and supreme fit range. With the change in spec comfort for most users will be increased alongside the performance advantage of lower weight.
Fit Data
- Armrest offset: -92.5mm to -10mm in 7.5mm steps
- Armrest Width: 124mm to 254mm in 18.5mm steps
- Armrest Stack: The minimum is 64mm to 84mm
Tech Specs
- Effective stem length: 89.6mm
- Effective bar reach: 142.4mm
- Basebar Width: 420mm (Center-to-Center)
- Steerer Tube Diameter: 1-1/8in (28.6mm)
- Stack of Bracket Mount: 44.3mm
- Stem Steerer Tube Stack Height: 32.5mm
- Stack of Grips: 0.5mm
- Internal Cable Routing: Yes
- Di2 Compatible: Yes
- Bracket: A3 Bracket Kit
- Armrest: Not Included
- Extensions: Not Included
- Extension Clamp Diameter: 22.2mm
- Bracket Tilt Adjustment: 0-30°
- ASC Pro Compatible: Yes
- Pursuit OD/ID: 24 / 19.6mm
- Weight: 390g (bare basebar)
