Profile Design - Wing 20c Carbon Base Bar

SKU: D-RHW20C381
(0)
$544.90 includes GST
Option 1 Name
Please Note

If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.

Need help choosing the right size?

Read our guide or get in touch

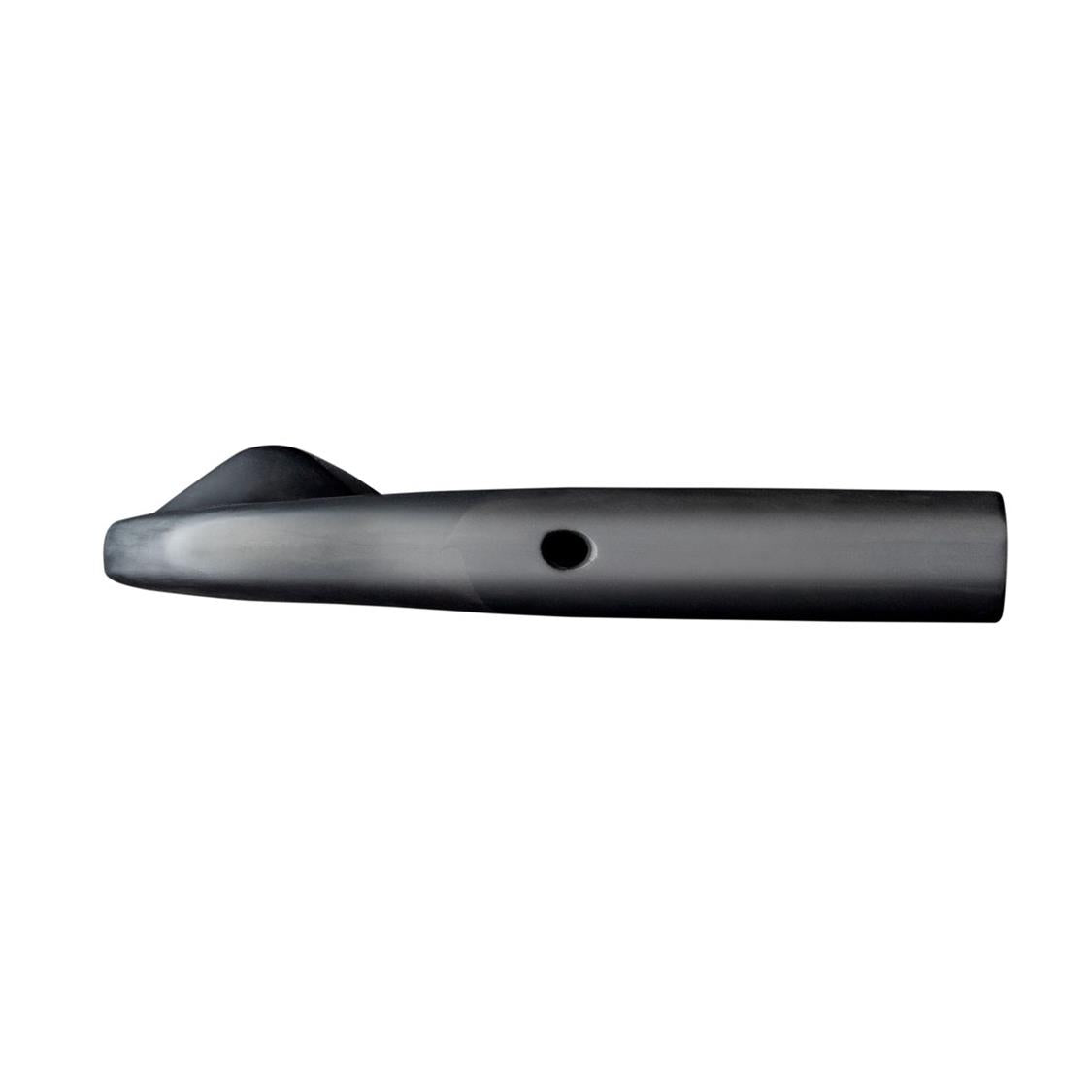

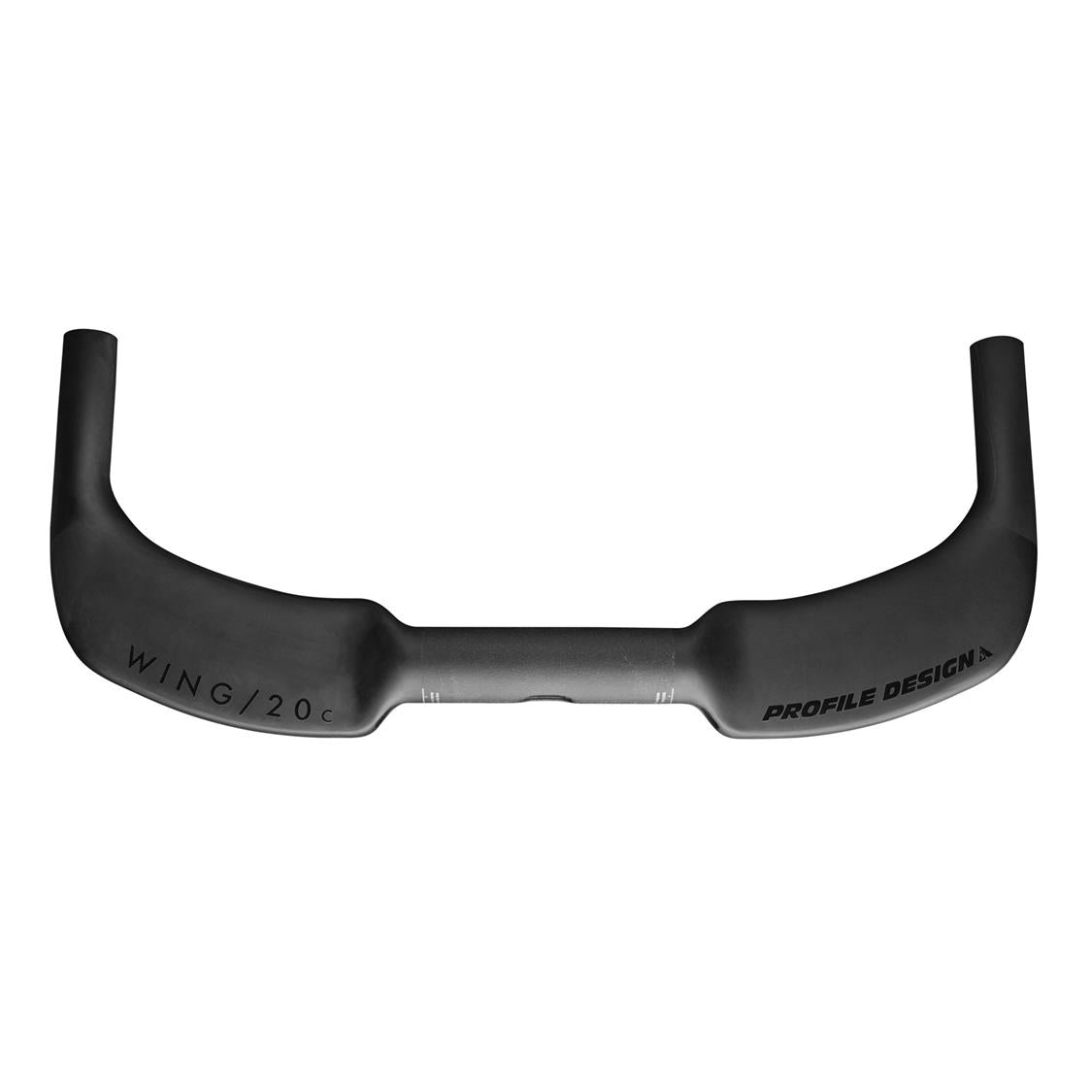

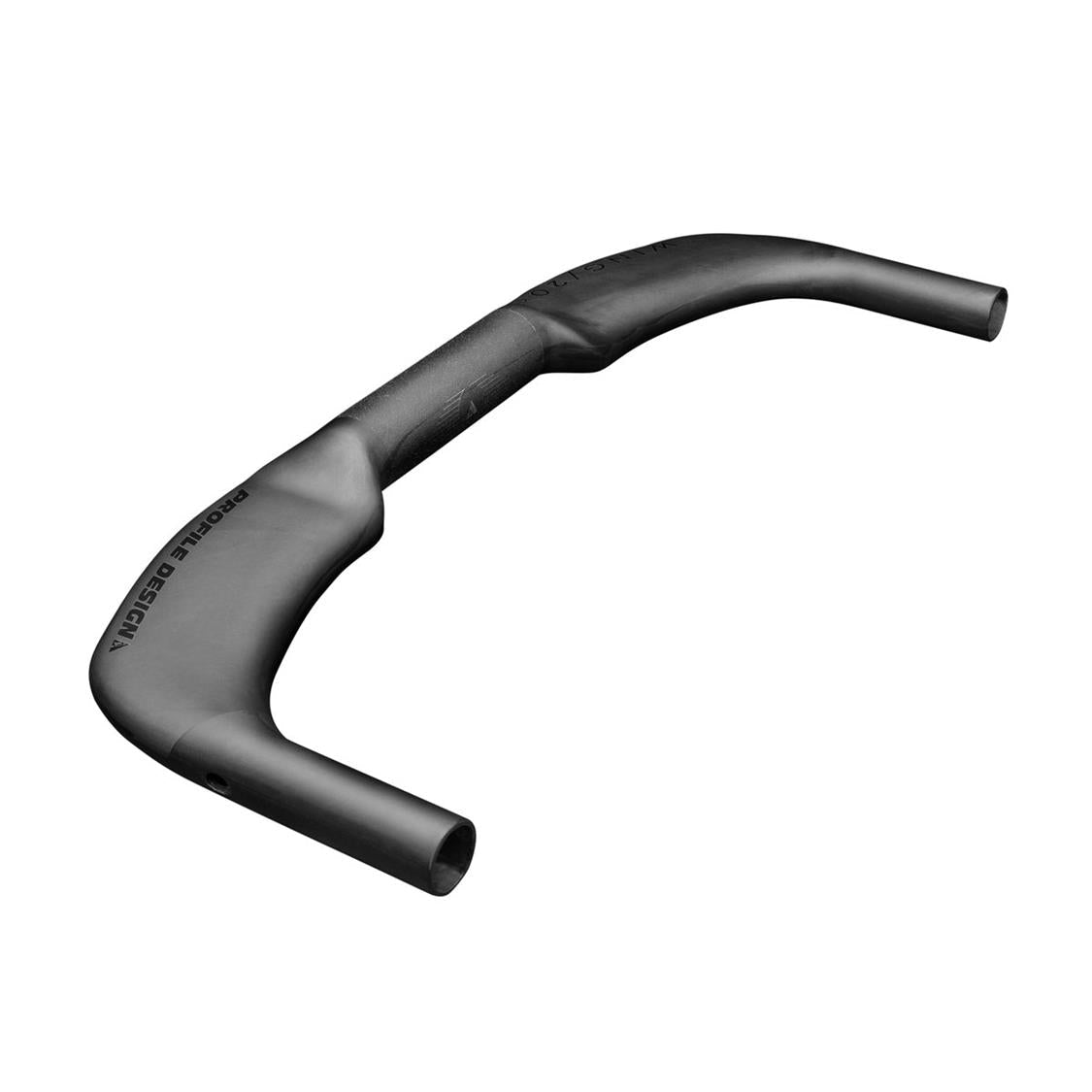

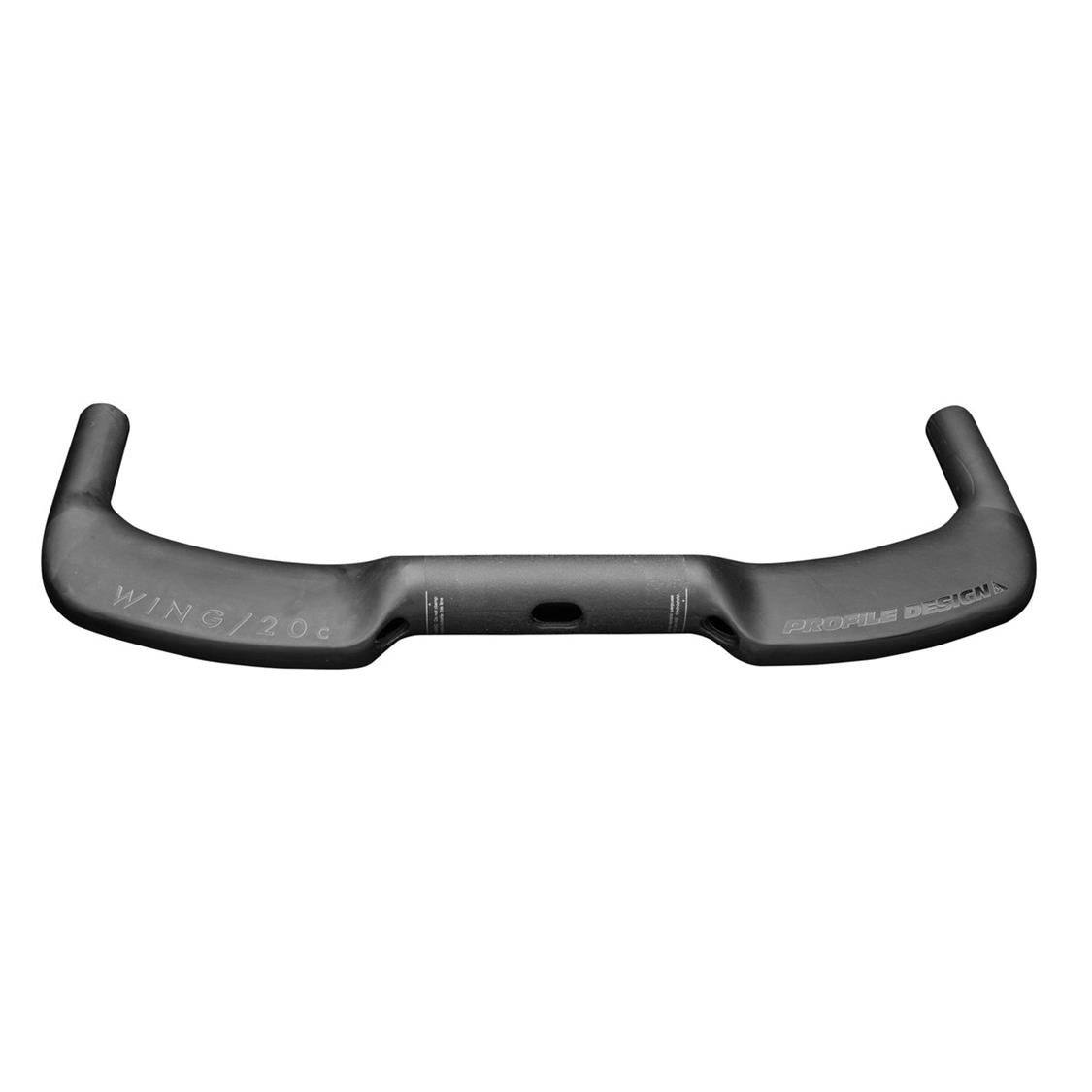

PROFILE DESIGN - WING 20c CARBON BASE BAR

The WING/20c features Profile Design's new shape that is optimized for aerodynamics as well as strength and stiffness. It also offers the ability to alter the hand grip position by 20mm. The truncated aerofoil shape of the basebar is a key element of the balance between aerodynamics, strength and comfort. The new shape transitions from the wing to the grip more smoothly - aiding air flow and giving a better platform for the rider to rest their hands. The ability to flip the bar makes it easier for riders to find a comfortable position by the brake lever. The cable routing has been designed with flip feature and modern tri bikes in mind.

  • The WING/20c is available in the following widths: 38cm, 40cm, 42cm
  • The WING/20c can be used with any Profile Design clip-on aerobar, brake lever and stem option
  • Weight: 200 grams (38cm)
  • Width: 38, 40, 42cm (centre to centre)
  • Centre Clamp Diameter: 31.8mm
  • Clamp Width: 100mm (on all bar sizes)
  • Clip Compatible: Yes
  • Material: Carbon
  • Finish: Matte Black
  • Pursuit Reach: 150mm (centre to tip)
  • Grip Offset: ± 10mm (20mm)
  • Pursuit OD/ID: 24 / 19.8mm
  • Drop Outsweep: No
