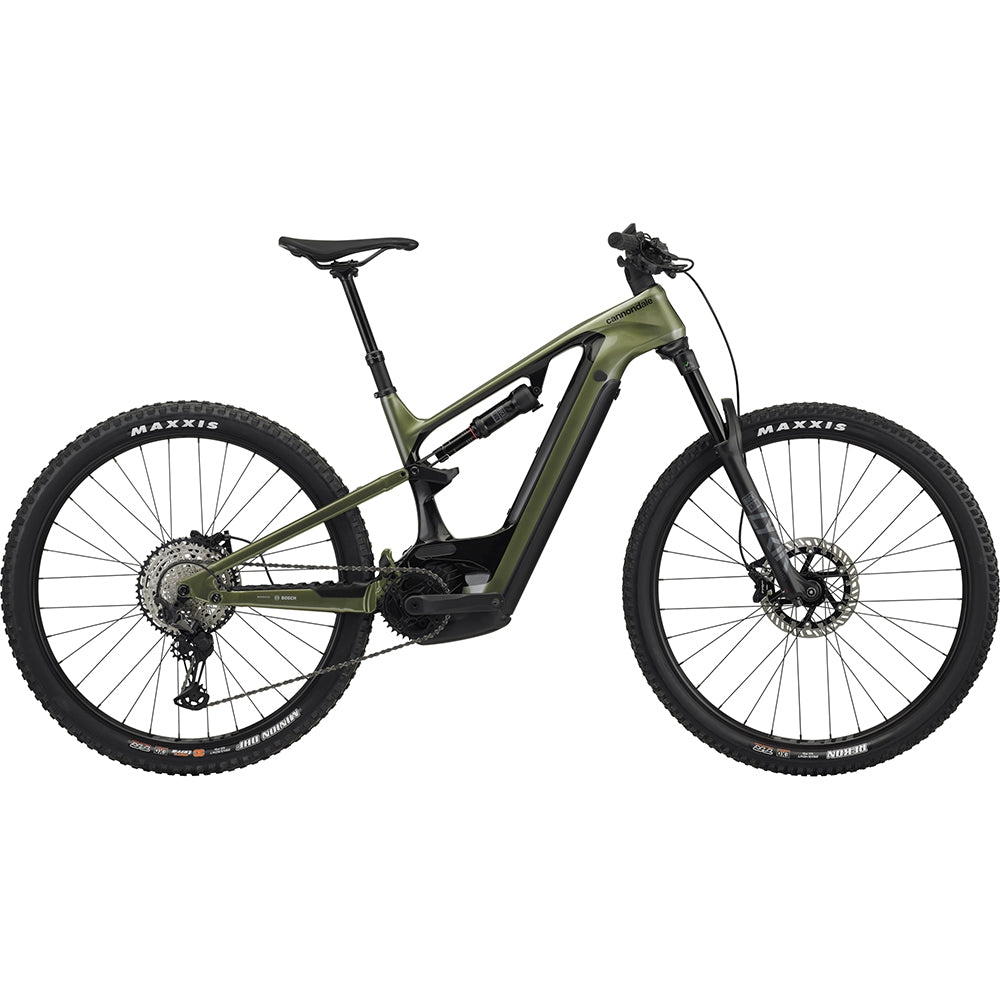

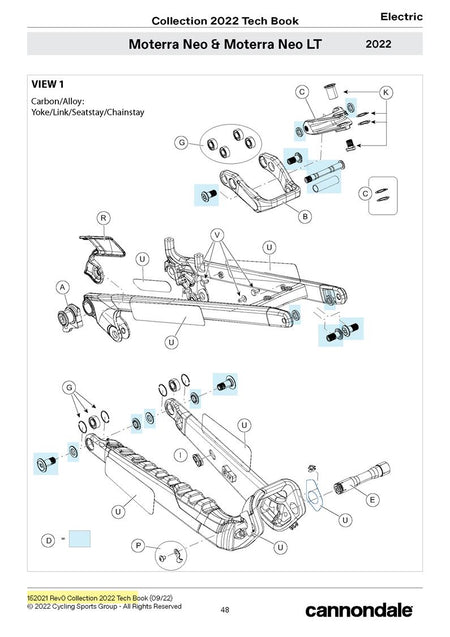

Moterra Neo (Also LT) Carbon Bosch 2022 - 2024 Spares
Couldn't load pickup availability
If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.
Need help choosing the right size?
|

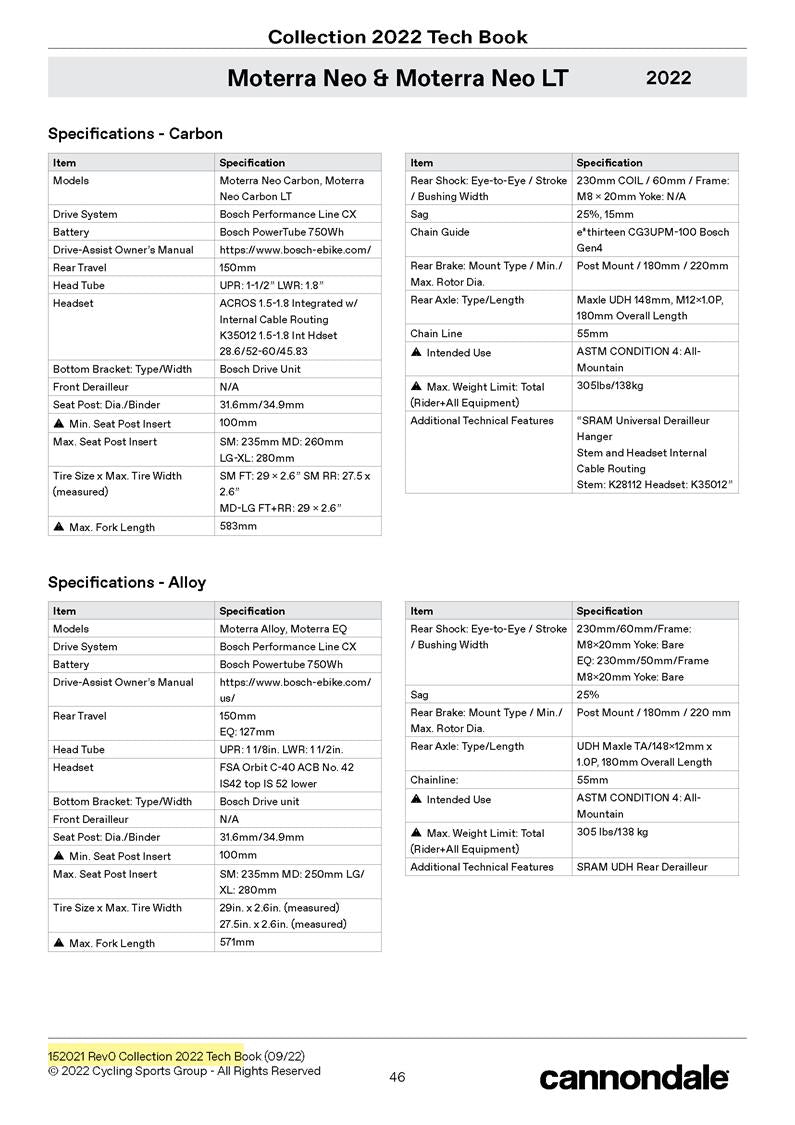

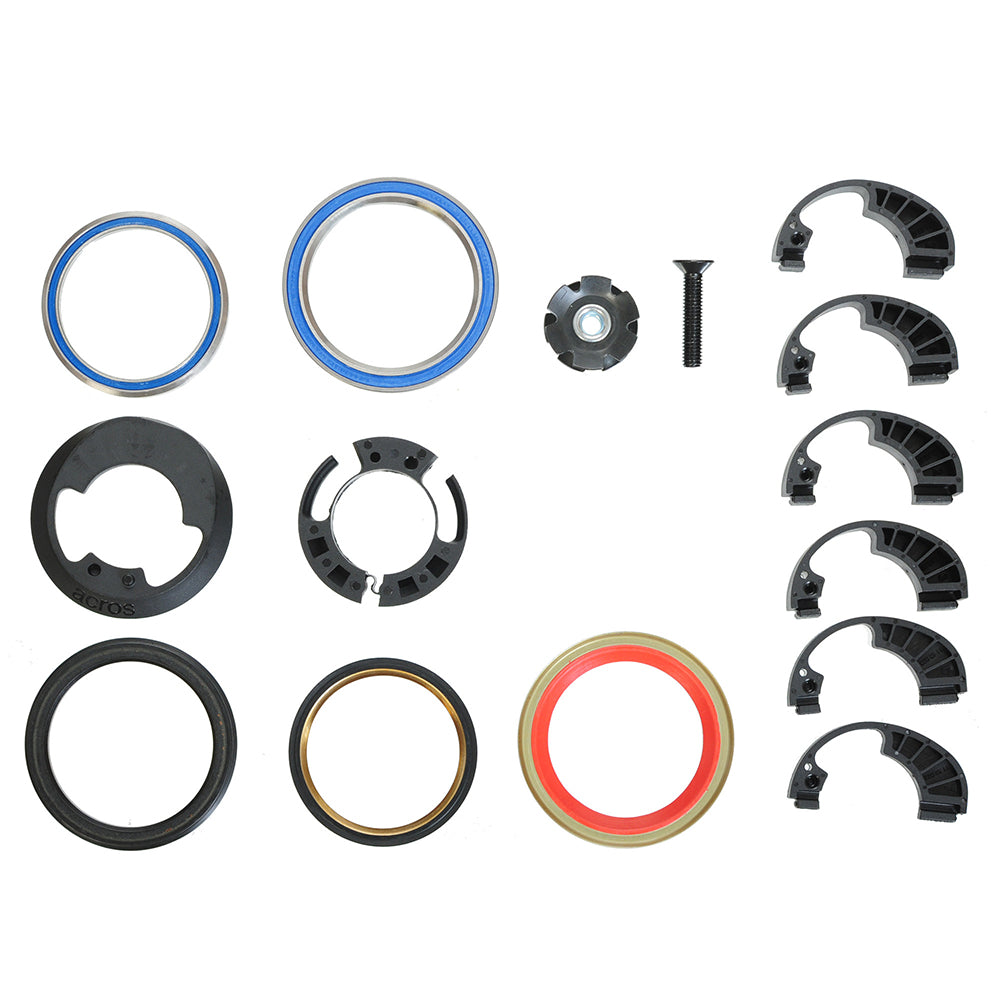

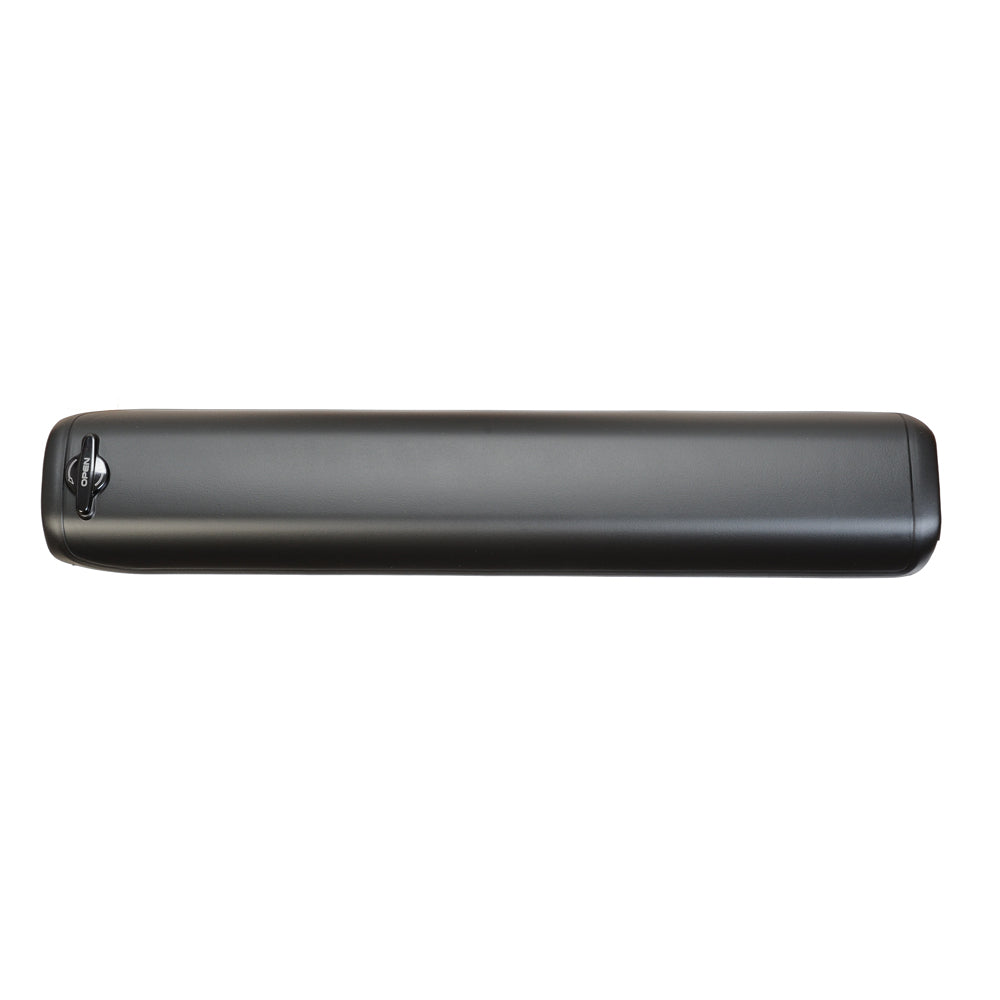

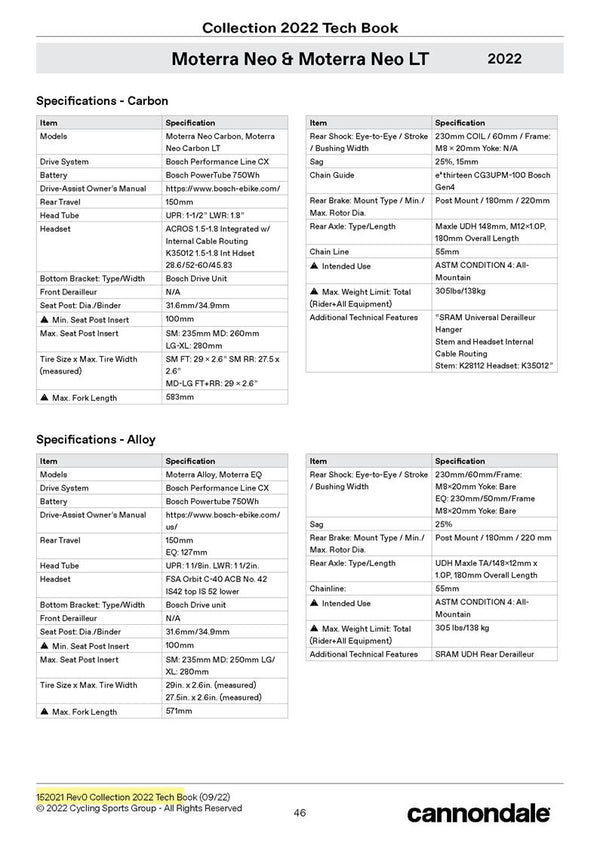

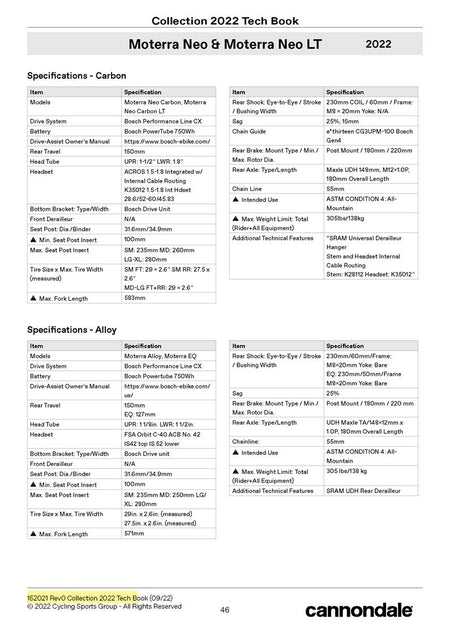

CANNONDALE MOTERRA NEO (LT) CARBON BOSCH 2022 - 2024 SPARES SPECIFICATIONS Drive System - Bosch Performance Line CX Battery - Bosch PowerTube 750Wh Rear Travel - 150mm Head Tube - UPR: 1-1/2” LWR: 1.8” Headset - ACROS 1.5-1.8 Integrated w/Internal Cable Routing K35012 1.5-1.8 Int Hdset 28.6/52 - 60/45.83 Bottom Bracket: Type / Width - Bosch Drive Unit Front Derailleur - N/A Seat Post: Dia./Binder - 31.6mm/34.9mm Minimum Seat Post Insert - 100 mm Maximum Frame Seat Post Insert Depth - SM: 235mm MD: 260mm LG-XL: 280mm Tyre Size x Maximum Width - SM FT: 29 x 2.6” SM RR: 27.5 x 2.6”, MD-LG FT+RR: 29 x 2.6” Maximum Fork Length - 583mm Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 230mm COIL / 60mm / Frame: M8 x 20mm Yoke: N/A Sag - 25% / 15mm Chain Guide - e*thirteen CG3UPM-100 Bosch Gen4 Brakes: Mount Type / Min / Max Rotor Diameter - Post Mount / 180mm / 220mm Axles: Type / Length - Maxle UDH 148mm, M12x1.0P, 180mm Overall Length Maximum Weight Limit: Total - 138kg |

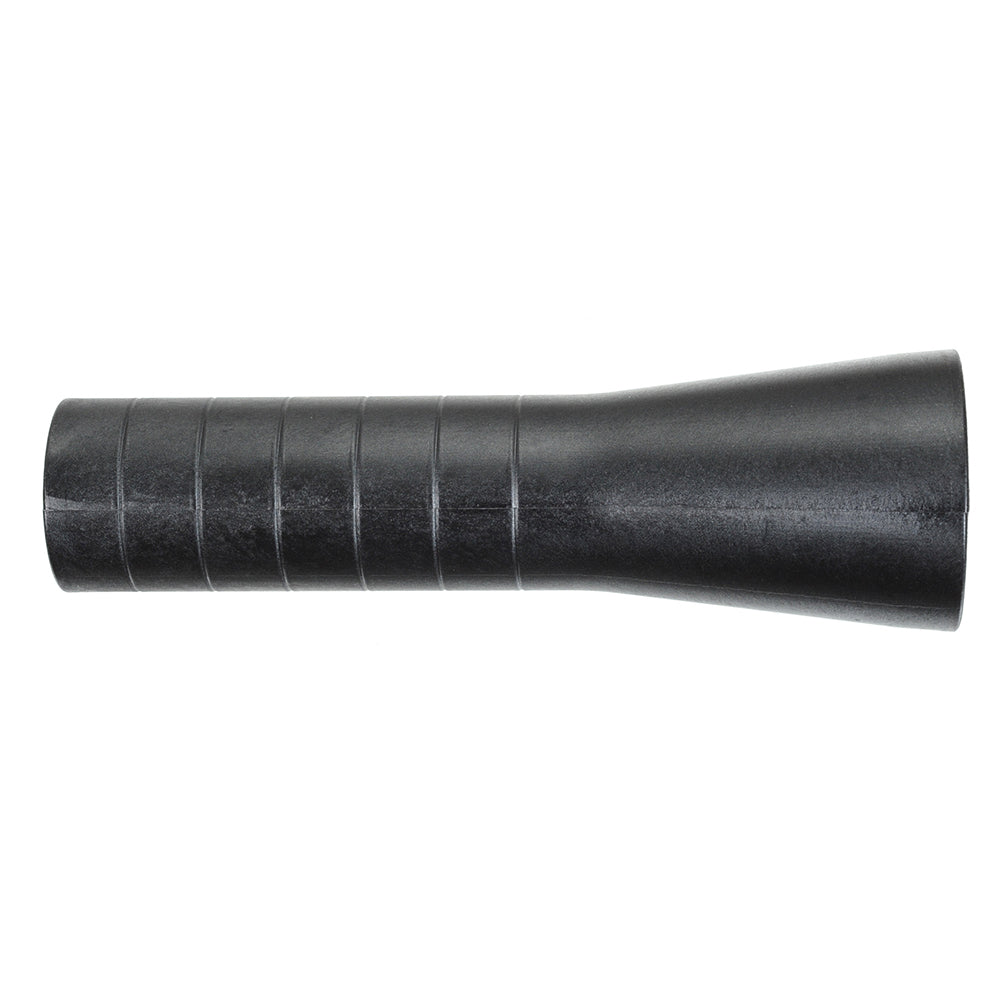

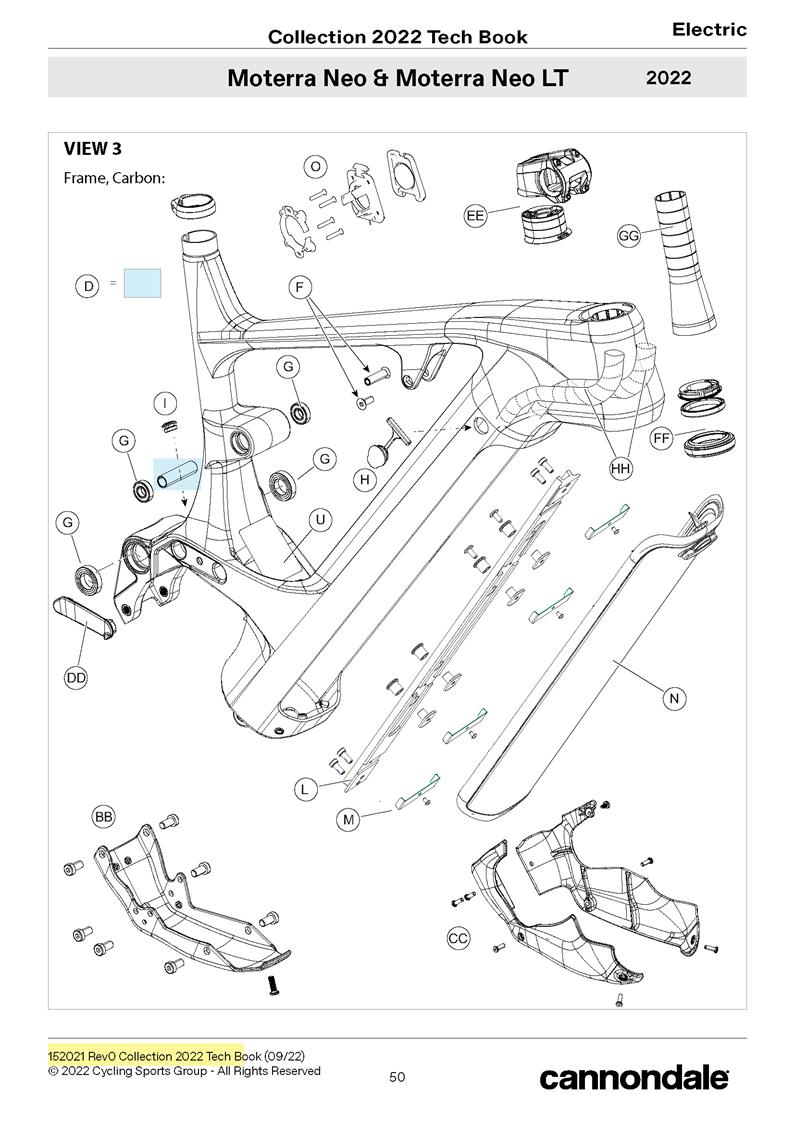

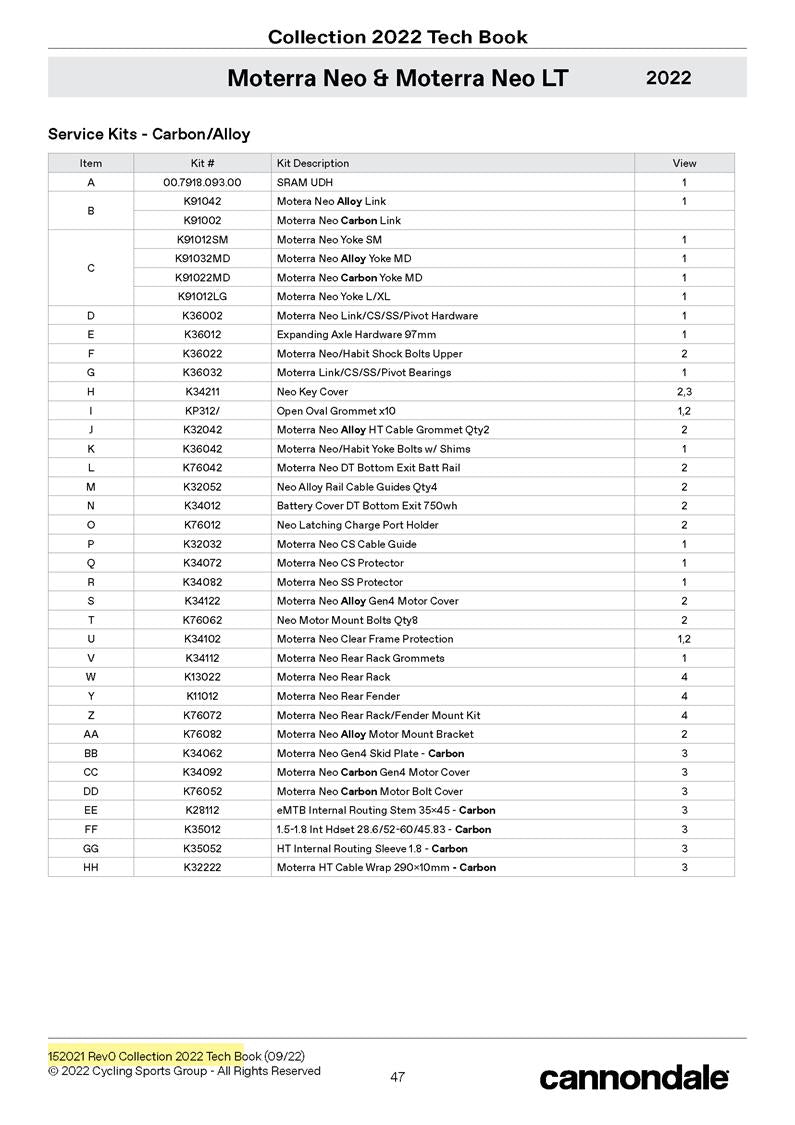

Note: K35052 is incorrect in the parts manual. Head tube sleeve is K35104 |
