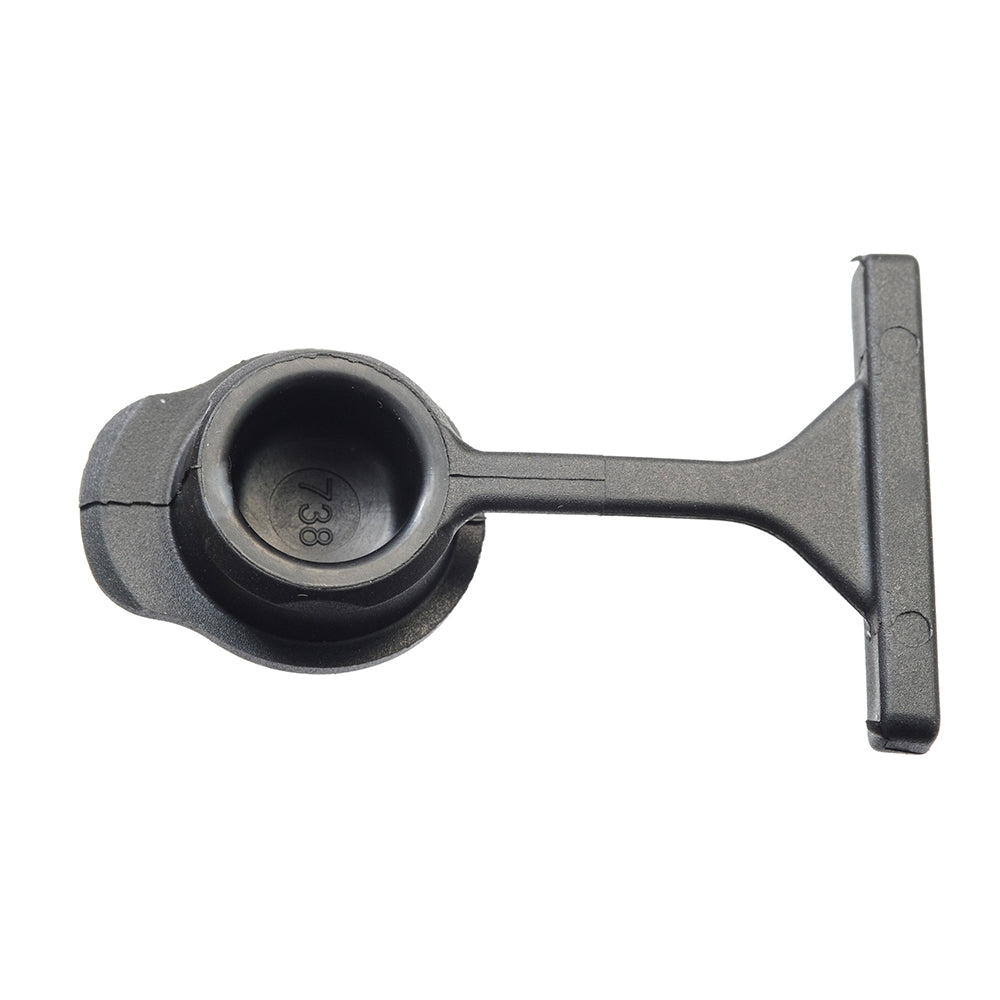

Cannondale Neo Key Cover Black
Moterra Carbon Spares 2025+
Moterra Carbon Spares 2025+
Moterra Carbon Spares 2025+
Moterra Carbon Spares 2025+
Moterra Carbon Spares 2025+

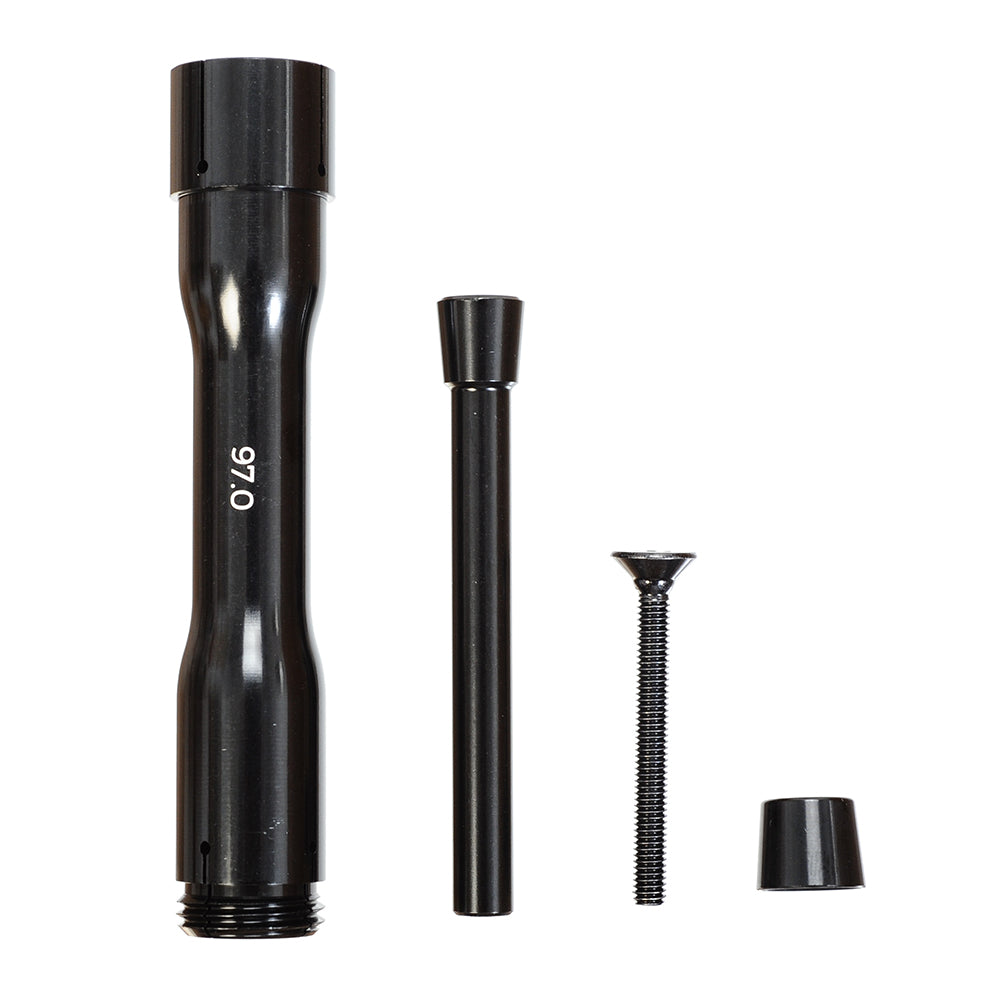

Cannondale Expanding Axle Hardware 97mm

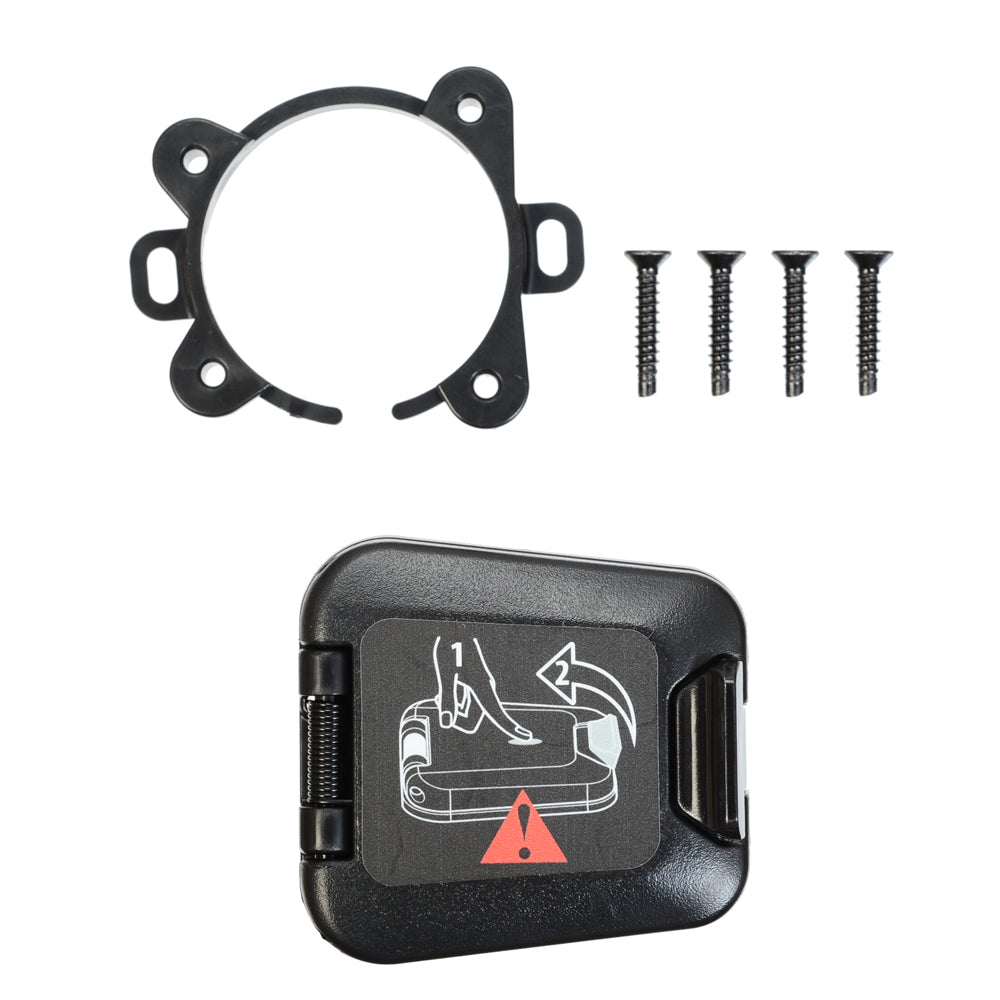

Cannondale Moterra Neo Latching Charge Port Holder
Cannondale Battery Cover Crb Down Tube Bottom Exit 800Wh
Cannondale Battery Cover Crb Down Tube Bottom Exit 800Wh
Cannondale 1.8" Semi Integrated Headset 28.6/56 to 66/40 No Cups

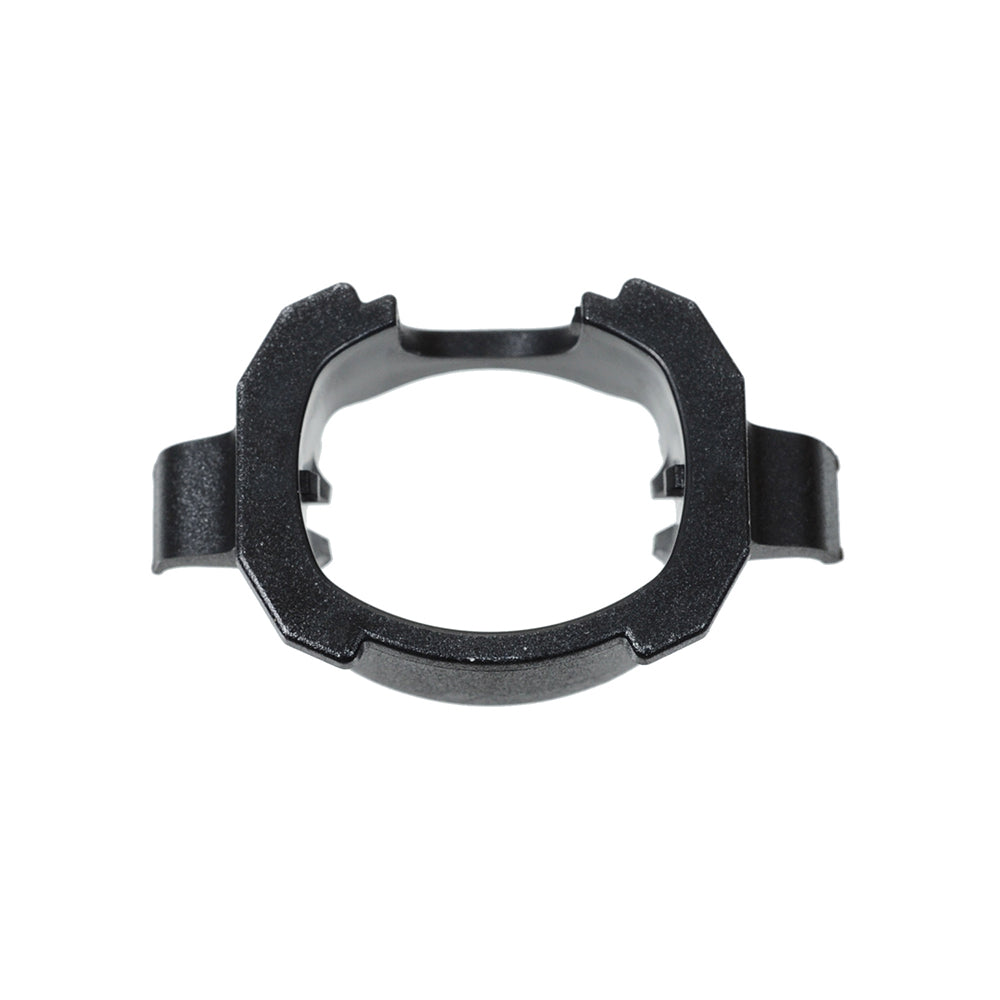

Cannondale ZS56 Top / 66 Bottom, AngleCups 0.6 Deg
Cannondale ZS56 AngleCups, 0 Deg

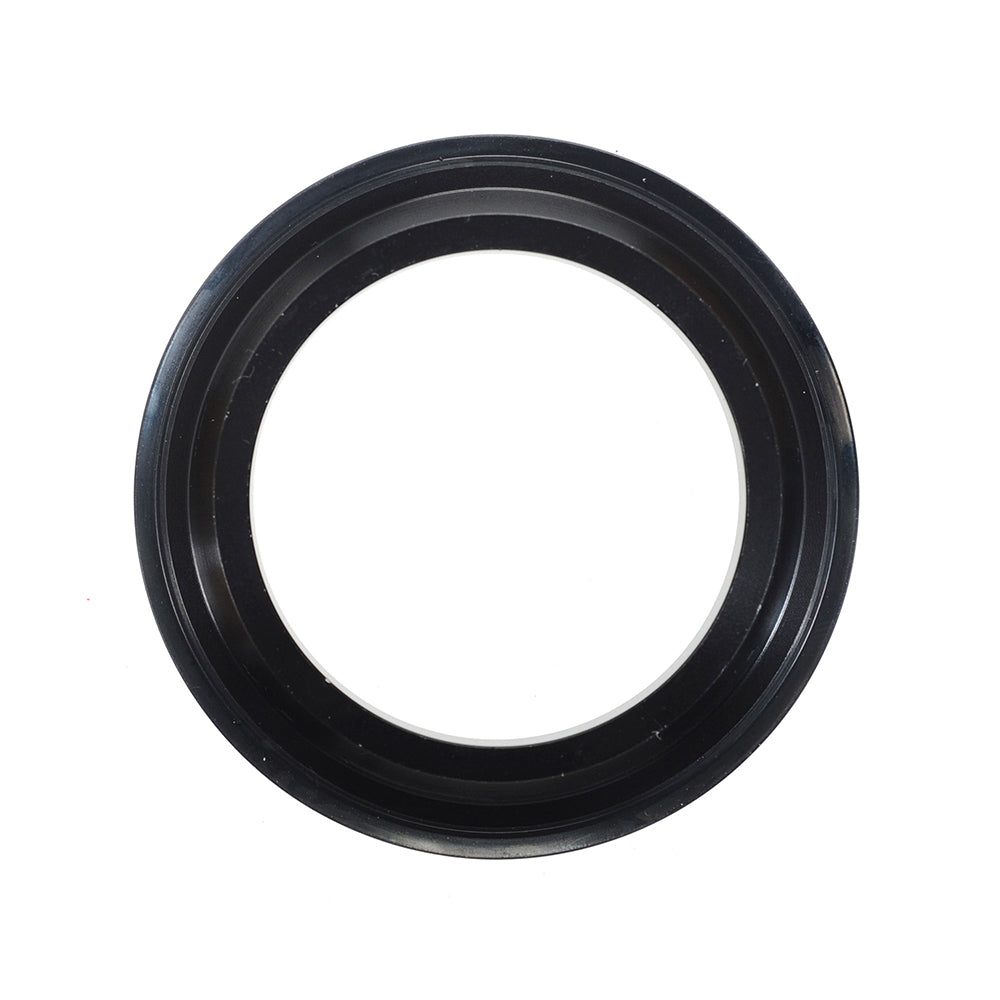

Cannondale Reducer Crown Race 1.8" Head Tube / 1.5" Steerer v2

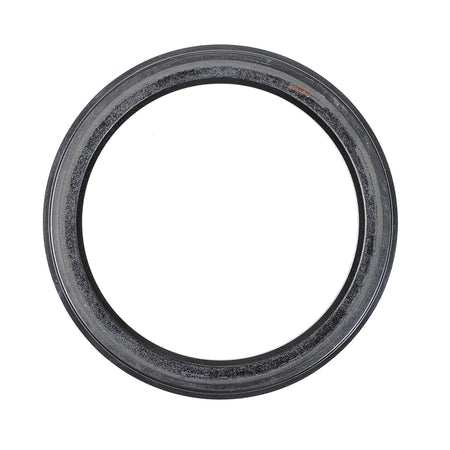

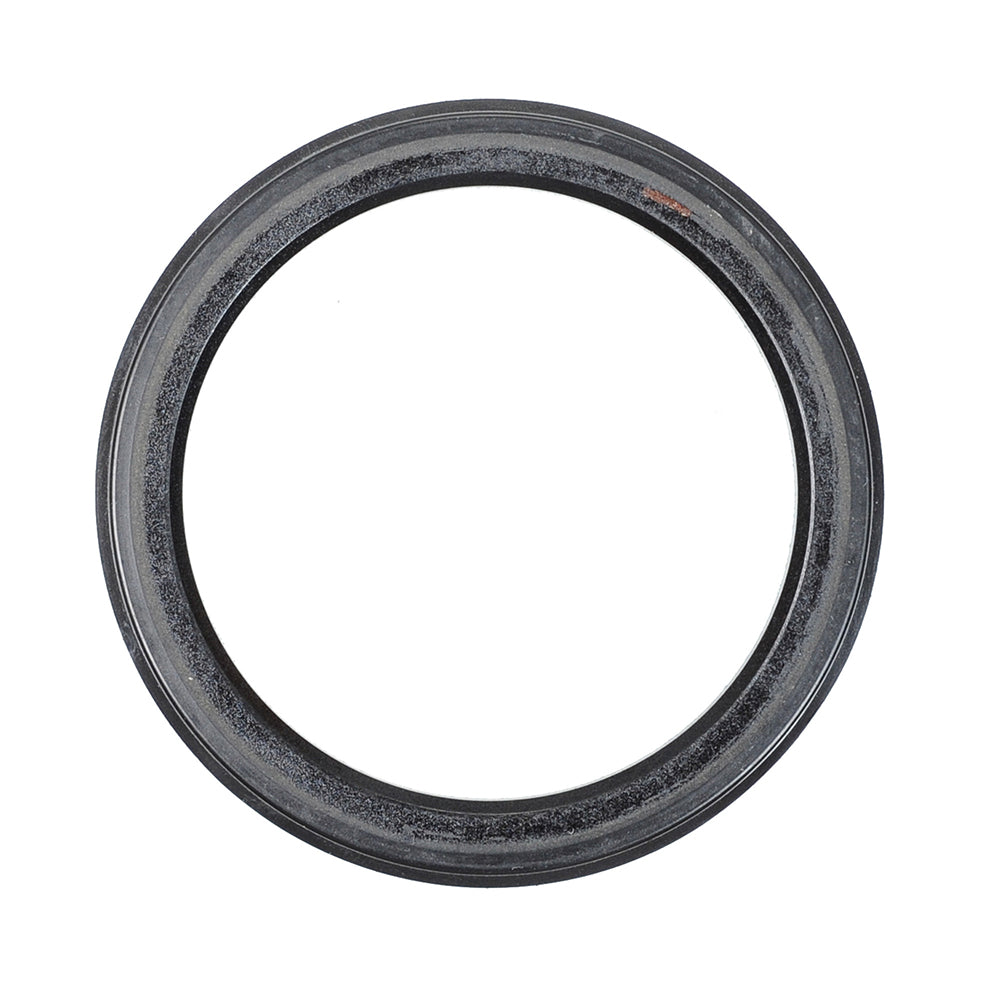

Cannondale Crown Race 1.8" Head Tube / 1.8" Steerer

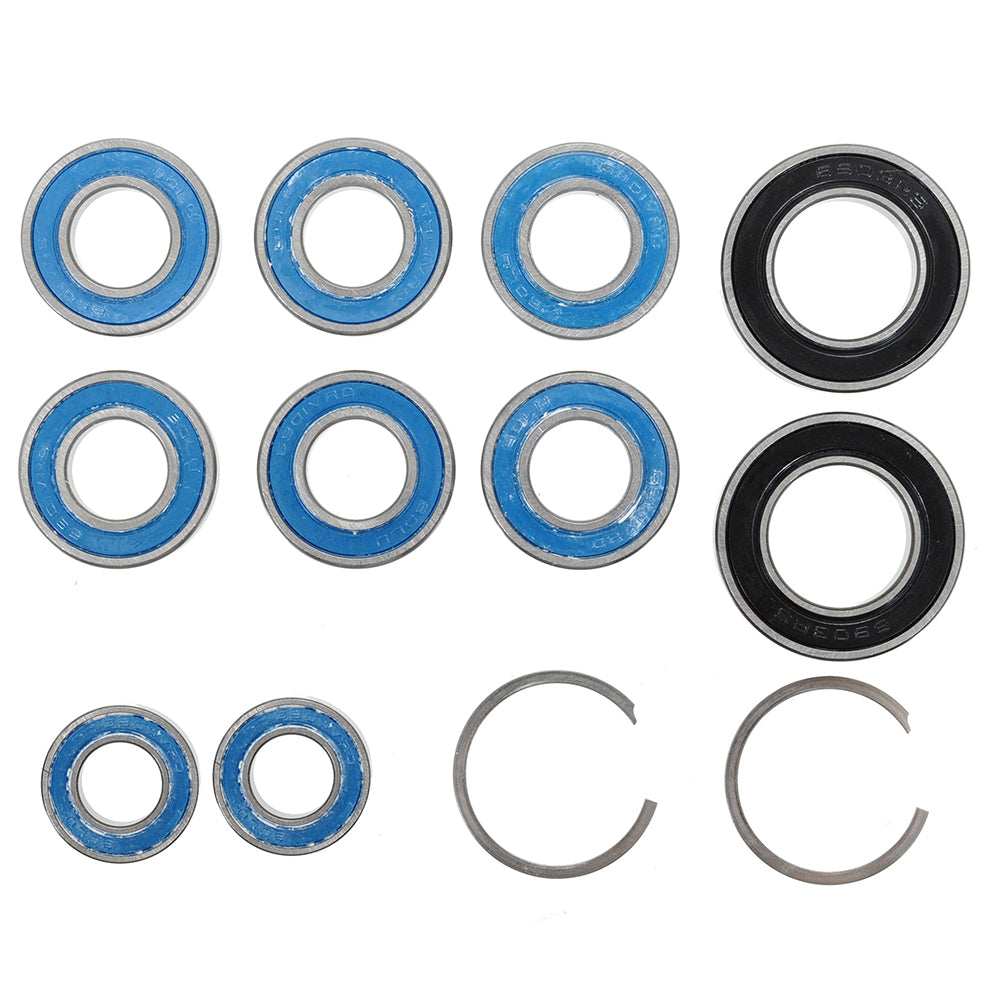

Cannondale Moterra Link / Chain Stay / Seat Stay / Pivot Bearings

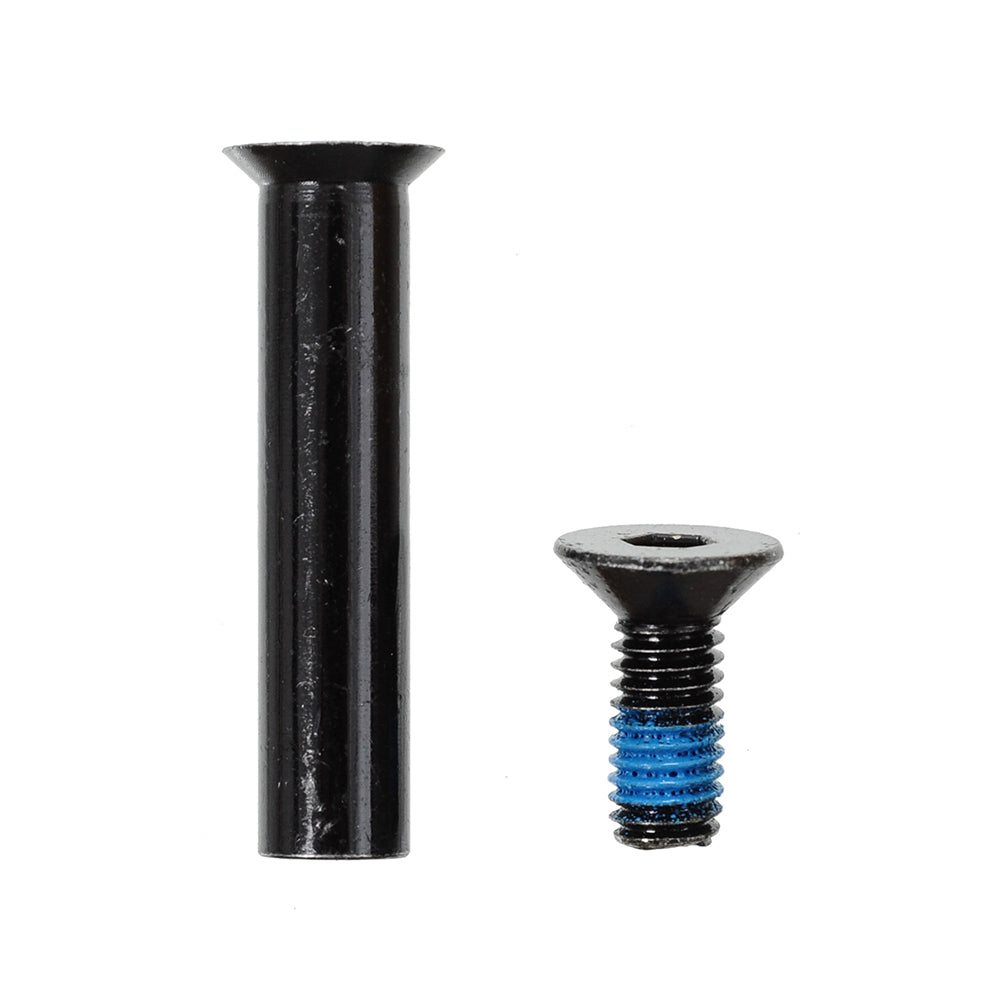

Cannondale Shock Mounting Bolts M6 x 16

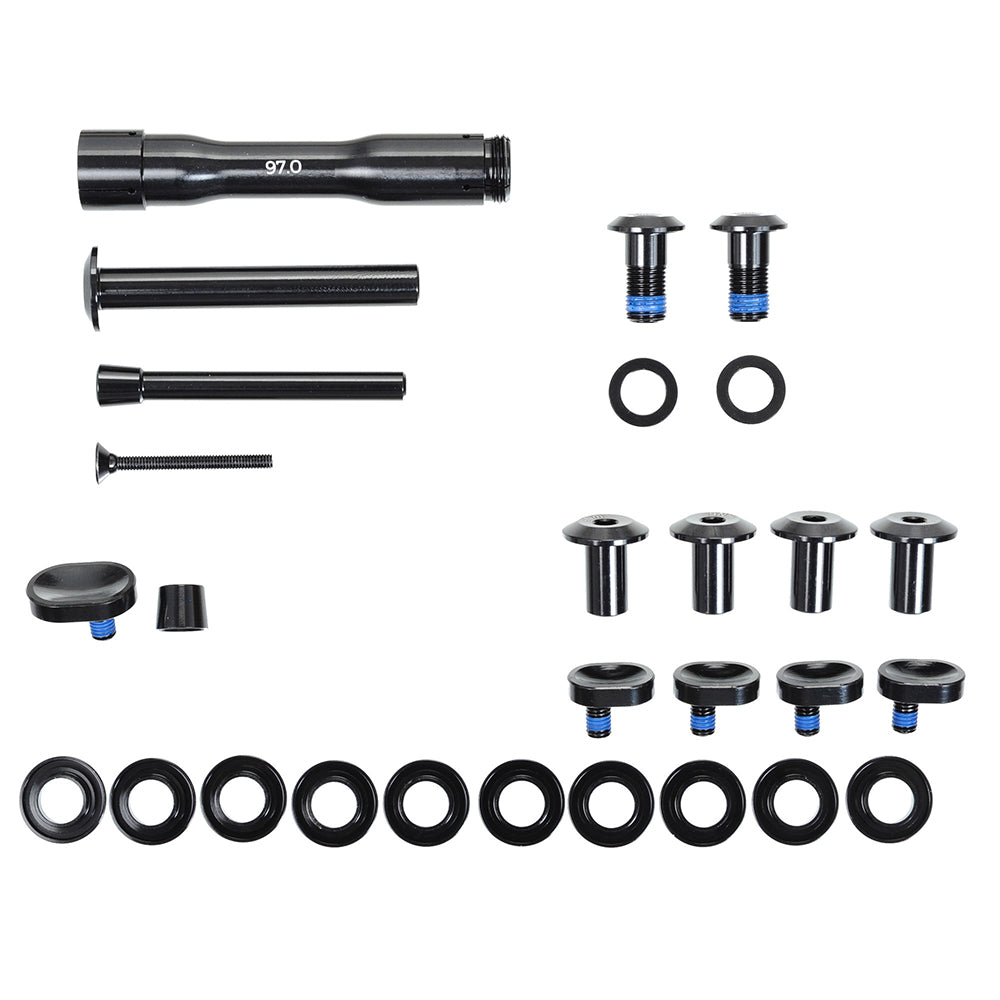

Cannondale Moterra Link / Chain Stay / Seat Stay / Pivot Hardware

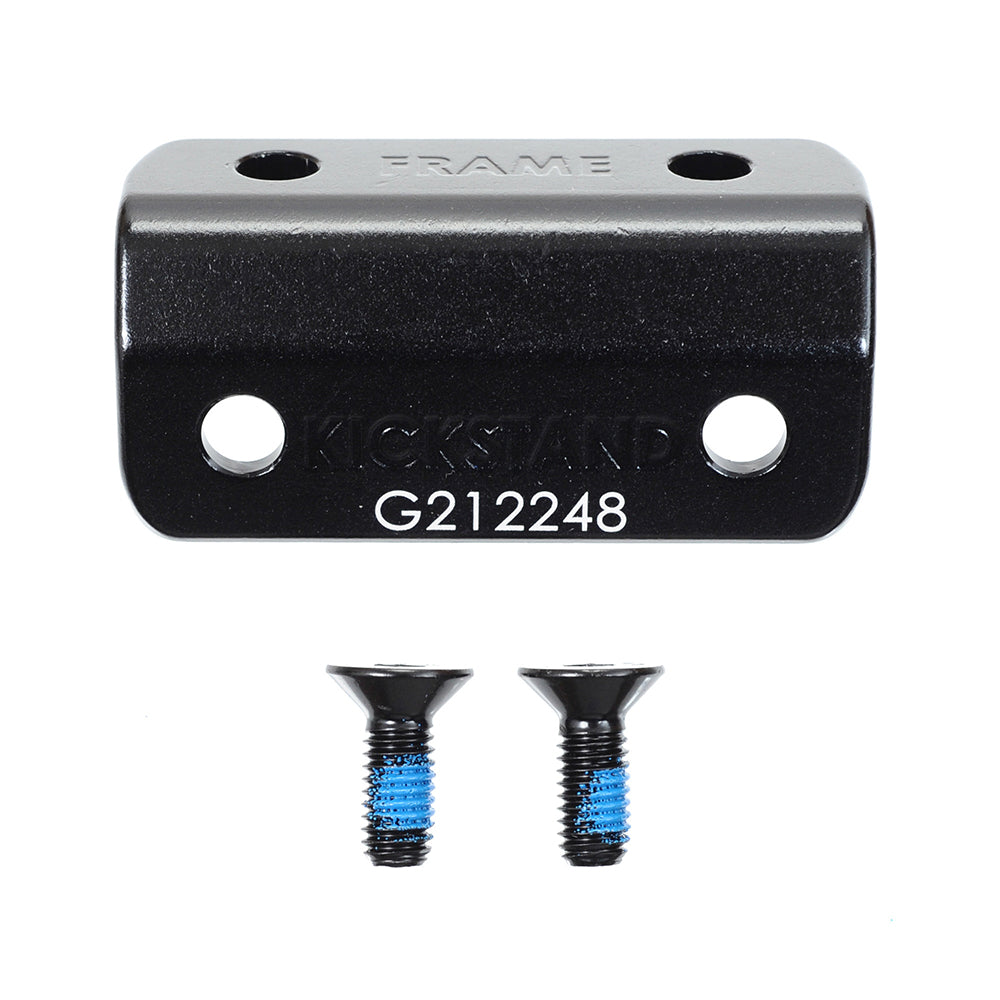

Cannondale Moterra Kickstand Adapter
Cannondale Latch Charge Port Range Extender Adapter

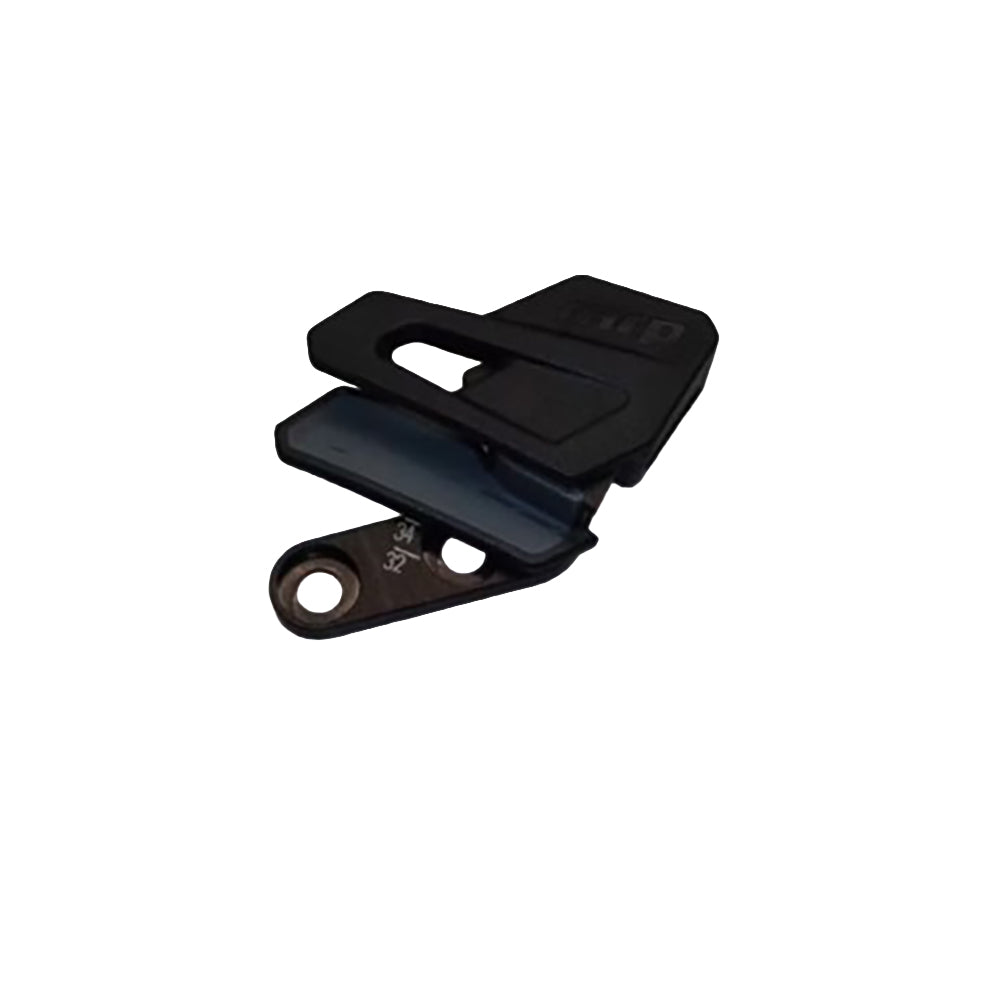

Cannondale Moterra MRP Chainguide Complete

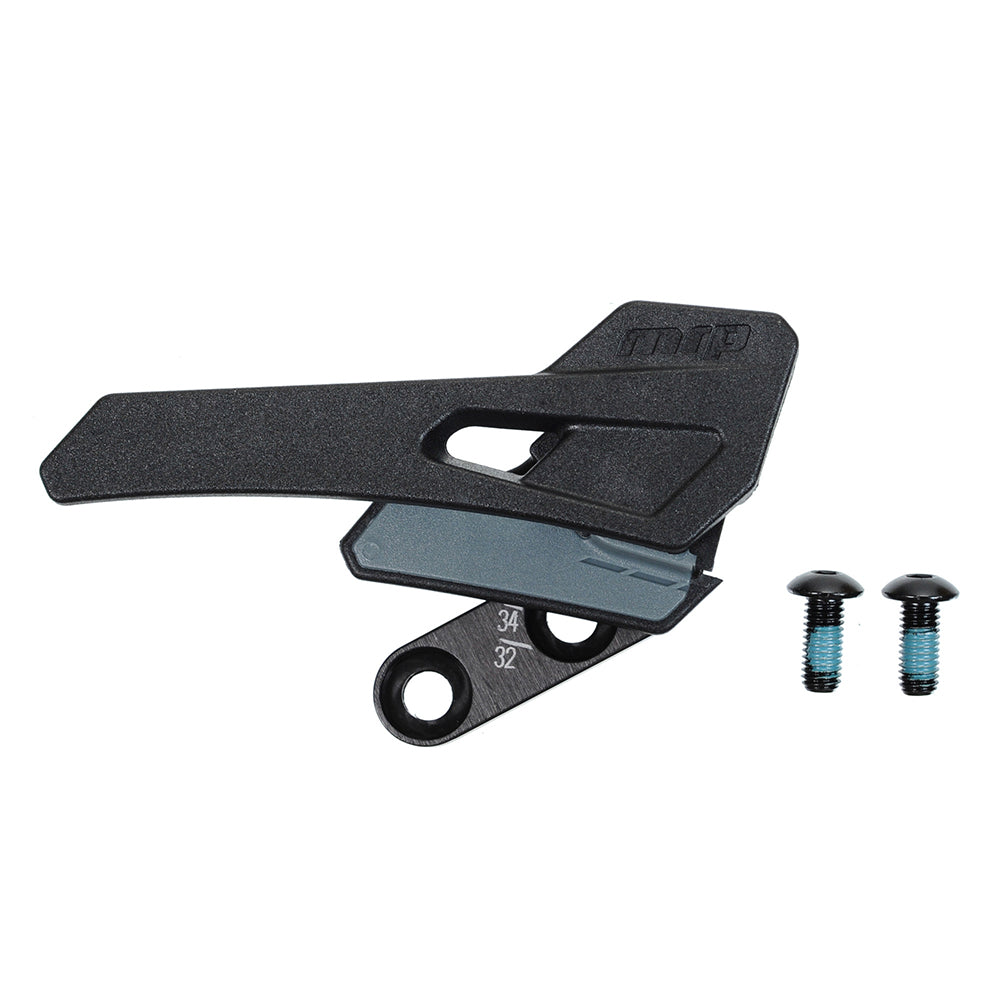

Cannondale Moterra XL MRP Chainguide Complete

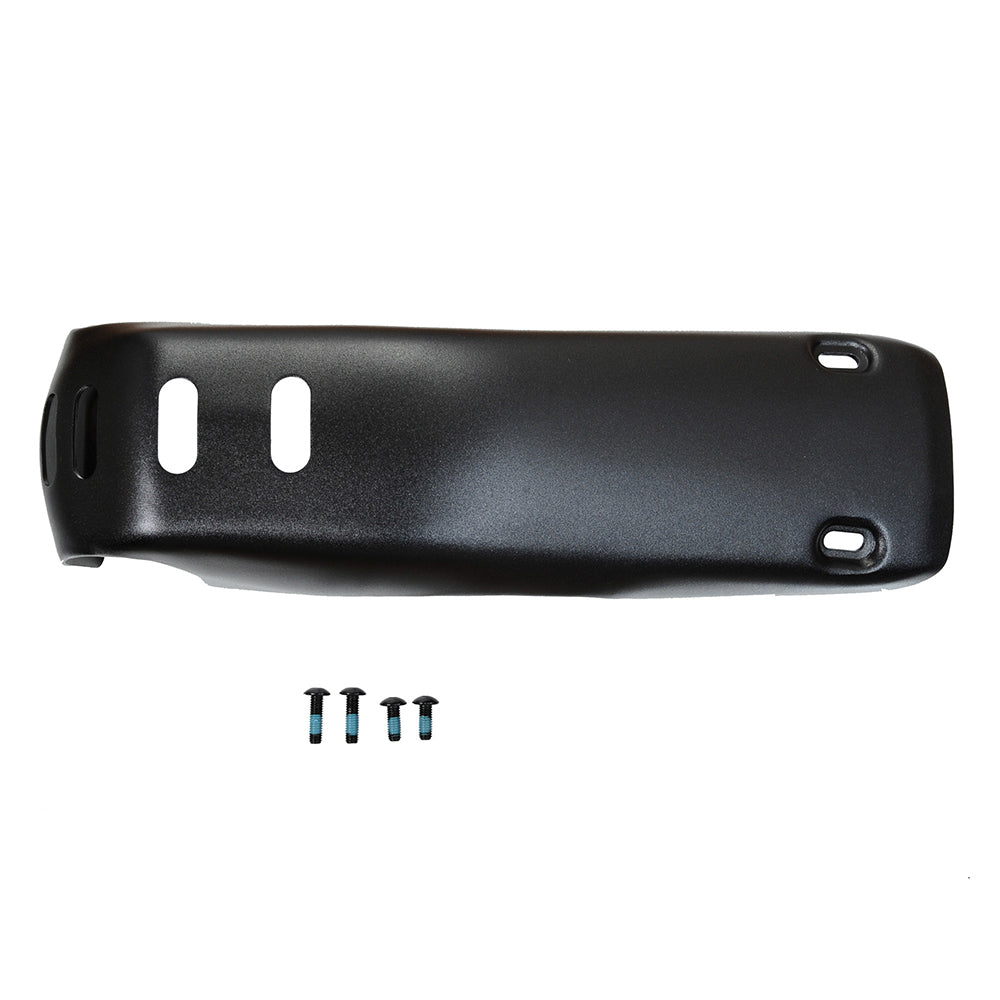

Cannondale Moterra Carbon Skid Plate (800Wh Bosch) Black

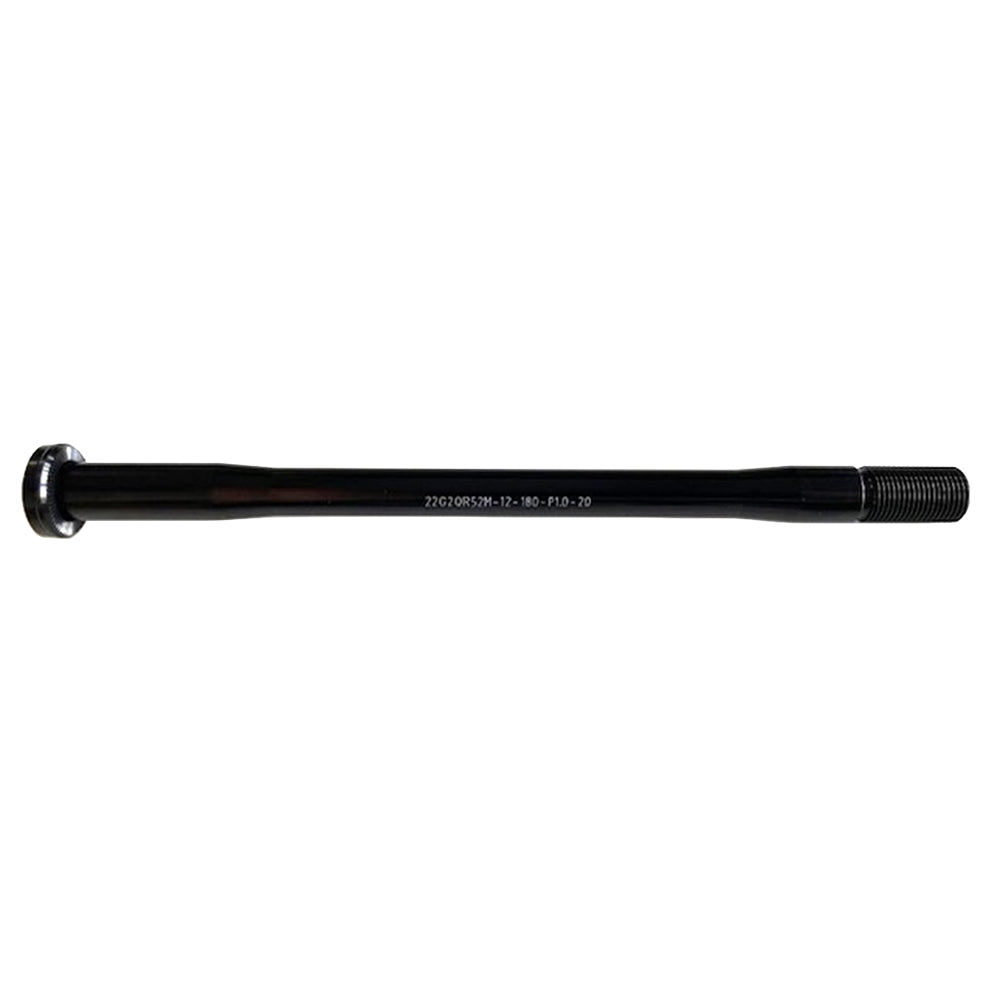

Cannondale UDH Maxle, Length 180mm, 148mm x 12mm, P1.0, Bolt Up
Cannondale Neo Key Cover Black
Moterra Carbon Spares 2025+
Moterra Carbon Spares 2025+
Moterra Carbon Spares 2025+
Moterra Carbon Spares 2025+
Moterra Carbon Spares 2025+
Cannondale Expanding Axle Hardware 97mm
Cannondale Moterra Neo Latching Charge Port Holder
Cannondale Battery Cover Crb Down Tube Bottom Exit 800Wh
Cannondale Battery Cover Crb Down Tube Bottom Exit 800Wh
Cannondale 1.8" Semi Integrated Headset 28.6/56 to 66/40 No Cups
Cannondale ZS56 Top / 66 Bottom, AngleCups 0.6 Deg
Cannondale ZS56 AngleCups, 0 Deg
Cannondale Reducer Crown Race 1.8" Head Tube / 1.5" Steerer v2
Cannondale Crown Race 1.8" Head Tube / 1.8" Steerer
Cannondale Moterra Link / Chain Stay / Seat Stay / Pivot Bearings
Cannondale Shock Mounting Bolts M6 x 16
Cannondale Moterra Link / Chain Stay / Seat Stay / Pivot Hardware
Cannondale Moterra Kickstand Adapter
Cannondale Latch Charge Port Range Extender Adapter
Cannondale Moterra MRP Chainguide Complete
Cannondale Moterra XL MRP Chainguide Complete
Cannondale Moterra Carbon Skid Plate (800Wh Bosch) Black
Cannondale UDH Maxle, Length 180mm, 148mm x 12mm, P1.0, Bolt Up
Cannondale SKU: FRCAK34211

Moterra Carbon Spares 2025+

SKU: FRCAK34211
(0)
$9.90 includes GST
Stock Item
Please Note

If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.

Need help choosing the right size?

Read our guide or get in touch

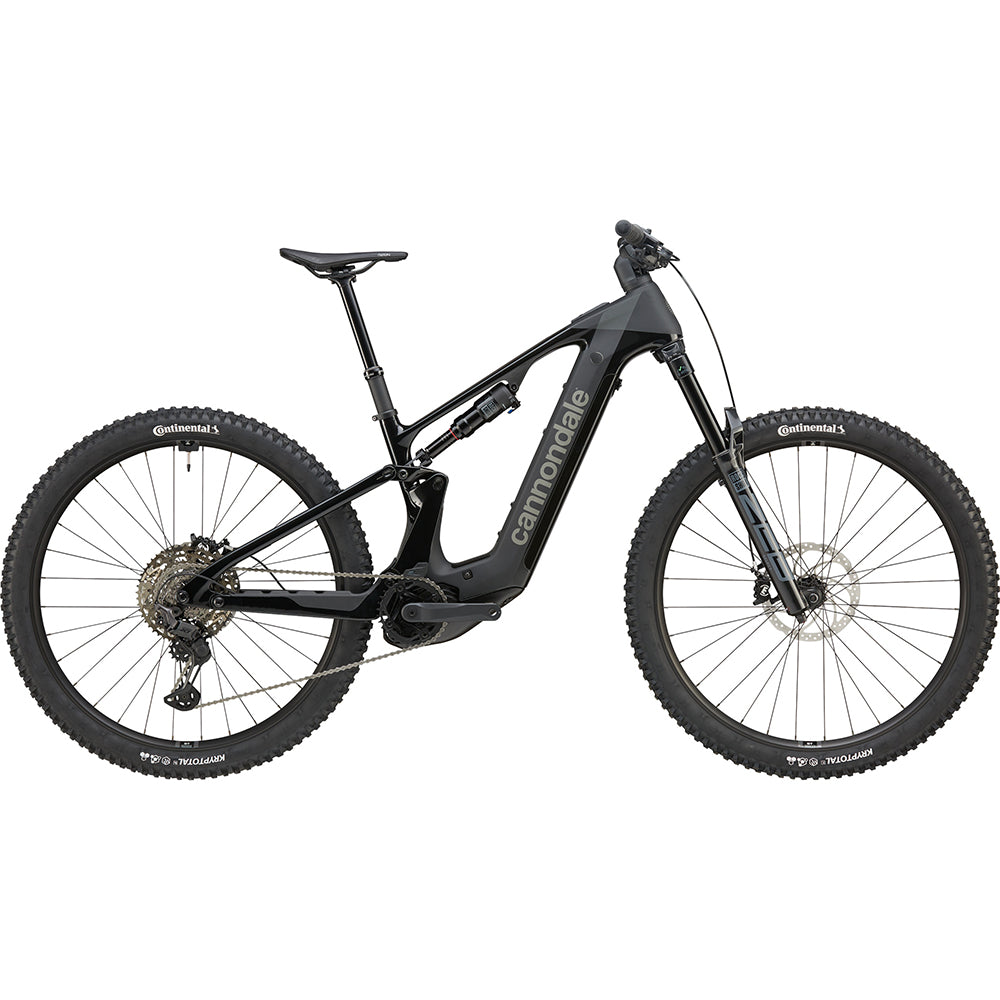

CANNONDALE MOTERRA SPARES 2025+

SPECIFICATIONS

Drive System - Bosch Performance Line CX

Battery - Bosch PowerTube 800Wh

Rear Travel - SM/MD: 150mm, LG/XL: 155mm / LT: SM/MD: 160mm, LG/XL:165mm

Head Tube - UPR: 1-1/2” LWR: 1.8”

Headset - ZS56/28.6 Top, ZS66/40 or ZS66/46 Bottom 45 degree crown race

Bottom Bracket: Type / Width - Bosch Drive Unit

Front Derailleur - N/A

Seat Post: Dia./Binder - 34.9mm/39.7mm

Minimum Seat Post Insert - 100 mm

Maximum Frame Seat Post Insert Depth - SM: 250mm MD: 270mm LG/XL: 300mm

Tyre Size x Maximum Width - RR: 29”x 2.6” / RR: 27.5”x 2.6”

Maximum Fork Length - 576mm, LT: 596mm

Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 230x62.5mm/FT:M8x25, RR: N/A / LT:230x65mm/FT: M8x25 RR: N/A

Sag - 30% (17.3mm), LT: 30% (17.5mm)”

Chain Guide - K11115 Moterra MRP Chainguide XL Complete / K11105 Moterra MRP Chainguide Complete

Brakes: Mount Type / Min / Max Rotor Diameter - Post Mount/200mm/220mm

Axles: Type / Length - 148x12mm Maxle TA M12x1.0P, 180mm Overall Length

Maximum Weight Limit: Total - 138kg
