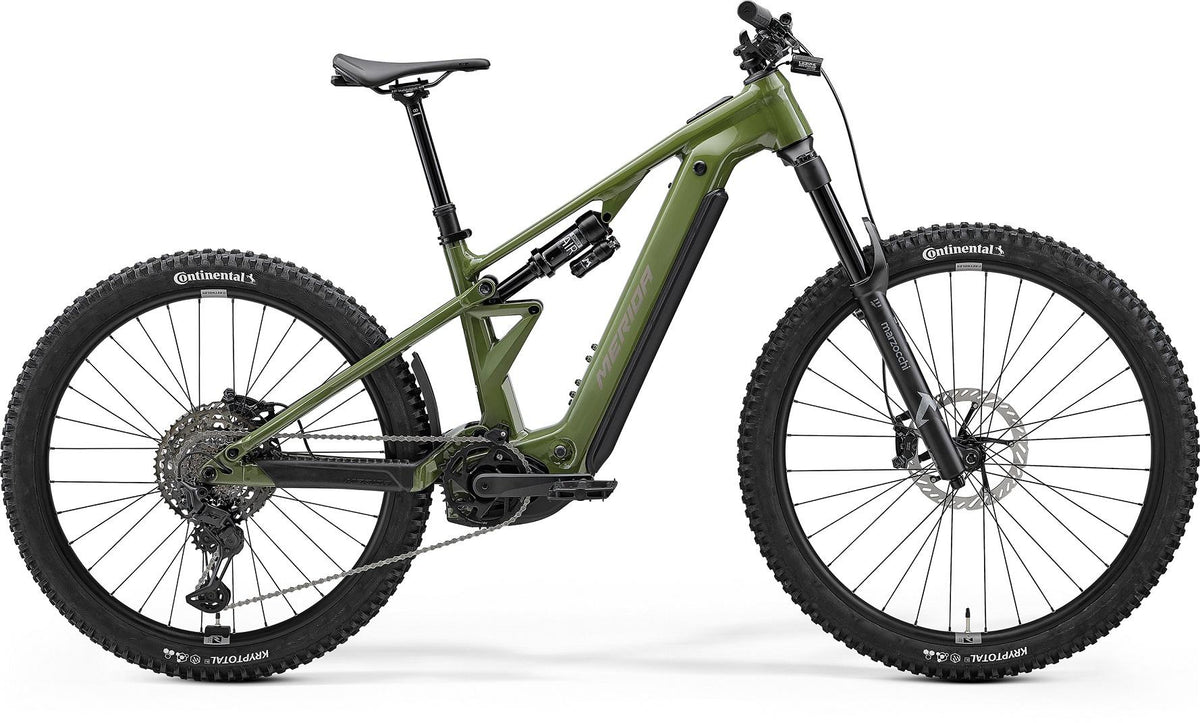

The ETMO 800 delivers serious performance on the trail without hammering your wallet. We've combined our high-value aluminium 160 mm travel frame with Bosch's powerful 120 Nm CX drive unit and big 800 Wh battery, so you can explore for hours or lap your favourite loops all day long. With mixed-size wheels for a fun but stable ride and our proven geometry, you're guaranteed fun whether you're a fresh face to mountain biking or an experienced hand. Quality kit from Shimano handles stopping and drivetrain duty, while Marzocchi's legendary Bomber suspension, including a stout 38 mm stanchion fork, takes care of the bumps.
Frame: ETMO LITE, MAT aluminium, 160mm STR, 27.5†x 2,6†max. WHS, 148x12 AST, intube
Fork: Marzocchi Bomber Z eMTB, Air, 160 STR, Tapered, 44mm fork offset, 29x2.6" max WHS
Shifters: F: Sram Dropper Lever MMX | R: Shimano XT M8130 11
Derailleur Rear: Shimano XT RDM8130 LinkGlide 11
Crankset: FSA Direct Mount Steel Chainring, 36t; FSA CK-220 wide E-Bike Forged Crankset, 160mm for all sizes
Cassette: Shimano LG700, 11-50, 11sp
Chain: Shimano LG500
Brakes: Shimano XT, 4 piston
Brake Rotor Front: Shimano CL700, 203mm
Brake Rotor Rear: Shimano CL700, 203mm
Hubs: F: Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock | R: Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock
Rims: Reynolds 309 Enduro Comp, 30 IWR, MAT aluminium, Tubeless ready (tubeless tape installed), front 29", rear 27.5"
Tyres: F: Continental Kryptotal-F, 29x2.4", fold, TR, Enduro casing, Soft compund | R: Continental Kryptotal-R, 27.5x2.4" , fold, Enduro casing, soft compound
Headset: Acros ICR EXTERNAL neck w/ Blocklock
Stem: MERIDA COMP TR, MAT aluminium, 35 DSH, 0 ASD; 40 mm all sizes
Handlebar: MERIDA EXPERT eTR, 780 WHB,
Grips: MERIDA EXPERT TR
Seat Post: MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XS: 125 SPT - S: 150 SPT - M: 170SPT - L: 200 SPT - XL: 230 SPT
Saddle: Proxim Altius Tirox, V-mount adapter, incl. MERIDA minitool
Lights: Lezyne Hekto StVZO E350+ Reverse, reverse MERIDA Custom Mount
Drive Unit: Bosch Performance Line CX
Drive Unit Torque (nm): 85
Battery: Bosch PowerTube 800 , 800Wh
Battery Size (Watt Hours): 800
Display: Bosch Purion 400; Bosch Mini Remote
