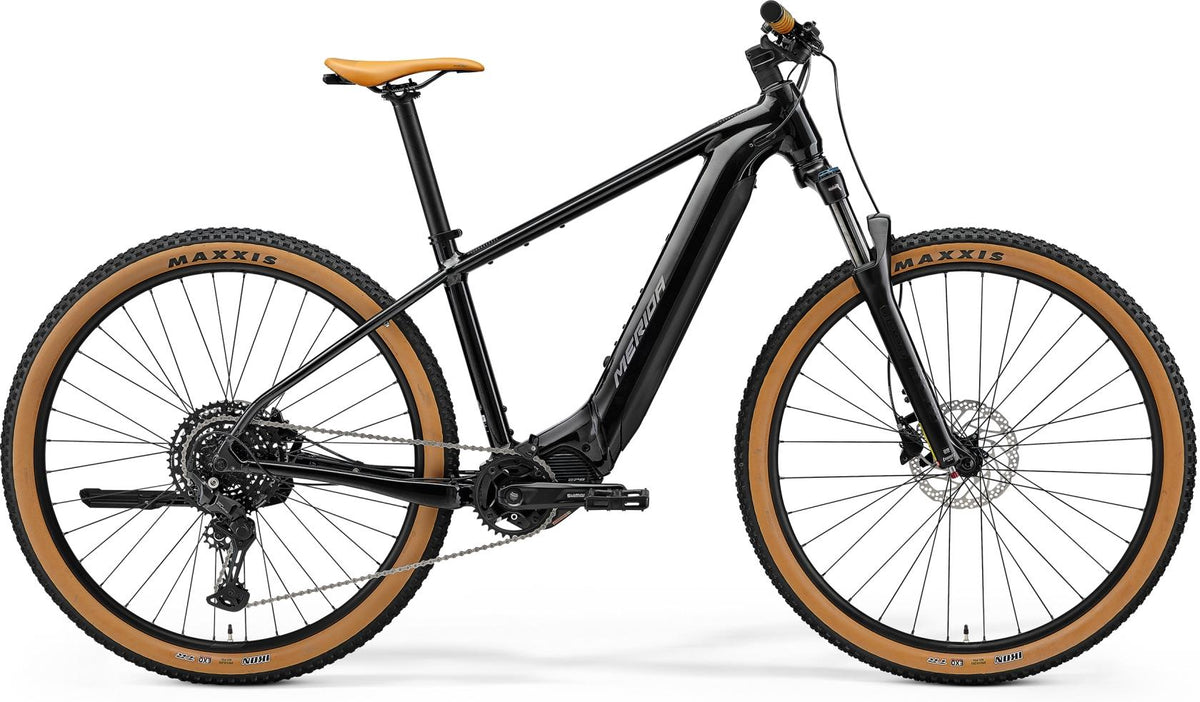

Merida 27 EBIG NINE 400 METALLIC BLACK(GUNMETAL GREY
Couldn't load pickup availability
Need help choosing the right size?
If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.
The power to do more of what matters, whether you want e-assisted off-road fun or a hassle-free commute, all wrapped up in a sleek, high-quality, fully integrated frame.
| SEASON | 2027 |
|---|---|
| ACCESSORIES | Kickstand: CL-KA98, 29"; MERIDA Multitool with saddlebox |
| AXLES | R: MERIDA COMP TR; including removeable lever, 6/4mm allen key |
| BRAKES | F: Shimano MT-200; 2 piston | R: Shimano MT-200; 2 piston |
| CASSETTE | Shimano LG300; 11-48 ATC; 10 GER |
| CHAIN | Shimano LG500 |
| COLOUR | METALLIC BLACK(GUNMETAL GREY |
| CRANKSET | Shimano CRE70-B; 34 ATC ; Shimano FC-EM600; 165 mm for all sizes |
| DERAILLEUR REAR | Shimano CUES U6000 ; GS |
| FORK | Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset; 29x2.4" max WHS |
| FRAME | eBIG.NINE LITE III; MAT aluminium; 29x2.35" without fender max./ 29"x2.25" with fender max. WHS; 148x12 AST; intube |
| GRIP | MERIDA COMP TK |
| HANDLEBAR | MERIDA MERIDA EXPERT TR II; 760 WHB; 18 RHB |
| HANDLEBAR STEM | MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD; GoPro & Supernova mount; 50 mm all sizes |
| HEADSET | MERIDA-8157 |
| HUBS | F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 36 SPH; Centerlock |
| LIGHT(S) | F: CG-119PG-BLACK(1) | R: CG-404RG-BLK |
| PEDALS | VP VPE-537 |
| RIM | MERIDA COMP CC II; 25 IWR; MAT aluminium |
| ROTOR FRONT | Shimano RT30; 180 mm |
| ROTOR REAR | Shimano RTEM300; 180 mm |
| SADDLE | MERIDA COMP SL; V-mount; incl. MERIDA minitool |
| SEAT POST | MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB |
| SHIFTERS | R: Shimano CUES U6000-10 |
| TYRES | F: Maxxis Ikon; 29x2.2"; kevlar bead | R: Maxxis Ikon; 29x2.2"; kevlar bead |
| MOTOR/DRIVE UNIT | Shimano EP6; 85Nm; 25KPH |
| MOTOR BRAND | Shimano |
| MOTOR MODEL | STePS EP6 |
| MOTOR POWER (WATTS) | 250 |
| MOTOR TORQUE (NM) | 85 |
| BATTERY | Shimano EN806; 630Wh |
| BATTERY BRAND | Shimano |
| BATTERY MODEL | Shimano EN806 |
| BATTERY SIZE (WATT-HOURS) | 630 |
| EBIKE DRIVE SYSTEM | Mid Drive |
| DISPLAY | Shimano SC-EN500A |
Frame: eBIG.NINE LITE III; MAT aluminium; 29x2.35" without fender max./ 29"x2.25" with fender max. WHS; 148x12 AST; intube
Fork: Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset; 29x2.4" max WHS
Brakes: F: Shimano MT-200; 2 piston | R: Shimano MT-200; 2 piston
Shifters: R: Shimano CUES U6000-10
Derailleur Rear: Shimano CUES U6000 ; GS
Crankset: Shimano CRE70-B; 34 ATC ; Shimano FC-EM600; 165 mm for all sizes
Cassette: Shimano LG300; 11-48 ATC; 10 GER
Hubs: F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 36 SPH; Centerlock
Tyres: F: Maxxis Ikon; 29x2.2"; kevlar bead | R: Maxxis Ikon; 29x2.2"; kevlar bead
Handlebar: MERIDA MERIDA EXPERT TR II; 760 WHB; 18 RHB
Seat Post: MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB
Saddle: MERIDA COMP SL; V-mount; incl. MERIDA minitool
Light(s): F: CG-119PG-BLACK(1) | R: CG-404RG-BLK
Drive Unit: Shimano EP6; 85Nm; 25KPH
Battery: Shimano EN806; 630Wh
Display: Shimano SC-EN500A
Drive Unit Torque (nm): 250
Battery Size (Watt Hours): 630
