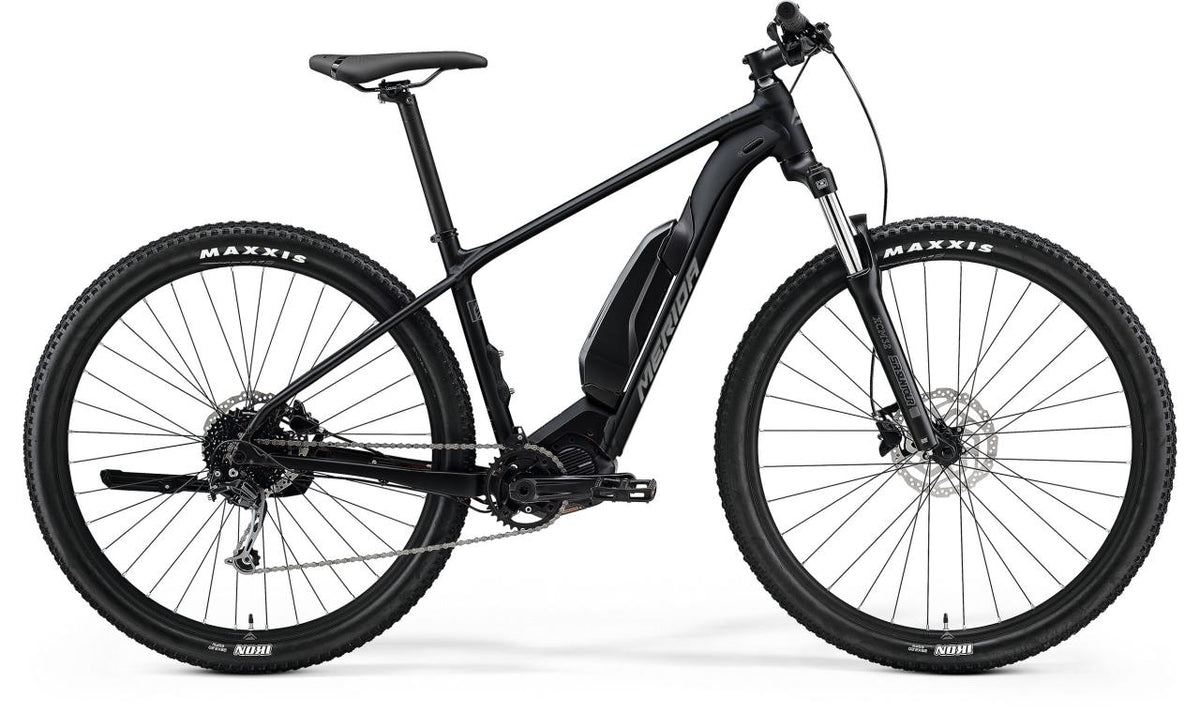

Merida 27 EBIG NINE 300 SE 504WH METALLIC BLACK(GUNMETAL GREY

(0)
SKU: 5NS2QYCB
$4,299.00 includes GST
Size

Need help choosing the right size?

Read our guide or get in touch

Please Note

If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.

Welcome to the world of e-bikes. A quality aluminium frame, strong Shimano drive unit and externally mounted battery deliver versatility and reliability without breaking the bank.
Frame: eBIG.NINE LITE
Fork: Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm fork offset, 29x2.4" max WHS,
Shifters: Shimano ALTUS,
Derailleur Rear: Shimano Essa,
Crankset: Prowheel EB11, 165mm for all sizes; Prowheel Pro38P-S16-49, 38t
Cassette: Shimano HG300, 11-45,8,
Chain: KMC Z8.3 EPT,
Brakes: Shimano MT-200, 2 piston
Brake Rotor Front: Shimano RT10, 180 mm
Brake Rotor Rear: Shimano RT10, 180 mm
Hubs: F: Shimano QC300, 100x9 WHF, 32 SPH, Centerlock | R: Shimano TC500-HM-B, 148x12 WHR, 36 SPH, Centerlock
Rims: MERIDA COMP TK, 20 IWR, MAT aluminium,
Tyres: F: Kenda Booster, 29x2.2", wire, | R: Kenda Booster, 29x2.2", wire,
Headset: MERIDA-2341 (for the steerer 1-1/8"~1.5"),
Stem: MERIDA COMP CC, MAT aluminium, 31.8 DSH, 7 ASD; 90 mm all sizes,
Handlebar: MERIDA EXPERT, MAT aluminium, 680 WHB, 15 RHB
Grips: MERIDA COMP TK,
Seat Post: MERIDA COMP CC, MAT aluminium, 30.9 DSP, 0 SSB
Saddle: MERIDA Expert TK, 168 width
Lights: F: CG-119PG-BLACK(1), | R: CG-404RG-BLK,
Drive Unit: Shimano EP5, 60Nm
Drive Unit Torque (nm): 60
Battery: Shimano EN604 Battery, 504Wh
Battery Size (Watt Hours): 504
Display: Shimano SC-EN500,
