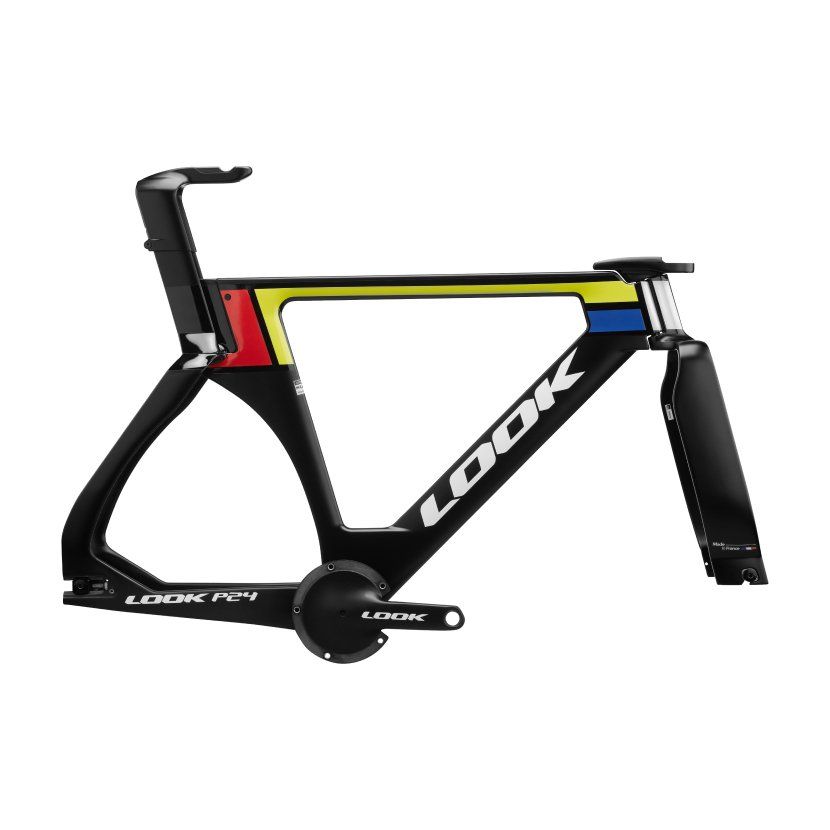

Look P24 Track Frameset
Couldn't load pickup availability
If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.
Need help choosing the right size?
The sleek and futuristic lines of the LOOK P24 embody its bold and dynamic character. It epitomizes the essence of speed, purity, and unwavering confidence. It is an extension of the rider's body, a seamless fusion between man, machine, and the track. Get ready to feel the palpable excitement, pure adrenaline, and insatiable desire for victory.
TECHNICAL SPECIFICATIONS
| Frame | Very High Modulus Carbon UD Glossy finish |
|---|---|
| Crankset | LOOK ZED Track (without plates) – Short version : 165 / 167.5 / 170 mm Medium version: 172.5 / 175 / 177.5 mm |
| Bottom bracket | BB 65 (LOOK Specific) |
| Seatpost | Air Seatpost |
| Stem | Air Stem – available in 65mm / 75mm / 85mm / 95mm / 105mm / 115mm |
| Handlebar | Not included - (LOOK P24 specific – complete with Look Air bar poursuite / Look Air bar madisson / Look Air bar Vitesse) |

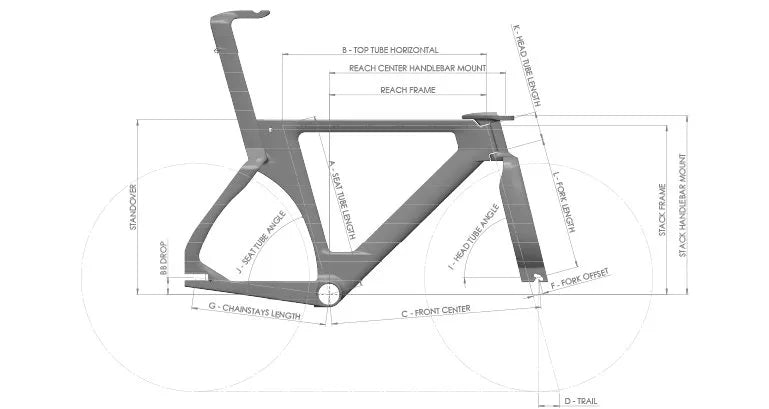

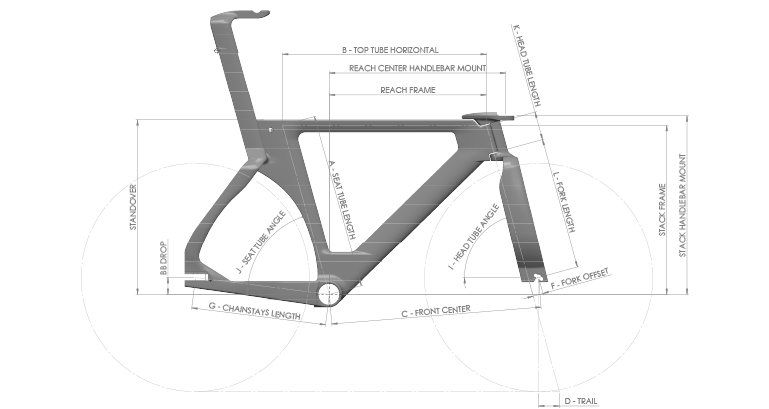

LOOK P24 Geometry
| XS | S | M | L | |
|---|---|---|---|---|
| Stack | 466 | 483 | 500 | 517 |
| Reach | 412.6 | 438.6 | 464.6 | 490.6 |
| Reach center handlebar mount (65mm stem) | 469.6 | 495.6 | 521.6 | 547.6 |
| Min stack center handlebar mount | 74.7 | 74.7 | 74.7 | 74.7 |
| I - Head tube angle (°) | 74.7 | 74.7 | 74.7 | 74.7 |
| J - Seat tube angle (°) | 74.5 | 74.5 | 74.5 | 74.5 |
| A - Seat tube length | 483.3 | 501 | 518.7 | 536.4 |
| B - Top tube length | 541.9 | 572.6 | 603.3 | 634 |
| C - Front Center | 590.5 | 621 | 651.6 | |
| D - Trail | 61.4 | 61.4 | 61.4 | 61.4 |
| F - Fork offset | 30 | 30 | 30 | 30 |
| G - Chain stays length | 399 | 399 | 399 | 399 |
| K - Head tube length | 48.9 | 66.5 | 84.1 | 101.7 |
| L - Fork length | 390.6 | 390.6 | 390.6 | 390.6 |
| BB Drop | 50 | 50 | 50 | 50 |
| Standover | 482.5 | 499.5 | 516.5 | 533.5 |
We use a premium delivery service to deliver all of our bikes to ensure they arrive in the best possible condition. Bicycles from a different warehouse so may arrive separately to any other items ordered. A signature is required to confirm proof of delivery.
All products are sourced from official importers and covered by manufacturers warranty. If you do need to send items back to us please make sure that you retain proof of postage in the event that it is needed.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
