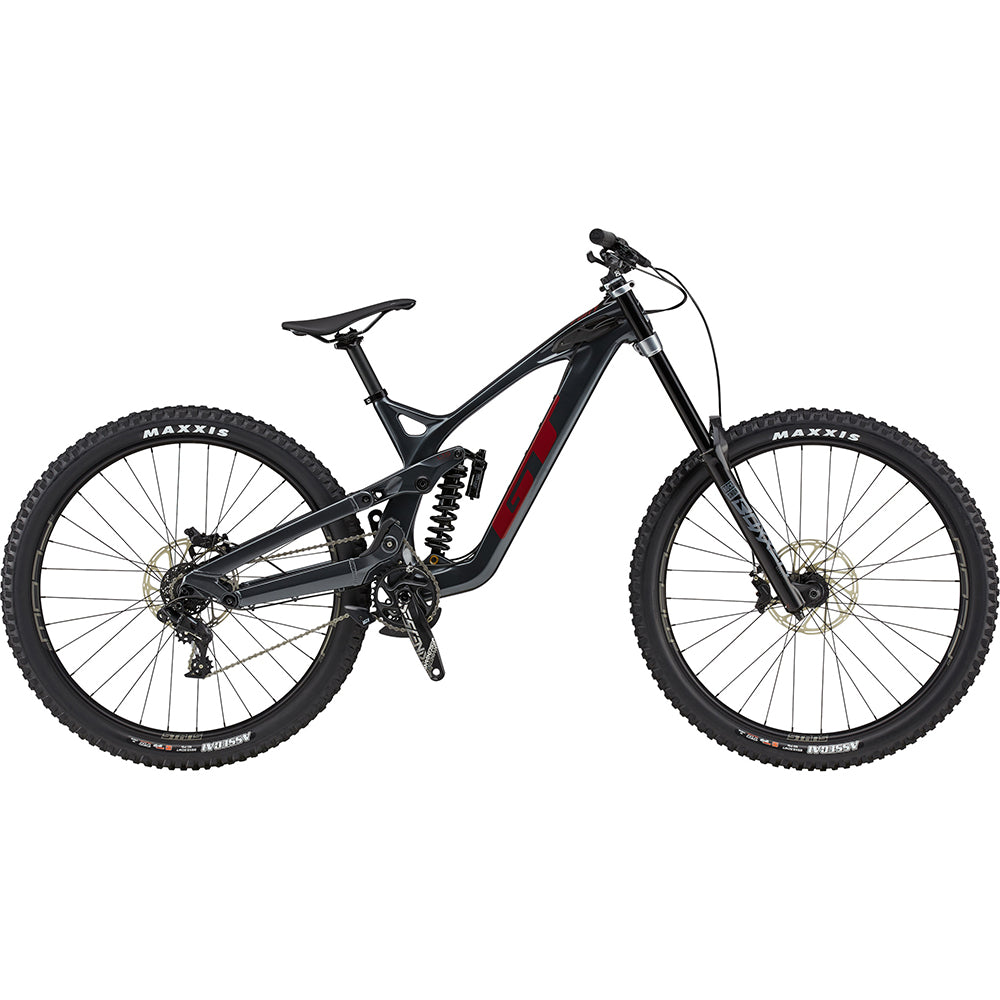

GT Fury 2019 - 2022
GT Fury 2019 - 2022 1
GT Fury 2019 - 2022 2

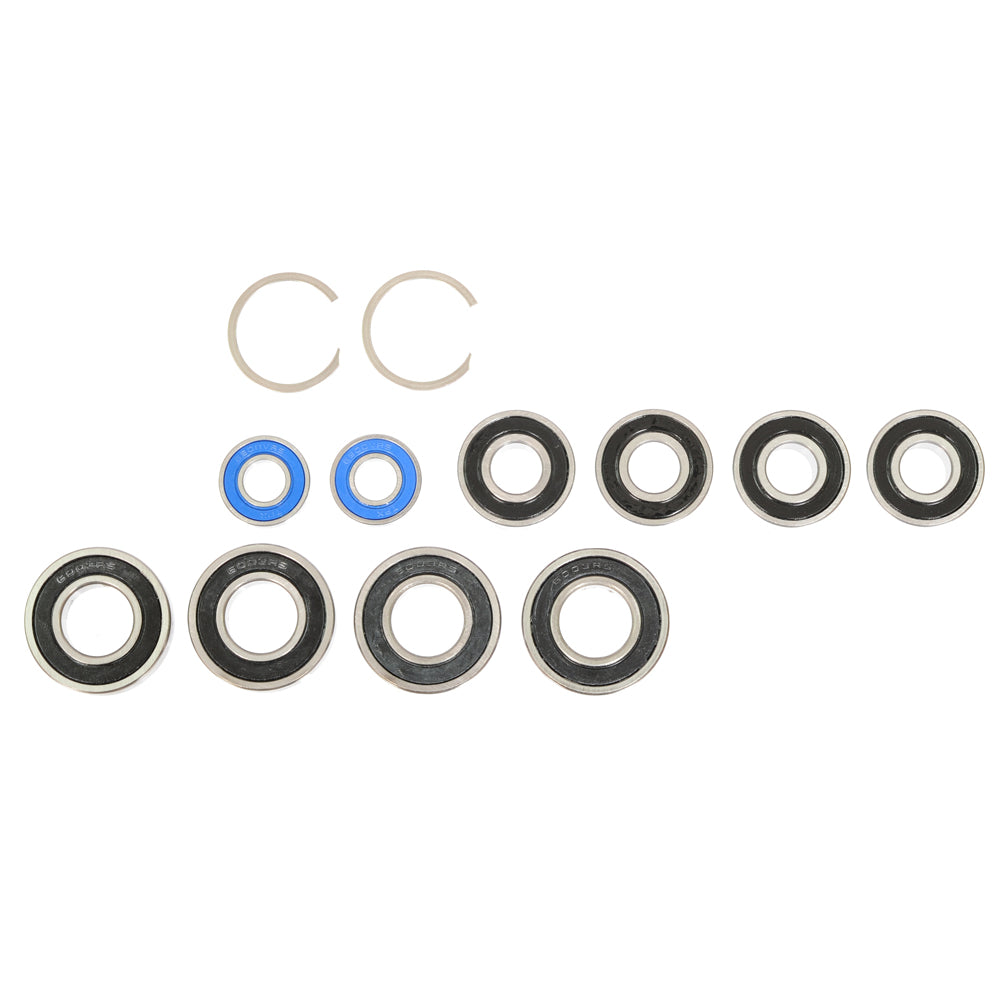

GT Fury Pivot Chain Stay / Seat Stay / Link Bearings

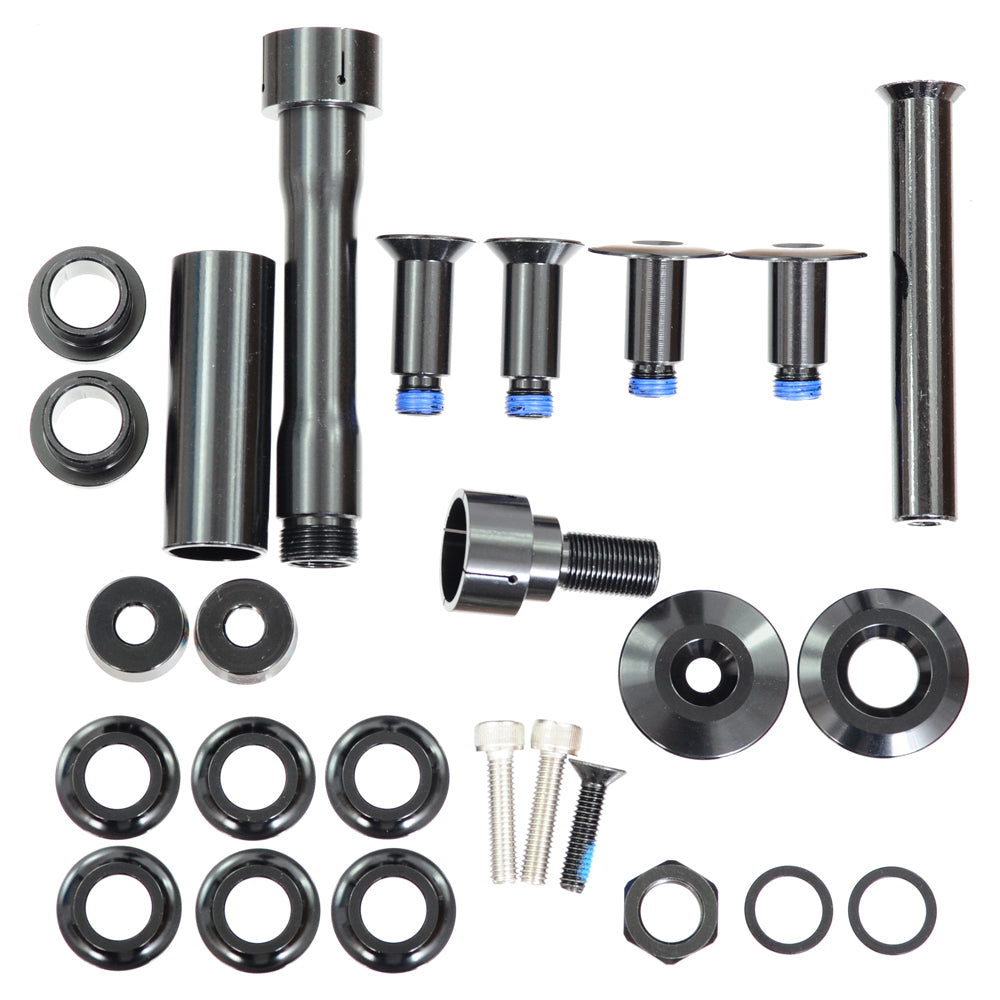

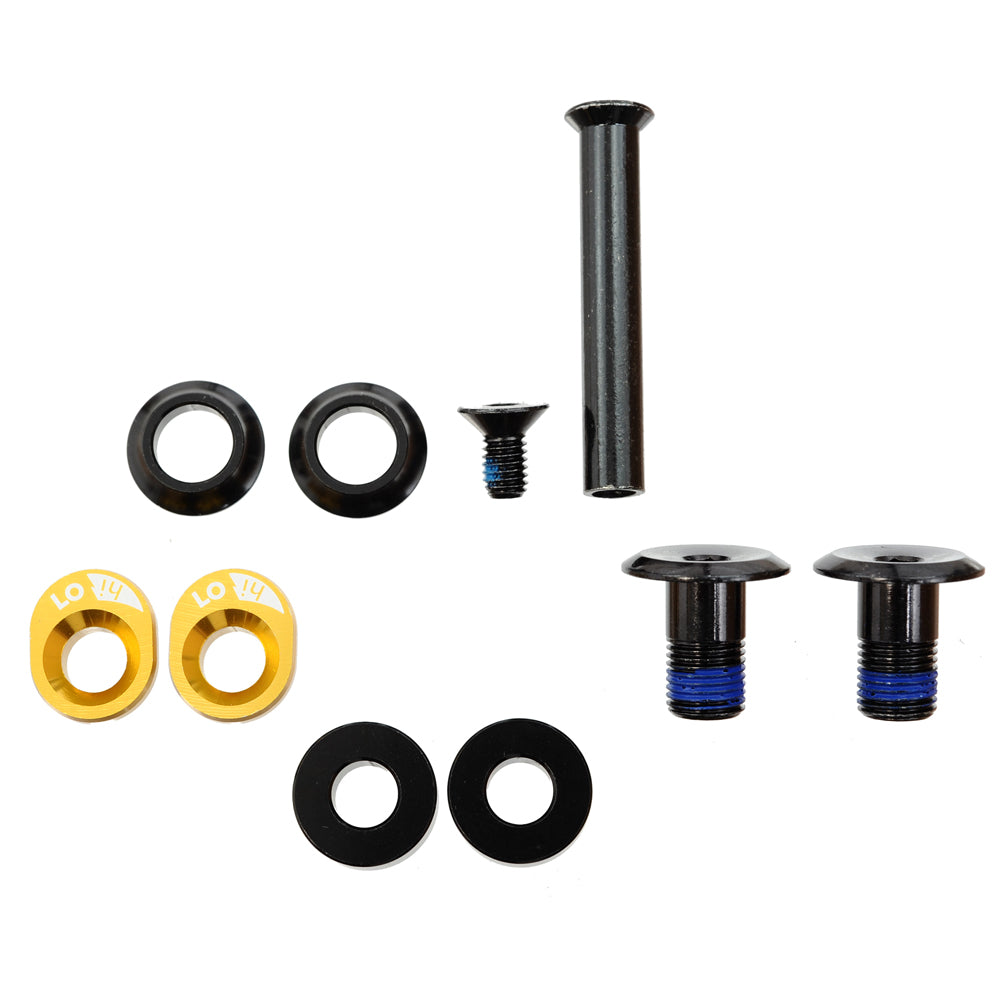

GT Fury Pivot Hardware Kit

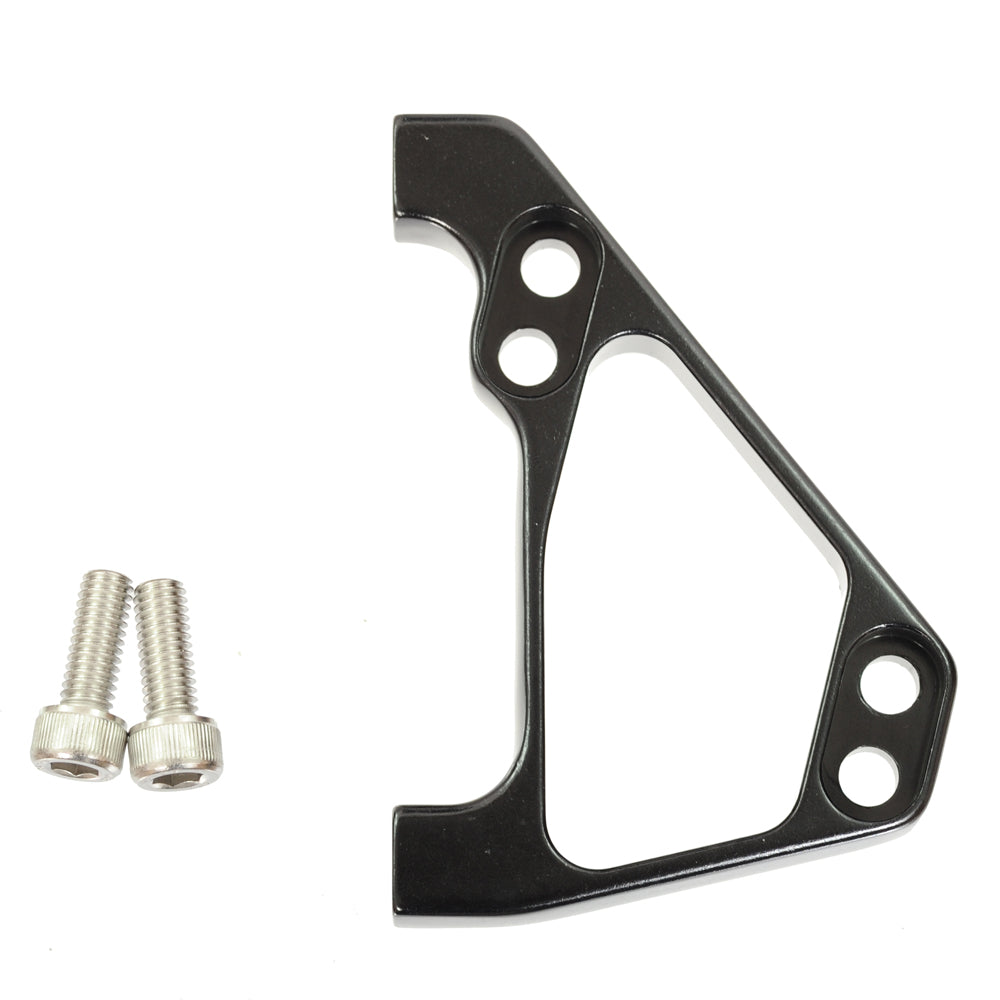

GT Fury Shimano Brake Mount 203mm

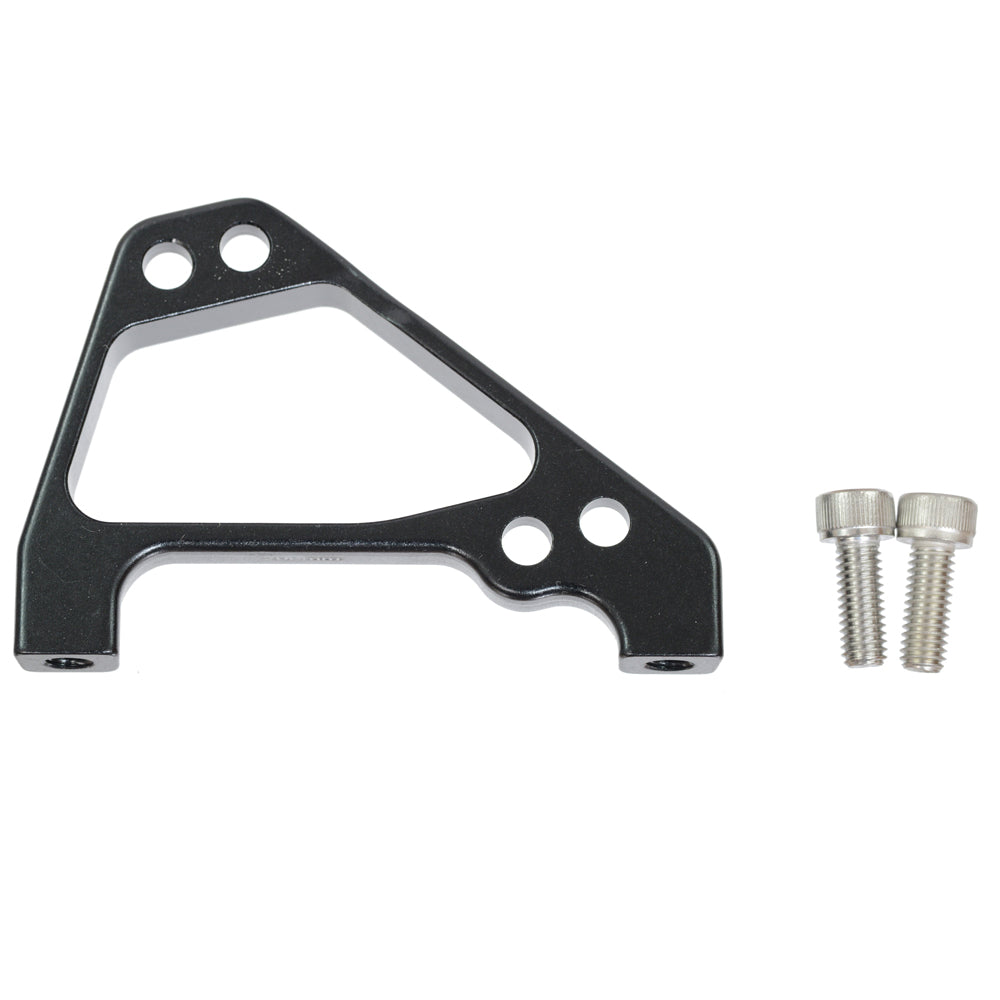

GT Fury SRAM Brake Mount 200mm

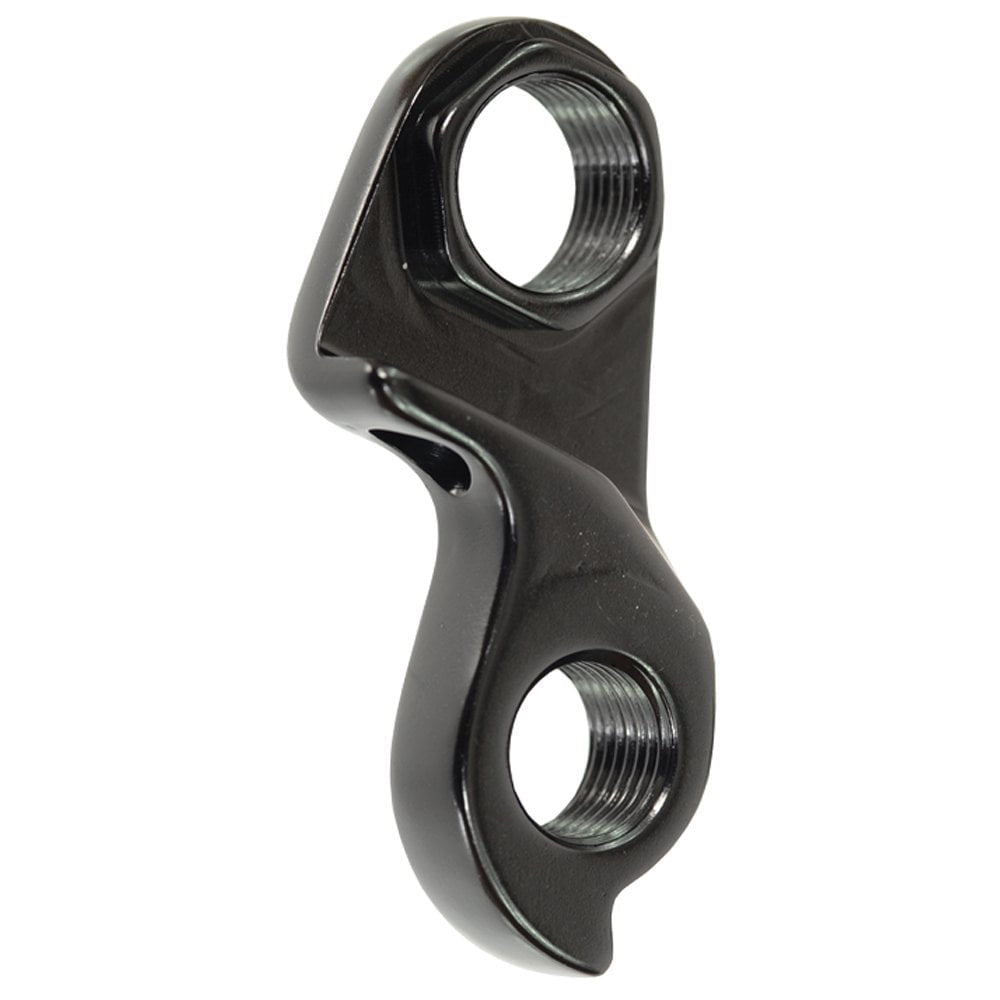

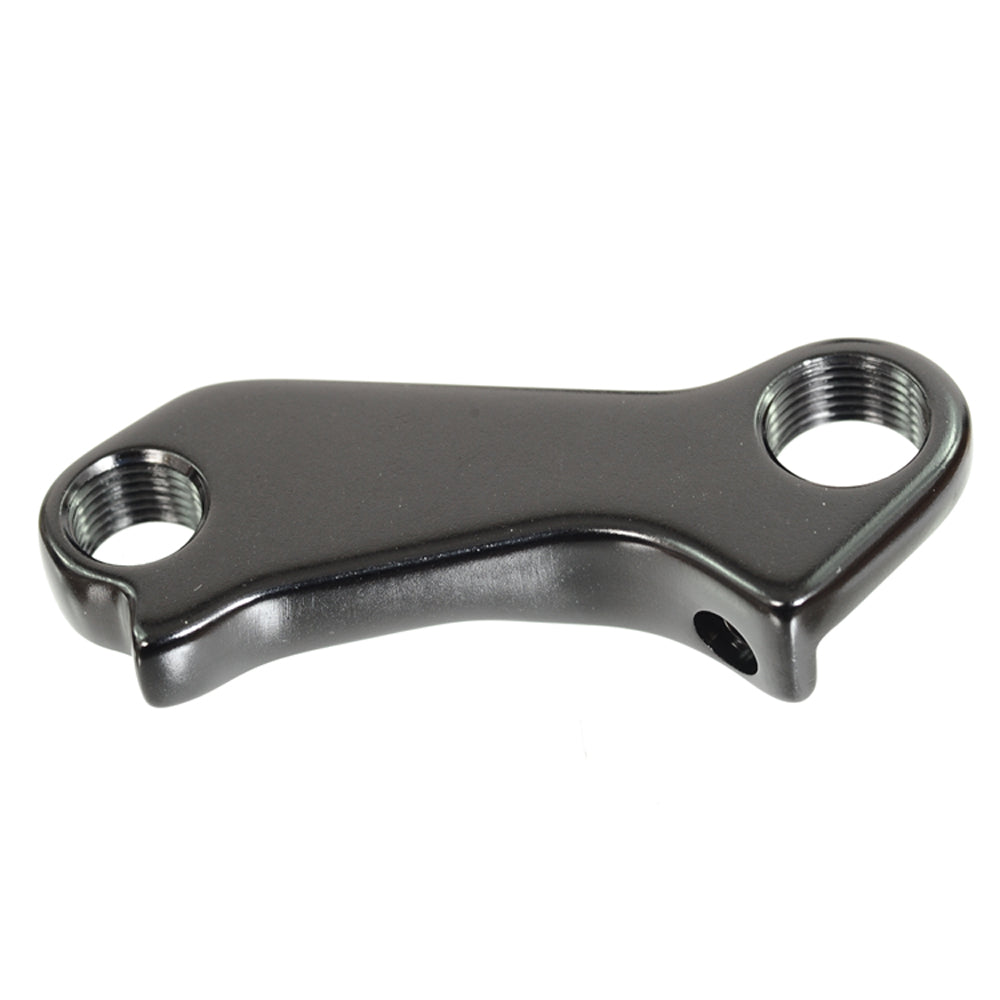

GT Derailleur Hanger 19 Fury Shimano Direct Mount

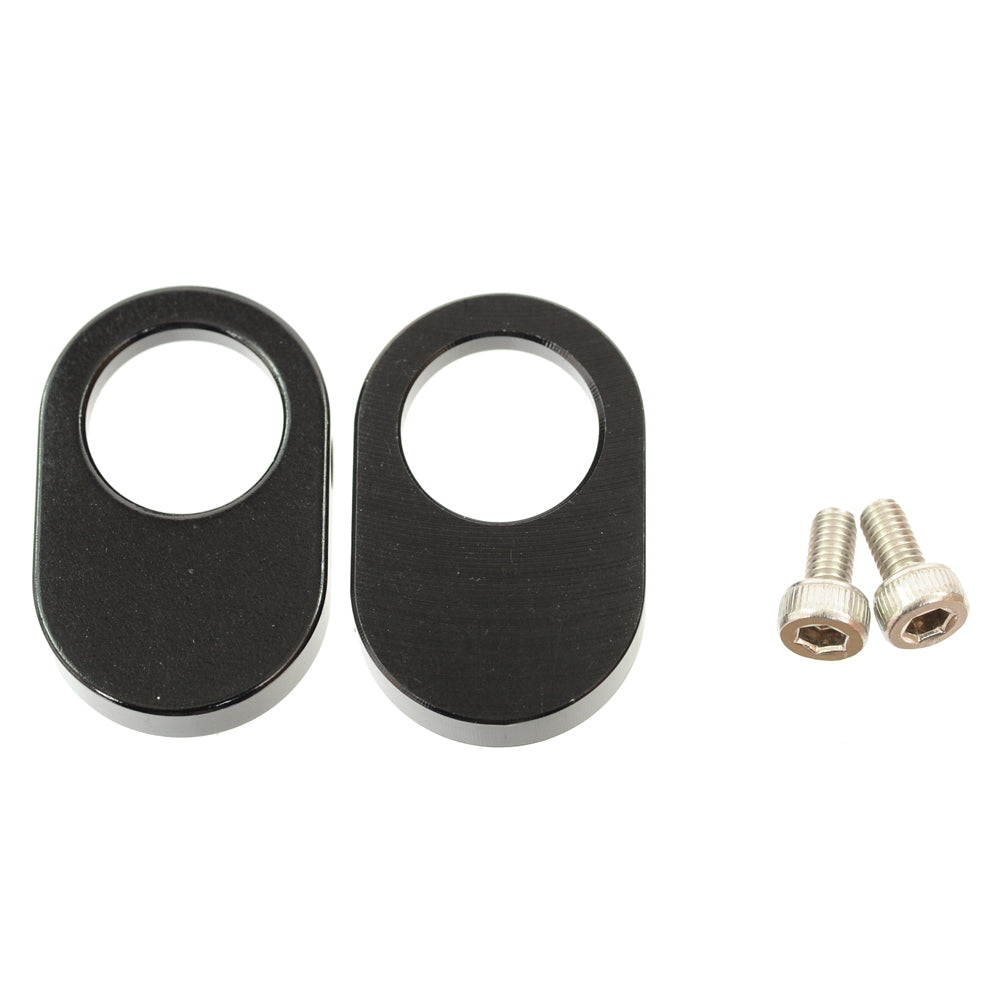

GT Fury Thru Axle Flip Chips
GT Fury Top Tube Fork Bumper Plate

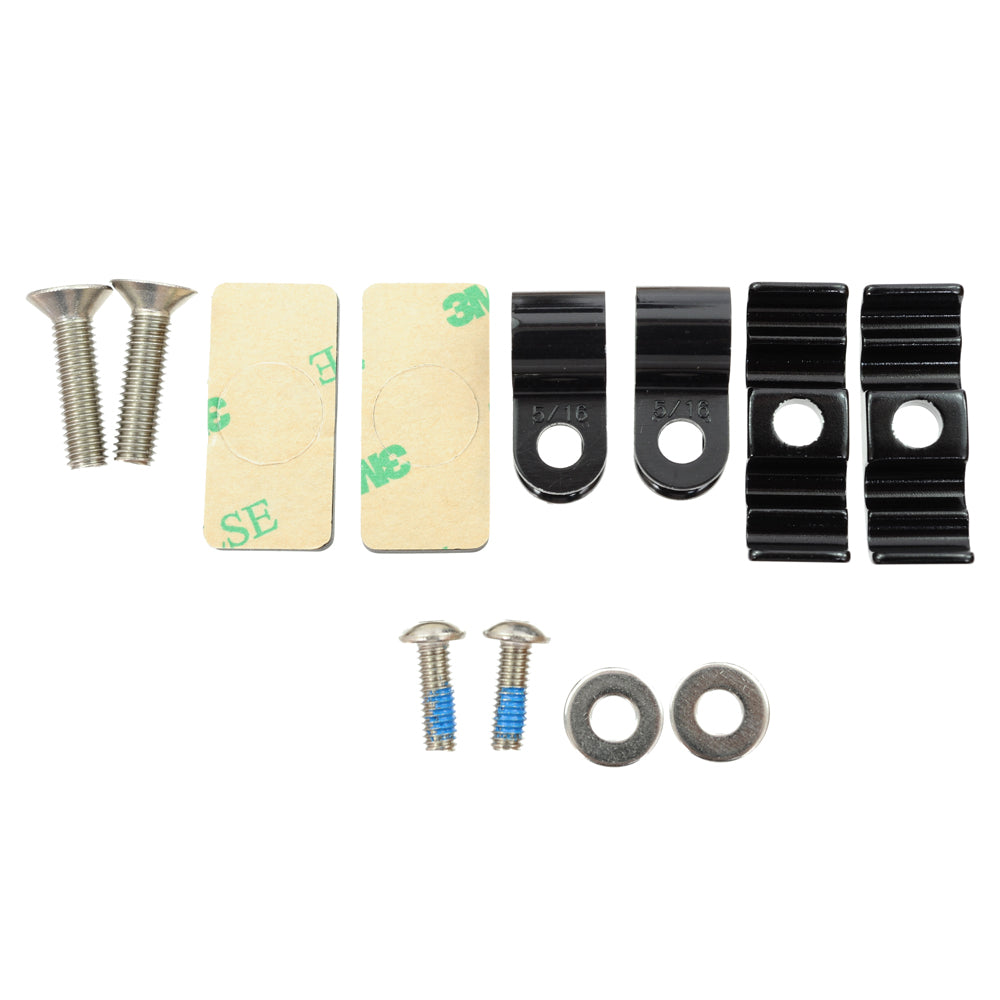

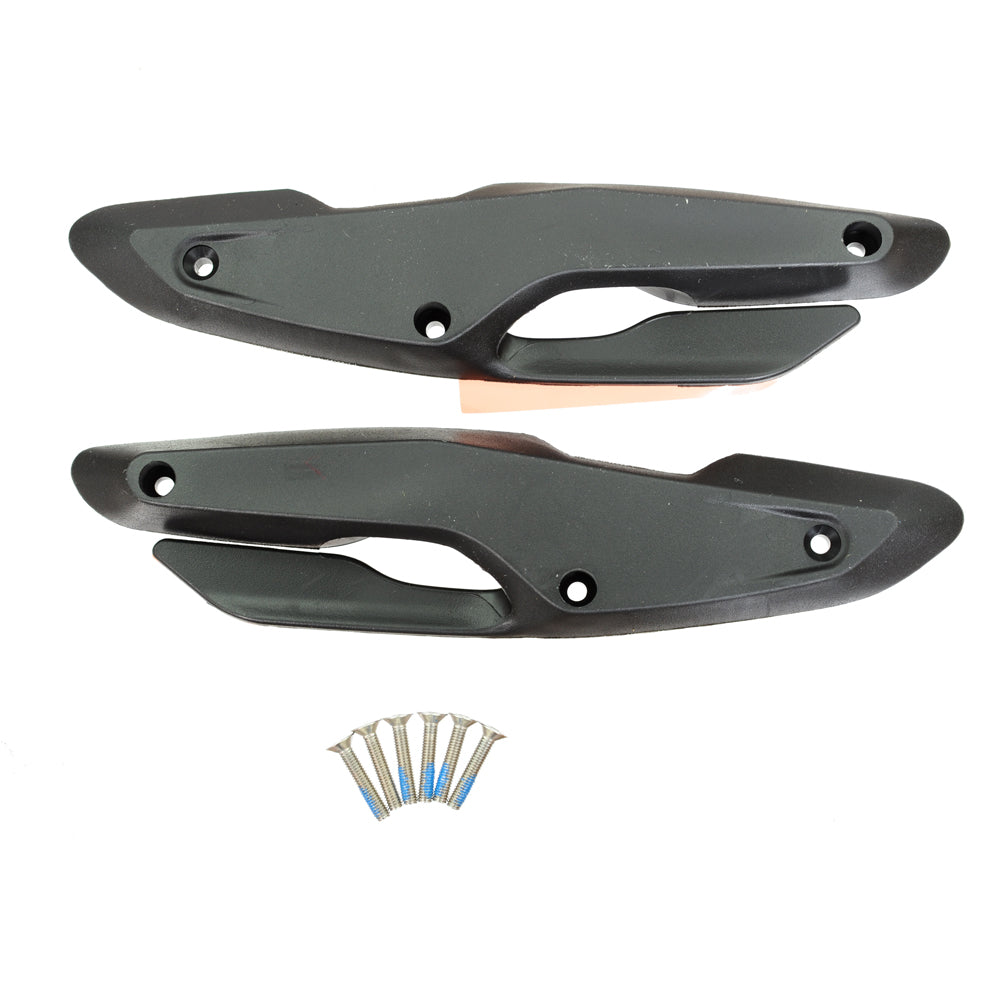

GT Fury Cable Guides Down Tube / Seat Tube

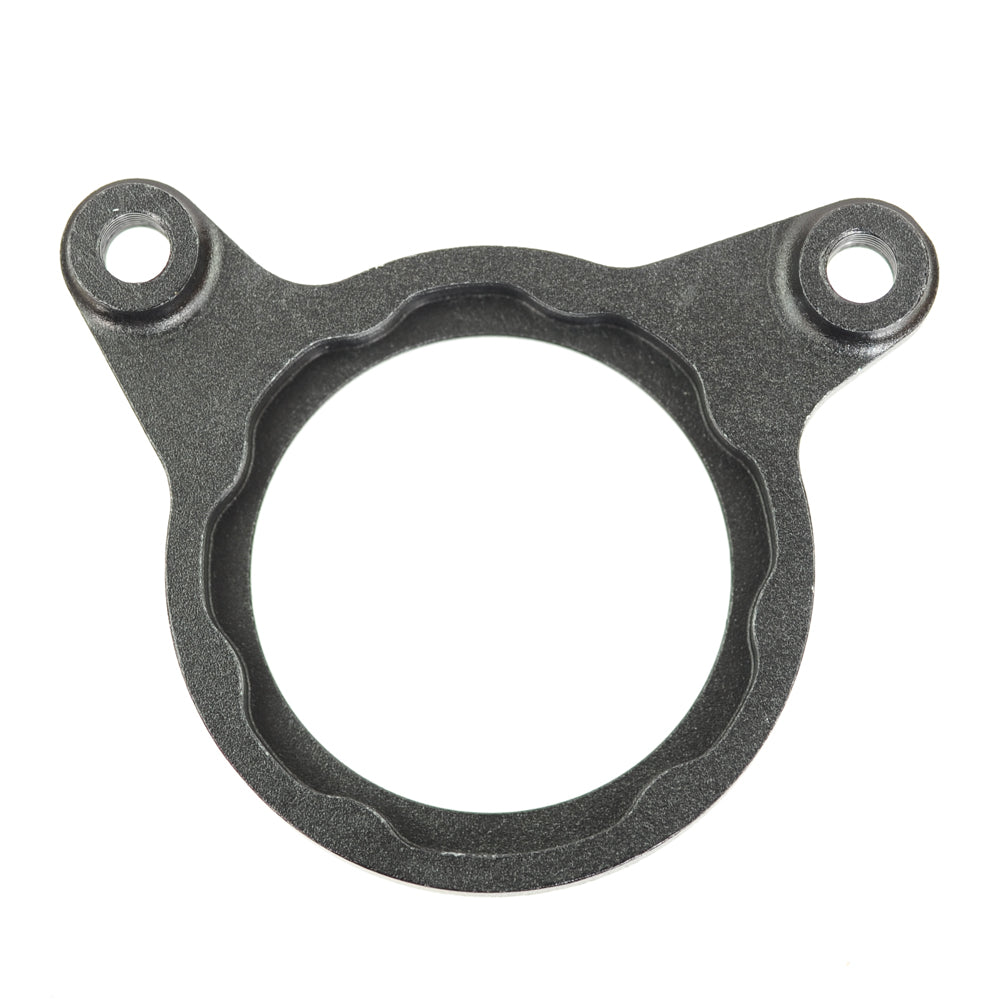

GT Fury ISCG Mount 2 bolt

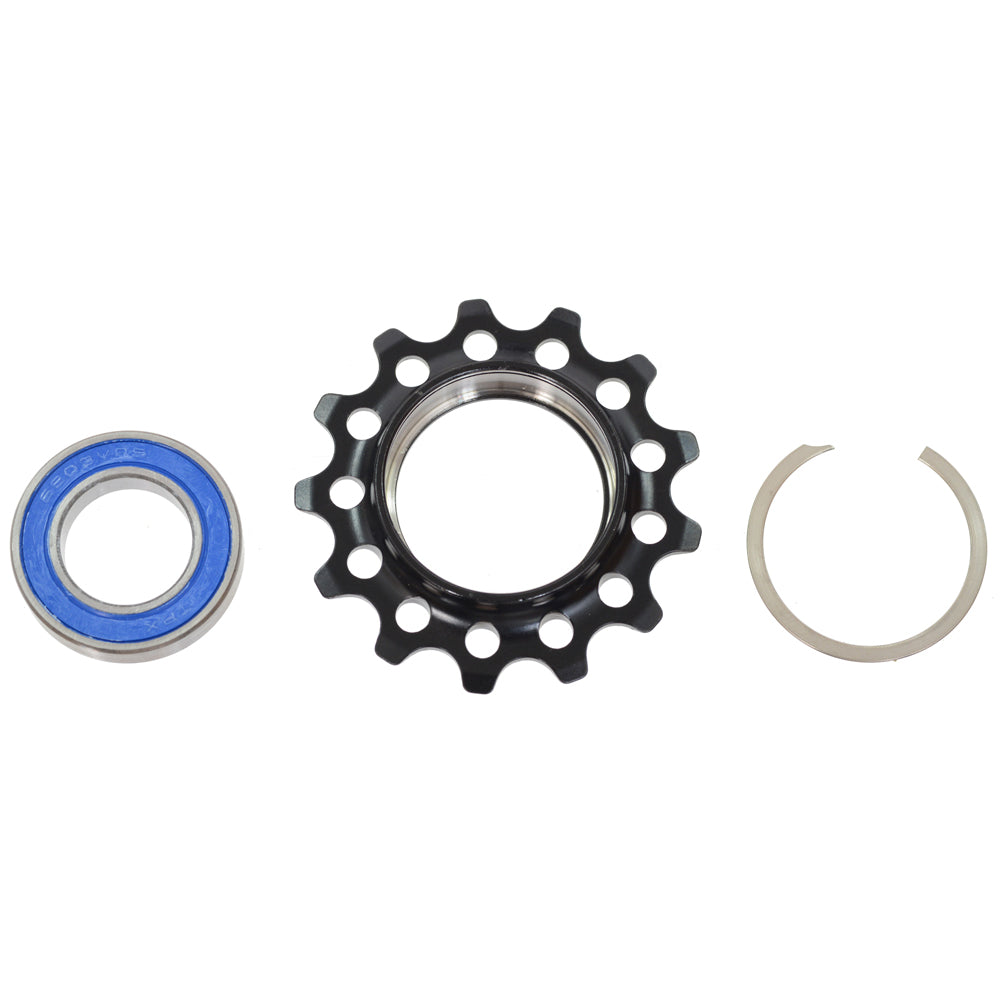

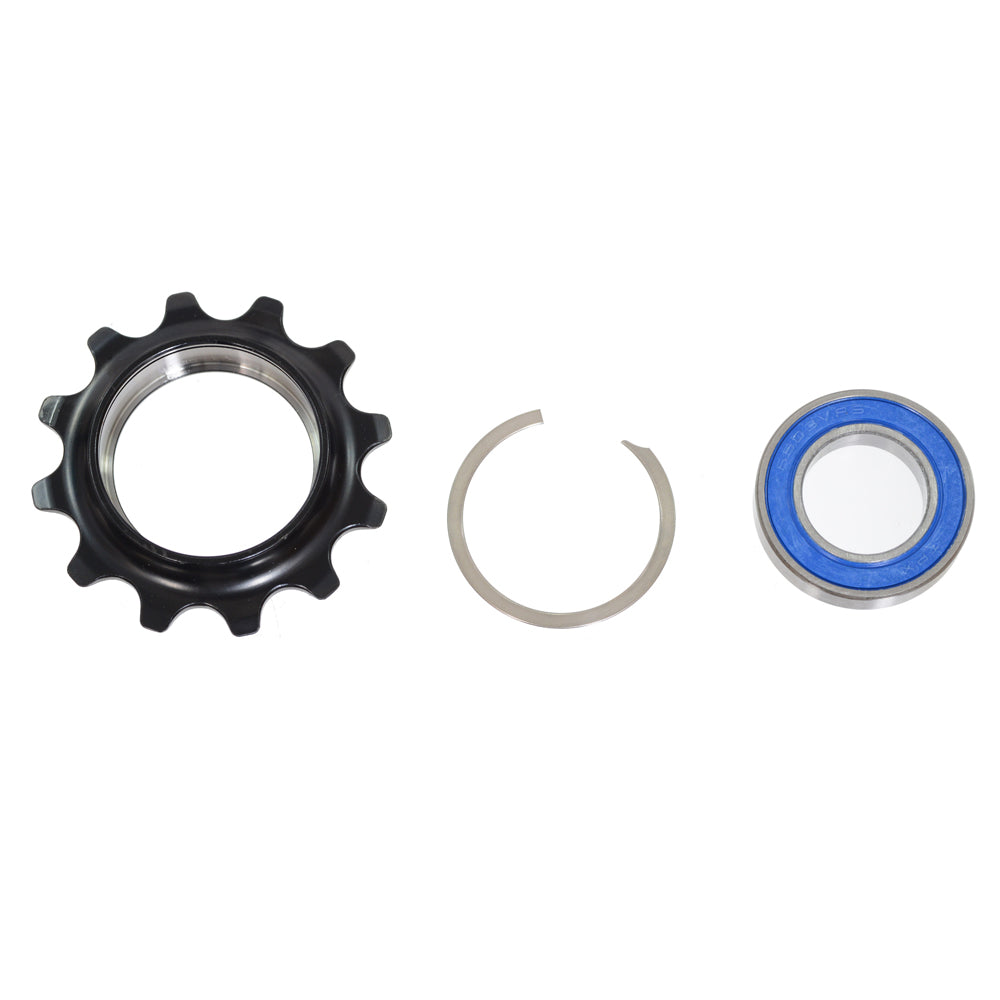

GT Fury Idler Cog 12 Tooth with Bearing
GT Fury Idler Cog 13 Tooth with Bearing
GT Fury Idler Cog 14 Tooth with Bearing

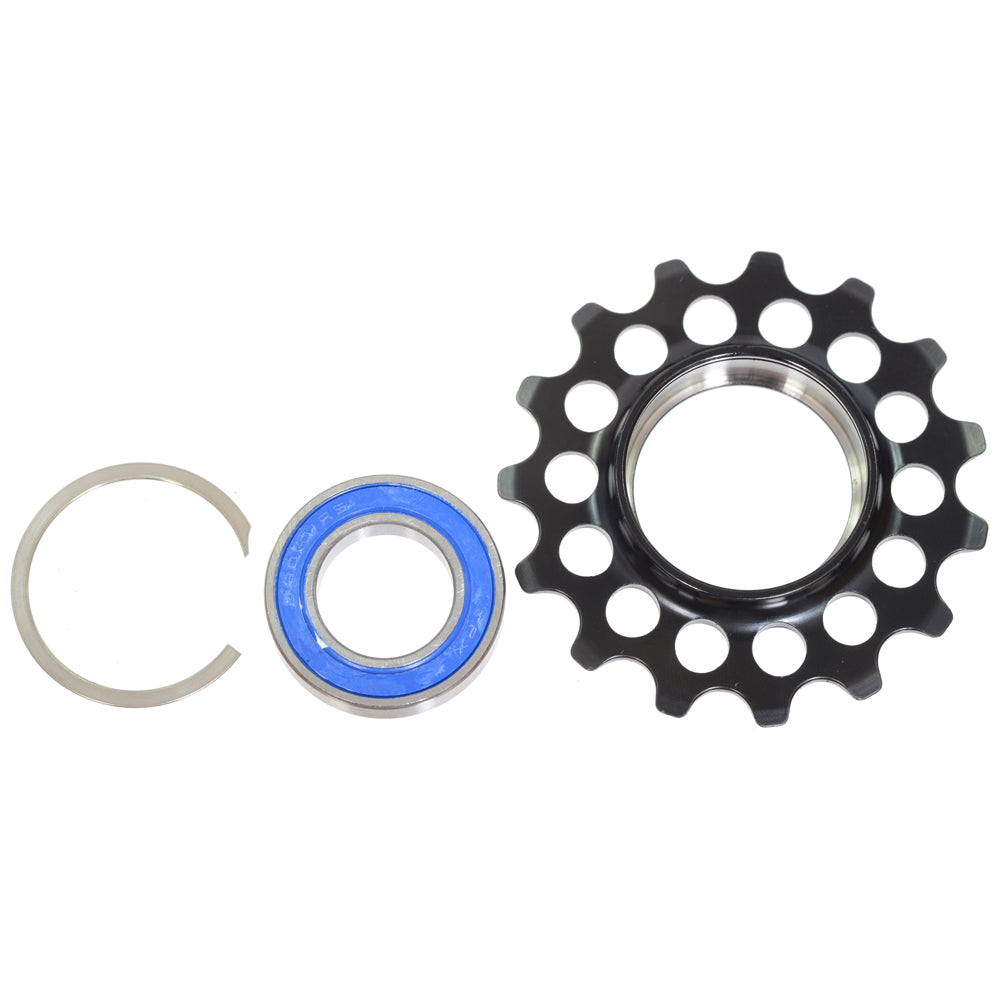

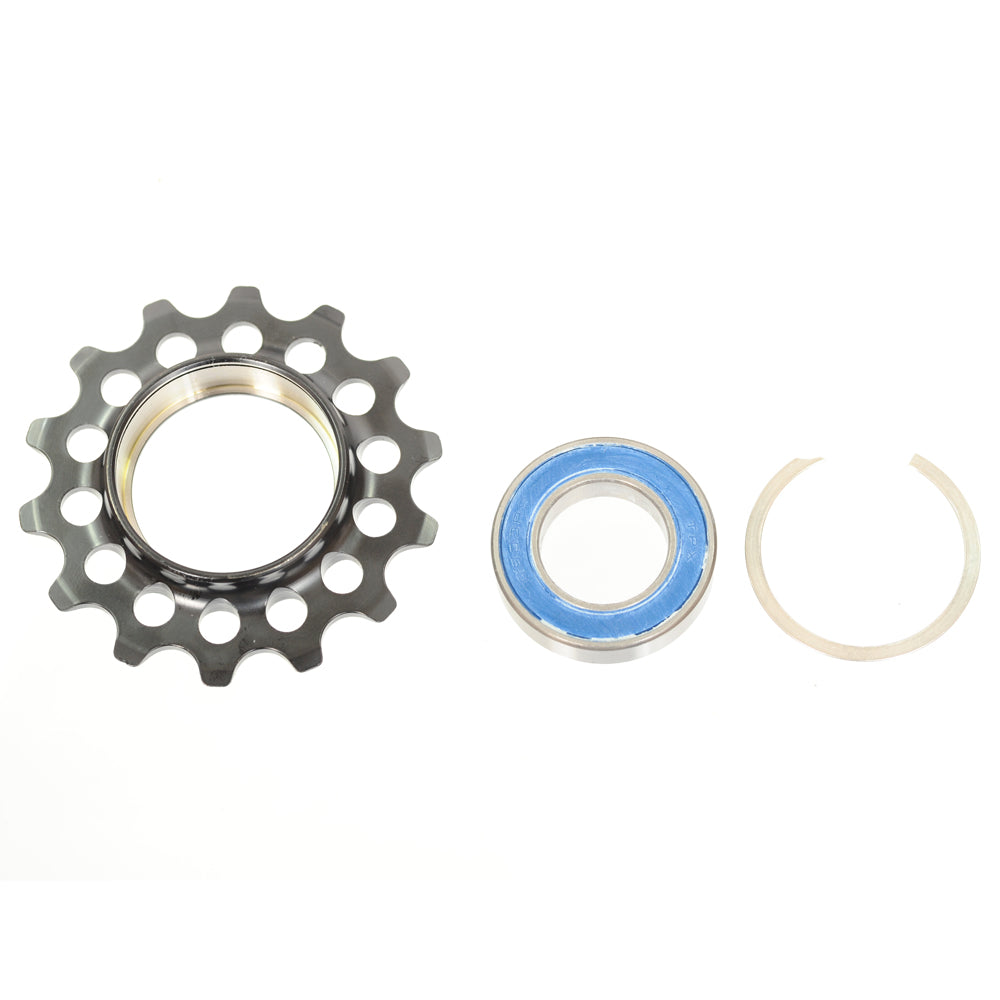

GT Fury Idler Cog 15 Tooth with Bearing
GT Fury Shock Mount Hardware Kit

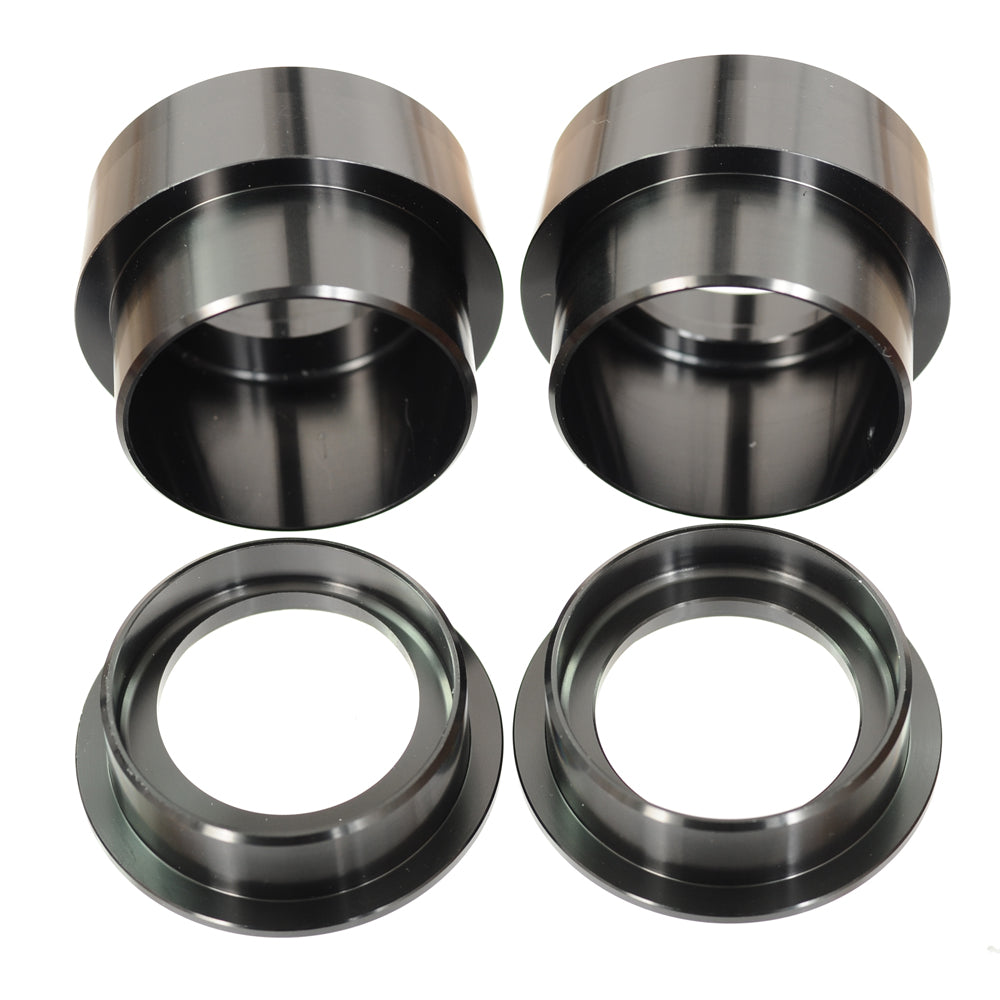

GT Fury Headset Cups 27.5" 0mm and 3.5mm Offsets

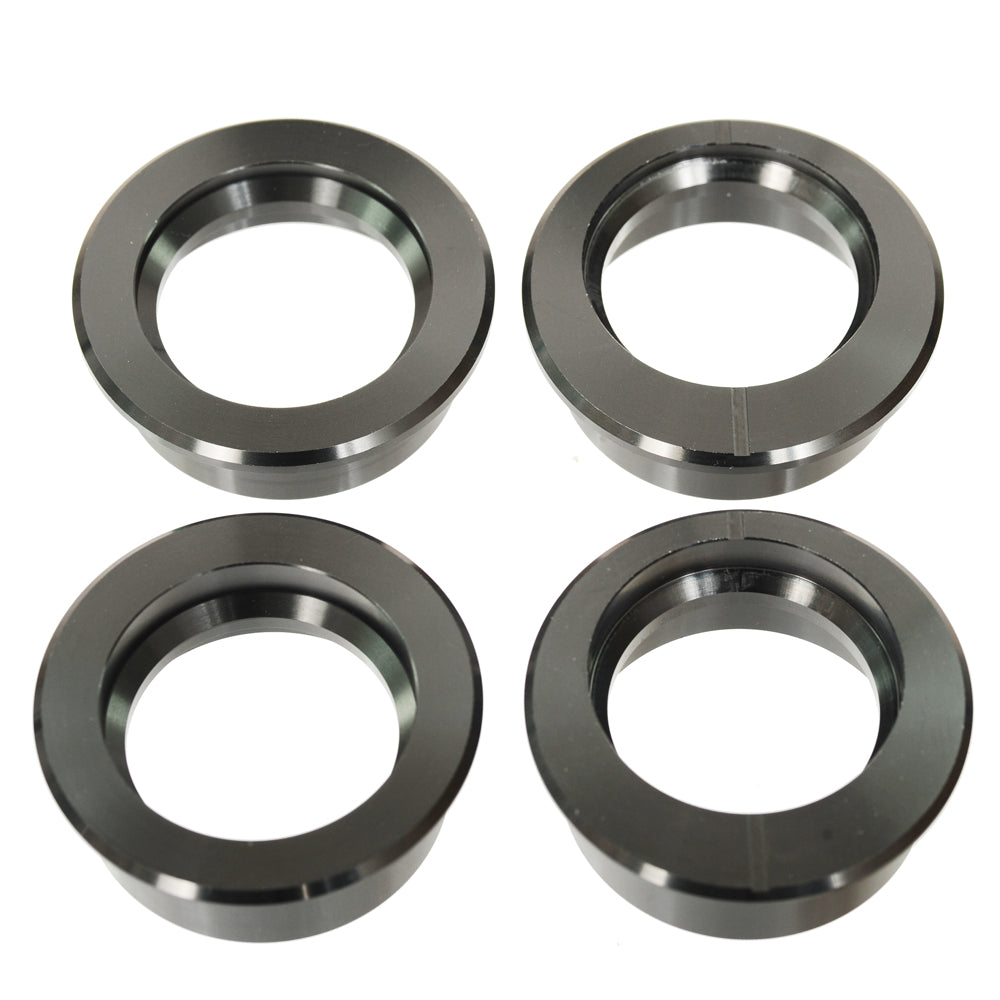

GT Fury Headset Cups 29" 0mm and 3.5mm Offsets
Fury 2019 - 2022
Fury 2019 - 2022
Fury 2019 - 2022
GT Fury Pivot Hardware Kit

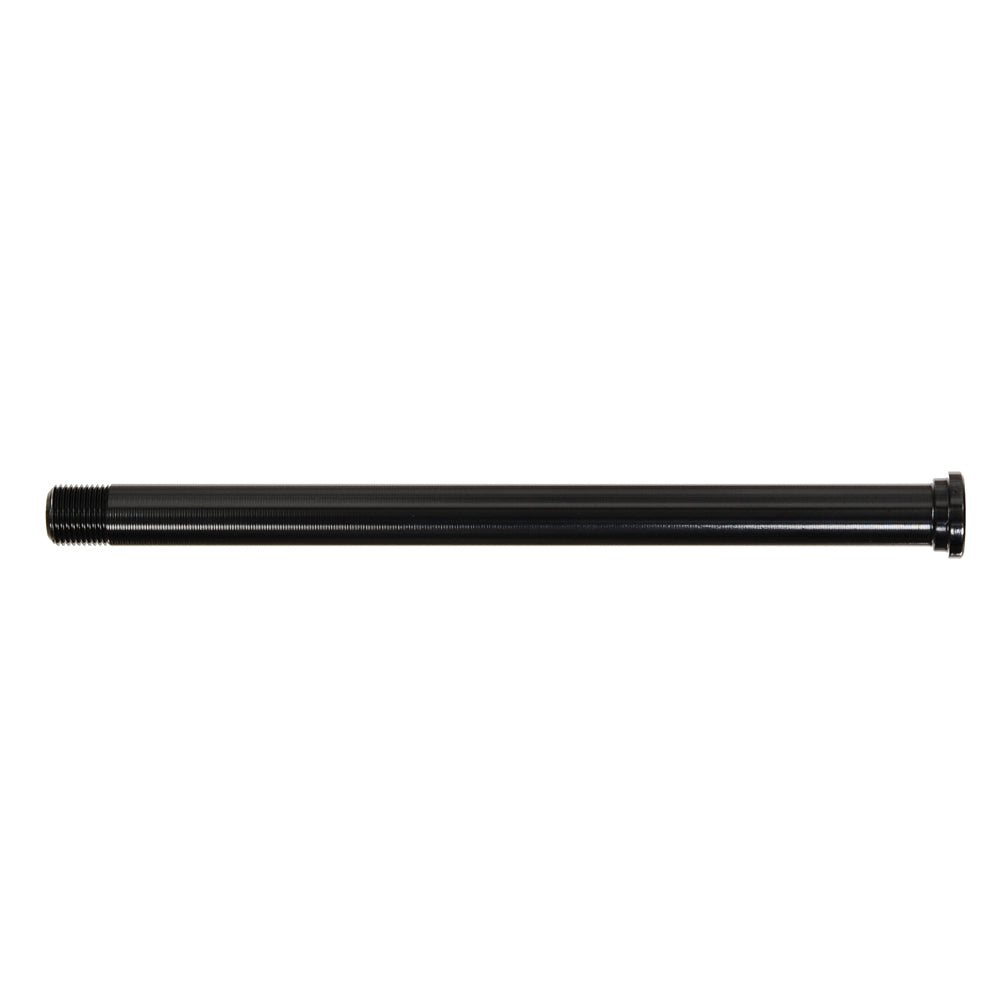

GT Fury Thru Axle 148mm x 12mm
GT Fury Pivot Chain Stay / Seat Stay / Link Bearings
Fury 2019 - 2022
Fury 2019 - 2022
Fury 2019 - 2022
GT Fury 2019 - 2022 Frame Parts - Papanui Cycles
GT Fury 2019 - 2022
GT Fury 2019 - 2022 1
GT Fury 2019 - 2022 2
GT Fury Pivot Chain Stay / Seat Stay / Link Bearings
GT Fury Pivot Hardware Kit
GT Fury Shimano Brake Mount 203mm
GT Fury SRAM Brake Mount 200mm
GT Derailleur Hanger 19 Fury Shimano Direct Mount
GT Fury Thru Axle Flip Chips
GT Fury Top Tube Fork Bumper Plate
GT Fury Cable Guides Down Tube / Seat Tube
GT Fury ISCG Mount 2 bolt
GT Fury Idler Cog 12 Tooth with Bearing
GT Fury Idler Cog 13 Tooth with Bearing
GT Fury Idler Cog 14 Tooth with Bearing
GT Fury Idler Cog 15 Tooth with Bearing
GT Fury Shock Mount Hardware Kit
GT Fury Headset Cups 27.5" 0mm and 3.5mm Offsets
GT Fury Headset Cups 29" 0mm and 3.5mm Offsets
Fury 2019 - 2022
Fury 2019 - 2022
Fury 2019 - 2022
GT Fury Pivot Hardware Kit
GT Fury Thru Axle 148mm x 12mm
GT SKU: FRGT763

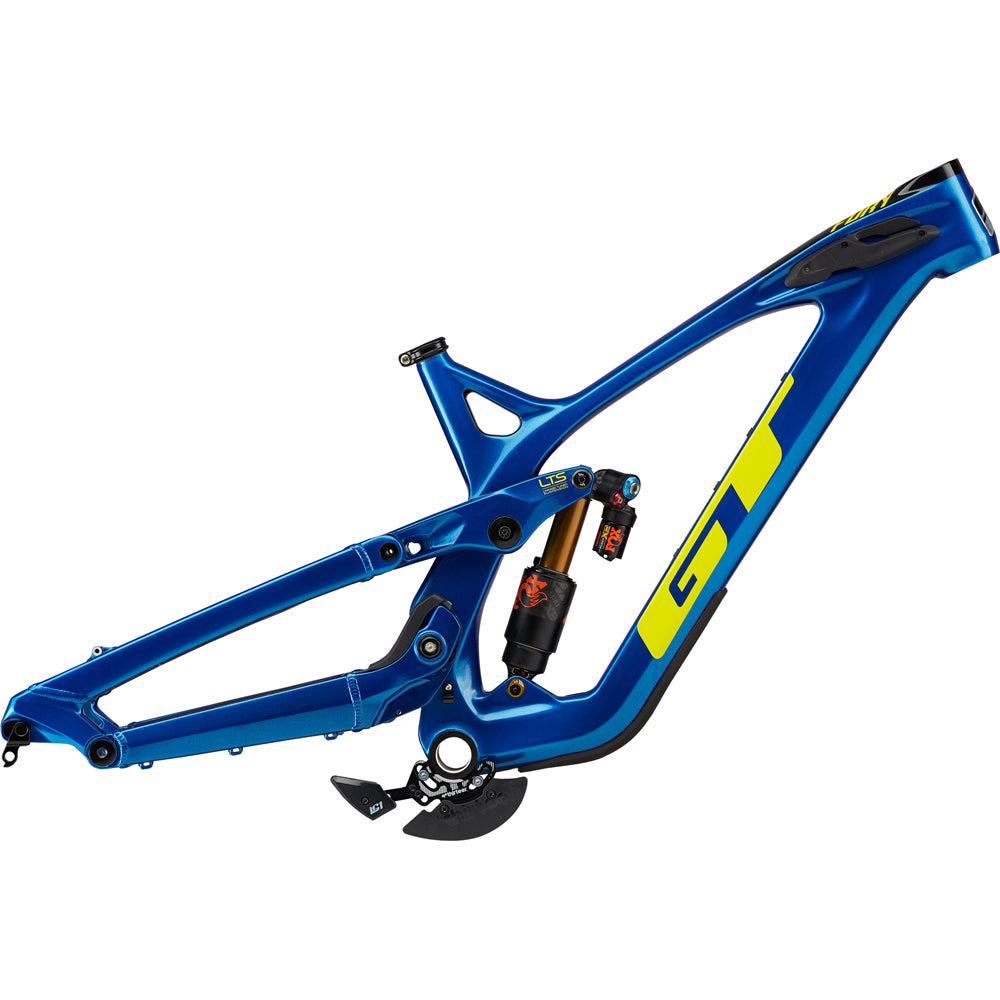

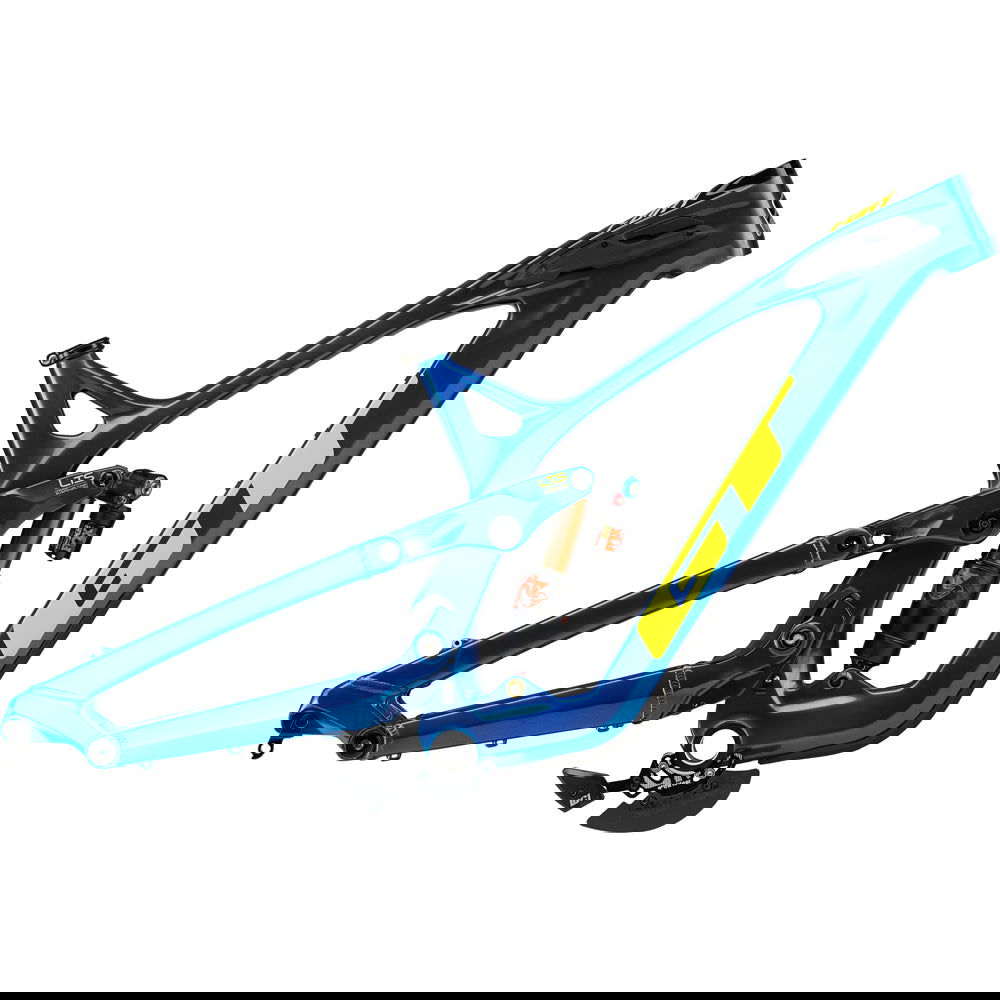

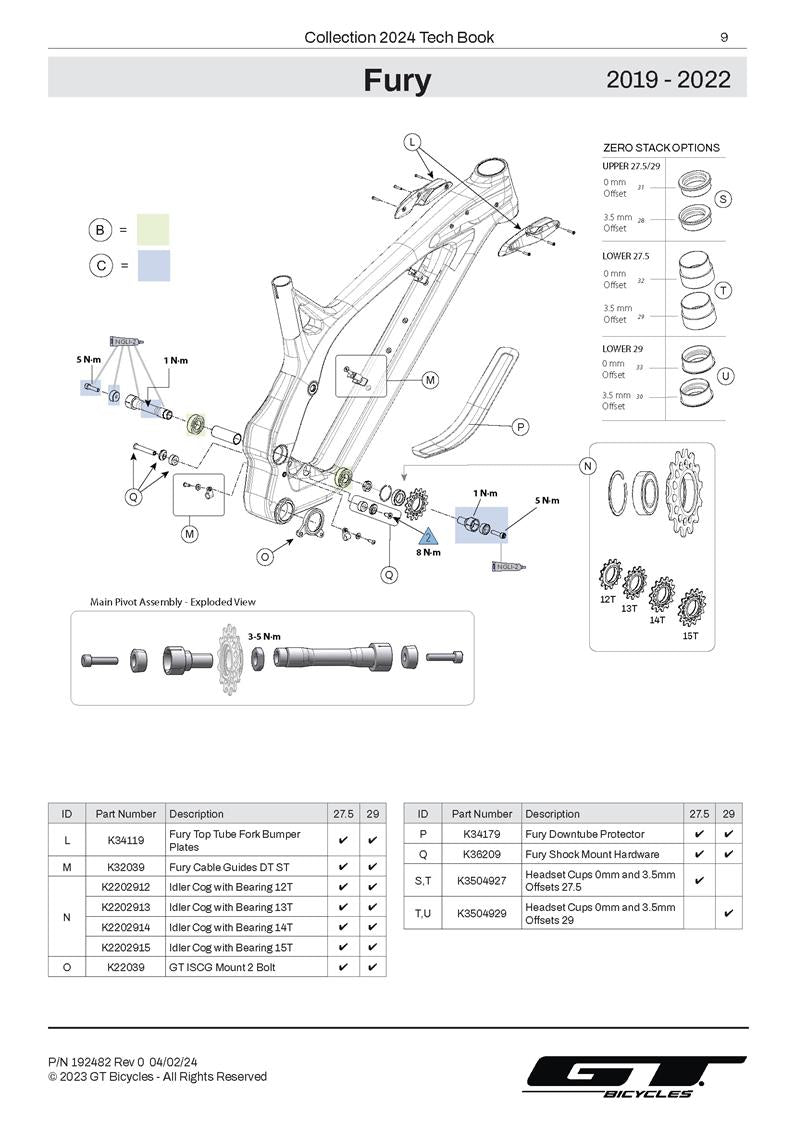

GT Fury 2019 - 2022 Frame Parts

SKU: FRGT763
(0)
$239.90 includes GST
Stock Item
Please Note

If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.

Need help choosing the right size?

Read our guide or get in touch

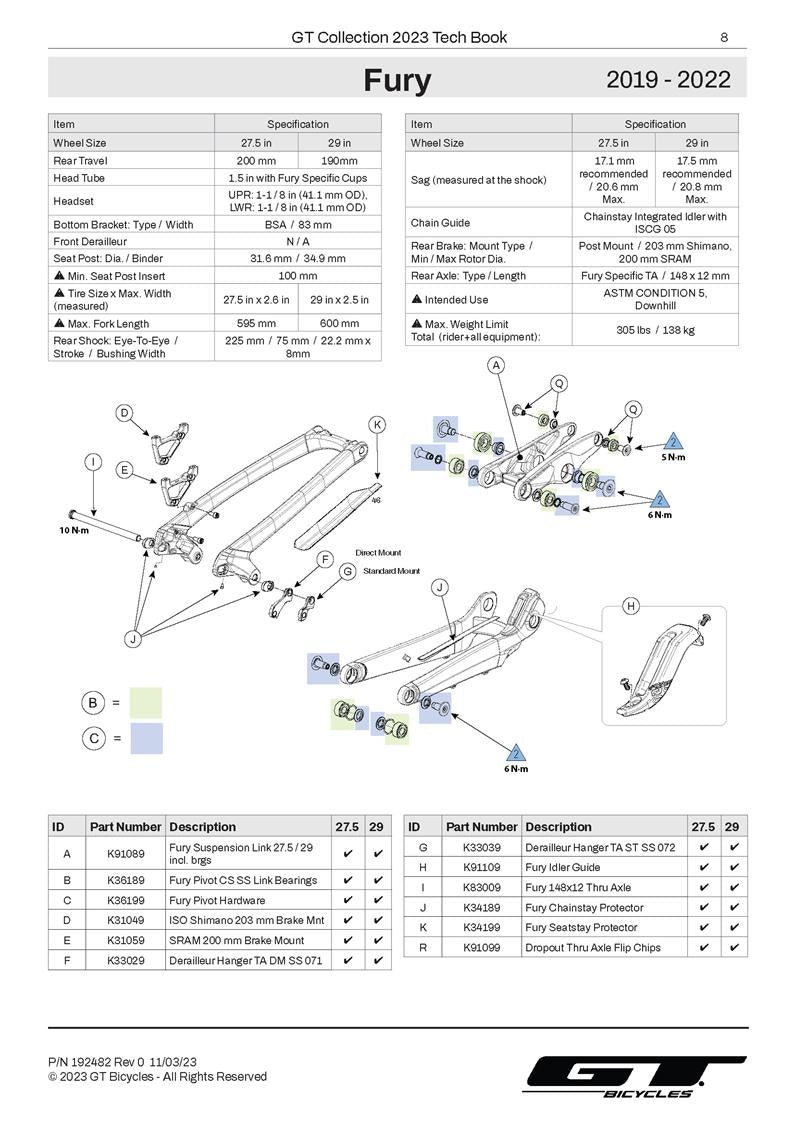

GT FURY 2019 - 2022 FRAME PARTS

SPECIFICATIONS

  • Rear Travel - 27.5 in : 200 mm, 29 in : 190 mm
  • Head Tube - 1.5 in with Fury Specific Cups
  • Headset - UPR: 1-1 / 8 in (41.1 mm OD), LWR: 1-1 / 8 in (41.1 mm OD)
  • Bottom Bracket: Type / Width - BSA/83mm
  • Front Derailleur - N/A
  • Seat Post: Dia./Binder - 31.6mm / 34.9mm
  • Min. Seat Post Insert - 100 mm
  • Tire Size x Max. Width - 27.5 in x 2.6 in / 29 in x 2.5 in
  • Max. Fork Length - 27.5 in : 595 mm, 29 in : 600 mm
  • Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 225 mm x 75 mm / 22.2 mm x 8mm
  • Sag - 27.5 in : 17.1 mm, 29 in : 17.5 mm

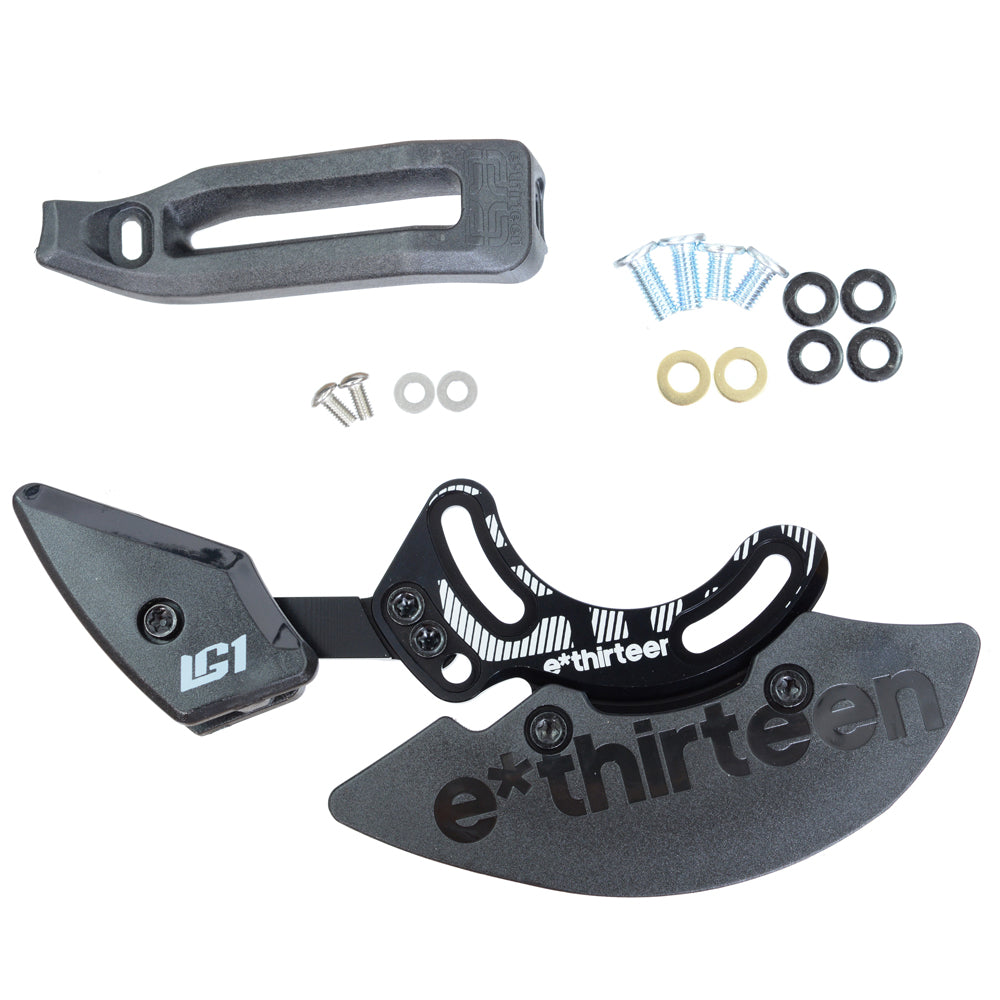

  • Chain Guide - Chainstay Integrated Idler with ISCG 05
  • Rear Brake Mount / Type - Post Mount / 203 mm Shimano, 200 mm SRAM
  • Rear Axle: Type / Length - Fury Specific TA / 148 x 12 mm
  • Max. Weight Limit: Total - 138kg
