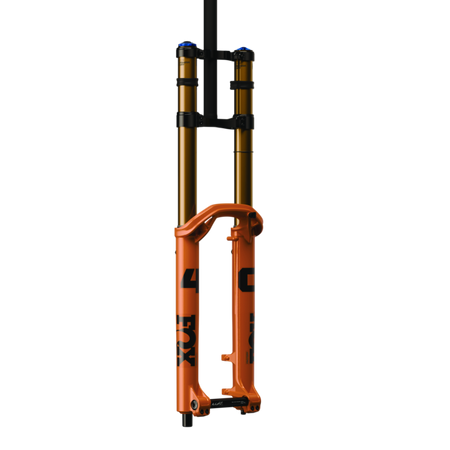

MY27-40.F-S.Orange__OE.Deck__Hero
MY27-40.F-S.Orange__OE.Deck__Side
MY27-40.F-S.Black__OE.Deck__Front
MY27-40.F-S.Black__OE.Deck__Hero
MY27-40.F-S.Black__OE.Deck__Side
MY27-40.F-S.Orange__OE.Deck__Front
MY27-40.F-S.Orange__OE.Deck__Hero
MY27-40.F-S.Orange__OE.Deck__Side
MY27-40.F-S.Black__OE.Deck__Front
MY27-40.F-S.Black__OE.Deck__Hero
MY27-40.F-S.Black__OE.Deck__Side
Fox Factory

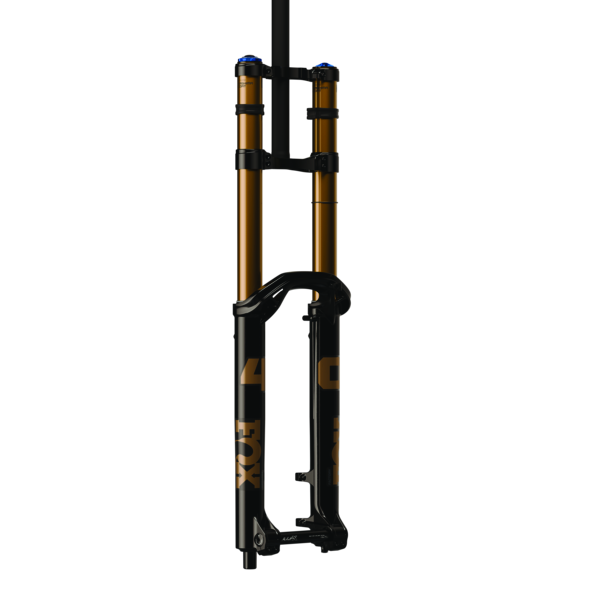

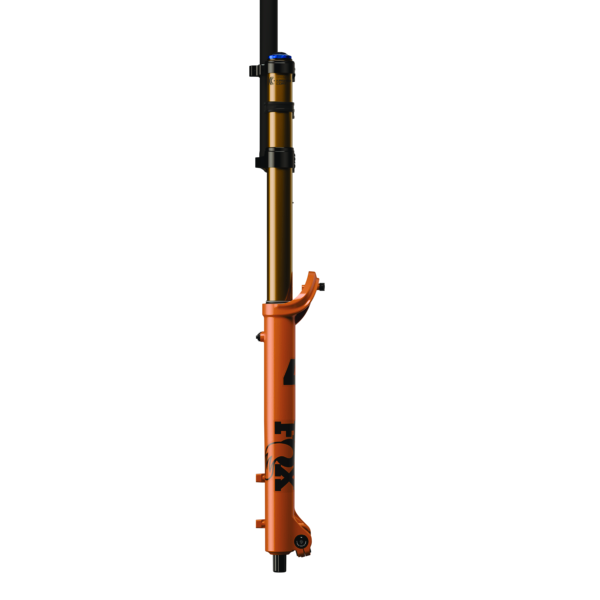

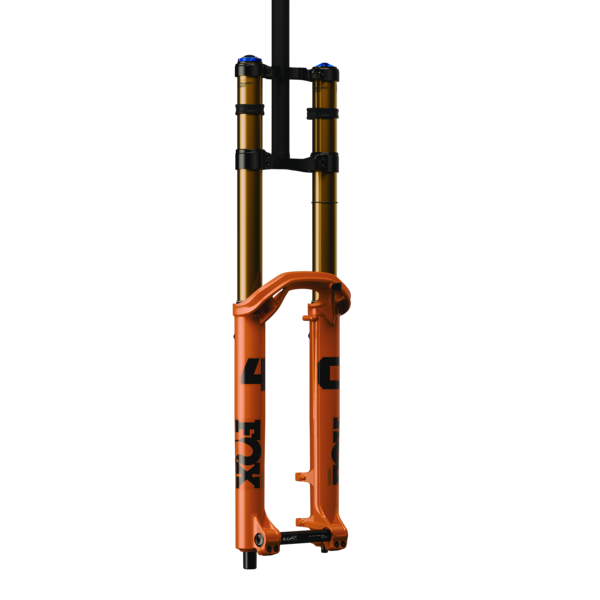

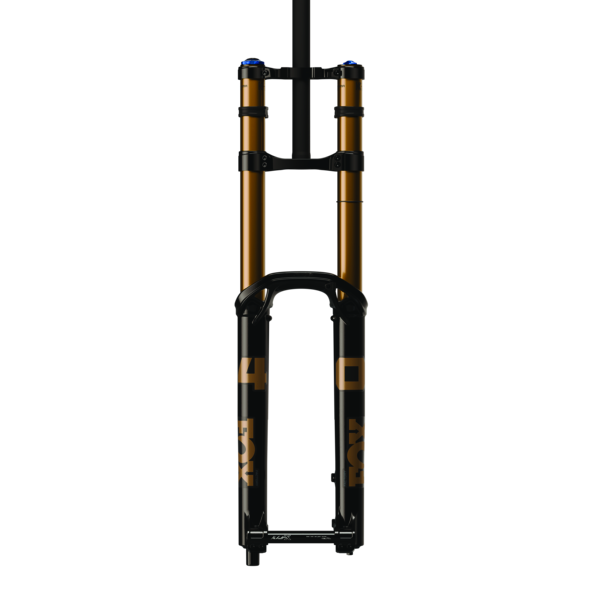

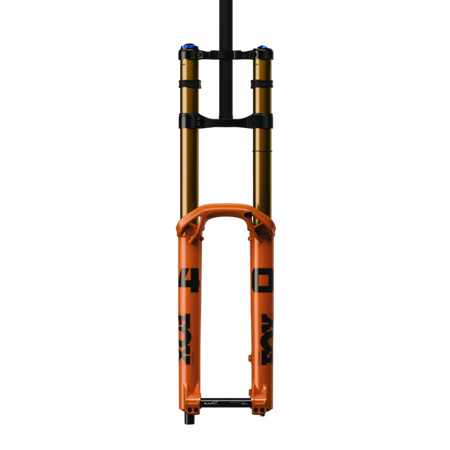

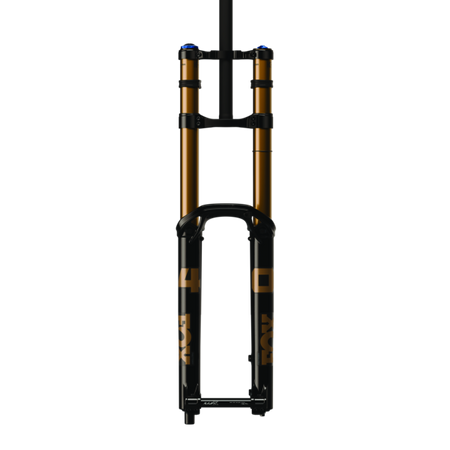

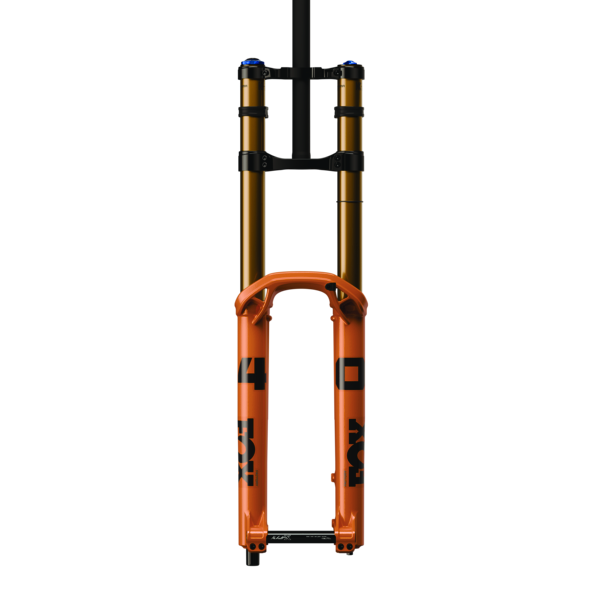

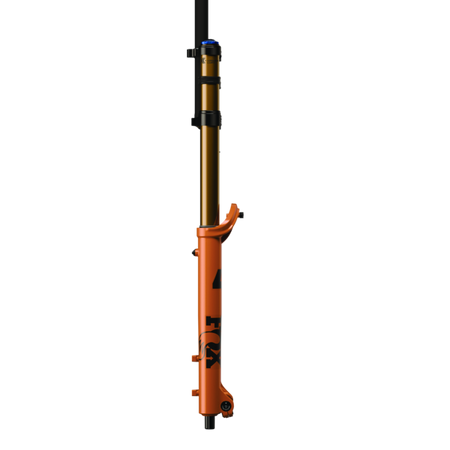

Fox - 40 Factory Fork - Grip X2 29"

Out of stock
SKU: F-910-21-409
(0)
$4,299.00 includes GST
Stock Item
All Bikes come with a Free 2 Month Service. Call before ordering Bikes online re delivery Instructions.

Need help choosing the right size?

Read our guide or get in touch

FOX - 40 FACTORY FORK - GRIP X2 29"

The DH Racer's Advantage.
The winningest fork on the World Cup Downhill circuit, there is no substitute for the 40 when everything is on the line. Now with Glidecore air spring and revised GRIP X2 damper, it offers more tunability and traction than ever before.

“It gives you more grip and takes the edge of the bumps. Every square edge is rounded.” – Neko Mullaly, Frameworks Team Manager & Former World Cup Racer


Support Without Harshness
GRIP X2 is the most tunable, supportive and smoothest descent-focused damper designed to win World Cups. Sit higher in the travel, keep tires glued to the ground and corner with increased traction, all while reducing overall rider fatigue.



Built to Hold the Line
The generative designed arch maintains the 40’s steering responsiveness, while relocated bypass channels on the lowers contribute to even more smoothness and sensitivity at high speed. The 40 forgets the feature buzzwords and focuses on pure performance.



Smooth Under Pressure.
The seamlessly compliant FLOAT Glidecore air spring reduces friction and bind by moving with the fork under dynamic load. Smoother suspension and reduced breakaway friction mean less fatigue in your hands and arms, so you can stay target locked on the podium.



FEATURES
We've completely overhauled the 40 with the goal of making it the fastest 40 from top to bottom.

  • Updated GRIP X2
  • New Glidecore vertically and horizontally compliant air spring with MCU bottom-out bumper and increased negative volume
  • New generative designed lower legs on 29" models
  • Updated bleeders, relocated bypass channels on 29” models
  • New 40 Mud Guard with GD4 mount on 29” models
  • Splined cassette tool air side top cap
  • Factory Series and Performance Series (OE option)
  • 203mm Travel (190mm airshafts available)
  • 29" and 27.5"
  • 52 Offset for 29" AM forks, 48 Offset for 27.5" AM Forks (44, 56mm Offset OE options)
  • DH Boost 20mm Floating Axle
  • PM 200 - 29" / PM203 - 27.5"
  • 230mm Max Brake Rotor
  • 2.5" Max Tire Size


SPEC

  • SERIES: FACTORY
  • CHASSIS: 40
  • WHEEL SIZE: 29"
  • TRAVEL OPTIONS: 203MM
  • DAMPER: GRIP X2
  • AXLE: 20TA X 110
  • STEERER: 1.125 STRAIGHT
  • UPPER TUBE FINISH: KASHIMA
  • ROTOR SIZE: 200MM, UPTO 230 COMPATIBLE
  • AIR SPRING: FLOAT EVOL
  • STARTING WEIGHT: 2888g (40, 29, F-S, 200, Grip X2) and 2745 (40, 27.5, F-S, 203, Grip X2)
