Home » Enduro Max Bearing 688-EE 8 x 16 x 5/7
Enduro Max Bearing 688-EE 8 x 16 x 5/7 - Papanui Cycles
Enduro Max Bearing 688-EE 8 x 16 x 5/7 - Papanui Cycles

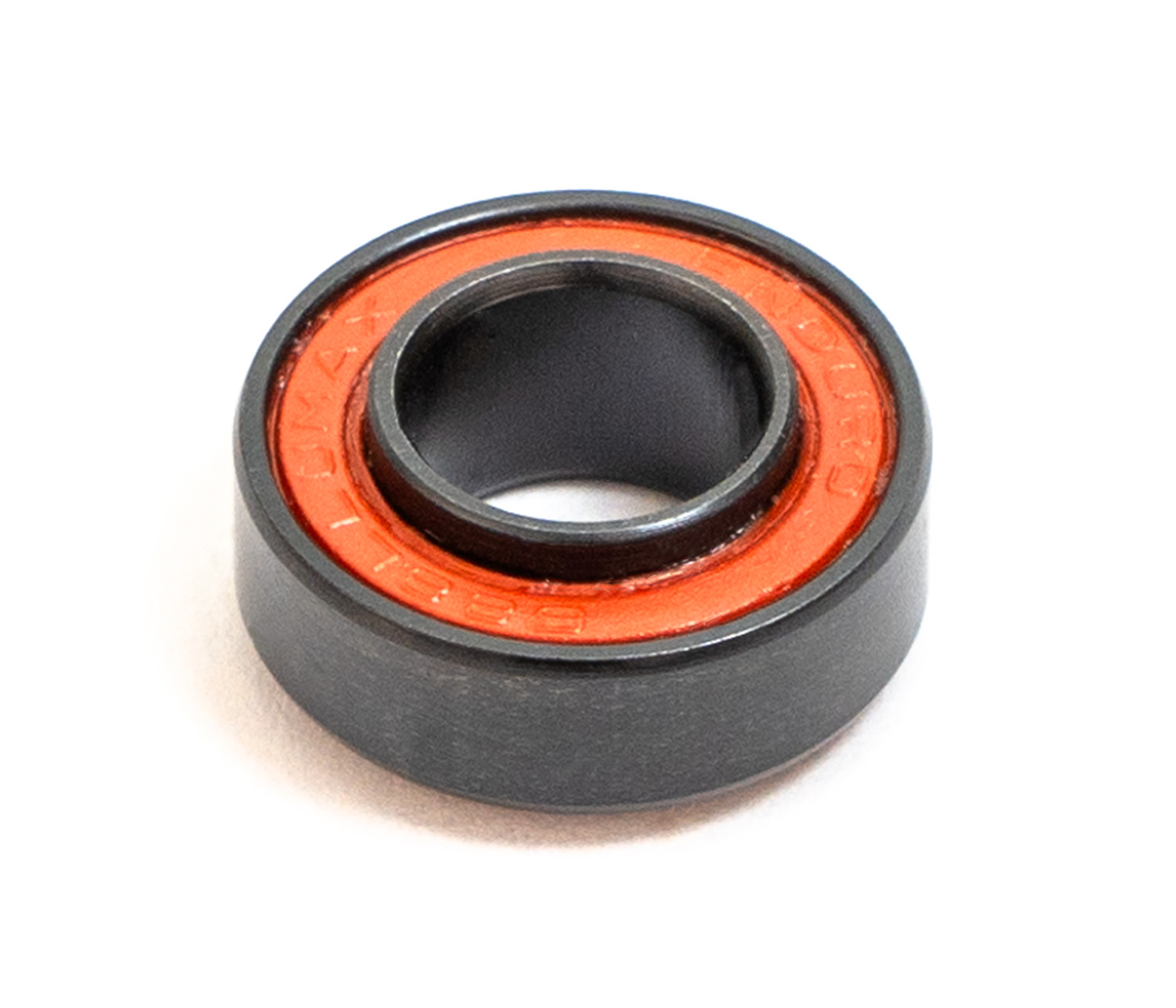

Enduro Max Bearing 688-EE 8 x 16 x 5/7

SKU: BEEN2185
(0)
$15.50 NZD include GST
Option 1 Name
All Bikes come with a Free 2 Month Service. Call before ordering Bikes online re delivery Instructions.

Need help choosing the right size?

Read our guide or get in touch

688 LLU MAX BO EE- Max-Type, Double Extended Race, ABEC-3 radial suspension bearing - 8mm x 16mm x 5/7mm -


Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls, full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside and Black-Oxide/Magnetite coating to provide an extra level of corrosion resistance and extended worry-free performance.


This bearing has been used as a suspension pivot bearing by Knolly bikes. The extended race helps simplify linkage installation by eliminating the need for additional spacers.


The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.


Static load - 210lbf / 0.93kN

Weight - 3.9g
