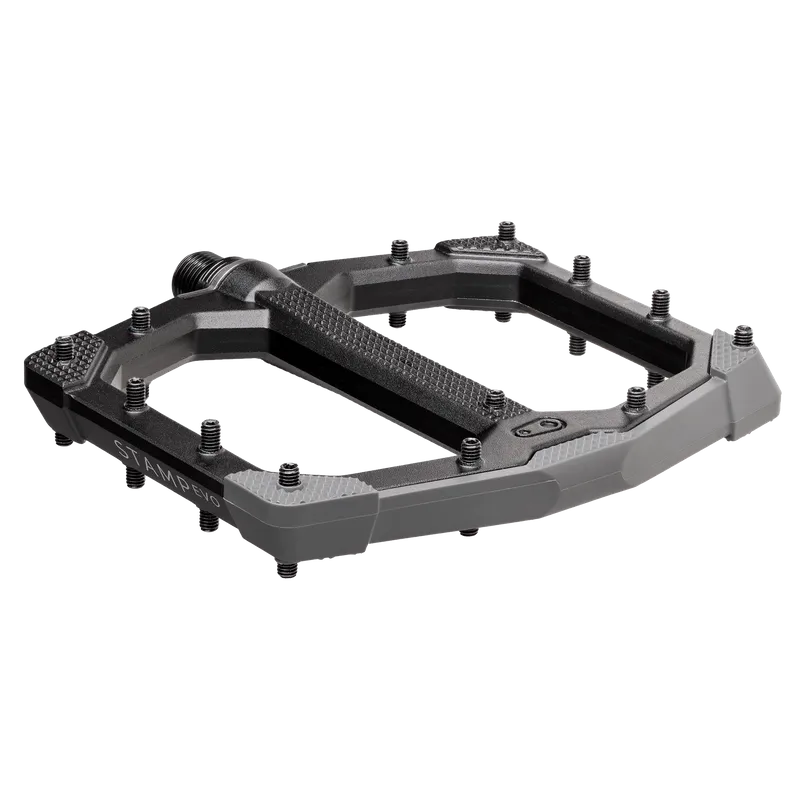

Crankbrothers Stamp Evo Large Pedals
Couldn't load pickup availability
If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.
Need help choosing the right size?
An extended platform for greater stability, less fatigue, and improved efficiency.

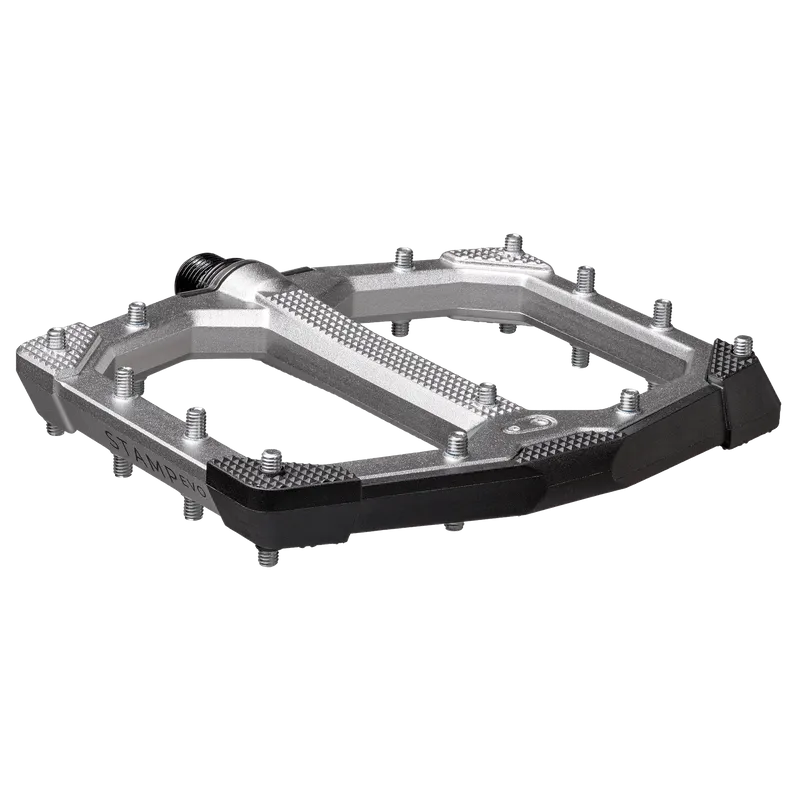

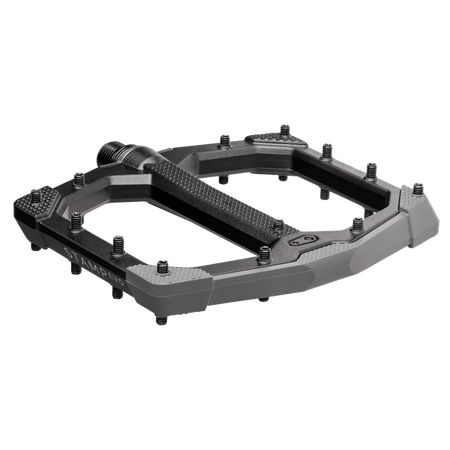

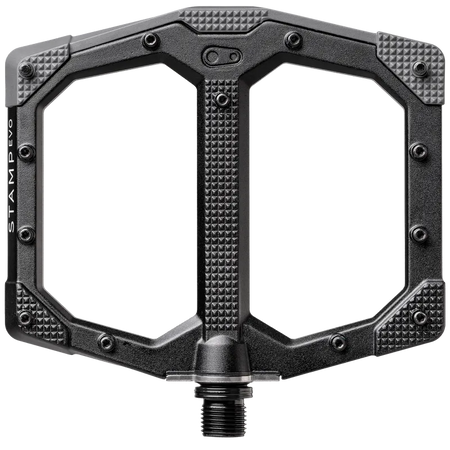

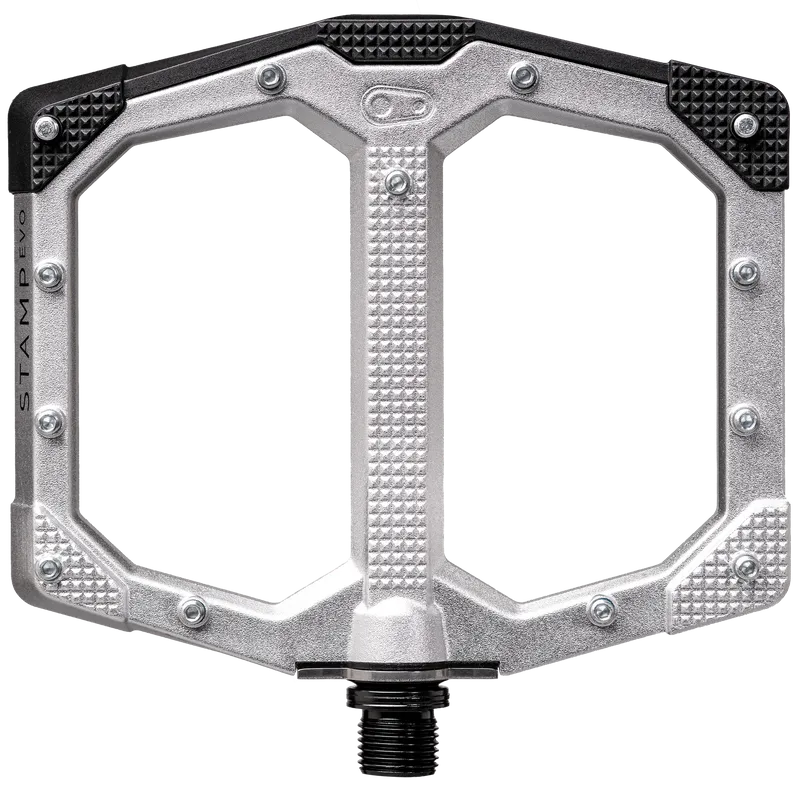

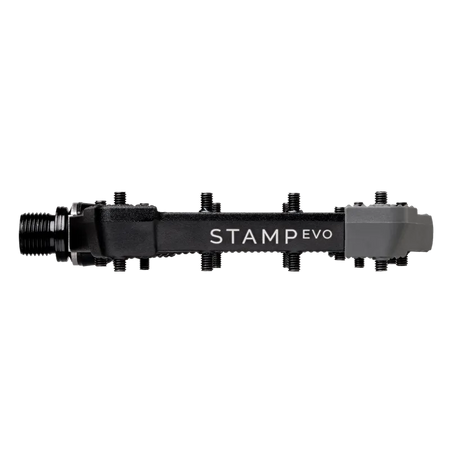

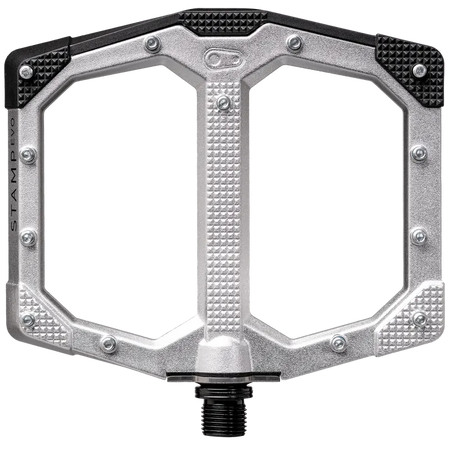

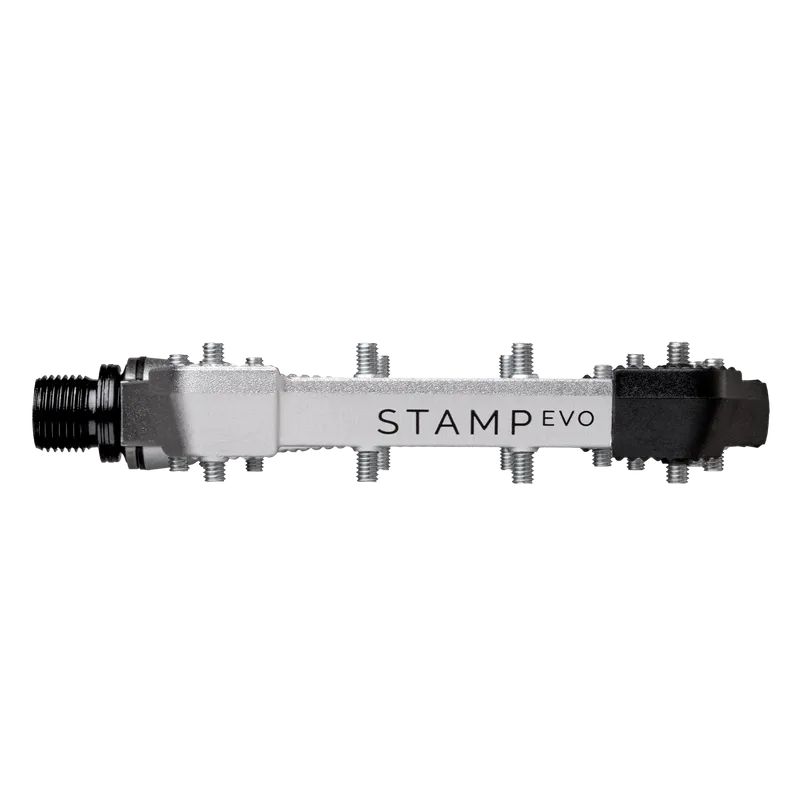

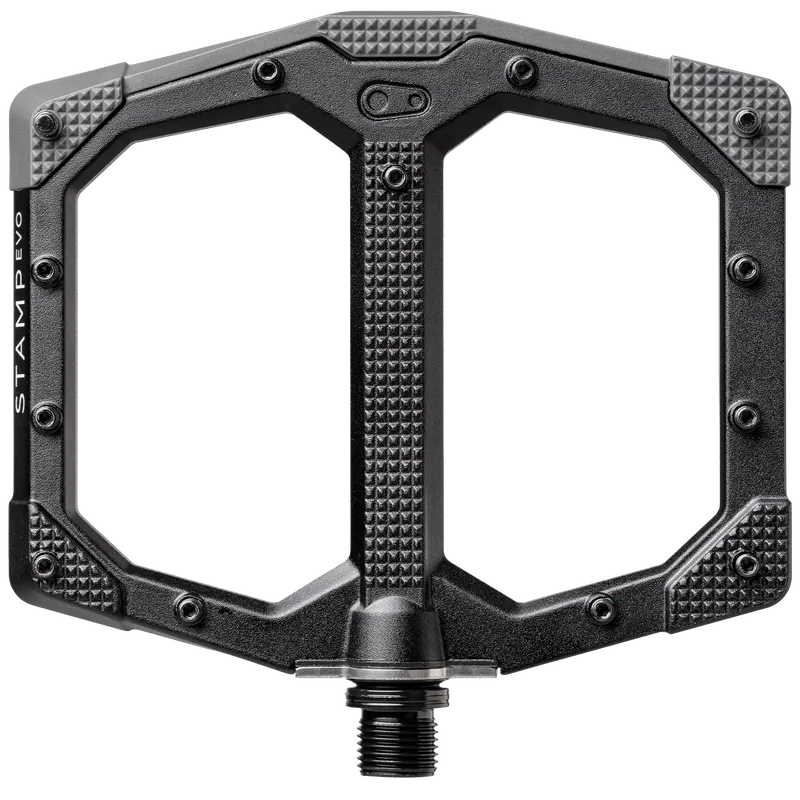

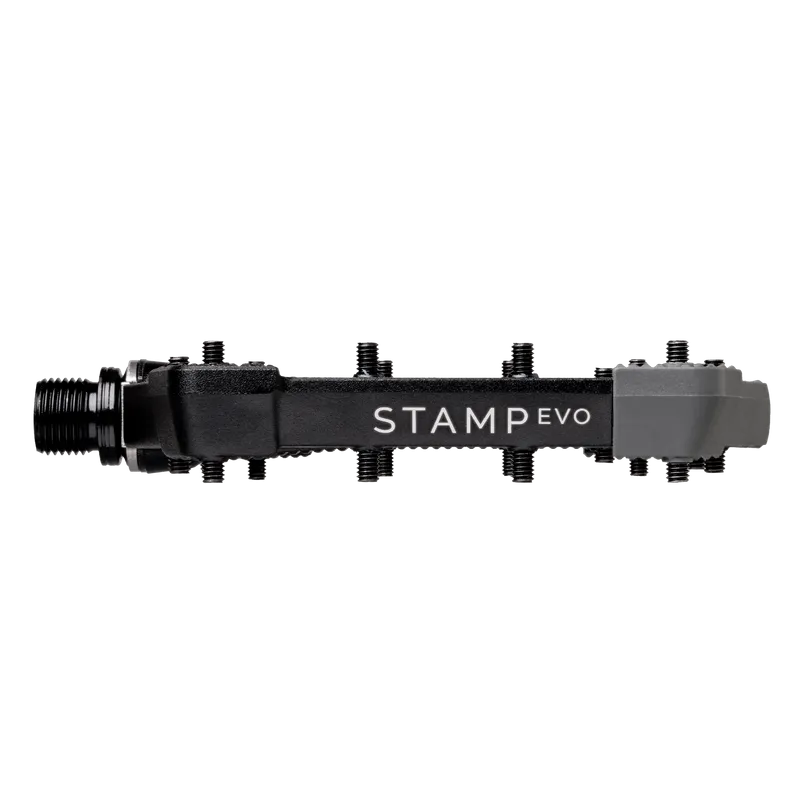

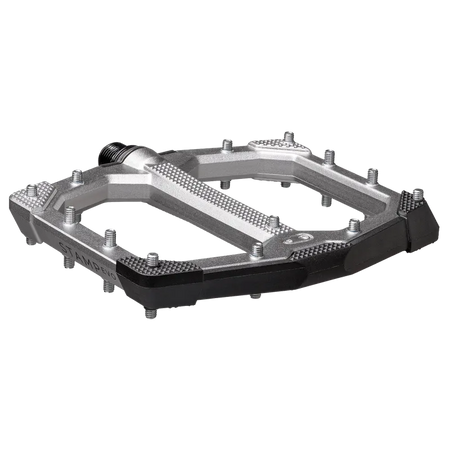

The Stamp EVO is 20% longer than our Stamp 7 pedal, enhancing support, stability, and comfort for all your flat pedal riding needs. Because climbing is part of every ride, the Stamp EVO is engineered to get more out of every pedal stroke, helping you ride longer and stronger. The size-specific platform improves foot placement, while a thin, concave profile and 13 adjustable pins per side ensure secure grip. A two-material construction design focuses on durability in the aluminum body, while the replaceable composite bashguards help deflect rock strikes and minimize pedal hang-ups. Built with a chromoly steel spindle and IGUS internals, available in two sizes to Match your shoe size, the Stamp EVO is ready to rip.
Features:
- Optimal surface area

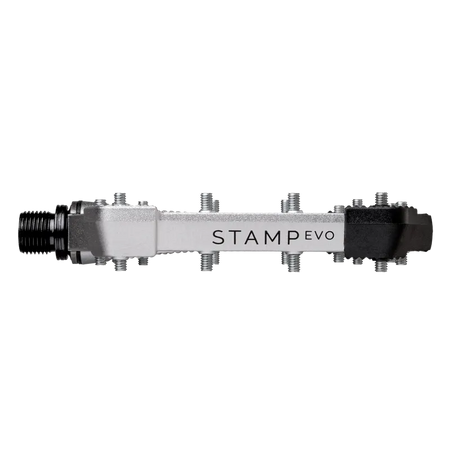

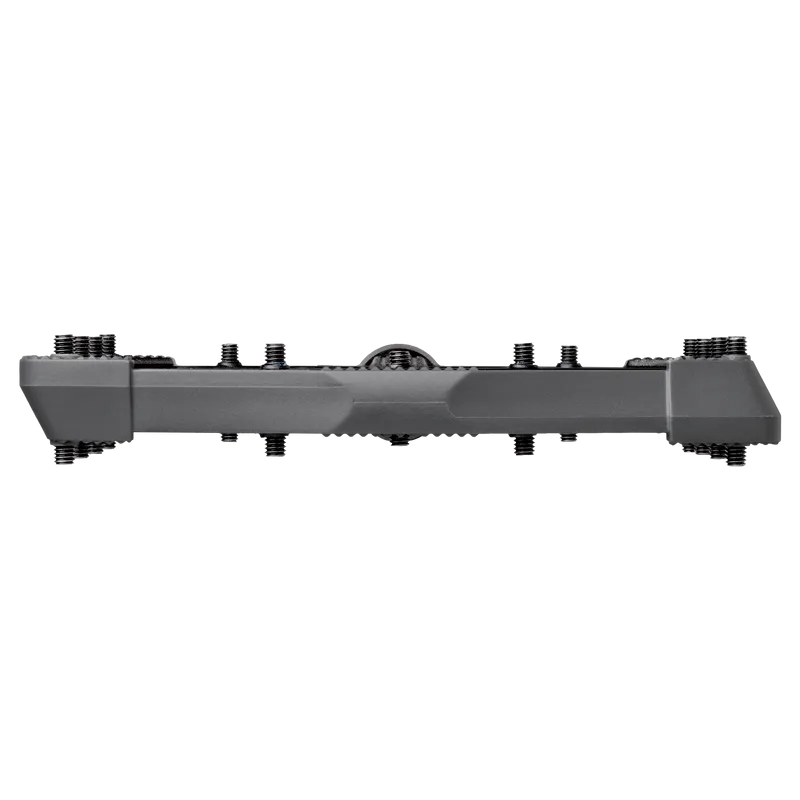

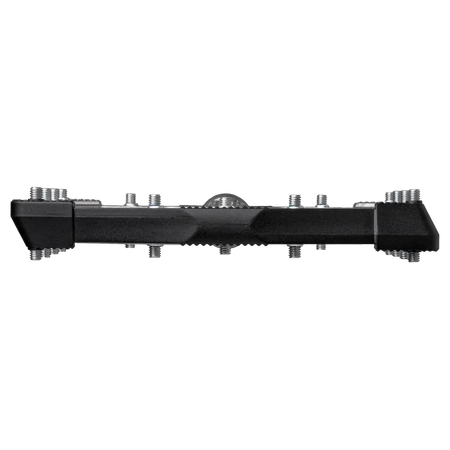

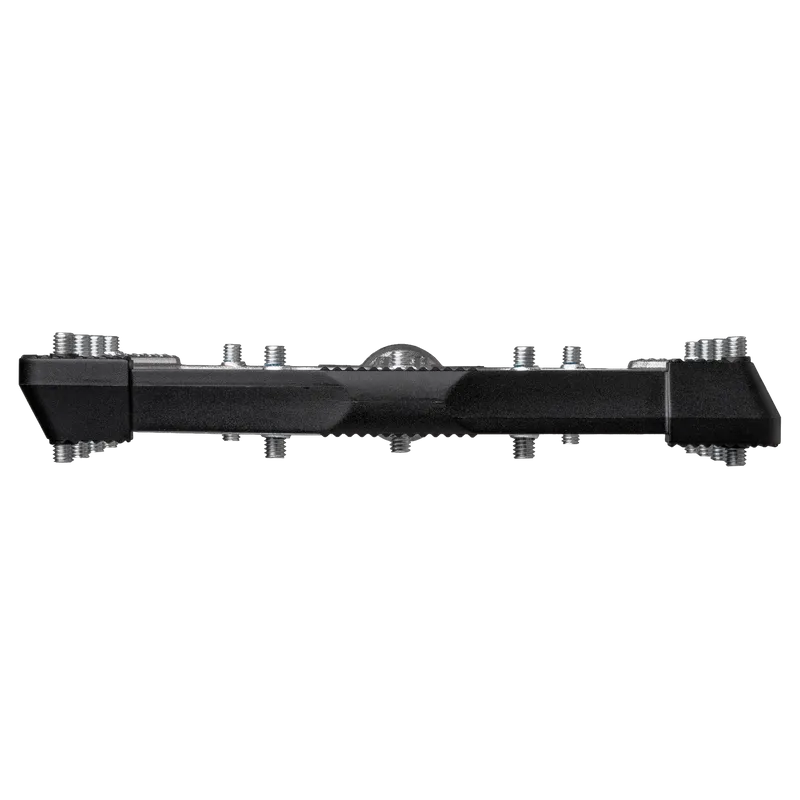

- Minimal profile 11mm-15.5mm thin
- Concave platform (2.25mm per side) for secure foothold
- 13 adjustable pins per side for grip
- Premium bearings & seal system
- Stamp EVO Small recommended for shoe sizes: 5-10 (US) // 37-43.5 (EU)
- Stamp EVO large recommended for shoe sizes: 10-15 (US) // 43.5-49 (EU)
- Extra pin kit & bashguards included
- Serviceable: pedal refresh kit (sold separately)
Specs:
BODY MATERIAL Forged 6061-T6 Aluminum & Reinforced Nylon composite Bashguard
FOOTPRINT 114mm x 133mm
SHOE SIZE 10-15 (US M) // 43.5-49 (EU)
TRACTION PINS 13 Adjustable per Side
PIN LENGTH 8mm, 10mm, 23mm
INNER BEARING TYPE Igus LL-glide Bearing
OUTER BEARING TYPE Igus LL-glide Bearing
SEAL SYSTEM Premium V-Ring
SPINDLE MATERIAL Forged SCM 435 Chromoly Steel
MAX RIDER WEIGHT No Restriction
WEIGHT 464g per Pair
WARRANTY 5 years
