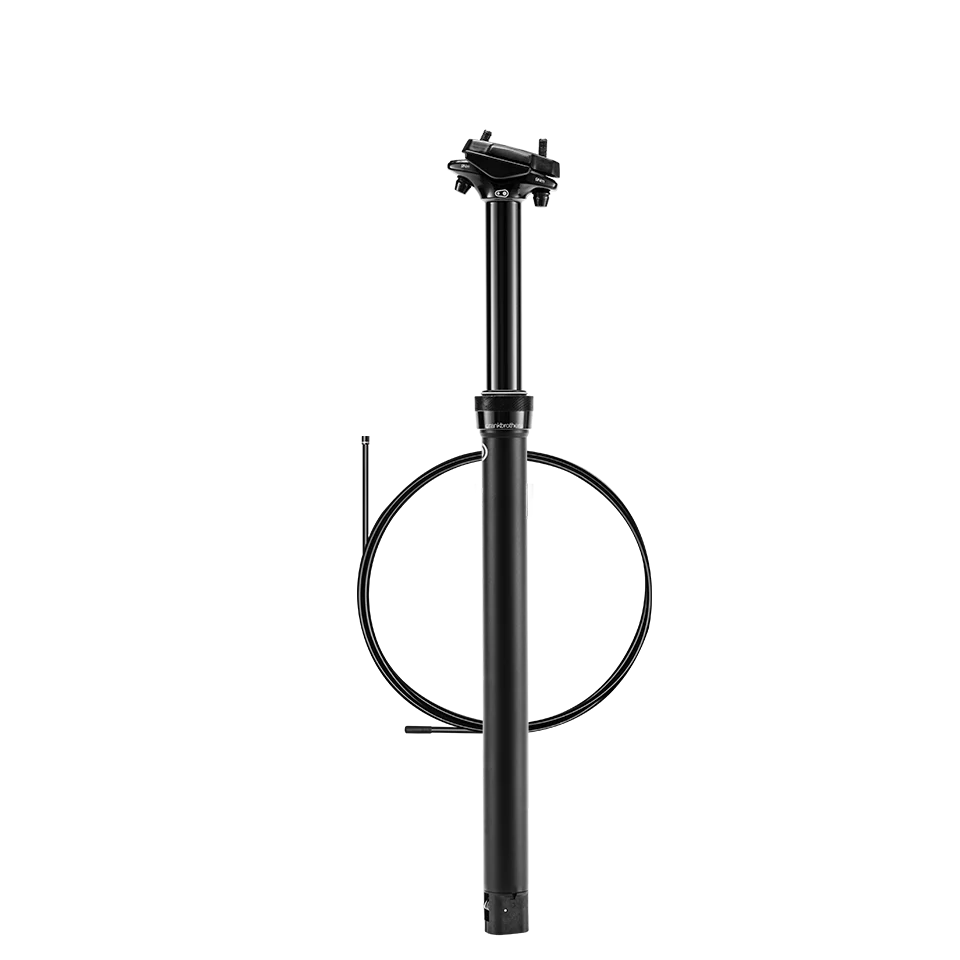

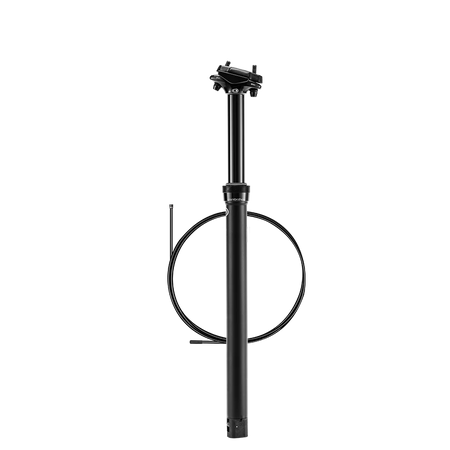

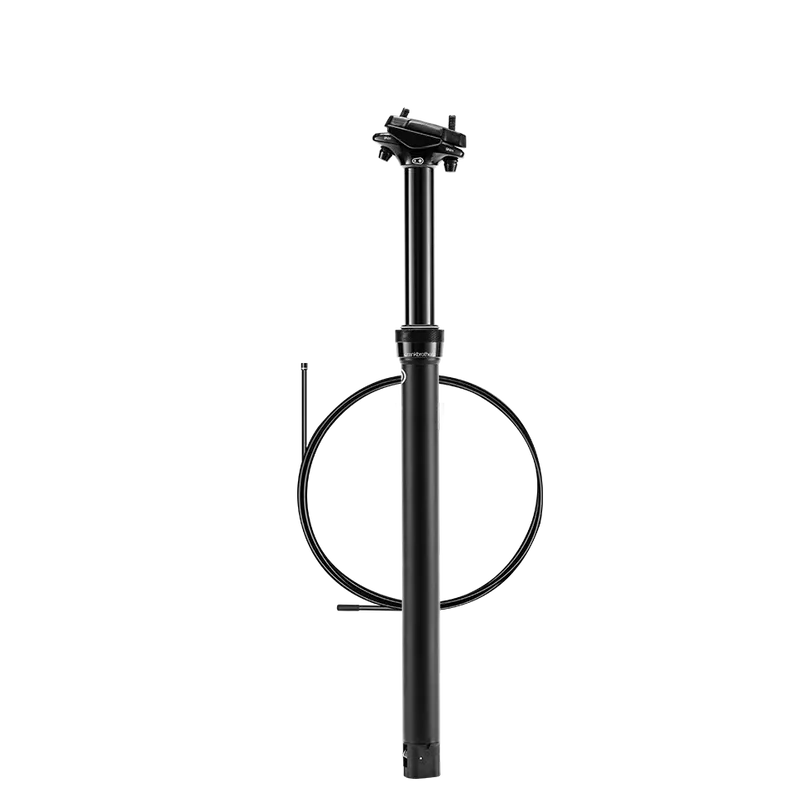

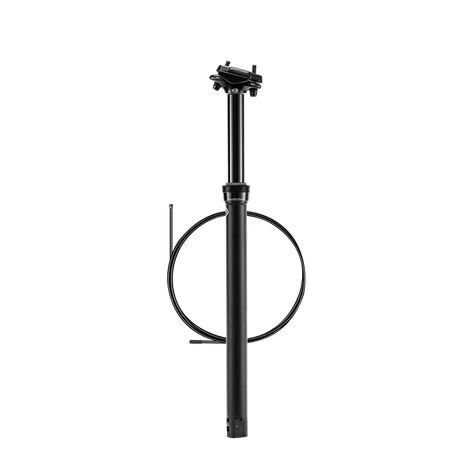

Crankbrothers Highline XC/Gravel - 100mm
Couldn't load pickup availability
If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.
Need help choosing the right size?
The all-new Highline XC/Gravel delivers infinite adjustment, smooth feel, and easy installation.
- Ideal for Gravel, Trail and XC
- 27.2mm seatpost diameter to fit most XC and gravel bikes
- Jagwire® cable and housing
- Self-contained IFP hydraulic cartridge
- Internal routing
- Quick connect mechanism for ease of cable installation
- Linear actuator for quick return speed
- 2-bolt standard head
Specs
| SEAT POST DIAMETER | 27.2mm |
| MIN INSERTION LENGTH | 100mm |
| MAX INSERTION LENGTH | 264mm |
| MAX EXTENDED LENGTH | 300mm |
| TOTAL POST LENGTH | 427mm |
| MIN STACK HEIGHT | 60mm |
| SETBACK | 0mm |
| TRAVEL ADJUSTMENT | 100mm |
| MATERIAL | 7075-T6 aluminum |
| WEIGHT | 459g |
| WARRANTY | 4 years |
