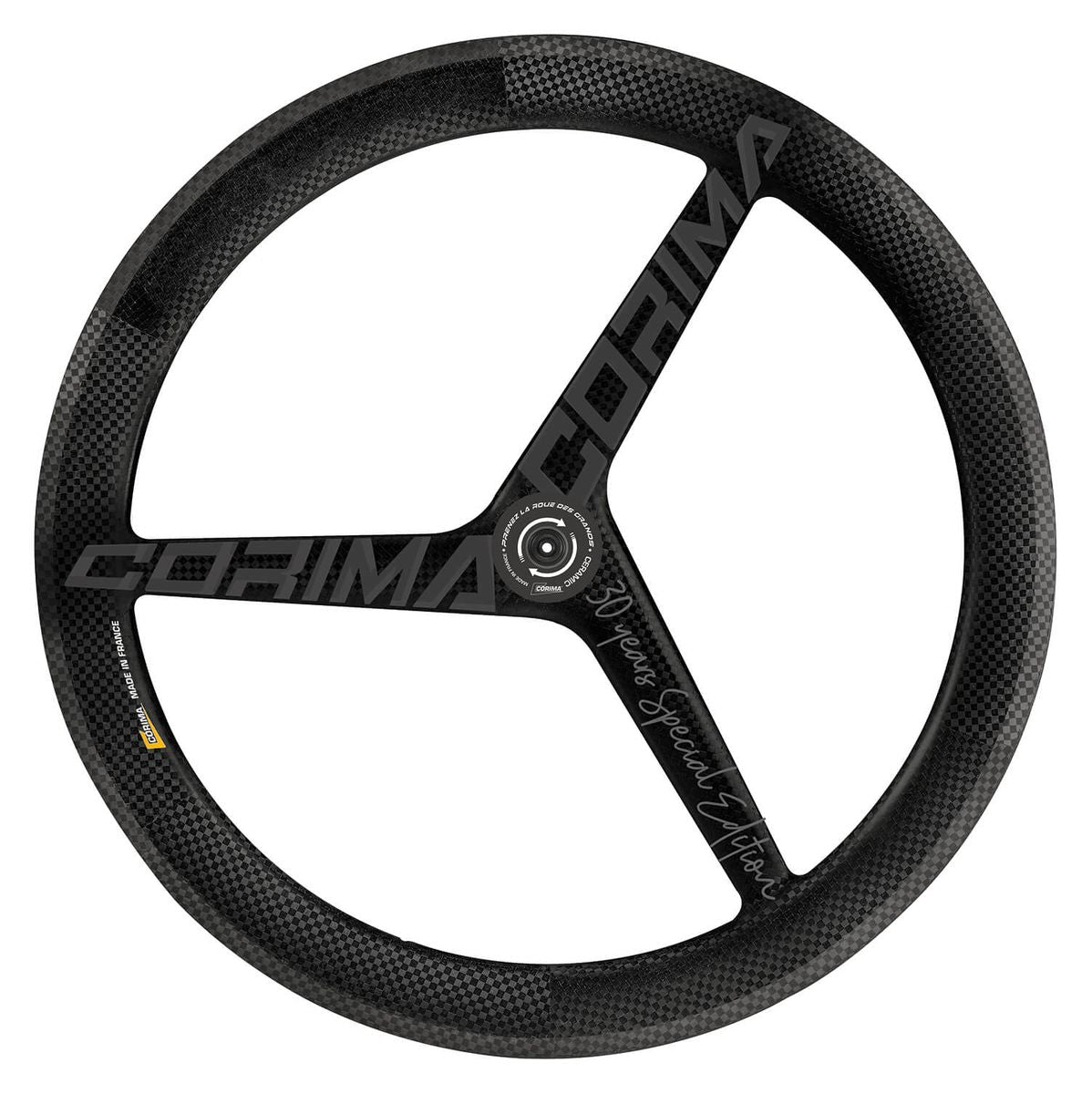

Corima Road 3 Spoke Front Clincher
Couldn't load pickup availability
Need help choosing the right size?
The ultimate performance 3-spoke wheel for time trial and triathlon.
The WS TT range is designed for cyclists looking for absolute performance. The WS TT 3-spoke wheel is the ideal front wheel to perform on time trial and triathlon courses.
Developed in a wind tunnel in collaboration with Astana, it embodies all the experience and know-how of CORIMA in high performance.
Specifications
- Data
- 28" clincher front
- Profile: 58MM
- Rim width: 26mm
- Axle: Thru axle Ø12 x 100mm
- Model: HM
- Weight: 1005 g
- Carbon weave: Satin mat 3K
- Integrated magnet
- Shipped with
- Rim tape
- Protection wheelbag
- Valve extender
Tyre air pressure
Refer to the table below for the tire pressures in relation to the section marked on the tyre.
| Tyre section mm | Max pressure (bar) | Max pressure (psi) |
| 23 | 7,8 | 113 |
| 24 | 7,5 | 109 |
| 25 | 7,3 | 106 |
| 26 | 7,0 | 102 |
| 27 | 6,8 | 99 |
| 28 | 6,6 | 95 |
| 29 | 6,3 | 92 |
| 31 | 6,1 | 88 |
| 31 | 5,8 | 85 |
| 32 | 5,6 | 81 |
Do not remove the tire with any metal tool.
The minimum tire section is 23 mm and the maximum 32 mm.
For comfort and performance we recommend fitting 23 mm section tires on our 22.6 mm wide rims and 25 mm section tires on our 26 mm wide rims.
The original CORIMA braided rim tape is mandatory. If it is damaged it must be the replaced.
CORIMA clincher wheels are not compatible with tubeless conversion kits.
Only tires with inner tubes are acceptable (except latex inner tubes).
CO2 cartridge inflation systems are only allowed if their flow rate is adjustable. Instant inflation cartridges are prohibited with CORIMA wheels.
If the tire manufacturer indicates a pressure lower than that in the table, use their lower value.
