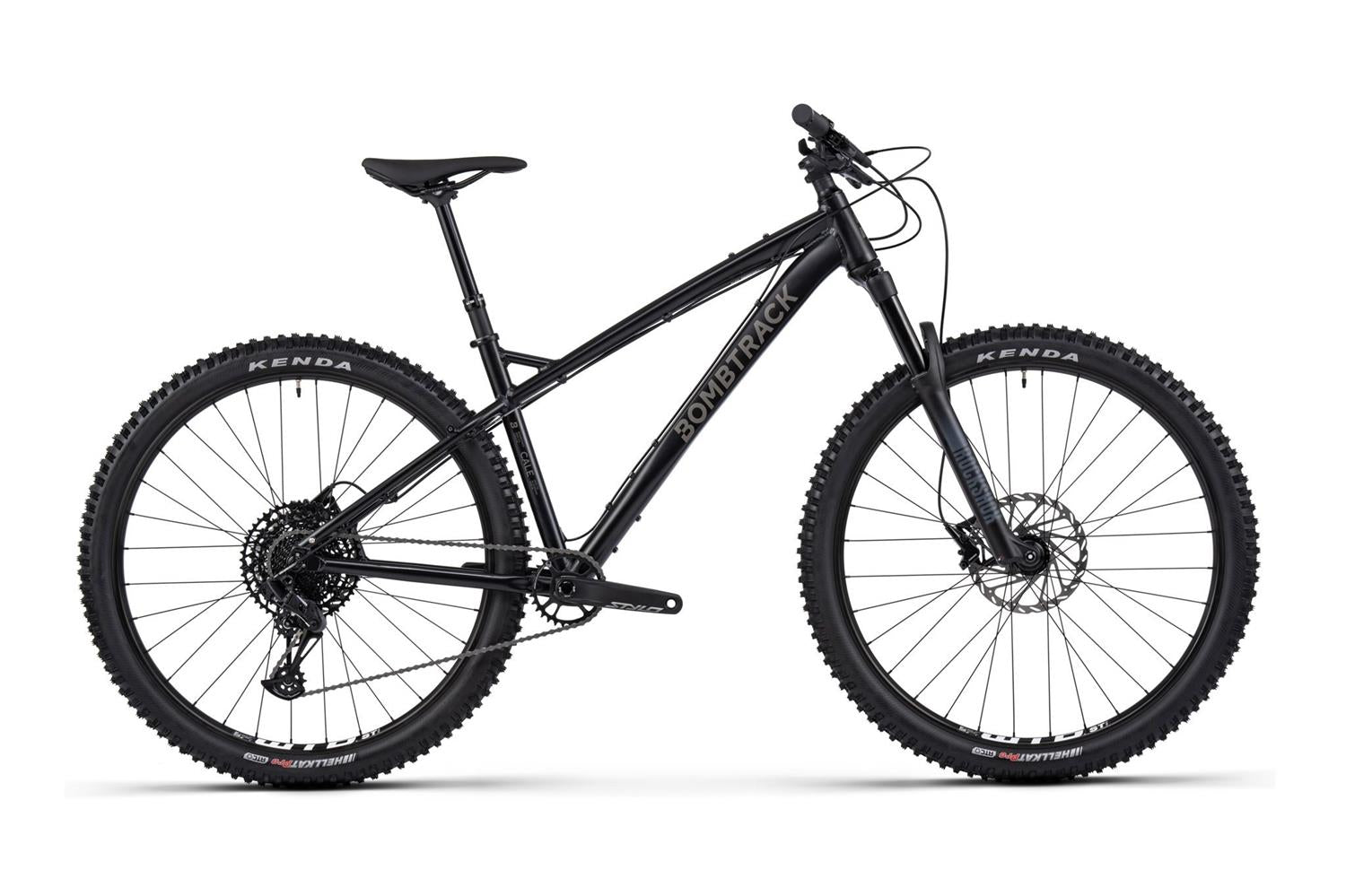

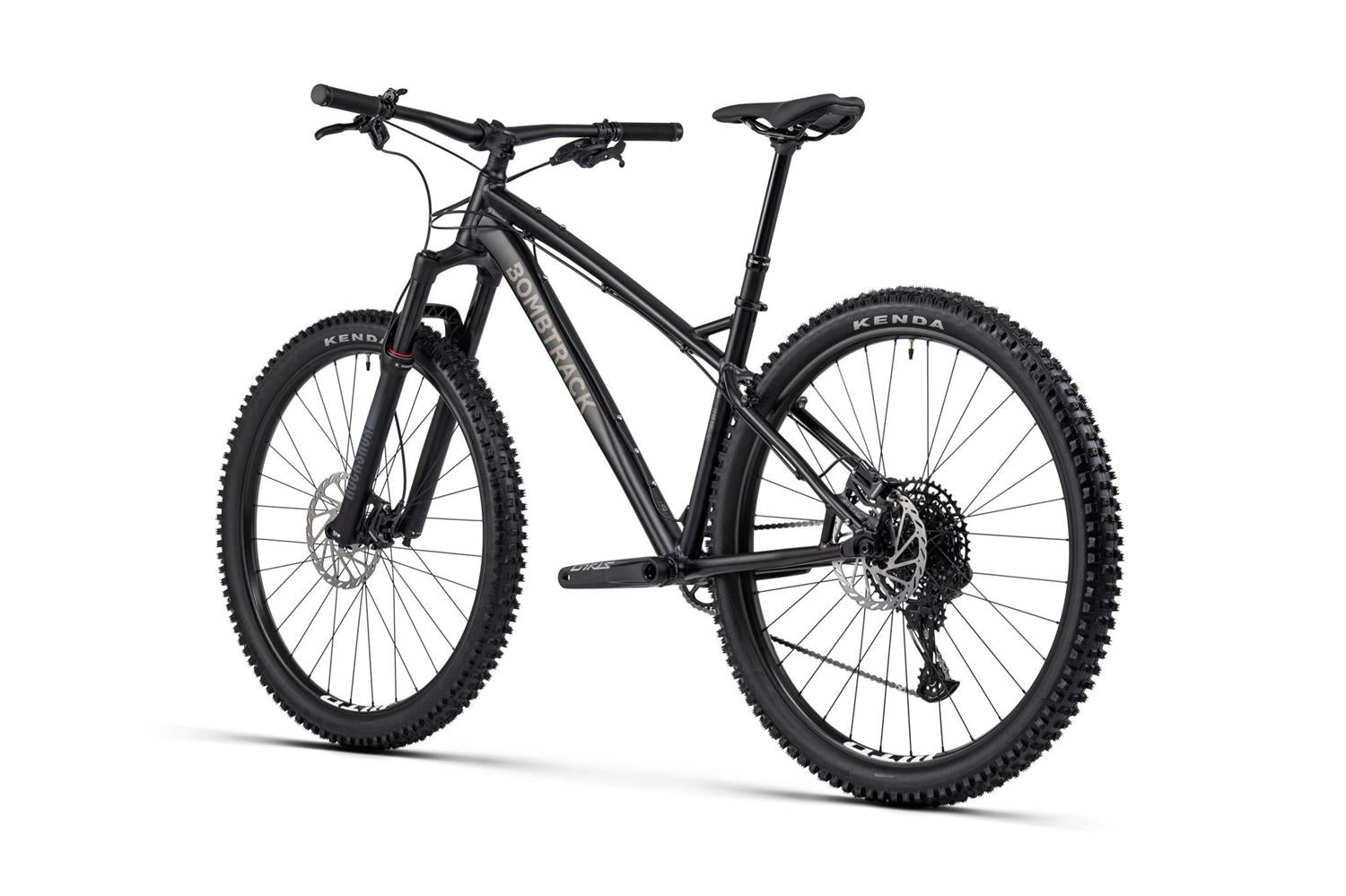

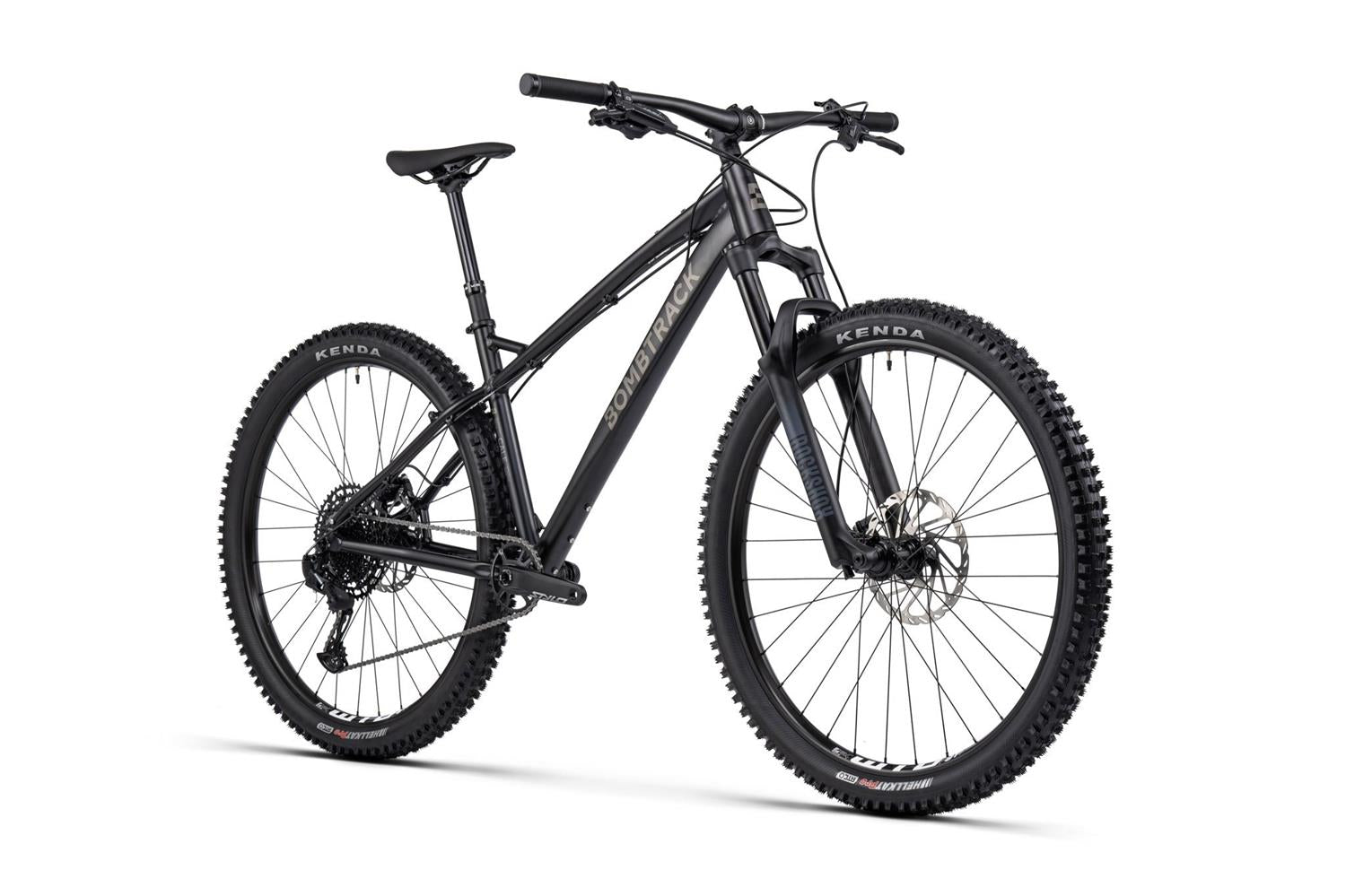

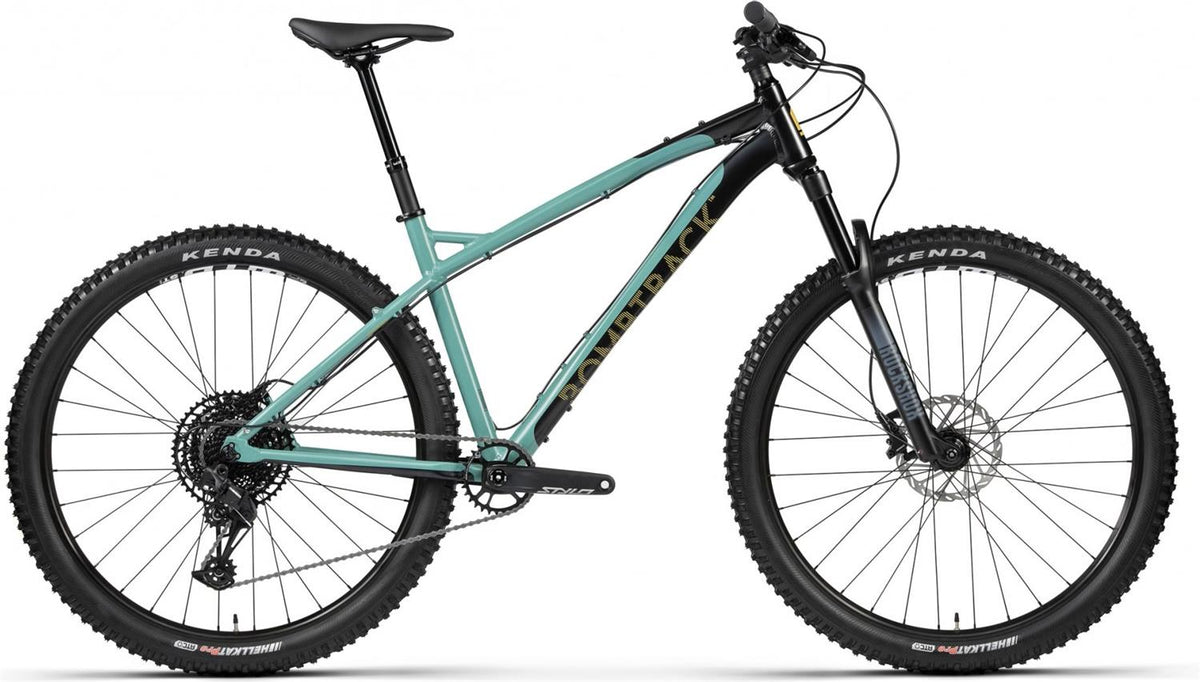

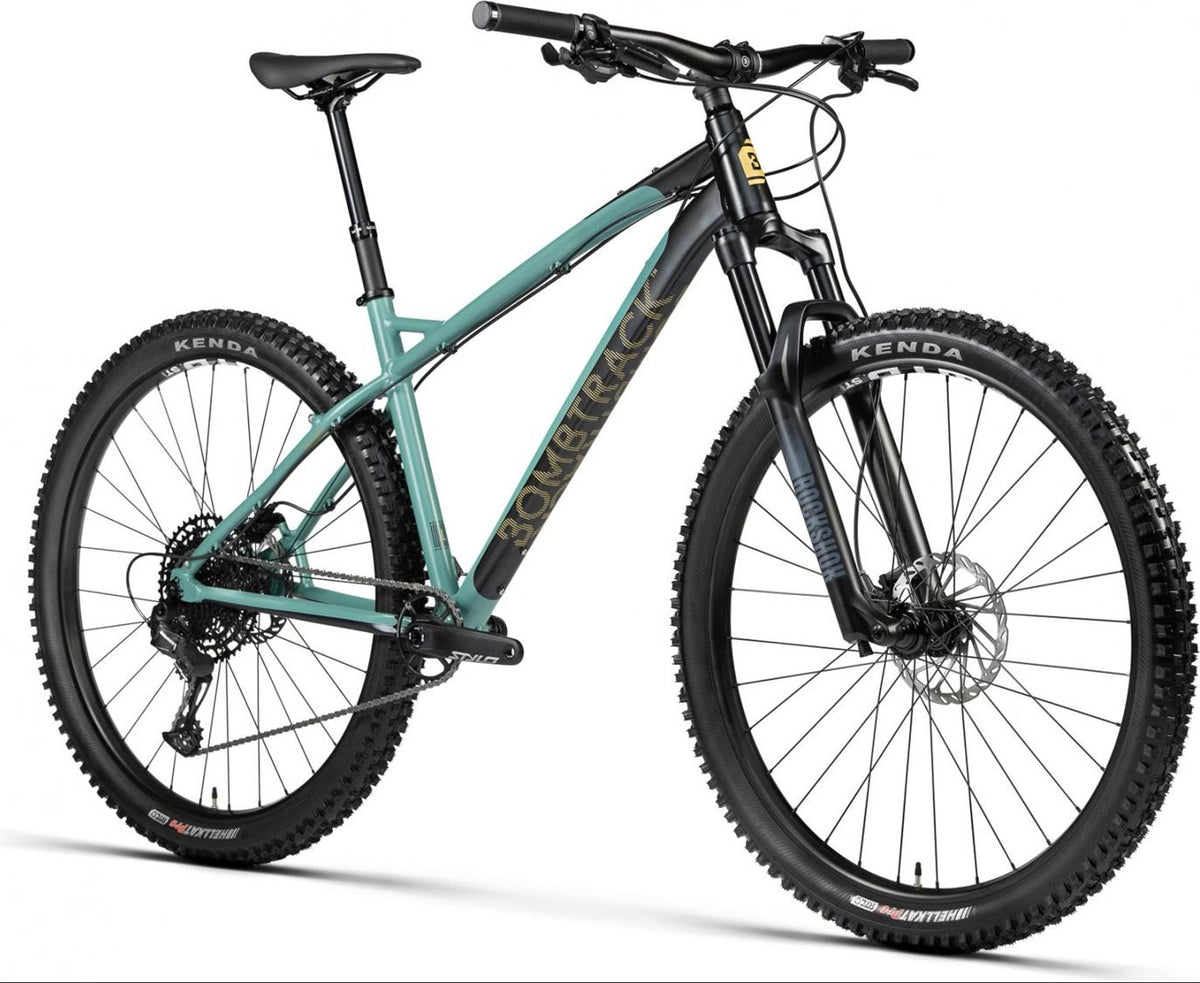

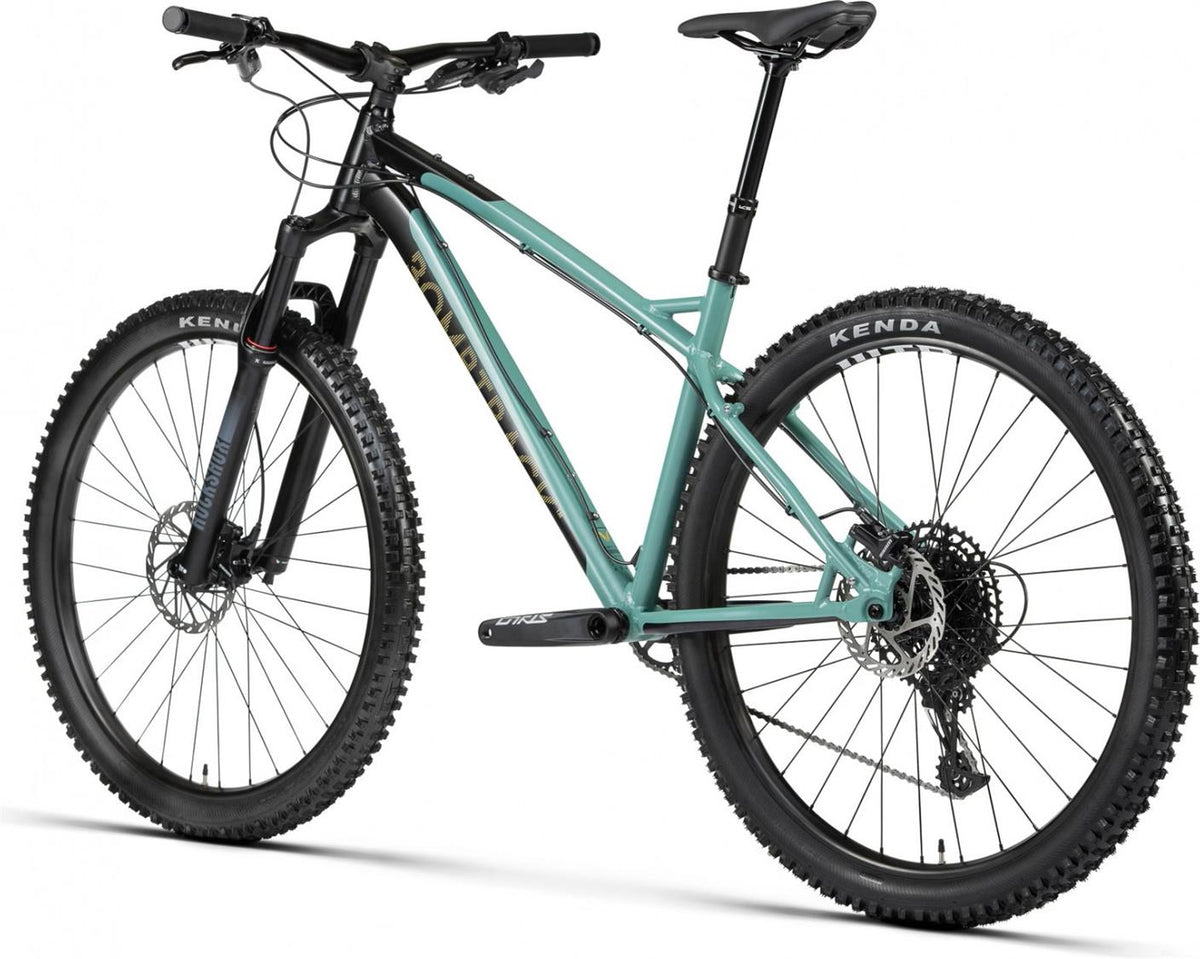

Bombtrack Cale AL SX
Couldn't load pickup availability
Need help choosing the right size?
Our Cale SX Eagle model uses our lightweight triple-butted aluminium Cale frame with its multitude of mounts, and pairs it with an air-sprung RockShox 35 Gold RL fork which offers compression and rebound adjustment.
SRAM’s SX Eagle drivetrain with its 11 - 50T cassette and a 30T chainring help out when things get really tough. Seido’s 40 mm stem and 800 mm wide bar with a KS 150 mm dropper post and SRAM Level T brakes provide excellent control when the trail turns gnarly. Wheels are tubeless ready WTB i29 rims, Bombtrack hubs and Kenda Hellcat Pro 2.4’’ tyres. Time to hit the woods.
"The result is an expedition-ready hardtail that’s as happy to rip around a trail centre as it is to cross an entire mountain range."
| Color 1 | Matt black |

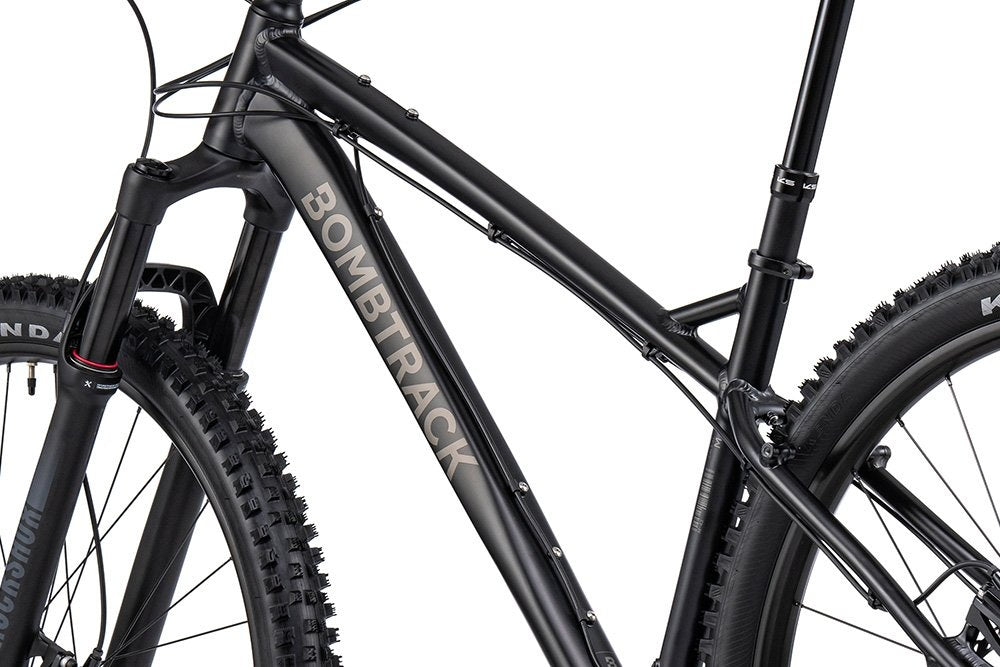

| Frame | 6061-T6 hydro-formed aluminium, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell |

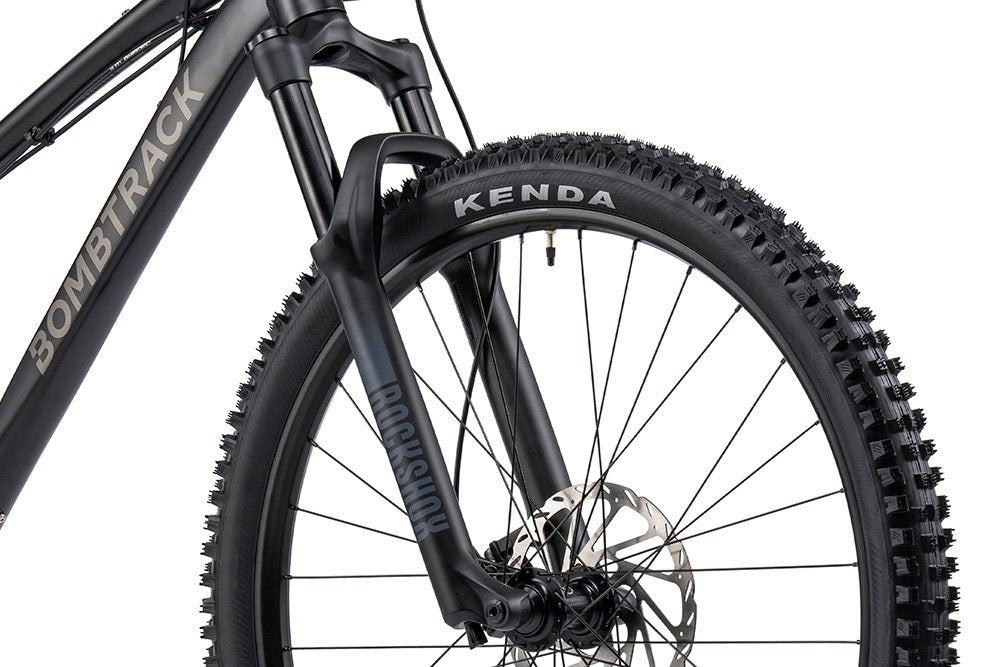

| Fork | RockShox 35 Gold RL suspension fork, 130 mm travel, 1.1/2" - 1.1/8" |

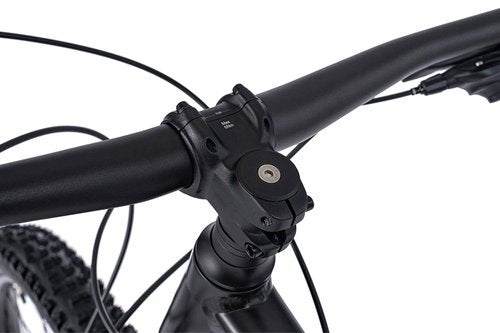

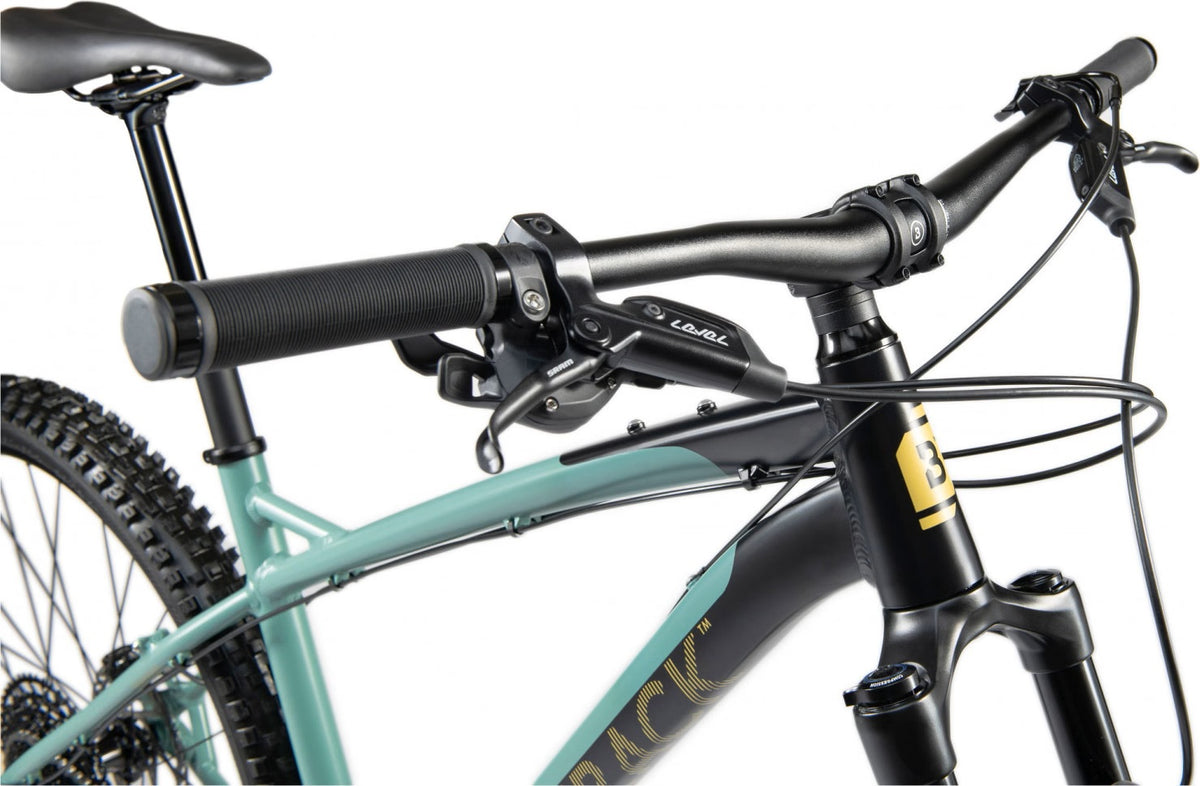

| Handlebar | Bombtrack Illusion flat bar, aluminium, 35 mm clamping diameter |
| Grips | Bombtrack Return 135 mm lock on grips |
| Stem | Seido Drift aluminium stem, 35 mm clamping diameter |

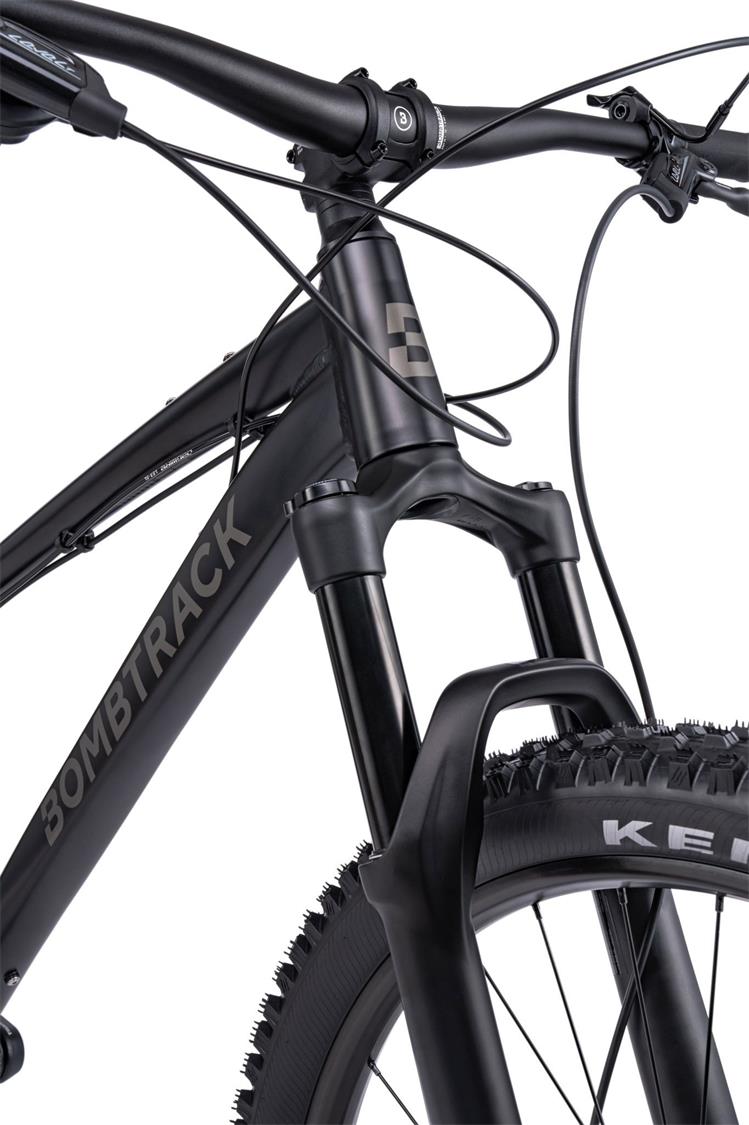

| Headset | Sealed integrated aheadset, 1.1/2'' - 1.1/8'' |
| Levers | Sram Level hydraulic |
| Shifter | Sram SX-Eagle 12-speed shifter |

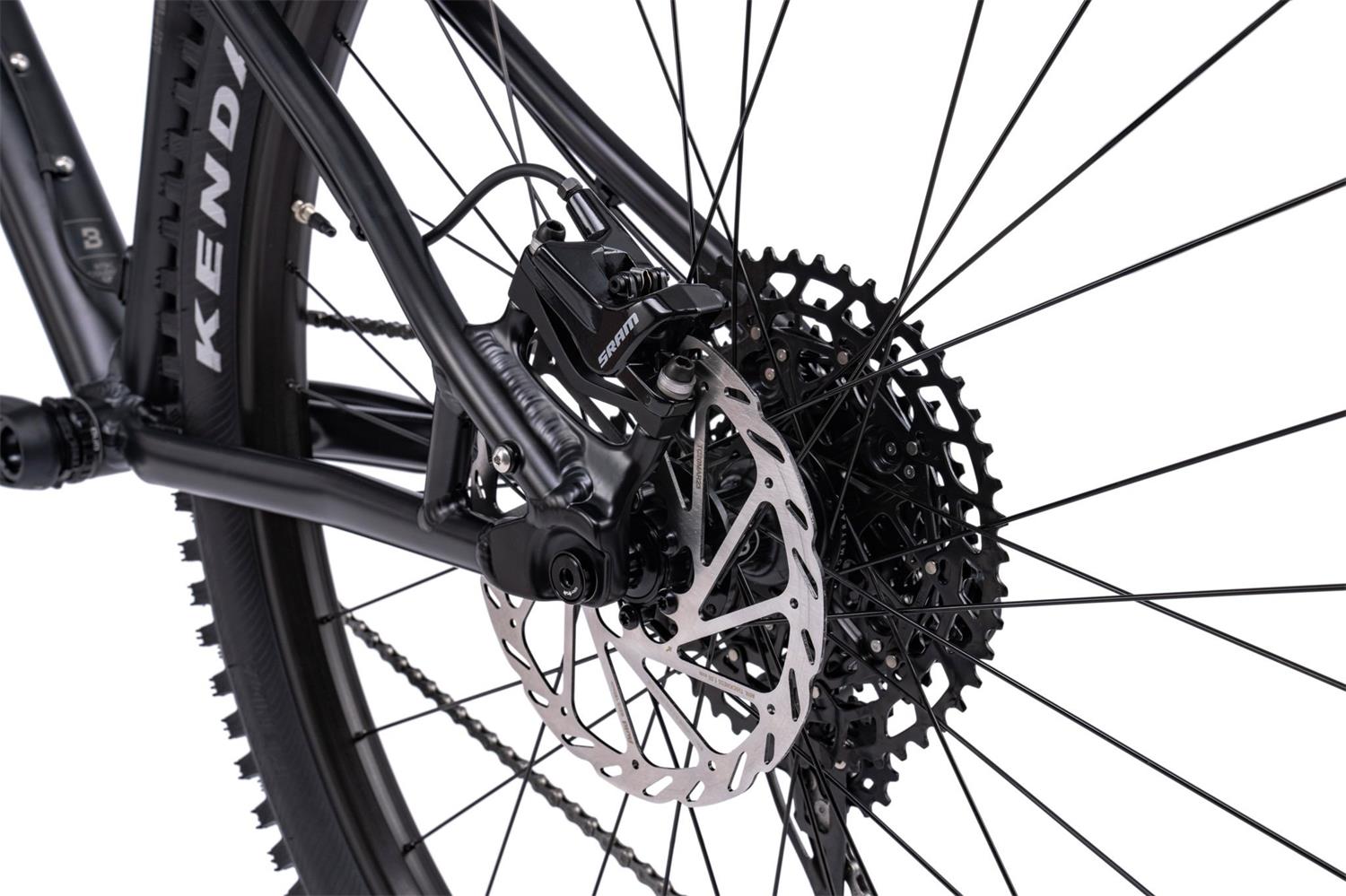

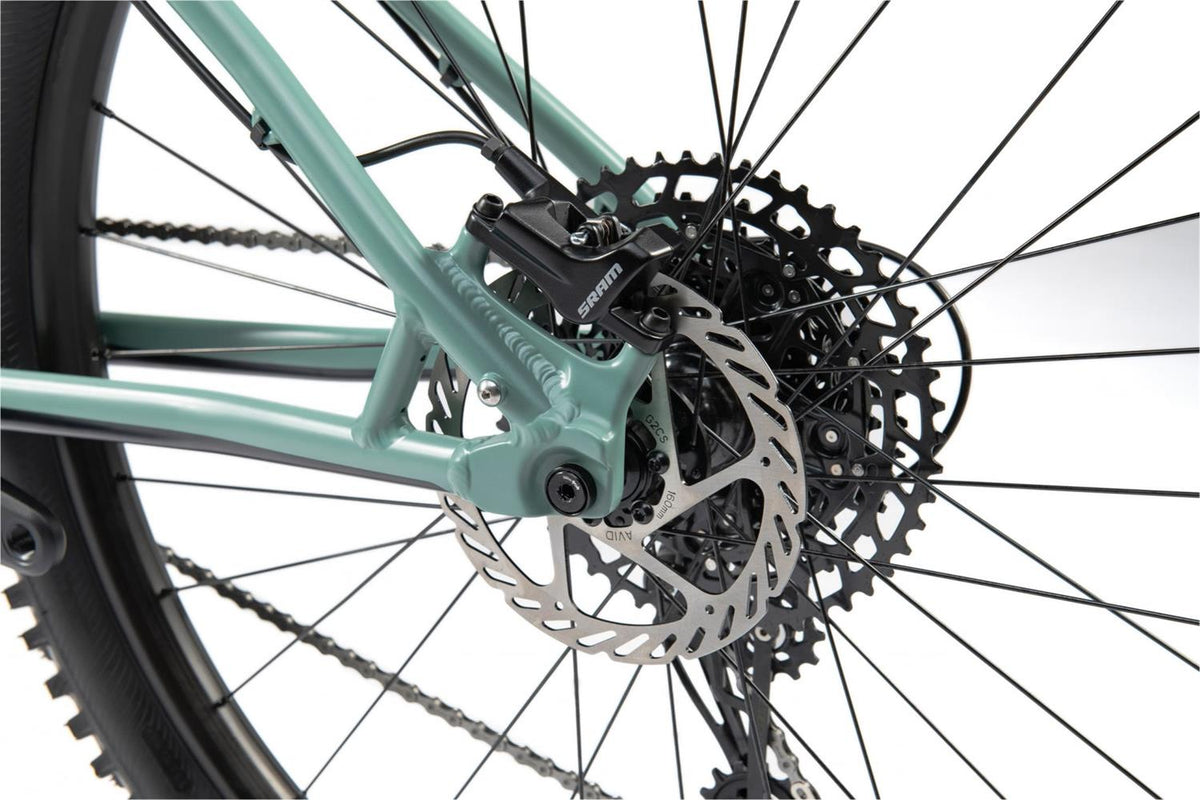

| Brakes | Sram Level hydraulic disc brakes |
| Rotor | Sram G2 Cleansweep 180 mm front and 160 mm rear rotor |

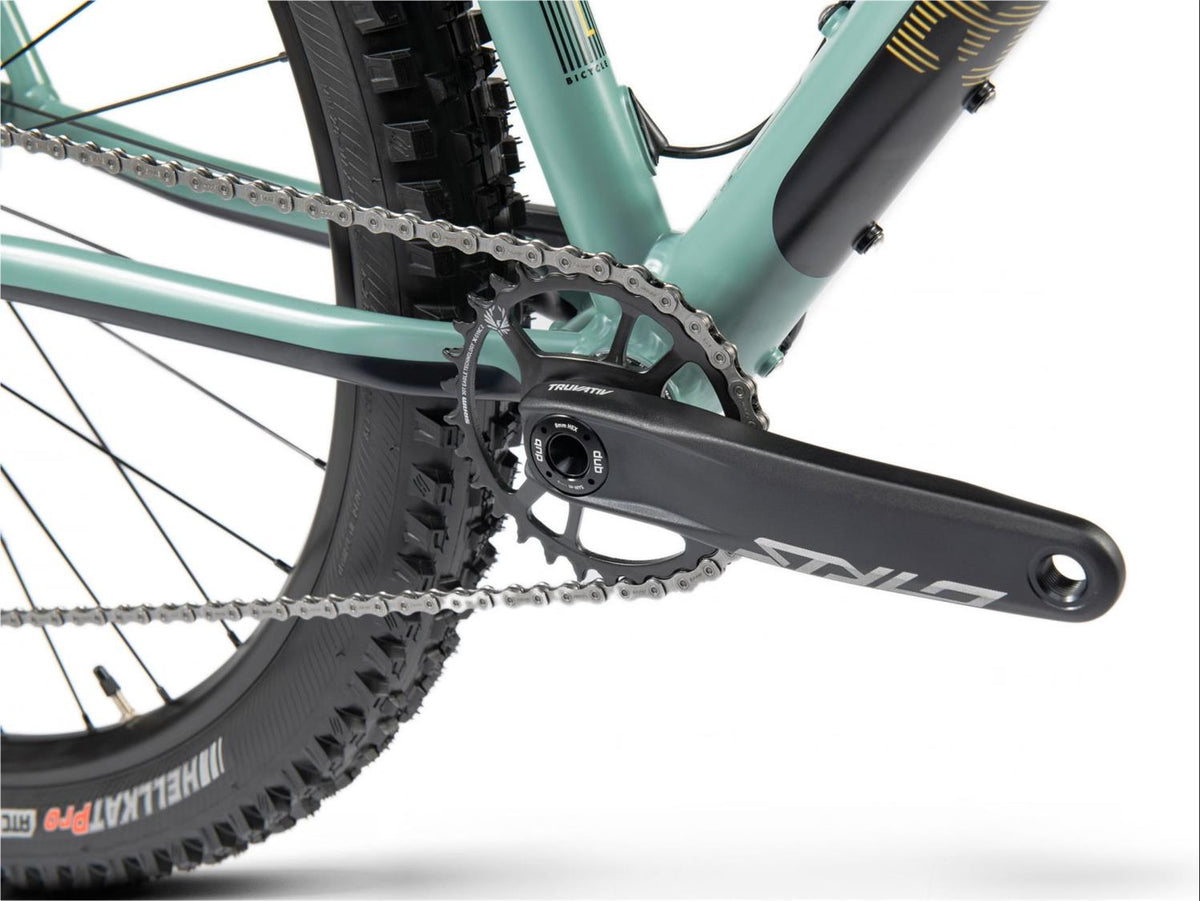

| Crankset | Truvativ Stylo 6K aluminium crank, Boost DUB |
| BB | Sram DUB BSA 73 mm |
| Pedals | - |
| Chain | Sram NX Eagle chain, 1/2'' x 11/128'', 114L |
| Chainring | Sram Eagle X-Sync 2, narrow-wide, 30 T |
| Cassette | Sram PG-1210 Eagle 12-speed, 11 - 50 T |
| Front derailleur | - |

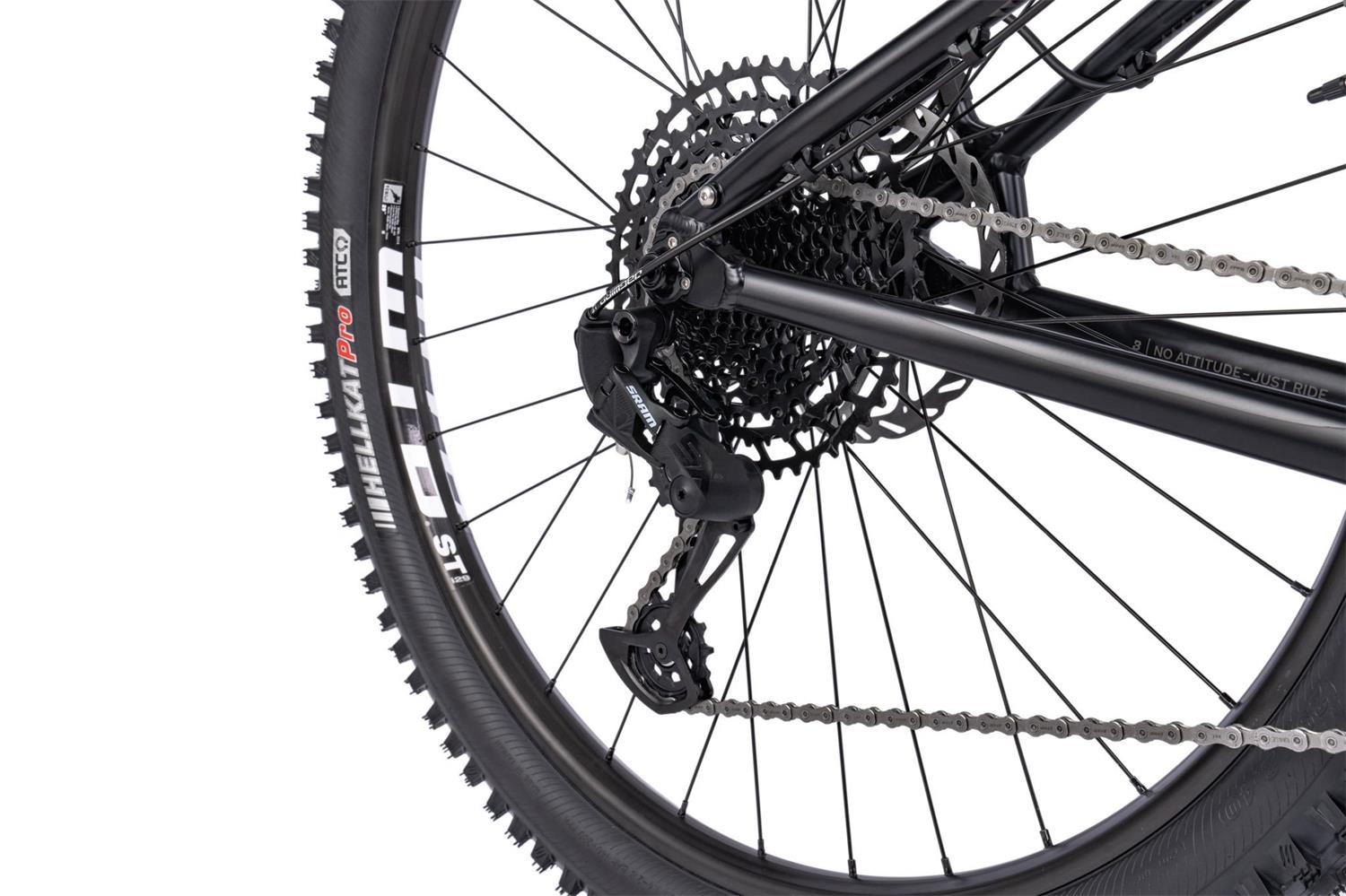

| Rear derailleur | Sram SX Eagle, clutch, long cage |

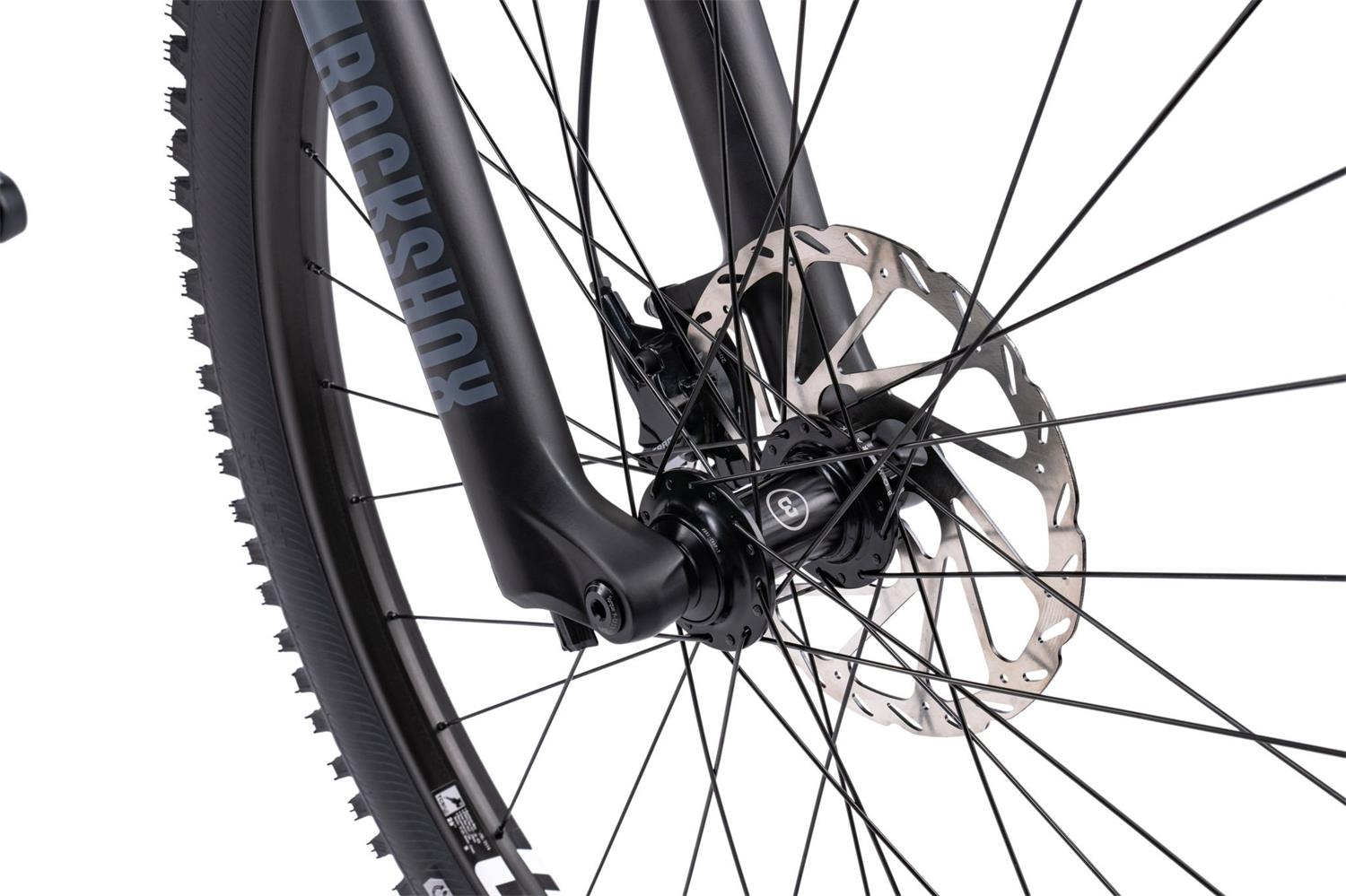

| Front hub | Bombtrack Grad Boost sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Grad Boost sealed hub, HG driver, 6-bolt disc |
| Through axle | 15 x 110 mm / 12 x 148 mm |
| Front rim | WTB ST i29 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i29 double wall, TCS 2.0, 32h |
| Saddle | Seido Origin saddle |

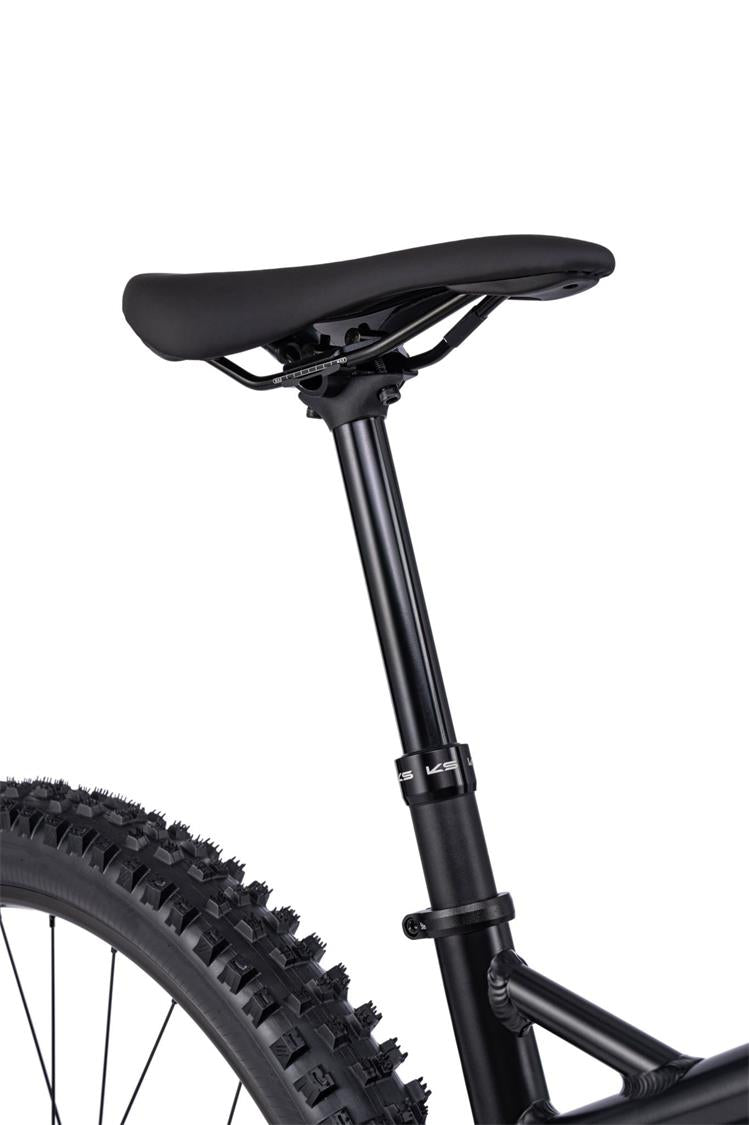

| Seat post | KS E20i dropper seatpost, 31.6 mm, 150 mm travel, 474 mm length |
| Seat clamp | Bombtrack Origin 34.9 mm |
| Front tire | Kenda Hellcat Pro AEC 29'' x 2.4" TLR, tubeless ready |
| Rear tire | Kenda Hellcat Pro AEC 29'' x 2.4" TLR, tubeless ready |
| Weight | 13.8 kg (size M) |
| Weight frameset | 2100 g frame (size L, incl. TA, hanger) |
| Maximum rider weight | 140 kg incl. luggage |
| ASTM riding condition | 4 |
Final product may vary in appearance, finish and minor details.
