Bombtrack Beyond AL Apex
Couldn't load pickup availability
If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.
Need help choosing the right size?

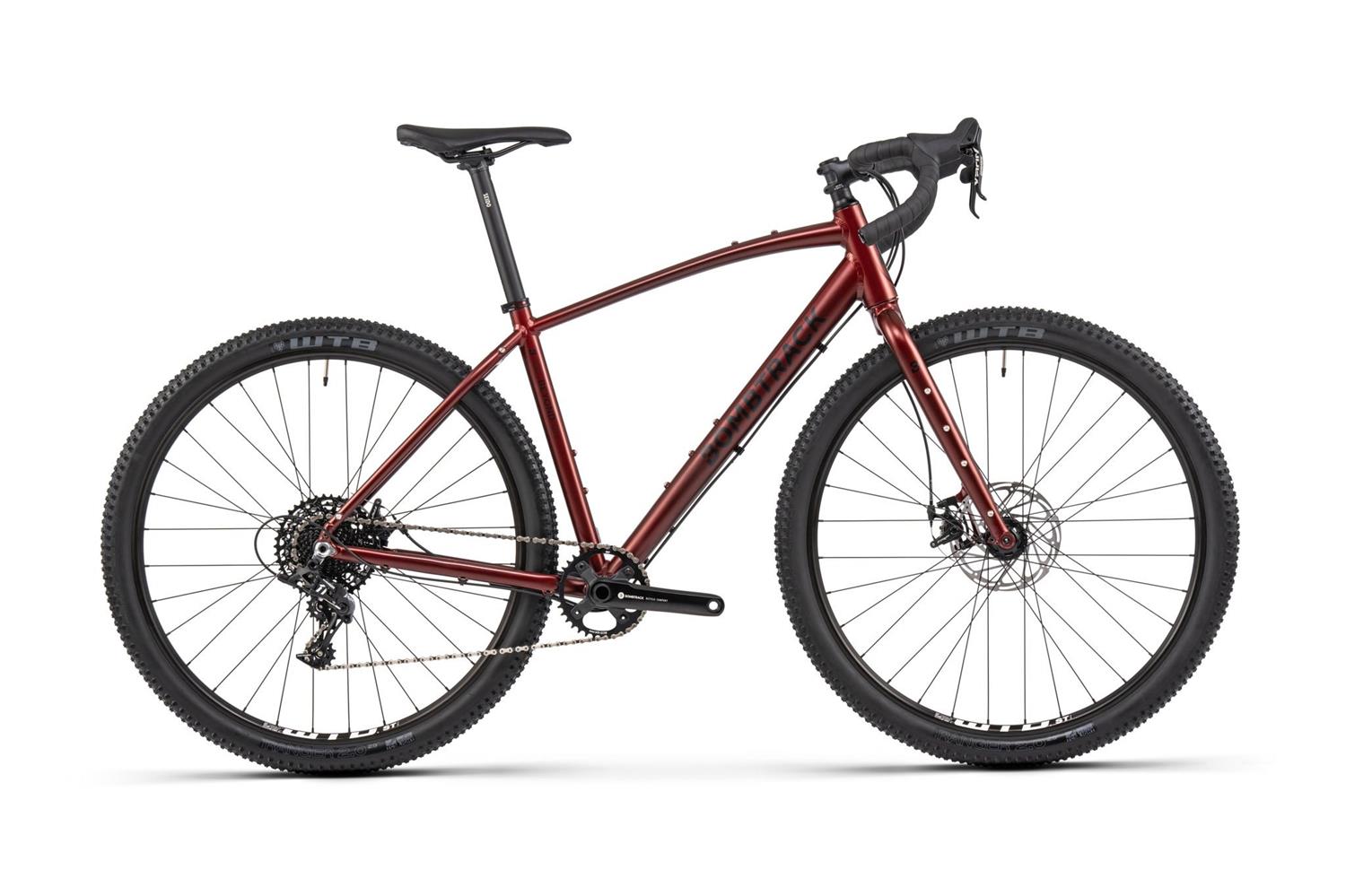

The Beyond AL is our lightweight hydro-formed aluminium Beyond. It features all our trademark Bombtrack ingredients, such as internal dynamo cable routing, a multitude of mounts on both the frame and on the aluminium fork, plus dropper post compatibility.
Sram’s Apex 1 x 11 mechanical setup provides the shifting duties, while TRP callipers with 180 / 160 mm rotors control your momentum.
Small bikes come with 27.5’’ wheels, M - XL bikes are fitted with 29’’ wheels and both wheelsets have tubeless-ready WTB i23 rims wrapped in all-condition Ranger 2.0’’ tyres allowing you to just get on with riding whatever the surface.
"With a full range of mounts and braze-ons across its fork and frame, it's happy to accept either panniers or bikepacking bags."

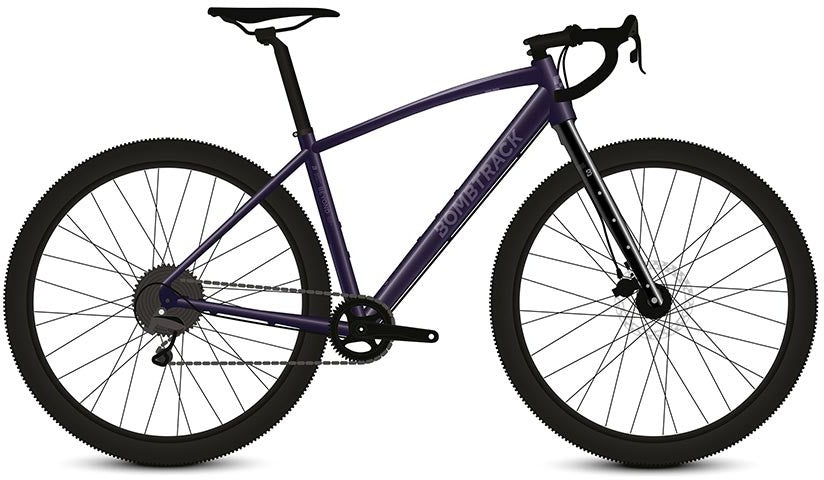

| Color 1 | Matt Metallic purple |

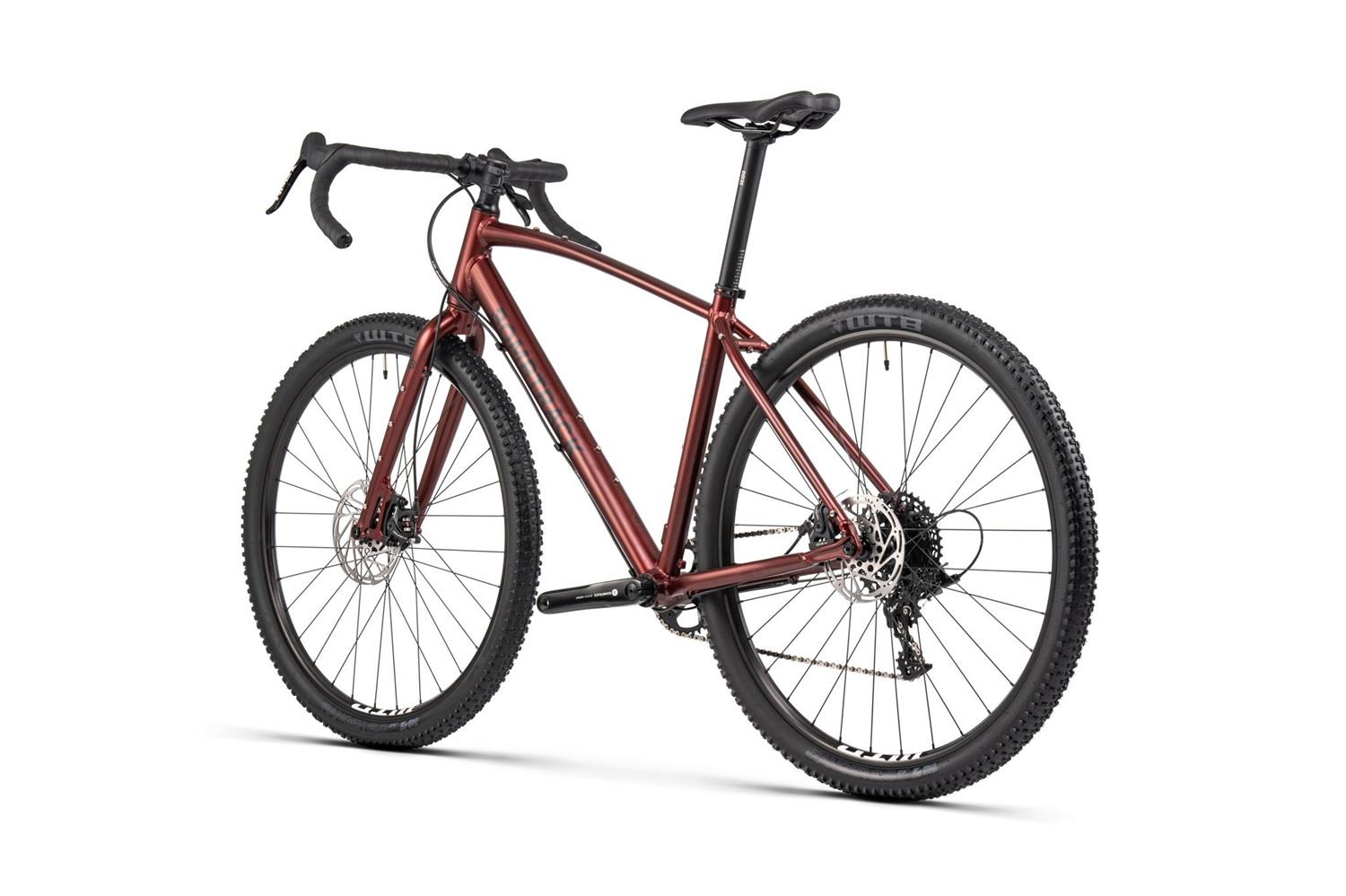

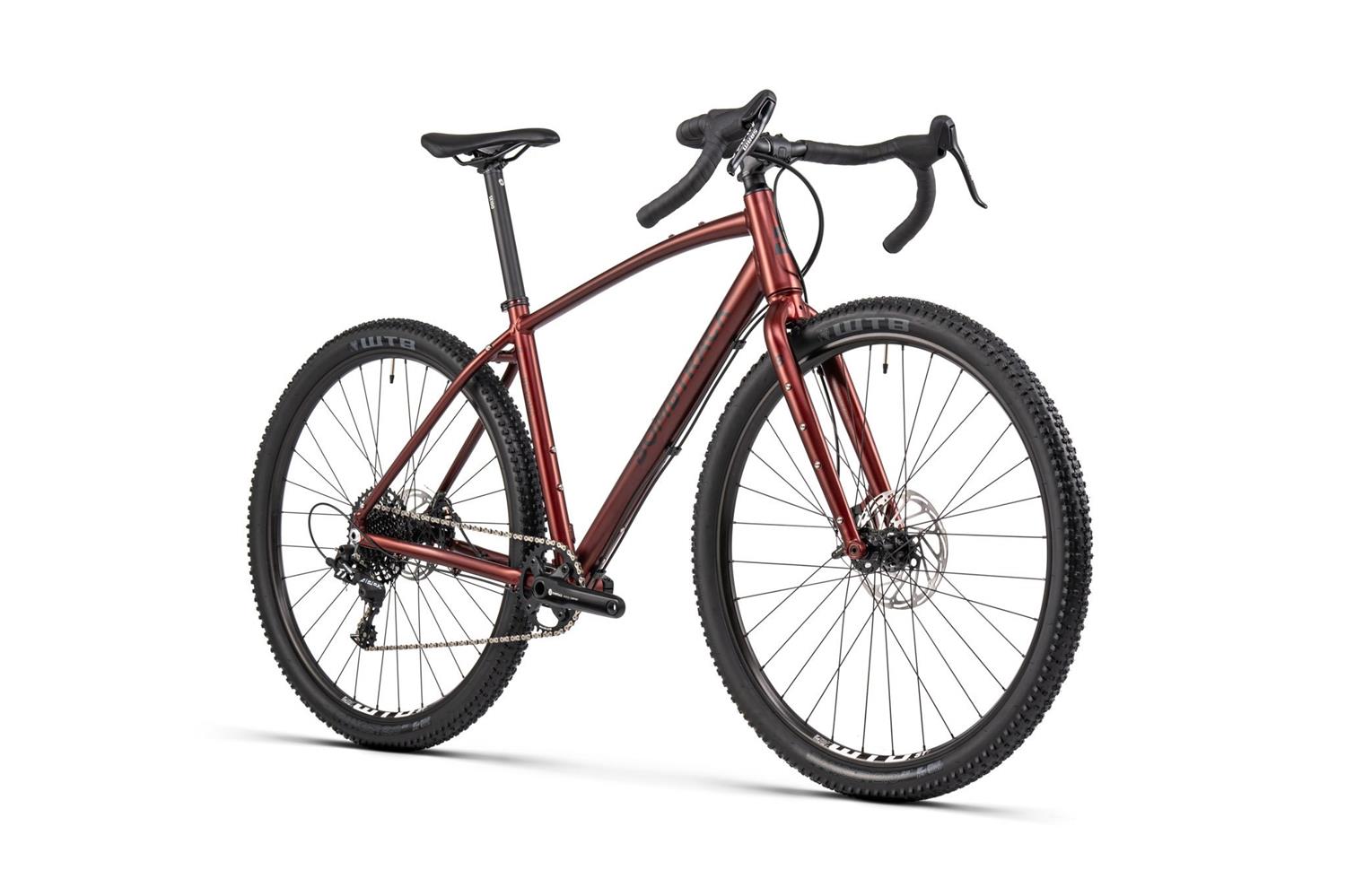

| Color 2 | Matt Metallic Red |
| Frame | 6061-T6 hydro-formed aluminium, TA, rack / fender mounts, stealth dropper ready, 86.5 mm T47 BB shell |
| Fork | 6061 aluminium, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing |

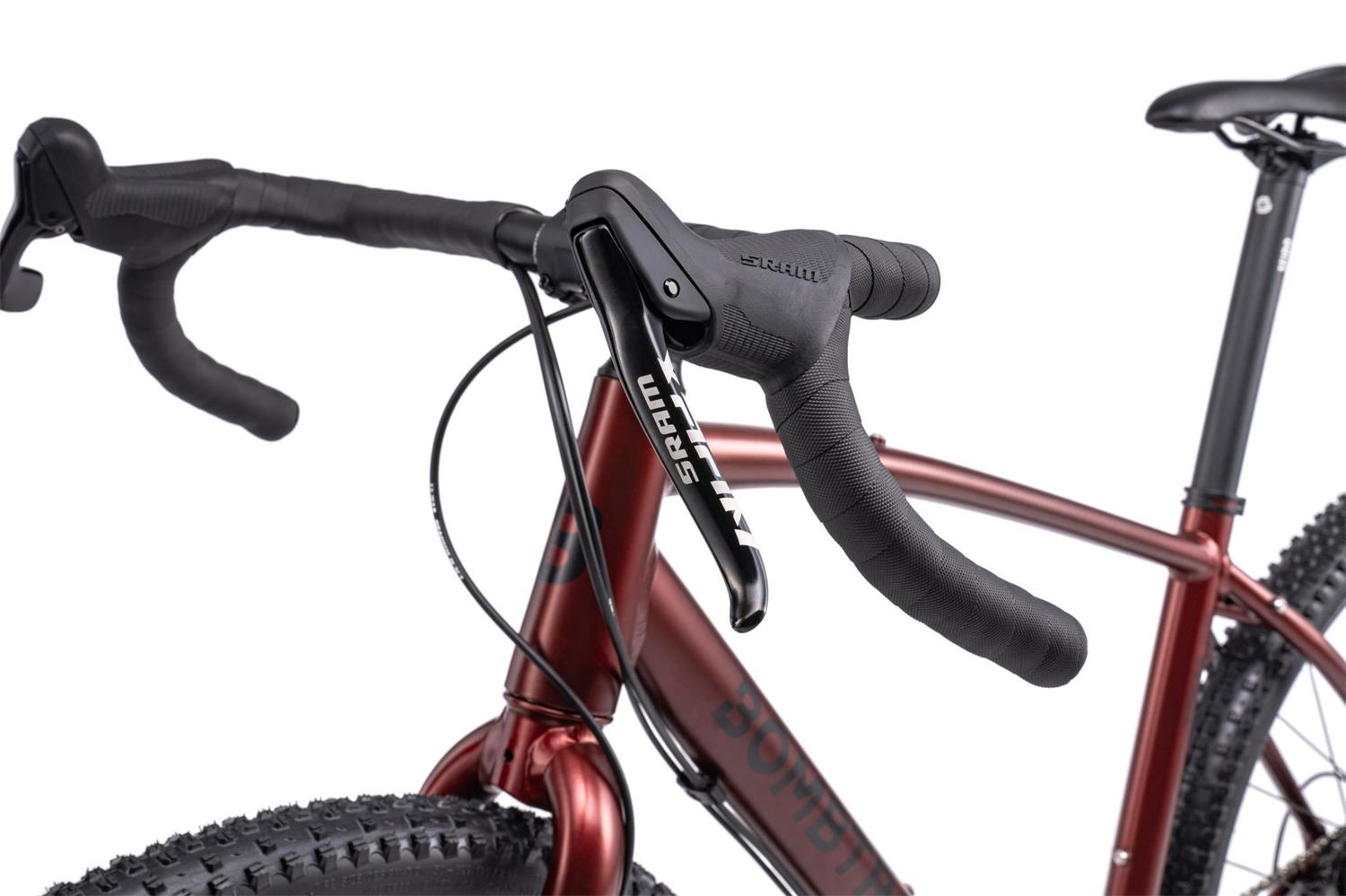

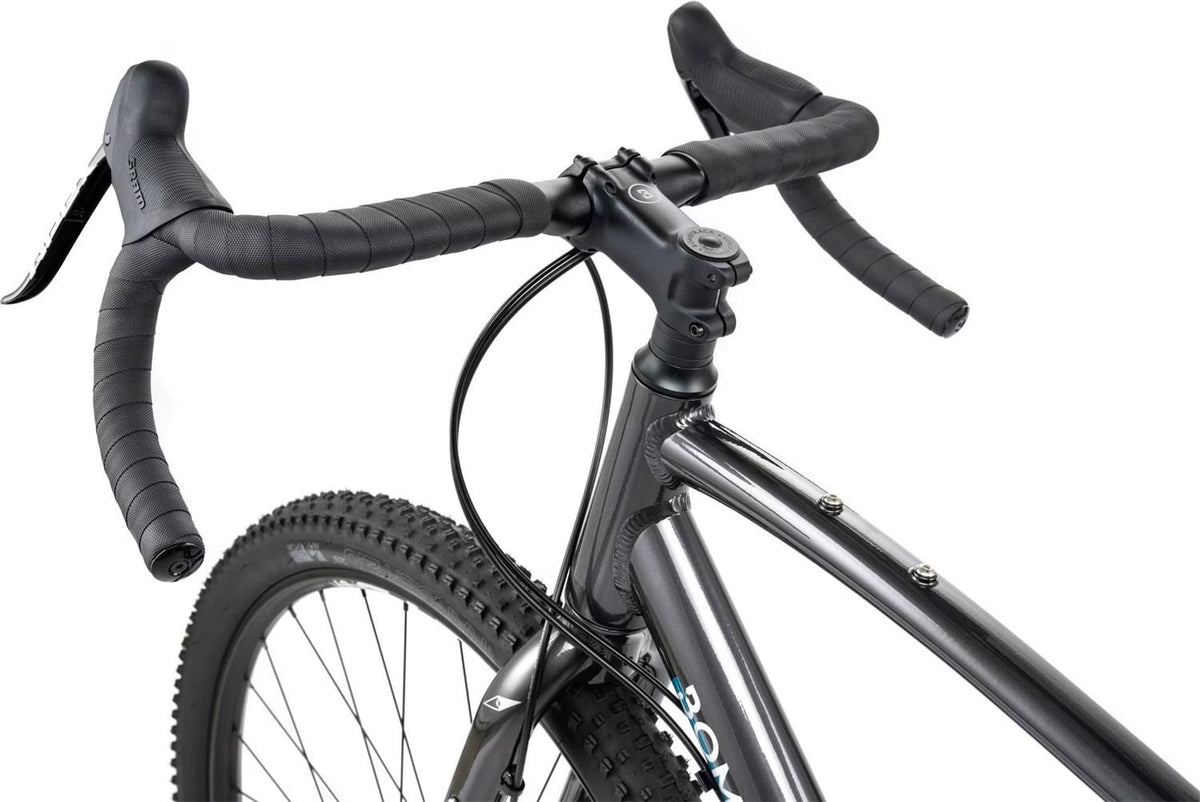

| Handlebar | Bombtrack Tackle gravel bar, 31.8 mm, 25° flare |
| Grips | Bombtrack Command bar tape |

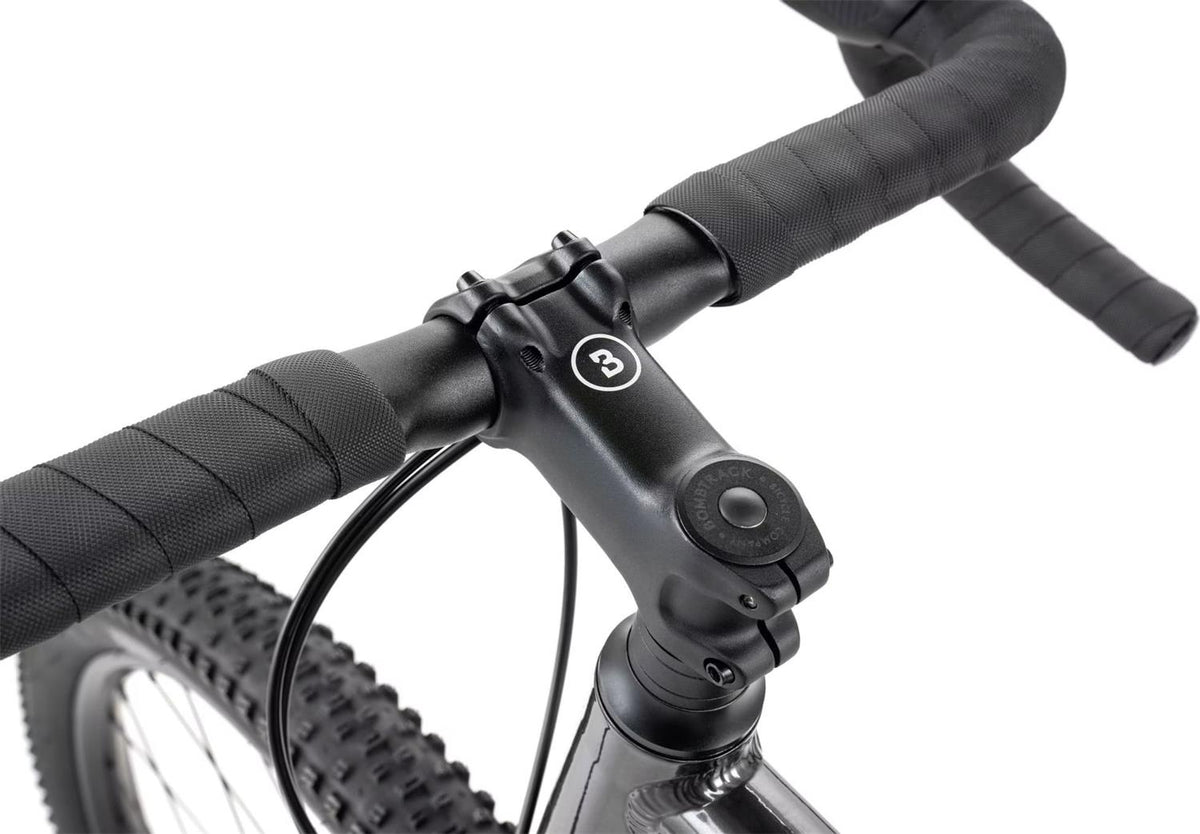

| Stem | Bombtrack Tramp forged aluminium stem, 3° |
| Headset | Sealed integrated aheadset, 1.1/2'' - 1.1/8'' |
| Levers | Sram Apex double tap mechanic |
| Shifter | Sram Apex double tap 1 x 11 |

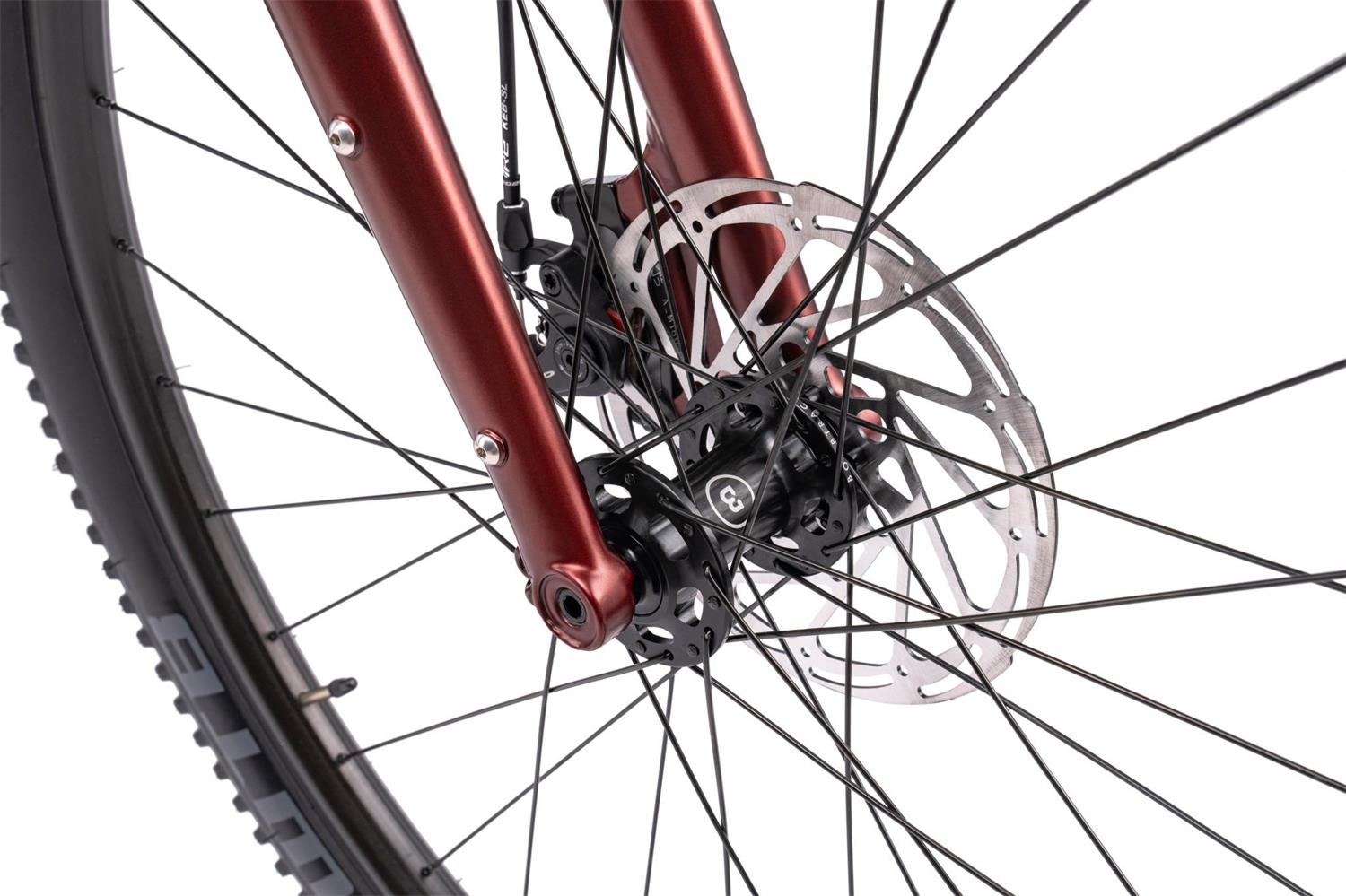

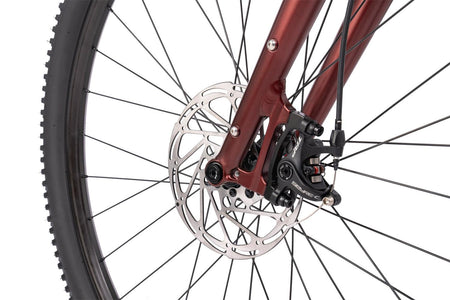

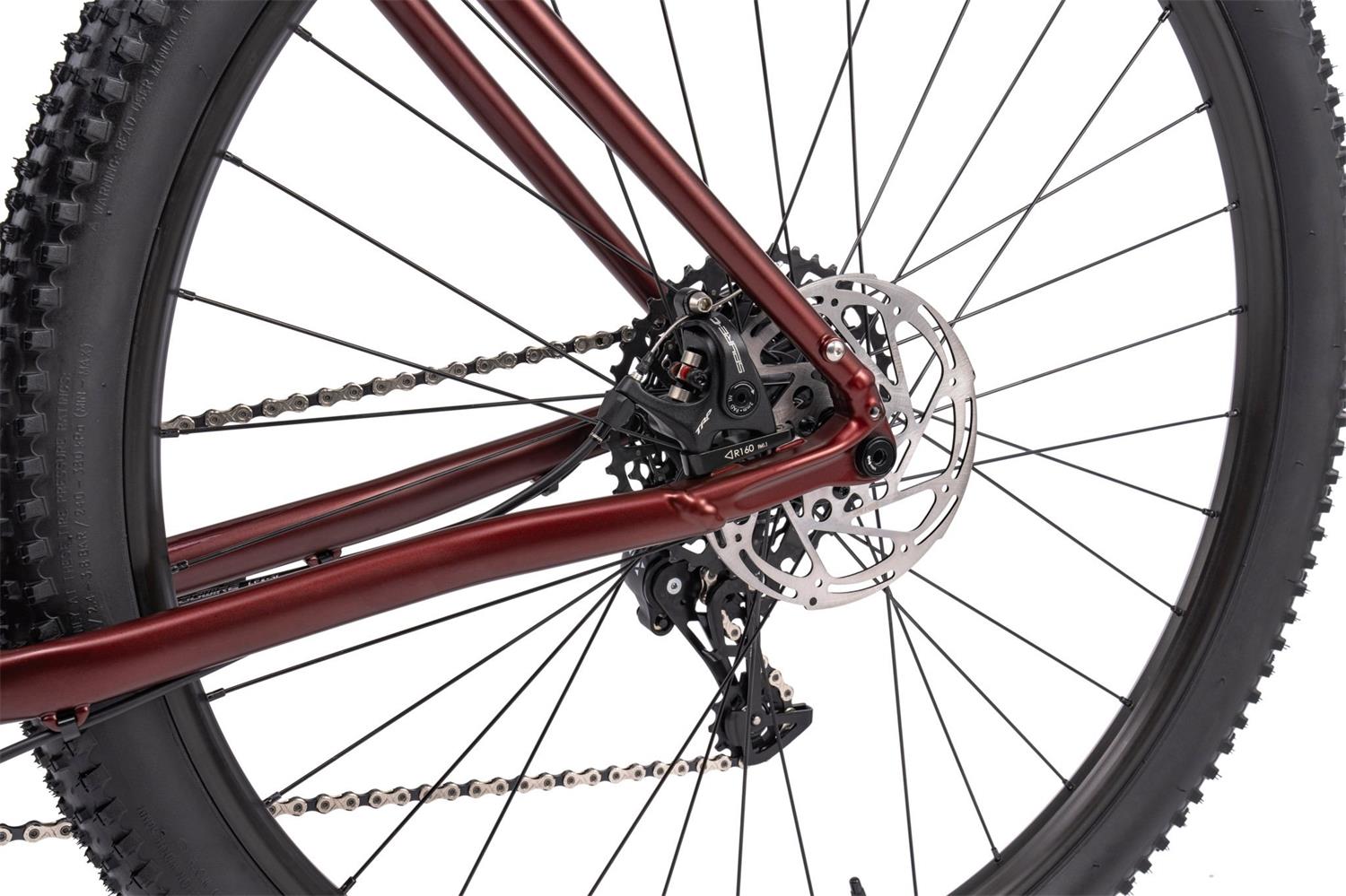

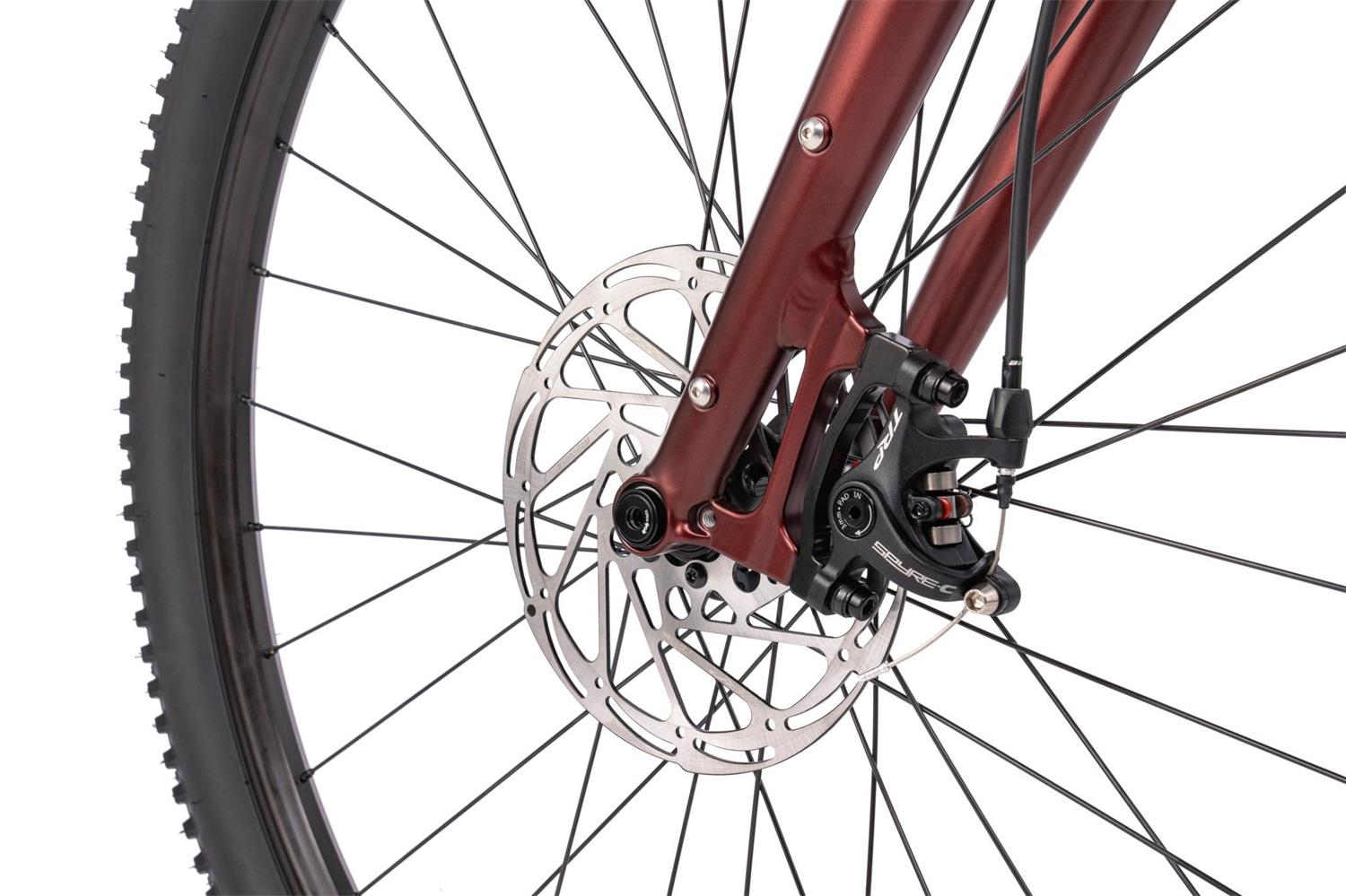

| Brakes | TRP Spyre C mechanic disc brakes |

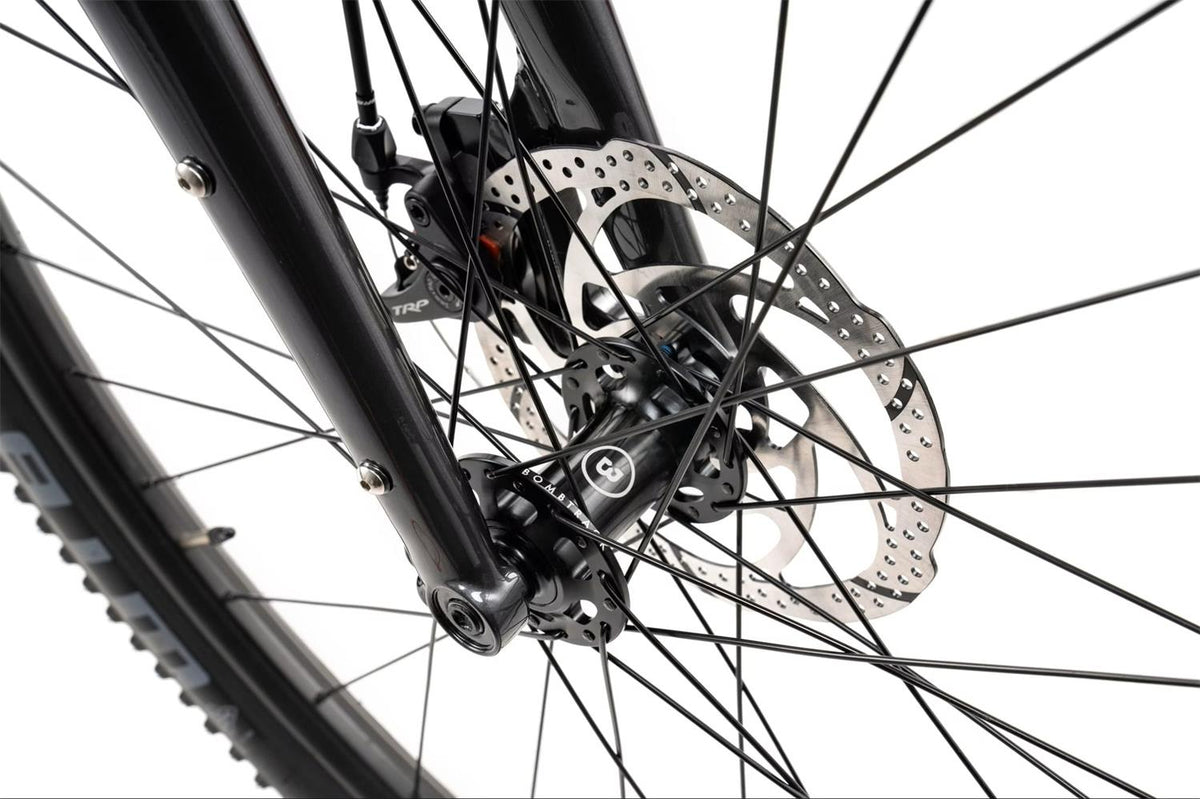

| Rotor | TRP 180 mm front and 160 mm rear rotor |

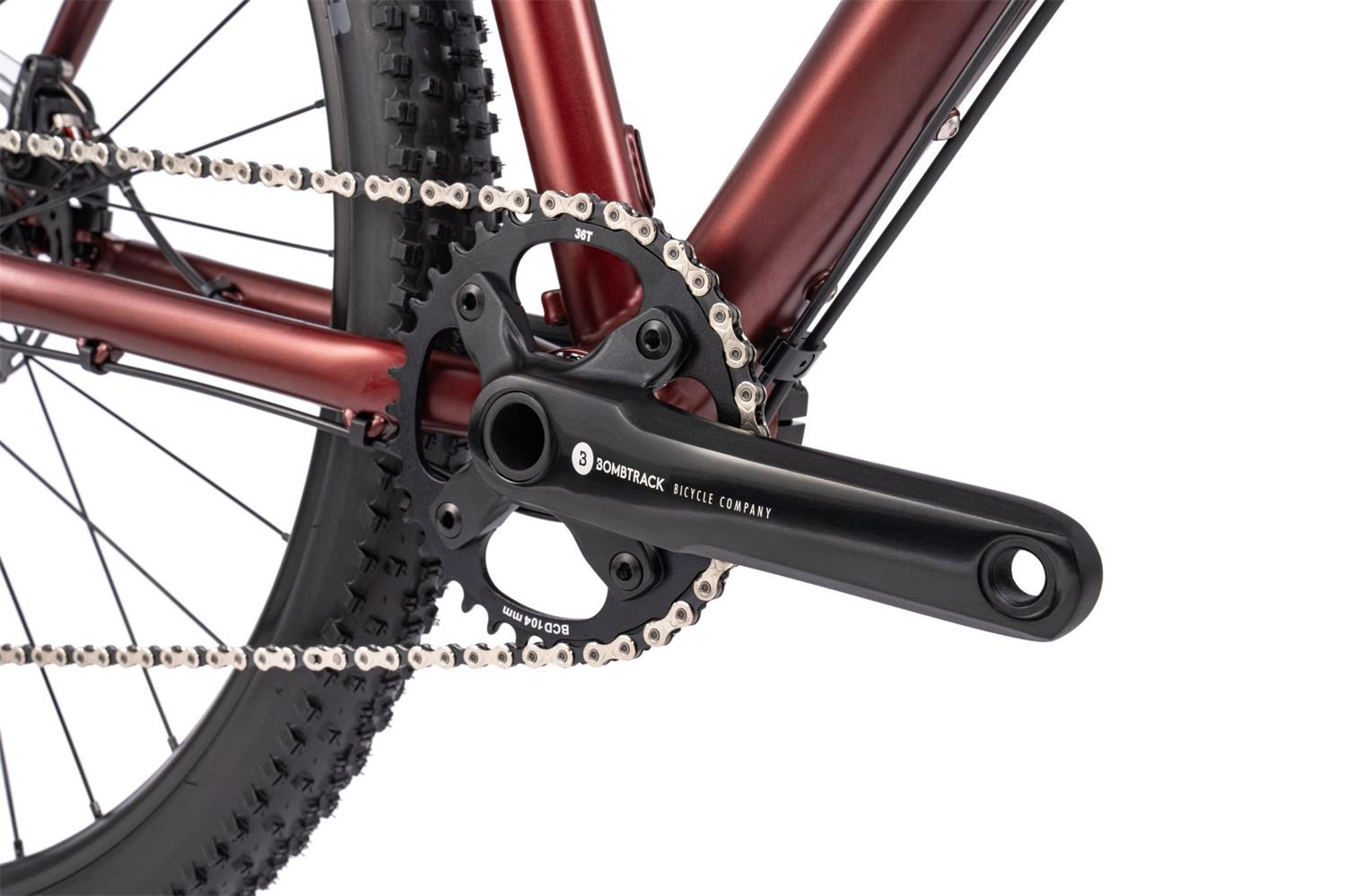

| Crankset | Bombtrack Ames forged aluminium crank, 24 mm spindle |
| BB | Bombtrack T47 internal sealed BB for 24 mm spindle |
| Pedals | - |
| Chain | KMC X11 chain, 1/2'' x 11/128'', 114L |
| Chainring | Steel, narrow-wide, 36 T |
| Cassette | Sram PG-1130 11-speed, 11 - 42 T |
| Front derailleur | - |

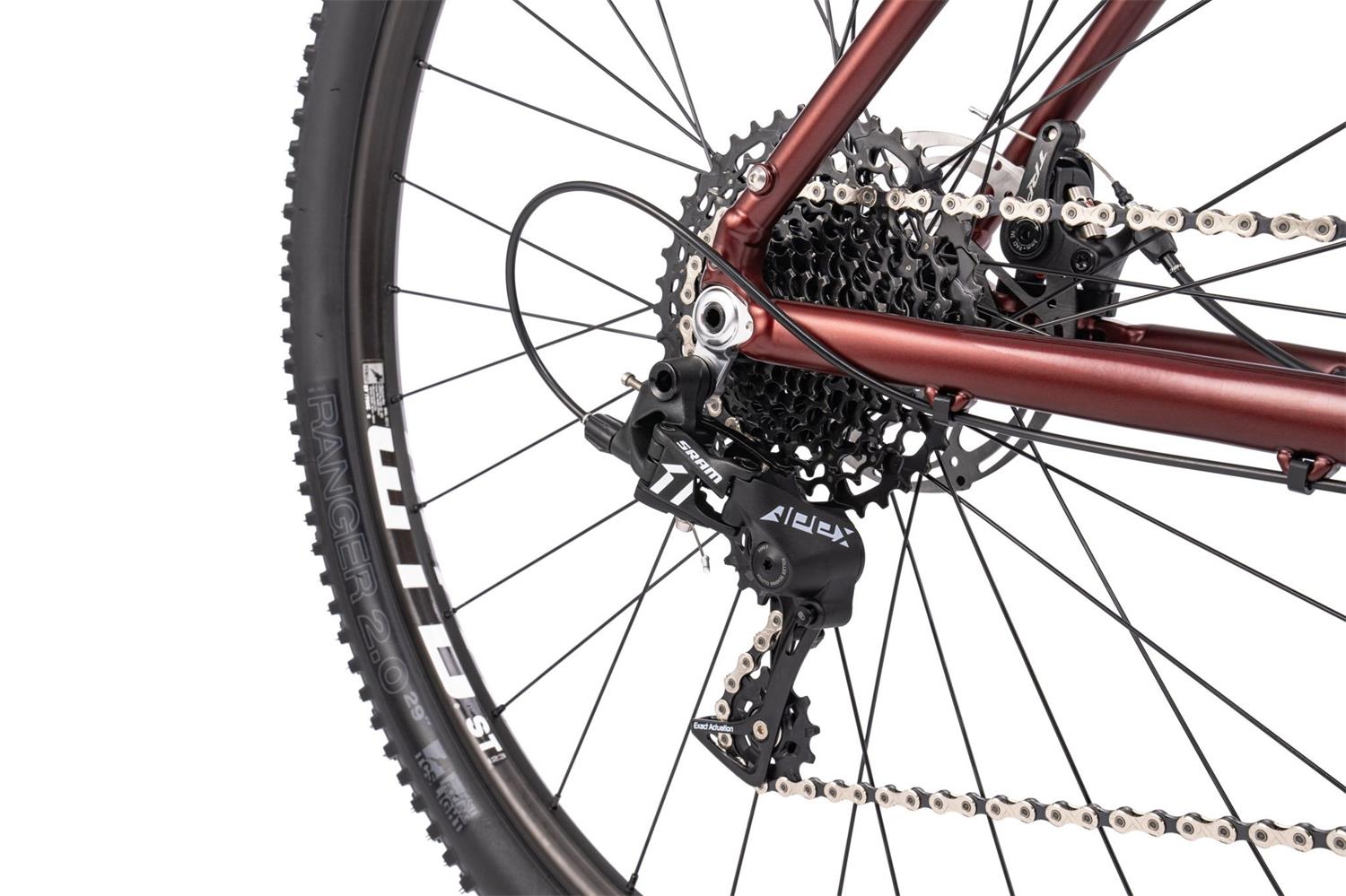

| Rear derailleur | Sram Apex 1, clutch, long cage |
| Front hub | Bombtrack Arc sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i23 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i23 double wall, TCS 2.0, 32h |
| Saddle | Bombtrack Fuzz saddle |
| Seat post | Seido Yew aluminium seatpost, 31.6 mm x 400 mm |
| Seat clamp | Bombtrack Prime 34.9 mm |

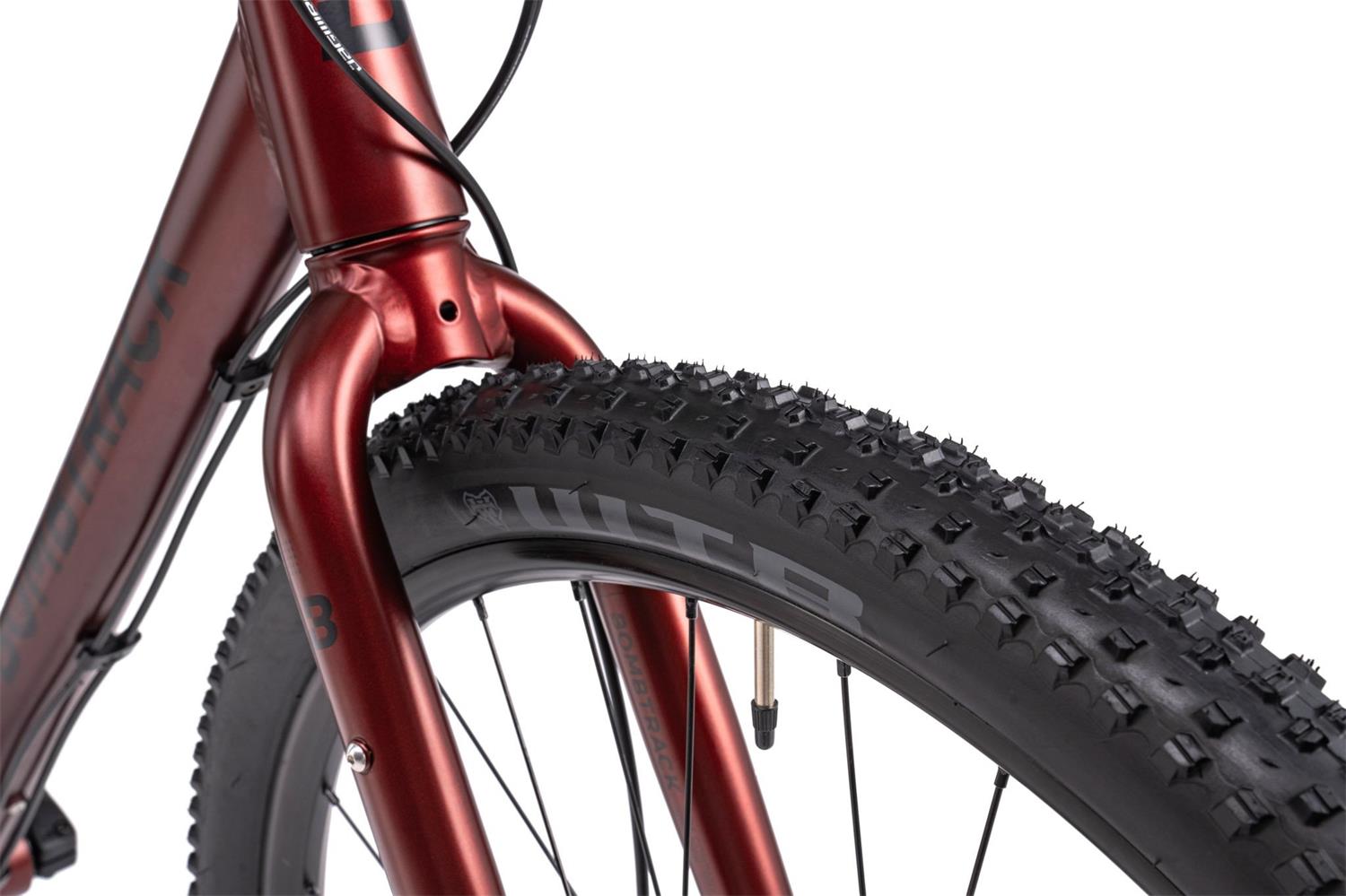

| Front tire | WTB Ranger TCS Light / Fast Rolling, S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready |
| Rear tire | WTB Ranger TCS Light / Fast Rolling, S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready |
| Weight | 11.7 kg (size M) |
| Weight frameset | 2145 g frame (size M, incl. TA, bolts, seatclamp, hanger) / 1000 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 140 kg incl. luggage |
| ASTM riding condition | 2 |
Final product may vary in appearance, finish and minor details.
