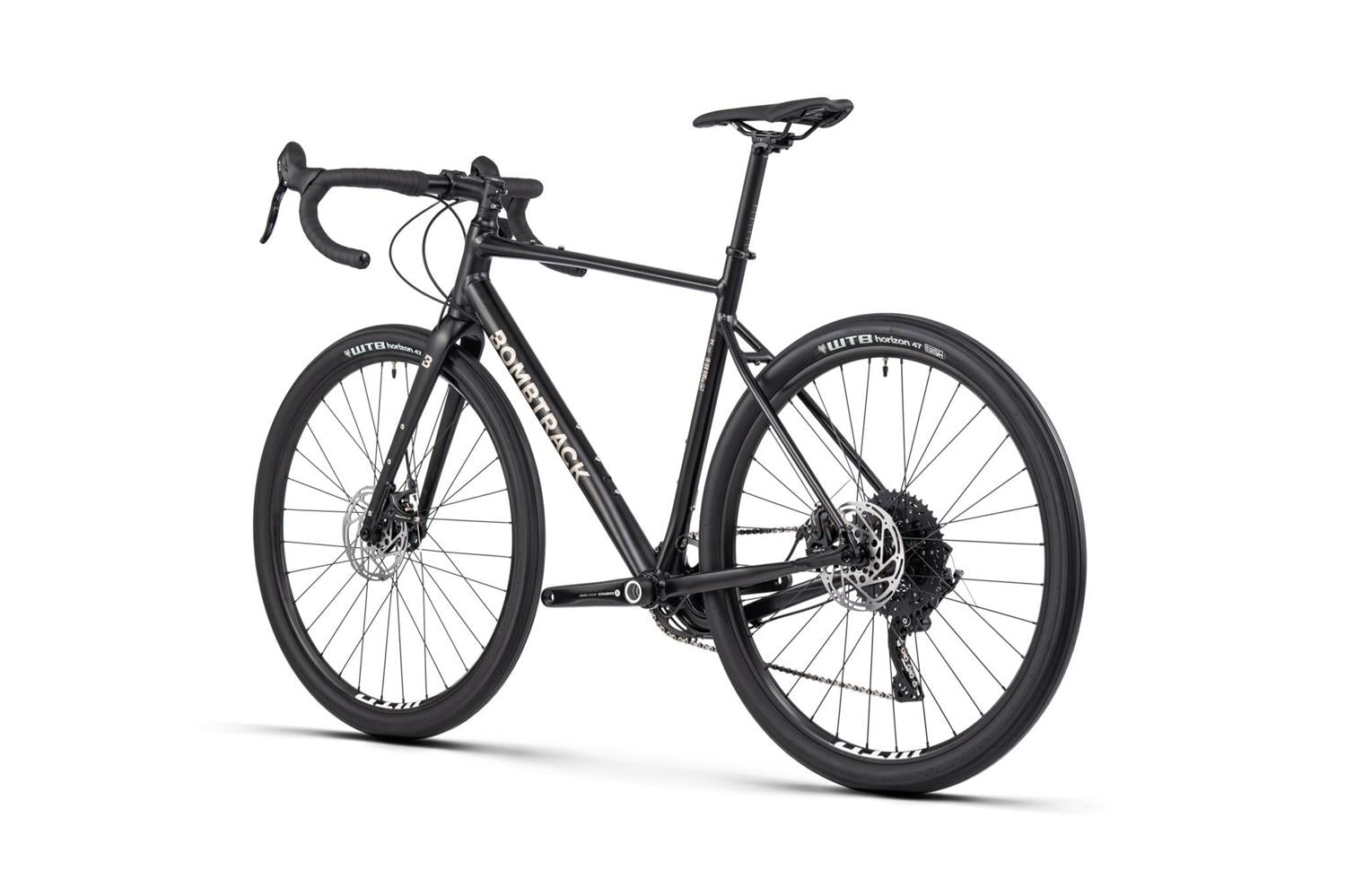

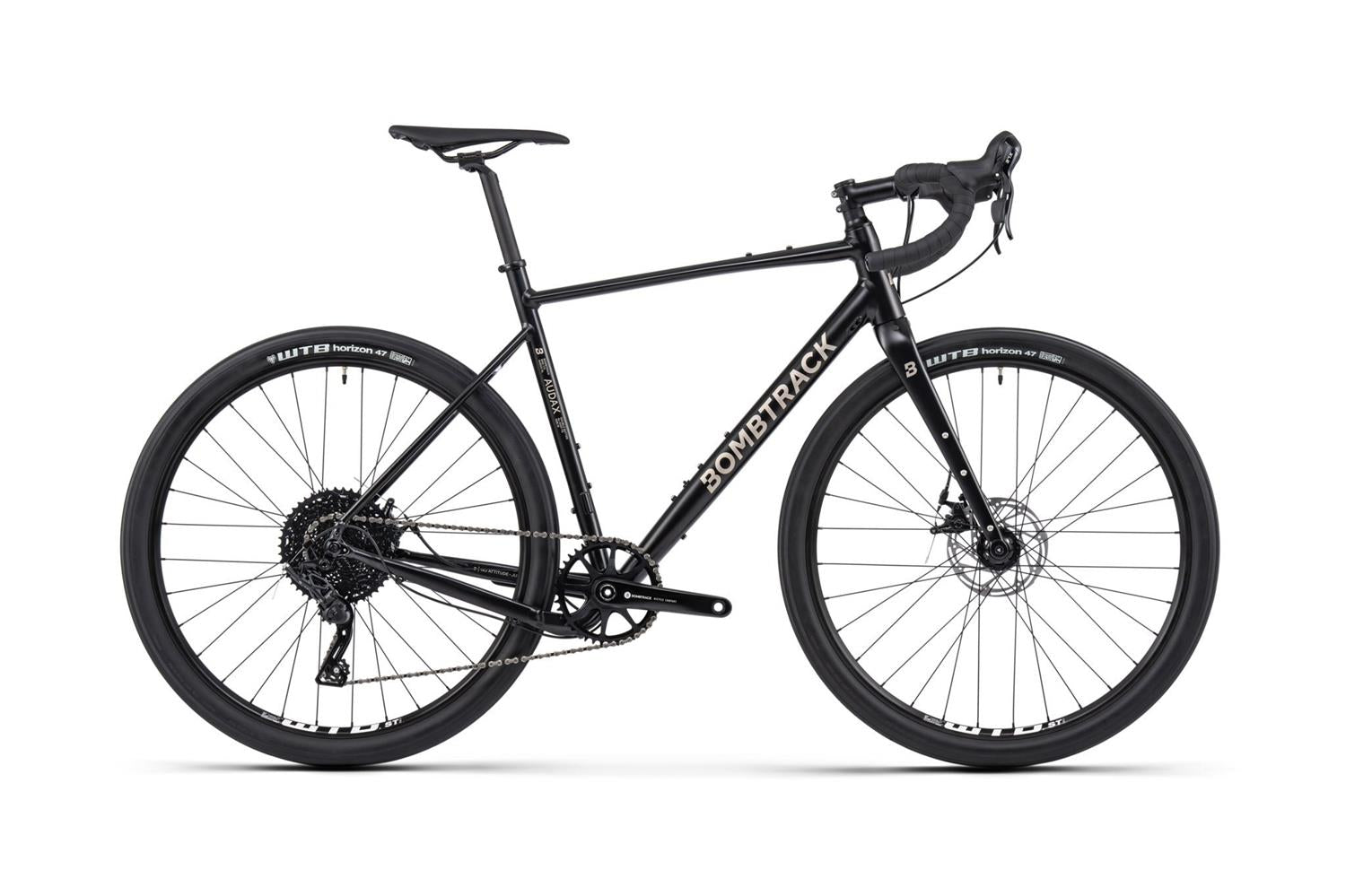

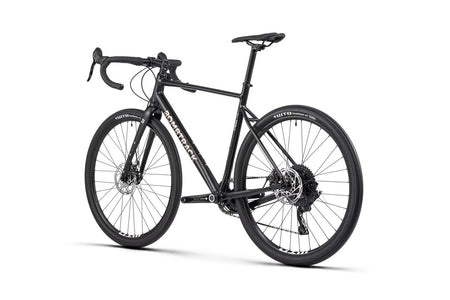

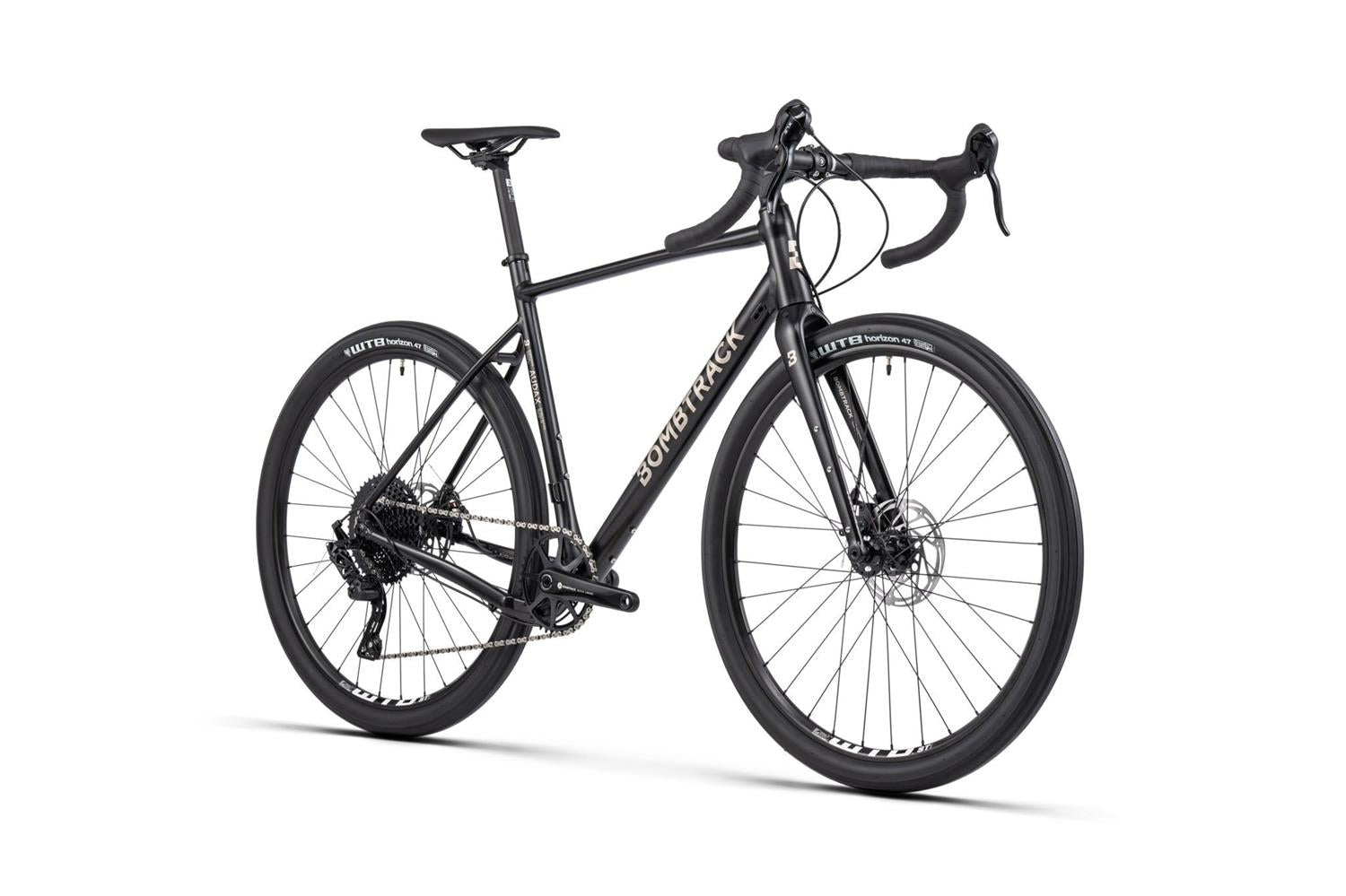

Audax AL XCD is our lightweight aluminium allroad bike featuring a hydroformed double butted frame and full carbon fork. We’ve optimized the butting profiles to reduce weight and at the same time, ovalized the top tube and dropped the seat stays for added compliance – the Audax lives up to its name, allowing you to ride for longer.

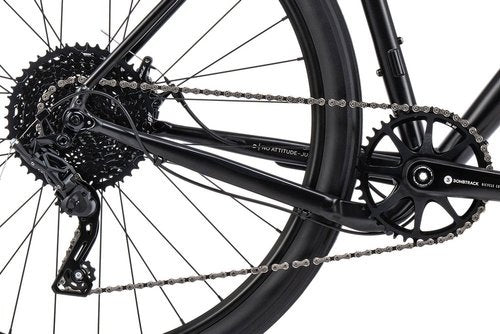

The frame and fork have fender mounts and a pleather of mounting points for traveling fast and light. Microshift’s 11 speed drivetrain with a 40T chainring, 11 – 46T cassette and XLE clutch rear mech will make light work of the hills and won’t rattle on the cobbles whilst WTB Horizon 650B x 47 mm tyres make short work of uneven surfaces.
"Employing short chainstays, it’s a bike that’s happy to change lanes quickly, but yet remains solidly planted thanks to a larger than average contact patch."
| Color 1 | Matt black |

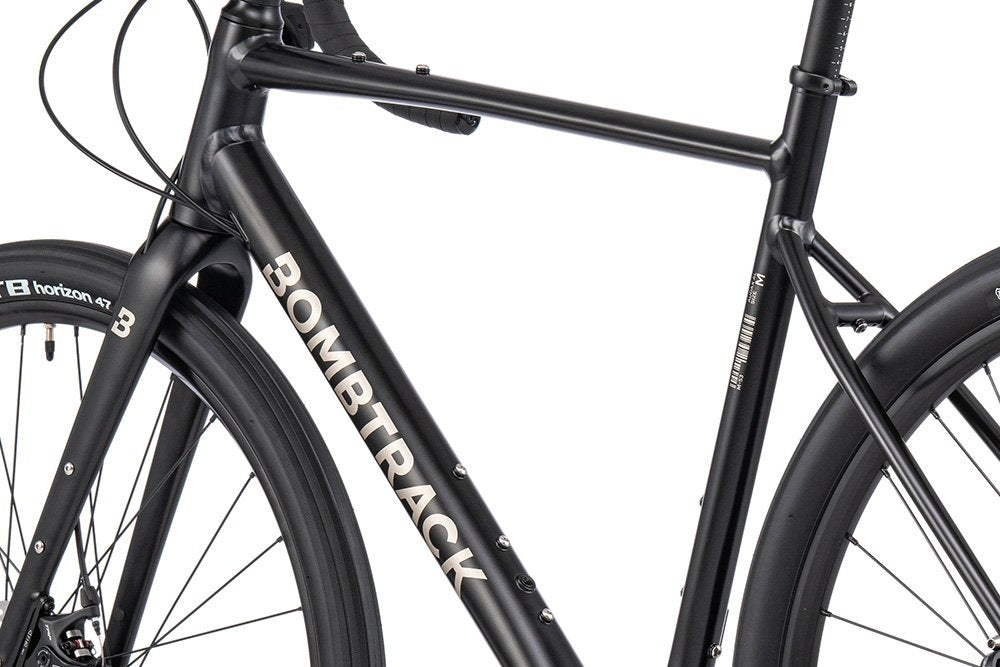

| Frame | 6061-T6 double butted aluminium, TA, fender mounts, 86.5 mm T47 BB shell |

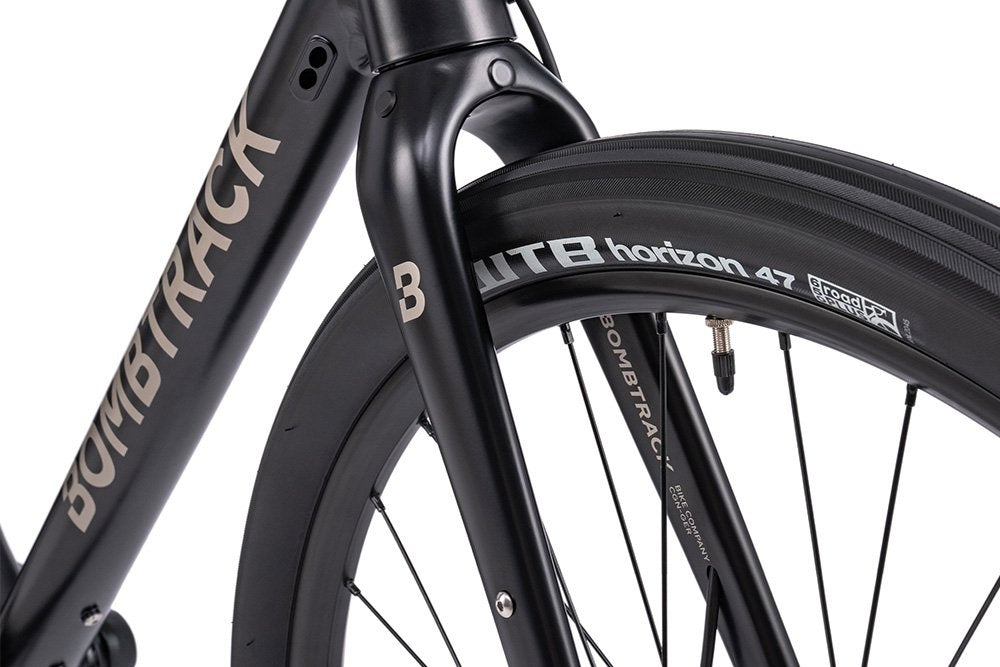

| Fork | Full carbon, TA, 1.1/2'' - 1.1/8'', with fender / cage mounts |

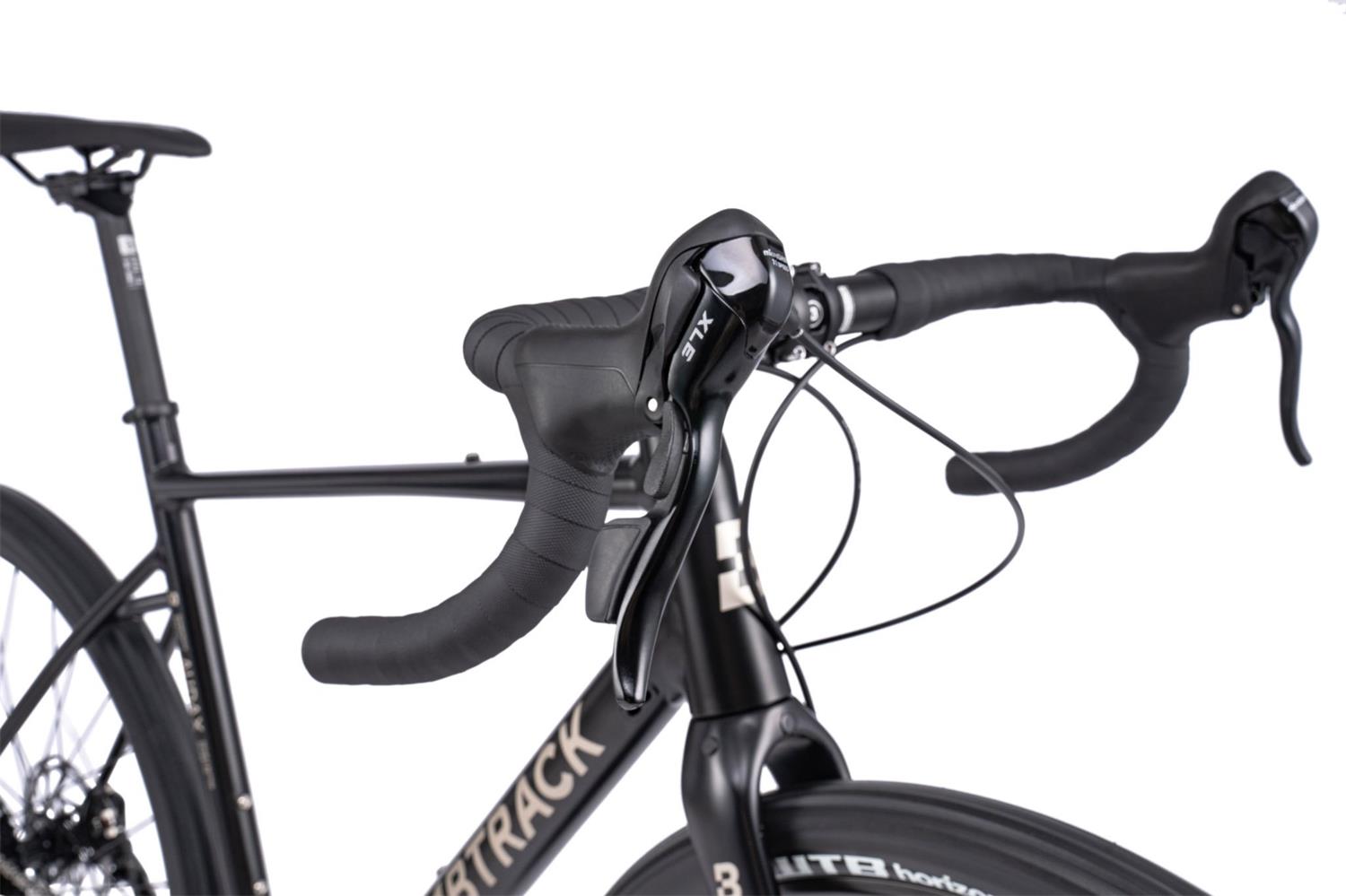

| Handlebar | Bombtrack CX-10 drop bar, 31.8 mm, 10° flare |
| Grips | Bombtrack Command bar tape |

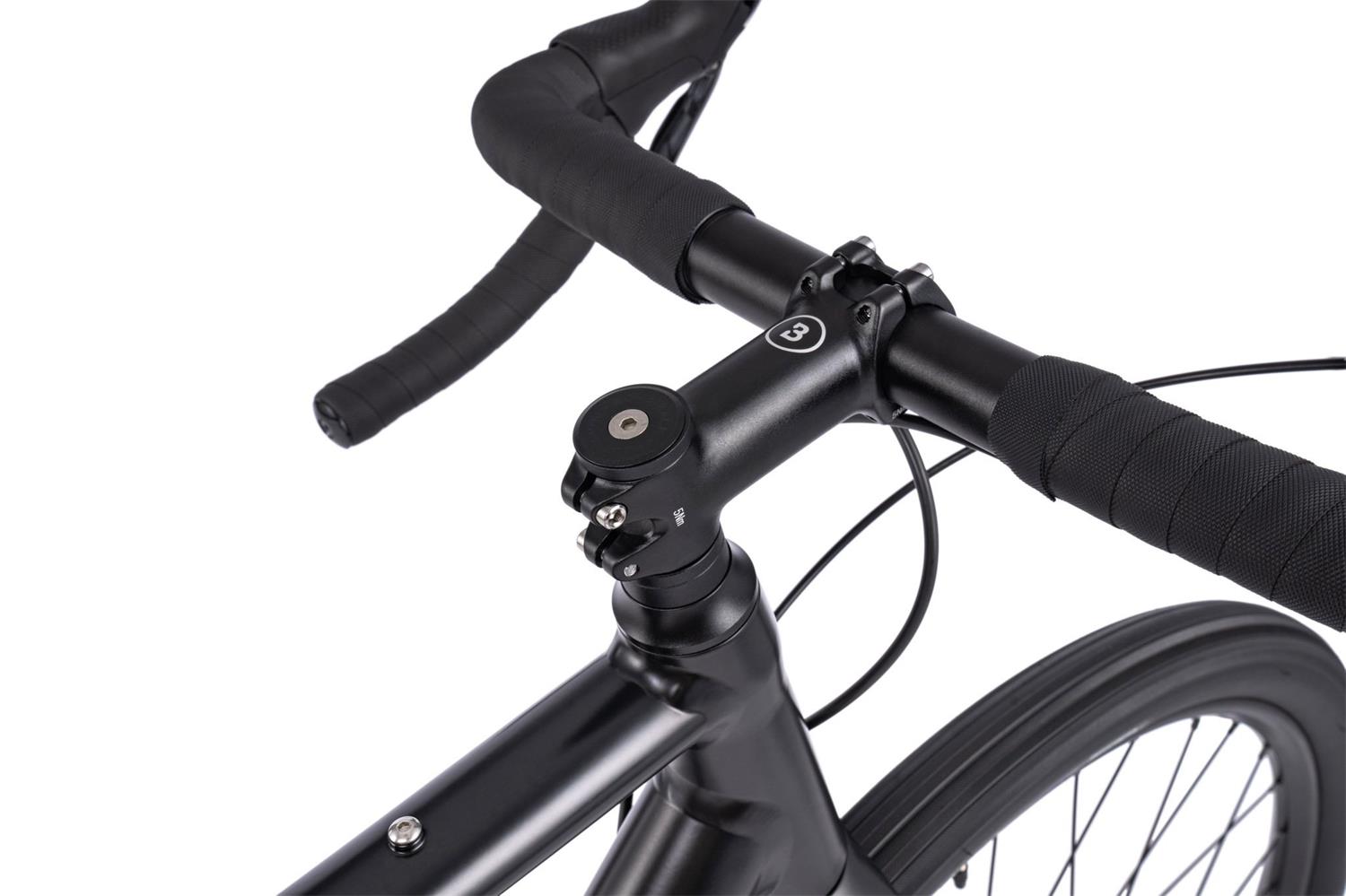

| Stem | Bombtrack Roam forged aluminium stem, -7° |
| Headset | Sealed integrated aheadset, 1.1/2'' - 1.1/8'' |
| Levers | Microshift SB-M110 Dual Control Lever mechanic |
| Shifter | Microshift SB-M110 Dual Control Lever 1 x 11 |

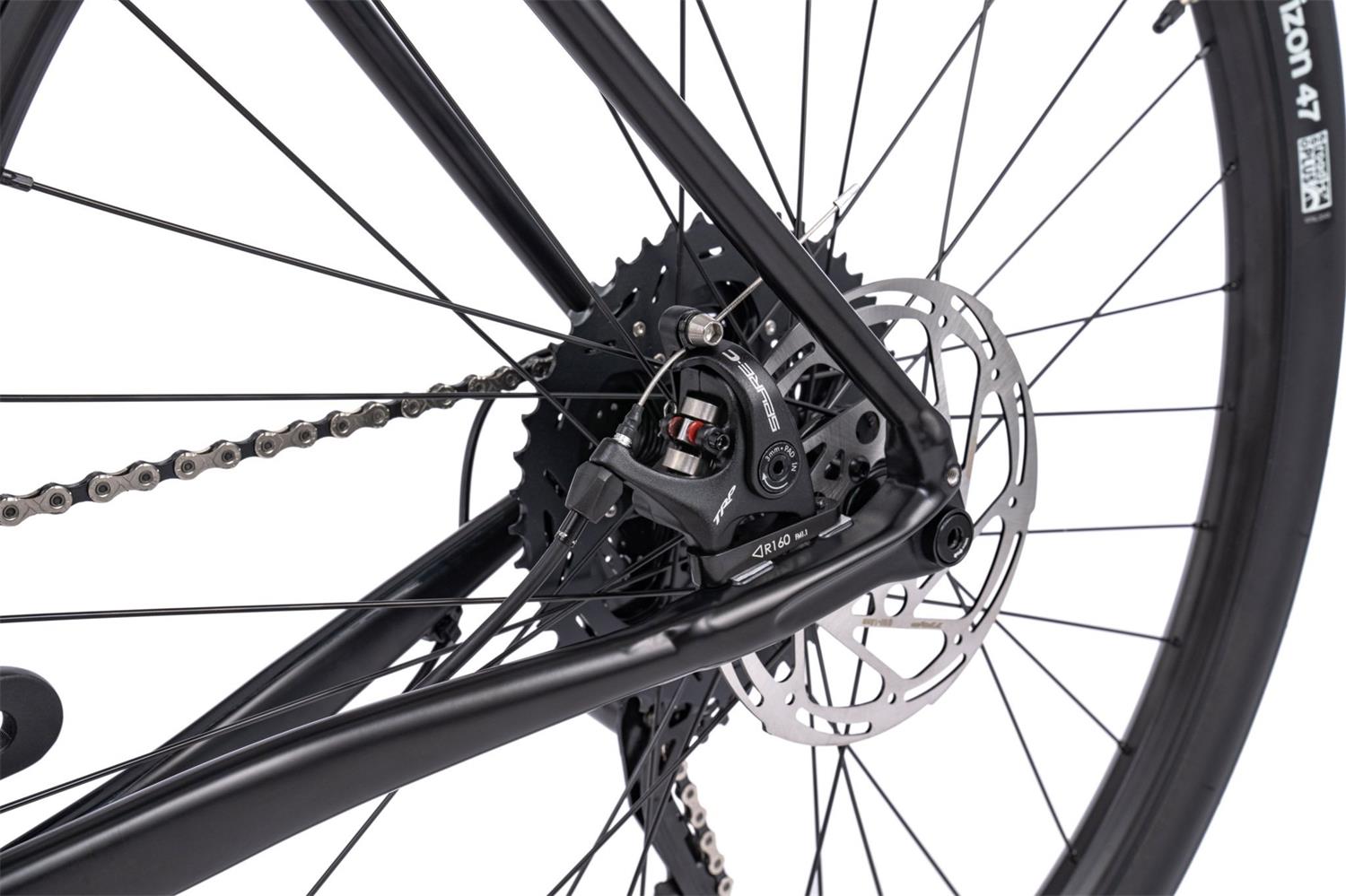

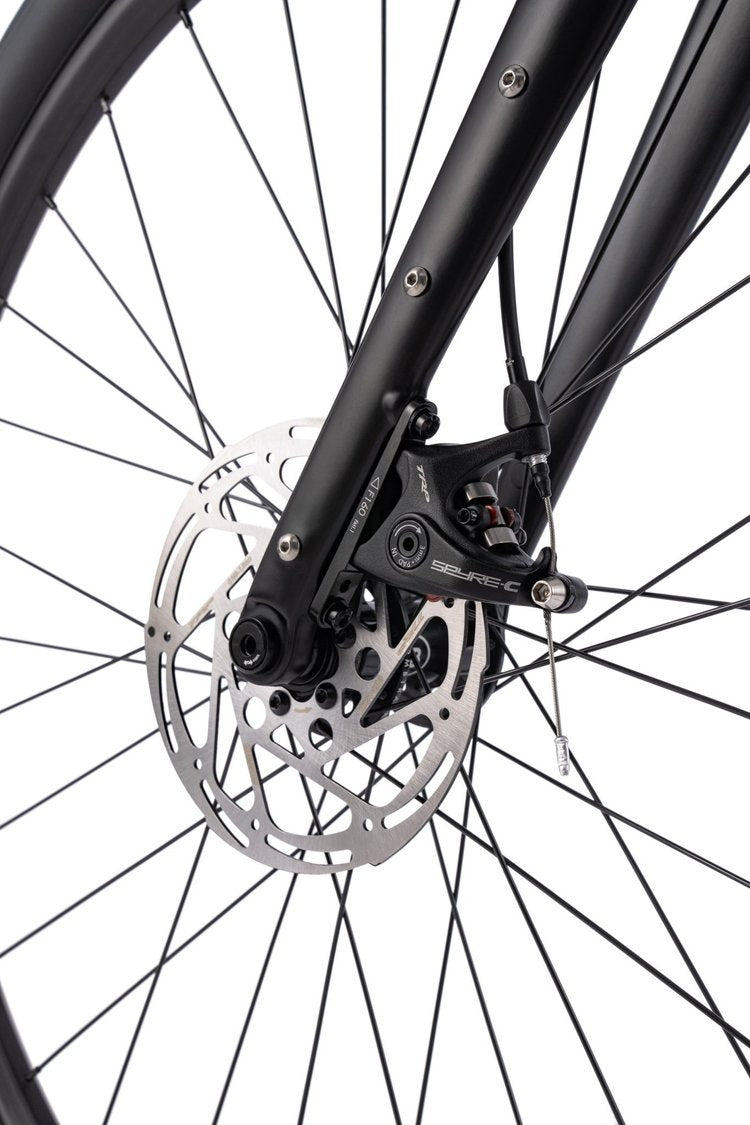

| Brakes | TRP Spyre C flat mount mechanic disc brakes |
| Rotor | TRP 160 mm rotors |

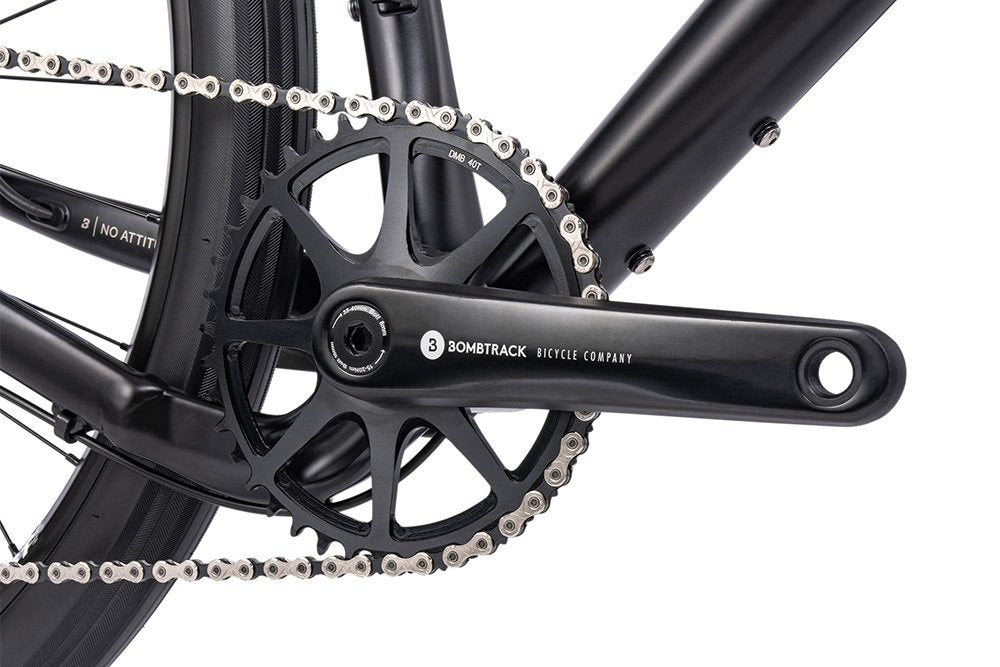

| Crankset | Bombtrack Lyer forged aluminium crank, direct mount interface (Sram compatible),30 mm spindle |
| BB | Bombtrack T47 internal sealed BB for 30 mm spindle |
| Pedals | - |
| Chain | KMC X11 chain, 1/2'' x 11/128'', 114L |
| Chainring | CNC machined aluminium, narrow-wide, 40 T |
| Cassette | Microshift CS-HG113 11-speed, 11 - 46 T |
| Front derailleur | - |

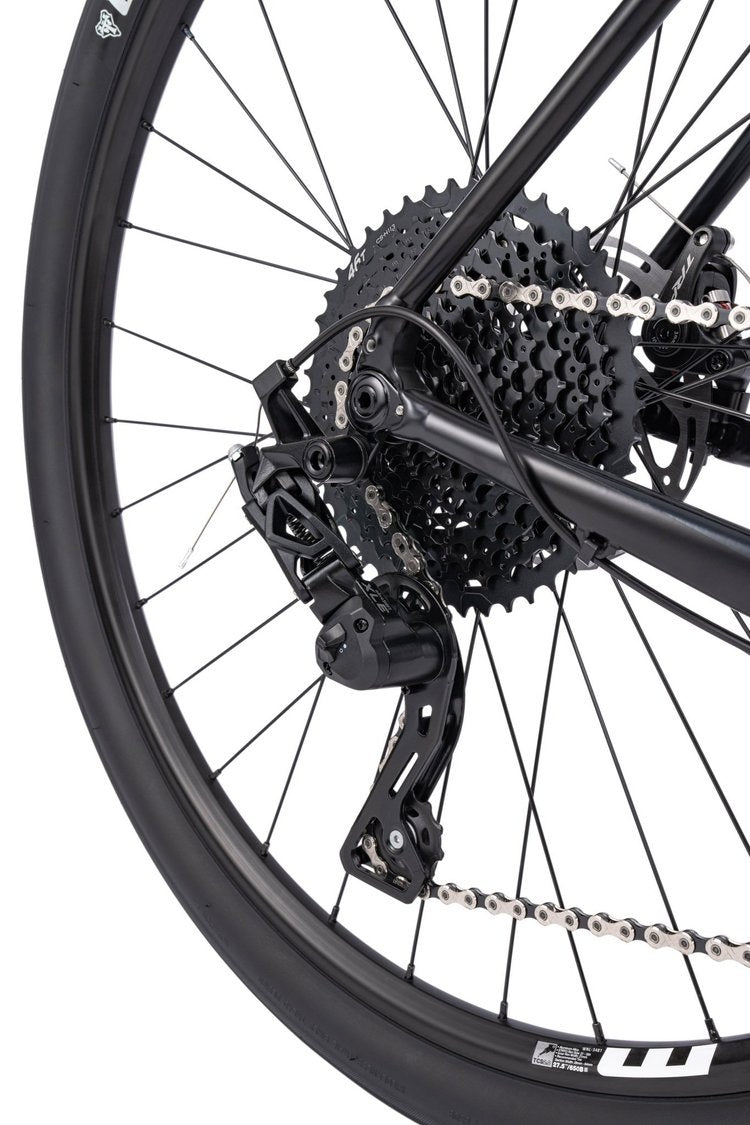

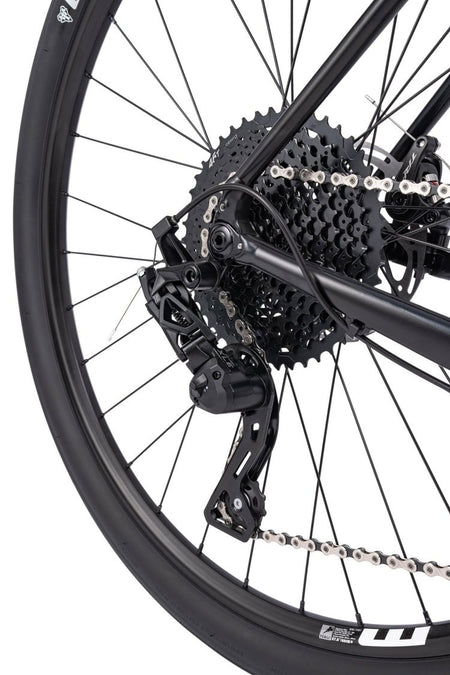

| Rear derailleur | Microshift RD-M6655, clutch, medium cage |
| Front hub | Bombtrack Arc sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i21 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i21 double wall, TCS 2.0, 32h |

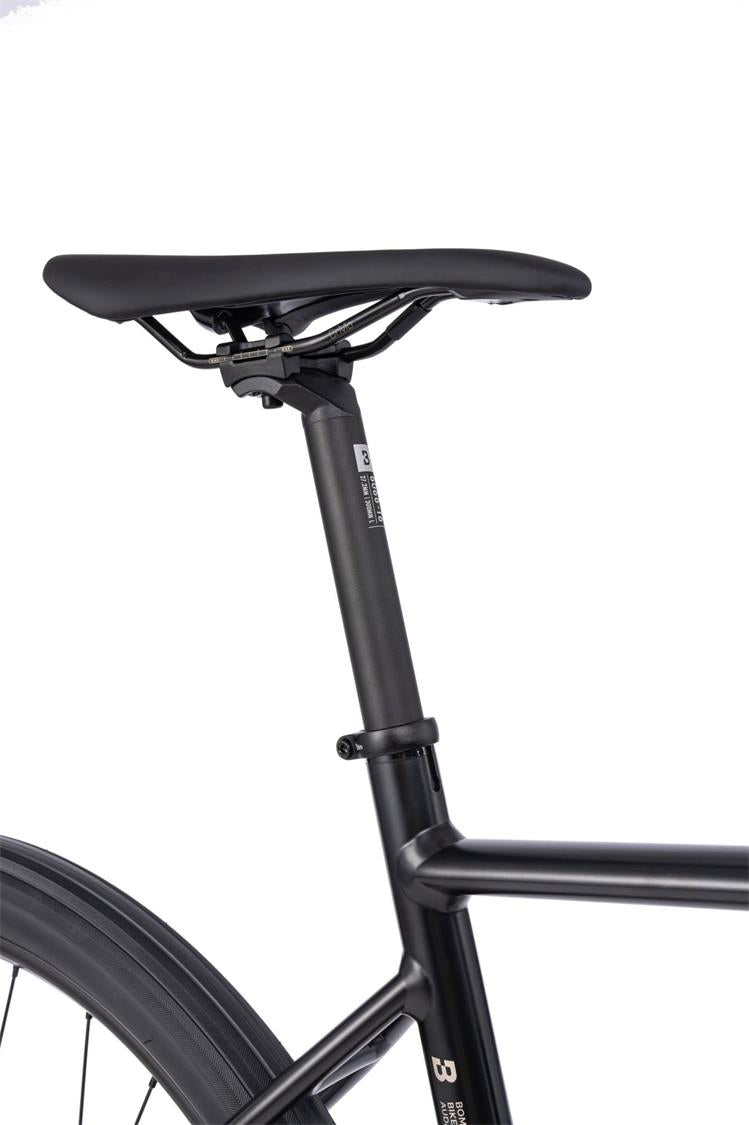

| Saddle | Seido Comp saddle |
| Seat post | Bombtrack Beech 27.2 mm x 400 mm |
| Seat clamp | Bombtrack Origin 31.8 mm |
| Front tire | WTB Horizon 650B x 47C |
| Rear tire | WTB Horizon 650B x 47C |
| Weight | 10.4 kg (size M) |
| Weight frameset | 1810 g frame (size M, incl. TA, hanger) / 530 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 120 kg incl. luggage |
| ASTM riding condition | 2 |
Final product may vary in appearance, finish and minor details.
