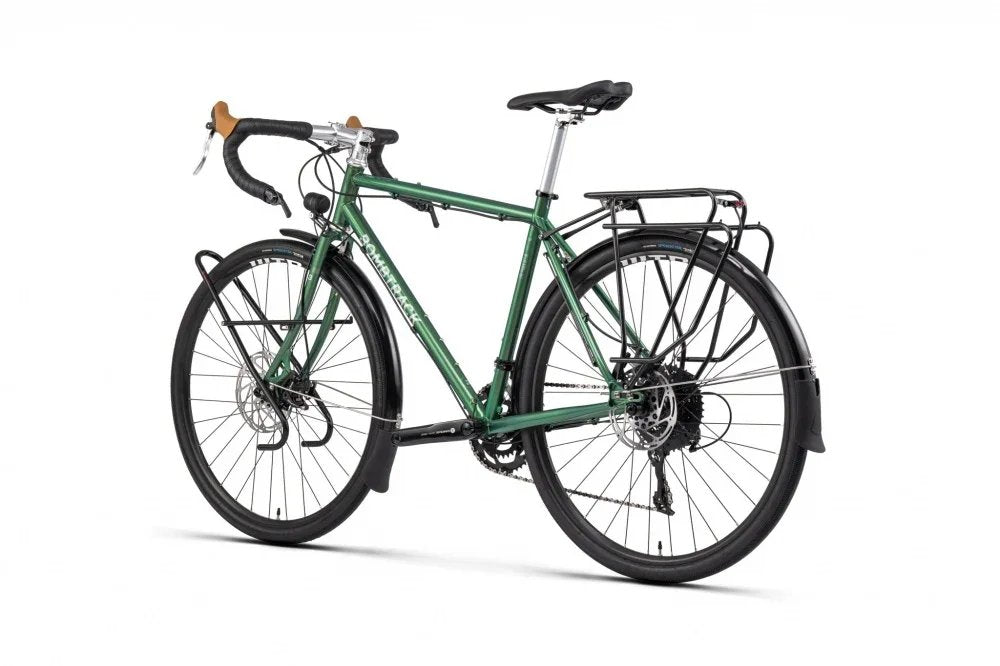

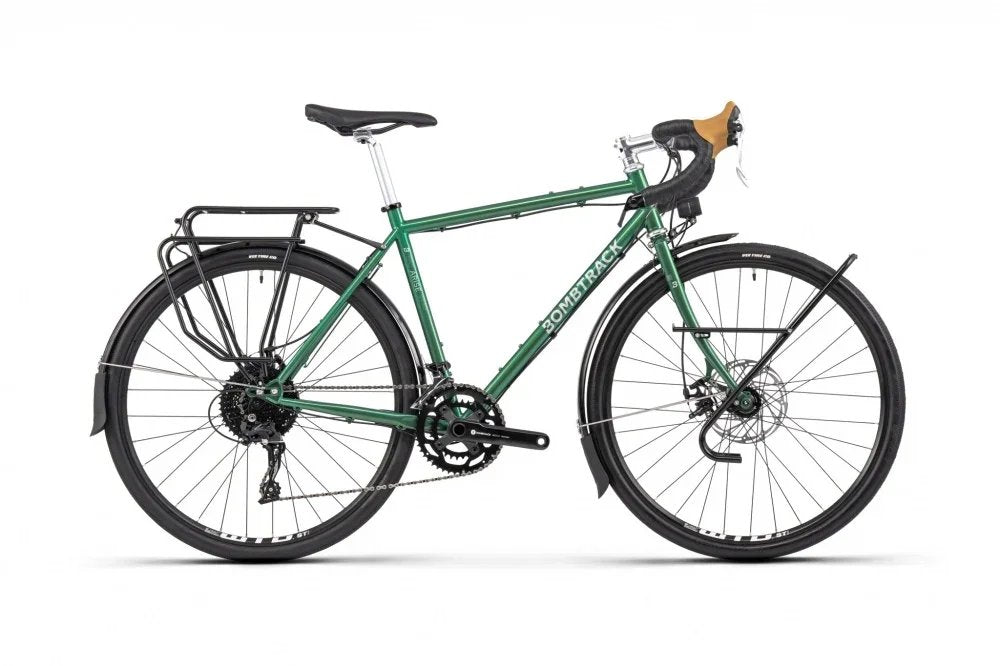

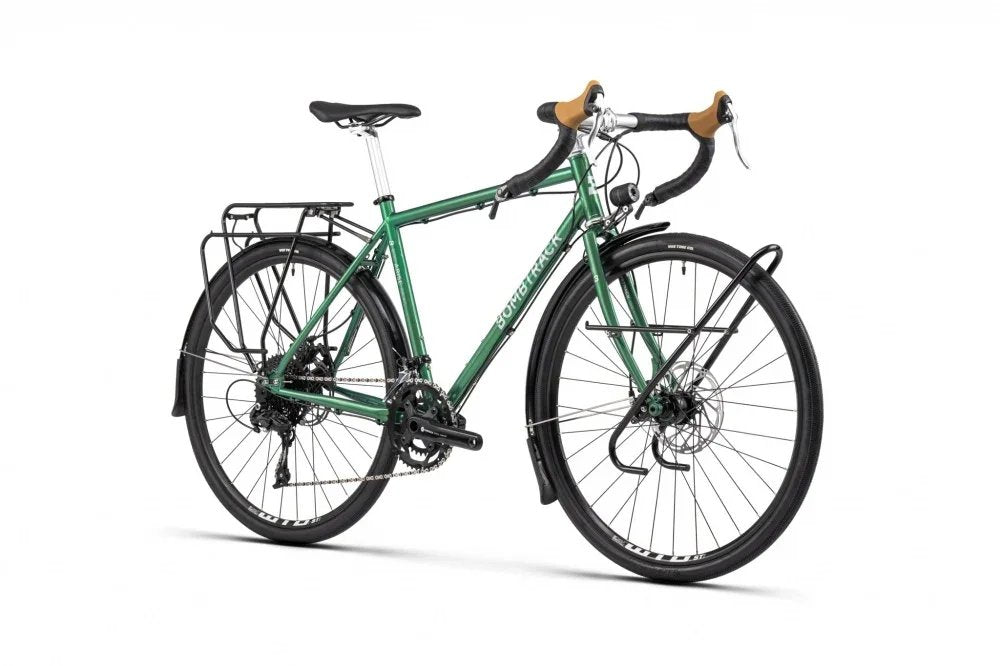

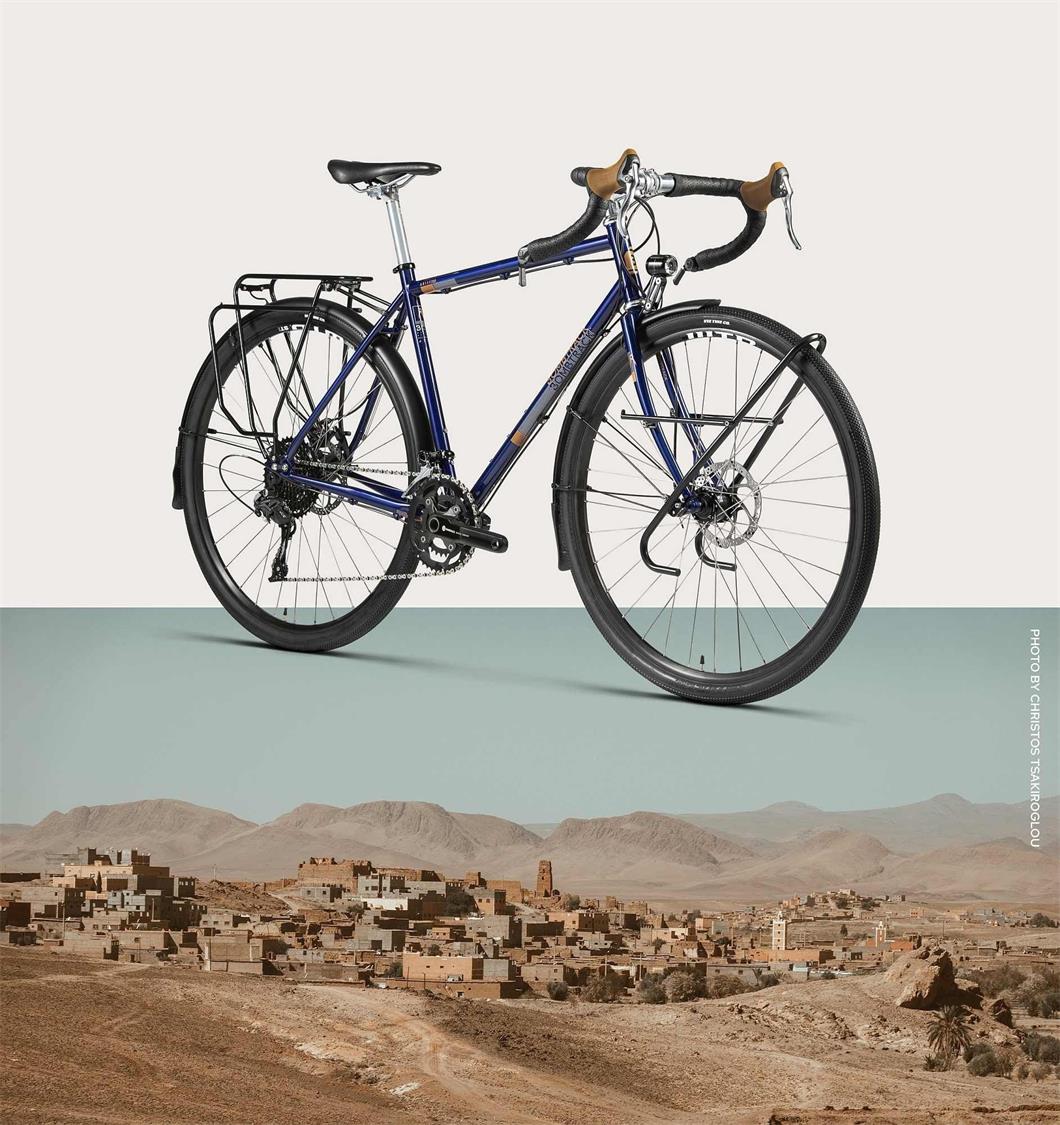

Bombtrack Arise Tour

Thinking of turning off the computer, asking your friends to feed the goldfish, and heading off for a few weeks?

Our Arise Tour is ready when the wanderlust hits you. Based on our incredibly adaptable, double butted steel frameset, we have added Tubus touring racks, aluminium fenders, and a full lighting system from KT and Supernova.

Transmission on a long distance tour must be dependable, so Microshift’s ultra reliable bar end shifters, 10 speed clutch mech, 11 – 42T wide ratio cassette running on a subcompact 46 / 30 chainset is the perfect setup. Braking is taken care of with TRP Spyre C mechanical callipers paired with a 180 mm rotor upfront to control your speed on those long descents.

Great care has been taken to select all proven and reliable features, so you can focus on riding, not fixing your bike.

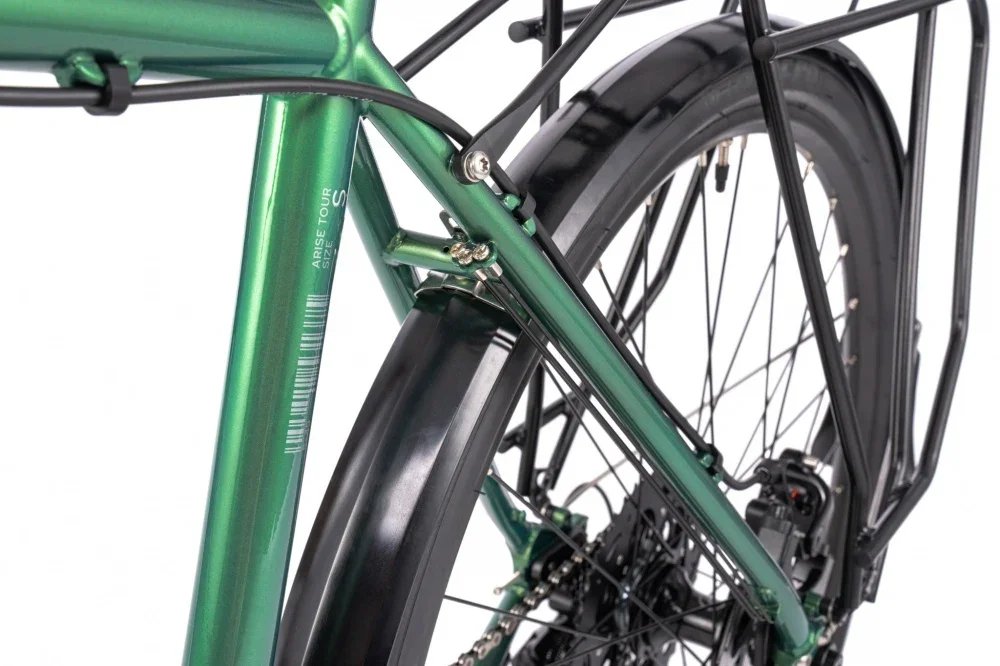

• Frame: 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, ED coating, 68 mm BSA BB shell
• Fork: 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing, ED coating

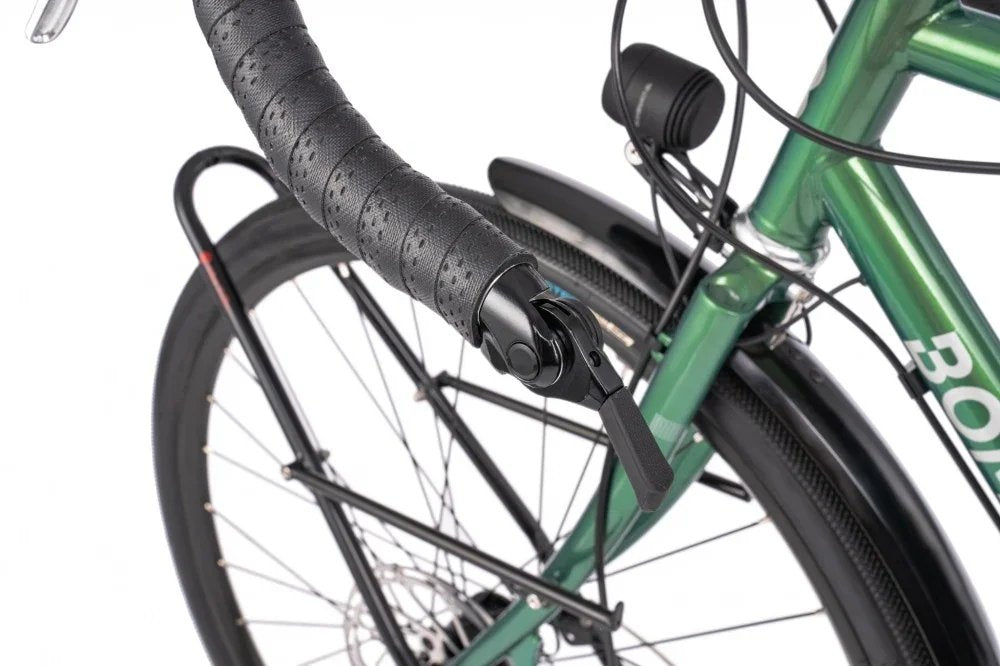

• Shifter: Microshift BS-M10 bar end shifter 2 x 10
• Front derailleur: Microshift FD-R552-B

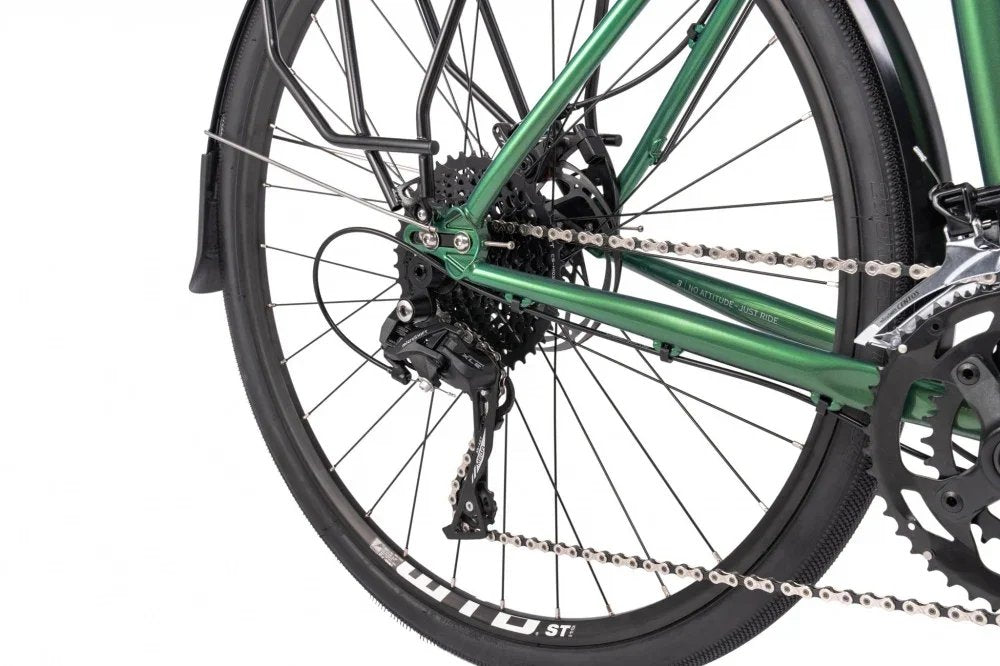

• Rear derailleur: Microshift RD-M62L, long cage
• Chain: KMC X10 chain, 1/2'' x 11/128'', 116L
• Cassette: Microshift CS-H103 10-speed, 11 - 42 T
• Crankset: Bombtrack Ames forged aluminium crank, 24 mm spindle
• Chainring: Steel, subcompact, 46 / 30 T
• Bottom bracket: BSA sealed BB, external cups
• Front hub: KT dynamo hub, 6-bolt disc
• Rear hub: Bombtrack Arc sealed hub, 11-speed HG body HG body, 6-bolt disc
• Through axles: 12 x 100 mm / 12 x 142 mm
• Front rim:
  WTB ST i19 double wall, TCS 2.0, 32h
• Rear rim:
  WTB ST i19 double wall, TCS 2.0, 32h
• Front tire:
  XS - S Vee Tire Speedster 38-584
  M - XL Vee Tire Speedster 40-622
• Rear tire:
  XS - S Vee Tire Speedster 38-584
  M - XL Vee Tire Speedster 40-622

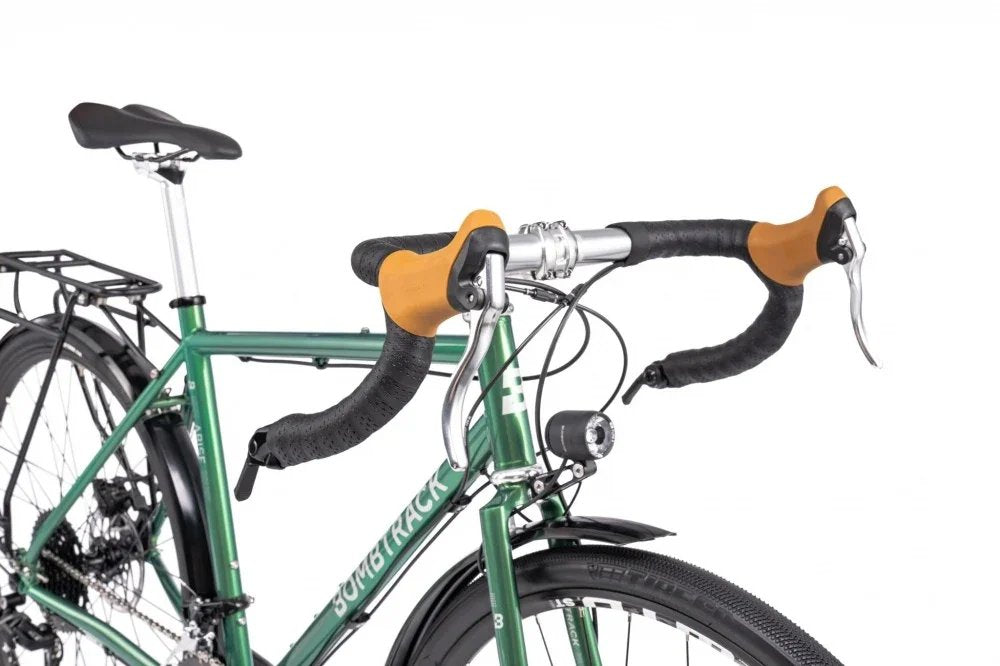

• Handlebar: Bombtrack CX-10 drop bar, 31.8 mm, 10° flare
• Grips: Bombtrack Escape bar tape
• Stem: Seido Meander forged aluminium stem, -6°
• Headset: Neco H282 sealed external aheadset, 1.1/8''
• Seat: Bombtrack Fuzz seat
• Seat post: Bombtrack Beech 27.2 mm x 300 mm
• Seat clamp: Bombtrack Origin 29.8 mm
• Brake levers: Tektro RL-340 brake levers
• Brakes: TRP Spyre C post mount mechanic disc brakes
• Rotors: TRP 180 mm front and 160 mm rear rotor
• Complete weight: 14.7 kg (size M)
• Weight frame: 2480 g frame (size M, incl. TA, hanger)
• Weight fork: 1370 g fork (300 mm steerer, incl. TA)
• Maximum rider weight: 130 kg incl. luggage
• ASTM riding condition: 2
• Fender: Bombtrack Ward aluminium fenders, 50 mm

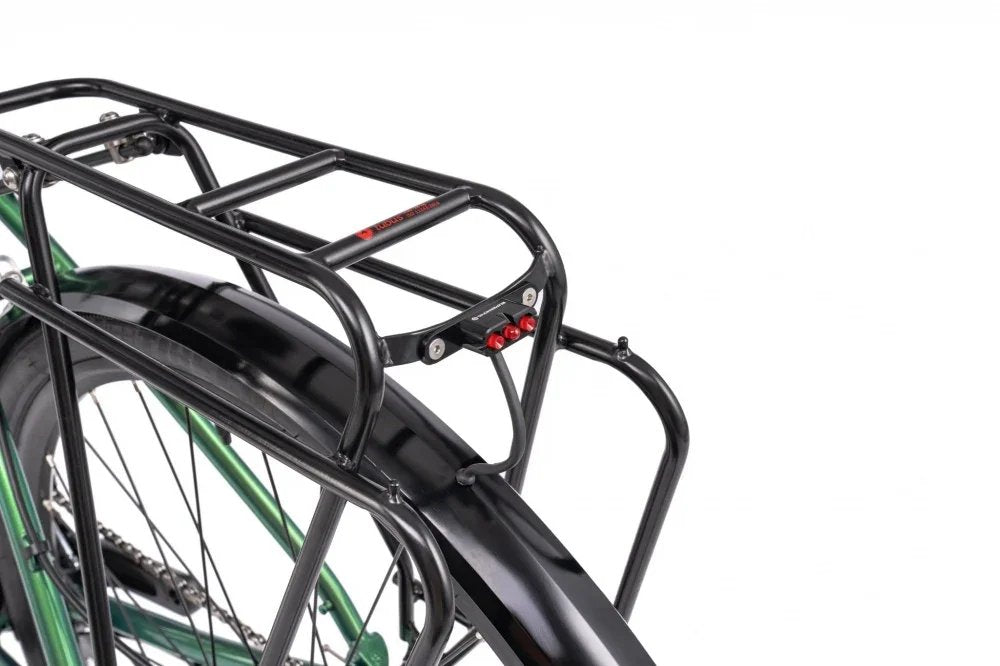

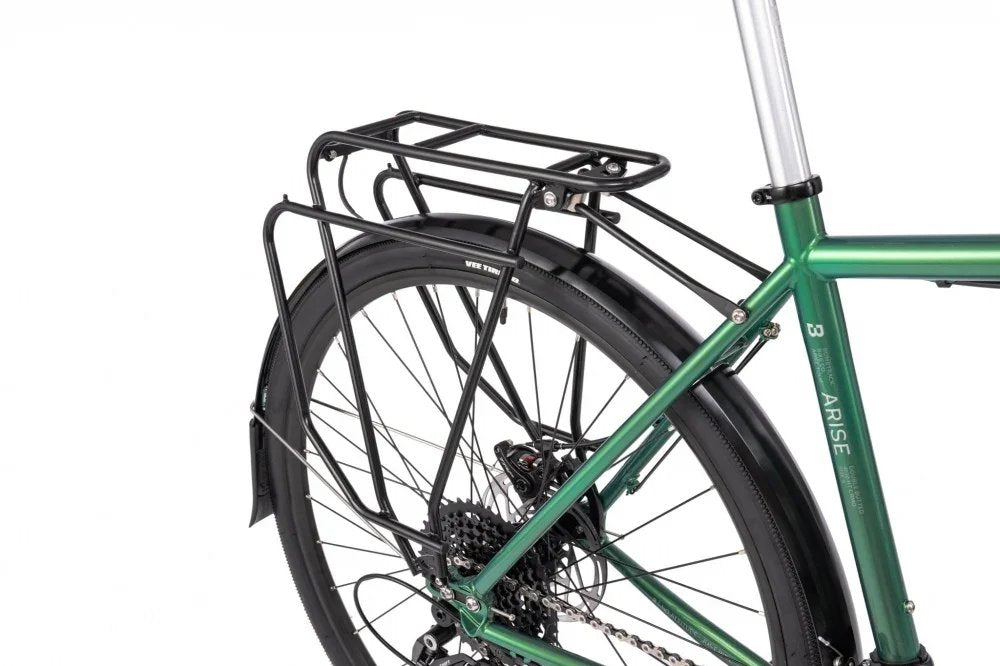

• Rack: Tubus Tara front, Logo Evo rear

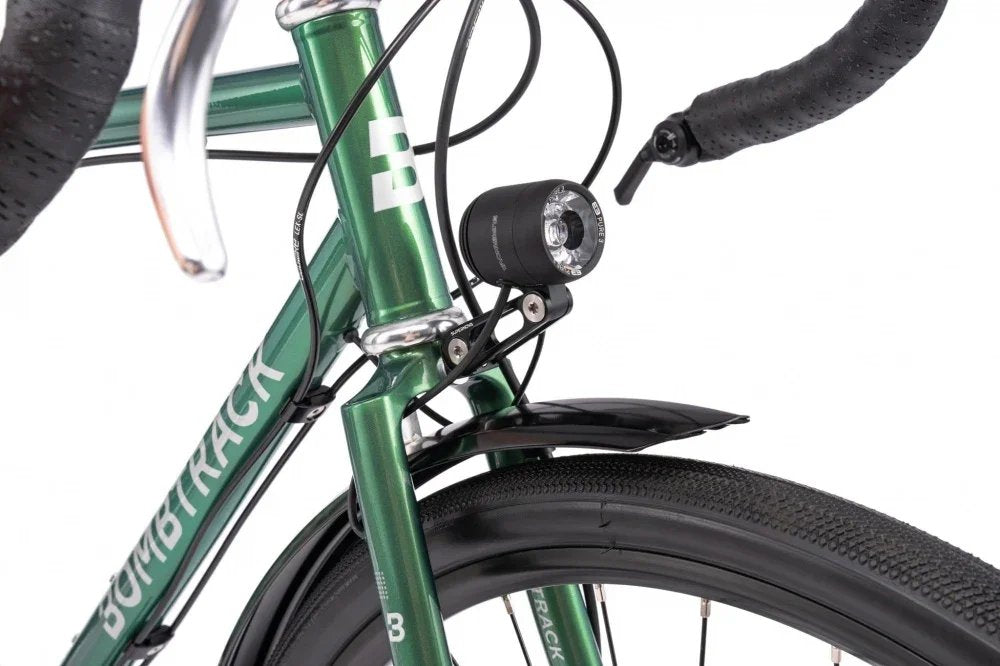

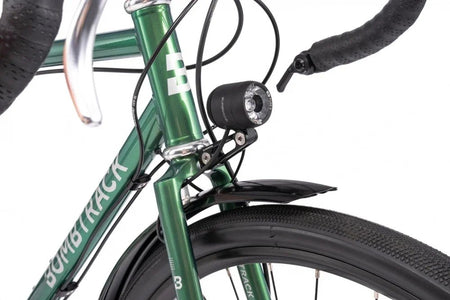

• Light: Supernova E3 Pure 3 front, E3 Tail Light 2 rear
