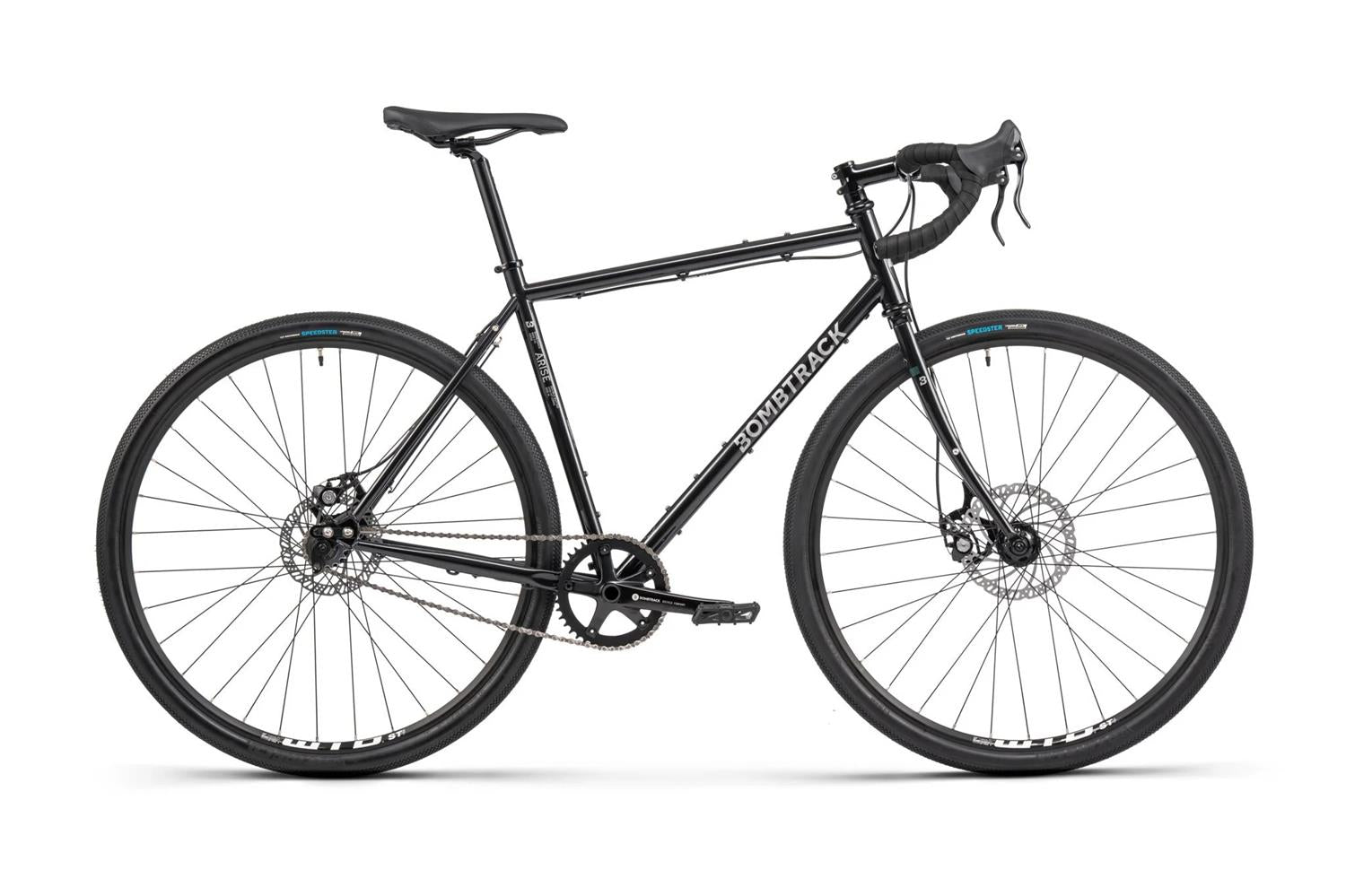

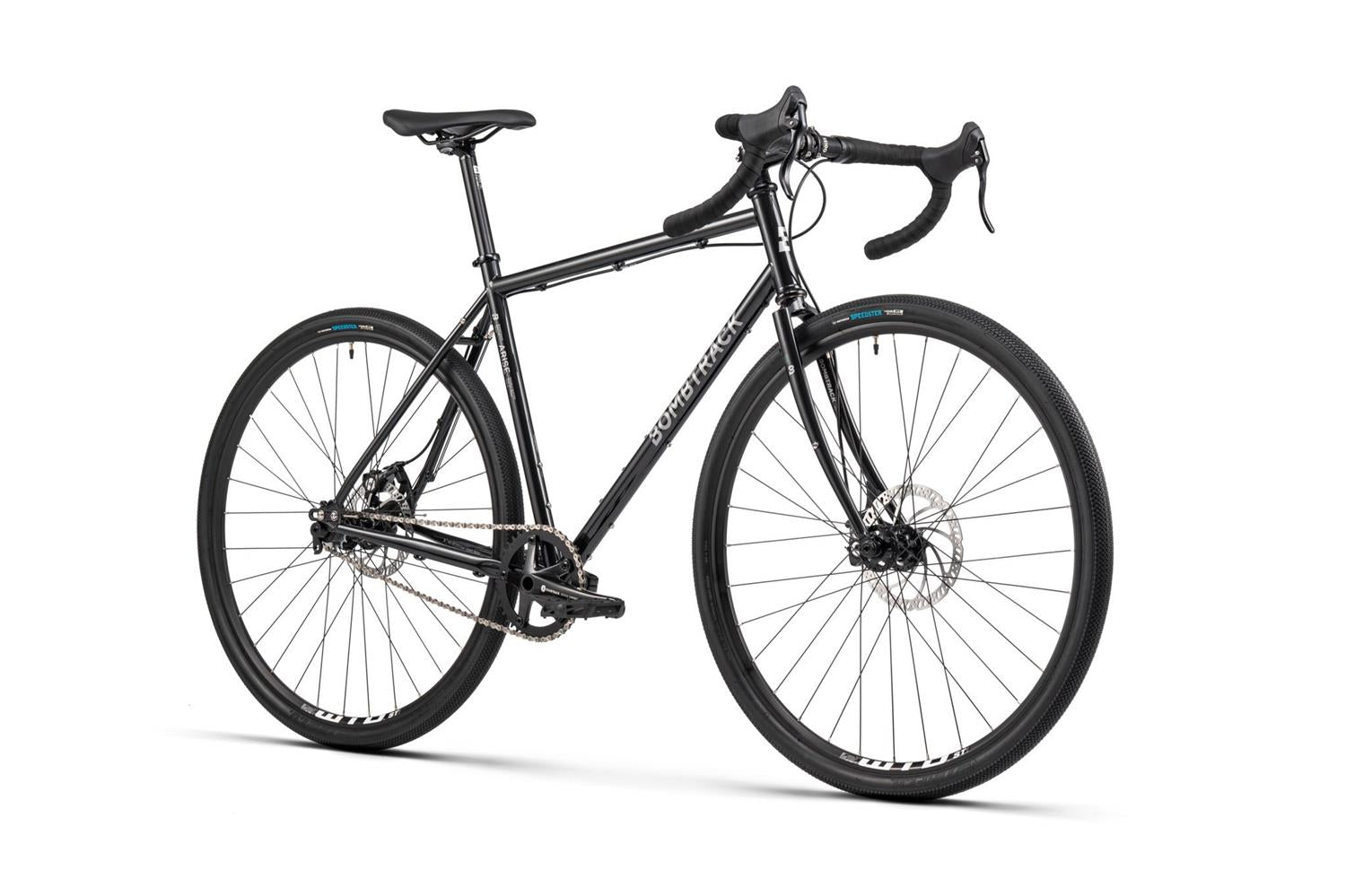

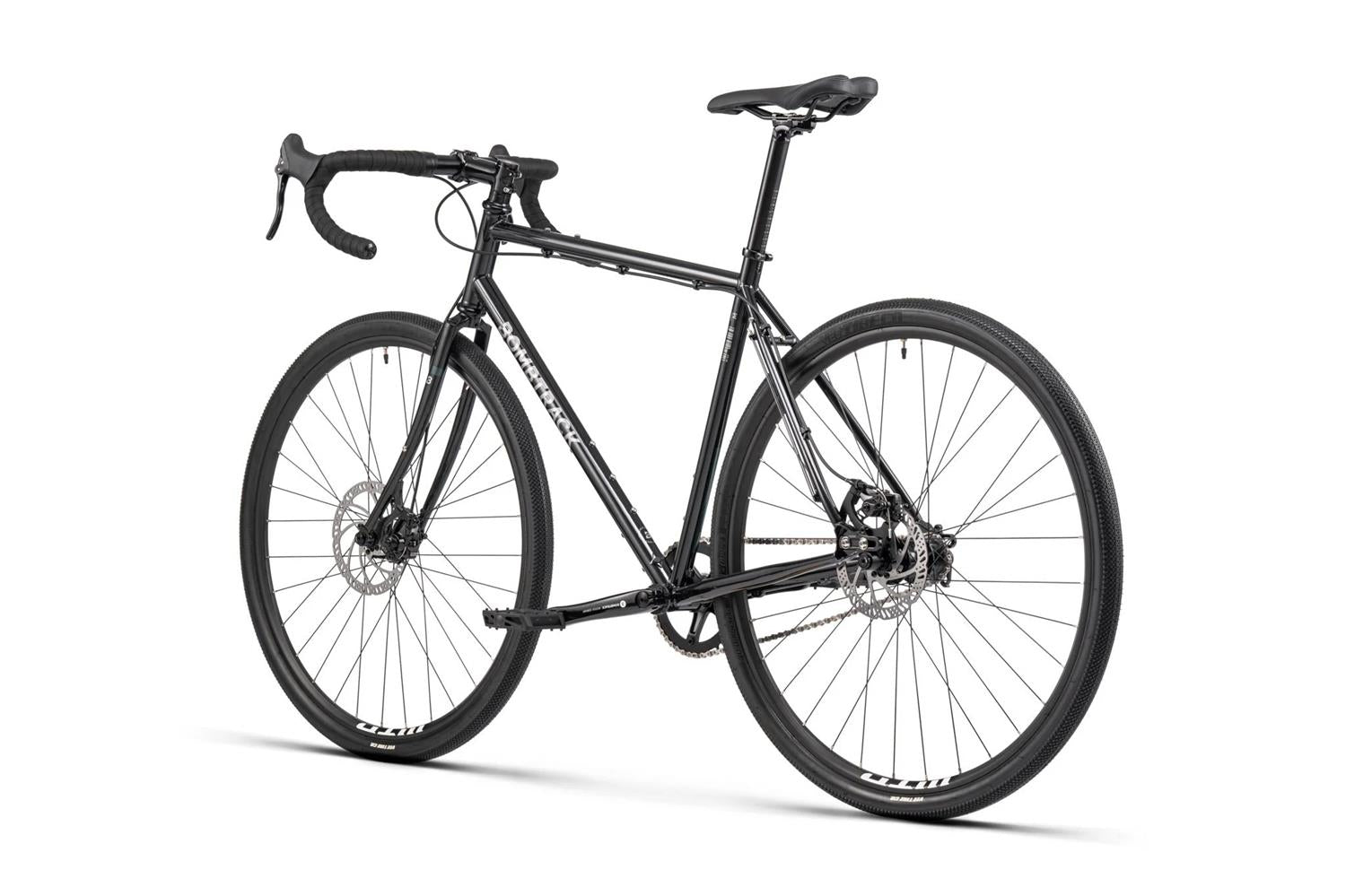

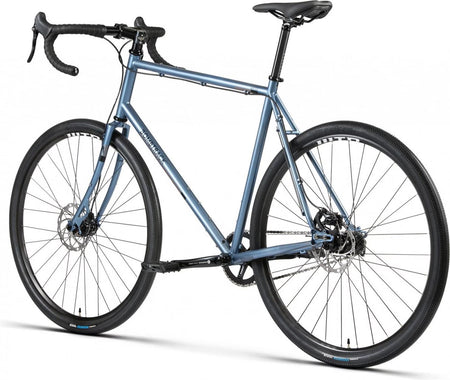

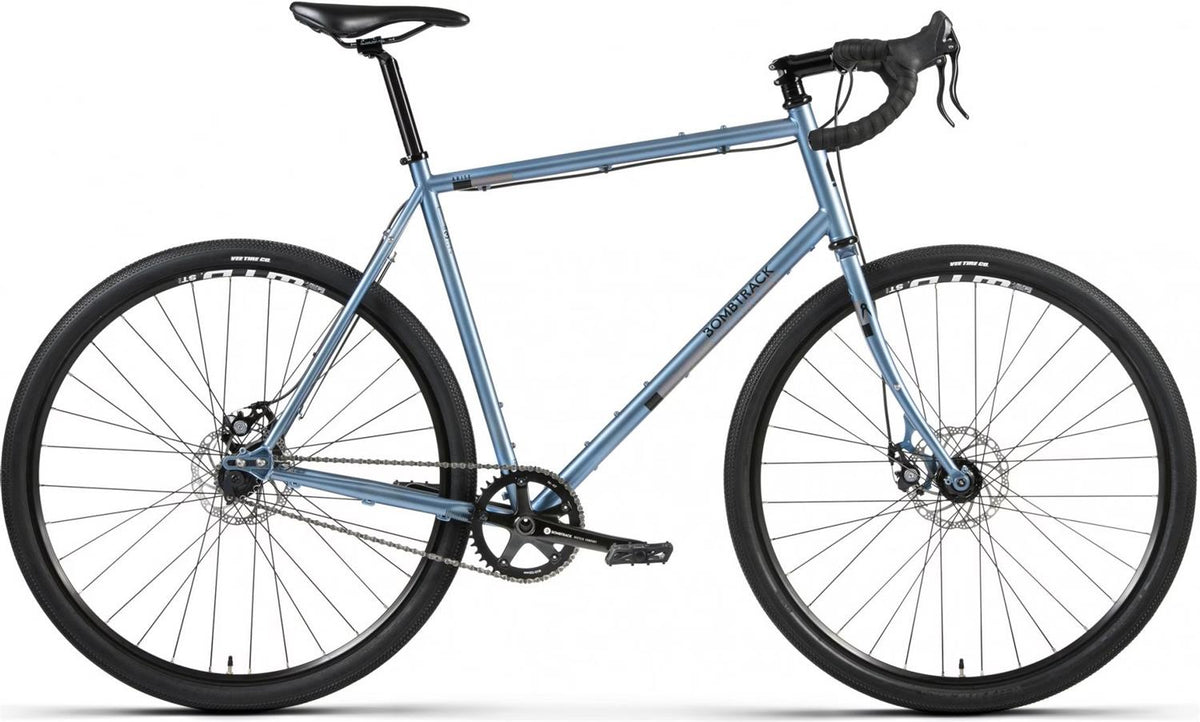

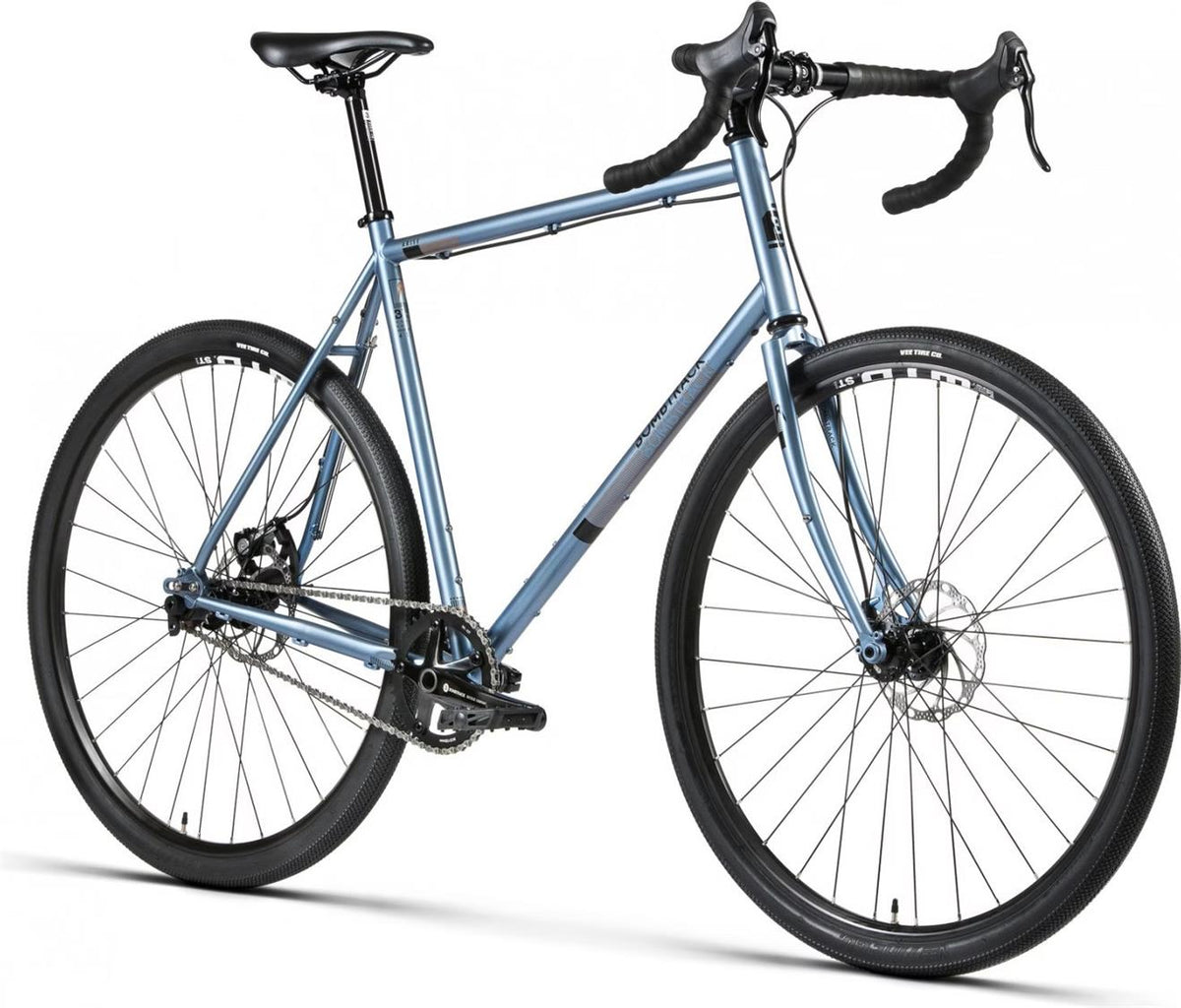

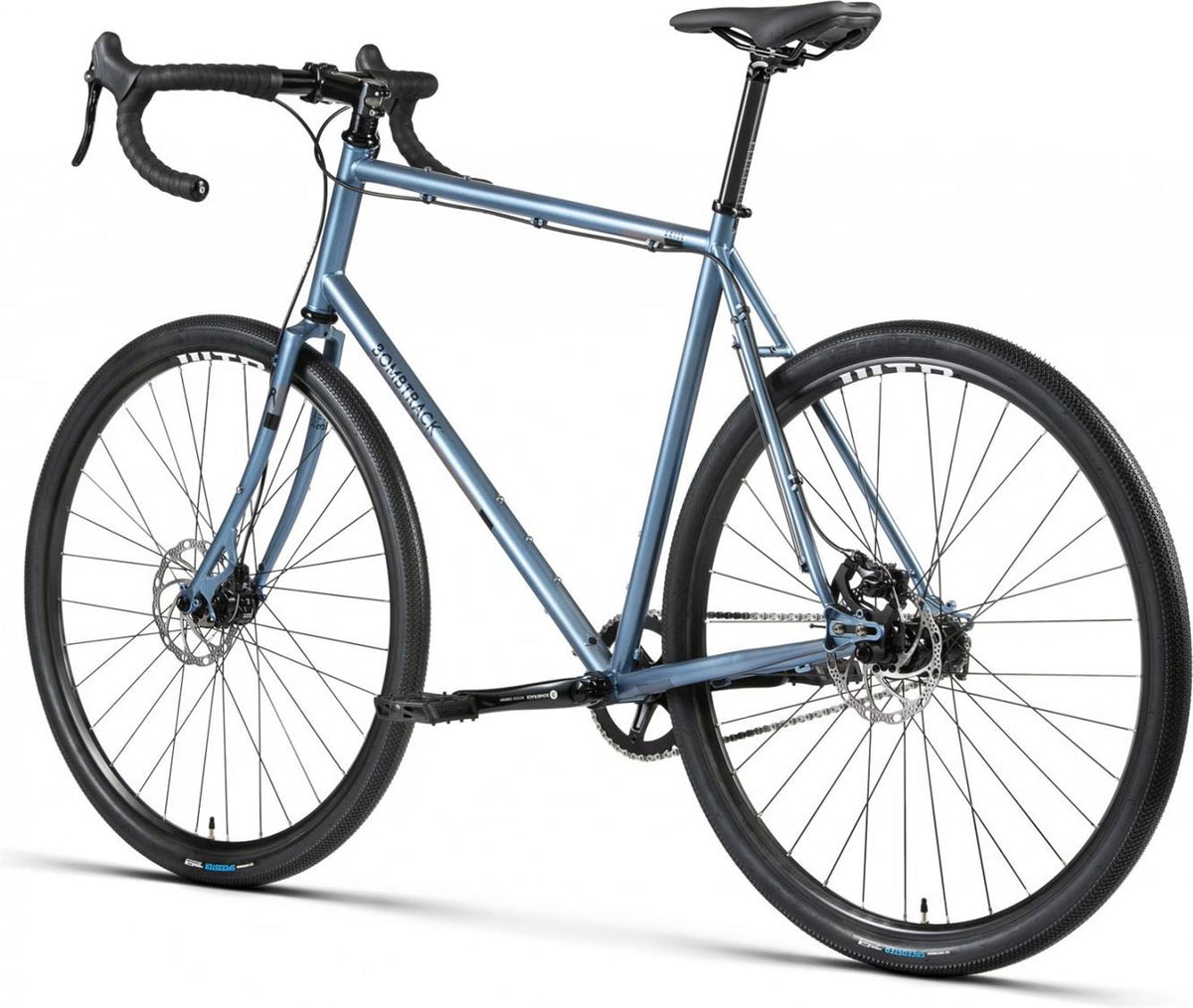

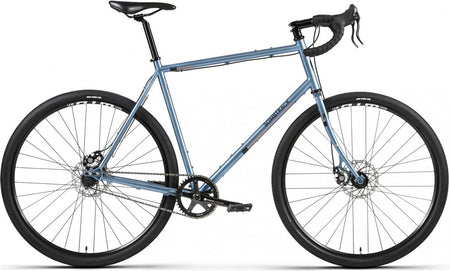

Bombtrack Arise SS

It all starts here, Arise is our invitation to the Bombtrack family. Made from heat treated double butted 4130 crmo steel you cannot go wrong if you are looking for the simplest way to join the drop bar off-road riding scene. The singlespeed setup means no concerns about gearing, just hop on and pedal on wide, fast and comfortable tyres. Its contemporary design features 12 mm through axles and disc brakes, and both frame and fork have mounts for racks, fenders, and internal routing for dynamo lighting.

Frame & Fork

• Color: Metallic black

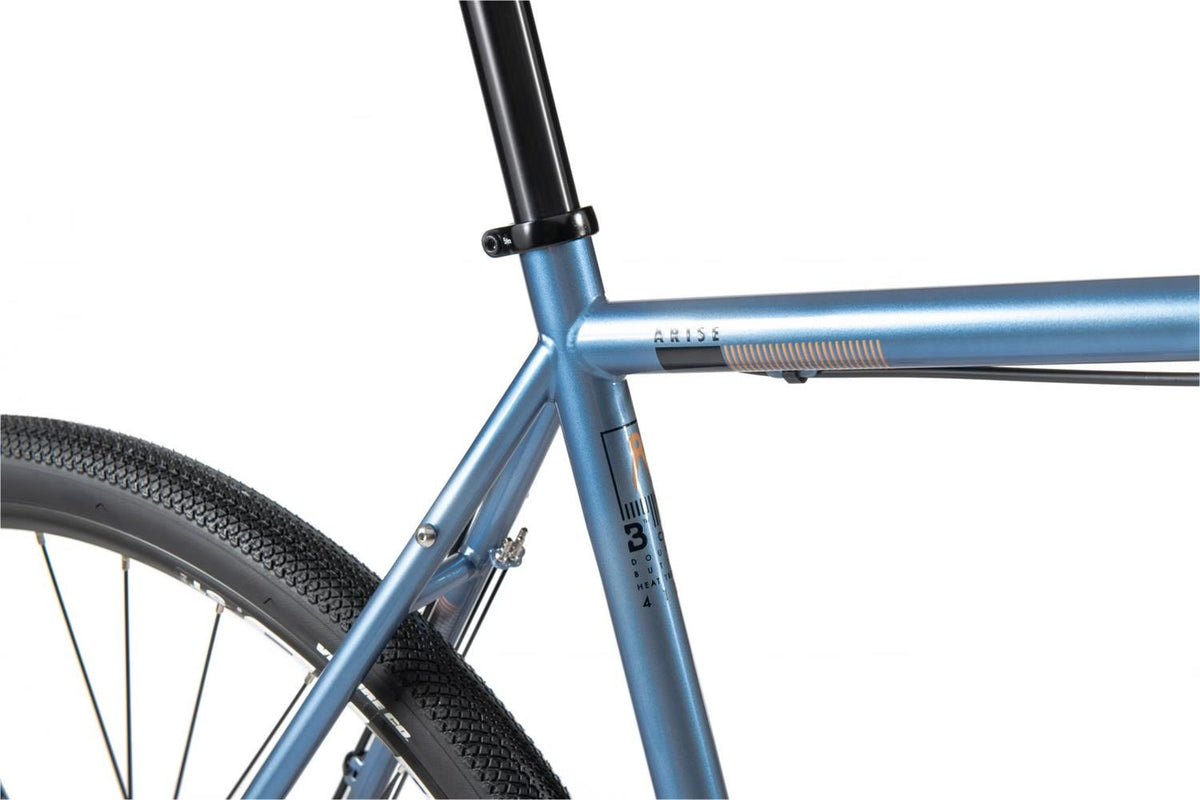

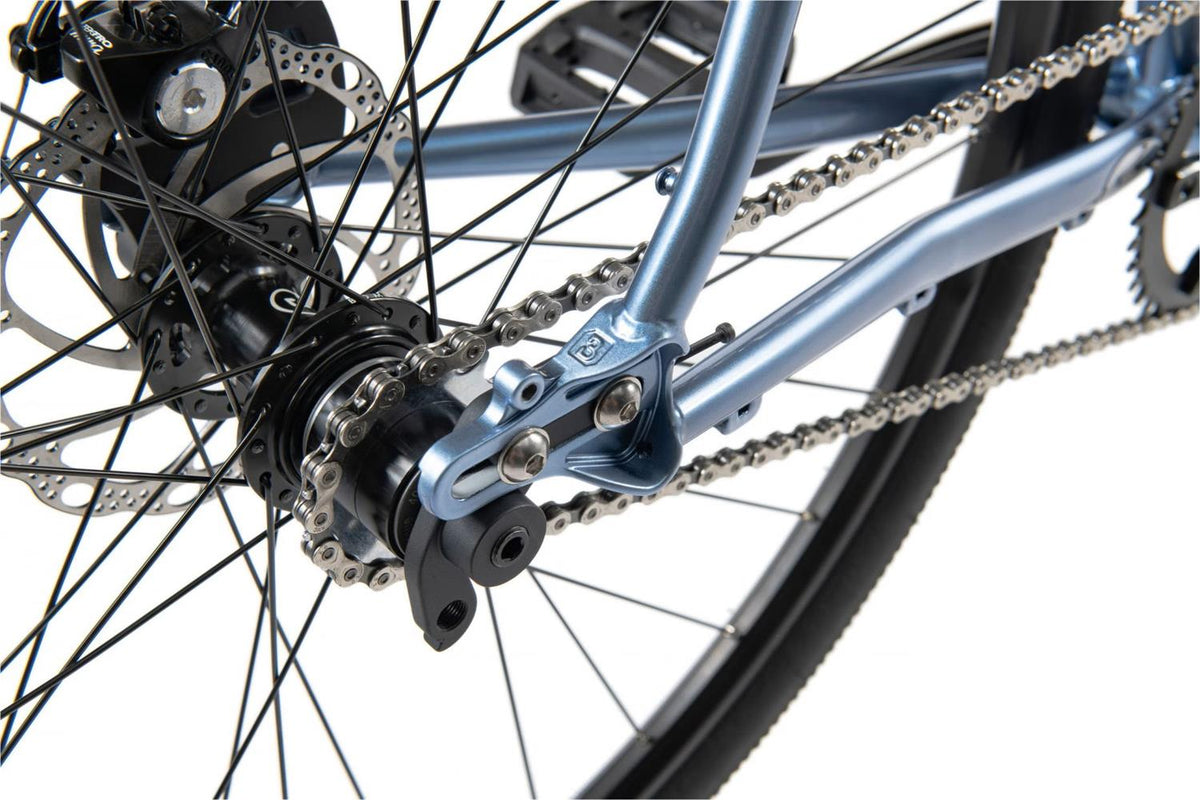

• Frame: 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, ED coating, 68 mm BSA BB shell

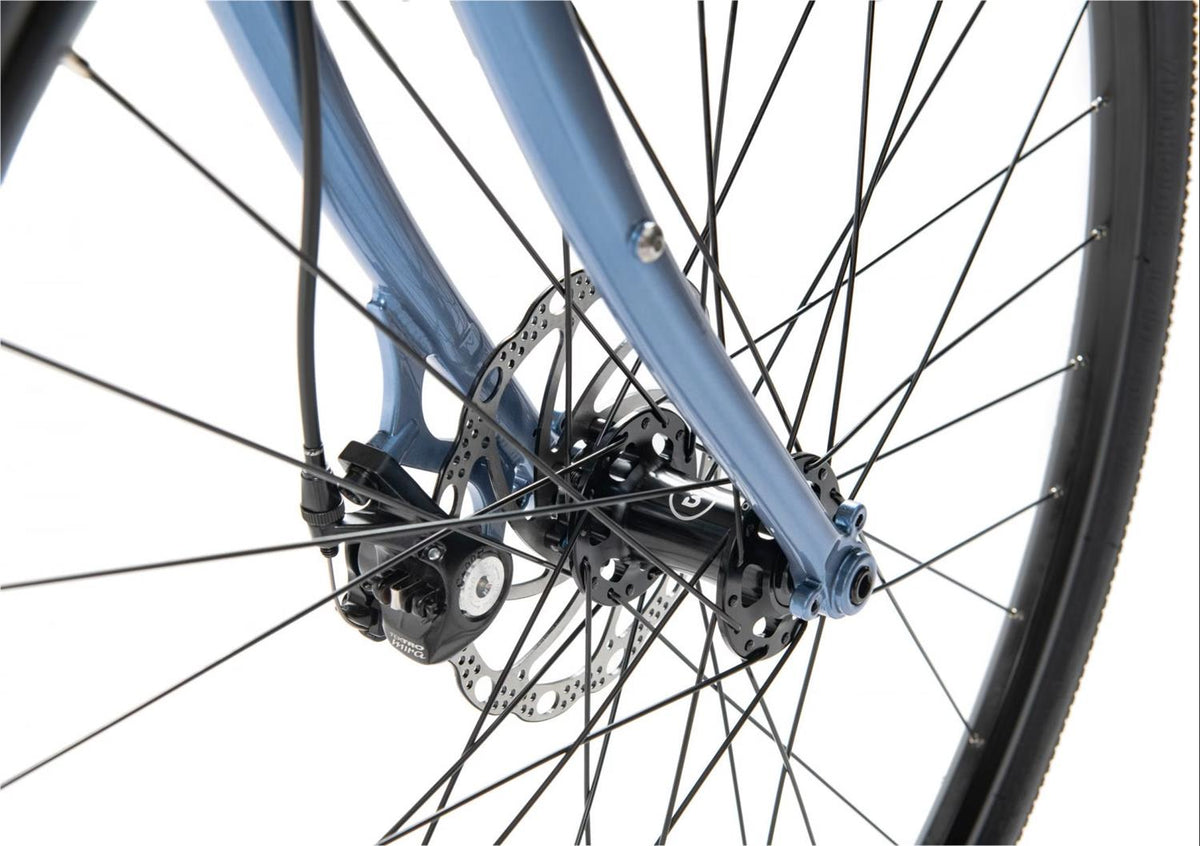

• Fork: 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing, ED coating

Drivetrain & Shifting

• Chain: KMC X8 chain, 1/2'' x 3/32'', 98L
• Cassette: 16 T heat treated crmo, 1/2'' x 3/32''
• Crankset: Bombtrack TAF19 aluminium crank, 24 mm spindle
• Chainring: Bombtrack Ridge aluminium chainring, narrow-wide, 42 T
• Bottom bracket: BSA sealed BB, external cups
• Pedals: Wellgo B109N flat pedal

Wheels & Tires

• Front hub: Bombtrack Arc sealed hub, 6-bolt disc

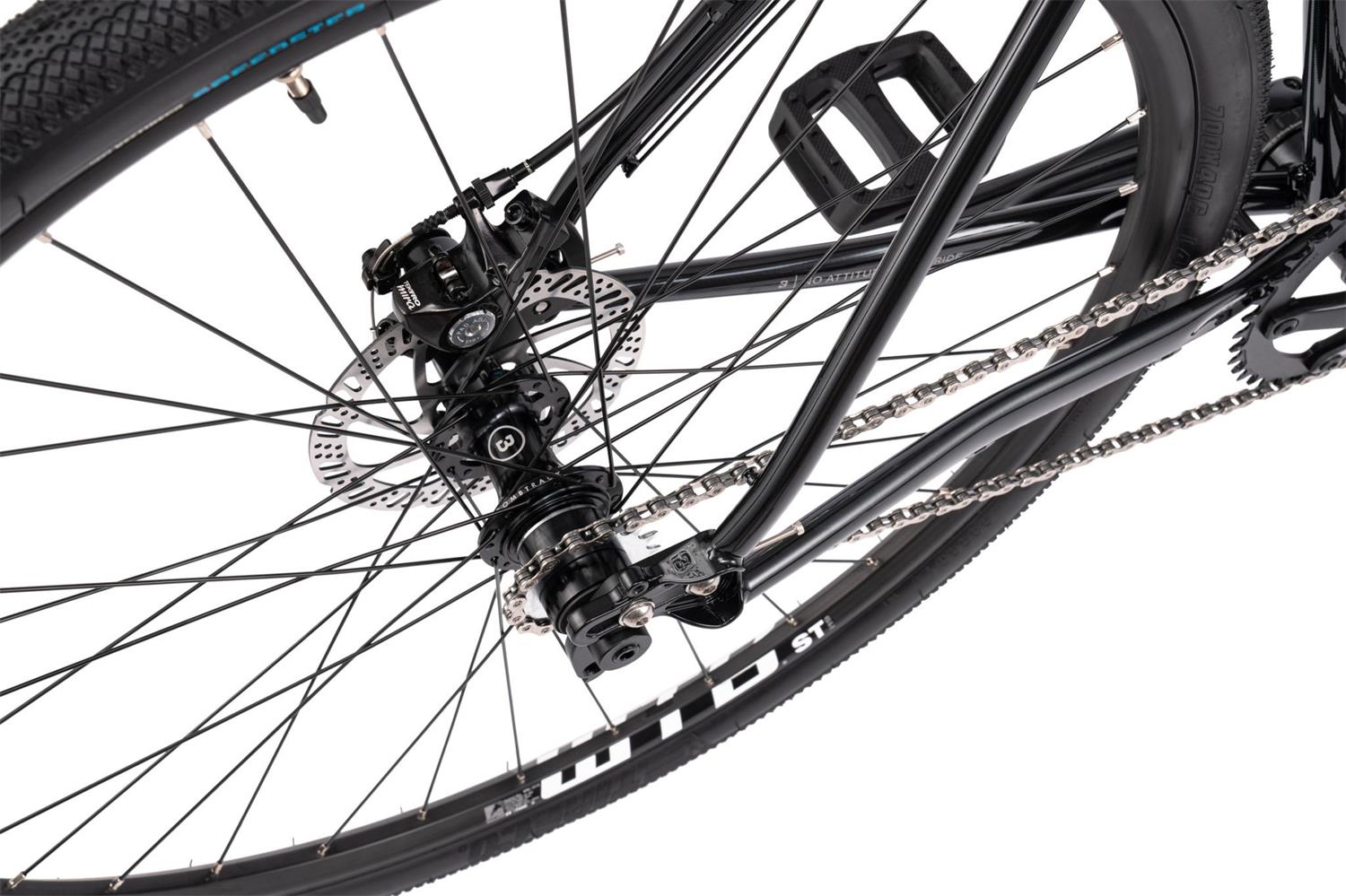

• Rear hub: Bombtrack Arc sealed hub, HG body, 6-bolt disc
• Through axles: 12 x 100 mm / 12 x 142 mm
• Front rim: WTB ST i19 double wall, TCS 2.0, 32h
• Rear rim: WTB ST i19 double wall, TCS 2.0, 32h
• Front tire:
  XS - S Vee Tire Speedster 38-584
  M - XL Vee Tire Speedster 40-622
• Rear tire:
  XS - S Vee Tire Speedster 38-584
  M - XL Vee Tire Speedster 40-622

Cockpit

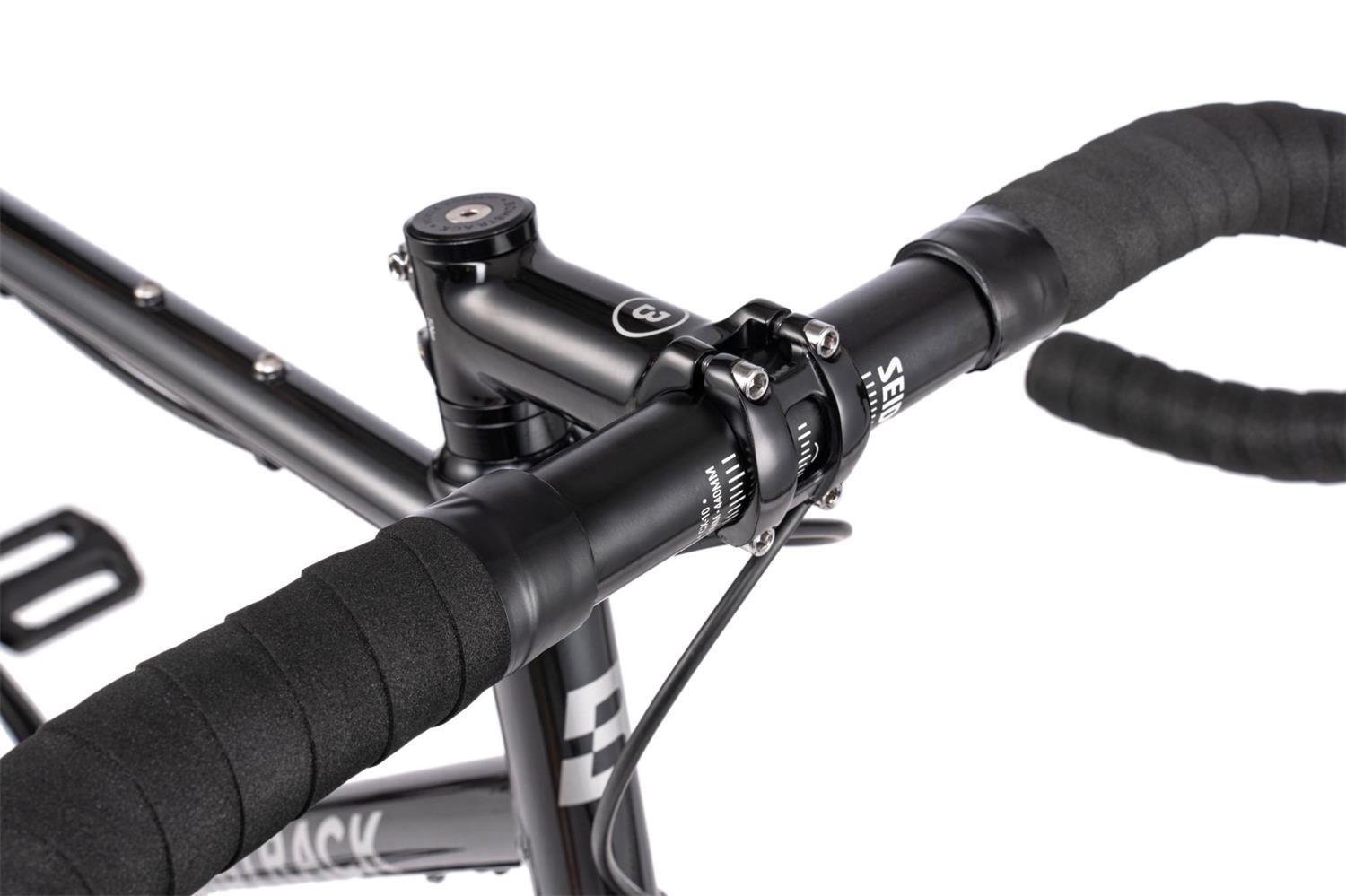

• Handlebar: Seido CX-10 drop bar, 31.8 mm, 10° flare
• Grips: Bombtrack Control bar tape
• Stem: Bombtrack Roam forged aluminium stem, -7°
• Headset: Neco H282 sealed external aheadset, 1.1/8''

Seats & Seatpost

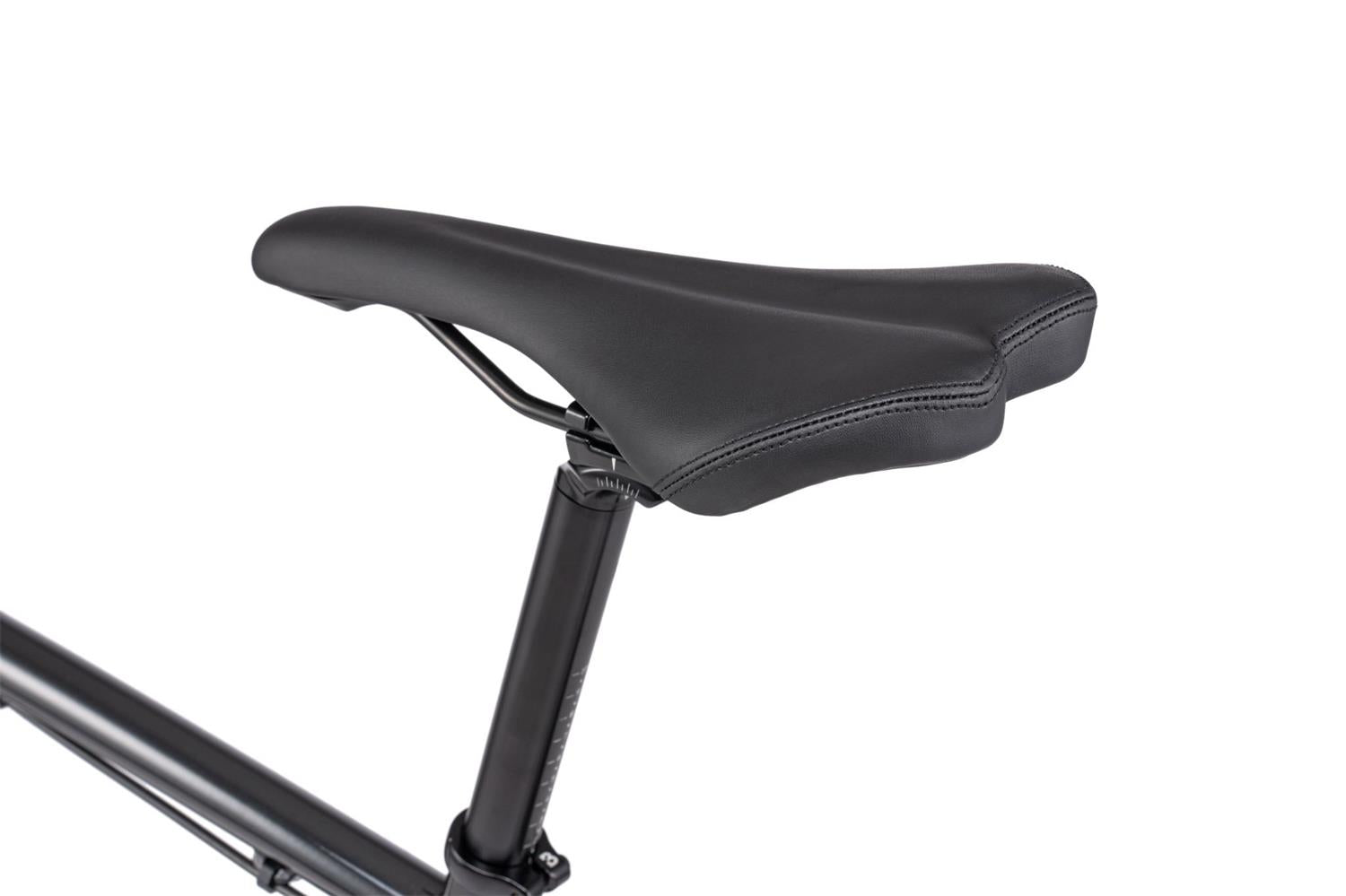

• Seat: Bombtrack Fuzz seat
• Seat post: Bombtrack Beech 27.2 mm x 300 mm
• Seat clamp: Bombtrack Origin 29.8 mm

Brakes

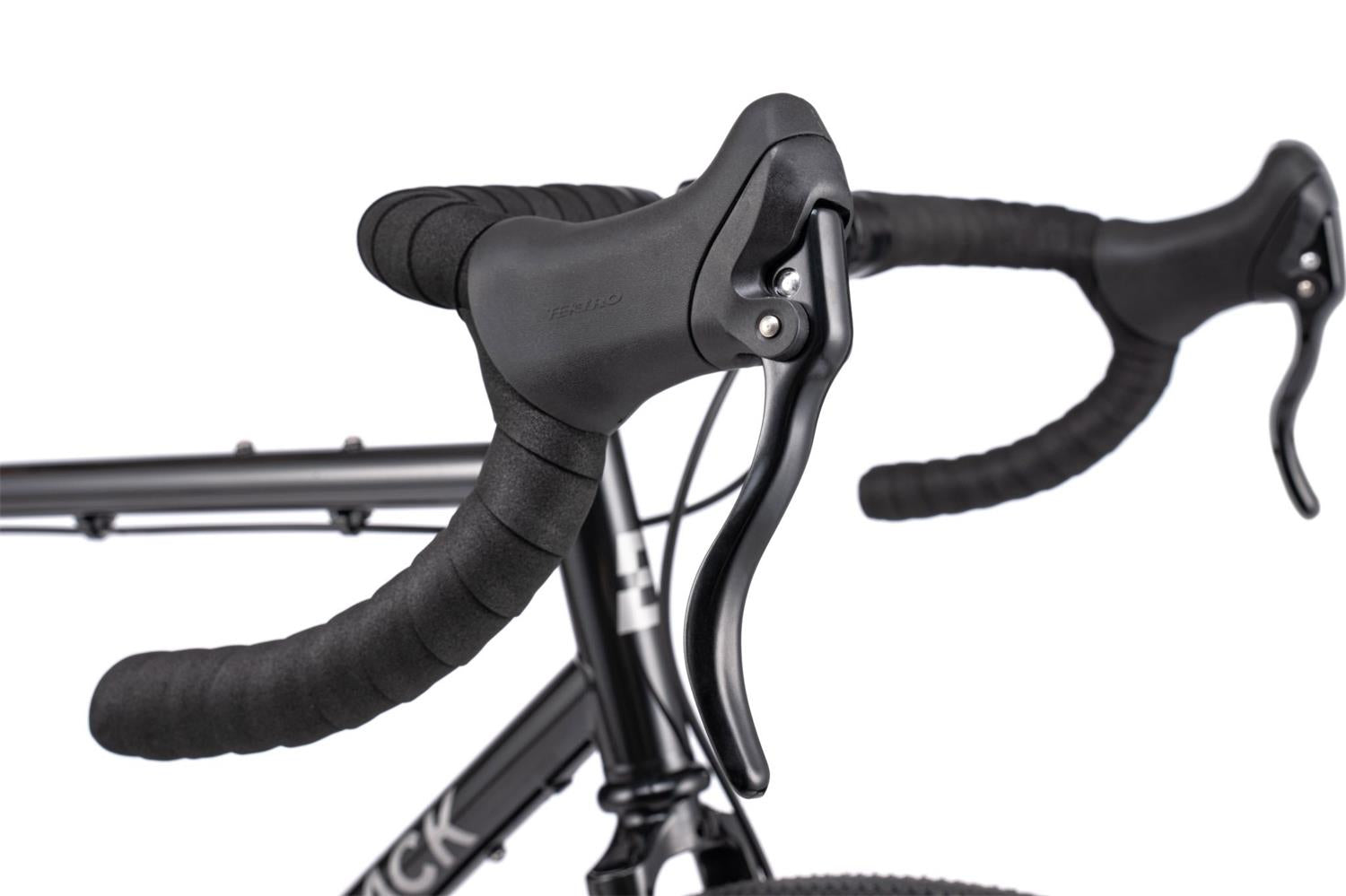

• Brake levers: Tektro RL-340 brake levers

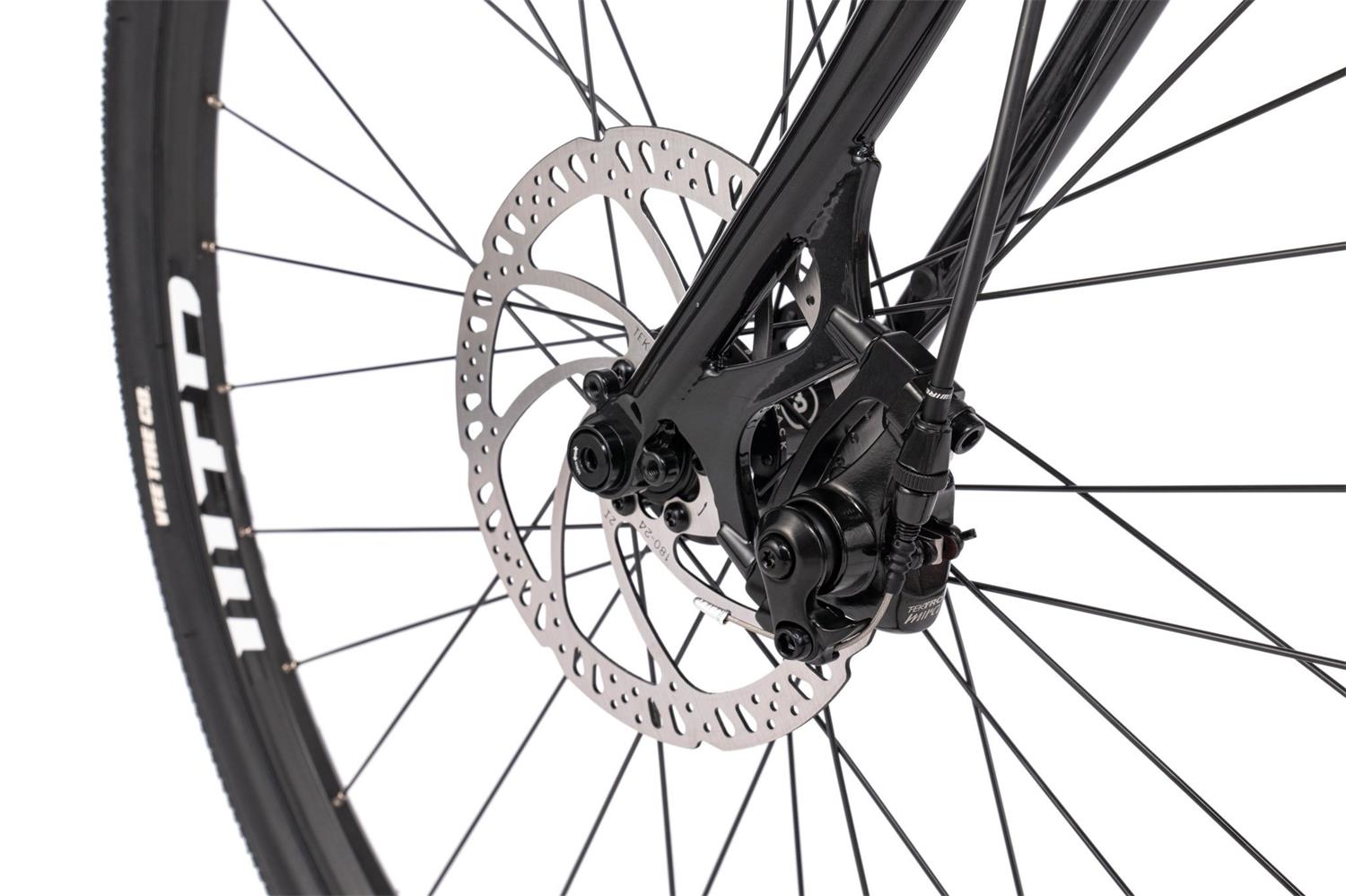

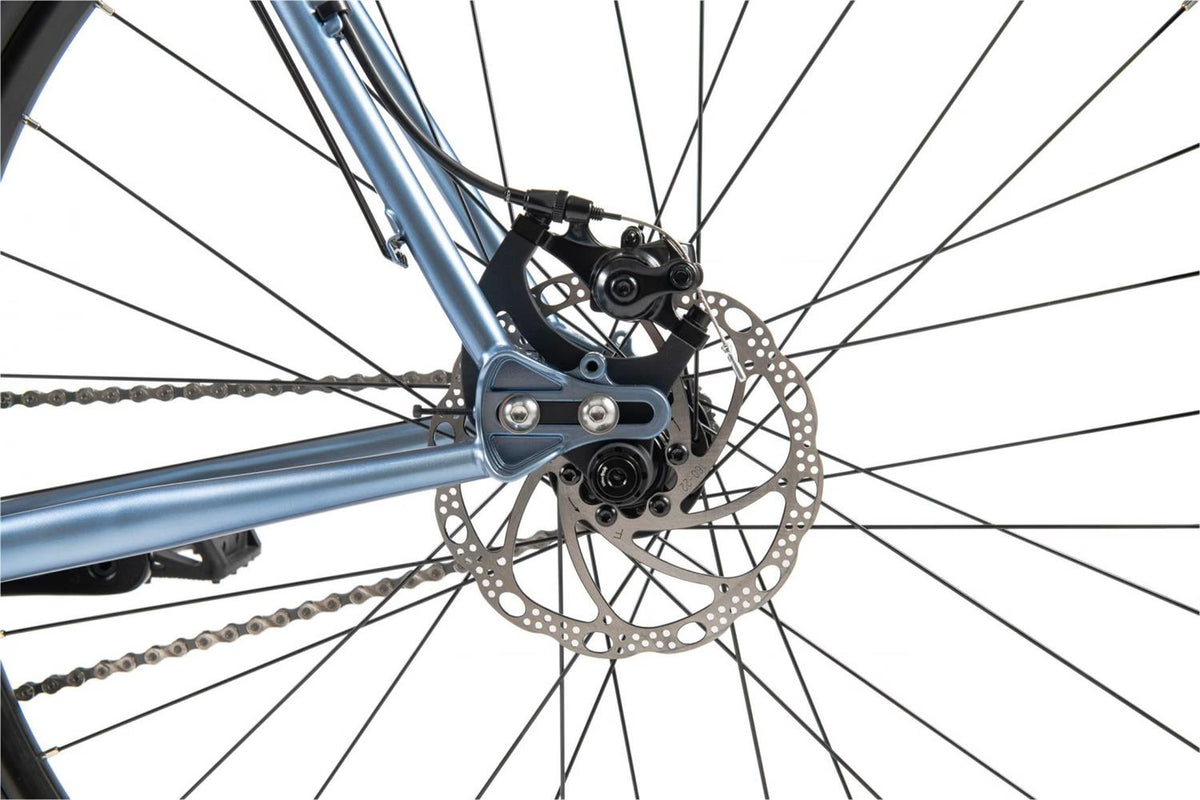

• Brakes: Tektro Mira post mount mechanic disc brakes
• Rotors: Tektro 180 mm front and 160 mm rear rotor

Weight & Limits

• Complete weight: 11.4 kg (size M)
• Weight frame: 2480 g frame (size M, incl. TA, hanger)
• Weight fork: 1370 g fork (300 mm steerer, incl. TA)
• Maximum rider weight: 120 kg incl. luggage
• ASTM riding condition: 2

Final product may vary in appearance, finish and minor details.
