Bombtrack Arise SG Apex
Couldn't load pickup availability
Need help choosing the right size?

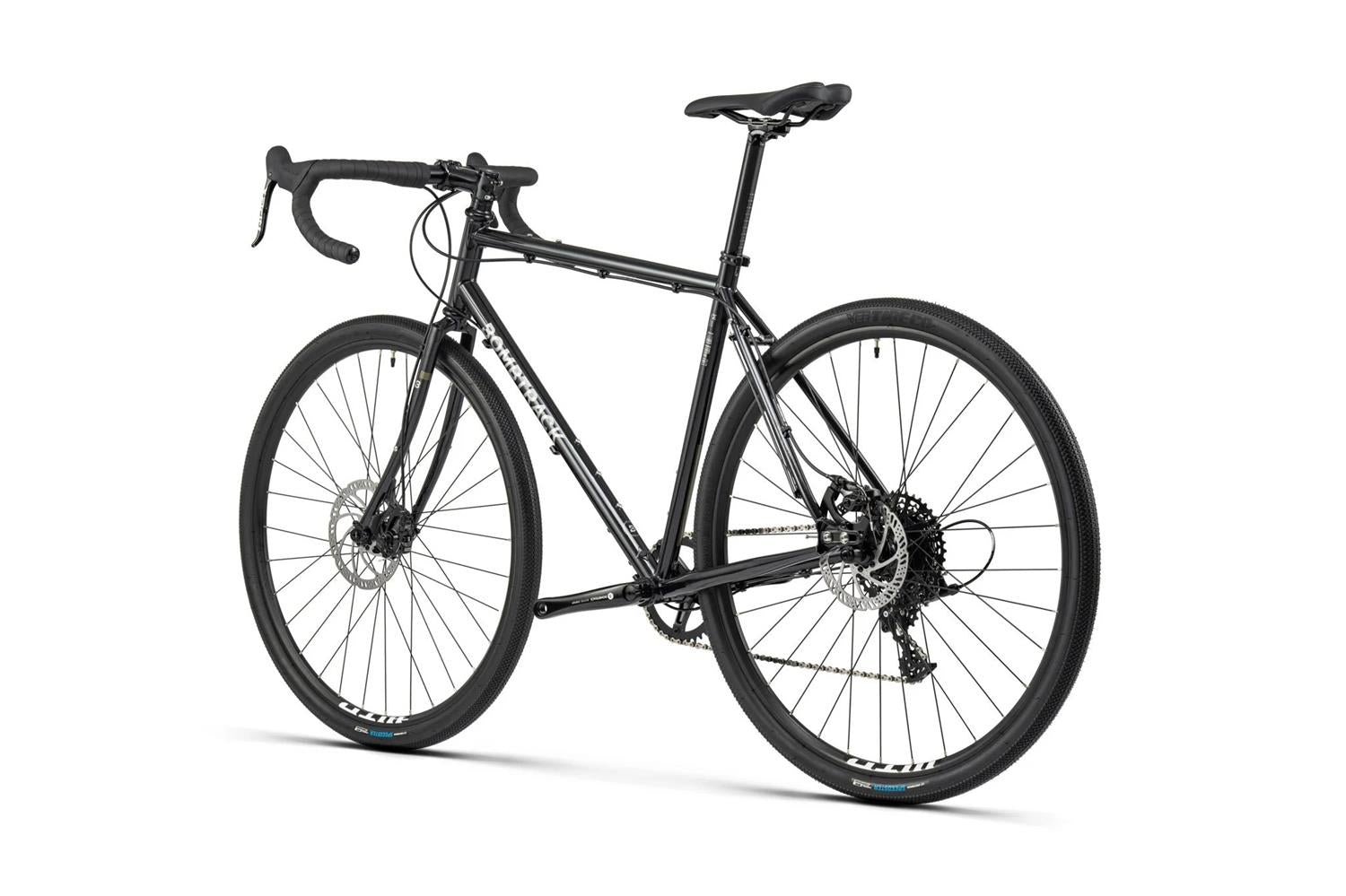

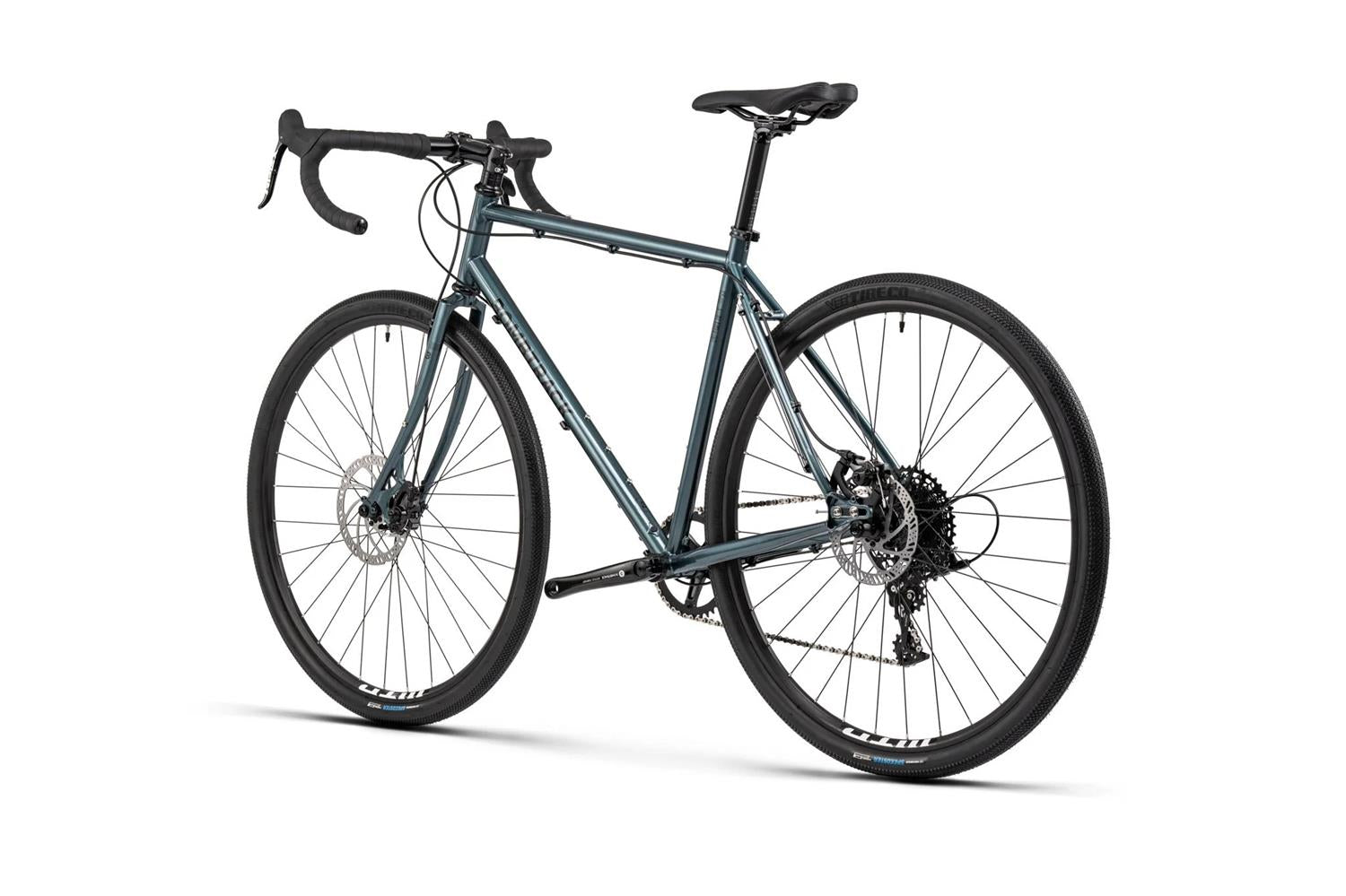

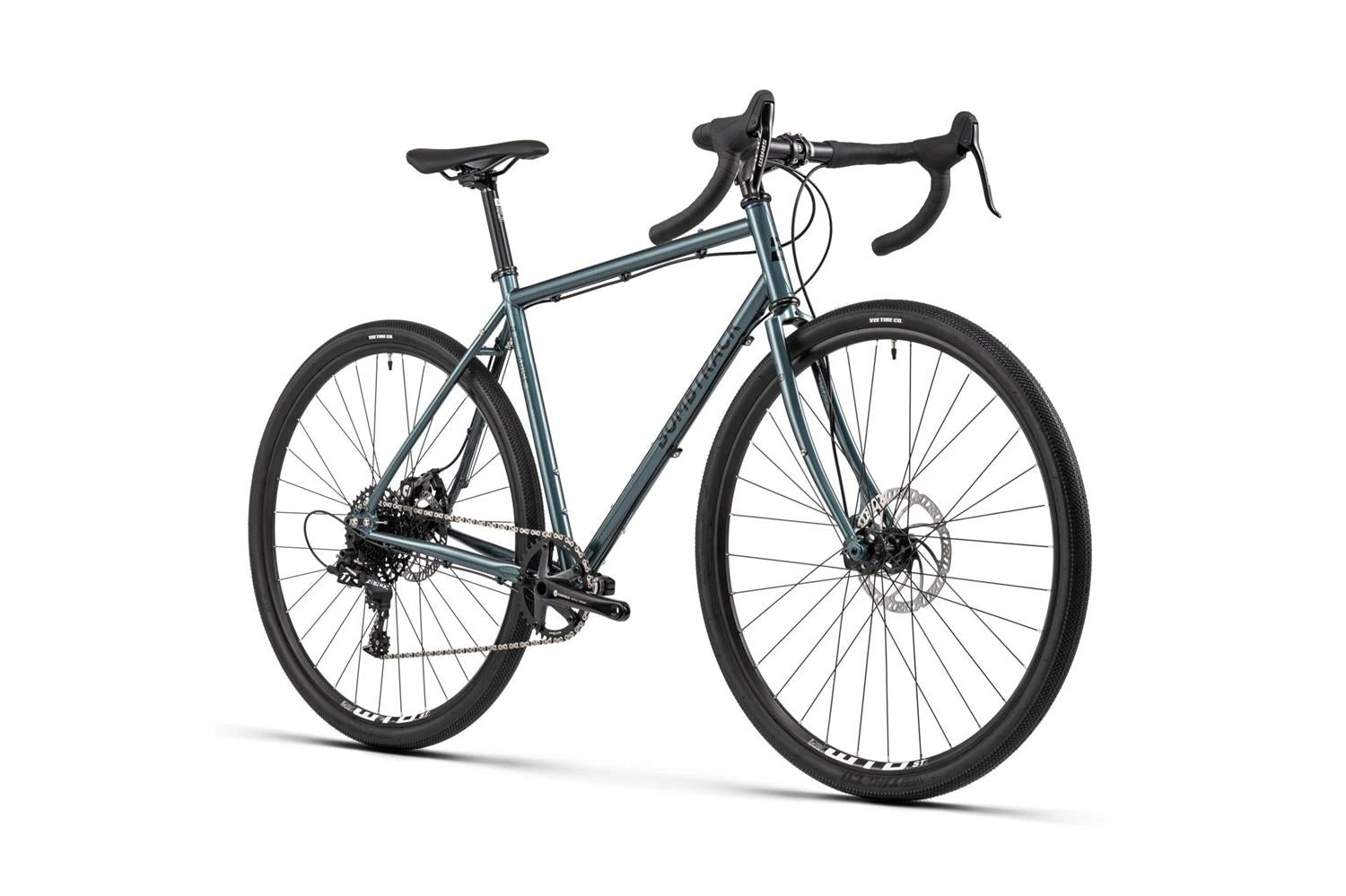

Arise SG Apex is more than ready for whatever multi-surface adventure you have lined up. Based on our trusted double-butted Arise frame, with size-specific wheels so everybody has that same Bombtrack experience.
We’ve also added SRAM’s excellent Apex 1 x 11 drivetrain. The 11 – 42T cassette coupled with a 40T front ring make light work of spinning up those hills, and with the Bombtrack cockpit and Tektro mechanical disc brakes, give you a commanding position going down the other side. Add in tubeless-ready WTB rims, a multitude of mounts and internal dynamo light routing, and you have the basis of a fantastic adventure companion.
"A narrow-wide chainring and 11-speed gearing tailor it to its intended purpose; riding fast on unpaved roads."

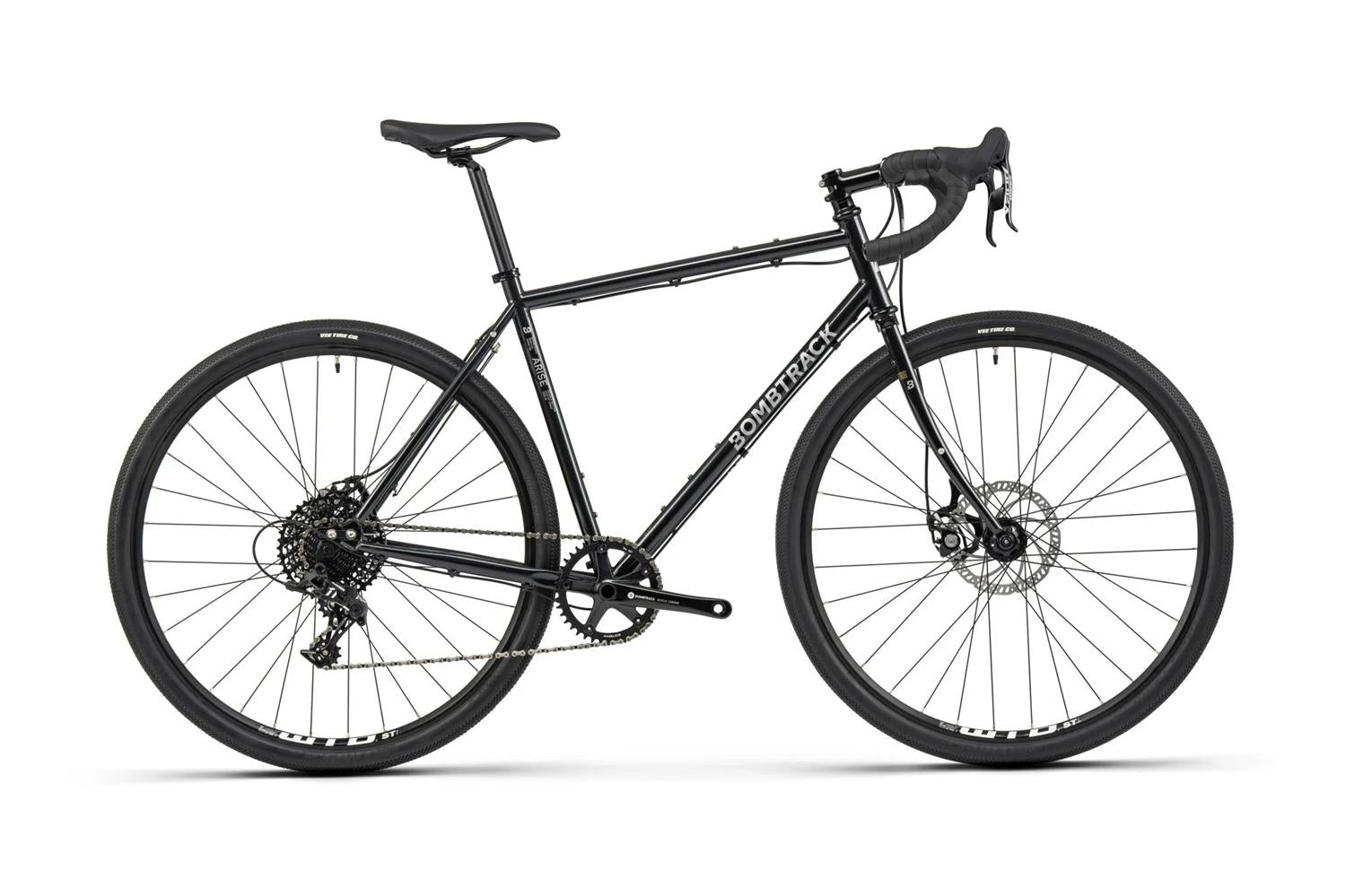

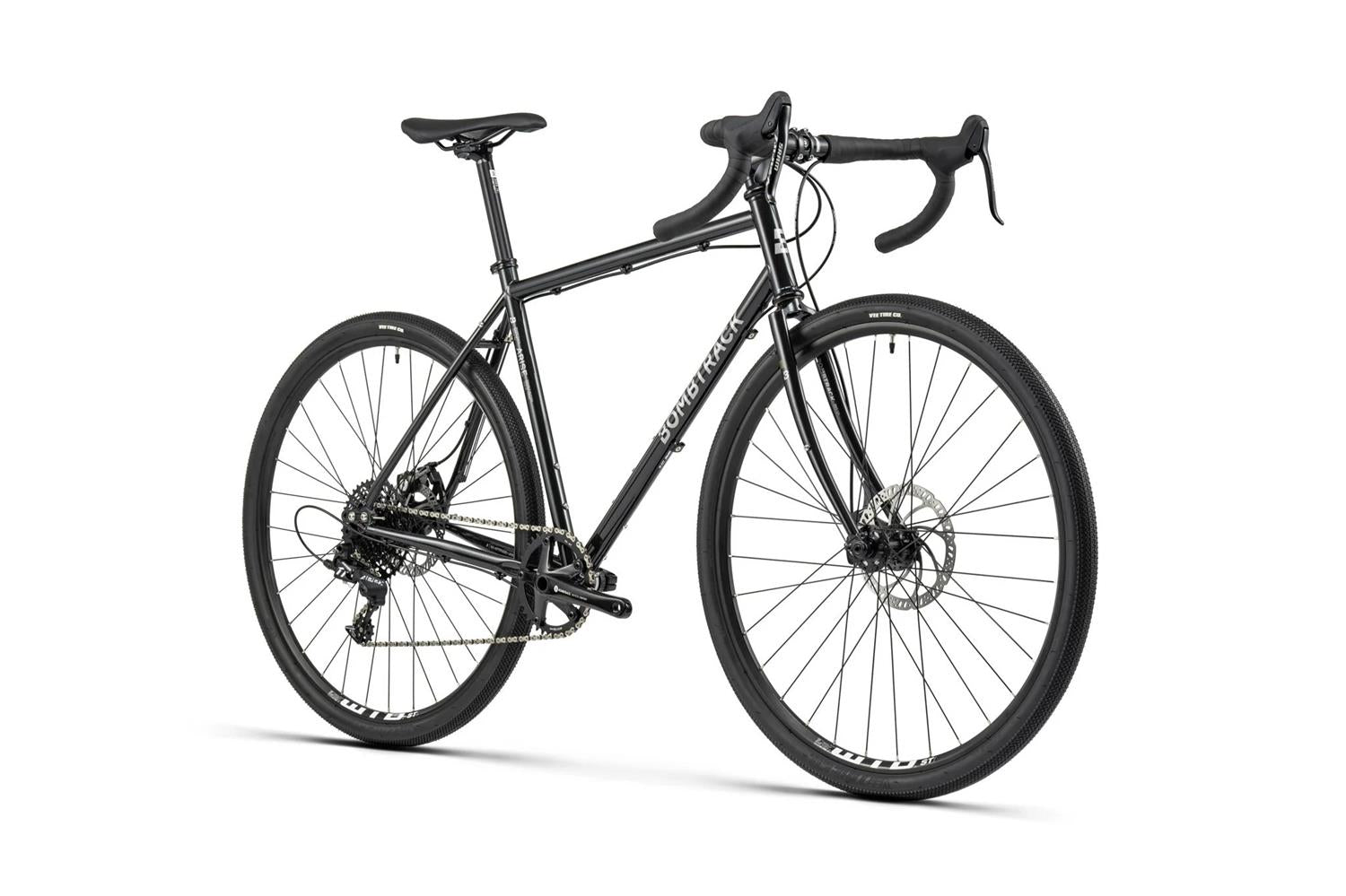

| Color 1 | Metallic black |

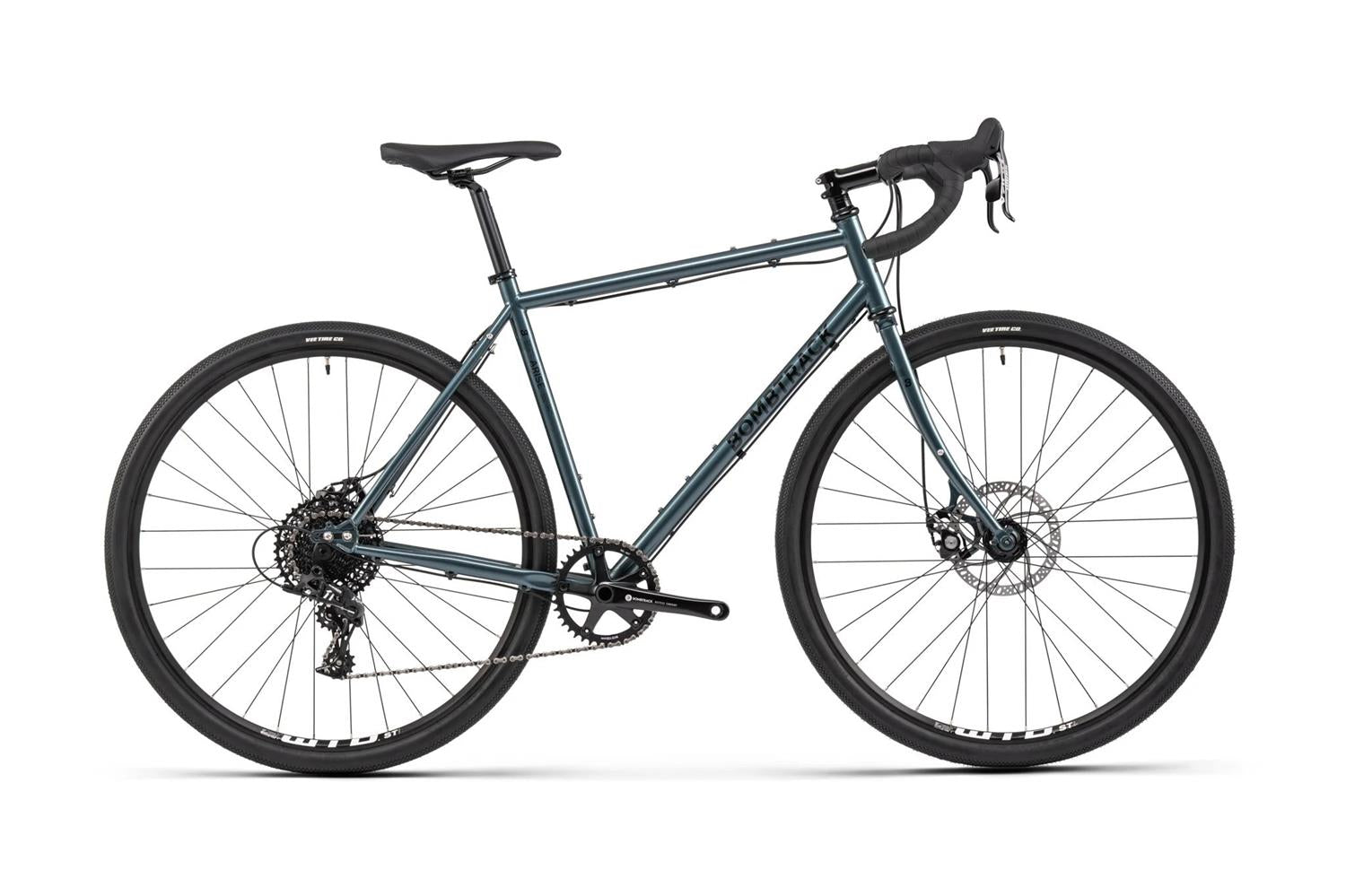

| Color 2 | Metallic grey blue |

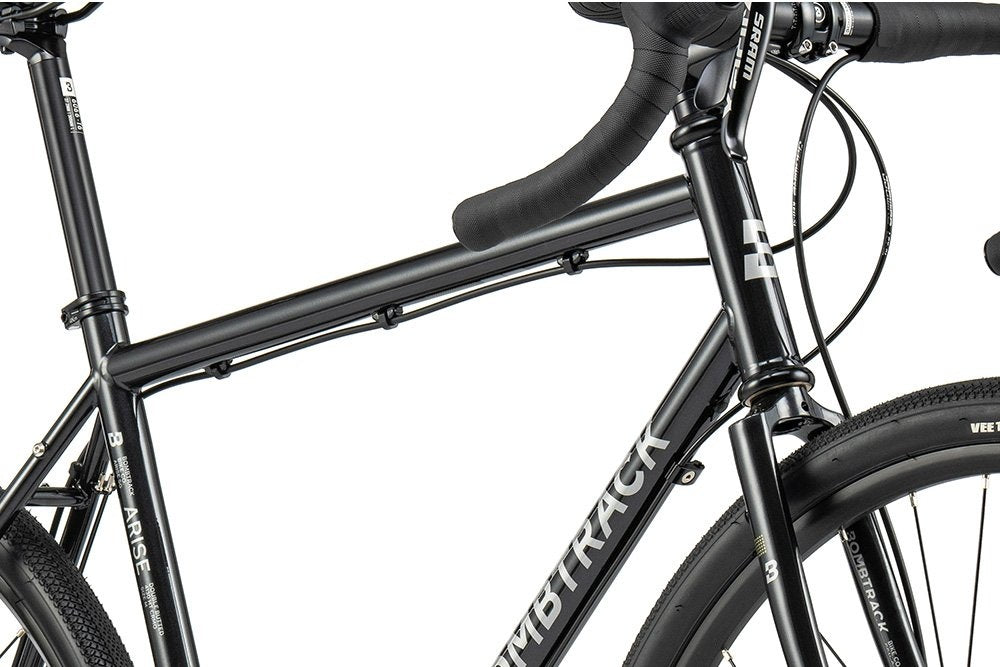

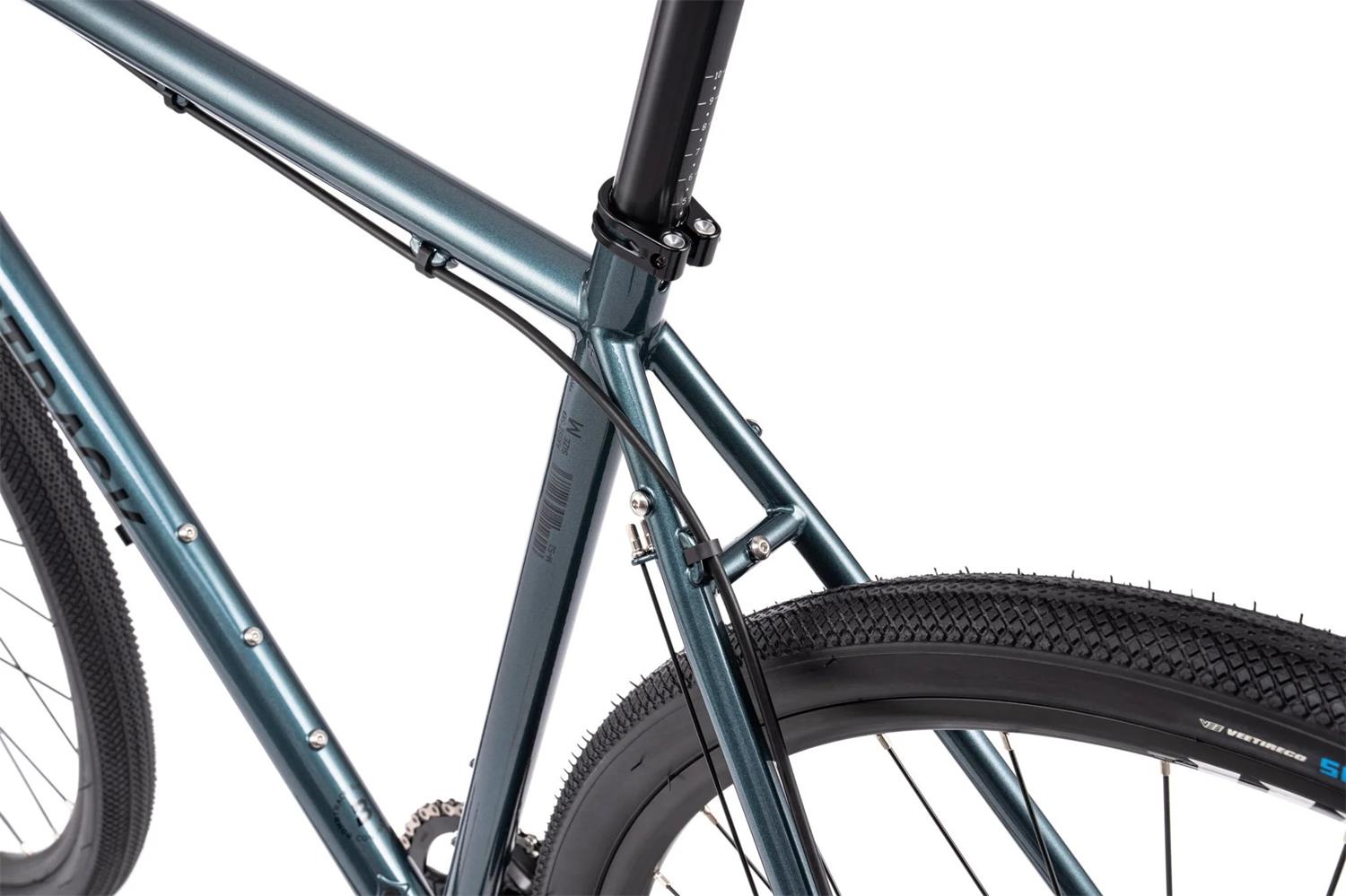

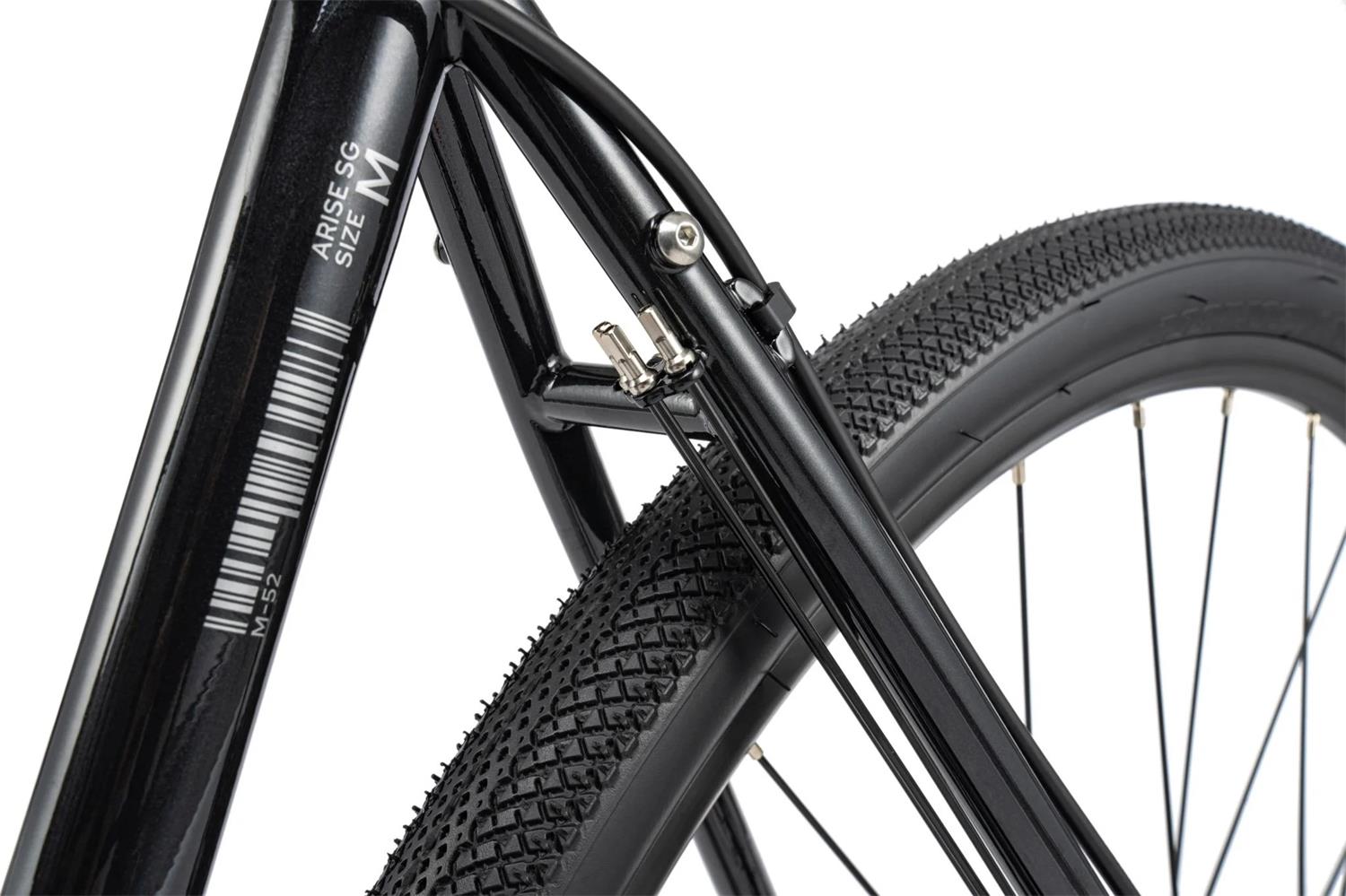

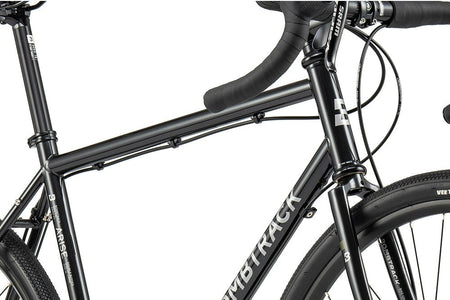

| Frame | 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell |
| Fork | 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing |

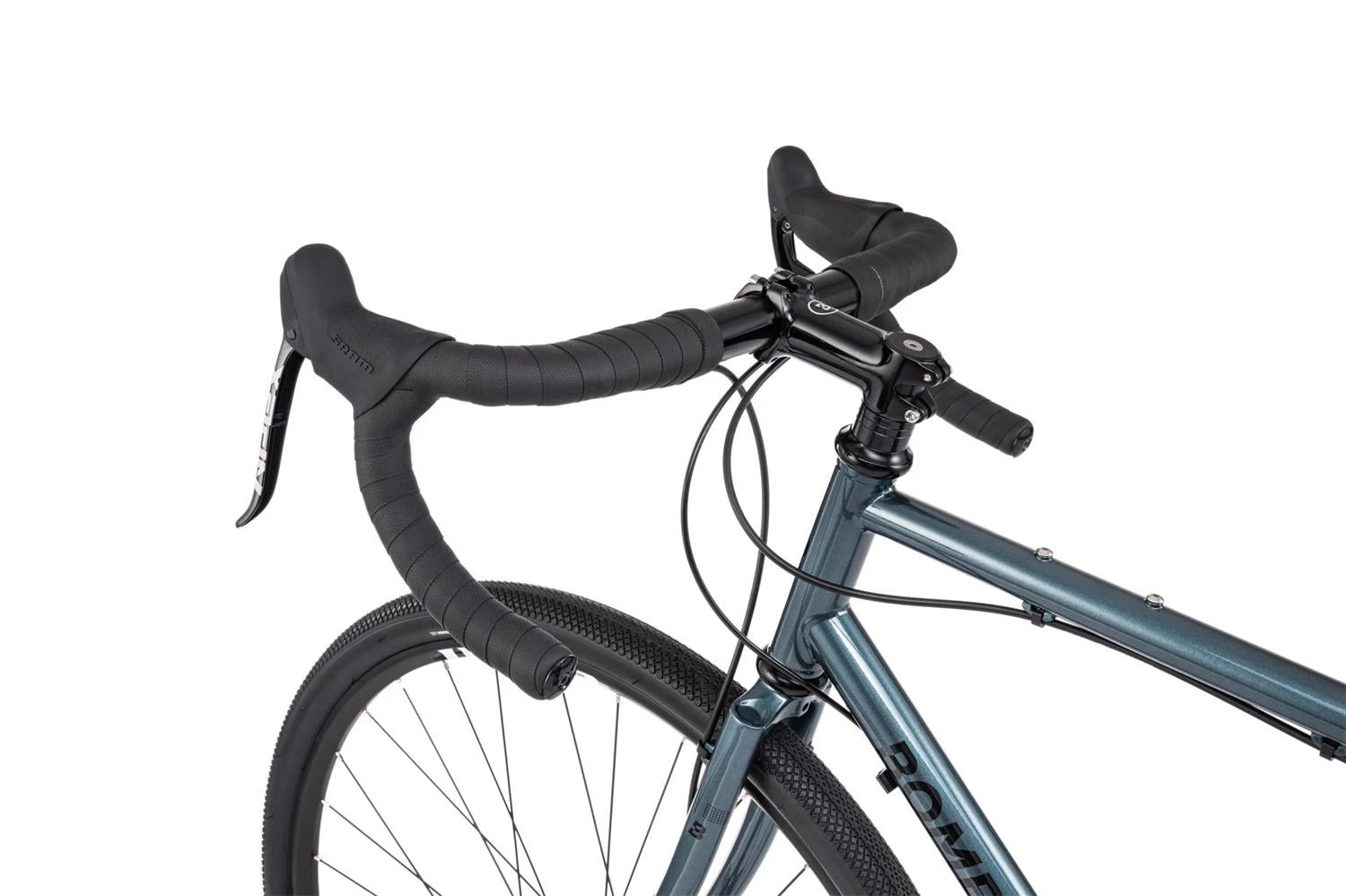

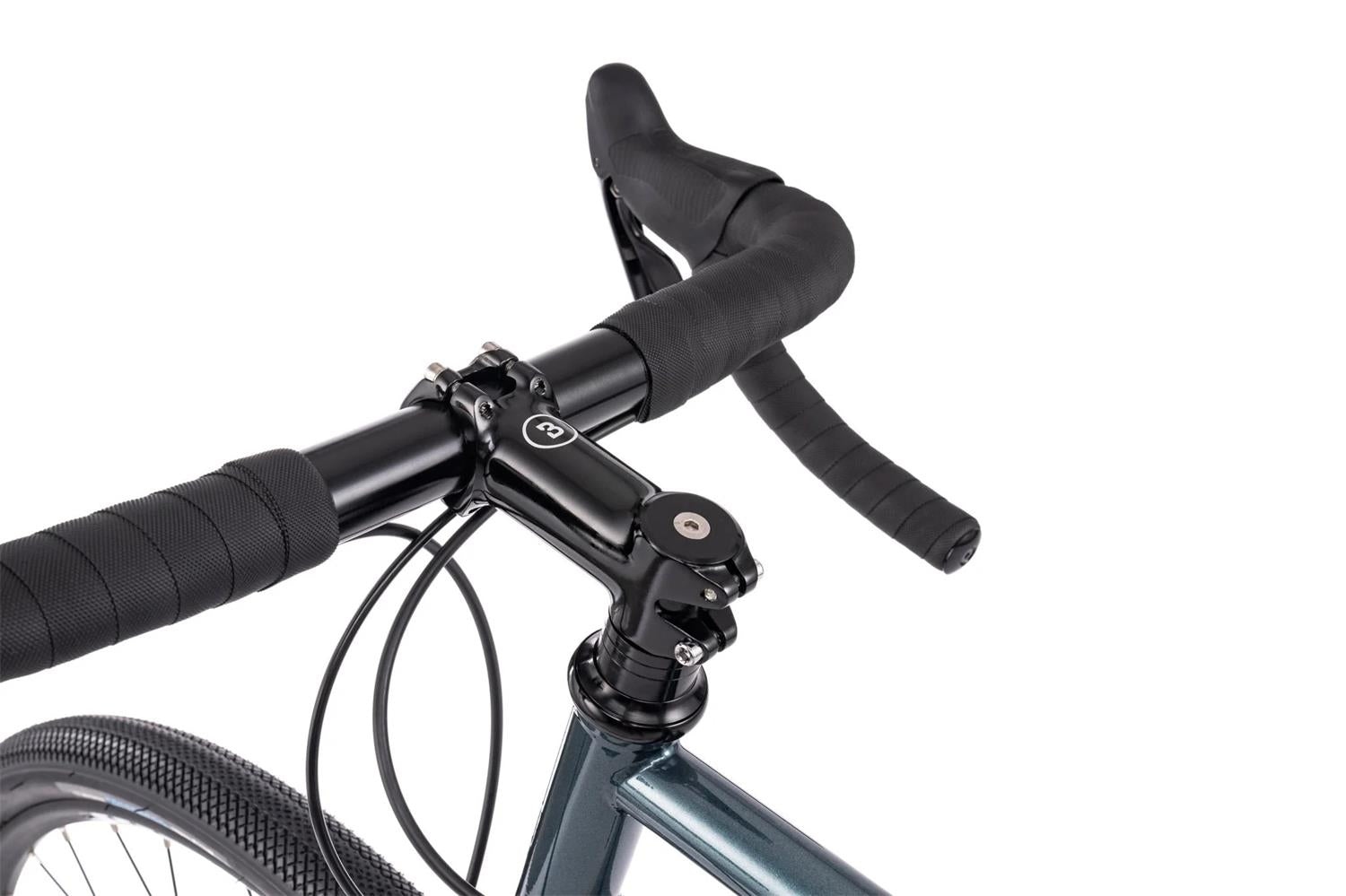

| Handlebar | Bombtrack CX-10 drop bar, 31.8 mm, 10° flare |
| Grips | Bombtrack Command bar tape |
| Stem | Bombtrack Roam forged aluminium stem, -7° |
| Headset | Neco H282 sealed external aheadset, 1.1/8'' |

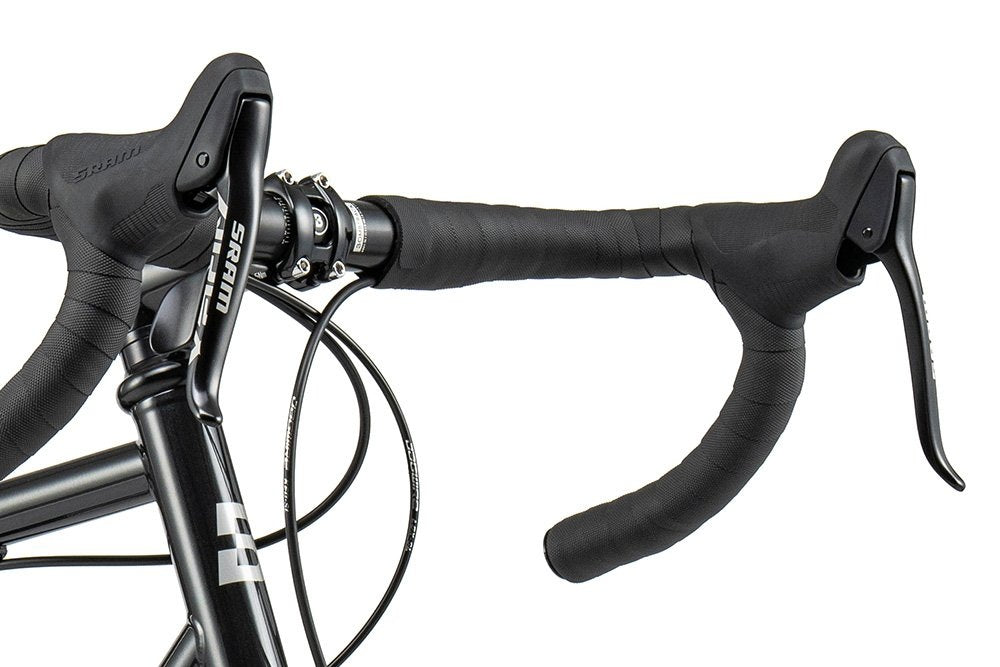

| Levers | Sram Apex double tap mechanic |
| Shifter | Sram Apex double tap 1 x 11 |

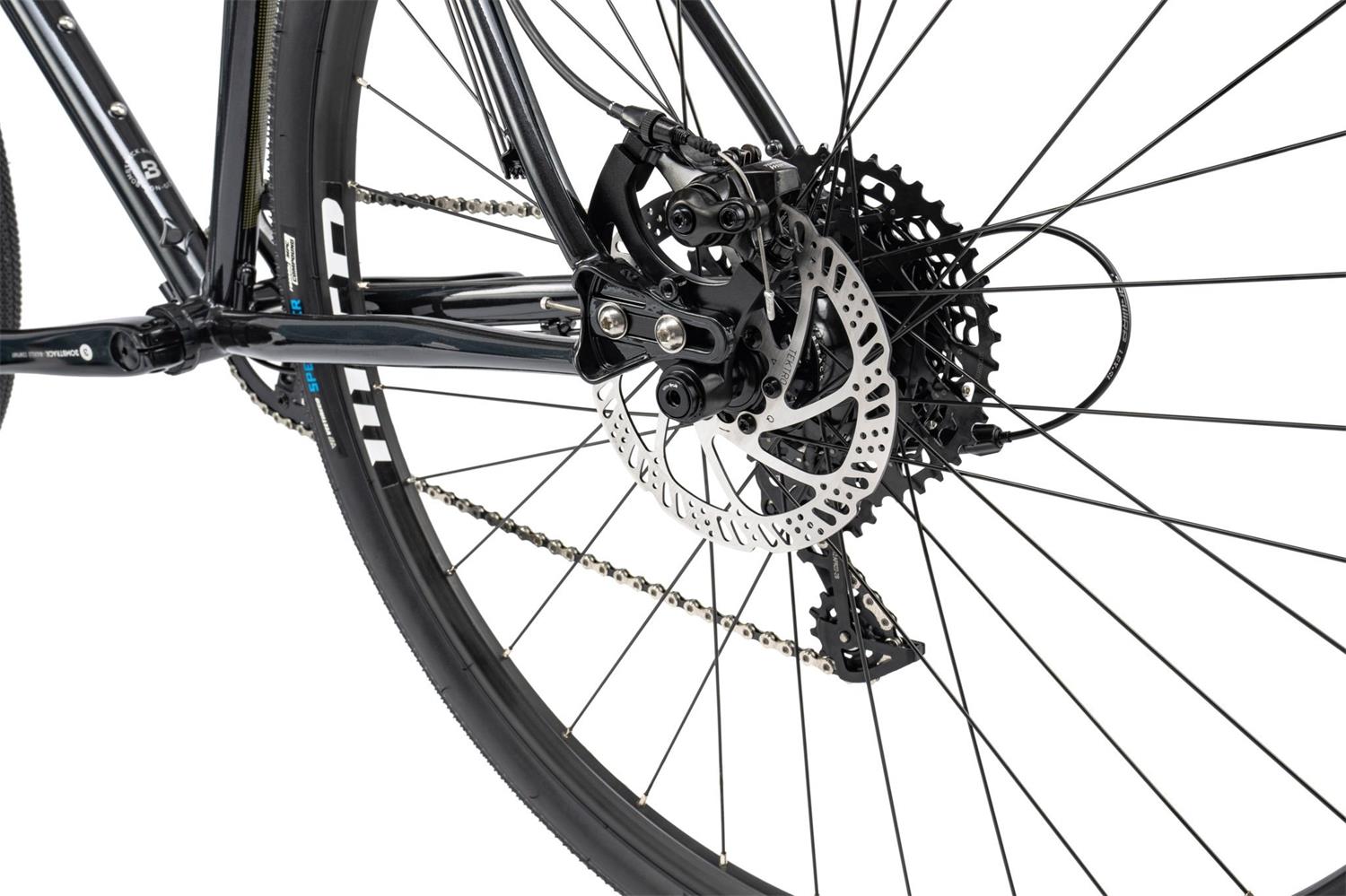

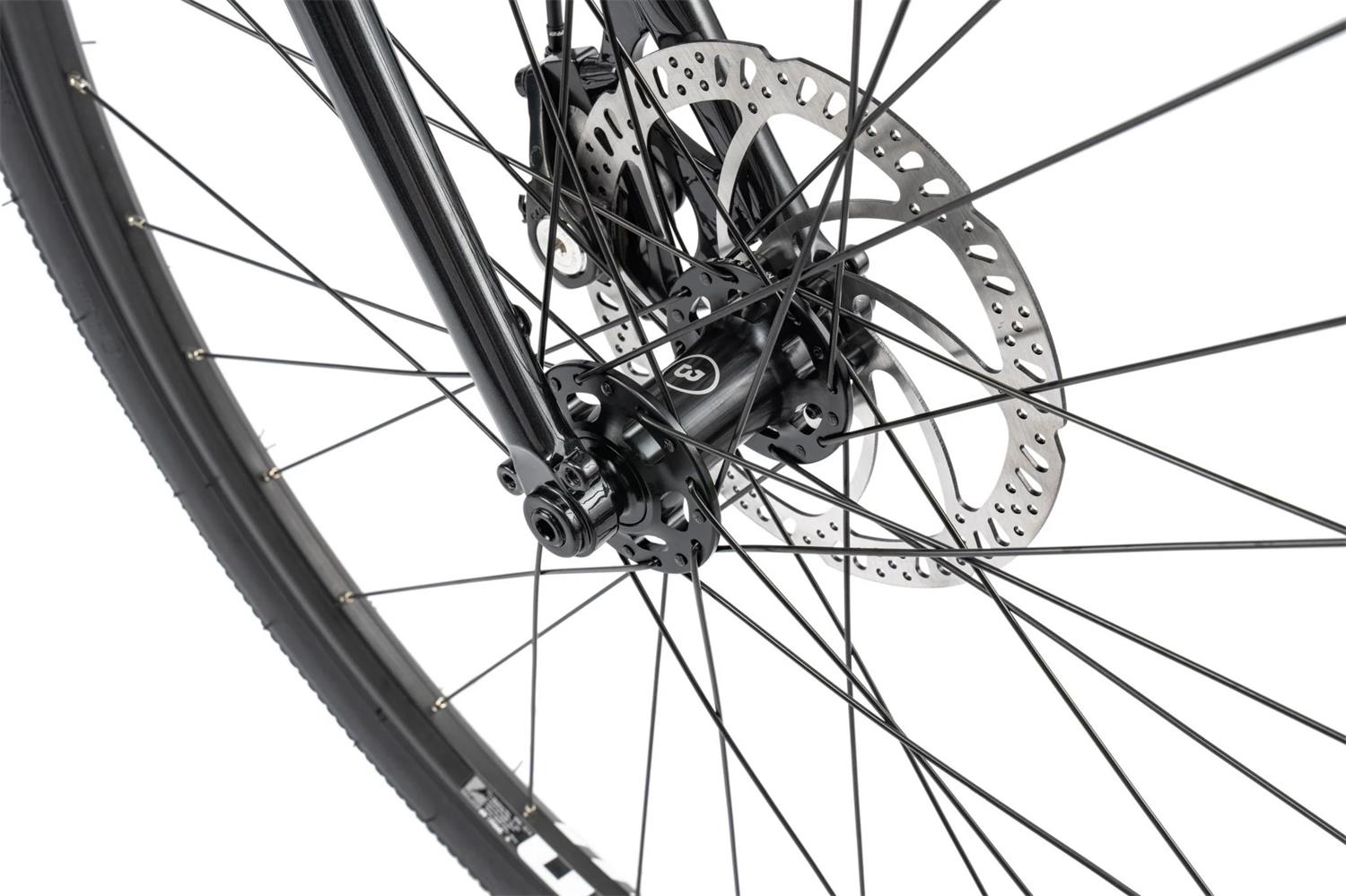

| Brakes | Tektro Mira post mount mechanic disc brakes |
| Rotor | Tektro 180 mm front and 160 mm rear rotor |

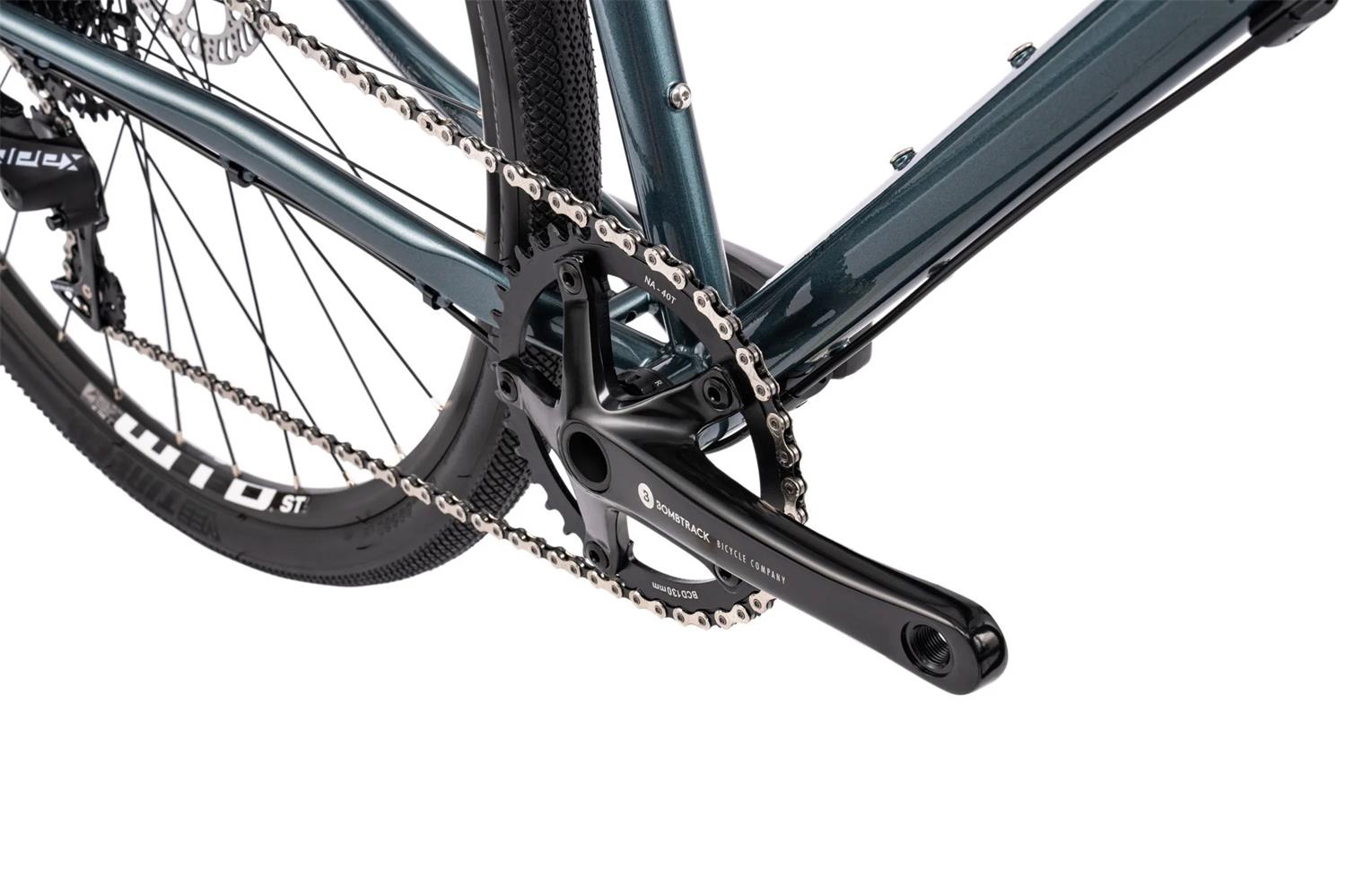

| Crankset | Bombtrack TAF19 aluminium crank, 24 mm spindle |
| BB | BSA sealed BB, external cups |
| Pedals | - |
| Chain | KMC X11 chain, 1/2'' x 11/128'', 114L |
| Chainring | Bombtrack Ridge aluminium chainring, narrow-wide, 40 T |
| Cassette | Sram PG-1130 11-speed, 11 - 42 T |
| Front derailleur | - |

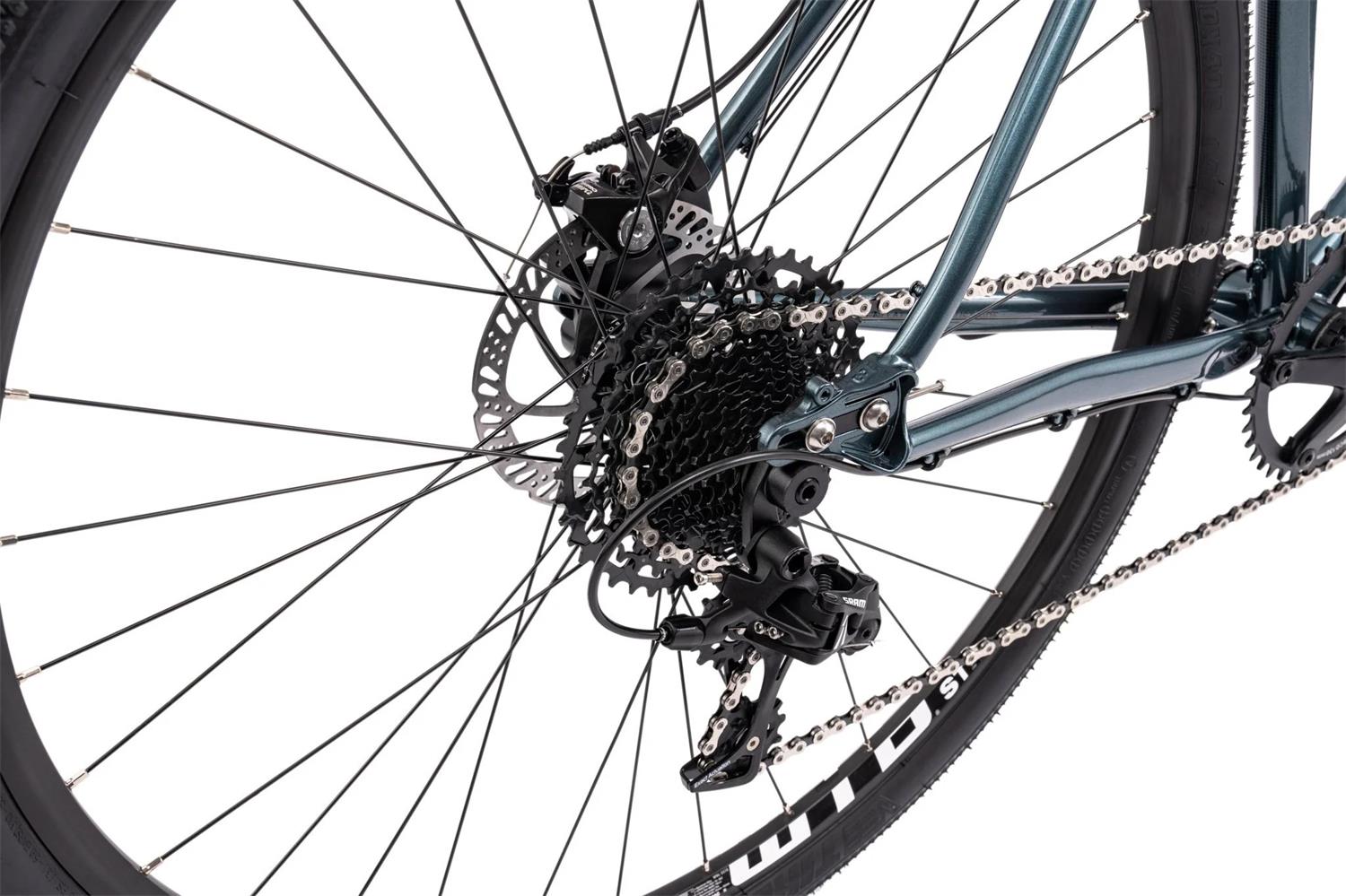

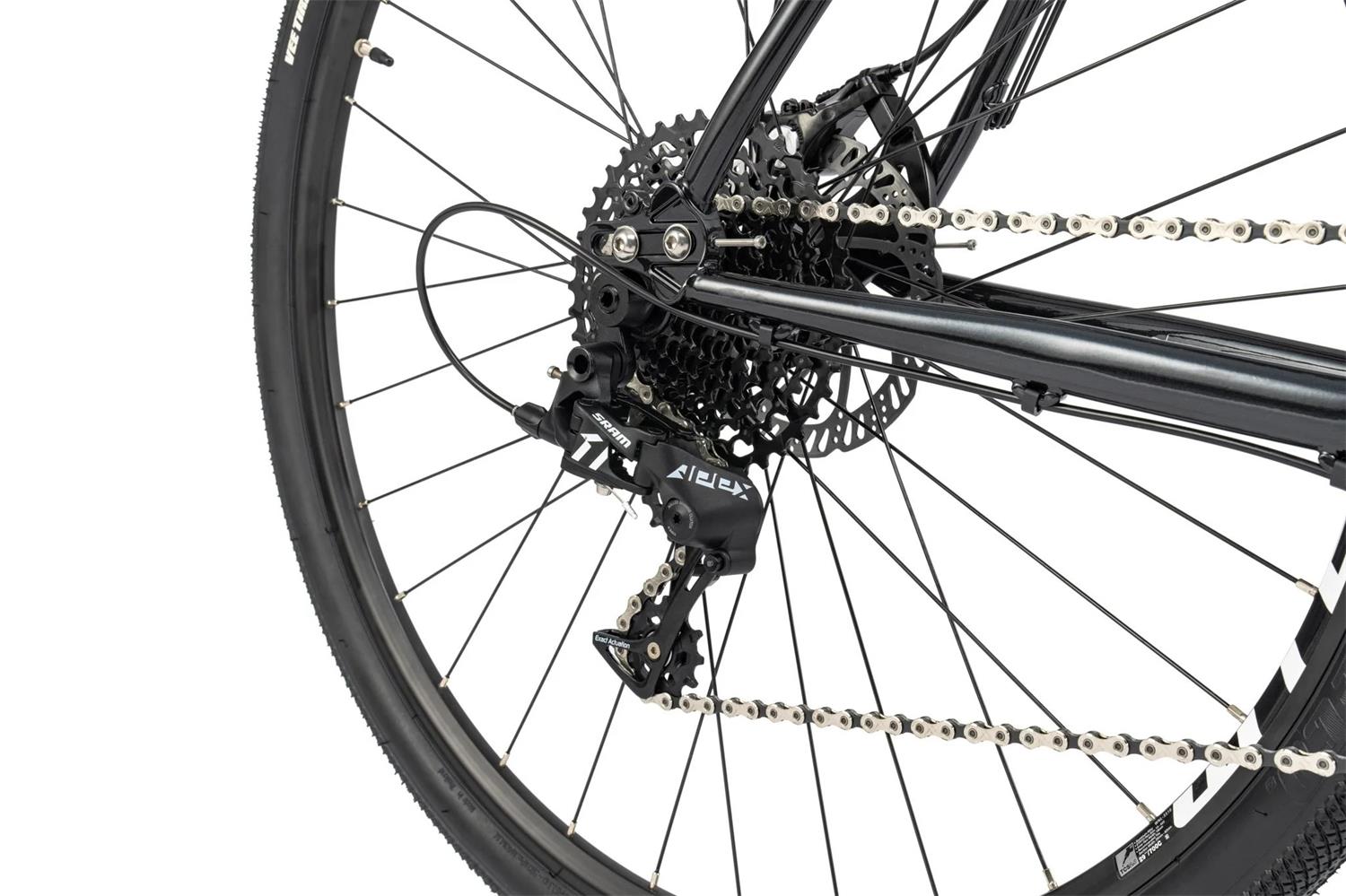

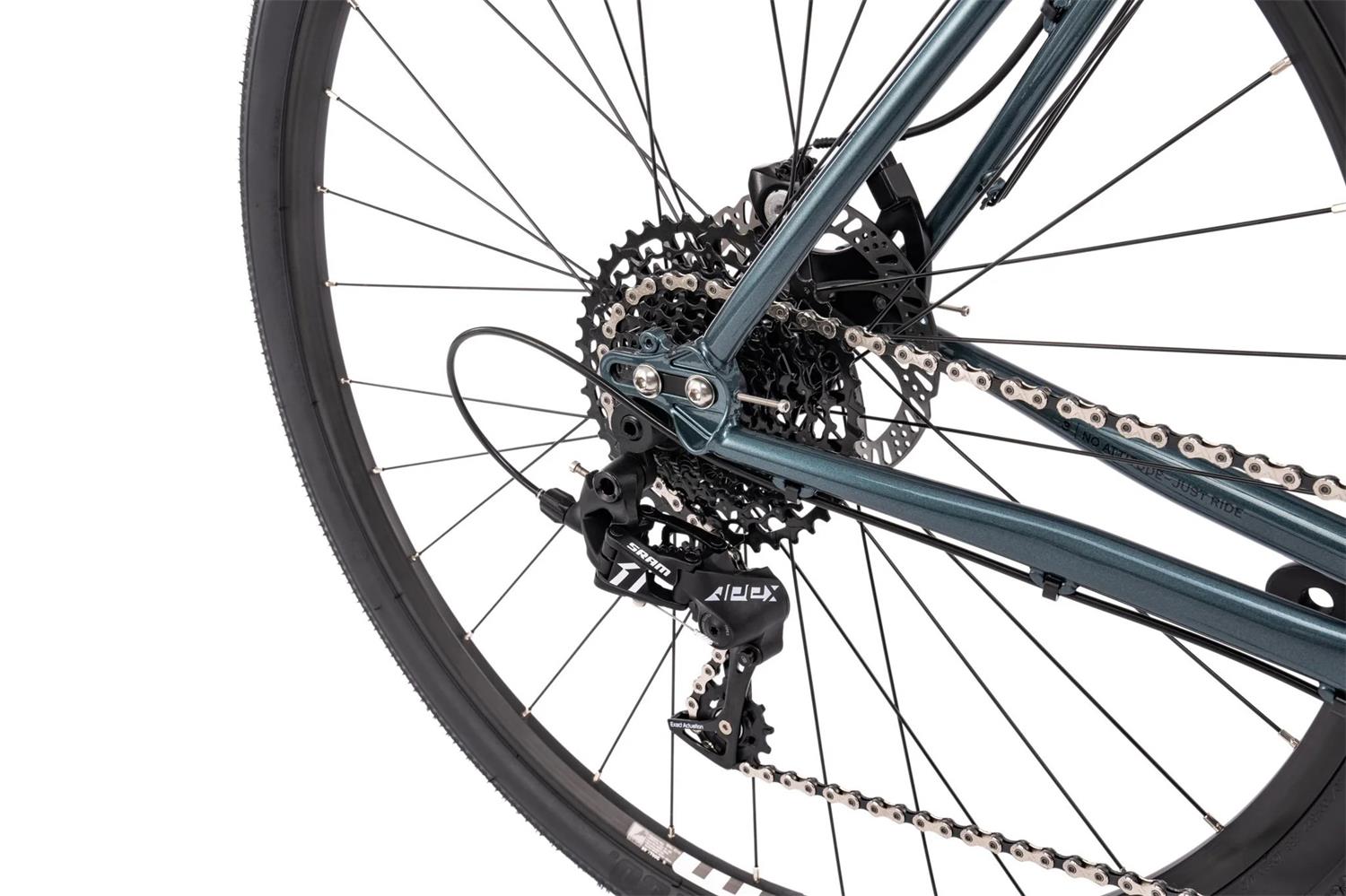

| Rear derailleur | Sram Apex 1, clutch, long cage |

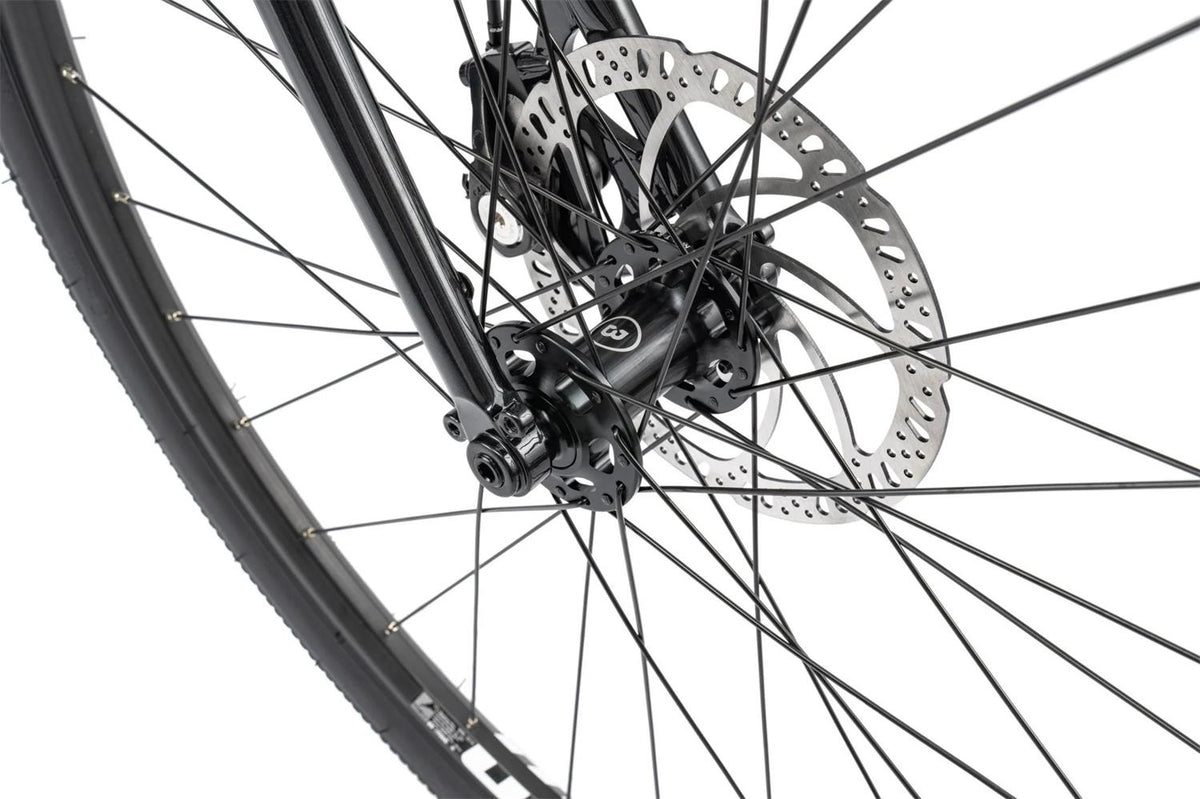

| Front hub | Bombtrack Arc sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |

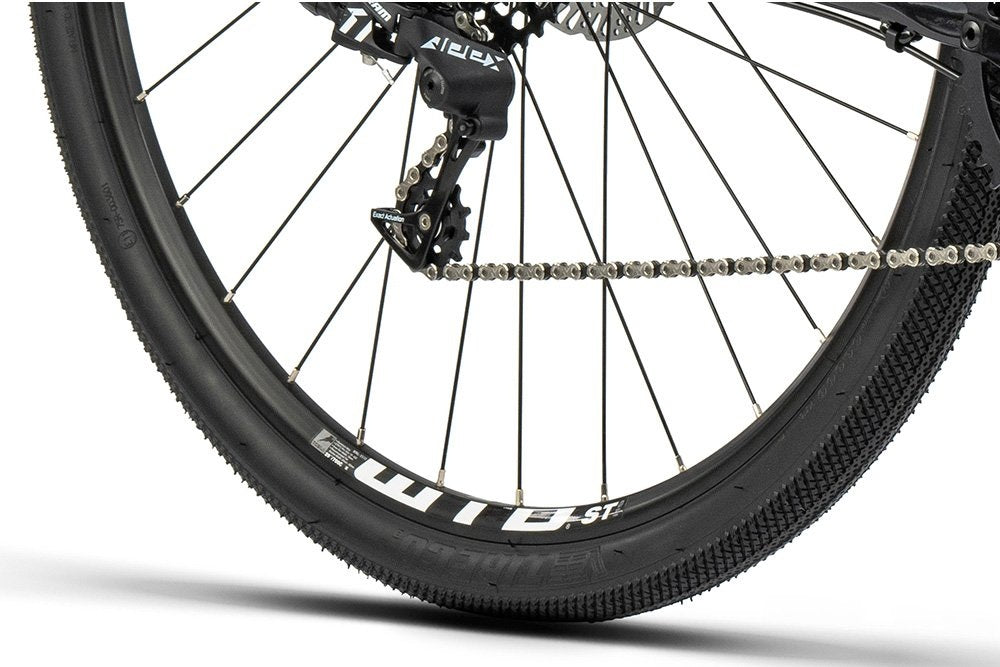

| Front rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i19 double wall, TCS 2.0, 32h |

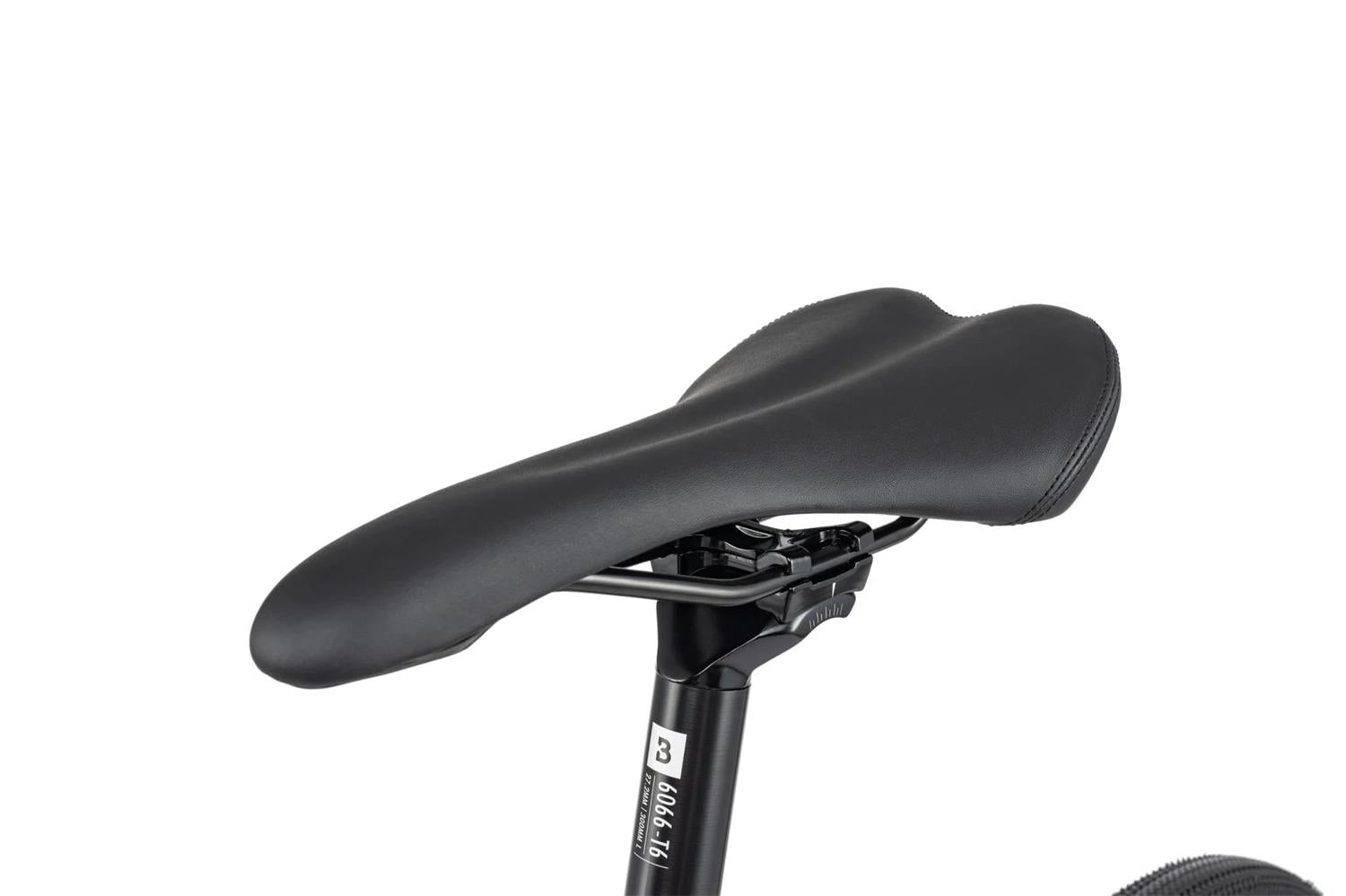

| Saddle | Bombtrack Fuzz saddle |
| Seat post | Bombtrack Beech 27.2 mm x 300 mm |
| Seat clamp | Bombtrack Prime 29.8 mm |

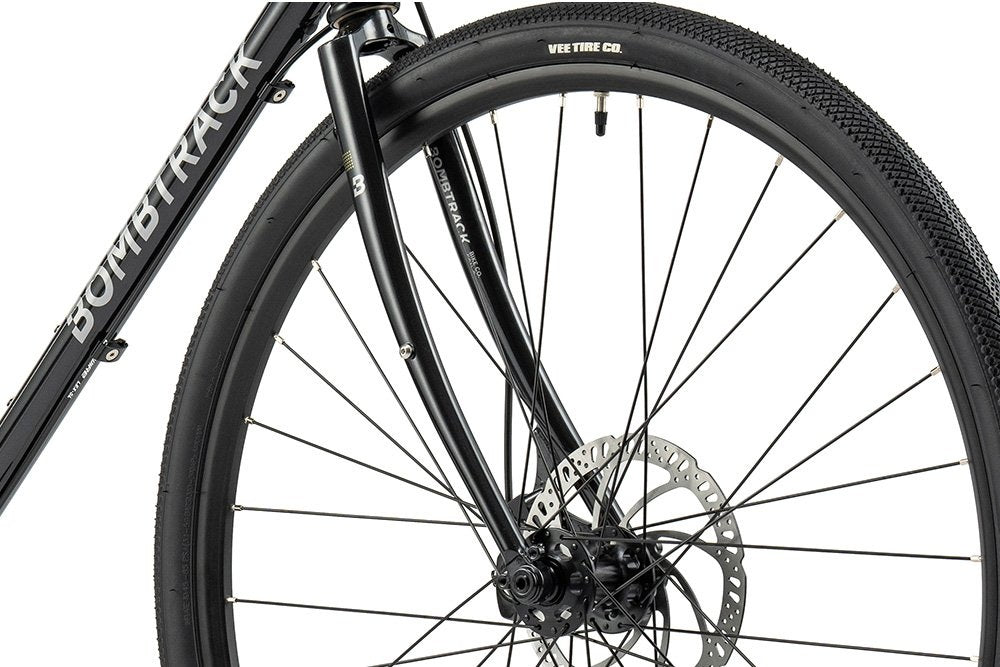

| Front tire | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Rear tire | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Weight | 12.25 kg (size M) |
| Weight frameset | 2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 120 kg incl. luggage |
| ASTM riding condition | 2 |
Final product may vary in appearance, finish and minor details.
