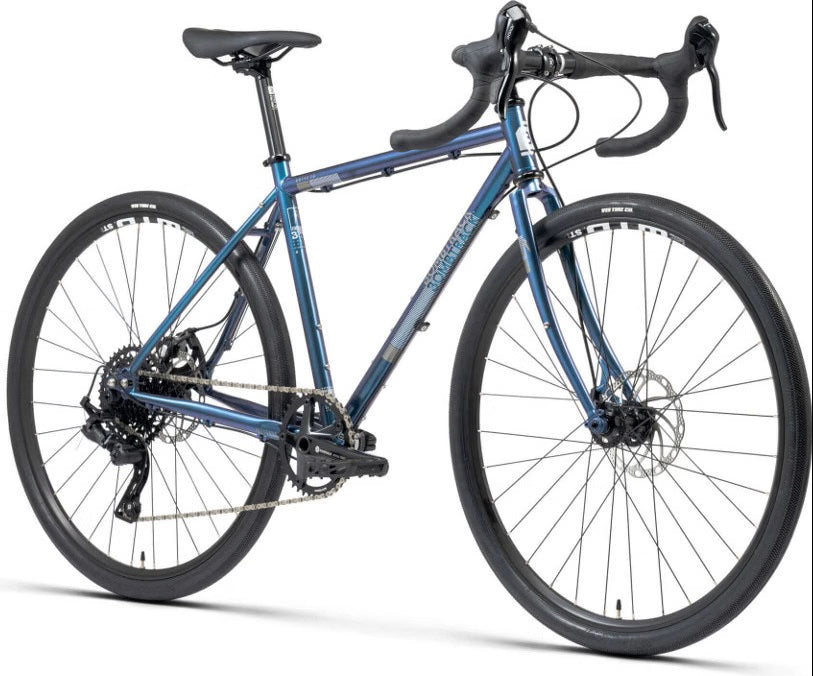

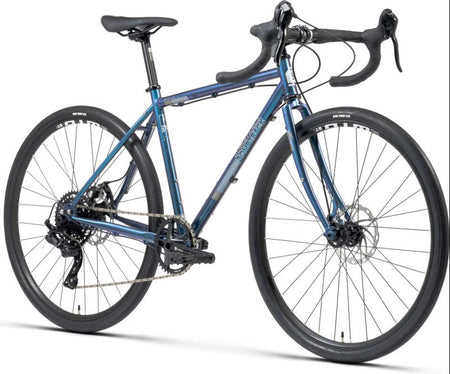

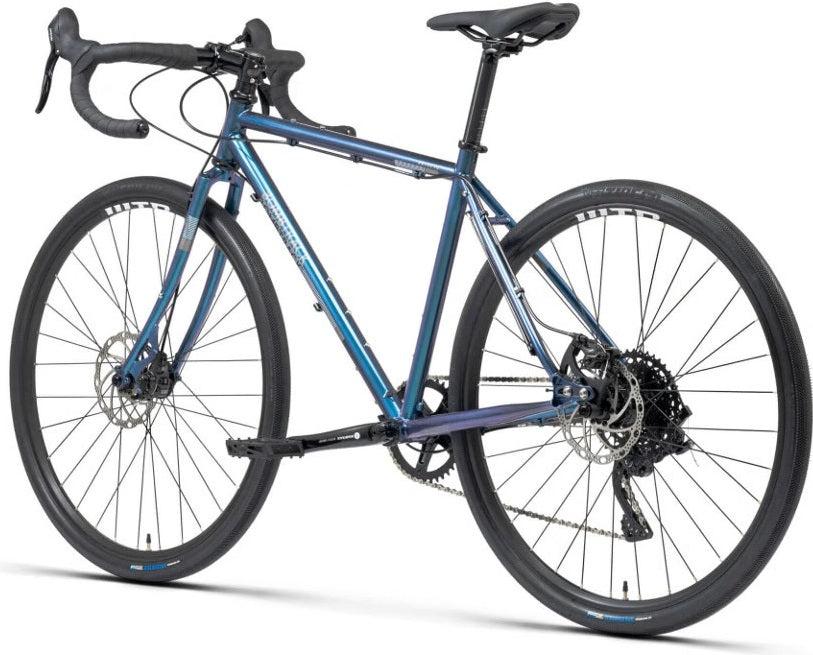

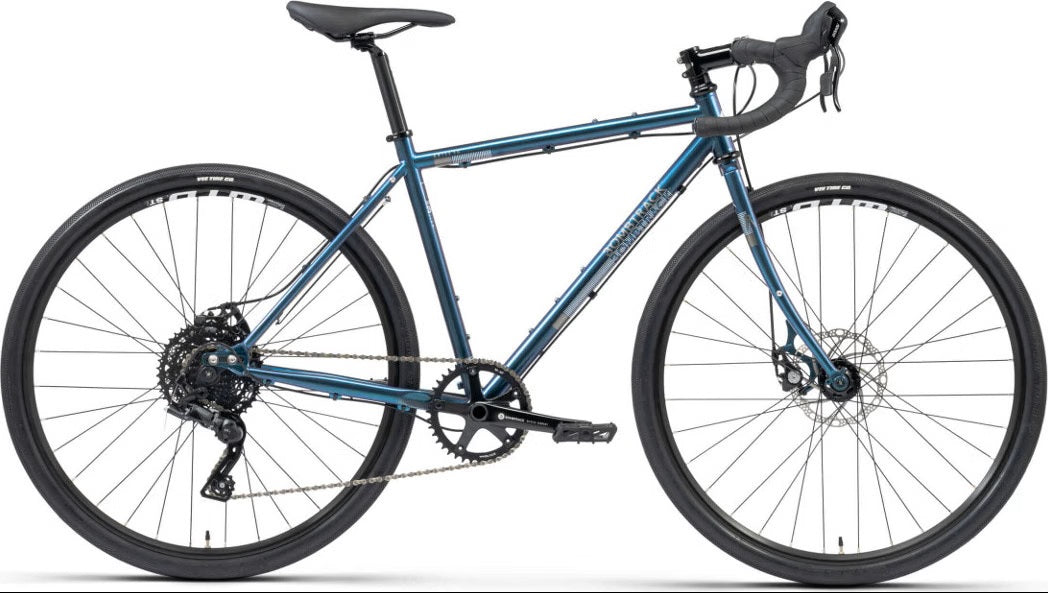

Bombtrack Arise SG Advent
Couldn't load pickup availability
Need help choosing the right size?
If you are ordering - Bikes - online, please call us to discuss delivery instructions before completing your purchase. Please be aware that bikes cannot be shipped directly to customers in their original packaging; however, we can arrange for them to be on-shipped once prepared. Additionally, please note that an assembly fee applies.
Equipped with a road handlebar to give you a more racy feel compared to flat hanger models. A Microshift Advent X rear derailleur and 1x drivetrain ensure overall stability. The wheels ensure a perfect fit, fitted with 650B wheels for sizes XS and S or 700C for M and above.
True to its sleeker nature, the Arise SG features tubeless ready WTB wheels that are ready to go should you decide to grab a bib, while the internal cable routing maintains the aesthetics of the bike.
The + product:
- A steel frame and fork with internal cable routing.
- MicroSHIFT Advent X 1x10-speed transmission.
- Tektro Mira mechanical disc brakes, 160/160 mm.
Details:
| Frame | Steel: 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell |
| Fork | Steel: 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing |

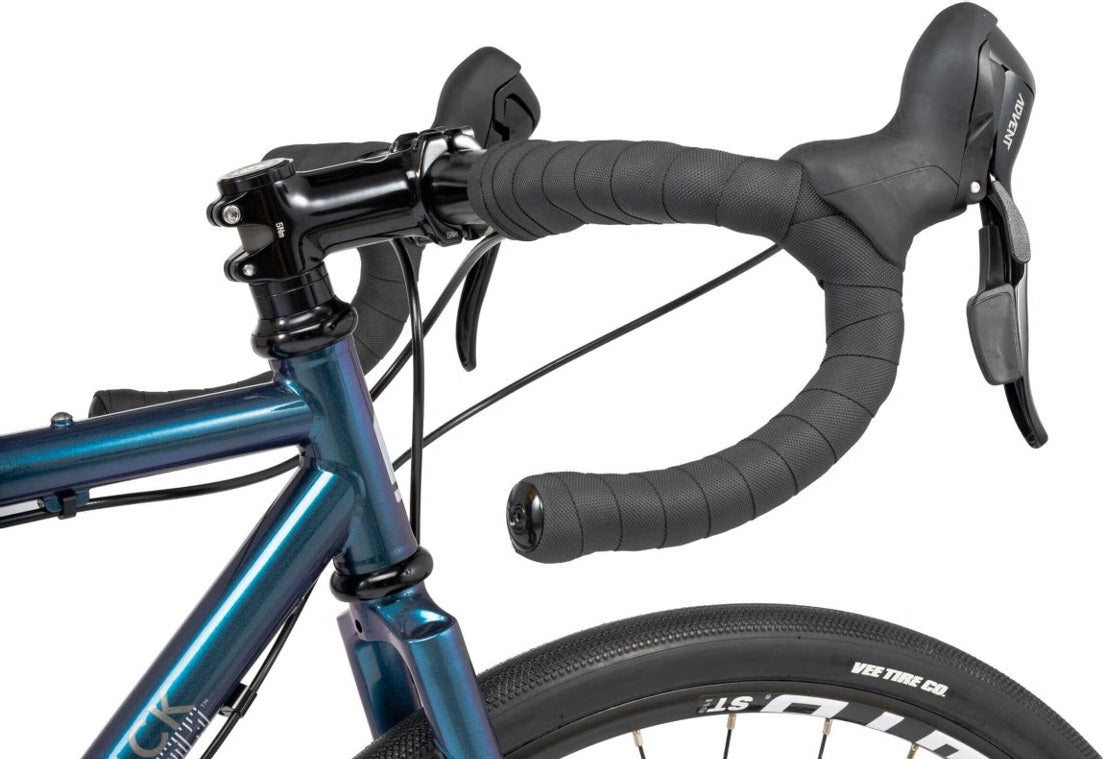

| Shifter | MicroSHIFT Advent X SB-M100 dual control lever 1 x 10 speed |

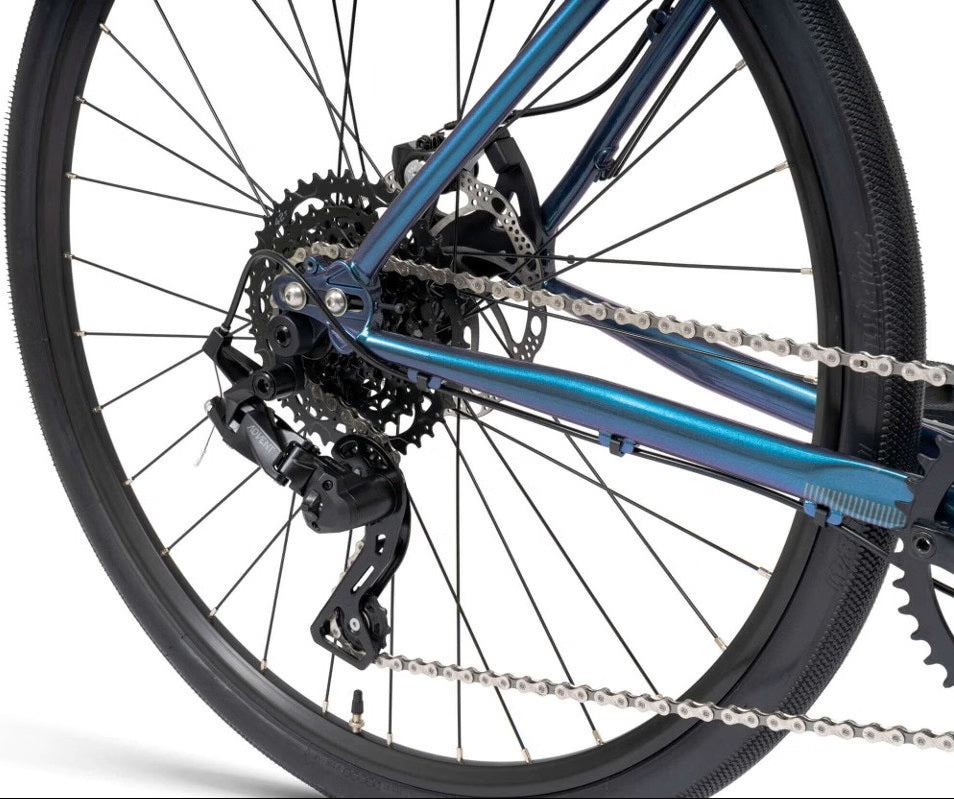

| Rear derailleur | Microshift ADVENT RD-M6205GM wide range, 10-speed clutch |
| Cassette | MicroSHIFT Advent X CS-H104 10-speed, 11 - 48 speed |
| Chain | KMC X10 chain, 1/2 '' x 11/128 '', 114L |
| Crankset | Bombtrack TAF19 aluminum crank, 24 mm spindle |
| Chainring | Bombtrack Ridge aluminum chainring, narrow-wide, 40 T |
| Bottom bracket | BSA sealed BB, external cups |

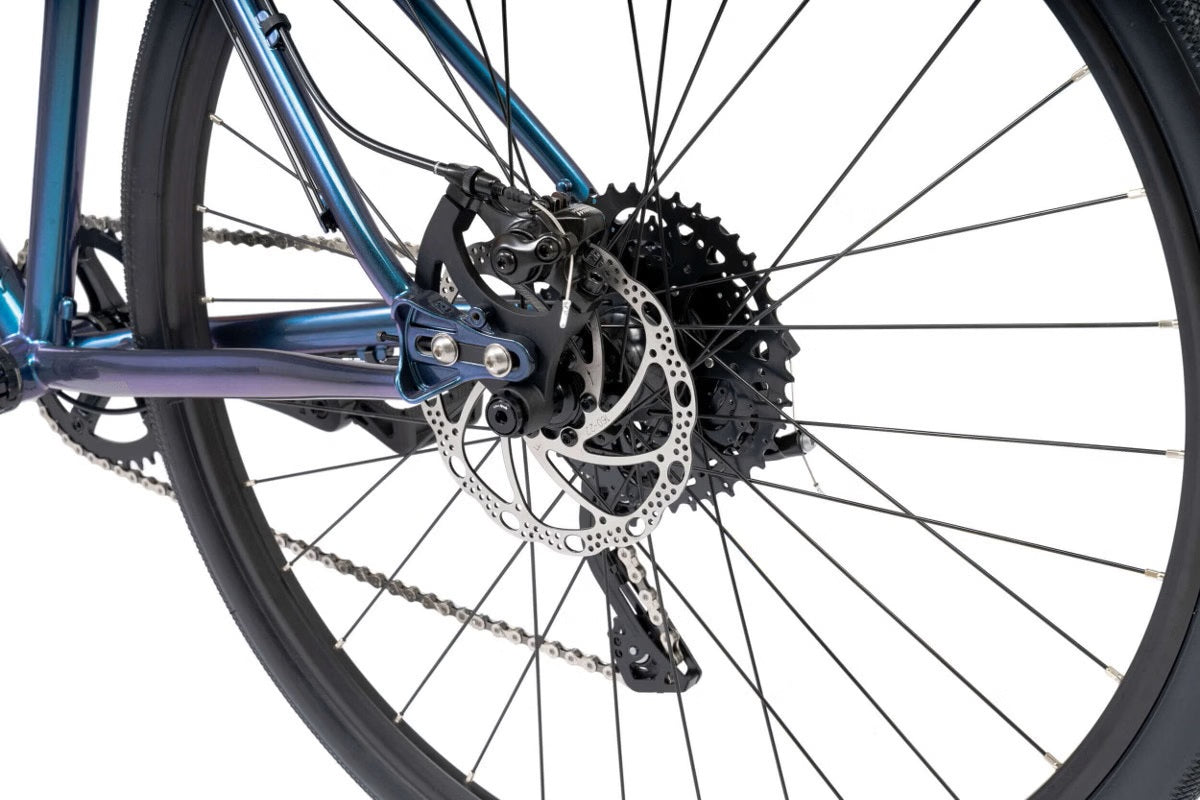

| Brakes | Tektro Mira post mount mechanic disc brakes with 160 mm rotors |
| Wheels | WTB ST i19 double wall, TCS 2.0, 32h |
| Hubs | F: Bombtrack ARC sealed hub, 6-bolt disc 12 x 100 mm R: Bombtrack ARC sealed hub, 11-speed, 6-bolt disc 12 x 142 mm |
| Tires | Vee Tire Speedster |

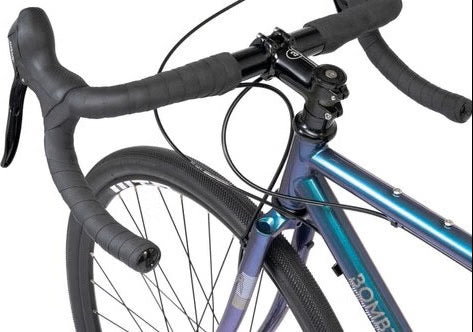

| Handlebar | Bombtrack CX-10 drop bar, 31.8 mm, 10 ° flare |
| Handlebar tape | Bombtrack Command bar tape |
| Stem | Bombtrack Roam forged aluminum stem, -7 ° |
| Headset | Neco H282 sealed external aheadset, 1.1 / 8 '' |
| Saddle | Bombtrack Fuzz |
| Seatpost | Bombtrack Beech 27.2 mm x 300 mm |
| Saddle clamp | Bombtrack Origin 29.8 mm |
| Weight | --- |
| Maximum weight | 120 kg incl. luggage |
| Colors | Glossy Cobalt Green |
| Frame size | XS | S | M | L | XL |
| Wheel size | 650b | 650b | 700c | 700c | 700c |
| Seat tube (mm) | 460 | 490 | 520 | 550 | 580 |
| Top tube (mm) | 506 | 529 | 554 | 578 | 602 |
| Base length (mm) | 420 | 420 | 435 | 435 | 435 |
| Head tube (mm) | 100 | 130 | 150 | 180 | 210 |
| Steering angle (°) | 70 | 70.5 | 70.5 | 71 | 71 |
| Seat tube angle (°) | 73.5 | 73.5 | 73 | 73 | 73 |
| Wheelbase (mm) | 995 | 1016 | 1045 | 1065 | 1090 |
| Stack (mm) | 508 | 538 | 572 | 602 | 631 |
| Reach (mm) | 351 | 370 | 379 | 394 | 409 |
