Bombtrack Arise Geared
Couldn't load pickup availability
Need help choosing the right size?

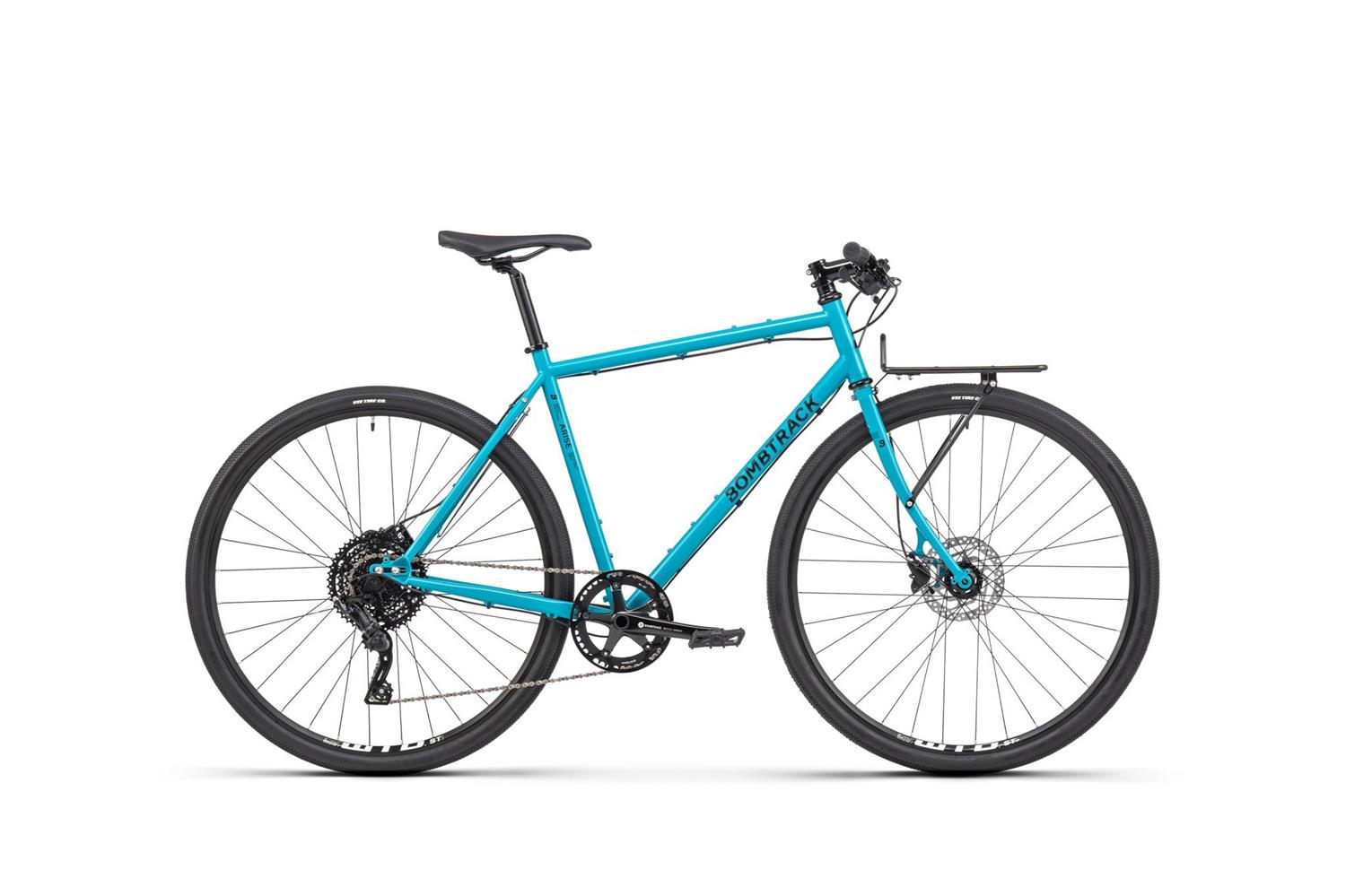

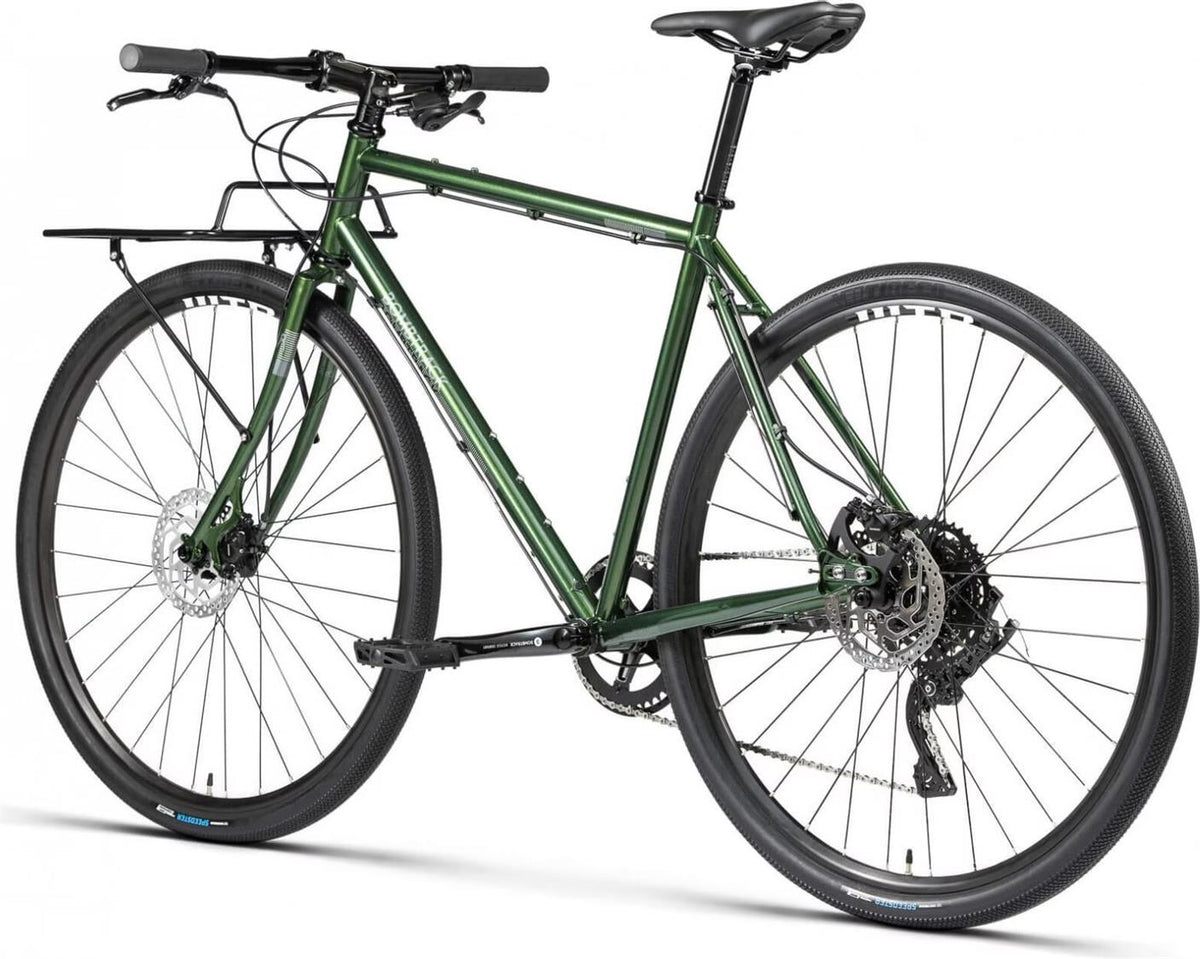

Is it a commuter, a delivery bike or a practical work bike? Our Arise Geared is all three and more. We use the same quality double-butted frame as all our Arise models but now with the addition of a Bombtrack Deck front rack, a Microshift Advent 1 x 9 drivetrain with an 11 – 42T cassette, flat bars and Shimano hydraulic brakes. Wide Vee Tire Speedster tyres are ideally suited to urban road surfaces, with excellent straight-line speed and edge grip for park and towpath ‘shortcuts’.
The Arise Geared is the perfect bike for trips to the shops, commuting, or just loading it up and heading off into the woods for the weekend.
"Offroad commuter, urban hauler, beer & café bike, a once-in-a-while gravel- / mountainbike, even a capable tourer.. – whatever you call it, whatever your proposed usage might be: this one probably can."

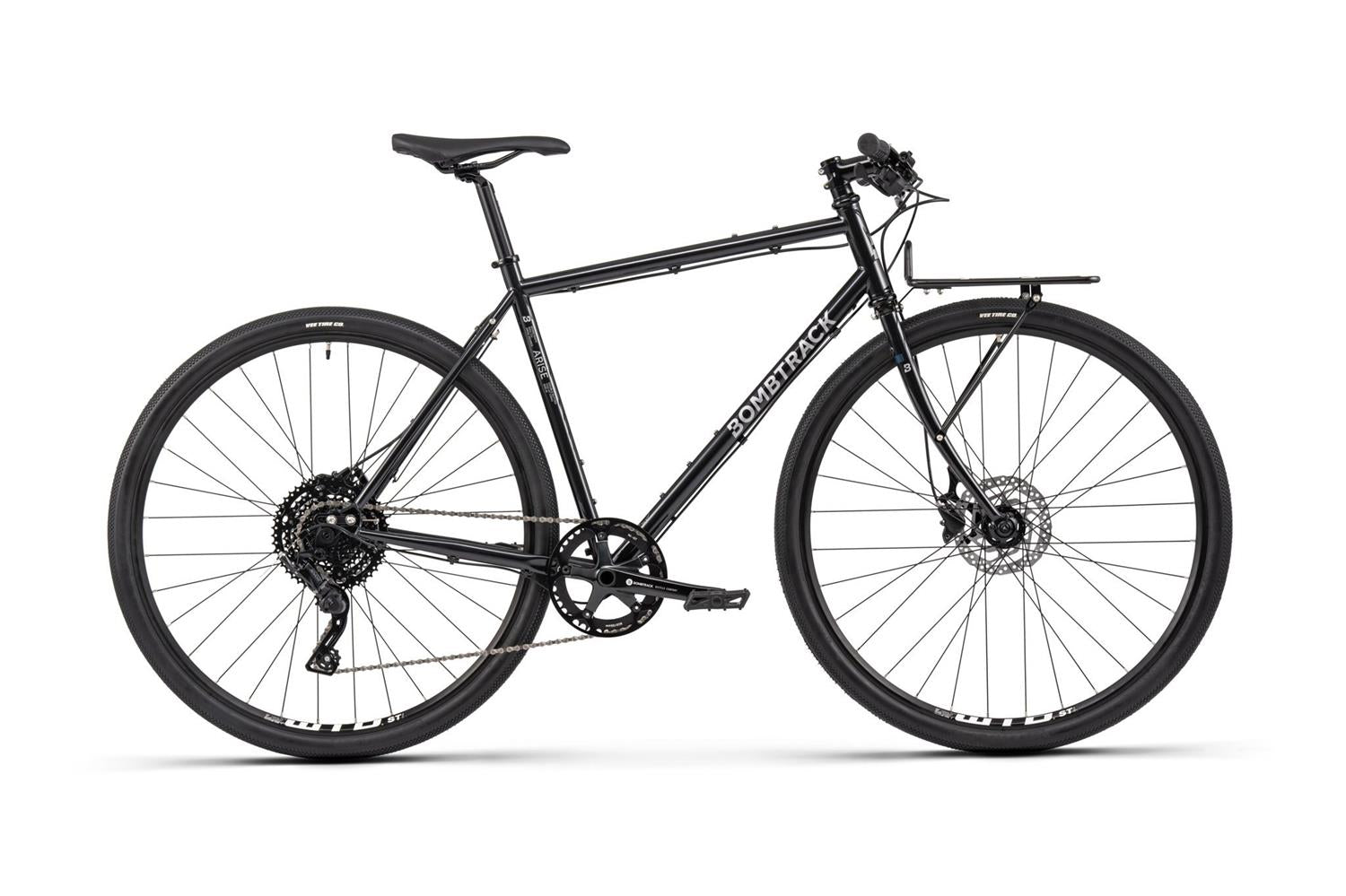

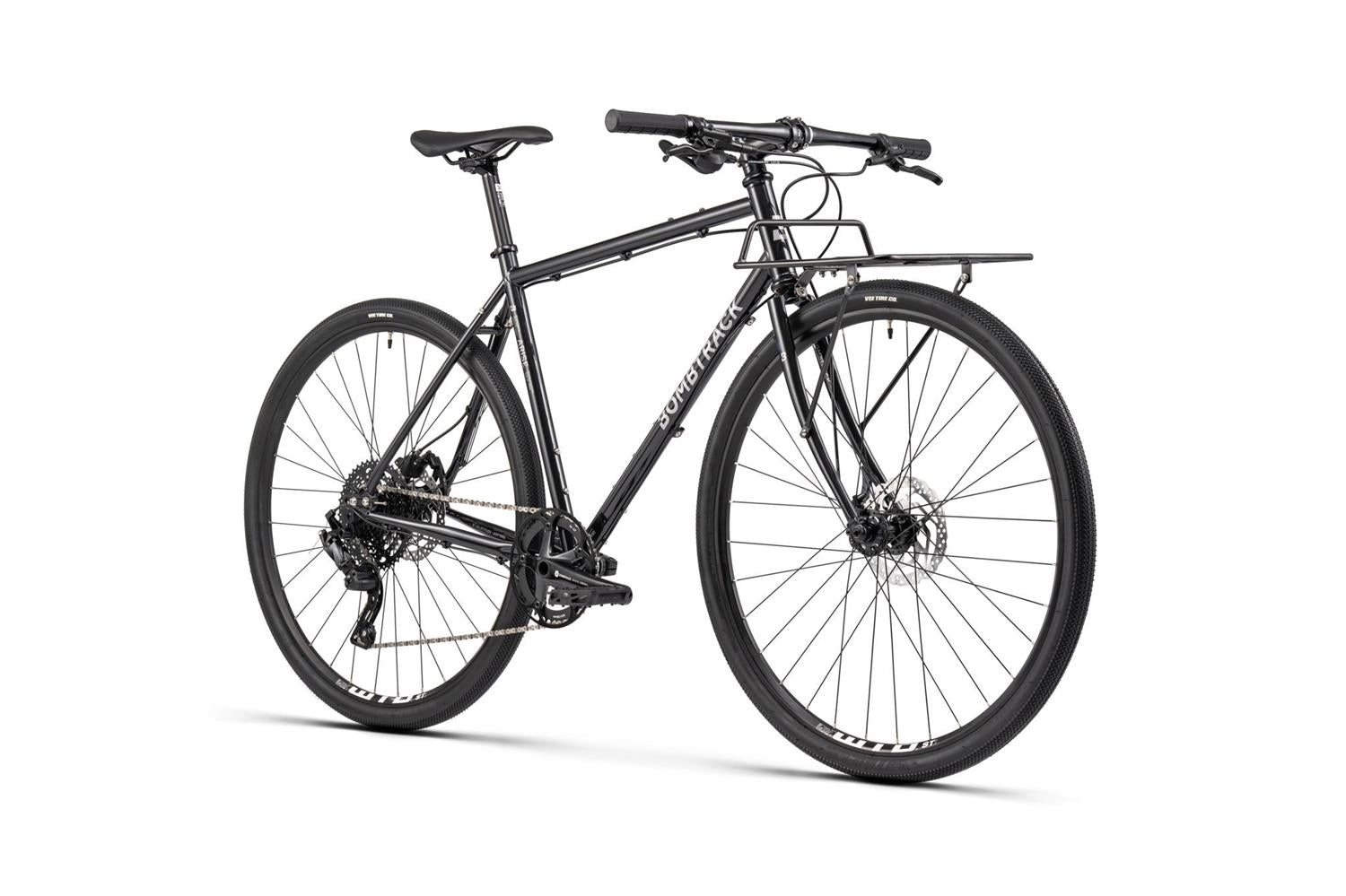

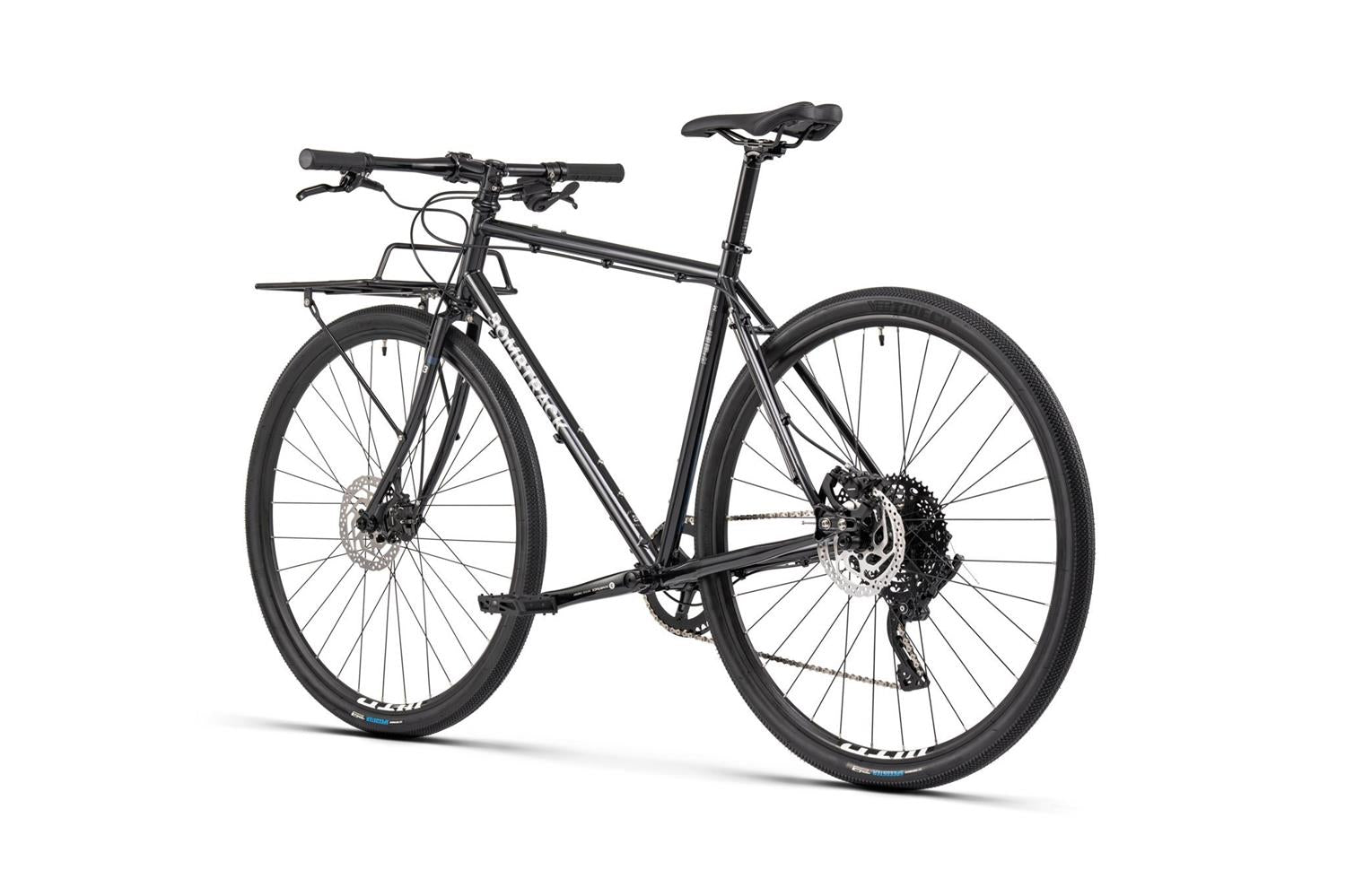

| Color 1 | Metallic black |

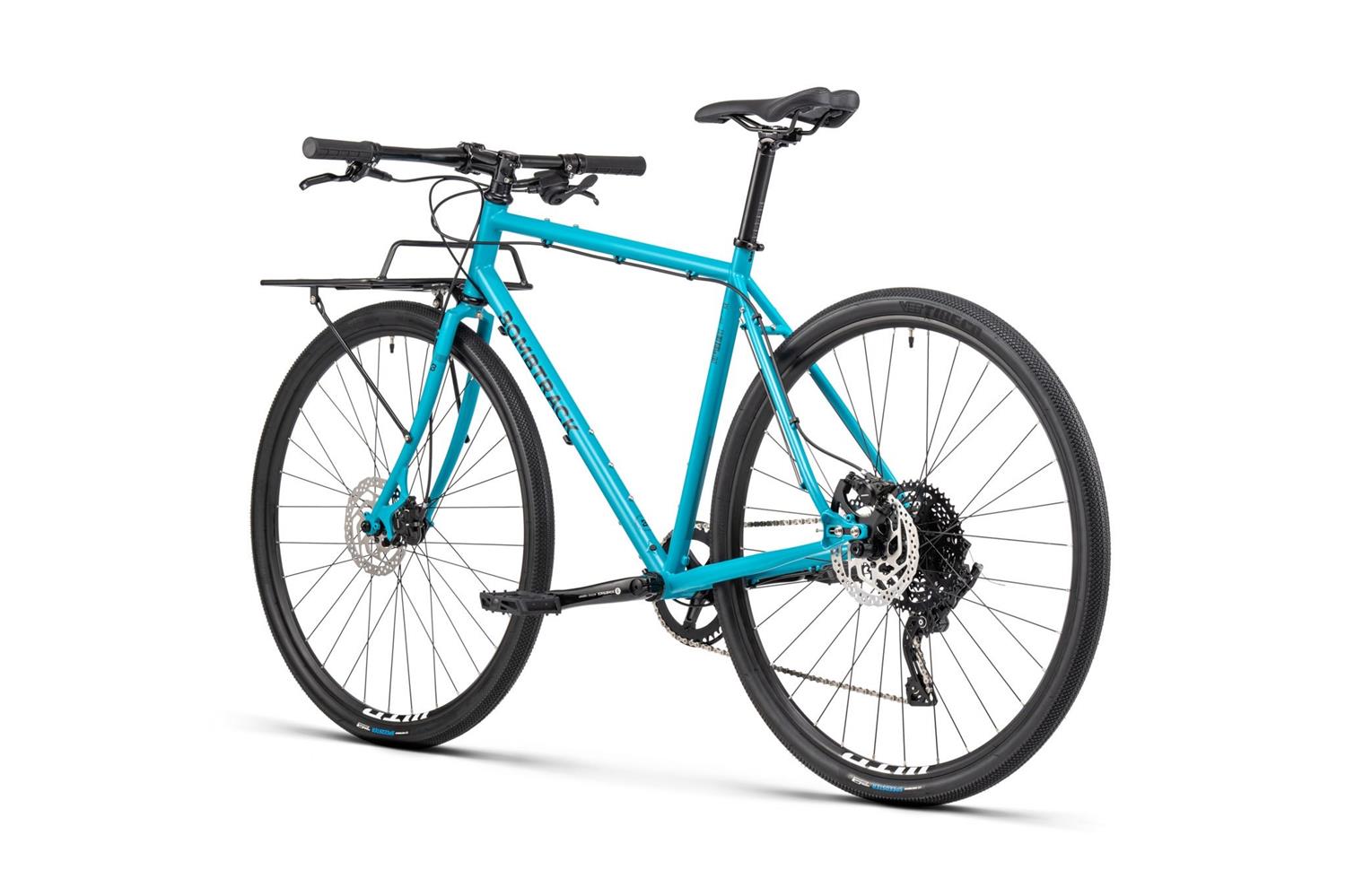

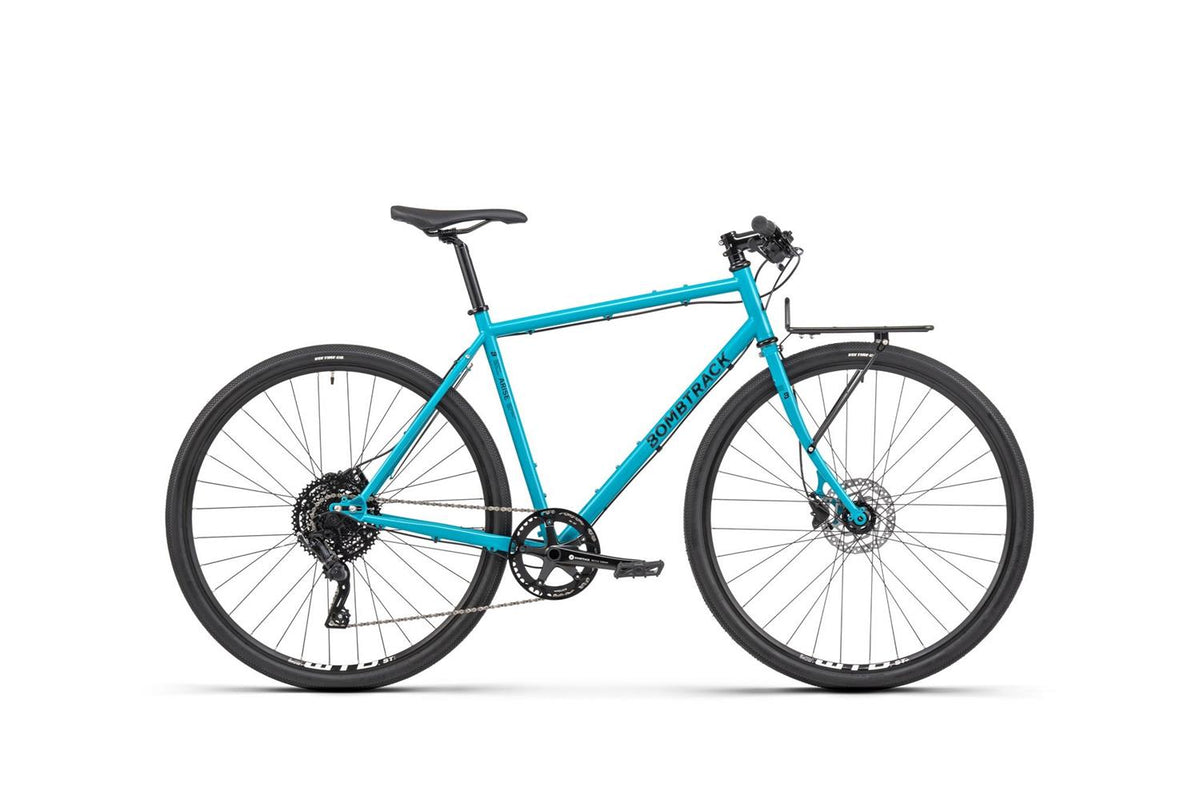

| Color 2 | Matt petrol blue |

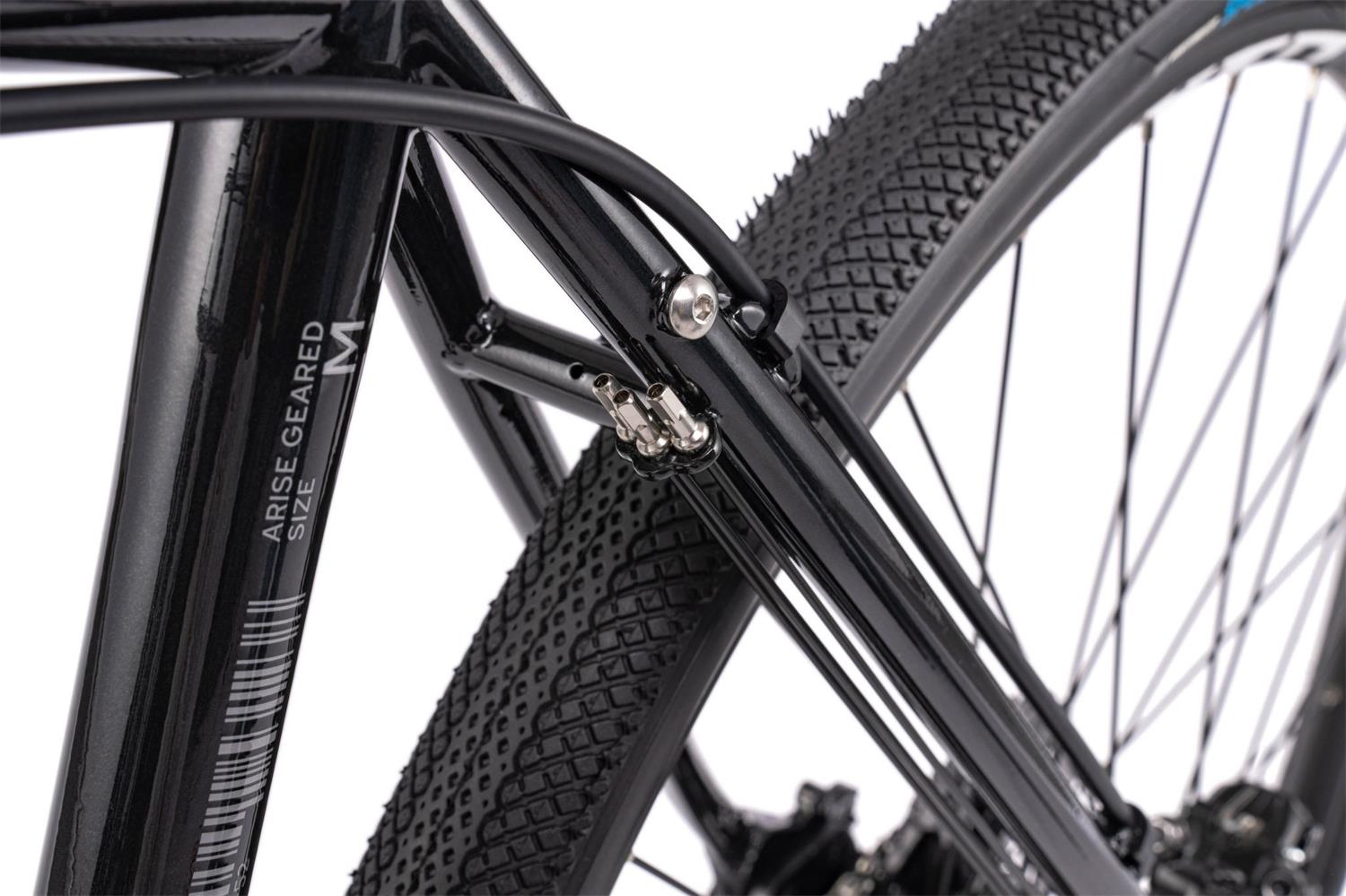

| Frame | 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell |

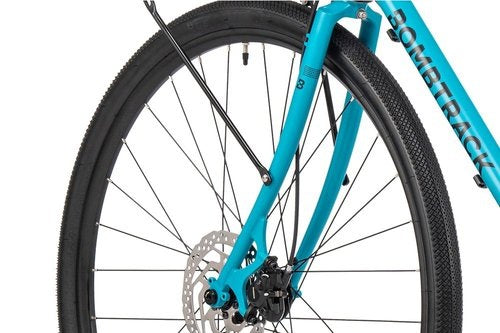

| Fork | 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing |

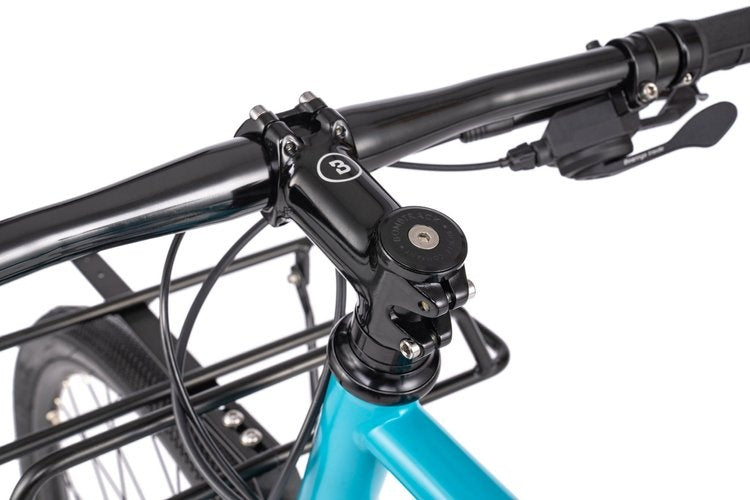

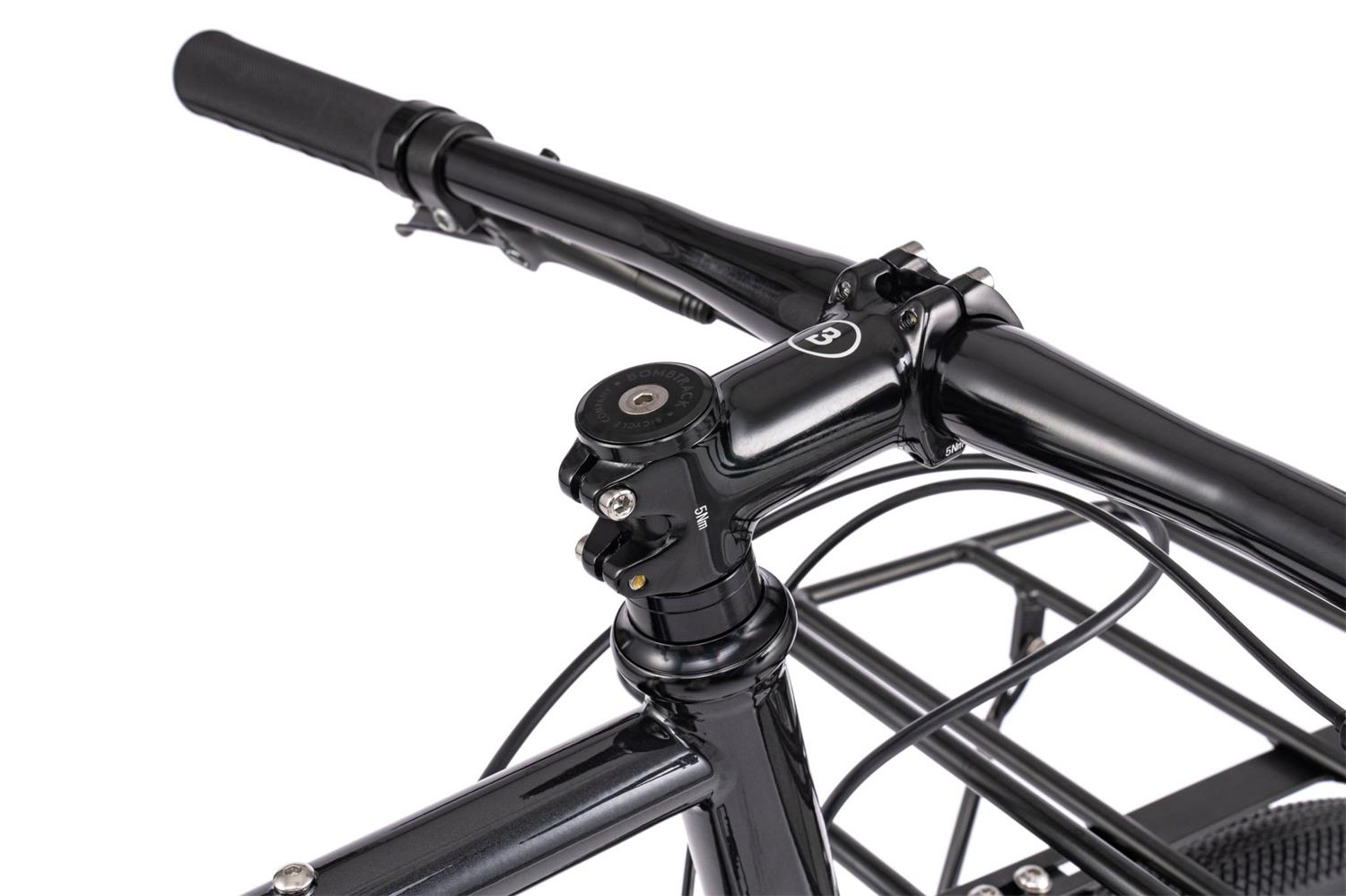

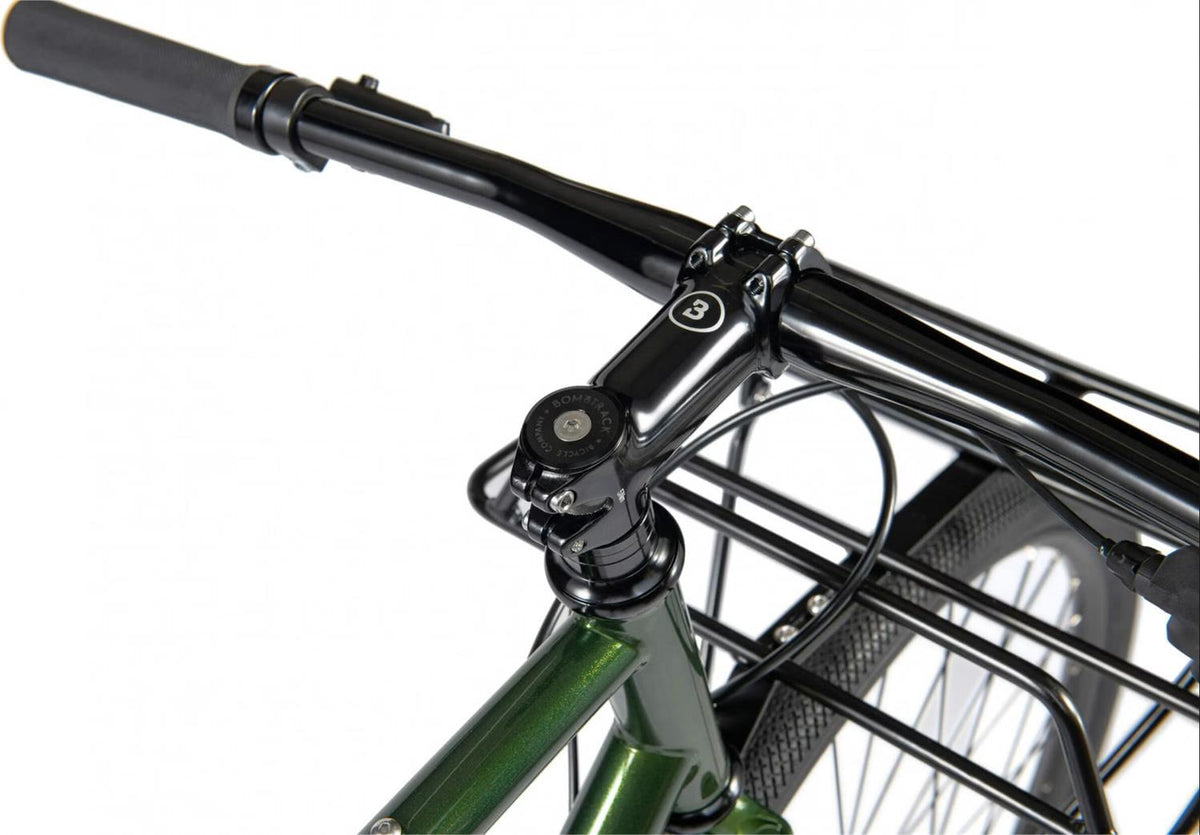

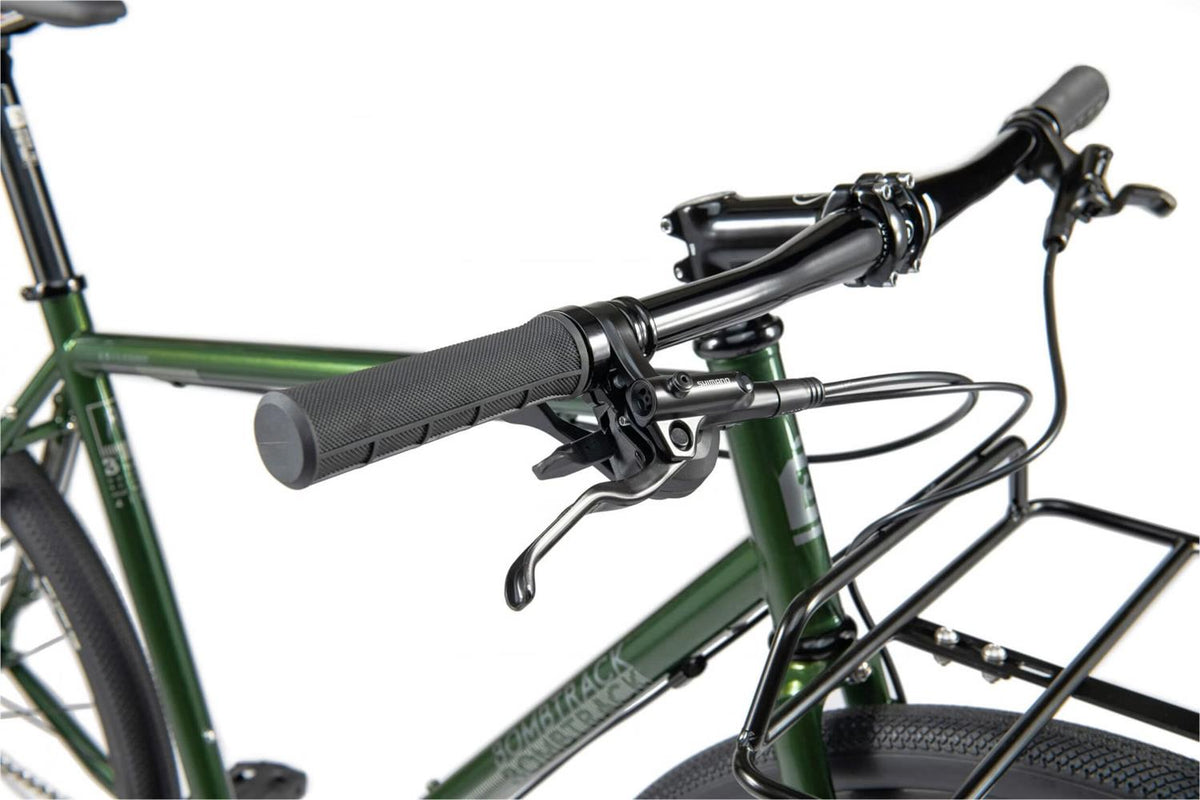

| Handlebar | Bombtrack Origin flat bar, 31.8 mm, 8° backsweep |
| Grips | Bombtrack Scroll grips |
| Stem | Bombtrack Roam forged aluminium stem, -7° |
| Headset | Neco H282 sealed external aheadset, 1.1/8'' |
| Levers | Shimano BL-MT200 hydraulic brake levers |
| Shifter | Microshift Advent SL-M8195-R shifter 1 x 9 |

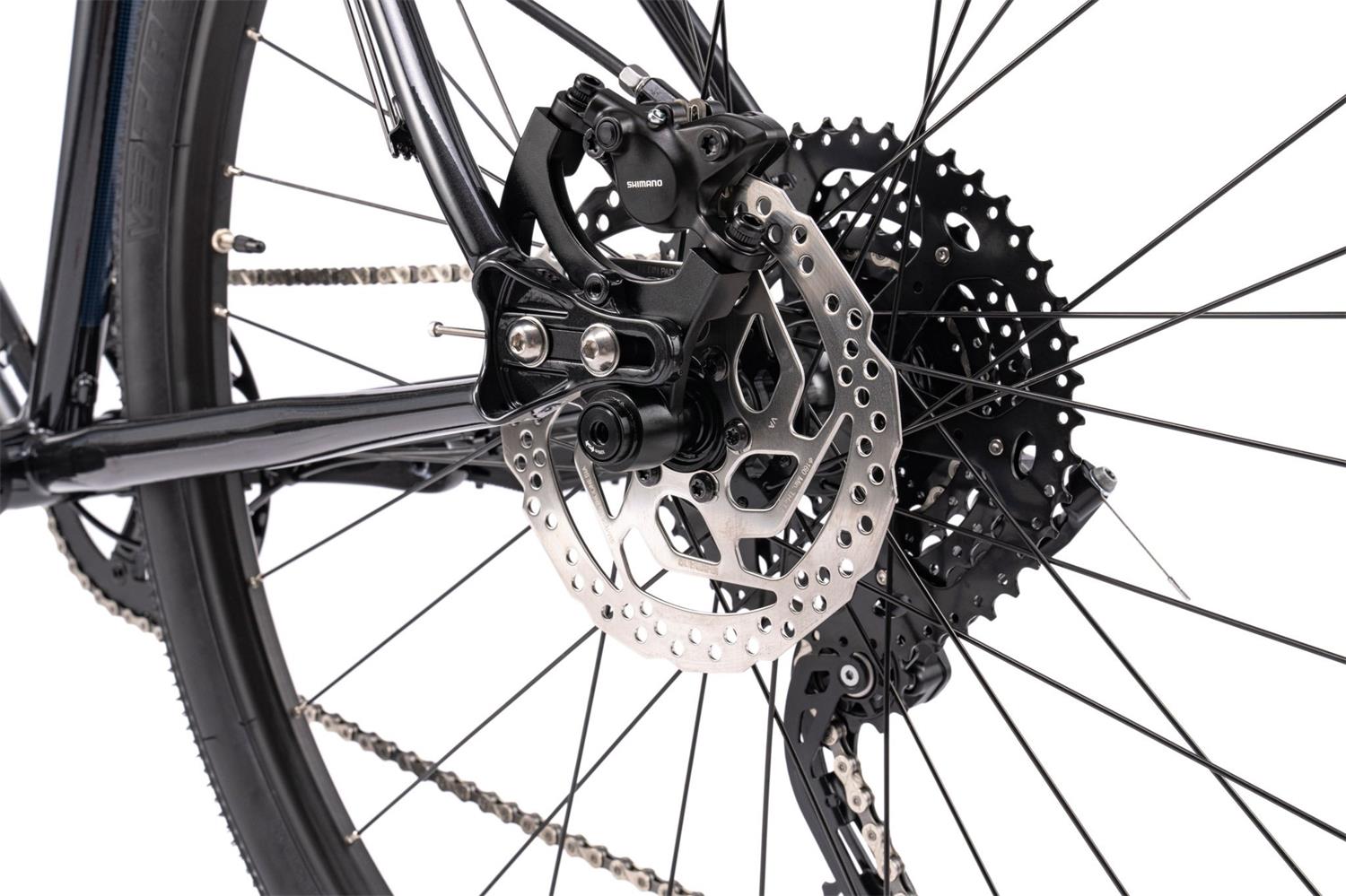

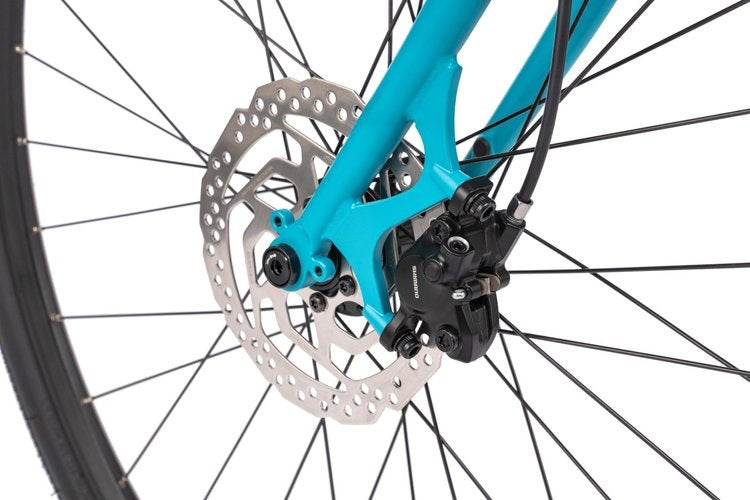

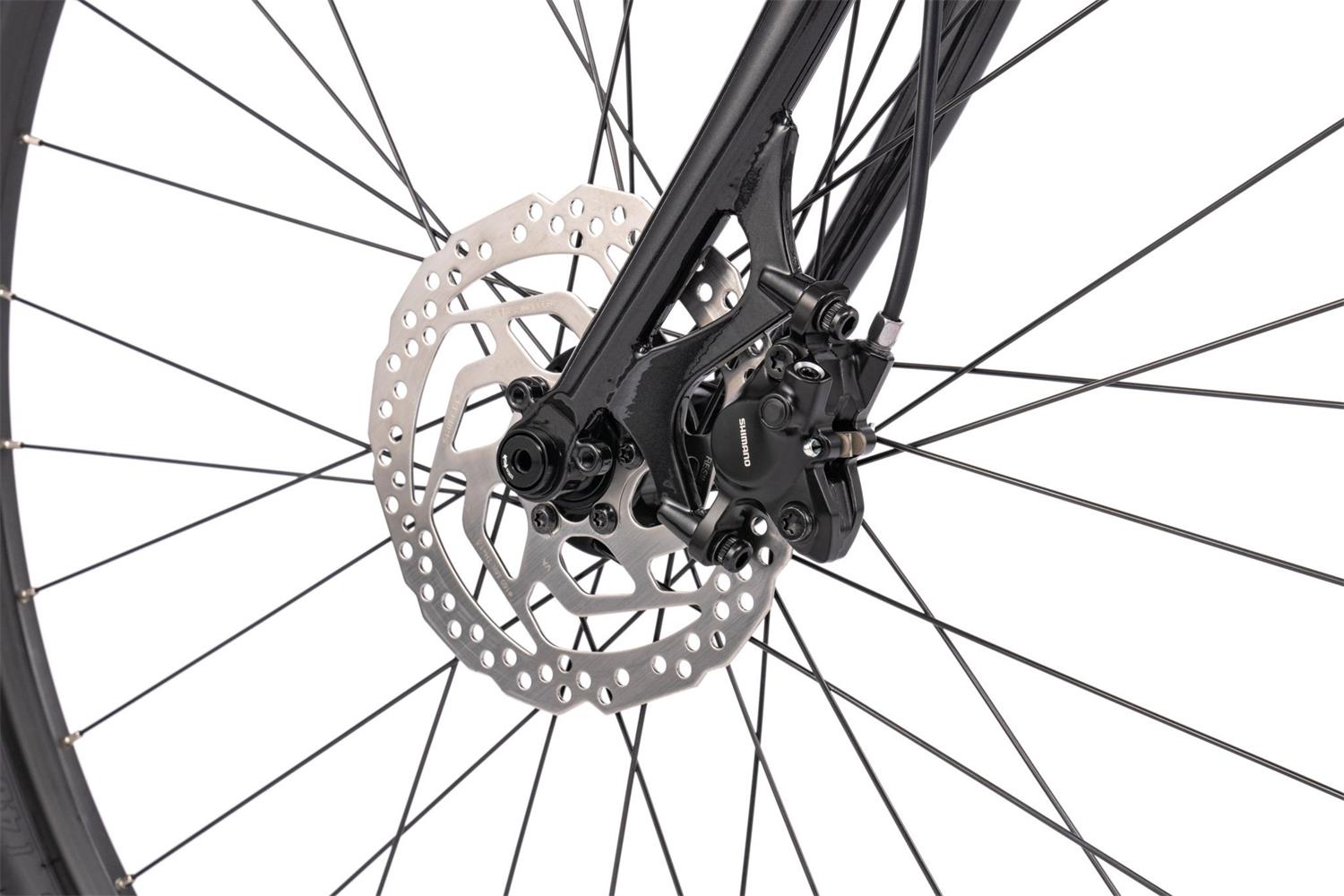

| Brakes | Shimano BR-MT200 post mount hydraulic disc brake |
| Rotor | Shimano SM-RT26 160 mm rotors |

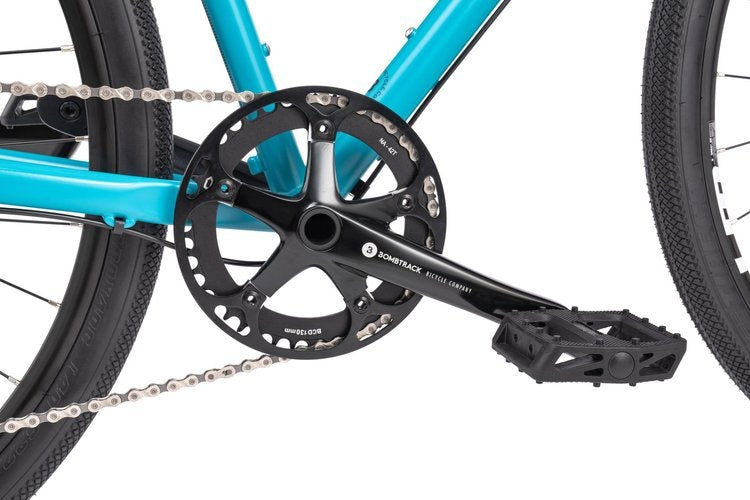

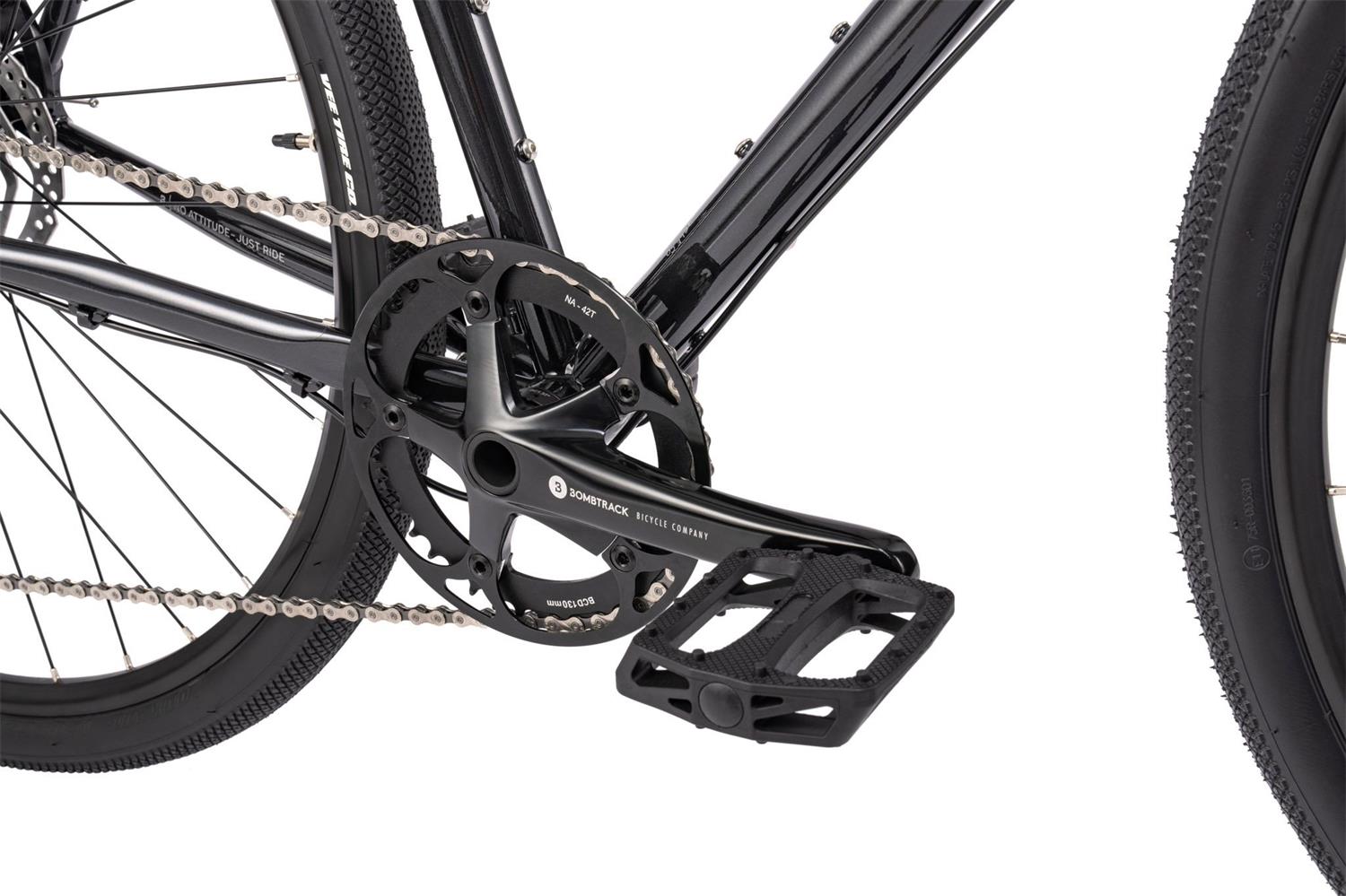

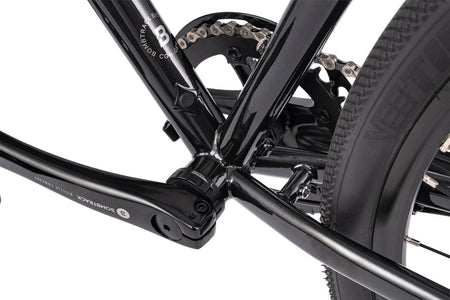

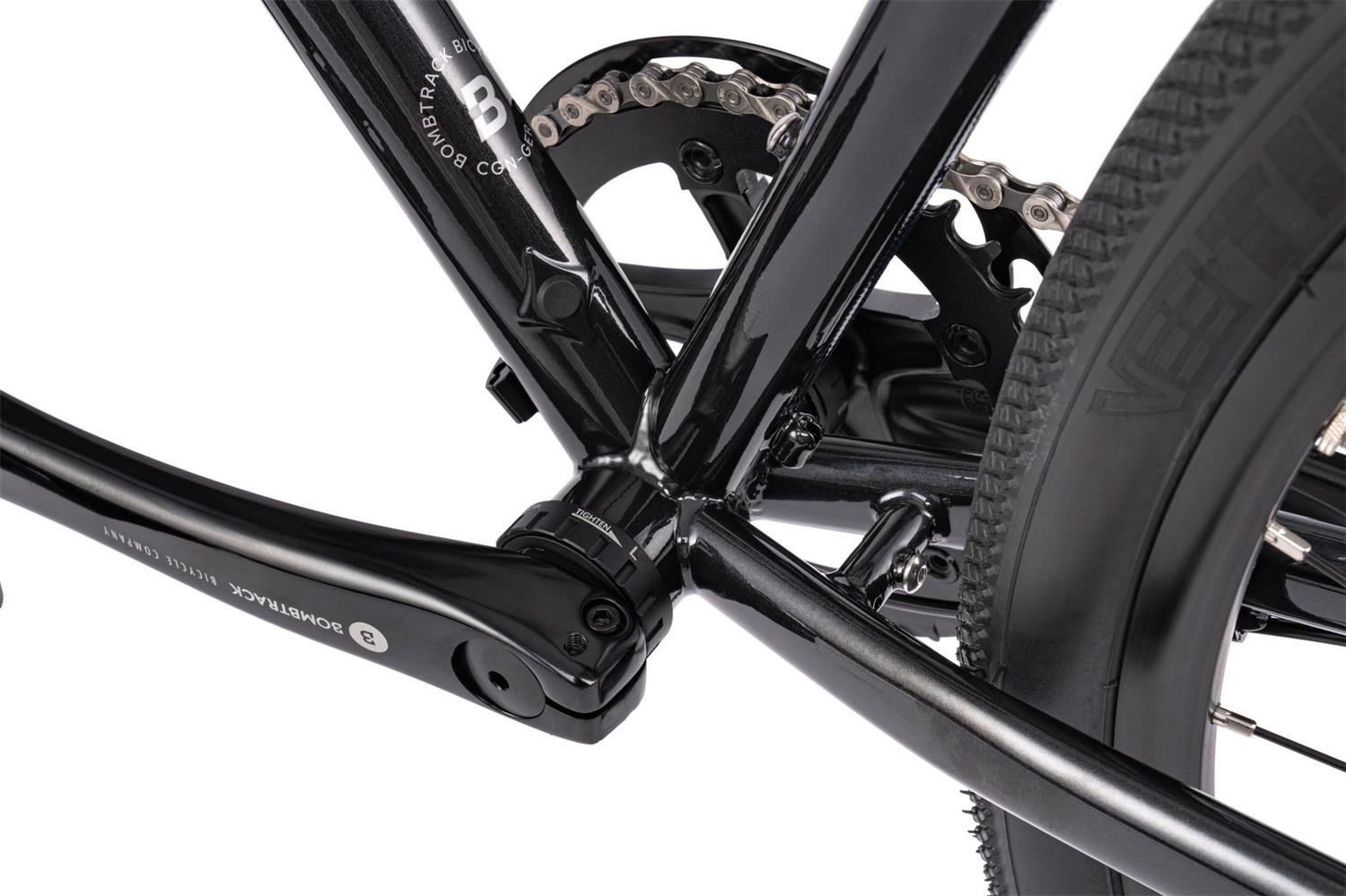

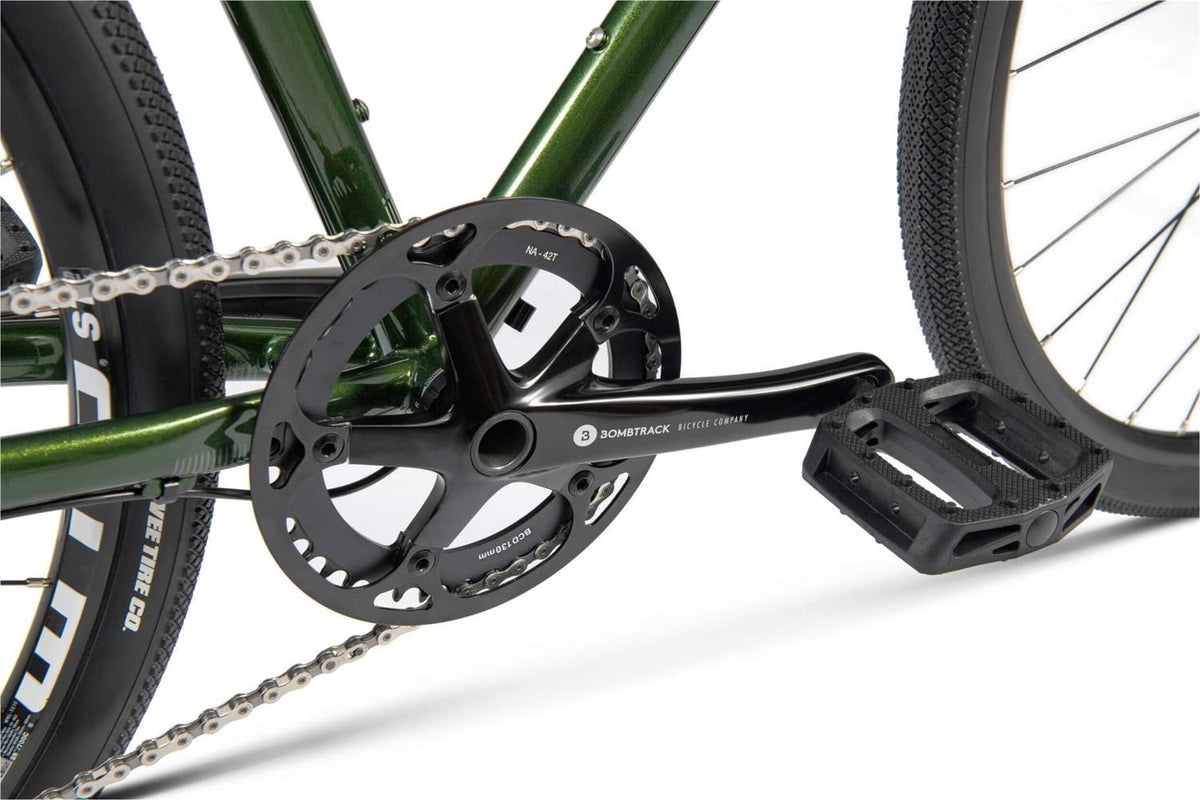

| Crankset | Bombtrack TAF19 aluminium crank, 24 mm spindle |
| BB | BSA sealed BB, external cups |
| Pedals | Wellgo B109N flat pedal |
| Chain | KMC X9 chain, 1/2'' x 11/128'', 114L |
| Chainring | Bombtrack Ridge aluminium chainring, narrow-wide, 42 T, incl. chainguard |

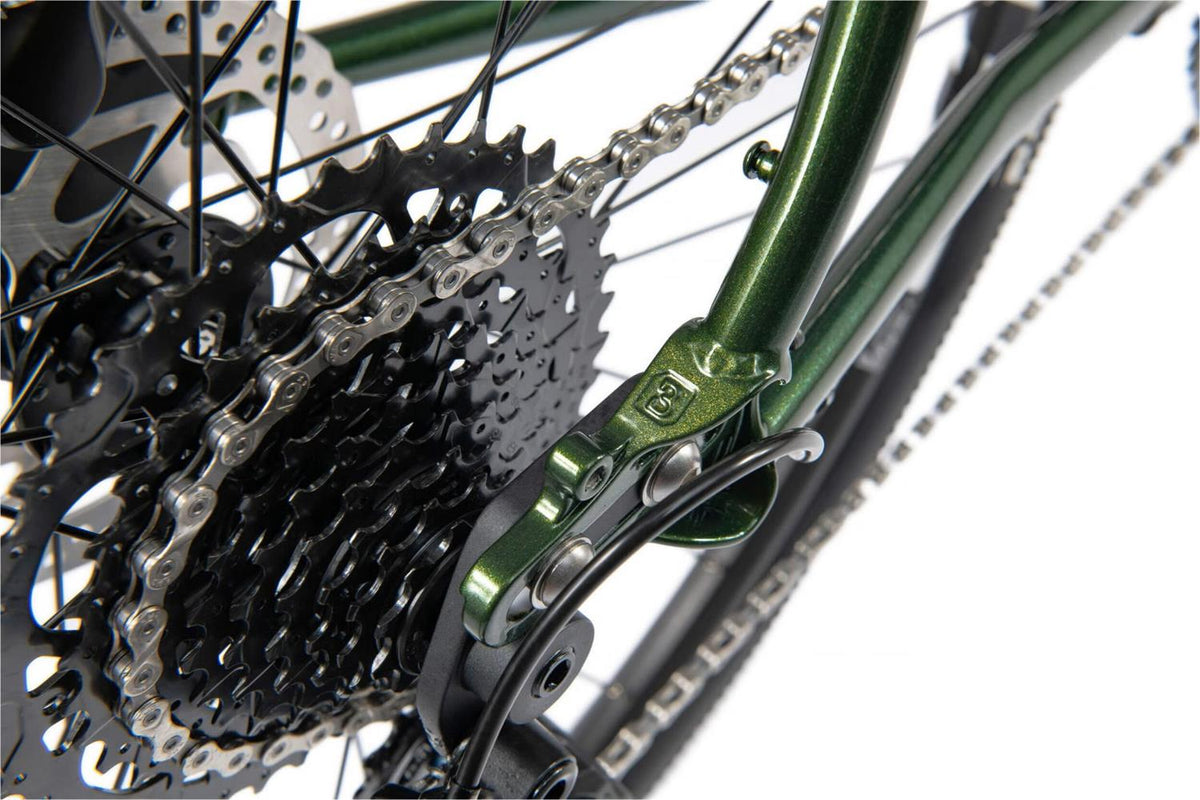

| Cassette | Microshift Advent CS-H093 9-speed, 11 - 42 T |
| Front derailleur | - |

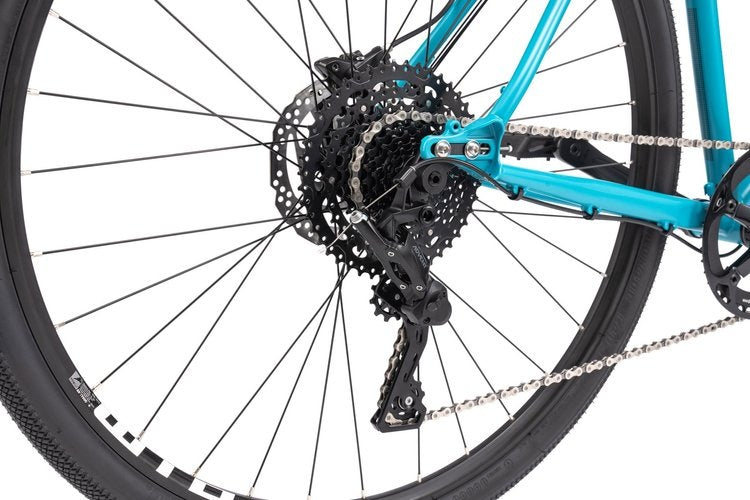

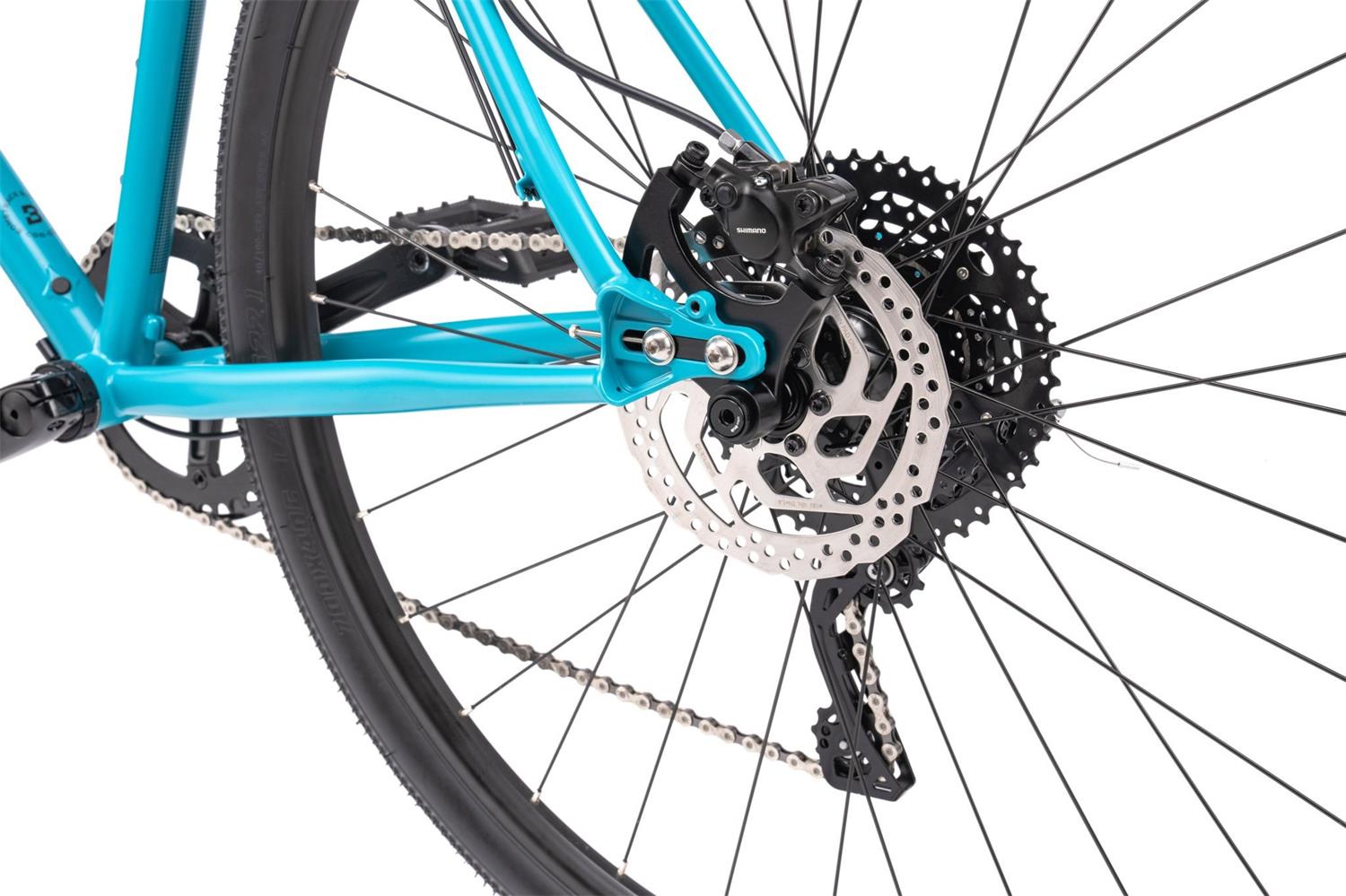

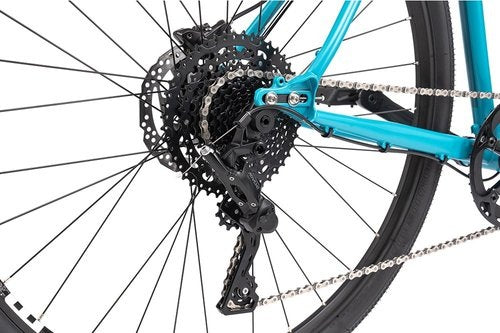

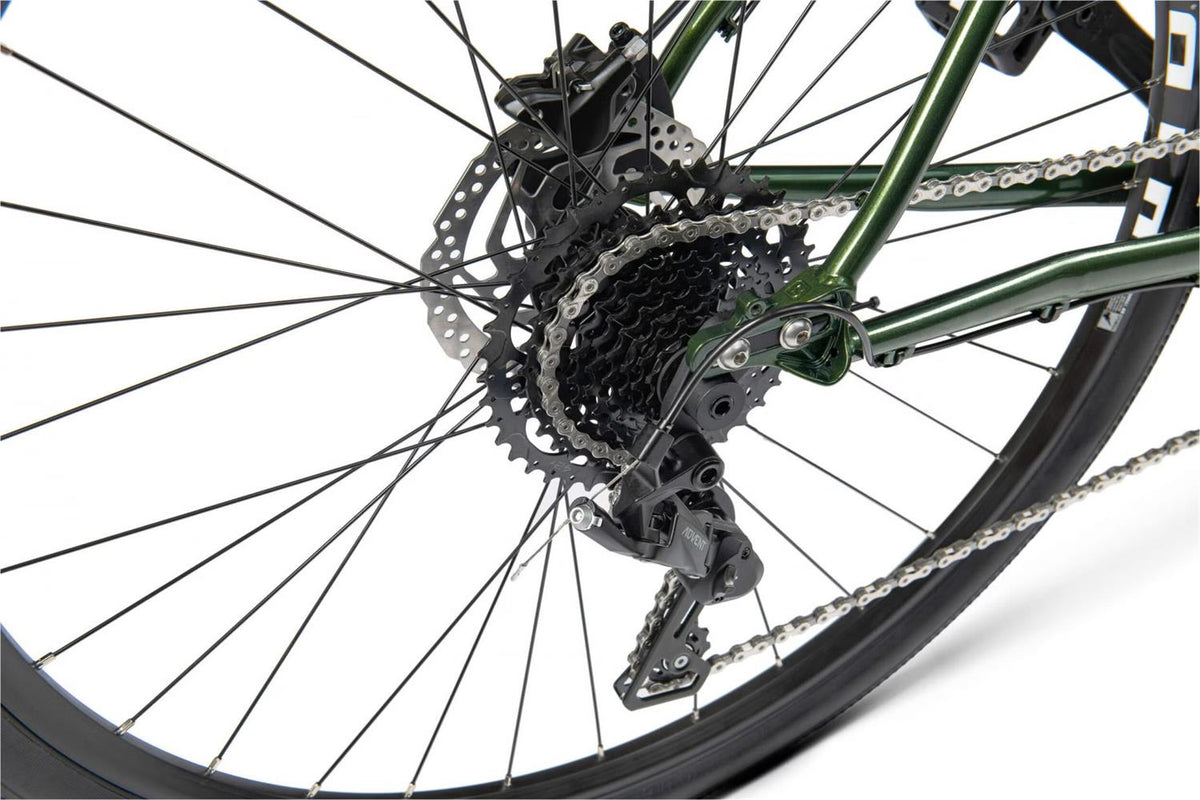

| Rear derailleur | Microshift Advent RD-M6195M wide range, clutch |

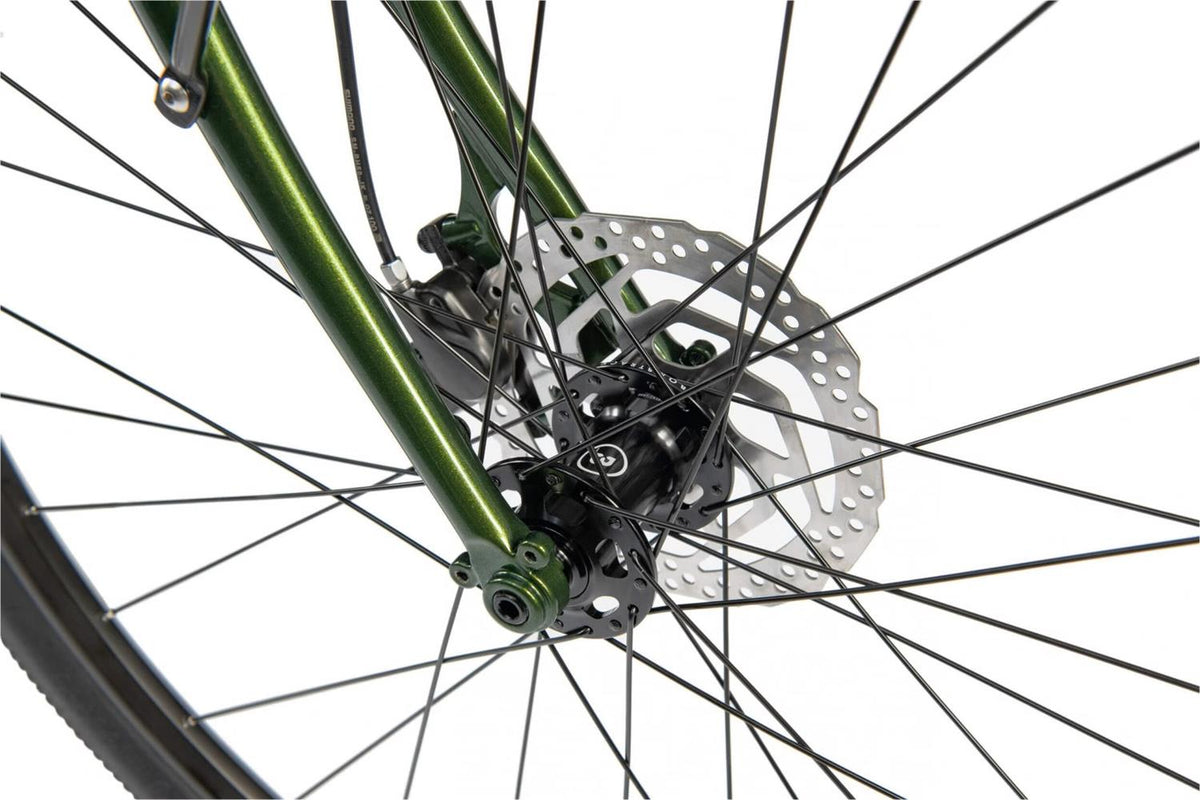

| Front hub | Bombtrack Arc sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i19 double wall, TCS 2.0, 32h |

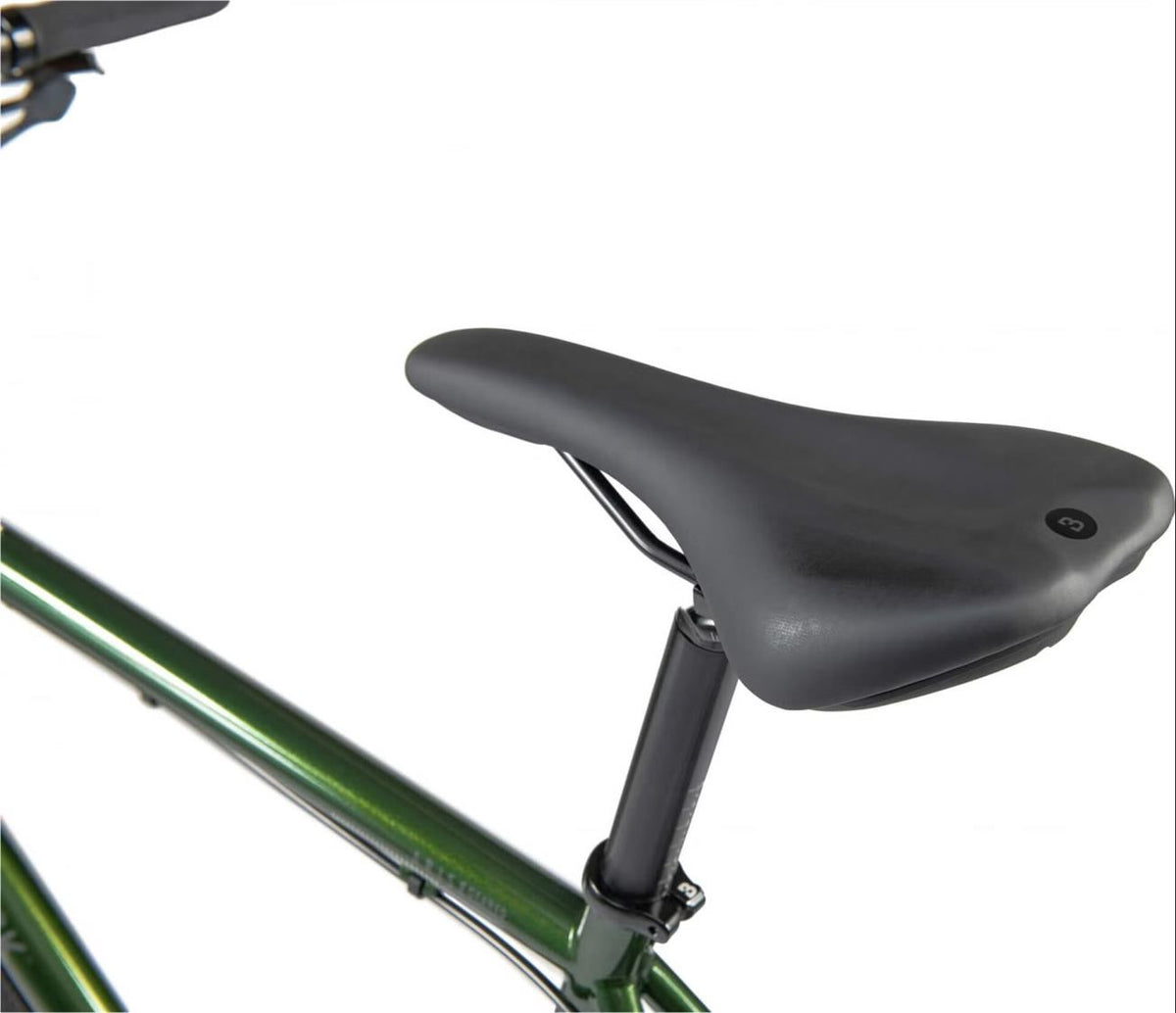

| Saddle | Bombtrack Fuzz saddle |
| Seat post | Bombtrack Beech 27.2 mm x 300 mm |
| Seat clamp | Bombtrack Origin 29.8 mm |

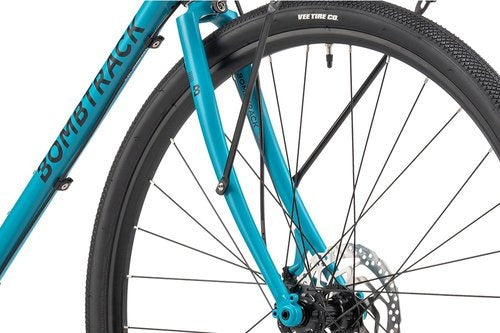

| Front tire | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Rear tire | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |

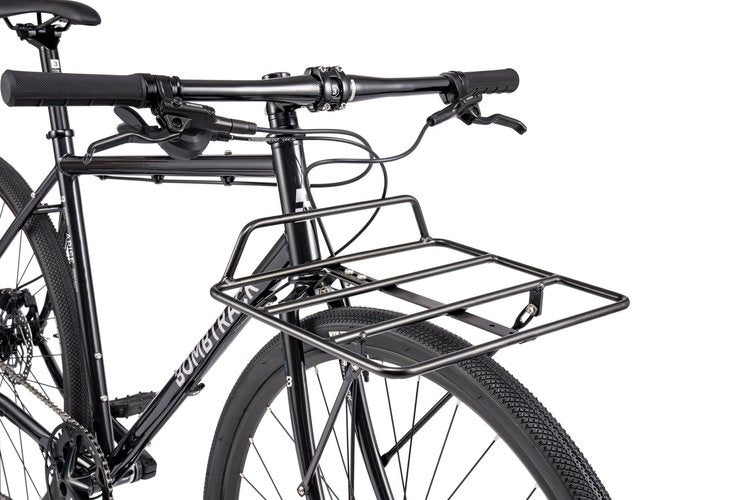

| Rack | Bombtrack Deck frontrack, aluminium |
| Weight | 12.6 kg (size M) |
| Weight frameset | 2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 120 kg incl. luggage |
| ASTM riding condition | 2 |
Final product may vary in appearance, finish and minor details.
