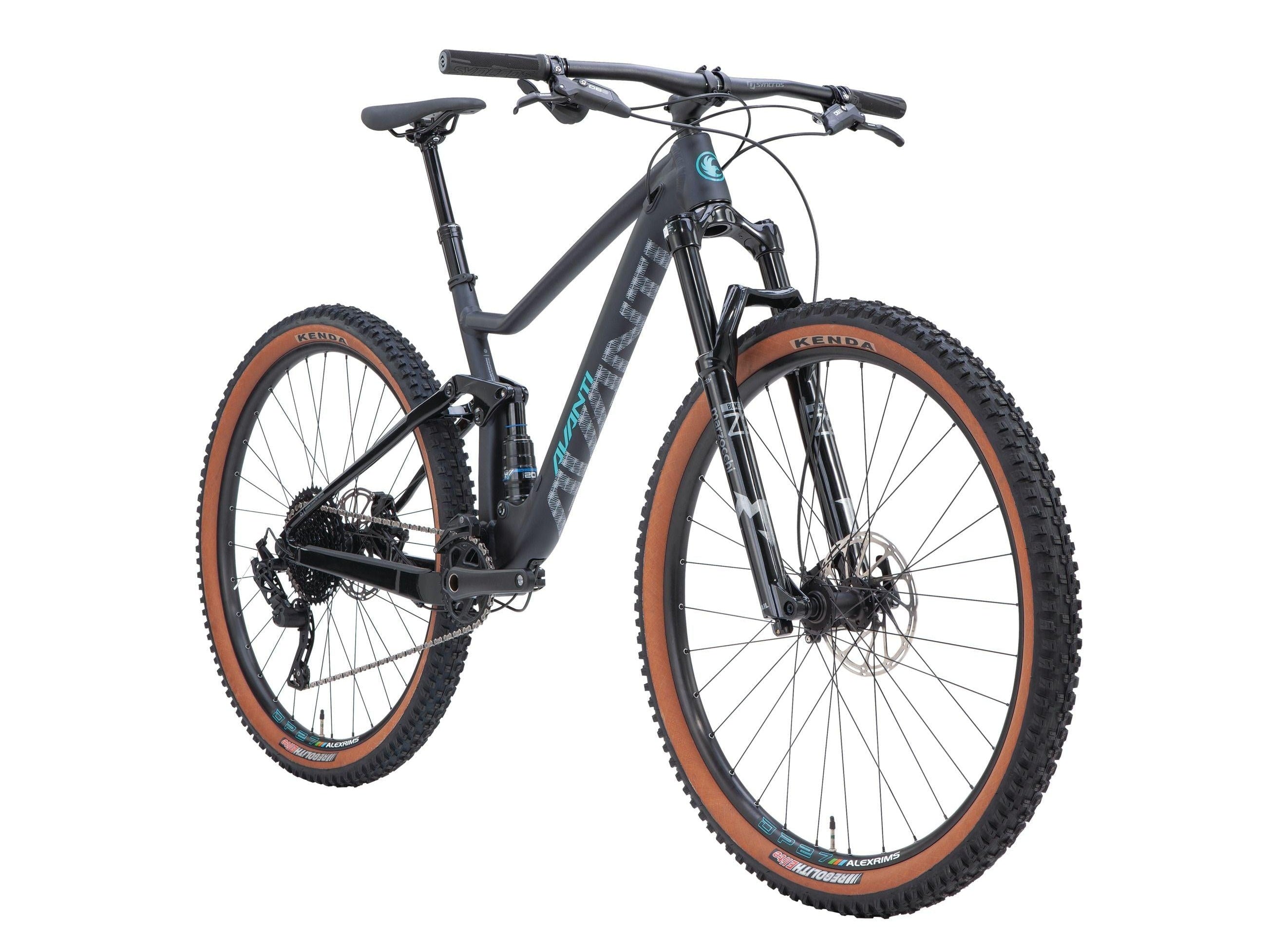

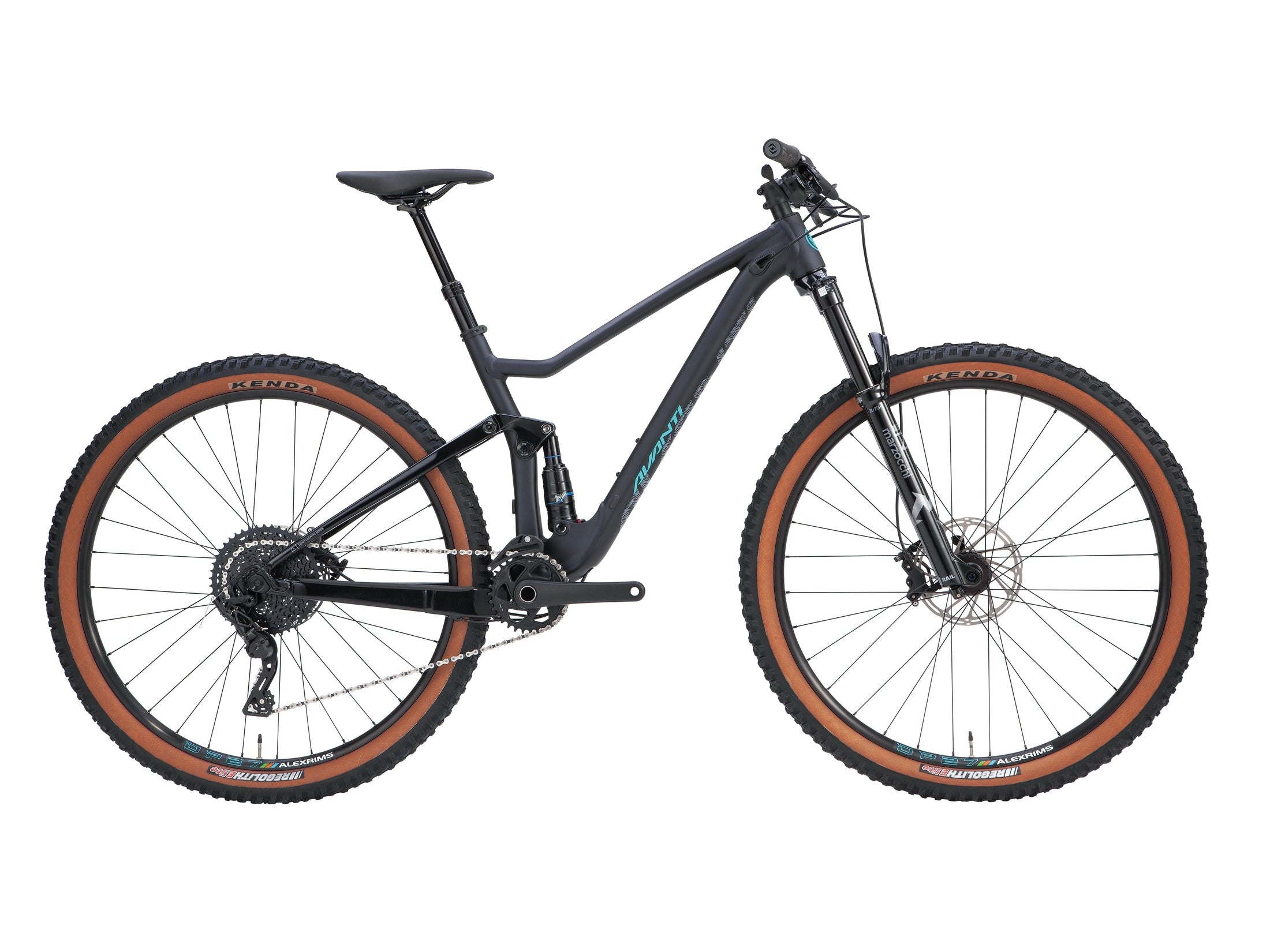

The brand new Hammer S offers a superlight, 120mm travel, butted 6061 SL alloy frame, engineered in Switzerland, with a progressive 'downcountry' geometry, featuring longer reach and a slacker head angle for a super-stable ride.
With Marzocchi's tough and light 130mm air-sprung Z2 Bomber forks, a custom-tuned X-Fusion rear air shock and a long-travel dropper, the Hammer will boost your confidence in even the toughest of trails. Wide rims and grippy 2.4" wide tubeless ready rubber will hook up on just about anything and Microshift's stunning 11sp groupset will remain flawless for years of hard riding. Now go after it!
Hammer S Key Features
- Swiss-engineered superlight 6061 SL Alloy 120mm travel 29er frame with modern 'down-country' geometry
- Marzocchi Z2 Bomber 130mm fork and X-Fusion O2 Pro R air shock
- Microshift XCD 11 speed components for bullet proof shifting
- SRAM's new 4-piston, Db8 hydraulic brakes, 180mm rotors
- Full Syncros cockpit with internally routed dropper post
| Category | Mountain Bike |
 |
|
| Family | Performance Mountain Bike |
|
|
| Model | Hammer S |
|
|
| Sizes | S, M, L, XL |
|
|
| Colour | Steel Blue |
|
|

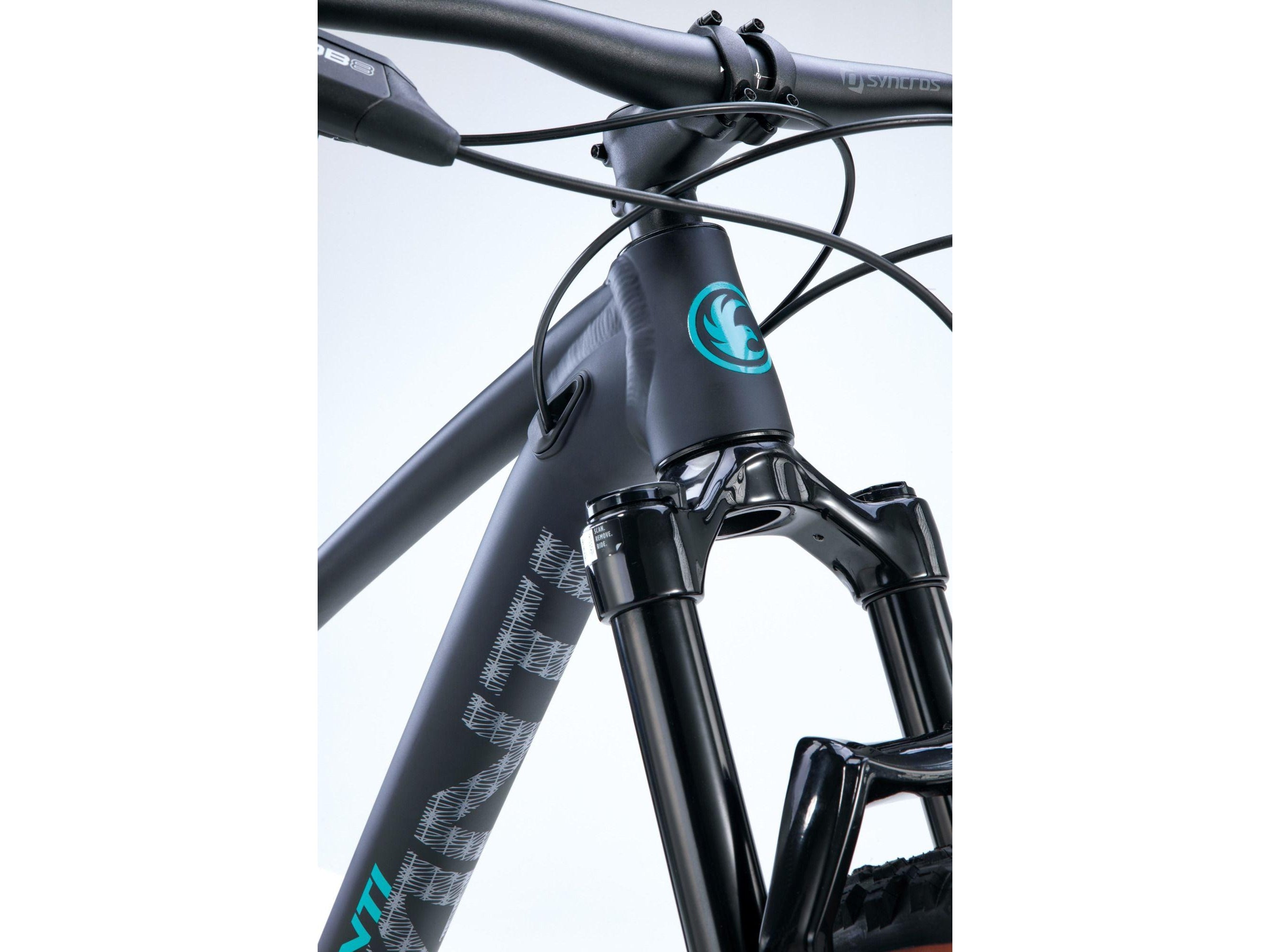

| Frame | AL-6061 Ultralight Butted tubing, 120mm travel, cartridge bearing pivots, 1.5” tapered headtube, PF92 BB, 12 x 148m |
|
|

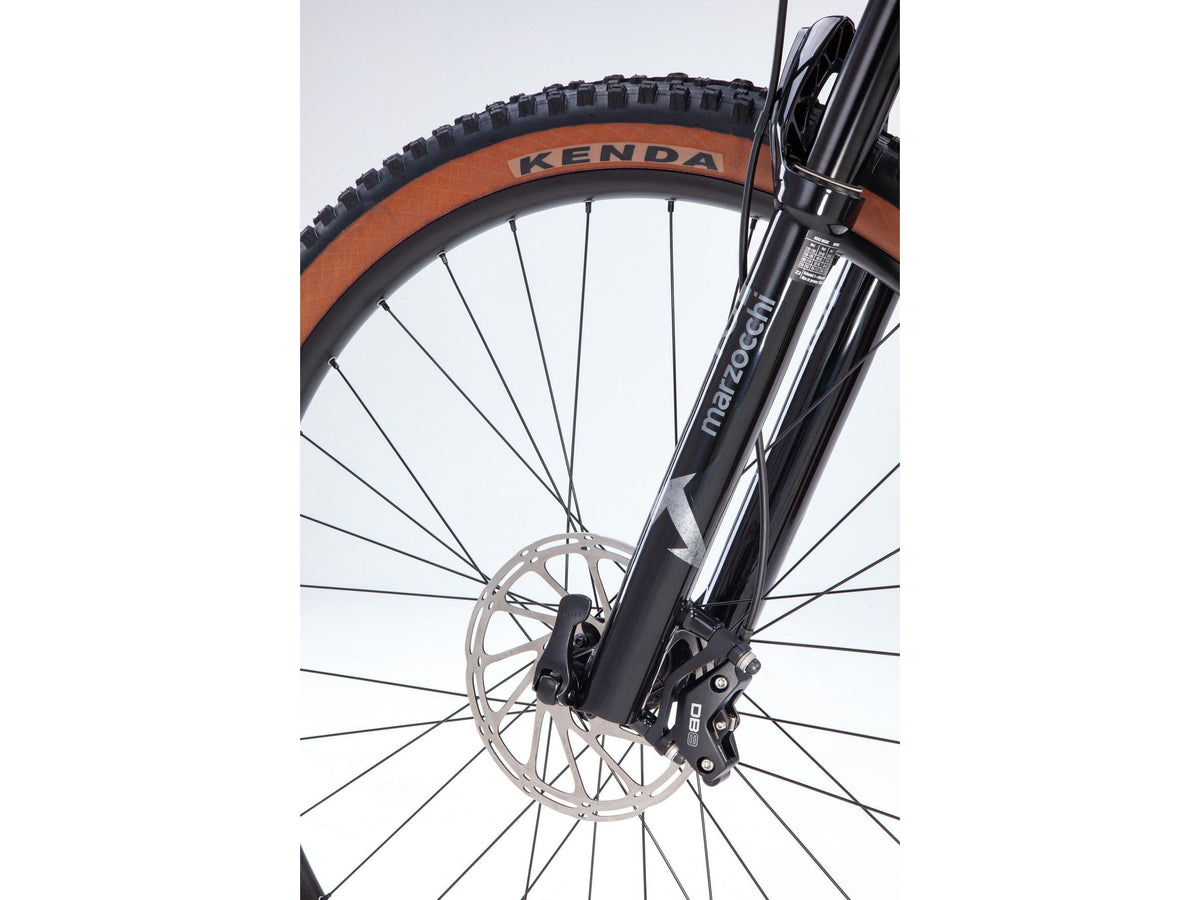

| Fork | Marzocchi Z2 Bomber Air w/RAIL damper, 15x110mm axle, 1.5” taper, 130mm travel |
|
|
| Rear Shock | X-Fusion 02 Pro R Air, with rebound adjust |
|
|
| Rear Derailleur | Microshift XCD 11sp with Clutch |
|
|
| Shifters | Microshift XCD 11sp Trail trigger w/Sealed Bearing |
|
|
| Crankset | ProWheel MPX Boost, forged alloy crank, w/32T narrow/wide alloy (replaceable) chainring) |
|
|

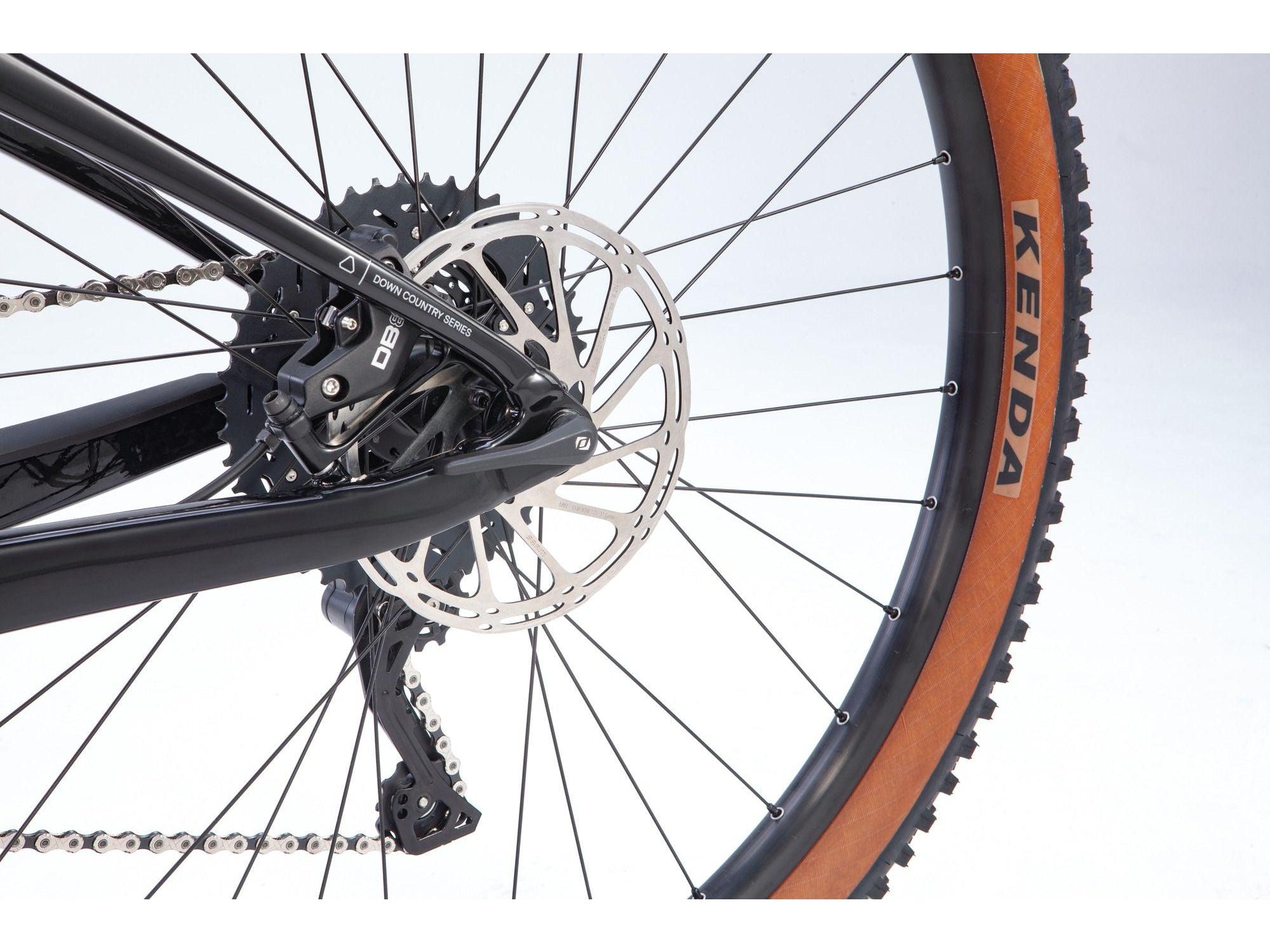

| Brakes | SRAM DB8 4-Piston hydraulic, 180mm 6-bolt rotors |
|
|
| Brake Levers | SRAM DB8 hydraulic |
|
|
| Wheelset / Rims | Alex DP-27 Double-wall Alloy with eyelet 32H, Tubeless Ready |
|
|
| Hubs | Fr: Formula Boost Sealed Bearing 110x15 32H, Rr: Formula Boost Sealed Bearing 148x12 32H |
|
|
| Spokes | Stainless steel |
|
|
| Cassette | Microshift cassette, 11-46T, 11sp |
|
|
| Handlebar | Syncros Alloy 31.8mm, with low rise, 9 deg sweep |
|
|
| Headset | Integrated Threadless Syncros OE Pressfit/ Tapered 1.5”-1 1/8” |
|
|
| Grips | Syncros Pro Lock-on |
|
|
| Tyres | Kenda Regolith, 29 x 2.4” Folding, 60tpi |
|
|
| Saddle | Syncros Belcarra 2.5 |
|
|
| Seat Post | Syncros Duncan Dropper 31.6mm with internal cable routing |
|
|
| Bottom Bracket | Pressfit |
|
|
| Chain | KMC X11 |
|
|
